True GDIM-49 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
GDIM-49
GDIM-49
Model Doors
Capacity
(Cu. Ft.)
(liters)
Floor
Racks
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDIM-49 2 49
1388
254
1/8
1375
297/8
759
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.2
6.9
5-15P
▲
9
2.74
500
227
†Depth does not include 11/8" (29 mm) for door handles. ▲Plug type varies by country.
12/05
The world’s #1 manufacturer of
glass door merchandisers.
Designed using the highest
quality materials and components
to provide the user with an
attractive, point of purchase ice
merchandiser.
Oversized, factory balanced,
refrigeration system holds 20°F
to 25°F (-.6°C to -.3°C).
Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
Interior - attractive, NSF
approved, white aluminum
interior liner with 300 series
stainless steel floor. Interior floor
rack and backguard standard.
Self closing doors. Positive seal,
torsion type closure system.
Heated, triple pane thermal
insulated glass door assemblies
with extruded aluminum frames.
Patented integrated door light
(IDL) system for brighter, shadow
free illumination.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
Holds (100) 8 lbs. (4 kg) bags
of ice.
Ice Merchandiser:
Glass Door
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDIM-49 TFRY05E TFRY05S TFRY05P TFRY053
GDIM-49
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, and
lower utility costs in an attractive ice
merchandiser.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 20°F to 25°F
(-.6°C to -.3°C) cabinet temperature.
• Sealed, cast iron, self-lubricating evaporator
fan motors and larger fan blades give
True merchandisers a more efficient low
velocity, high volume airflow design. This
unique design insures colder standard
temperatures and faster recovery in high
use situations.
• Bottom mounted condensing unit
positioned for easy maintenance; “No
stoop” design maximizes visibility
by raising merchandised product to
higher level.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel.
DOORS
• Heated, triple pane thermal insulated glass
door assemblies with extruded aluminum
frames. Minimizes condensation build up
on glass for more effective merchandising.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Self closing doors. Positive seal, torsion
type closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
STORAGE CAPACITY
• Interior floor racks and backguards prevent
bags of ice from blocking optimal airflow.
• 12" (305 mm) interior basin to protect from
melt-down of product.
• Holds (100) 8 lbs. (4 kg) bags of ice.
LIGHTING
• Fluorescent interior lighting. Doors utilize
full-length, patented, integrated door light
(IDL) system. Safety shielded.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230-240V / 50 Hz.
❒ Black exterior.
❒ Rosewood exterior.
❒ Stainless steel exterior.
❒ Black aluminum interior liner.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Padlocks.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R

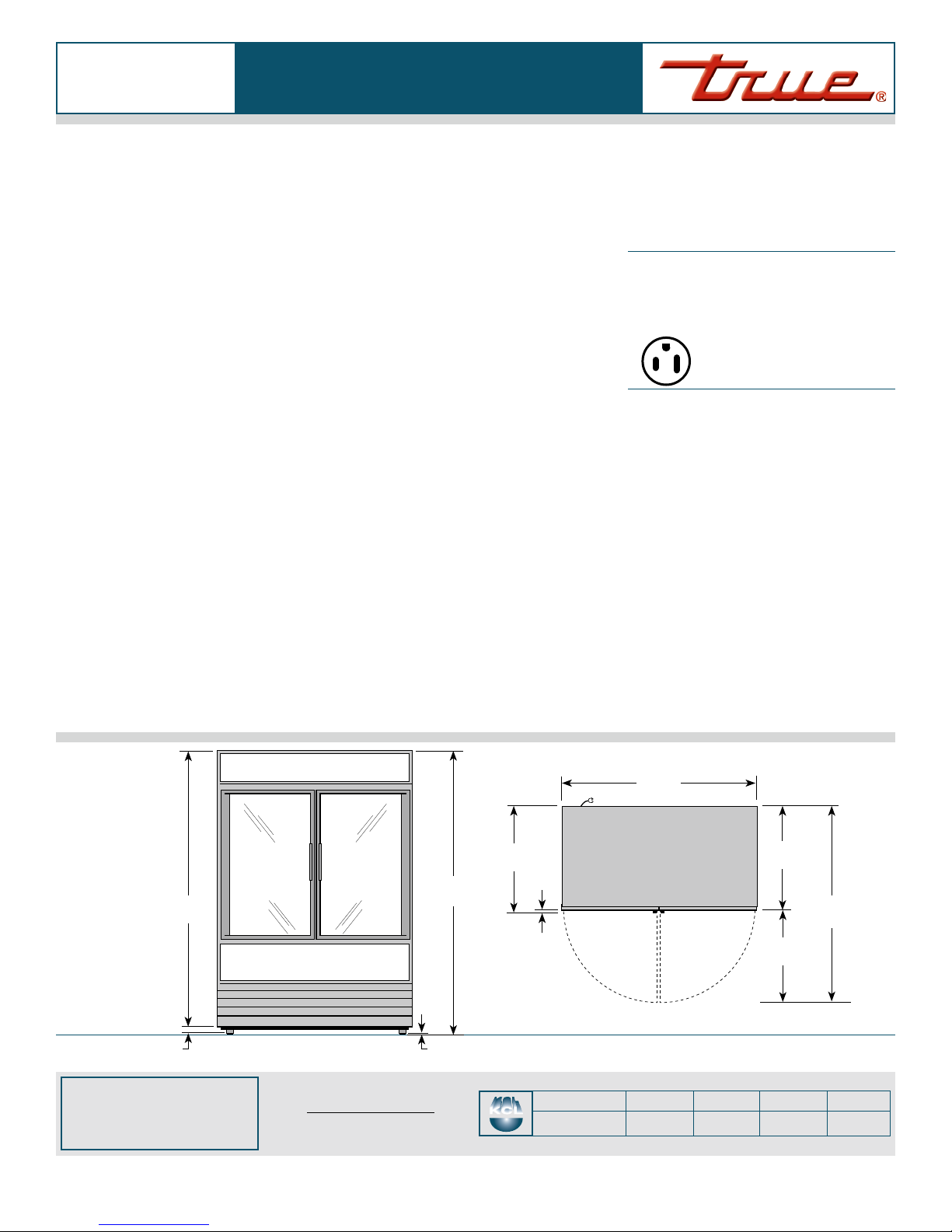

ELEVATION PLAN VIEW
Ice Merchandiser:
Glass Door
7615/16"
(1955 mm)
541/8"
(1375 mm)
2913/16"
(758 mm)
543/4"
(1391 mm)
3029/32"
(786 mm)
13/8"
(35 mm)
5/16"
(8 mm)
2415/16"
(634 mm)
13/32"
(28 mm)
785/8"
(1998 mm)
