True GDM-23FC User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
GDM-23FC
GDM-23FC
Model Door
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-23FC 1 23
652
227
686
297/8
759
785/8
1998
1/3
1/3
115/60/1
230-240/50/1
7.2
3.0
5-15P
▲
9
2.74
295
134
†Depth does not include 11/8" (29 mm) for door handle. ▲Plug type varies by country.
1/06
The world’s #1 manufacturer of glass
door merchandisers.
Oversized and balanced refrigeration
system, factory sealed and pre-
lubricated for long life. Designed to
accommodate a broad range of floral
temperature settings, holds 35°F
(1.6°C).
Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
black aluminum interior liner with
300 series stainless steel floor.
Self closing door. Positive seal,
torsion type closure system.
“Low-E”, double pane thermal
glass door assembly with extruded
aluminum frame. The latest in
energy efficient technology.
Patented integrated door light (IDL)
system for brighter, shadow free
illumination. Special interior agro
lighting designed for flowers to
prevent premature discoloration.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
Glass Door Merchandiser:
Floral Case
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDM-23FC TFAZ03E TFAY03S TFAZ03P TFAZ033
GDM-23FC
DESIGN
• True’s commitment to using the highest
quality materials and refrigeration systems
provides the user with better product
temperatures, and lower utility costs in
an attractive merchandiser that brilliantly
displays high profit floral arrangements.
• True’s floral merchandisers offer interior
agro lighting combined with a baffled
airflow design which creates the ideal
environment to prolong fresh flower
shelf life.
• Brilliant black exterior and interior with
product accentuating black shelves further
entice customers to purchase high profit
floral arrangements.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
• Oversized and balanced refrigeration
system, factory sealed and pre-lubricated
for long life. Designed to accommodate a
broad range of floral temperature settings,
holds 35°F (1.6°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True merchandisers a more
efficient low velocity, high volume airflow
design.
• Baffled airflow provides even air
distibution for longer shelf life of fresh
flowers.
• Bottom mounted condensing unit
positioned for easy maintenance; “No
stoop” lower shelf maximizes visibility by
raising merchandised product to higher
level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, black
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOOR
• “Low-E”, double pane thermal glass door
assembly with extruded aluminum frame.
The latest in energy efficient technology.
• Door fitted with 15" (381 mm) long
extruded aluminum handle.
• Self closing door. Positive seal, torsion type
closure system.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty black PVC
coated wire shelves 229/16"L x 231/4"D
(574 mm x 591 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Fluorescent interior lighting. Door utilizes
full-length, patented, integrated door light
(IDL) system. Safety shielded.
• Special interior agro lighting designed
for flowers to prevent premature
discoloration.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒White exterior.
❒Rosewood exterior.
❒Mirrored back.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒Barrel locks.
❒White shelves.
❒20 oz. TrueTrac 4 organizers.
❒Wine wire rack.
❒Sliding wine rack.
❒Chocolate thermostat.
❒White wine thermostat.
❒Red wine thermostat.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R
PLAN VIEW
Glass Door Merchandiser:
Floral Case

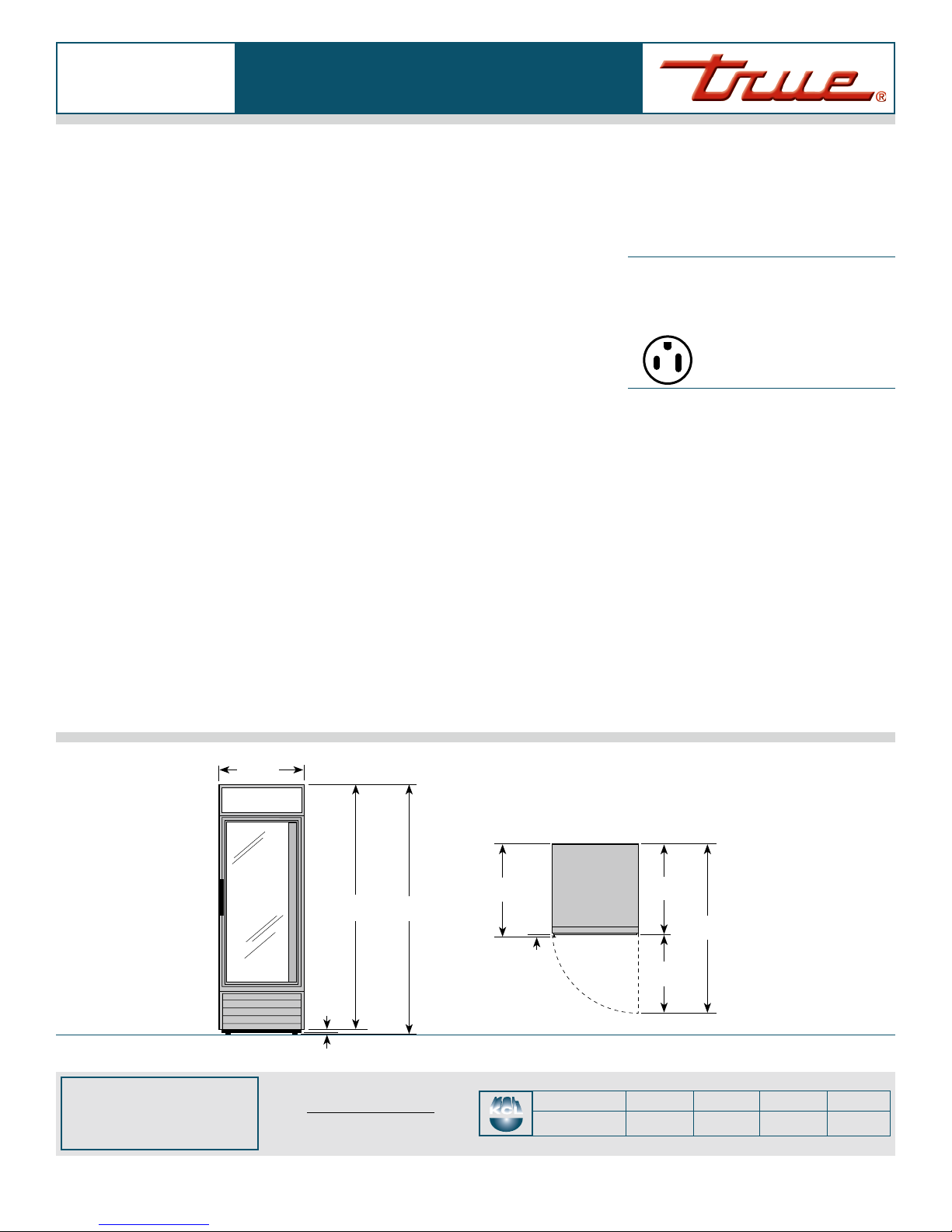

ELEVATION
27"
(686 mm)
7615/16"
(1955 mm) 785/8"
(1998 mm)
13/8"
(35 mm)
5/16"
(8 mm)
543/4"
(1391 mm)
2913/16"
(758 mm)
3029/32"
(786 mm)
13/32"
(28 mm) 2415/16"
(634 mm)
