True GDM-3 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
GDM-3
GDM-3
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-3 1 4.4
125
219
483
197/8
505
337/8
861
1/8115/60/1 2.4 5-15P 9
2.74
115
53
†Depth does not include 21/8" (54 mm) for rear spacers.
5/07
Glass Door Merchandiser:
Swing Door Counter-top Refrigerator
R
®
The world’s #1 manufacturer of
glass door merchandisers.
True’s commitment to using
the highest quality materials
provides the user with colder
product temperatures, and
lower utility costs in an
attractive merchandiser that
brilliantly displays packaged
food and beverages.
Factory balanced, refrigeration
system holds 38°F to 40°F (3.3°C
to 4.4°C).
Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.
Interior - attractive, NSF
approved, white aluminum
interior liner.
Positive seal door.
“Low-E”, double pane thermal
glass door assembly with
mitered plastic channel frame.
The latest in energy efficient
technology.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
Safety shielded fluorescent
interior lighting for longer,
brighter, shadow-free
illumination.

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
GDM-3
GDM-3
DESIGN
• True’s commitment to using the highest
quality materials provides the user with
colder product temperatures, and lower
utility costs in an attractive merchandiser
that brilliantly displays packaged food
and beverages.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
• Designed to maintain cabinet
temperatures of 38°F to 40°F (3.3°C to
4.4°C).
CABINET CONSTRUCTION
• Exterior - non-peel or chip black
laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum liner.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Cabinet fitted with 11/4"H (32 mm)
rubber footed legs.
• Door sign decal. Variety of decal options
available.
DOOR
• “Low-E”, double pane thermal glass door
assembly with mitered plastic channel
frame. The latest in energy efficient
technology.
• Positive seal door.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 16"L x 1413/16"D
(407 mm x 377 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior
lighting.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• See our website www.truemfg.com for
latest color and sign offerings.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.
RECOMMENDED OPERATION CONDITIONS
• Designed to operate in an air conditioned
enviroment where temperatures do not
exceed 75°F and 55% relative humidity.
• Unit should be installed away from direct
sunlight, rapid air movement and extreme
temperature change.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒White exterior.
❒Additional bottom shelf.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Swing Door Counter-top Refrigerator

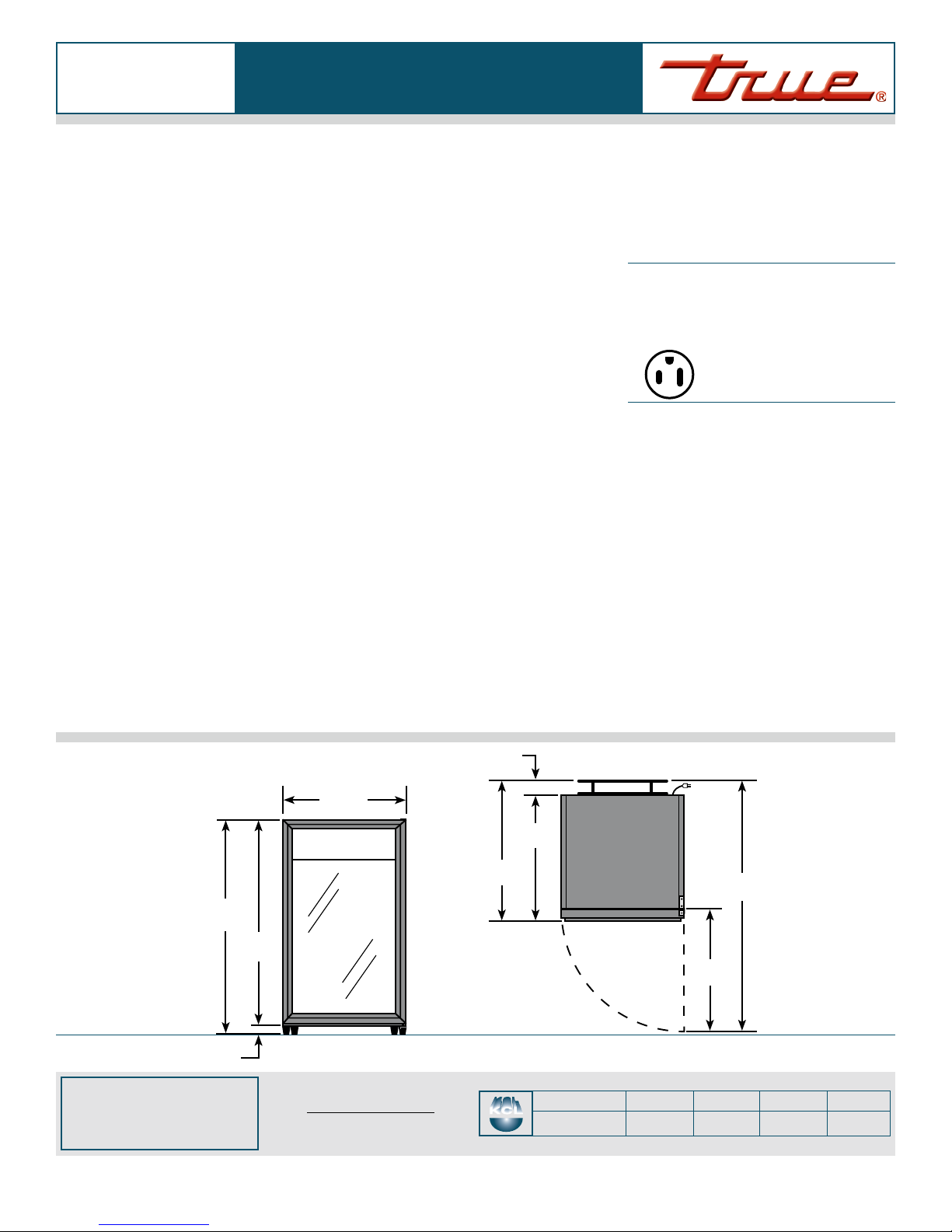

PLAN VIEW
ELEVATION
3327/32"
(860 mm)
11/8"
(29 mm)
325/8"
(829 mm)
21/16"
(53 mm)
1815/16"
(482 mm)
395/16"
(999 mm)
1913/16"
(504 mm)
197/8"
(505 mm)
2115/16"
(558 mm)
