True GDM-23W-RF User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
GDM-23W-RF
GDM-23W-RF
Model Doors
Capacity
(Cu. Ft.)
(liters)
Shelves
Wire Wine
Cabinet Dimensions
(inches)
(mm)
LDH
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-23W-RF 1 23
651
1 4 27
686
311/4
794
785/8
1998
1/3
1/3
115/60/1
230-240/50/1
7.2
3.0
5-15P
▲
9
2.74
315
143
▲Plug type varies by country.
6/07
The world’s #1 manufacturer of glass
door merchandisers.
Oversized, factory balanced,
refrigeration system holds 33°F to 38°F
(.5°C to 3.3°C).
Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
black aluminum interior sides and top
liner with 300 series stainless steel
floor. Mirrored back wall.
Self closing door. Positive seal,
torsion type closure system. Door lock
standard.
“Low-E”, double pane thermal
insulated glass door assembly with
mitered plastic channel frame. The
latest in energy efficient technology.
Patented integrated door light (IDL)
system for brighter, shadow free
illumination.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Four (4) adjustable wine racks and one
(1) adjustable, heavy duty, black PVC
coated wire shelf.
Bottom mounted units feature
“No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
Glass Door Merchandiser:
Swing Door Radius Front Wine Refrigerator
®
Pictured with one additional (optional) wine rack, in lieu of one standard wire shelf.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDM-23W-RF TFAY28E TFAY28S TFAY28P TFAX283
GDM-23W-RF
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in
an attractive merchandiser that brilliantly
displays wine and alcohol products.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperature of
33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give
True merchandisers a more efficient low
velocity, high volume airflow design. This
unique design ensures faster temperature
pull down of warm product, colder holding
temperatures and faster recovery in high use
situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop” lower
shelf maximizes visibility by raising
merchandised product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, black
aluminum sides and top liner with 300 series
stainless steel floor. Mirrored interior back.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOOR
• “Low-E”, double pane thermal insulated
glass door assembly with mitered plastic
channel frame. The latest in energy efficient
technology. Door lock standard.
• Door fitted with 12" (305 mm) long extruded
handle.
• Self closing door. Positive seal, torsion type
closure system.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable wine racks 229/16"L x
211/8"D (574 mm x 537 mm) and one (1)
adjustable, heavy duty, black PVC coated wire
shelf 229/16"L x 231/4"D (574 mm x 591 mm).
Four (4) chrome plated shelf clips included
per rack and shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior
lighting. Door utilizes full-length, patented,
integrated door light (IDL) system.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer
bulb life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Convenient clean-out drain built in cabinet
floor.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES / ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒White exterior.
❒Rosewood exterior.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒2
1/2" (64 mm) diameter castors.
❒Red wine thermostat.
❒White wine thermostat.
❒Chocolate thermostat.
❒Sliding wine racks.
❒Additional black wine racks.
❒Additional black wire shelves.
❒TrueTrac4 gravity feed organizers.
❒1
1/4" (32 mm) pricing strips.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.

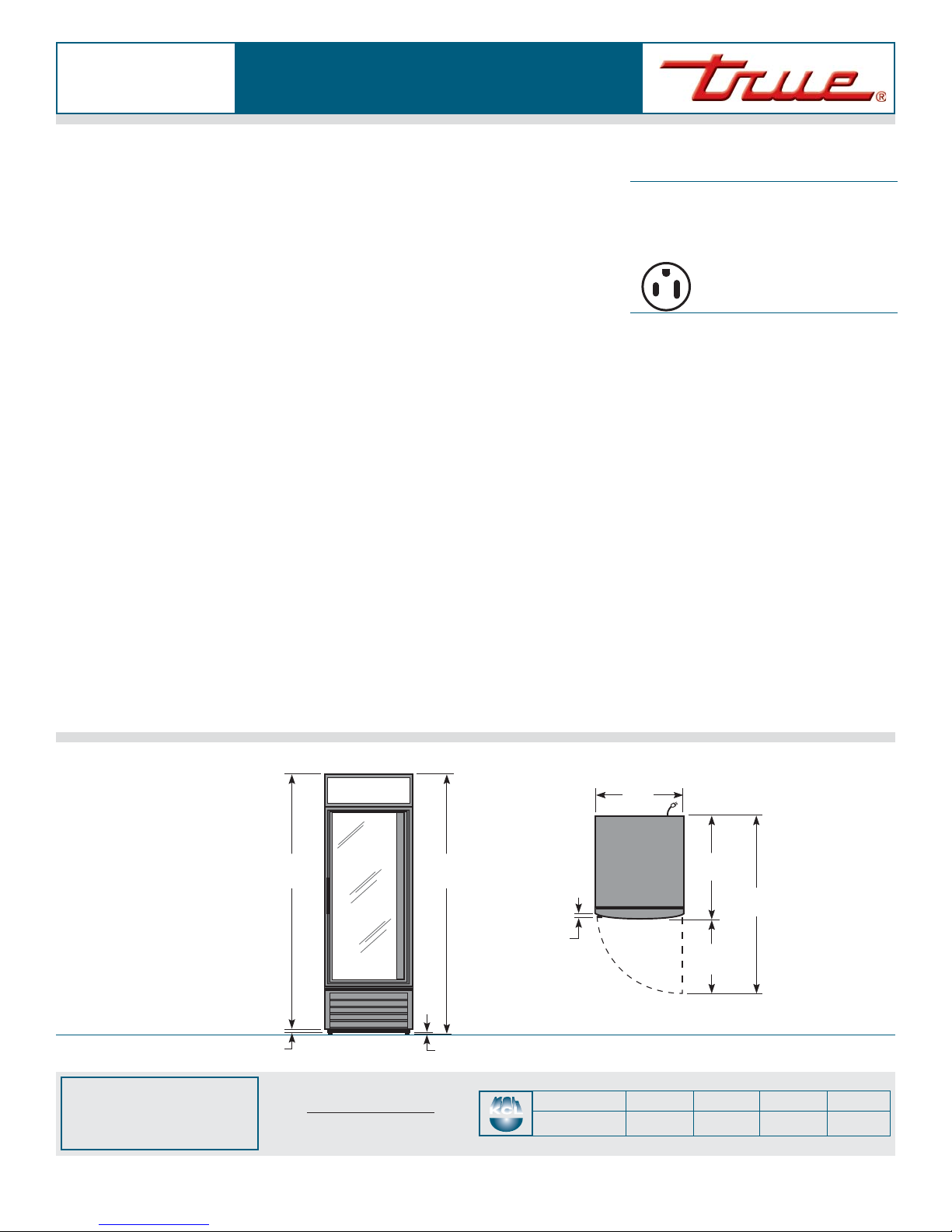

ELEVATION PLAN VIEW
115/60/1
NEMA-5-15R
Glass Door Wine Merchandiser:
Swing Door Radius Front Refrigerator
7615/16"
(1955 mm) 785/8"
(1998 mm)
5/16"
(8 mm)
541/2"
(1385 mm)
231/4"
(591 mm)
311/4"
(794 mm)
111/32"
(35 mm)
27"
(686 mm)
13/8"
(35 mm)
