Trumpf N 700-2 User manual

Operator's manual
english
N 700-2

2 Table of contents E528EN_03.DOC
Table of contents
1. Safety ..................................................................................3
2. Description .........................................................................4
2.1 Intended use ........................................................................5
2.2 Technical data .....................................................................6
3. Tool assembly....................................................................7
3.1 Selecting the die ..................................................................7
3.2 Selecting the punch .............................................................8
3.3 Checking penetration depth of the punch............................9
3.4 Selecting the handles ........................................................10
Bow-handle...................................................................11
Compact handle............................................................11
3.5 Motor handle......................................................................12
4. Operation..........................................................................13
4.1 Working with the N 700-2 ..................................................13
4.2 Changing the cutting direction ...........................................14
4.3 Nibbling with templates......................................................15
4.4 Making inner cutouts..........................................................15
5. Maintenance .....................................................................16
5.1 Changing the tool...............................................................18
Replacing the punch.....................................................18
Changing the die and the punch guide.........................18
5.2 Resharpening tools............................................................19
Punch............................................................................19
Dies...............................................................................19
5.3 Checking/replacing the wearing plate................................20
5.4 Replacing carbon brushes.................................................20
6. Original accessories and wearing parts........................21
Guarantee
Replacement parts list
Addresses

E528EN_03.DOC Safety 3
1. Safety
¾Read the operator's manual and the general safety rules
(material number 1239438, red document) completely before
putting the machine into service. Follow precisely the
instructions contained therein.
¾Read the operator's manual and the safety instructions
(material number 125699, red document) completely before
putting the machine into service. Follow precisely the
instructions contained therein.
¾Adhere to the safety regulations in accordance with DIN VDE,
CEE, AFNOR and to the specific regulations of the country of
operation.
Danger
Risk of fatal injury from electric shock!
¾Pull the plug from plug socket before undertaking any
maintenance work at the machine.
¾Check the plug, cable and machine for damage each time
before using the machine.
¾Keep the machine dry and do not operate it in damp rooms.
¾Connect the earth leakage (EL) circuit breaker with a
maximum release current of 30 mA when using the electric
tool outside.
Warning
Danger of injury due to improper handling!
¾Wear safety glasses, hearing protection, protective gloves
and work shoes when working at the machine.
¾Do not insert the plug unless the machine is switched off.
Pull the power plug after use.
Warning
Danger of injury to hands!
¾Do not reach into the processing line with your hands.
¾Use both hands to hold the machine.
Caution
Damage to property due to improper handling!
The machine will be damaged or destroyed.
¾Do not use the power cable to carry the machine.
¾Always lay the electrical cable away from the back of the
machine and do not pull it over sharp edges.
¾Have hand-held electrical tools serviced and checked by
qualified technicians. Only use original TRUMPF accessories.
USA/CAN
Other countries

4 Description E528EN_03.DOC
Warning
Risk of injury from hot and sharp chips!
Hot and sharp chips are emitted from the chip dumping at
high speed.
¾Make sure the chips are emitted downwards.
¾Use a chip bag (optional).

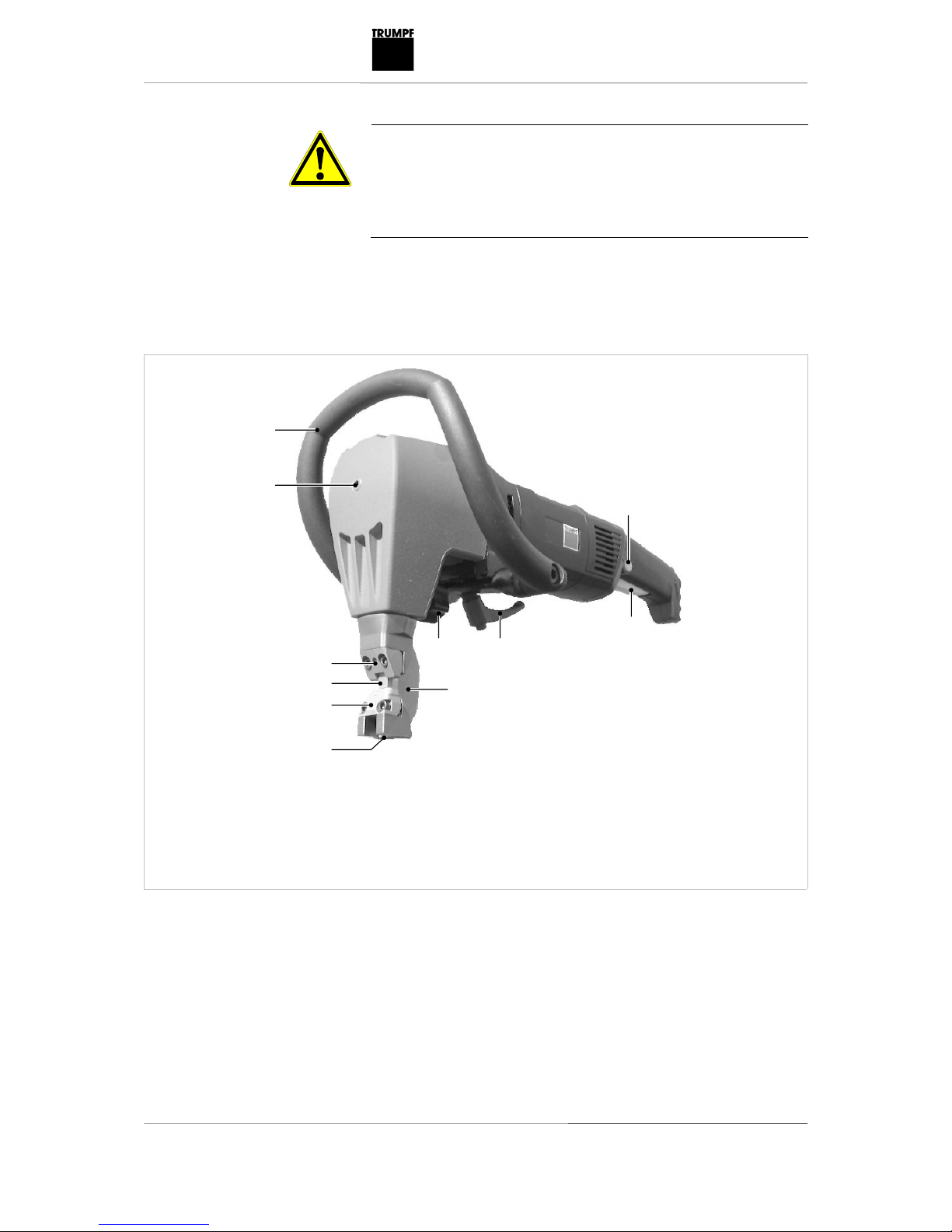

2. Description
2
3
4
5
10
1
7
89
11
6
1 Bow-handle (can be installed
at 2 positions)
2 Eccentric shaft
3 Punch guide
4 Punch
5 Die
6 Chip dumping
7 Die carrier
8 Locking mechanism for die
carrier
9 Clamping lever
for fastening
the handle
10 On/Off switch
11 Release inhibiter knob
Nibbler N 700-2
Fig. 38379

E528EN_03.DOC Description 5
2.1 Intended use
Warning
Danger of injury!
¾Use machine only for the processing and materials that are
described under "Correct use".
The TRUMPF Nibbler N 700-2 is an electric hand tool used for the
following applications:
•Slitting plate-shaped workpieces made of a punchable material
such as steel, aluminum, non-ferrous heavy metals, and
plastic.
•Slitting of tubes and machining of edged sheet profiles and/or
press brake bendings, e.g. for tanks, crash barriers, troughs, etc.
•Nibbling straight or curved exterior and interior cutouts.
•Nibbling along scribed lines or templates.
Note
The nibbling process produces workpieces that are free of
deformations.

6 Description E528EN_03.DOC
2.2 Technical data
Other countries USA
Values Values Values Values
Voltage 230 V 120 V 110 V 120 V
Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz
Max. material
thickness
•Steel
400 N/mm²
•Steel
600 N/mm²
•Steel
800 N/mm²
•Aluminum,
250 N/mm²
7.0 mm
5.0 mm
3.5 mm
10 mm
7.0 mm
5.0 mm
3.5 mm
10 mm
7.0 mm
5.0 mm
3.5 mm
10 mm
0.28 in
0.2 in
0.14 in
0.4 in
Working speed 1.3 m/min 1.1 m/min 1.1 m/min 3.6 ft/min
Nominal power
consumption
1600 W 1500 W 1500 W 1500 W
Power
consumption
7.4A 13.5A 14.4A 13.5 A
No load rate 440/min 470/min 440/min 470/min
Weight 8.3 kg 8.3 kg 8.3 kg 15.4 lbs
Cutting track
width
11 mm 11 mm 11 mm 0.433 in
Start hole
diameter for die
60 mm 60 mm 60 mm 2.4 in
Sheet profile 90°
bending radius
inside
min. 10 mm min. 10 mm min. 10 mm 0.4 in
Smallest radius
with curved cuts
135 mm 135 mm 135 mm 5.3 in
Clearance to
template
11 mm 11 mm 11 mm 0.433 in
Protective
insulation
Class II Class II Class II Class II
Technical data
Noise and vibration Measured values in accordance
with EN 60745
A-classified sound pressure level Typically 89 dB (A)
A-classified acoustic power level Typically 100 dB (A)
Hand-arm vibration Typically less than or equal to 2.5 m/s²
Noise and vibration
Note
The measured values specified above may be exceeded while
working.
Tab. 1
Tab. 2

E528EN_03.DOC Tool assembly 7
3. Tool assembly
3.1 Selecting the die
One of three types of dies can be selected for the machining
process, depending on material thickness, tensile strength and
type of workpiece:
Make sure that the X distance is as small as possible so that the
machine is well clamped and does not rattle.
(see Fig. 16811, p. 8)
Material Type of die
5 7 P7
Mat. no.
0098723
Mat. no.
0098722
Mat. no.
0098721
Material
thickness
Material
thickness
Material
thickness
Level
work-
pieces
Profiles
with
press
brake
bending
up to
90°
Level
work-
pieces
Profiles
with
press
brake
bending
up to
90°
Level
work-
pieces
Profiles
with
press
brake
bending
up to
90°
Aluminum
250 N/mm
3-5 mm -3 mm 5-7 mm 3-5 mm 7-10 mm 5-7 mm
Mild steel
400 N/mm
3-5 mm -3 mm 5-7 mm 3-5 mm - 5-7 mm
Stainless steel
600 N/mm²
3-5 mm -3 mm - 3-5 mm - -
Stainless steel
800 N/mm²
-2.5 mm -2.5 mm - - - -
Tab. 3

8 Tool assembly E528EN_03.DOC
X
5
9
W
1
1 Die
5 Punch guide
9 Punch
W Workpiece
X Clearance between sheet
surface and punch guide
Direct clearance from the die to the punch
3.2 Selecting the punch
To process sheets with different tensile strengths, there are
2 different punches:
Components Punch
Standard High-tensile
Part number: 104589 104590
Aluminum 250 N/mm + -
Mild steel 400 N/mm + -
Stainless steel
600 N/mm²
- +
Stainless steel
800 N/mm²
- +
Use the die with the greatest
feasible height
Fig. 16811
Tab. 4

E528EN_03.DOC Tool assembly 9

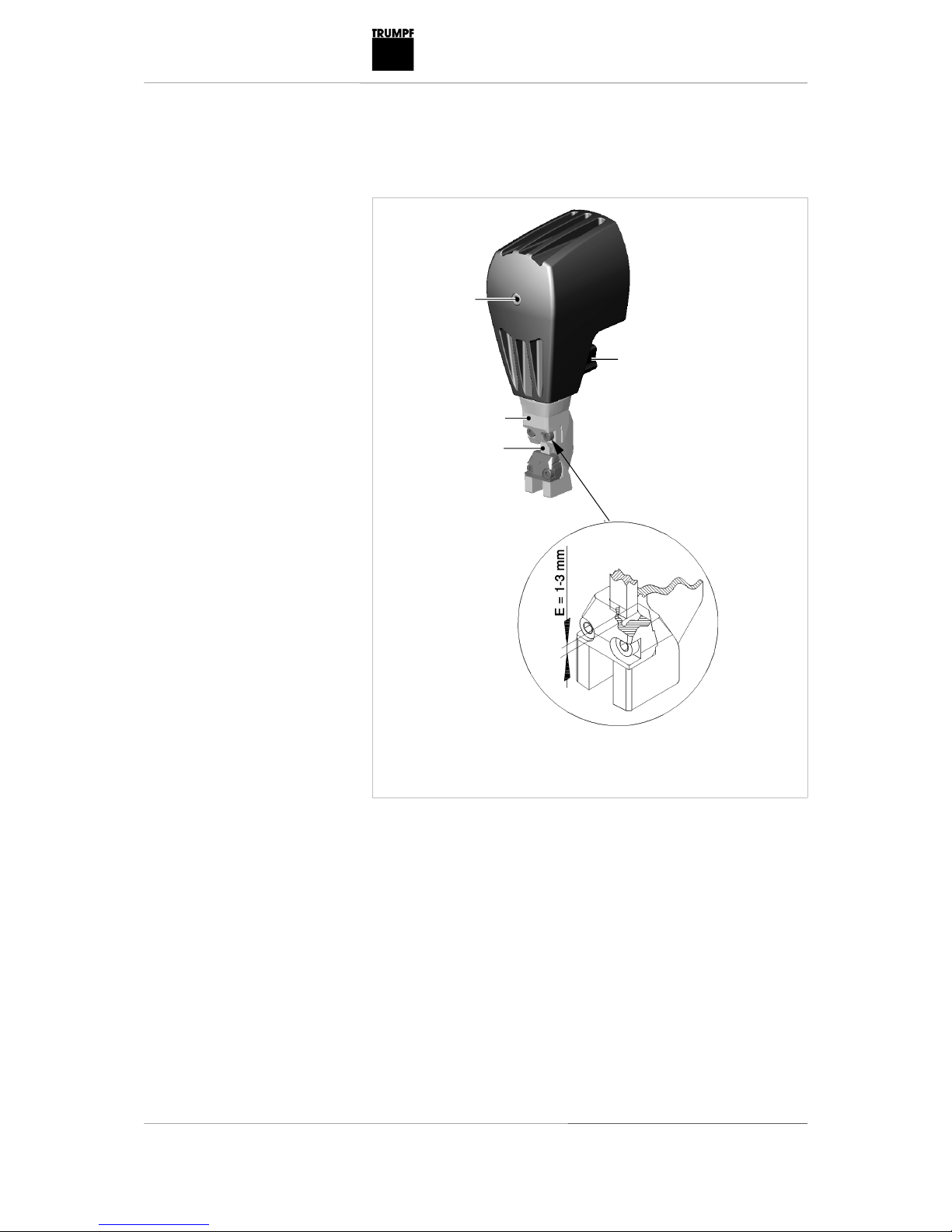

3.3 Checking penetration depth
of the punch
1
2
3
4
1 Eccentric shaft
2 Die carrier
3 Punch
4 Locking mechanism
E Penetration depth
Penetration depth of the punch
The penetration depth of the punch into the die should be 1 to 3 mm.
1. Rotate the eccentric shaft (1) until the punch (3) has reached
its maximum penetration depth.
2. Open locking mechanism (4).
3. Rotate the die carrier (2) by 360° as often as needed until the
punch penetration depth of 1-3 mm has been achieved. One
rotation (360°) corresponds to a height adjustment of 1.75 mm
4. Close locking mechanism (4).
Fig. 38378

10 Tool assembly E528EN_03.DOC

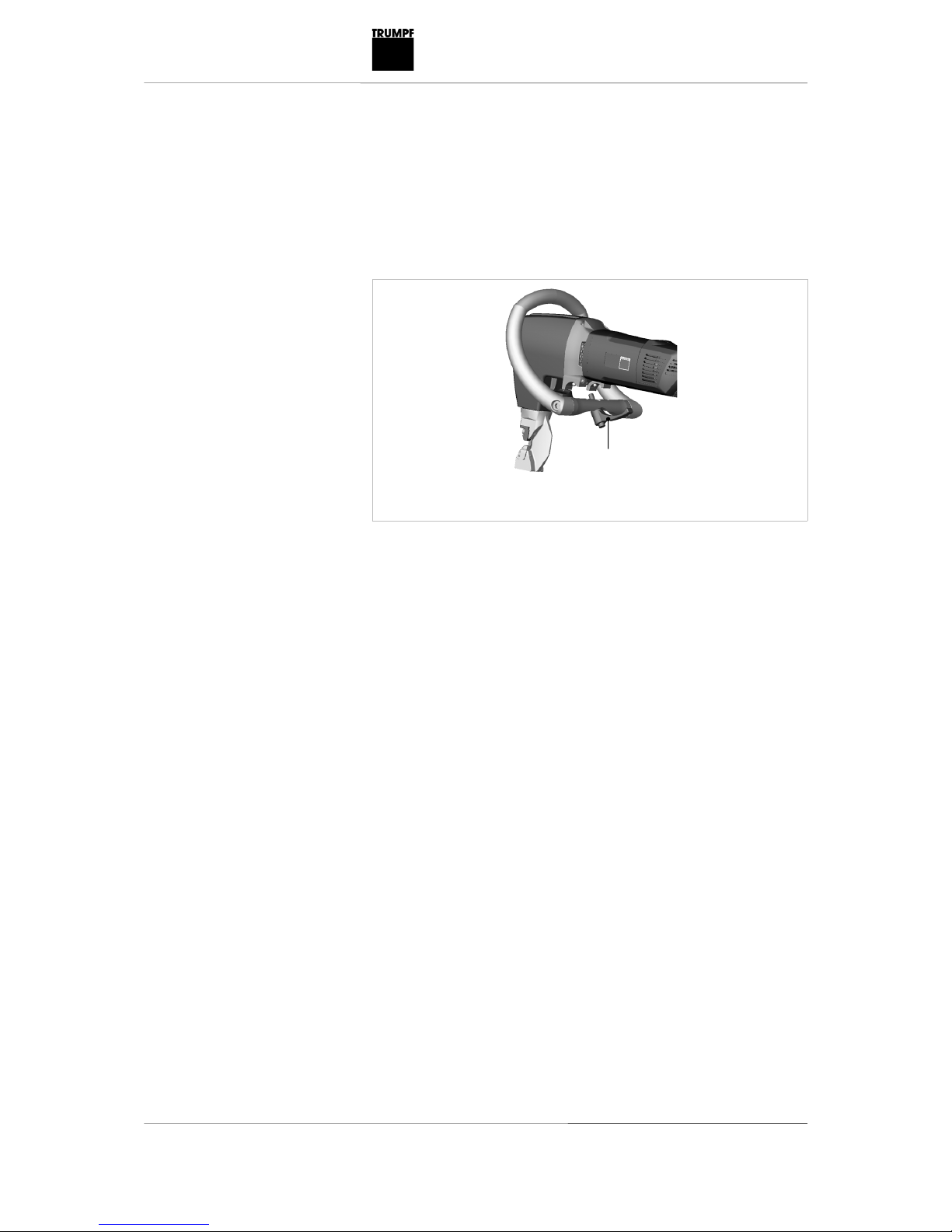

3.4 Selecting the handles
Suitable handles can be used depending on the exact application.
2 handle types are available:
•Bow-handle.
•Compact handle.
1
1 Clamping lever
¾Fasten the handle to the machine without a tool using the
clamping lever (1).
Indexing means that each handle can be clamped in 2 positions.
1. Turn the clamping lever (1) by approx. 2 revolutions.
2. Swivel the handle.
3. Fix the clamping lever (1).
Fig. 38389
Swiveling the handle

E528EN_03.DOC Tool assembly 11
Bow-handle
3
21
3
21
1 Bow-handle
2 Motor handle
3 Clamping lever
The bow-handle provides optimum gripping positions at all working
positions. When used with the motor handle, the machine weight is
distributed over both handles.
Compact handle
3
1
2
3
21
1 Compact handle
2 Motor handle
3 Clamping lever
The compact handle was developed for applications where lack of
space is an issue, e.g. for the machining of profiles.
In addition, the handle is made of steel and is heat-resistant.
Fig. 38391+38390
Fig. 38392+38393

12 Tool assembly E528EN_03.DOC

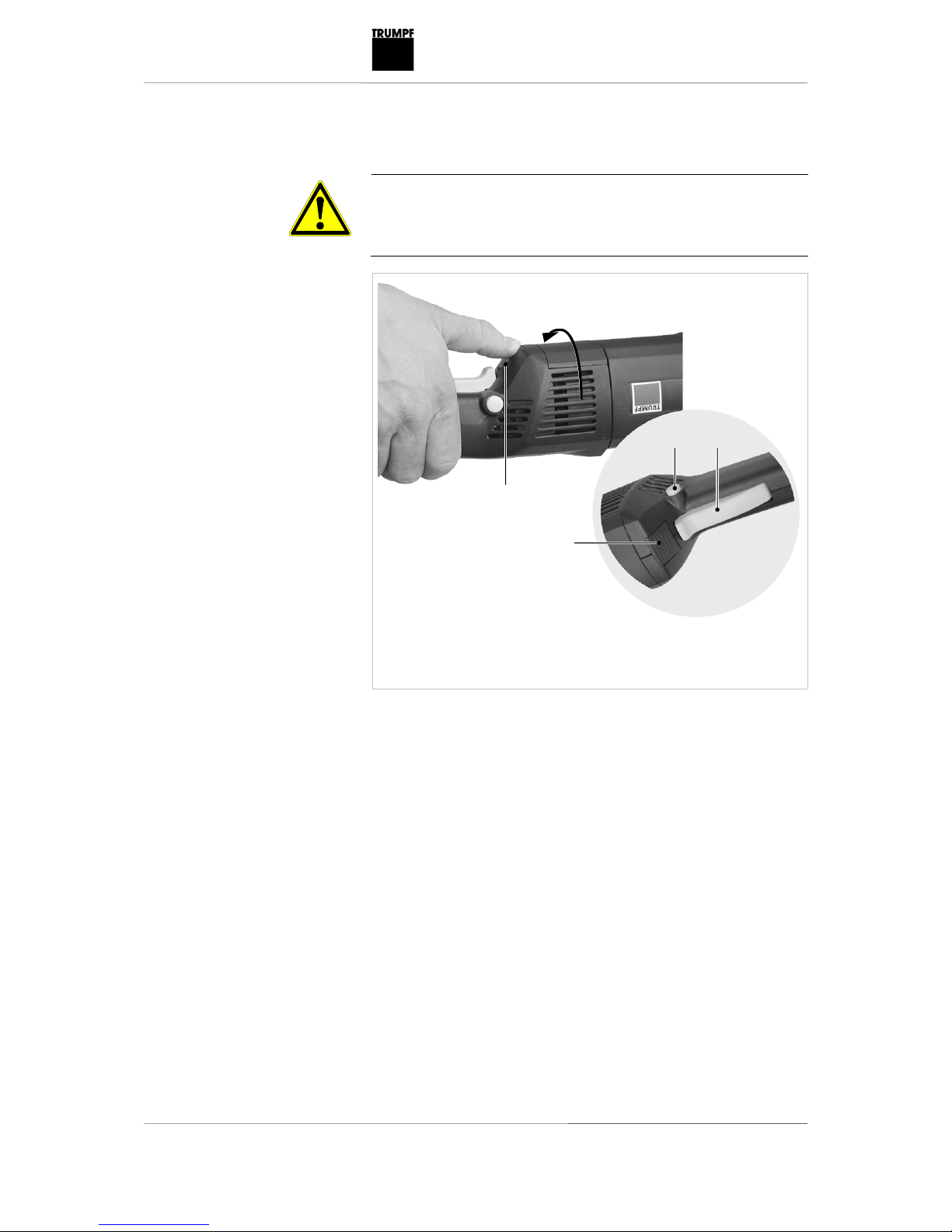

3.5 Motor handle
Caution
Damage to property from dust being sucked into the
ventilation slot!
¾Turn the motor handle so that air suction point cannot suck in
any dust.
90°
1
2 3
1
1 Release knob
2 Release inhibiter knob
3 On/Off switch
For applications where the machine is to be used tilted at an angle
of 90°, it is advisable to turn the handle accordingly.
1. Press the release knob (1).
2. Turn the handle (+/- 90°).
3. Let go of the release knob (1).
4. Turn the handle carefully until it engages.
Fig. 38394

E528EN_03.DOC Operation 13
4. Operation
4.1 Working with the N 700-2
Caution
Damage to property due to high power supply voltage!
Motor damage
¾Check the power supply voltage. The power supply voltage
must correspond to the information on the type plate of the
machine.
Warning
Danger of injury due to improper handling!
¾Make sure the machine is in a stable position when operating it.
¾Never touch the tool while the machine is running.
¾Always operate the machine away from your body.
¾Do not operate the machine above your head.
2
1
1 Release inhibiter knob 2 On/Off switch
1. Press the release inhibiter knob (1), keep holding it and press
the ON-OFF switch (2).
The motor will start to run.
2. Let go of the ON-OFF switch (2).
Note
Momentary operation is possible.
Press the release inhibiter knob (1). Keep holding it and press the
ON-OFF switch (2). Then let go of the release inhibiter knob.
Switching on the N 700-2
Fig. 38380
Continuous operation

14 Operation E528EN_03.DOC
1. Do not move the machine towards the workpiece until full
speed has been reached.
2. Machine the material.
–Machine the desired cutting line.
3. In the event that the cutting track ends in the sheet, pull the
machine (still running) a few millimeters back towards where
the cutting track has already been cut open.
4. Switch off machine.
Note
The cutting result is improved and the service life of the punch
increased if the cutting track is coated with oil before machining the
workpiece.
Material Oil
Steel Punching and nibbling oil, Material No. 103387
Aluminum Wisura oil, Material No. 125874
Recommendation for oil
¾Press and release the On/Off switch (2).
4.2 Changing the cutting direction
In situations where space is limited, the tool can be mounted in
such a way as to have a different cutting direction.
•Mount the tool at an angle turned 90° to the right or to the left
(cutting of profiles).
•Mount the tool at a 180° rotation (nibbling to the rear).
1. Open locking mechanism (8).
2. Turn the die carrier (7) in the desired direction.
3. Close locking mechanism (8).
4. Check the depth of penetration of the punch.
Working with the N 700-2
Tab. 5
Switching off the N 700-2

E528EN_03.DOC Operation 15
4.3 Nibbling with templates
The following requirements must be met when nibbling with
templates:
•The template must be at least 5 mm thick.
•The contour of the template must have a clearance of 11 mm
to the contour to be nibbled out.
•Guide the nibbler in such a way that the exterior cut-out of the
punch guide (5) always remains up against the template.
•Observe a minimum radius of 135 mm.
4.4 Making inner cutouts
Inner cutouts require a start hole of at least 60 mm in diameter.

16 Maintenance E528EN_03.DOC
5. Maintenance
Caution
Damage to property due to blunt tools!
Machine overload
¾Check the tool hourly for wear. Sharp tools cut better and
help keep the machine in good condition. Change the tools as
soon as necessary.
Warning
Danger of injury due to improper repairs!
Machine does not work properly.
¾Repair work may only be carried out by a qualified specialist.
2
3
4
5
7
6
1
1 Locking mechanism
2 Punch
3 Die carrier
4 Wearing plate
5 Punch guide
6 Screws for fastening of die and
punch guide
7 Die
Fig. 38381

E528EN_03.DOC Maintenance 17
Maintenance point Procedure and interval Recommended lubricants Material No.
Lubricants
Punch, die and wearing
parts
Check hourly - -
Punch and die carrier With each tool change - -
Punch Regrind/replace as needed - -
Ventilation slot/grid Clean as needed - -
Die Replace as necessary - -
Wearing plate Replace as necessary - -
Gearbox and
gear head (2)
After 300 operating hours,
arrange for a trained specialist
to relubricate or to replace the
lubricating grease.
"G1" lubricating grease 139440
Maintenance points and maintenance intervals
Tab. 6

18 Maintenance E528EN_03.DOC
5.1 Changing the tool
If the punch and/or die is blunt or the type of application changes,
the tools must be reground or replaced.
Replacing the punch
1. Release the lock (1).
2. Rotate the die carrier (3) by 45°.
3. Pull die carrier (3) out towards the bottom.
4 Remove punch (2) by rotating it.
5. Lubricate the square part of the punch and die carrier bore
hole with "G1" grease, TRUMPF Material No. 139440.
6. Align the punch to 45°.
7. Check the depth of penetration of the punch.
Changing the die and the punch guide
1. To replace the die and the punch guide, unscrew the fixing
screws (6).
2. Clean the support areas on the die carrier (3).
3. Take care to ensure that the replacement parts are clean.
4. Lubricate the guide surfaces of the punch guide with "G1"
grease, TRUMPF Material No. 139440.
5. Screw the fastening screws tightly when mounting the die and
the punch guide. (Tightening torque 20 Nm) Only use original
screws!
(see Fig. 38381, p. 16)

E528EN_03.DOC Maintenance 19
5.2 Resharpening tools
Punch
The punch can be reground by a total of approximately 10 mm.
•Regrind the grinding surface in accordance with the following
diagram, making sure that it is well-cooled during the process.
•Lightly apply fine-grained oil stone to the cutting edge.
•Observe a minimum length of 89 mm Shorter punches must be
replaced (risk of collision).
Dies
Dies may not be reground.
Fig. 9432

20 Maintenance E528EN_03.DOC

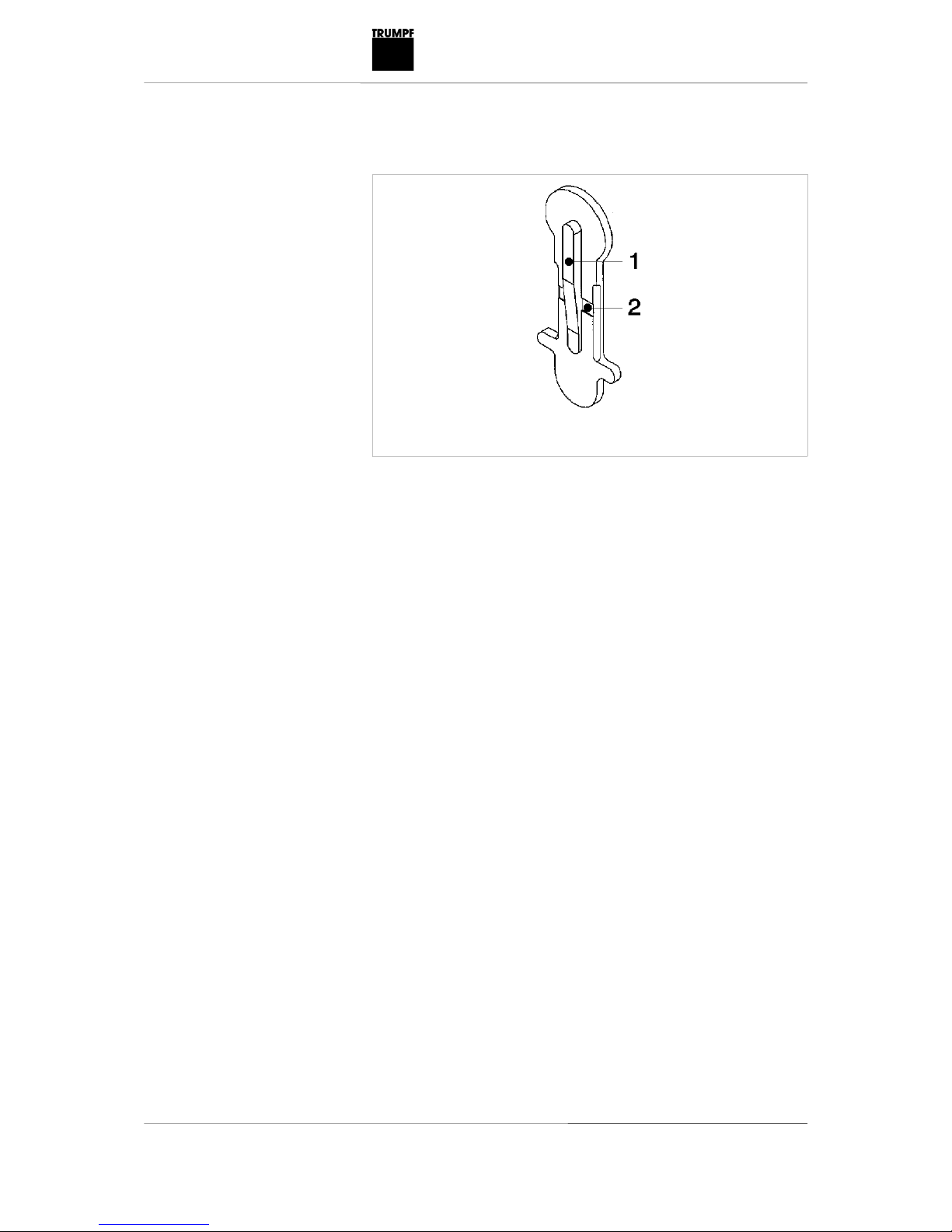

5.3 Checking/replacing the wearing plate
1 Elevation 2 Depression
Wearing plate
The wearing plate protects the die carrier against excessive
wearing. (Order No. 0119173V.)
1. Replace the wearing plate when the raised part (1) is worn
down.
2. Replace the wearing plate when the depression (2) is no
longer visible.
Note
Excessive wearing can overload the machine and lead to a
worsening of cutting quality.
5.4 Replacing carbon brushes
The motor comes to a standstill whenever the carbon brushes are
worn out.
¾Have the carbon brushes checked and replaced as required by
a qualified specialist.
Note
Only use original replacement parts and observe the specifications
on the type plate.
Fig. 9468
