1. Safety
1.1 General safety information
■Read all the safety information and instructions including
those in the brochure also supplied.
■Failure to comply with the safety information and instructions
can cause electric shock, burns and/or serious injury.
■Retain all the safety information and instructions for future
use.
Electrical voltage! Risk of fatal injury due to electric shock!
ØRemove the plug from the plug socket before undertaking
any maintenance work on the machine.
ØCheck the plug, cable and machine for damage each time
before using the machine.
ØKeep the machine dry and do not operate it in damp rooms.
ØConnect the fault current (FI) circuit breaker with a maxi-
mum breaking current of 30 mA when using the electric tool
outside.
ØOnly use original TRUMPF accessories.
ØThe connection cable may only be replaced by the manufac-
turer or an authorized dealer.
Damage to the machine due to improper handling.
ØWear safety glasses, hearing protection, protective gloves
and working shoes when working.
ØConnect the plug only when the machine is switched off.
Pull the power plug after use.
ØDo not carry the machine by the cable.
ØHave maintenance carried out by specialists.
Note
If the power cable is to be replaced, it should be procured from
the manufacturer or an authorized dealer to avoid safety haz-
ards.
1.2 Specific safety information for nibbler
Risk of injury to hands.
ØDo not reach into the processing line with your hands.
E832en_00 Safety 3
DANGER
WARNING
WARNING

Risk of injury from hot and sharp chips!
Chips exit the chip ejector at high speed.
ØUse a chip bag.
Risk of injury due to improper handling!
ØMake sure the machine is always in a stable position when
operating it.
ØNever touch the tool while the machine is running.
ØAlways operate the machine away from your body.
ØDo not operate the machine above your head.
4Specific safety information for nibbler E832en_00
WARNING
WARNING

2. Description

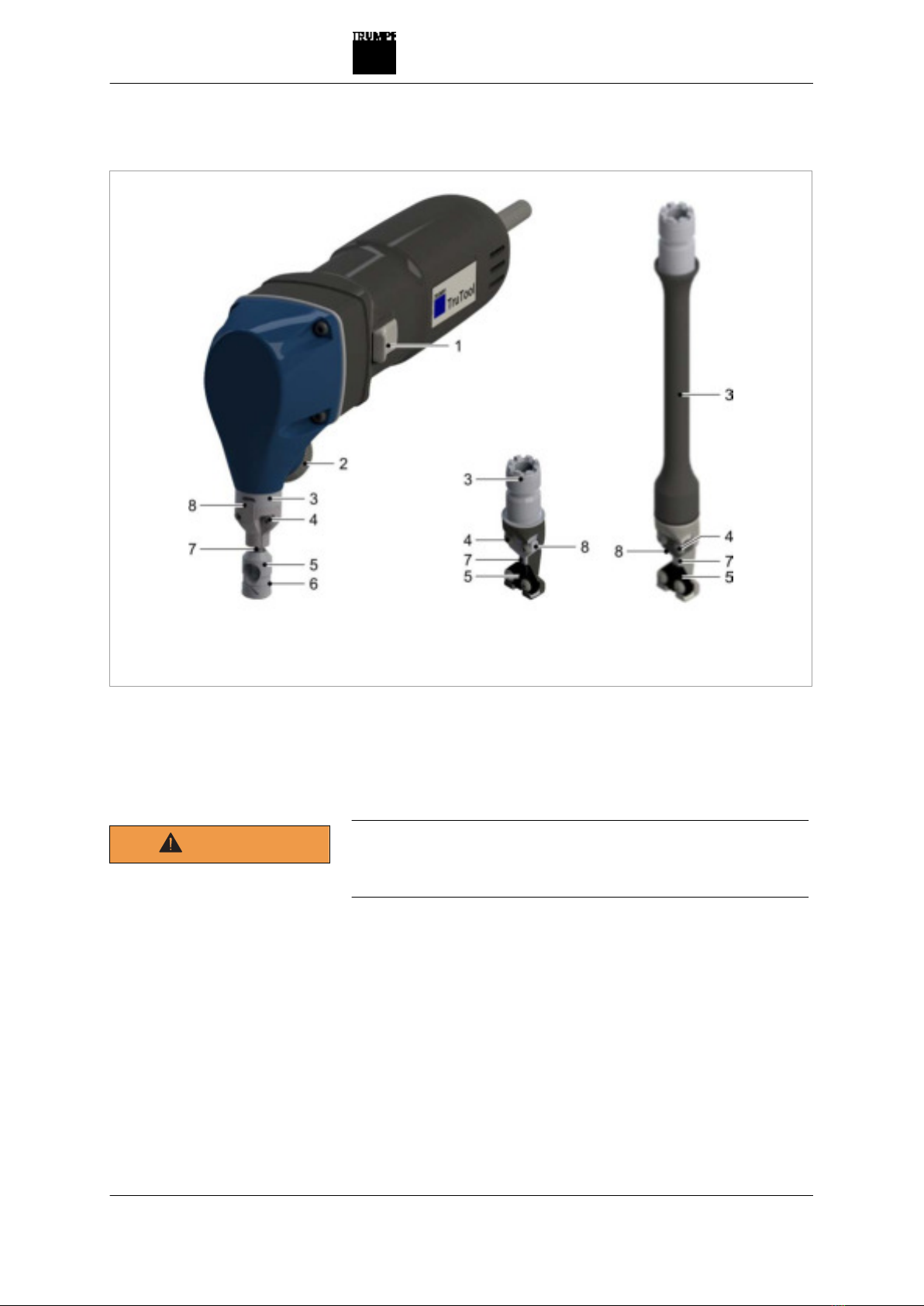

1 On/Off switch
2 Index bolt
3 Die holder
4 Fixing screws
5Die
6 Cover ring
7 Punch
8Punch guide
Fig. 66446
2.1 Intended use
Damage to the machine due to improper handling.
ØOnly use the machine for work and materials as described
under "Intended use."
The TRUMPF Nibbler TruTool N 200 is an electrically powered
hand-held device designed for the following applications:
■Slitting plate-shaped workpieces made of a punchable mate-
rial such as steel, aluminum, non-ferrous heavy metals and
plastic.
■Slitting pipes and machining corrugated sheets.
■Nibbling straight or curved exterior and interior cutouts.
■Nibbling along scribed lines or templates.
E832en_00 Description 5
WARNING

Notes
■Because of the hollow round punch, the nibbler can be rota-
ted at any position such that processing can continue in any
direction.
■The nibbling process produces cutting edges free of deforma-
tions.
The TRUMPF TruTool PN 200 resp. TruTool PN 201 profiling
nibbler is an electrically powered hand-held device for the follow-
ing applications:
■For slitting sectional sheets such as trapezoidal sheet, corru-
gated sheet, boxed sheet, offset profiled strips.
■Slitting plate-shaped workpieces made of a punchable mate-
rial such as steel, aluminum, non-ferrous heavy metals and
plastic.
■Nibbling straight or curved exterior and interior cutouts.
■For nibbling from scribed lines.
Note
The nibbling process produces cutting edges free of deforma-
tions.
2.2 Technical data
TruTool N 200 (2A1) Other countries USA
Voltage 230 V 100 V 110 V 120 V
Frequency 50 Hz 50/60 Hz 50 Hz 50/60 Hz
Permissible material thick-
ness:
steel up to 400 N/mm2
2.0 mm 2.0 mm 2.0 mm 0.08 in
Permissible material thick-
ness:
steel up to 600 N/mm2
1.5 mm 1.5 mm 1.5 mm 0.06 in
Permissible material thick-
ness:
steel up to 800 N/mm2
1.0 mm 1.0 mm 1.0 mm 0.039 in
Permissible material thick-
ness:
aluminum up to 250 N/mm2
2.5 mm 2.5 mm 2.5 mm 0.1 in
Working speed 1.7 m/min 1.4 m/min 1.6 m/min 5.6 ft/min
Nominal power consump-
tion
550 W 500 W 500 W 500 W
Idle stroke rate 2100/min 2100/min 2100/min 2100/min
Starting hole diameter 17 mm 17 mm 17 mm 0.67 in
Smallest radius for curved
cutouts
4.0 mm 4.0 mm 4.0 mm 0.16 in
Cutting track width 8.0 mm 8.0 mm 8.0 mm 0.315 in
6Technical data E832en_00

TruTool N 200 (2A1) Other countries USA
Weight 1.8 kg 1.8 kg 1.8 kg 4.0 lbs
Safety class
II / II / II / II /
Tab. 1
TruTool PN 200 (2A1)
TruTool PN 201 (2A1)
Other countries USA
Voltage 230 V 100 V 110 V 120 V
Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz
Permissible material thick-
ness:
steel up to 400 N/mm2
2.0 mm 2.0 mm 2.0 mm 0.079 in / 14 Ga
Permissible material thick-
ness:
steel up to 600 N/mm2
1.5 mm 1.5 mm 1.5 mm 0.06 in / 16 Ga
Permissible material thick-
ness:
steel up to 800 N/mm2
1.0 mm 1.0 mm 1.0 mm 0.039 in / 20 Ga
Permissible material thick-
ness:
aluminum up to 250 N/mm2
3.0 mm 3.0 mm 3.0 mm 0.126 in / 11 Ga
Working speed
TruTool PN 200 (2A1)
TruTool PN 201 (2A1)
2.1 m/min
2.2 m/min
1.9 m/min
1.8 m/min
2.1 m/min
2.0 m/min
7.2 m/min
6.9 ft/min
Nominal power consump-
tion
550 W 500 W 500 W 500 W
Idle stroke rate 2100/min 2100/min 2100/min 2100/min
Starting hole diameter 24 mm 24 mm 24 mm 0.94 in
Radius min. 50 mm min. 50 mm min. 50 mm min. 2.0 in
Cutting track width 5.0 mm 5.0 mm 5.0 mm 0.2 in
Weight
TruTool PN 200 (2A1)
TruTool PN 201 (2A1)
1.8 kg
2.0 kg
1.8 kg
2.0 kg
1.8 kg
2.0 kg
4.0 lbs
4.4 lbs
Safety class
II / II / II / II /
Tab. 2
E832en_00 Technical data 7

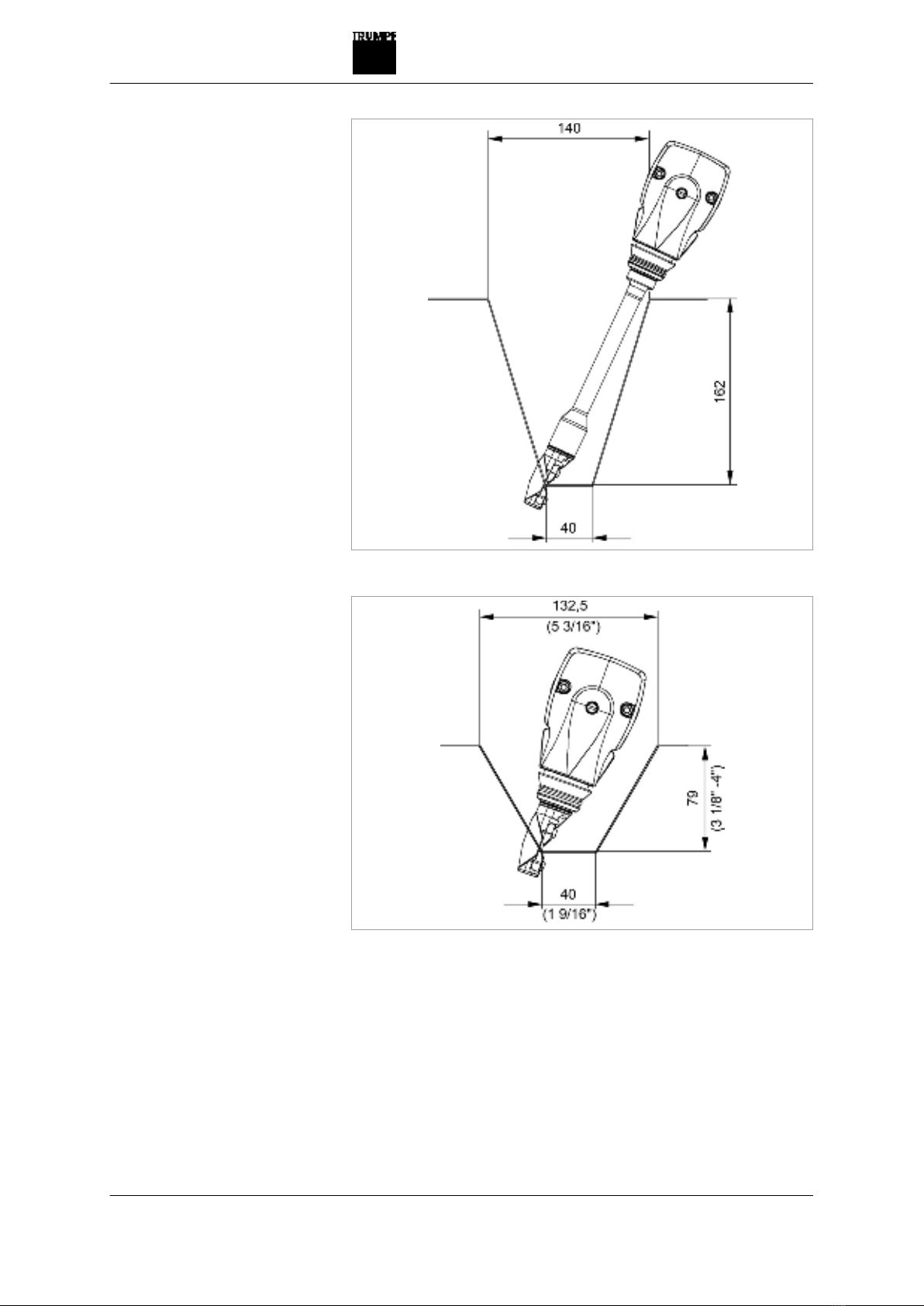

TruTool PN 201 in sectional sheets Fig. 25947
TruTool PN 200 in sectional sheets Fig. 25948
2.3 Symbols
Note
The following symbols are important for reading and understand-
ing the instruction manual. The correct interpretation of the sym-
bols will help you operate the machine better and safer.
8Symbols E832en_00

Symbol Name Meaning
Read operating manual Read the operator's manual and safety information in
their entirety before starting up the machine. Closely
follow the instructions given.
Safety class II Indicates a doubly insulated tool.
Alternating current Type or property of current
V Volt Voltage
A Ampere Current, current input
Hz Hertz Frequency (oscillations per second)
W Watt Power, power input
mm Millimeters Dimensions e.g.: material thickness, chamfer length
in Inch Dimensions e.g.: material thickness, chamfer length
noIdle speed Revolution speed without load
.../min Revolutions/strokes per minute Revolution speed, stroke rate per minute
Tab. 3
2.4 Noise and vibration information
Noise emission value may be exceeded.
ØWear hearing protection.
Vibration emission value may be exceeded.
ØSelect tools correctly and replace them promptly when they
show wear.
ØMaintenance may be carried out by trained specialist techni-
cians only.
ØEstablish additional safety precautions for the protection of
the operator against the effects of vibrations (e.g. keeping
hands warm, organizing the work sequences, machining with
normal feed power).
Notes
■The specified vibration emission value was measured in
accordance with a standardized testing procedure and can
be used to compare one electric tool with another.
■The specified vibration emission value can also be applied
for a provisional estimate of the vibration load.
■Times during which either the machine is switched off or run-
ning but not actually in use can considerably reduce the
vibration load during the entire working period.
■Times during which the machine works independently and
self-propelled do not have to be calculated.
E832en_00 Noise and vibration information 9
WARNING
WARNING

Designation of measured value Unit Value according to
EN 60745
Vibration emission value ah (vector
sum of three directions)
m/s25.2 (TruTool N 200)
7.3 (TruTool PN 200)
5.9 (TruTool PN 201)
Uncertainty K for vibration emission
value
m/s21.5
A-class acoustic pressure level LPA
typically
dB (A) 80
A-class acoustic power level LWA
typically
dB (A) 91
Uncertainty K for noise emission
value
dB 3
Tab. 4
10 Noise and vibration information E832en_00

3. Setting work
3.1 Select tool (TruTool N 200 /
TruTool PN 200 / TruTool PN 201)

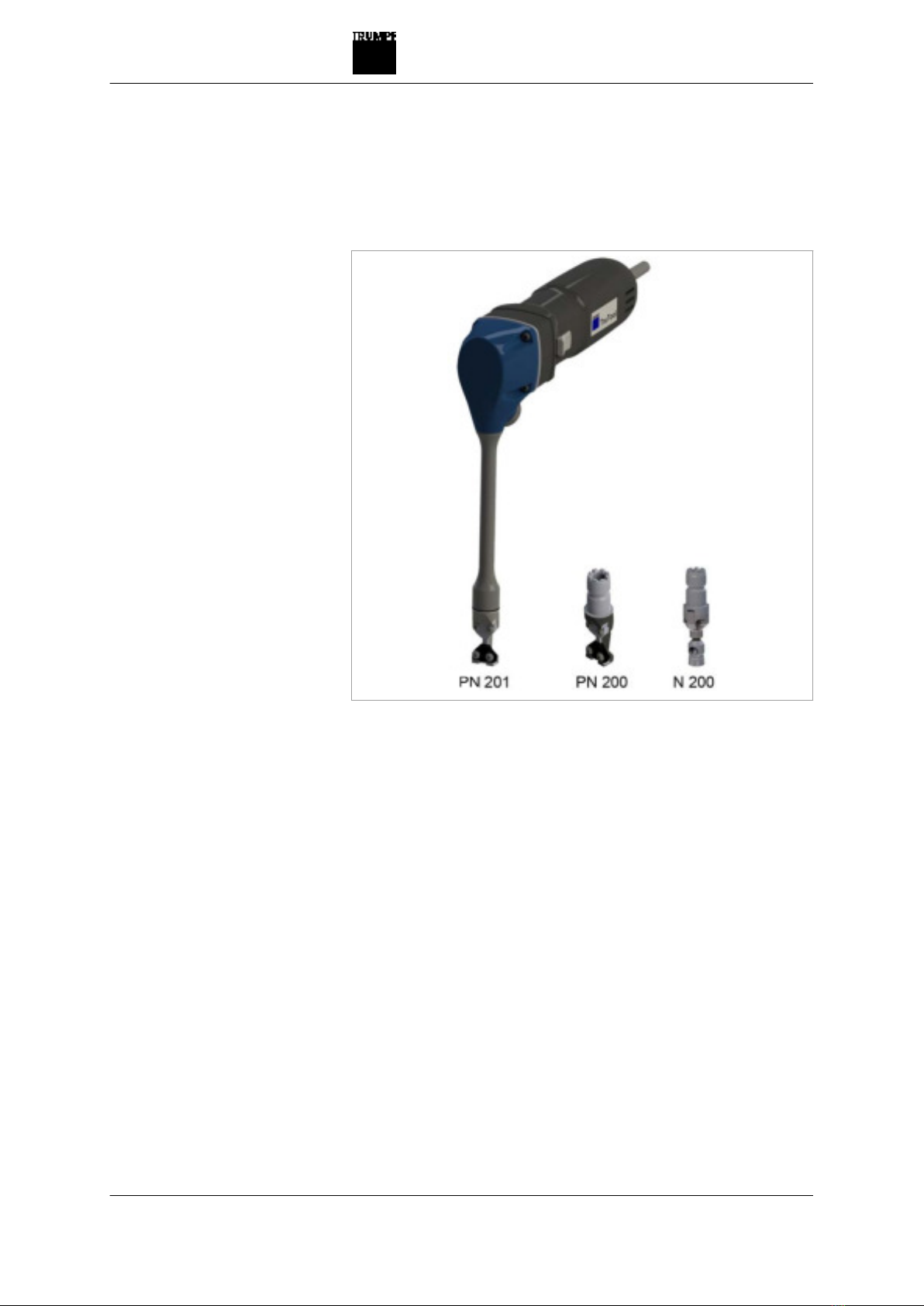

Tools Fig. 65144
Any tool can be fastened to the basic machine.
E832en_00 Setting work 11

A Flat sheet
B Corrugated sheet
C Checkered sheet (profile depths
up to max. 85 mm)
D Checkered sheet (profile depths
up to max. 162 mm)
Areas of application Fig. 66445
To make a burr-free cut up to 1 mm thick in the sheet with the
tools TruTool PN 200 and TruTool PN 201, the die P1 can be
used. The lower cutting clearance reduces burr formation.
12 Select tool (TruTool N 200 / TruTool PN 200 /
TruTool PN 201)
E832en_00
Burr-free cut

4. Operation
Risk of injury due to improper handling!
ØMake sure the machine is always in a stable position when
operating it.
ØNever touch the tool while the machine is running.
ØAlways operate the machine away from your body.
ØDo not operate the machine above your head.
Damage to property due to excessively high line voltage!
Motor damage.
ØCheck the power supply voltage. The power supply voltage
must correspond to the information on the nameplate of the
machine.
In order to improve the cutting result and increase the service
life of the punch, coat the cutting track with oil before machining
the workpiece.
4.1 Working with the TruTool N 200 /
TruTool PN 200 / TruTool PN 201
1. Slide the On/Off switch forwards.
2. Once the full speed has been reached: move the machine
toward the workpiece.
3. Process the desired cutting line.
4. If the cutting track ends in the sheet: retract the running
machine a few millimeters in the direction of the already free-
cut cutting track.
Note
Do not place a decelerating machine in the chips. The chips
can be sucked in by the motor.
5. Slide the On/Off switch to the rear.
E832en_00 Operation 13
WARNING
CAUTION
Lubricating oil
Switching on
Processing the material
Switching off

4.2 Changing the cutting direction
The direction of the cut can be rotated to the right or the left in
45° increments as needed.
■For right-handed/left-handed operation.
■To machine sectional sheets
1. Loosen the index bolt (about 3 revolutions) until no more
resistance can be felt.
2. Pull the tool down slightly and turn it in the desired direction.
There is a detent position every 45° (cutting direction).
3. Push the tool back up and tighten the index bolt.
4. Check: if no air gap can be seen between the housing and
the tool, the tool is mounted correctly.
Carrier is engaged.
4.3 Nibbling with templates
(TruTool N 200)
1 Punch guide, outside diameter
13 mm
2 Workpiece
3 Template
a Clearance of the contour of the
template to the contour of the
workpiece to be nibbled out:
2.5 mm
h1 Thickness of the template
h2 Thickness of the workpiece
h1+h2 Total thickness of tem-
plate and workpiece: 5-6.5 mm
R1 Minimum radius in the tem-
plate: 6.5 mm
R2 Minimum radius in the work-
piece: 4 mm (= punch-radius)
Fig. 25828
14 Nibbling with templates (TruTool N 200) E832en_00

The following requirements must be met when nibbling with tem-
plates:
■The template must be at least 5 mm thick.
■There must be a clearance of 2.5 mm between the contour
of the template and the contour to be nibbled out.
■The nibbler must be guided in such a way that the exterior
cutout of the punch guide (1) always remains up against the
template.
■Observe a minimum radius of 4 mm.
4.4 Producing interior cutouts
ØTruTool N 200:
Produce start bore with at least a 17 mm diameter.
TruTool PN 200 / TruTool PN 201:
Produce start bore with at least a 24 mm diameter.
E832en_00 Nibbling with templates (TruTool N 200) 15

5. Maintenance
Electrical voltage! Risk of fatal injury due to electric shock!
ØRemove the plug from the plug socket before undertaking
any maintenance work on the machine.
ØCheck the plug, cable and machine for damage each time
before using the machine.
ØKeep the machine dry and do not operate it in damp rooms.
ØConnect the fault current (FI) circuit breaker with a maxi-
mum breaking current of 30 mA when using the electric tool
outside.
ØOnly use original TRUMPF accessories.
ØThe connection cable may only be replaced by the manufac-
turer or an authorized dealer.
Risk of injury due to incorrect repair work
Machine does not work properly.
ØMaintenance may be carried out by trained specialist techni-
cians only.
Damage to property caused by blunt tools!
Machine overload.
ØCheck the cutting edge of the punch hourly for wear. A
sharp punch provides good cutting performance and is eas-
ier on the machine. Change the punch in due time.
Maintenance point Procedure and interval Recommended
lubricants
Punch guide Lubricate upon tool change. Lubricating grease "G1" (25 g)
Punch Change as needed. -
Die Change as needed. -
Wearing plate Change as needed. -
Ventilation slots Clean as needed. -
Gearbox and gear head Every 300 operating hours, have a
trained specialist relubricate or
replace the lubricating grease.
Lubricating grease "G1" (900 g)
Maintenance positions and intervals for TruTool N 200 / TruTool PN 200 / TruTool PN 201 Tab. 5
5.1 Replacing the tool
If the punch and/or die are blunt, they must be replaced.
16 Maintenance E832en_00
DANGER
WARNING
CAUTION

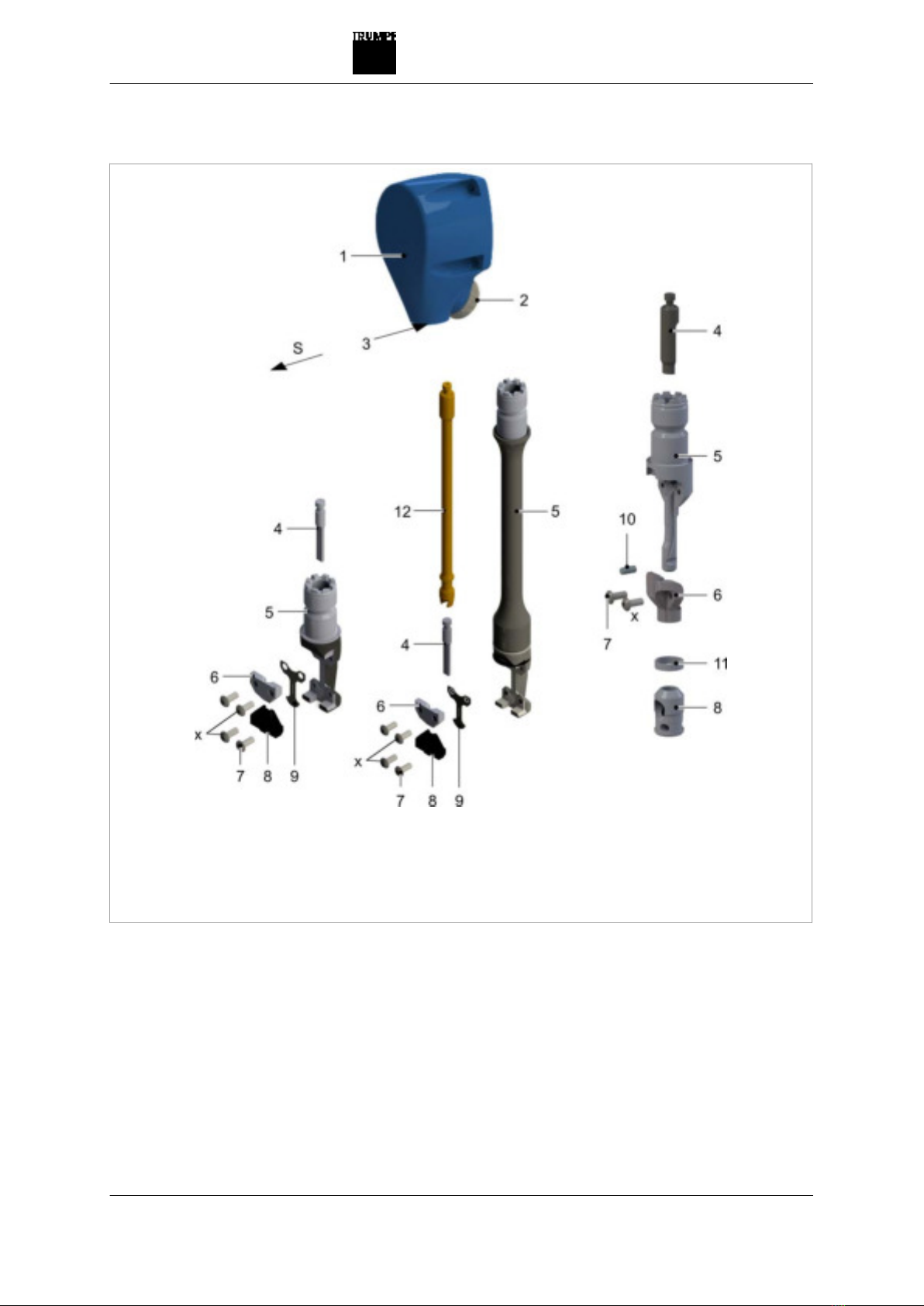

1 Housing
2 Index bolt
3 Ram
4 Punch
5 Die holder
6 Punch guide
7Fixing screws
8 Die
9 Wearing plate
10 Cylindrical pin
11 Cover ring
12 Ram extension
S Cutting direction
x First firmly tighten these screws
(3 Nm tightening torque)
Fig. 65143
1. Loosen index bolt (2) (6 revolutions).
2. Pull tool out of the housing (1).
3. Remove punch (4).
4. Lightly lubricate the new punch (4) and the boring in the tool
with lubricating grease "G1".
5. For TruTool PN 201:
E832en_00 Maintenance 17
Disassembling the punch
Installing the punch

− Install the ram extension (12) between the ram (3) and
the punch (4).
− Grease with lubricating grease "G1".
6. Hang the punch in the keyway of the ram.
7. Align the cutting direction towards the front.
8. Insert tool into the housing (1) with cutting direction facing
towards the front.
9. Position the tool in the desired cutting direction.
10. Tighten the index bolt (2) all the way.
11. The gap between housing (1) and die holder (5) must be
0 mm.
12. Push cover ring (11) upward out of slot.
13. Push out cylindrical pin (10) using a drift punch.
14. Pull off die (8) from the carrier pin and replace it with a new
die.
15. Set die on the carrier pin.
16. Mount cylindrical pin.
17. Slide the cover ring in the groove downwards.
5.2 Changing the die, punch guide and
wearing plate (TruTool PN 200 /
TruTool PN 201)
1. Unscrew the fixing screws (7).
2. Remove punch guide (6) and die (8).
Traces of wear on the wearing plate Fig. 51965
18 Maintenance E832en_00
Replacing the die
(TruTool N 200)

3. As soon as traces of wear (see image) can be clearly seen
on the wearing plate, remove the wearing plate (9) and
replace it with a new one.
4. Clean the support areas on the die carrier.
5. Center the punch guide and die using the pegs.
6. Fasten the punch guide and die with the screws.
Note
To grease, use lubricating grease "G1".
7. Lubricate the guide surfaces of the punch guide.
Note
Use original screws only.
8. Firmly tighten the screws marked with an "x" first (3 Nm
tightening torque).
5.3 Replacing carbon brushes
Notes
■Use only original spare parts from TRUMPF.
■Observe the information on the rating plate.
ØHave the carbon brushes checked and replaced as required
by a qualified technician.
E832en_00 Maintenance 19

6. Accessories and consumables
Consumables TruTool N 200 Order number Scope of delivery
Punch
1 piece
5-pack
-
1264176
x
-
Complete die
1 piece
2-pack
5-pack
-
1264393
1264394
x
-
-
Standard N set
2 x punches, 1 x die 0961961 -
Punch guide 0945692 x
Tool TruTool N 200 (2A1) 1750694 x1
Tab. 6
Consumables TruTool PN 200 / TruTool PN 201 Order number Scope of delivery
Punch
1 piece
5-pack
10-pack
-
1315713
1264146
X
-
-
Complete die
1 piece
2-pack
5-pack
-
1264153
1264154
X
-
-
Die P1
1 piece 1213131 -
Wearing plate
1 piece
2-pack
5-pack
-
1429275
1429276
X
-
-
Punch guide
1 piece
2-pack
0945697
1264367
X
-
Standard PN set
2 x punches, 1 x die, 2 x wearing plates 1429289 -
TruTool PN 200 (2A1) tool 1750693 x1
TruTool PN 201 (2A1) tool 1750692 x1
Tab. 7
1 Depending on the machine type ordered.
20 Accessories and consumables E832en_00
