CAUTION: BEFORE USINGTHR MACHINEBE SURE TO READ THIS MANUAL
1-1. Unpacking :
Before unpacking, make sure the carton configuration not damaged, broken or parts extruded, if
any abovedefect caseisfound, contact your retailer to change anewoneas soon as possible.
Unpacking procedure:
1. Carefullyopen the carton. (Pullitfrom the bottomto the top)
2. Take out and read themanual,check partslistand relative
attachments.
3. Inspect the machine outline if it is in normal condition or not.
Crack, rust, collapse and separate are strictlyprohibited.
4. Cleaning the surface of the machine.
5.Assemble the drillmachine based on manual,instruction guide.
1-2. Transportation instruction:
1. Please refer to instruction manual in specification and machine weight to arrange handling
manner.Be sure to use capable fork –lifter or hoist to lift of machine.
2. The handling and transportation shall becarried out by qualified persons.
3. Fork –liftor hoist can be used in handling and shallbe operated by qualified driver.
4. While transportation, keep attention tothe balance of machine.
5. During handling, the machine shall be lifted onlyin vertical direction.
6. Before handling, make sure all movable parts are secured in their position and all movable
accessoriesshould be removed from machine.
7. The steel rope should average pull the machine head, table andcolumntightly.
8. Keep allthe processesin acarefully and slightly condition.
9. Bump or crash are strictly prohibited. It will cause precision shift and electronic controller
damaged.
GB - ENGLISH
Operating Instructions
3

Typical liftingstrapposition.
1-3.Setting the machine instruction:
1. The machine base withsetting hole will be set on concrete floor.
The outlined procedures of setting the machine MODEL AREA SETTED
SCREW
930ELB X=900×700 M12
2. The dimension of setting hole and Working Clearances.
Consider existing and anticipated needs, size of materialtobe processed through eachmachine,
and space for auxiliary stands,work tables or other machinery when establishing alocation for your
machine. SeeFigure 01.930ELB
A=800mm
B=600mm
Lifting Straps
4

1-4. Major Parts:
A= Pulley Cover I= Pump Motor
B= Motor Handle J= Vice 3”
C= Motor K1= Table Lock K2= Table
D= Feed Handle L= Chuck Guard
E= Depth Stop E1= Pump Valve Lock M= Spindle
F= Locks table height N= Control panel
G= Raises/lowers table O= High / Low Switch
H= Base
O
C
D
K2
E1
I
M
A
B
H
G
L
F
J
N
K1
E
5

1-5. Items Needed for Set Up
1.The downfeed handles must be installed to operate the drill press.
To install the downfeed handles:
Thread the handles into the spindle hub, as shown in Figure 02, and tighten.
2.Install the crank lever over the pinion shaft, and tighten the setscrew in the crank handle against the
flat part of the pinion shaft. Figure 03,
3. The drill chuck attaches to the spindle by means of the arbor, shown in Figure 04. Matched tapers
onThe arbor and the inside of the chuck create a semi-permanent assembly when properly joined.
Figure 02
Spindle Hub
Wrench
handle
Figure 03
Flat part
6

1-6. To assemble the drill chuck and mount it to the spindle:
1. Use mineral spirits to thoroughly clean the drill chuck, arbor, and spindle sockets and dry all
surfaces before assembly. Follow all safety warnings on the container of the mineral spirits. Failure to
clean the mating surfaces may cause the tapered fit to loosen during operation, resulting in
separation and an unsafe condition. Figure 05.06.07
2. Use the chuck key to adjust the jaws of the drill chuck until they are inside the drill chuck body.
Figure 08.09
3. Place the drill chuck face down on a workbench. The arbor has a short taper and a long taper.
Place the short taper into the socket in the back of the drill chuck and tap it with a rubber or wooden
mallet, as shown in Figure 10. If the chuck fails to remain secure on the arbor, repeat Steps 1 & 2.
Figure 04
Figure 05 Figure 06 Figure 07
Figure 08 Figure 09
Arbor
Drill Chuck
Drill shifter
7

4. Slide the arbor into the spindle socket while slowly rotating the drill chuck. The socket has a
rectangular pocket where the tang (or flat portion of the arbor shown in Figure 10) fits into.
5. Seat the chuck with a rubber mallet, as shown in Figure 11.
2. Safety Instruction:
Please read the safety instruction and operation
instruction carefully.
Please do wear a safety glass to avoid any material from
coming into the eyes whilst operation.
Please do wear ear mufflers or earplugs to avoid any
noise from hurting the listening whilst operation.
Please do wear proper work clothing whilst operation.
Loose clothing or tie are prohibited to avoid any
unnecessary incident.
If a operator has long hair, please do fix the hair or use
cap to avoid the hair from being drawn into it.
A processing workpiece shall be fixed firmly to avoid it
from being thrown out whilst operation.
Please keep both hands far from the rotating tool whilst
operation. Cotton gloves are prohibited to avoid from
being drawn into cutter.
Please pull out the power plug to avoid any electric shock
incident whilst product maintenance or repair.
Figure 10 Figure 11
Wood
Tang-Side Up
8

1.Makesure the power voltage is for the machine. Before connecting the
plug to socket, itis necessary tocheck thepowerspec. toavoid any
damage occurring.
2.If the machine isnot used foralong time, theplug should be
disconnected.
3. Never putthe power cable near the fireorwater environment, to breakor
press the power cable is not allowed.
4. It shallbe stable and securelyfixed in machine installation procedure for the machine to beused
safely.
5. The working piece mustbe tightlyfixed on tableby vise or clamp.
6.Use recommended cutting liquid; consult the owner’smanual for recommendation.
7.Feed speed should be executed under safety scope, pleaserefer to manual 3-3.
8. Wear proper apparel, no loose clothing, gloves, neckties,ring,and bracelet during operation.
Always wearsafety glasses,cap and specificclothes.
9. Check allparts are in place and securelylocked before transportation. Bump and crash are
prohibited.
10. Regular maintenance andrepaired should be executed inaccordance with the rules of manual.
11.Use the industrialsuction to clean the chip is recommended.
12.Usecarrier to movethe working piece which the weight ismore than 10 kgis recommended.
13. Wear safety gloveswhen installthe drilling bit or toolingto avoidhurting your hand is
recommended.
14.This machine only be used following material brass, cast iron, steel, iron, aluminum .
15. It is prohibited to open thepulley cover duringoperation.
16. It is prohibited to usedamaged or cracked parts
17. It is prohibited to remove the guard cover away during operation.
18.It is prohibited tomove the tablewhen machine is during operation.
9

19. It is prohibited to operate this machine beyond the limit of its capacity.
20. Refer to this instruction for details.
21. It is prohibited to insert one's hand or finger into the hole of working piece during operation.
22. It is prohibited all visitors and children should stand near work area while the machine during
operation.
23. It is prohibited to wear gloves, neckties, ring, bracelet and loose clothing during operation.
24. It is prohibited to use plastic and wooden working.
25. Check again before switch on power,
A- Make sure the power voltage is for the machine.
B- Make sure the machine is completely assembled and installed
C- Make sure chuck, working table, working piece are completely secured or tightly fixed.
D- Make sure the chuck key is removed from chuck.
E- Make sure drill bit or tooling need to be fixed in the chuck.
26. Switch off power at once;
A- When fix or remove working piece.
B- When the normal maintenance, service, adjustment or repairing.
C- When the operator leaves the machine.
D- When correct work table adjustment and depth position.
E- When change or remove the drilling bit or tooling.
27. Working temp.5 --- 40℃,Humidity 40--- 50,Elevation 0 ---1000 M
Storage temp -25--- 55℃

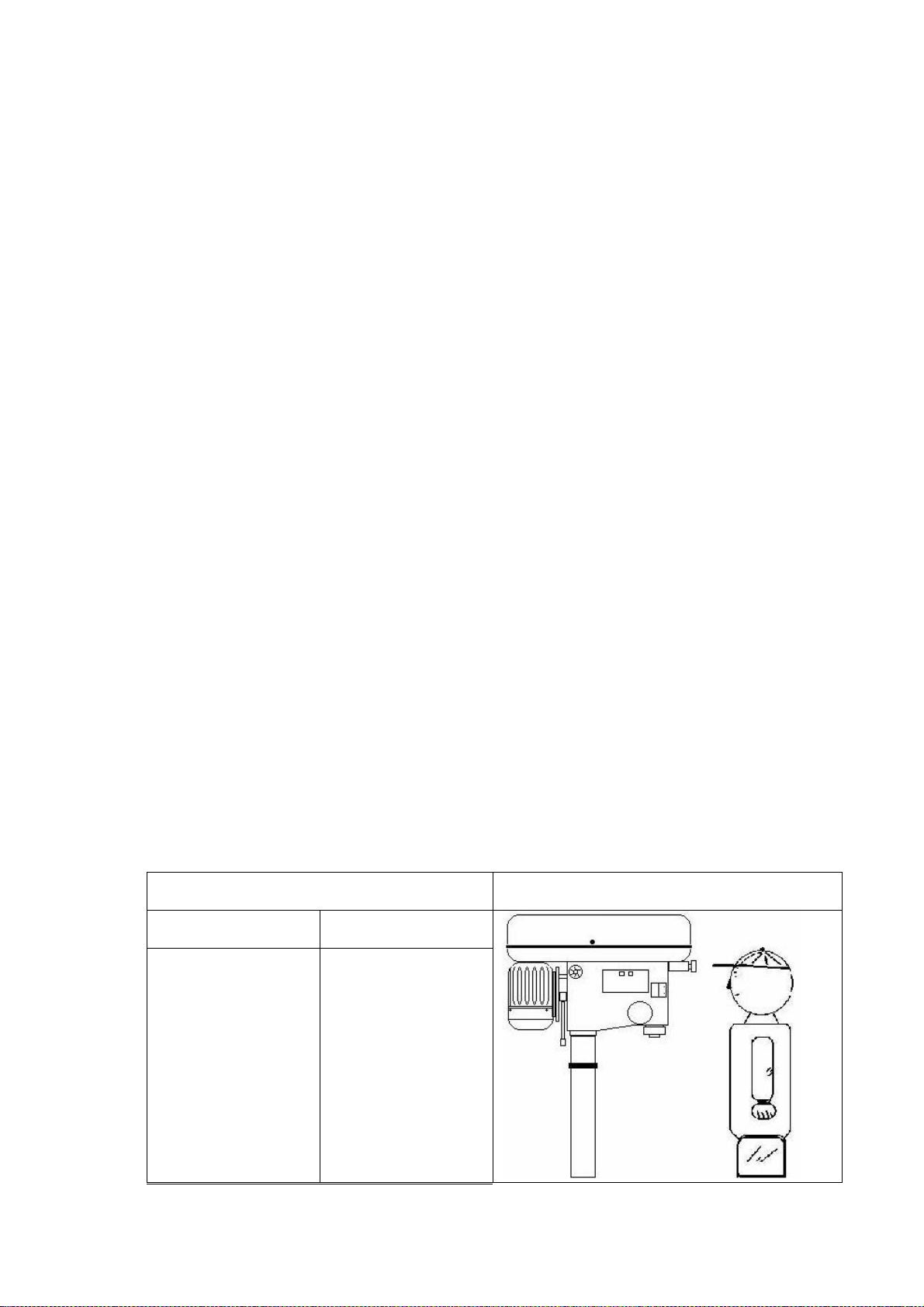

28. Operate location diagram for reference.

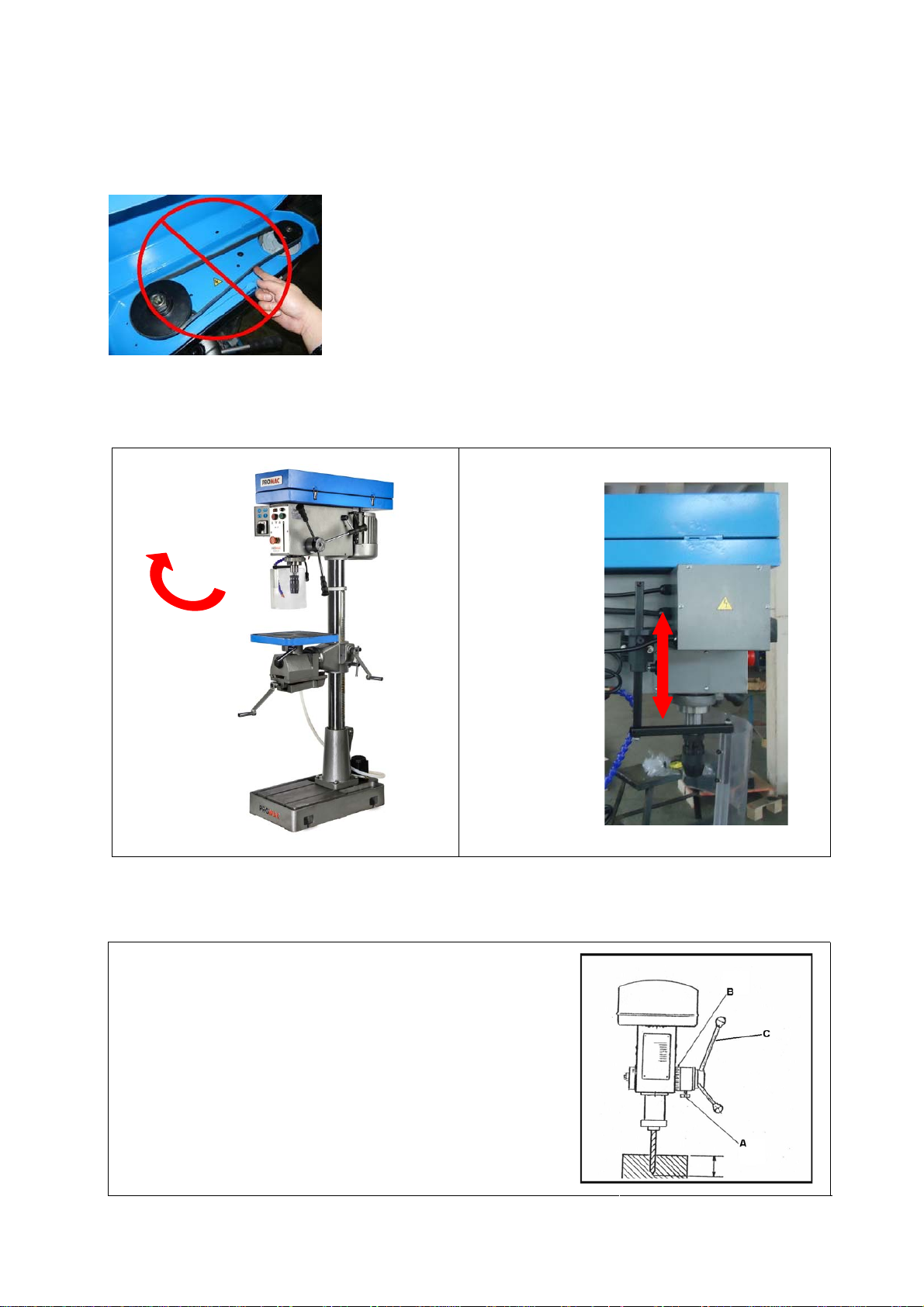

Diagram 1 Diagram 2
MODEL Ultimate loading
930ELB 60 kg
