Trumpf TruTool C 160 User manual

Operator's manual
English
TruTool C 160 (1A2), (1B2)

2 Contents E600EN_01.DOC
Contents
1. Safety ..................................................................................3
1.1 General safety information...................................................3
1.2 Specific safety information...................................................3
2. Description .........................................................................4
2.1 Intended use ........................................................................5
2.2 Technical data .....................................................................6
3. Setting work .......................................................................7
3.1 Installing the exhaust hose ..................................................7
3.2 Cutting parallel strips ...........................................................8
3.3 Selection of tools .................................................................9
4. Operation..........................................................................11
4.1 Operating the TruTool C 160.............................................11
4.2 Separating chips ................................................................12
5. Maintenance .....................................................................13
5.1 Replacing the TruTool C 160 (1A2)...................................14
Replacing the blade......................................................14
Turning or replacing the insertable cutters ...................15
5.2 Replacing the TruTool C 160 (1B2)...................................16
Replacing the blade......................................................16
Turning or replacing the insertable cutters ...................17
5.3 Supplying with power and guaranteeing lubrication ..........18
5.4 Replacing fins ....................................................................19
5.5 Cleaning the strainer..........................................................20
5.6 Changing mufflers..............................................................20
6. Original accessories and wearing parts........................21
7. Disposal............................................................................22
Guarantee
Replacement parts list
Addresses

E600EN_01.DOC Safety 3
1. Safety
1.1 General safety information
¾Before starting-up the machine, read the operator's manual
and the safety information (order no. 0373678, red document)
in its entirety and carefully follow the instructions given.
¾Comply with the safety regulations in accordance with
DIN VDE, CEE, AFNOR as well as any other regulations that
apply in the individual countries.
Danger
Risk of fatal injury from electric shock!
¾When working with the machine do not touch any electrical
lines. The machine is not insulated.
Warning
Risk of injury due to improper handling!
¾Always remove the compressed-air hose from the machine
prior to maintenance work.
¾Check the compressed-air hose, connection coupling, and
machine for damage each time before using the machine.
¾Wear safety glasses, hearing protection, protective gloves
and work shoes when working at the machine.
1.2 Specific safety information
Warning
Risk of injury due to improper handling!
¾Make sure the machine is in a stable position when operating
it.
¾Never touch the tool while the machine is running.
¾Always move the machine during work away from your body.
¾Do not operate the machine above your head.
Caution
Damage to property due to improper handling!
Machine will be damaged or destroyed.
¾Have servicing and inspections of hand-held compressed-air
tools carried out by a qualified technician. Only use original
TRUMPF accessories.

4 Description E600EN_01.DOC
2. Description
10 10
24
4
3
27
28
26
12
347
8
4
7
TruTool C 160 (1A2)
TruTool C 160 (1B2)
3 Cutting head
4 Insertable cutters
7 Chip separator
(only for TruTool C 160 (1B2))
8 Handle for chip separation
(only for TruTool C 160 (1B2))
10 Fixing screw
12 Locking washer
(only for TruTool C 160 (1B2))
24 Blade bearing pin
26 Blade
27 Lever
28 Safety lever
347 Screw grommet
TruTool C 160 (1A2)/ TruTool C 160 (1B2) Slitting Shears
Fig. 52383

E600EN_01.DOC Description 5
2.1 Intended use
Warning
Risk of injury
¾Only use the machine for work and materials as described
under "Intended use."
The TRUMPF TruTool C 160 Slitting Shears are a compressed-air
tool used for the following applications:
•Cutting plate-shaped workpieces, e.g. steel, aluminium, and
plastic.
•Cutting straight or curved exterior and inner cutouts.
•Cutting along scribed lines.
The TRUMPF TruTool C 160 (1B2) Slitting Shears also allows you
to cut off chips that are produced while machining the workpiece as
required.

6 Description E600EN_01.DOC
2.2 Technical data
Other countries USA
Values Values
Working speed 8-13 m/min 26-42 ft/min
Nominal power consumption 600 W 600 W
Idle stroke rate 5700/min 5700/min
Stroke rate with nominal load 5170/min 5170/min
Weight 1.4 kg 3.1 lbs
Start hole diameter 8 mm (Cr)
15 mm (straight cutter)
0.32 in (Cr)
0.6 in (straight cutter)
Smallest radius with curved cuts 40 mm (curve cutter)
90 mm (straight cutter)
160 mm (Cr)
1.57 in (curve cutter)
3.5 in (straight cutter)
6.3 in (Cr)
Max. operating pressure
(flow pressure) 6.2 bar 90 psi
Air consumption at 6 bar 0.8 m³/min 28.3 cubic ft/min
Connecting thread 1/4" 1/4"
Inside diameter of the compressed-
air hose 10 mm 0.4 in
Technical data
Permissible material thickness
Steel up to 400 N/mm²/
57,000 tensile
Steel up to 600 N/mm²/
85,000 tensile
Aluminum 250 N/mm²/
35,000 tensile
Straight cutter 1.6 mm/0.063 in/16 ga 1.2 mm/0.048 in/19 ga 2.0 mm/0.075 in
Curve cutter 1.0 mm/0.040 in/19 ga 0.8 mm/0.031 in/21 ga 1.2 mm/0.048 in
Blade CR 1.6 mm/0.063 in/16 ga 1.2 mm/0.048 in/18 ga 2.0 mm/0.075 in
Vibration Specifications in accordance
with EN 12096
Measured values in accordance
with EN ISO 8662-10
Vibration value at the handle a 13.30 m/s²
Uncertainty K 1.60 m/s²
Measured values were measured while cutting sheet steel
400 N/mm² with max. material thickness.
Tab. 1
Tab. 2
Tab. 3

E600EN_01.DOC Setting work 7
Noise emissions Designations in accordance
with EN ISO 4871
Measured values in accordance
with EN ISO 15744
A-rated sound level LWA 93 dB
A-rated acoustic power level at the
work place LPA
82 dB
The noise emission values given are the sum of the measured
values and the corresponding uncertainties. They represent an
upper value limit which can emerge during measurements.
3. Setting work
3.1 Installing the exhaust hose
The exhaust hose reduces noise emissions and guides the
exhaust air away from the operator.
1 Adapter
2 Teflon tape
3 Screw grommet
4 Compressed-air hose
5 Hose clip
6 Exhaust hose
7 Spring ring
Exhaust hose
1. Put the exhaust hose (6) and the hose clip (5) over the
compressed-air hose (4).
2. Undo the spring ring (7) and screw the adapter (1) onto the
motor.
3. Wind Teflon tape (2) around the screw grommet (3).
4. Tightly screw the grommet into the motor.
5. Push the compressed-air hose (4) on the grommet.
6. Position the hose clip (5) and tighten.
7. Push the exhaust hose (6) on to the adapter (1).
8. Secure the exhaust hose (6) using the spring ring (7).
Tab. 4
Fig. 52422

8 Setting work E600EN_01.DOC
3.2 Cutting parallel strips
Parallel stop
The parallel stop (option) can be used to process parallel strips 35-
300 mm/1.38-11.75 in wide.
1. Remove blade bearing pins.
2. Mount the parallel stop.
The rod of the parallel stop adopts the function of the blade bearing
arrangement.
Fig. 17756

E600EN_01.DOC Setting work 9
3.3 Selection of tools
Information
The blades have 2 cutting edges. They cannot be resharpened.
Different types of blades are required according to the thickness or
tensile strength of the workpiece (see Tab. 5, p. 10).
Information
If the blade is not selected as specified in the table,
–the quality of cut will be severely impaired.
–the feed power increases significantly.
–the blade will break.
Tool type Description Order no. Material
thickness
[mm]
Material thickness
[mm]
TRUMPF
143434
1mm
Curve blade
1.0 mm/
0.040"
143434
Aluminum max.
250 N/mm²
0.3 to 1.2
Steel max. 400
N/mm²
0.3 to 1.0
Stainless steel
max. 600
N/mm²
0.3 to 0.8
Aluminum max.
35,000 tensile
0.012 to 0.047
Steel max.
57,000 tensile
0.012 to 0.040
Stainless steel max.
85,000 tensile
0.012 to 0.032
1-1.6mm
TRUMPF
143463
Straight cutter
1.0 - 1.6 mm/
0.040" - 0.063"
143463
Aluminum max.
250 N/mm²
1.0 to 2.0
Steel max. 400
N/mm²
1.0 to 1.6
Stainless steel
max. 600
N/mm²
0.8 to 1.2
Aluminum max.
35,000 tensile
0.040 to 0.079
Steel max.
57,000 tensile
0.040 to 0.063
Stainless steel max.
85,000 tensile
0.032 to 0.047
TRUMPF
143432
1mm
Straight cutter
1.0 mm/
0.040"
143432
Aluminum max.
250 N/mm²
0.3 to 1.2
Steel max. 400
N/mm²
0.3 to 1.0
Stainless steel
max. 600
N/mm²
0.3 to 1.0
Aluminum max.
35,000 tensile
0.012 to 0.047
Steel max.
57,000 tensile
0.012 to 0.040
Stainless steel max.
85,000 tensile
0.012 to 0.040
934055
Cr
TRUMPF
Blade CR
0.8 - 1.2 mm
0.032" - 0.047"
934055
Aluminum max.
250 N/mm²
1.0 to 2.0
Steel max. 400
N/mm²
1.0 to 1.6
Stainless steel
max. 600
N/mm²
0.8 to 1.2
Aluminum max.
35,000 tensile
0.040 to 0.079
Steel max.
57,000 tensile
0.040 to 0.063
Stainless steel max.
85,000 tensile
0.032 to 0.047

10 Setting work E600EN_01.DOC
Tool type Description Order no. Material
thickness
[mm]
Material thickness
[mm]
Insertable cutters
(1 set = 2 pieces)
with screws
For TruTool C 160 (1A2):
927708
For TruTool C 160 (1B2):
913520
All materials All materials
Chip separator
TruTool C 160
(1B2)
143950 All materials All materials
Blade selection
Tab. 5

E600EN_01.DOC Operation 11
4. Operation
Warning
Risk of injury due to improper handling!
¾Make sure the machine is in a stable position when operating
it.
¾Never touch the tool while the machine is running.
¾Always move the machine during work away from your body.
¾Do not operate the machine above your head.
4.1 Operating the TruTool C 160
1. Turn the safety lever (1).
2. Press the lever (2) against the motor housing.
1 2
1 Safety lever 2 Lever
3. Guide the machine at an angle of about 15° to the sheet
surface.
Information
Do not move the machine towards the workpiece until full speed
has been reached.
To protect the machine and for a good cutting performance:
•Ensure that blades are sharp.
•Turn insertable cutters in due time.
•Change insertable cutters in due time.
The following applies when cutting radii:
•Do not tilt the machine.
•Proceed with a low feed rate.
¾Release the lever (2).
Switching on
Fig. 52384
Switching off

12 Operation E600EN_01.DOC

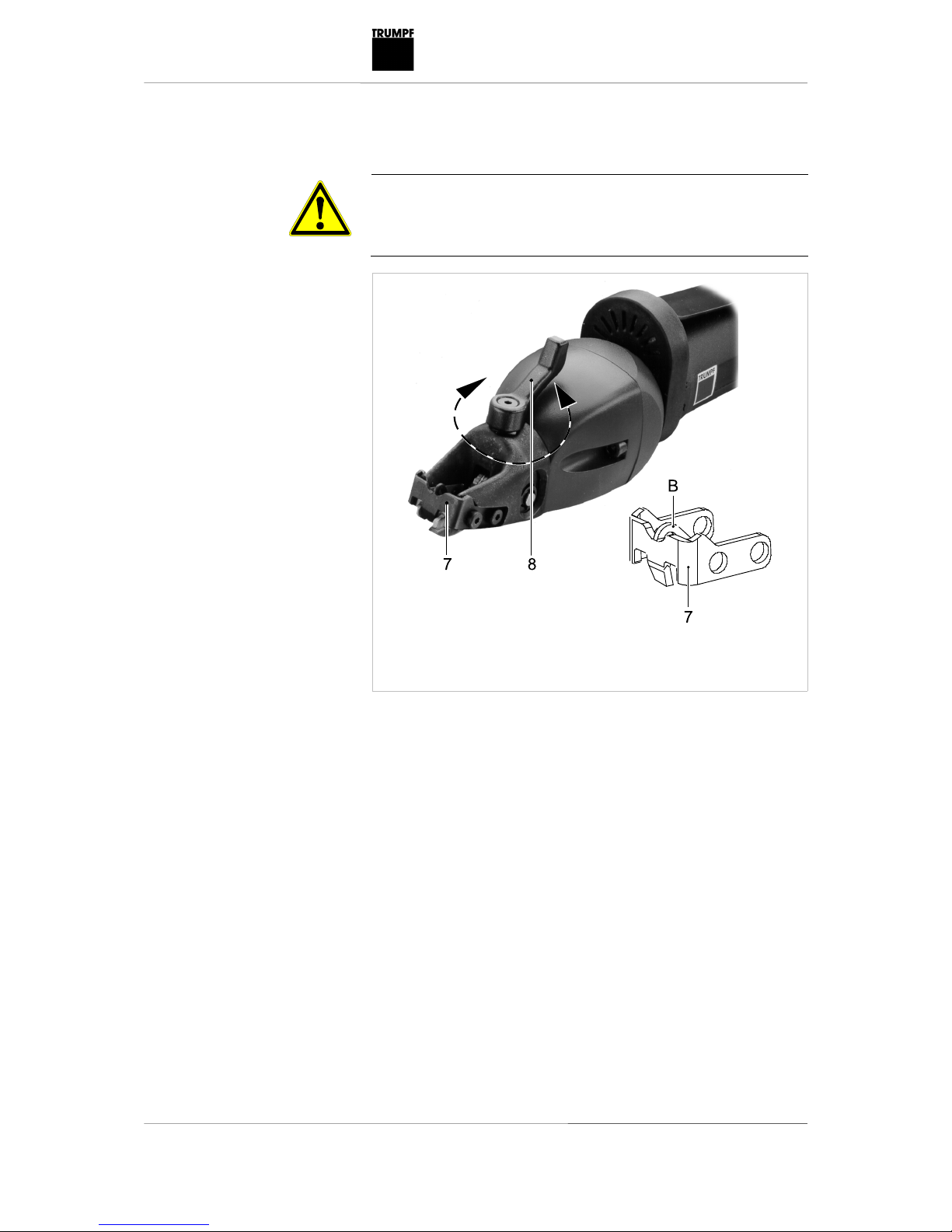

4.2 Separating chips
Caution
Damage to property due to a broken chip brake!
The machine may no longer be used.
¾Replace the chip separator.
7 Chip separator
8 Handle for chip separation
B Chip brake
1. Separate the chips: turn the handle by a 3/4 clockwise rotation
while the machine is running.
2. Continue the operating procedure: turn the handle to the
starting position.
Fig. 17760

E600EN_01.DOC Maintenance 13
5. Maintenance
Warning
Risk of injury due to repair work not being carried out
properly!
Machine does not work properly.
¾Repair work may only be carried out by a qualified technician.
Maintenance point Procedure and interval Recommended lubricant Lubricant
order no.
Bearing pin Lubricate when replacing the
blade
Lubricating grease "G1" 139440
Blade Change as needed (see
"Replacing the blade", p. 14).
- -
Blade Lubricate when replacing the
blade
Lubricating grease "G1" 139440
Gearbox and gear head After 300 operating hours, arrange
for a qualified technician to relubri-
cate or to replace the lubricating
grease.
Lubricating grease "G1" 139440
Insertable cutters Turn as needed (see "Turning or
replacing the insertable cutters",
p. 15).
- -
Insertable cutters Change as needed (see "Turning
or replacing the insertable
cutters", p. 15).
- -
Filter, oil mist lubrication
device
Maintain daily in accordance with
the manufacturer's specifications
(see "Supplying with power and
guaranteeing lubrication", p. 18)
- -
Strainer Clean every 10 operating hours
and when there has been a
decline in performance (see
"Cleaning the strainer", p. 20).
- -
Maintenance table
Tab. 6

14 Maintenance E600EN_01.DOC
5.1 Replacing the TruTool C 160 (1A2)
Replacing the blade
Warning
Risk of injury due to uncontrolled machine movements.
¾Remove the compressed-air hose when changing tools and
before performing any maintenance work on the machine.
Caution
Damage to property caused by blunt tools!
Machine overload.
¾Check the cutting edge of the blade hourly for wear. Sharp
blades ensure good cutting quality and protect the machine.
Replace the blades in due time.
3
26
42410
F
FF
F
3 Cutting head
4 Insertable cutter
10 Fixing screw
24 Blade bearing pin
26 Blade
F Lubricating grease "G1" (139440)
Replacing the tool
If the cutting edges are blunt, replace the blades.
1. Push out the bearing pin (24) which was locked into place.
2. Pull the blade (26) out of the cutting head (3).
3. Apply a thin layer of grease to the bearing pin and the new
blade.
4. Insert the blade.
5. Push the bearing bolt (24) into the bore hole until it locks into
place.
Fig. 17576

E600EN_01.DOC Maintenance 15
Turning or replacing the insertable cutters
1. Unscrew the fixing screws (10).
2. Check the insertable cutters (4):
¾When a cutting edge is blunt, turn the insertable cutter by
180°.
Or
¾If both cutting edges of an insertable cutter are blunt,
replace the insertable cutter.
3. Tighten the fixing screw (10).

16 Maintenance E600EN_01.DOC
5.2 Replacing the TruTool C 160 (1B2)
Replacing the blade
Warning
Risk of injury due to uncontrolled machine movements.
¾Remove the compressed-air hose when changing tools and
before performing any maintenance work on the machine.
Caution
Damage to property caused by blunt tools!
Machine overload.
¾Check the cutting edge of the blade hourly for wear. Sharp
blades ensure good cutting quality and protect the machine.
Replace the blades in due time.
3
26
724 10
F
F
F
F
4
12
8
3 Cutting head
4 Insertable cutter
7 Handle, chip separator
8 Handle
10 Fixing screws M 4x8
12 Locking washer
24 Blade bearing pin
26 Blade
F Lubricating grease "G1"
(139440)
If the cutting edges are blunt, replace the blades.
1. Remove the locking washer (12) using a screwdriver.
2. Push out the bearing pins (24).
3. Pull the blade (26) out of the cutting head.
4. Apply a thin layer of grease to the bearing pin and the new
blade.
5. Insert the blade.
Fig. 17577

E600EN_01.DOC Maintenance 17
6. Push the bolt pin (24) into the bore hole of the blade until it
reaches the stop.
7. Insert the locking washer (12) into the designated notch of the
bearing pin.
Turning or replacing the insertable cutters
3
26
724 10
F
F
F
F
4
12
8
3 Cutting head
4 Insertable cutter
7 Chip separator
8 Handle
10 Fixing screws M 4x8
12 Locking washer
24 Blade bearing pin
26 Blade
F Lubricating grease "G1"
1. Unscrew the fixing screws (10).
2. Check the insertable cutters (4):
¾When a cutting edge is blunt, turn the insertable cutter
by 180°.
Or
¾When both sides of the cutting edges of an insertable
cutter are blunt, replace both insertable cutters.
3. Turn the handle (8) by a ¾ rotation to the right, in order to bring
the blade into the cutting position.
4. Push the chip separator (7) onto the cutting head until the chip
separator is positioned over the front edge of the blade.
5. Hold down the chip separator and insertable cutters in this
position.
6. Tighten the fixing screw (10).
7. Turn the handle (8) to the left to the working position.
Fig. 17577

18 Maintenance E600EN_01.DOC
5.3 Supplying with power and
guaranteeing lubrication
Caution
Damage to property due to improper handling!
Failure of the compressed-air motor.
¾Do not exceed the maximum operating pressure.
¾Regularly lubricate the compressed-air motor. Install an oil
mist lubrication device into the compressed-air line.
Prerequisite
•The pressure regulating valve and the connecting threads are
laid out correctly (see Technical data, section 2.2, p. 6).
1 Connecting thread 1/4"
2 Oil mist lubrication device
3 Pressure regulating valve
4 Filter and water separator
5 Inside diameter of the
compressed-air hose min.
10 mm or 3/8"
Compressed air supply.
1. Install the filter and water separator (4).
2. Drain/check the water separator daily.
Information
To ensure a supply of compressed air the tube cross-sections in
the entire line system must be twice to three times the size of the
inside diameter of the compressed-air hose.
Supplying compressed air
Fig. 52385

E600EN_01.DOC Maintenance 19
¾Hold a piece of paper in front of the exhaust air vent in the
motor housing when the machine is running.
The oil supply is sufficient when oil spots appear.
When there is no oil mist lubrication device available:
¾Fill the air inlet bore hole with 0.5-1 ccm of oil every two hours.
Recommended lubricant
•BP Energol RD 80 (-15° to +10°C/+5° to +50°F).
•BP Energol RD-E80 (+10° to +30°C/+50° to +86°F).
•Shell Tellus Oil 15 (-15° to +10°C/+5° to +50°F).
•Torculla 33 (+10° to +30°C/+50° to +86°F).
Information
Secure the compressed-air hose against undesired movements
using a compressed-air safety device.
5.4 Replacing fins
Worn fins decrease machine performance.
¾Have the fin set checked and replaced as needed by a
qualified technician.
Information
Only use original replacement parts and observe the information
on the rating plate.
Checking the oil supply

20 Maintenance E600EN_01.DOC
5.5 Cleaning the strainer
Dirty strainers decrease machine performance.
1
1
2
3
1 Muffler
2 Housing ring
3 Air inlet with strainer
Air inlet
1. Remove the air inlet with strainer.
2. Clean the strainer or replace the complete air inlet.
3. Reinstall the air inlet.
5.6 Changing mufflers
Change the muffler pads as needed (see Fig. 52402, p. 20).
1. Remove the air inlet (3).
2. Pull off the housing ring (2).
3. Replace the muffler pad.
4. Reinstall the housing ring and the air inlet.
Fig. 52402
