Trust Power Protector 530 User manual

Trust Power Protector 530
1
UK
1. Introduction
No part of this instruction manual may be reproduced or transmitted, in any form or
by any means whatsoever, for any purpose other than the purchaser's own personal
use, without prior written permission from the manufacturer.
2. Use
The Power Protector 530 is equipped with a childproof socket.
The power is only accessible if both poles of the plug are inserted into the Power
Protector 530 at the same time.
The following points should be observed when using the Power Protector 530:
1. Do not use this device near water.
2. Extremely high voltages can cause this device to malfunction, although the
safety of any devices connected to it will still be guaranteed. Do not try to
repair the Power Detector 530 if it malfunctions.
3. Do not use this device if:
a) The cable or plug is damaged,
b) Fluid has entered the device,
c) The casing has been damaged.
4. Only connect this device to an earthed plug socket. The red LED 4 (see
figure 1) will light up if the device has been connected to a plug socket which
is not earthed. This may also effect the functionality of the device.
5. Connecting heavy equipment, such as an electrical heater, will activate the
safety device 5. This may damage the device. The internal fuse will blow and
a buzzer will be heard.

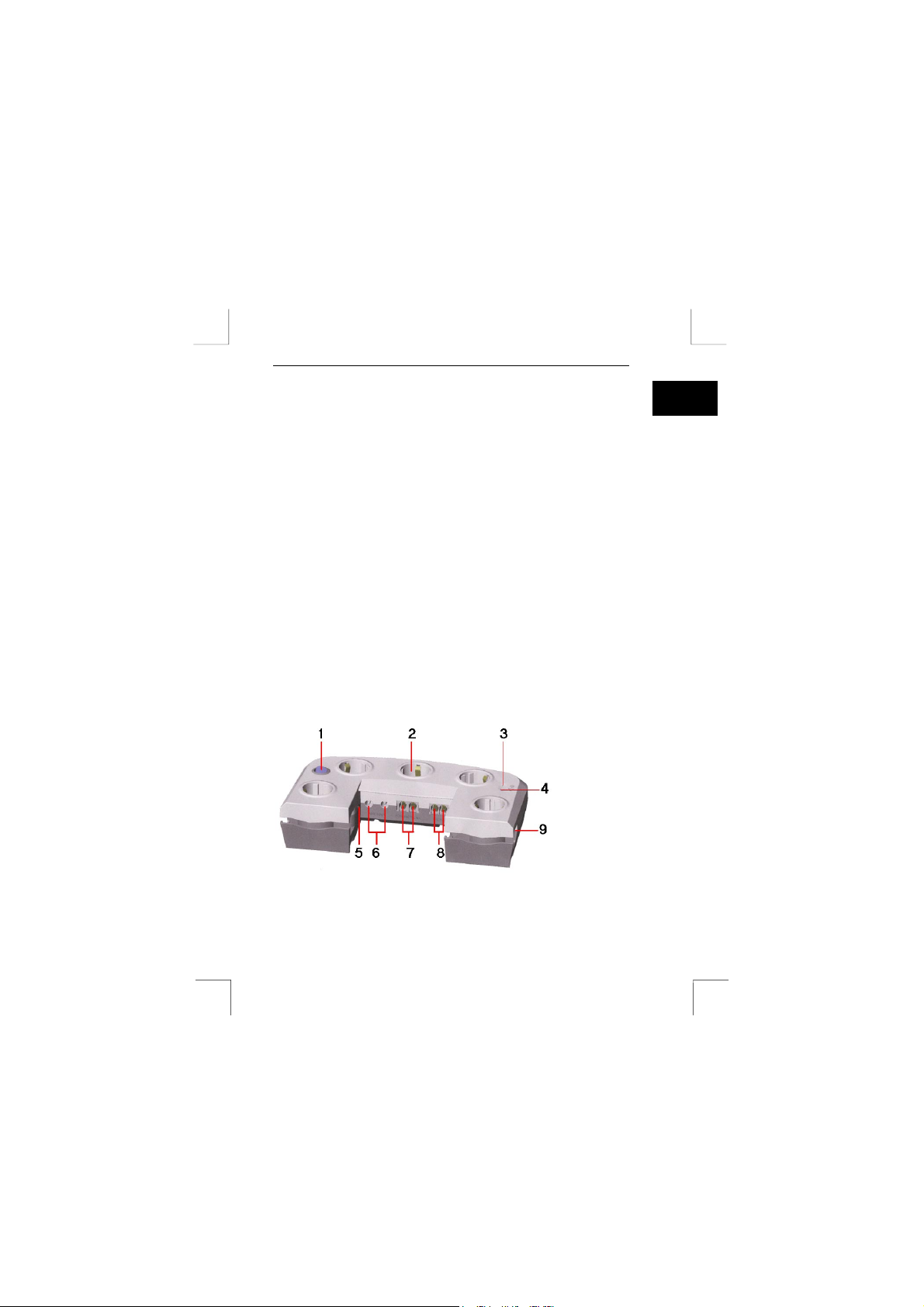

Figure 1: Trust Power Protector 530

Trust Power Protector 530
2
1 ON / OFF switch Turns the Power Protector ON or OFF
2 Socket Childproof connection for equipment (5)
3 Green LED Lights up when the Power Protector is in use
4 Red LED Lights up when the Power protector has not
been connected to an earthed plug socket
5 Automatic fuse Protects up to 10 A
6 TV connection Filters the aerial signal
7 Network / ISDN connection Filters the network or ISDN signal
8 Modem / telephone
connection
Filters the telephone signal
9 Cable feed-through For storing the loose cables
Note: Under extreme circumstances, such as massive exposure to a
direct lightning strike, this device will not offer enough protection to
prevent every type of damage.
3. Specifications
Maximum direct current 10 A (protected)
Maximum operating voltage 240 V AC
Reaction time < 1 ns
Maximum serge energy 270 J
Thermal cut-out Overload safety device with automatic
fuse
Indicators Green LED (in use). Red LED if not
connected to an earthed plug socket.
EMI / RFI filter 40 dB
Cable length 180 cm
Number of connections 5
Aerial protection Yes (75 Ohm)
RJ11 modem / telephone protection Yes
RJ45 ISDN / network protection Yes
