Trust START-LINE AWMR-230 User manual

START-LINE
RECEIVER AWMR230
Item 71035 Version 1.0
Visit www.trustsmarthome.com
for the latest instructions
MINI BUILD-IN SWITCH
USER MANUAL
MULTI LANGUAGE

2
4
1
3
Live wire
Switch wire

6
8
5
7
Live wire
Neutral
Live wire
Live wire
Neutral
Live wire

910
12
1 sec.
ON
2x
11

13
14
1 sec.
OFF
2x

15
7 sec.
2x
1 sec.

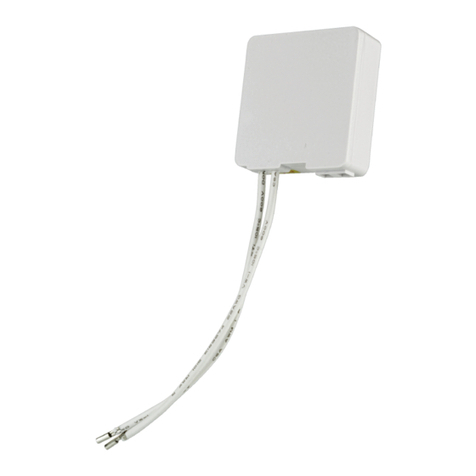

AWMR-230 MINI BUILD-IN SWITCH
1. Switch o the mains power (electric meter box) before installing this product
Continue with [2] for installation behind a single wall switch.
Continue with [5] for ceiling box installation.
2. Wall installation: Remove the existing light switch
Detach the existing light switch and disconnect the wires. Remember to which terminals the wires
were connected. Only connect lamps that do not exceed the max load: 230 W.
3. Connect the live wire and switch wire
Connect the (brown) live wire to the [L] contact. Connect the (black) switch wire to the [ ] contact.
Tighten the clamping screws. Contact an electrician when in doubt about wire colors.
4. Connect AWMR switch wires to the original wall switch
Connect the 2 white switch wires from the receiver to the previously used terminals on the original
wall switch.
5. Ceiling installation: Remove the existing lighting
Detach the existing lighting and disconnect the wires. The receiver will act as a replacement for
the existing wall switch. Only connect lamps that do not exceed the max load: 230 W. Contact an
electrician when in doubt about wire colors.
6. Connect the live wire to [L] and [ ]
Interrupt the (brown) live wire and connect the two parts to [L] and [ ]. It does not matter which part
is connected to which terminal of the receiver. Tighten the clamping screws.
7. Clamp down the 2 AWMR wires in a screw terminal
Isolate the 2 white switch wires from the receiver in a screw terminal.
8. Switch on the mains power (electric meter box) to continue the installation
Shock hazard! Do not contact any exposed wiring. Only touch the plastic housing of this product.
9. Activate learn-mode
Press the learn-button on the receiver for 1 second. The learn-mode will be active for 15 seconds and
the LED-indicator will blink slowly.
EN

AWMR-230 MINI BUILD-IN SWITCH
2
10. Assign Trust SmartHome transmitter code
While the learn-mode is active, send an ON-signal with any Trust SmartHome transmitter to assign the
code to the receiver’s memory.
11. Code confirmation
The receiver will switch on/o 2 times to confirm the code has been received. The receiver can store
up to 6 dierent transmission codes in its memory. The memory will be preserved when the receiver
is moved to another location or in case of power failure.
12. Mount the receiver in the box
Mount the receiver in the wall or ceiling box and put the original wall switch or ceiling lighting
back in place.
13. Manual operation with a Trust SmartHome transmitter
1. Press ON to switch the receiver on.
2. Press OFF to switch the receiver o.
14. Single code delete
1. Press the learn-button for 1 second. The learn-mode will be active for 15 seconds and the LED-
indicator will blink slowly.
2. While the learn-mode is active, send an OFF-signal of a specific Trust SmartHome transmitter to
delete that code.
3. The receiver will switch on/o 2 times to confirm code deletion.
15. Full memory delete
1. Press and hold the learn-button on the receiver (aprox. 7 sec.) untill the LED-indicator starts
blinking fast. The delete mode will be active for 15 seconds.
2. While the delete mode is active, press the learn button on the receiver again for 1 second.
3. The receiver will switch on/o 2 times to confirm memory deletion.
EN

IMPORTANT INFORMATION
MULTI LANGUAGE
START-LINE
RECEIVER AWMR230
Item 71035 Version 1.0
Visit www.trustsmarthome.com
for the latest instructions
MINI BUILD-IN SWITCH

1
AWMR-230 MINI BUILD-IN SWITCH
EN
Read these simple guidelines. Not following them may be dangerous and faulty installation will
invalidate any warranty that may apply to this product.
COMPATIBILITY
This receiver works with all
Trust SmartHome transmitters.
FUNCTIONALITY
Build-in receiver for switching lights with a Trust
SmartHome transmitter, while maintaining the
functionality of the existing single wall switch.
R Incandescent lamps
R Eco halogen lamps
R 230 V halogen lamps
R 12 V halogen lamps with electronic transformer
Q 12 V halogen lamps with iron-core transformer
Q Fluorescent tubes with electronic starter
Q Switchstart fluorescent tubes
(automatic glow starter)
Q Compact fluorescent lamps
Q LED lamps
LIGHTING OVERVIEW (visit www.trustsmarthome.com for more information)
WIRELESS RADIO SIGNAL
• The 433.92 MHz radio signal passes through walls, windows and doors.
• Indoor range: up to 30 m. Outdoor range: up to 70 m. (optimal conditions)
• The range is strongly dependent on local conditions, such as the presence of metals. For example,
the thin metal coating in Low-emissivity (Low-E) glass has a negative impact on the
range of radio signals.
• There may be restrictions on the use of this device outside the EU. If applicable, check whether this
device complies with local directives.
TECHNICAL SPECIFICATIONS
• Power supply input
• Maximum load
• RF frequency
• RF range
• Standby power consumption
• Memory addresses
220-240 VAC 50 Hz
230 Watt
433.92 MHz
Up to 30 m indoor/70 m outdoor (optimal conditions)
0.5 Watt
6

2
AWMR-230 MINI BUILD-IN SWITCH
EN
LEGAL INFORMATION
CE: Trust declares this device complies with the Directives as listed in Section 2 of this document.
WEEE: Dispose of the device at a recycling centre. More information: www.trustsmarthome.com
Warranty information: www.trustsmarthome.com/warranty
INSTALLATION
Wire colors may vary per country. Contact an
electrician when in doubt about wiring. This
product is not suitable if the existing light switch
is interconnected to other light switches for
multiway switching.
MAXIMUM LOAD
Never connect lights or equipment that exceed
the maximum load of the receiver, as it can result
in defects, a short circuit or fire.
SHOCK HAZARD
Exercise caution when installing a receiver.
Voltage may be present, even when a receiver is
switched o.
LIFE-SUPPORT
Never use Trust SmartHome products for life-
support systems or other applications in which
equipment malfunctions can have
life-threatening consequences.
INTERFERENCE
All wireless devices may be subject to
interference, which could aect performance. The
minimum distance between 2 receivers should be
at least 50 cm.
REPAIRING
Do not attempt to repair this product. There are
no user-serviceable parts inside.
WATER-RESISTANCE
This product is not water-resistant. Keep it dry.
Moisture will corrode the inner electronics and
can result in a short circuit, defects and
shock hazard.
CLEANING
Use a dry cloth to clean this product. Do not use
harsh chemicals, cleaning solvents,
or strong detergents.
HANDLING
Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards
and fine mechanics.
ENVIRONMENT
Do not expose the product to excessive heat
or cold, as it can damage or shorten the life of
electronic circuit boards.
Q Switchstart fluorescent tubes
(automatic glow starter)
Q Compact fluorescent lamps
Q LED lamps

AWMR-230 MINI BUILD-IN SWITCH
EN
TRUST SMART Home
LAAN VAN BARCELONA 600
3317DD DORDRECHT
NEDERLAND
www.trustsmarthome.com
Declaration of Conformity
Trust International B.V. declares that this
trust smart h
ome-product:
Model: AWMR-230 MINI BUILD-IN SWITCH
Item number: 71035
Intended use: Indoor
is in compliance with the essential requirements and other relevant provisions of the following
directives: EMC Directive, Low Voltage Directive and R&TTE Directive.
The product is compatible with the following norms/standards:
Authorized representative
H. Donker, Procurement Director
Dordrecht, 1-1-2015
EN 300 220-1 V2.4.1 (2012-05)
EN 300 220-2 V2.4.1 (2012-05)
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-3 V1.6.1 (2013-08)
EN 55022:2010 +AC:2011, Class B
EN 61000-3-2:2006 +A1:2009 +A2:2009, Class A
EN 61000-3-3:2013
EN 61000-4-2:2009
EN 61000-4-3:2006 +A1:2008 +A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2014
EN 61000-4-11:2004
EN 55015:2013
EN 60669-2-1 :2004 + A1 :2009 + A12:2010
EN 60669-2-2:2006
EN 60669-1 :1999 + A 1 :2002 + A2:2008
