1
Userinstructions
HM10,HM10HD,HM20HD
CarpetSoil Extraction Machines
03-8229-0000 Iss.204/10
CAUTION
–
READTHESEINSTRUCTIONS BEFOREUSINGTHEMACHINE
ORIGINALINSTRUCTIONS

2
Contents
1Product Information...............................................................................................................3
1.1 Important SafetyAdvice...................................................................................................3
1.2 Guidelinesforthe operator...............................................................................................4
1.3 Transporting the machine................................................................................................4
1.4 Electricalconnection........................................................................................................4
1.5 Symbols&Markings........................................................................................................4
2Controls.................................................................................................................................5
3Preparing foruse...................................................................................................................5
4Operation..............................................................................................................................5
4.1 Starting the machine........................................................................................................5
4.2 Using the machine...........................................................................................................5
4.3 CleaningCarpet...............................................................................................................5
4.4 CleaningStairs................................................................................................................6
4.5 CleaningUpholstery.........................................................................................................6
5WhenCleaningisFinished....................................................................................................6
5.1 Draining and Cleaning.....................................................................................................6
5.2 Storage............................................................................................................................6
5.3 Maintenance....................................................................................................................6
6AfterSalesService................................................................................................................6
7Guarantee.............................................................................................................................7
8WasteElectrical &ElectronicEquipment (WEEE)..................................................................7
9Technicalspecification...........................................................................................................7
10 Accessoriesand Cleaning Chemicals....................................................................................8
11 FaultDiagnosis......................................................................................................................8

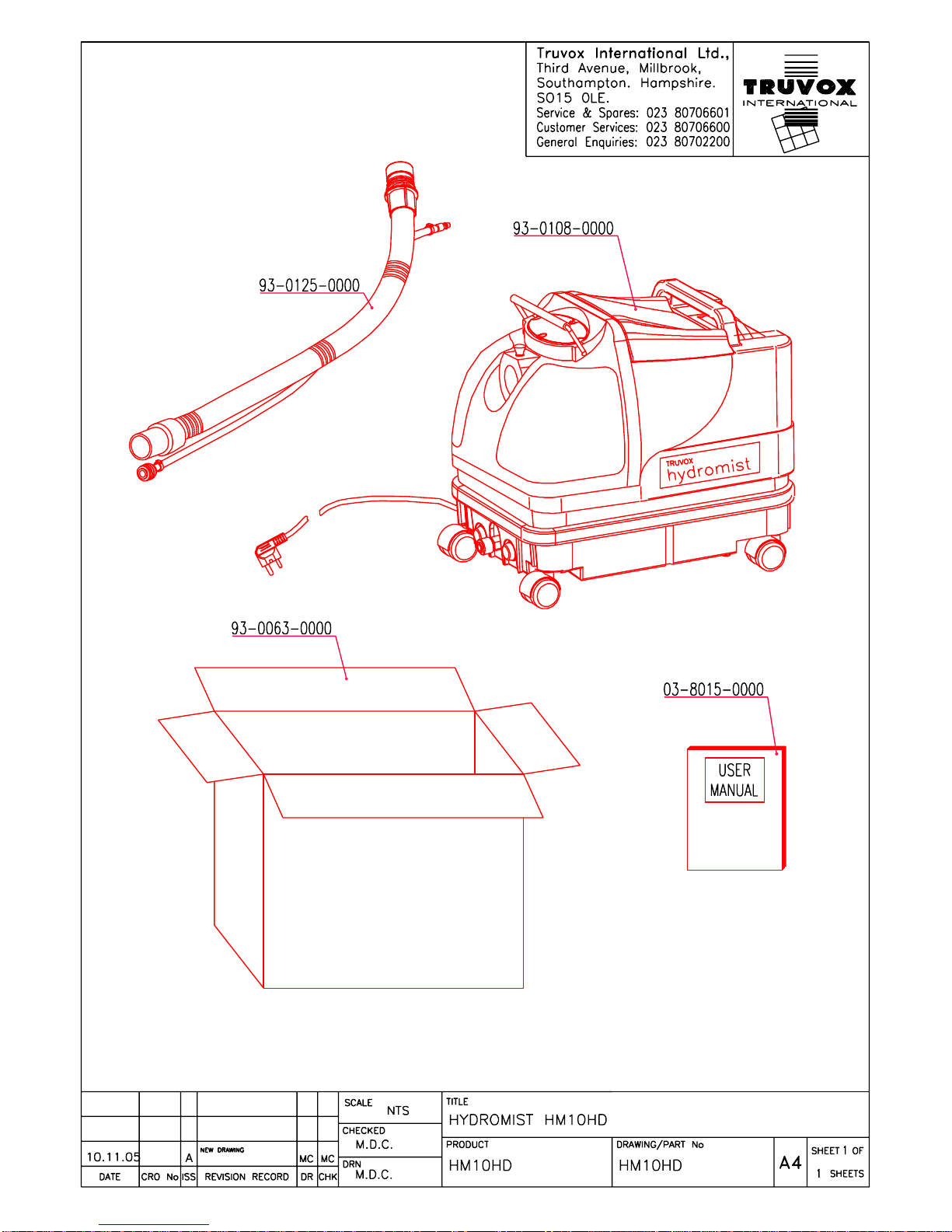

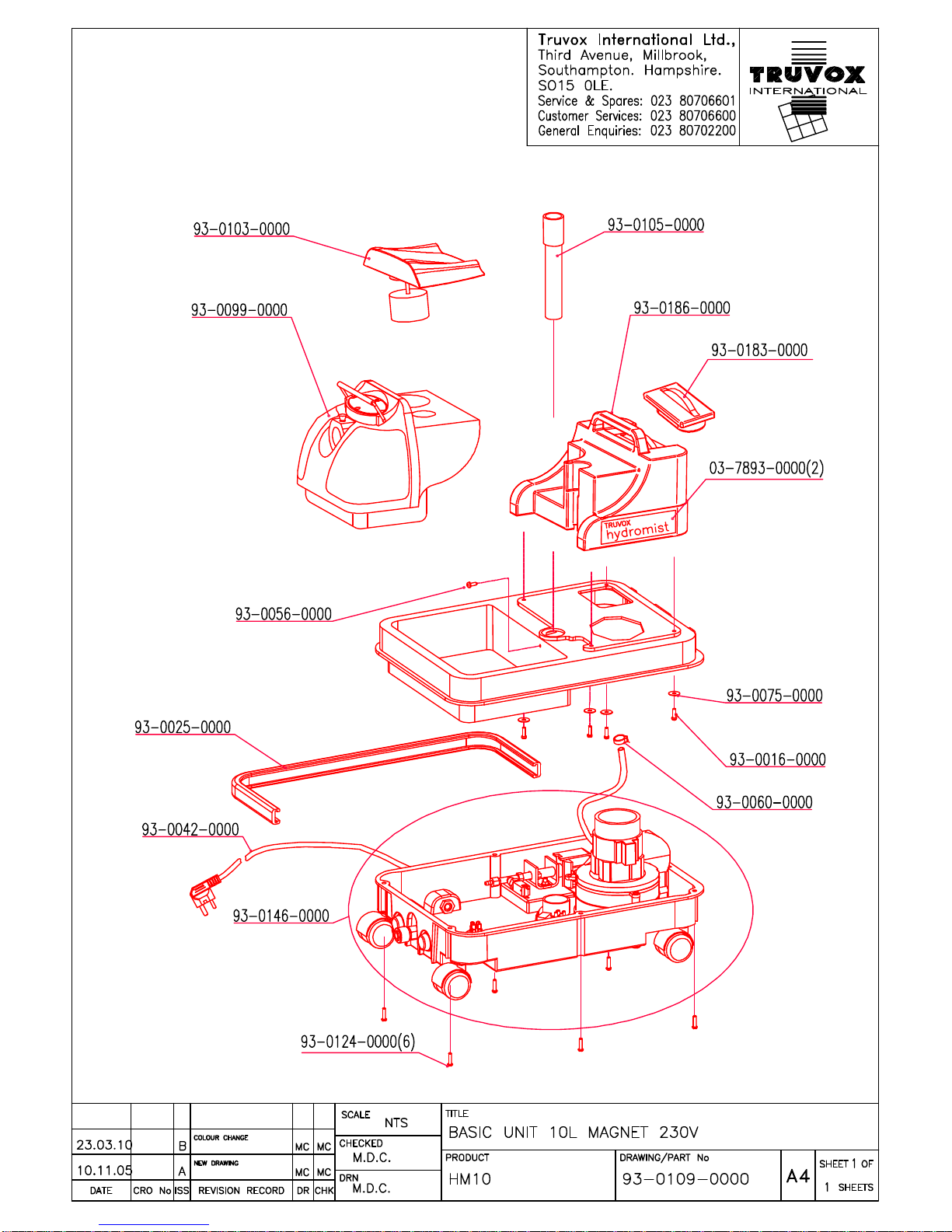

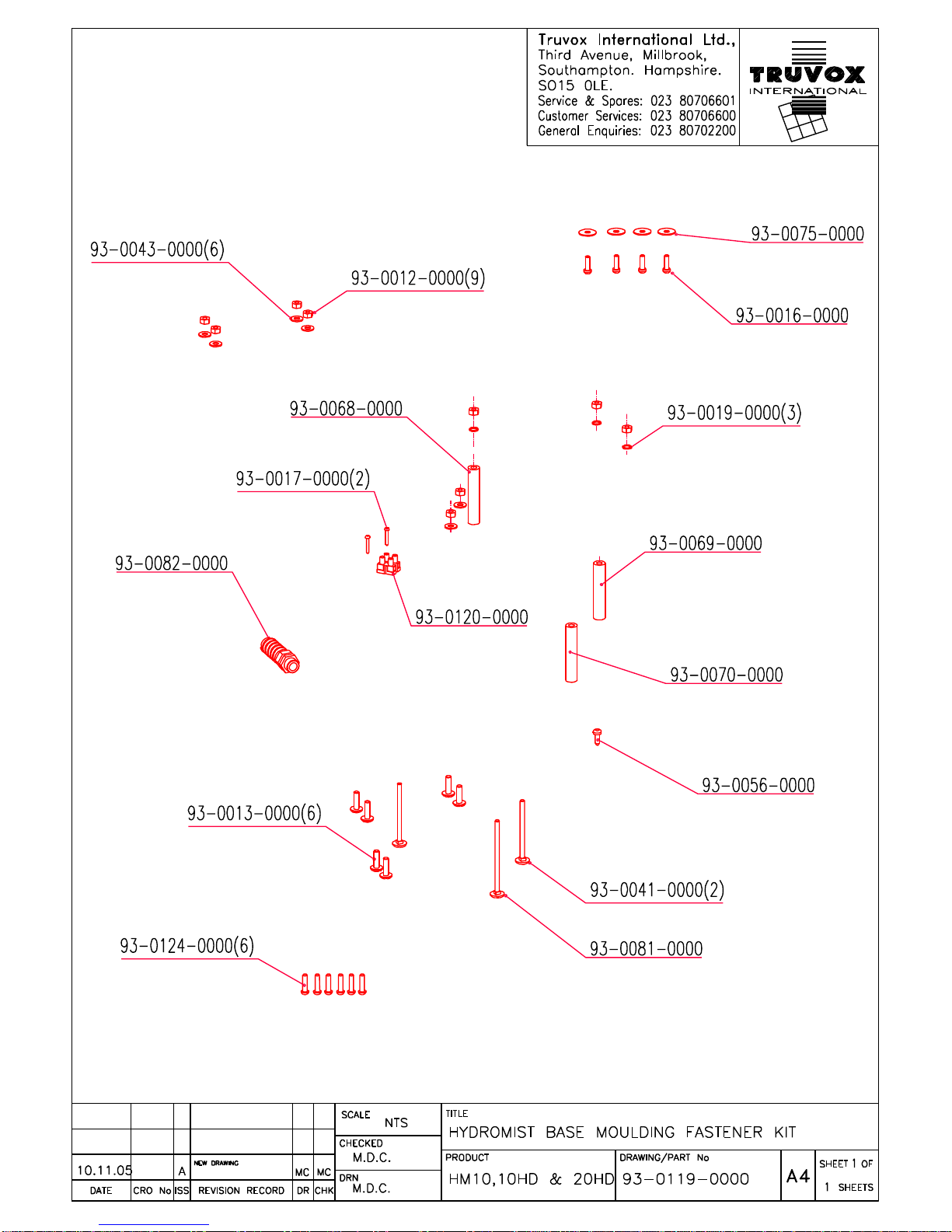

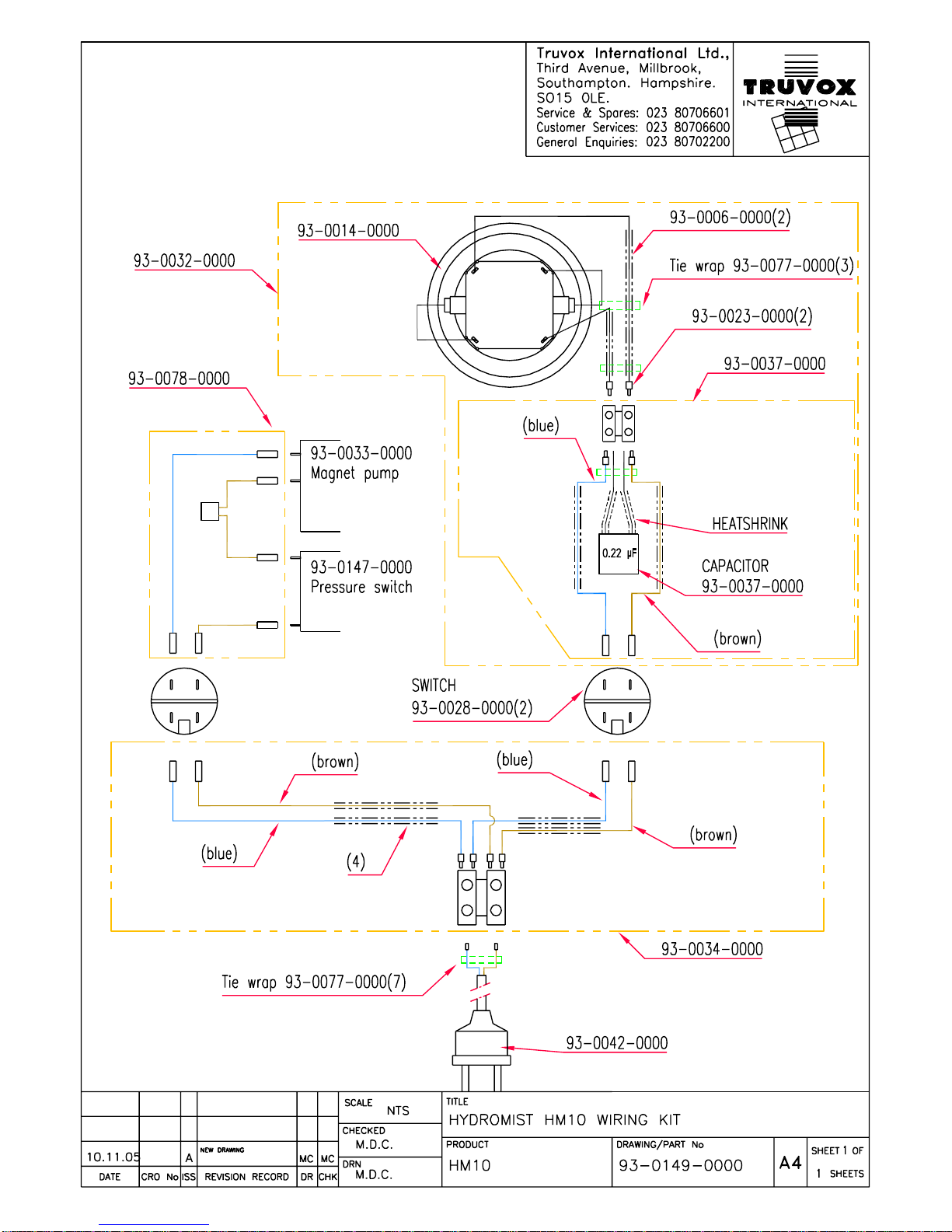

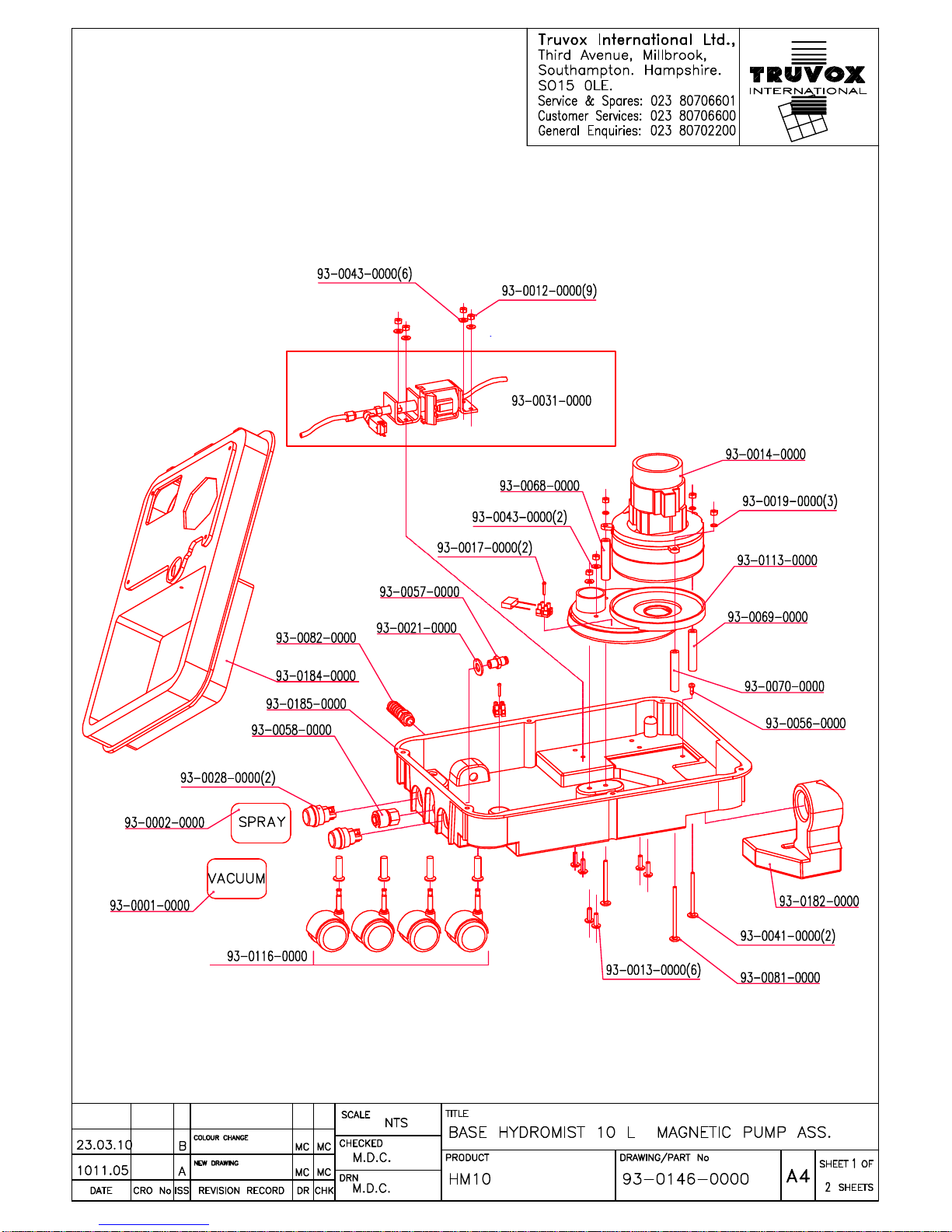

12 PartsLists&Diagrams..........................................................................................................9
13 Declaration ofConformity.....................................................................................................33

3
IMPORTANT
BEFOREUSEREADTHESEINSTRUCTIONSAND RETAINFORFUTUREREFERENCE
1ProductInformation
The Hydromistrange ofcarpetsoilextraction
machinesaredesigned forthe efficientcleaning
of carpetsand upholstery.
Werecommend thatanyusernotfamiliarwith
carpetcleaning shouldread theseuser
instructionsfullybeforeusing the machine. Ifyou
haveanyqueriespleasecontact the supplierwho
you purchased the machine fromorTruvox
Internationalon the contactdetailsprovided at
the back.
Thesemachinesmustonlybe used forthe
manufacturer’sapproved application.Donot
use the machine whereitissuspected thatthe
carpet, floororupholstery containshealth
endangering dustordebrissuchasasbestosor
chemicalwaste.Ifthisissuspected do not
proceed,contactyoursupervisor,supplieror
TruvoxInternationalforadvice.
The following instructionscontainimportant
information aboutthe machine and safetyadvice
forthe operator.
Equipmentmustbe operated,serviced and
maintained inaccordancewiththe
manufacturer’sinstructions.Ifin doubtcontact
thesupplier ofyourmachine.
Theseinstructionsarevalidforthe following
models:
HM10, HM10HD, HM20HD
1.1ImportantSafetyAdvice
When using electrical equipmentbasicsafety
precautionsshouldbe followed including the
following.
•Read allinstructionscarefullybeforeuse.
•Thisapplianceissuitableforcommercialuse,
forexampleinhotels,schools,hospitals,
factories,shops,offices,rentalbusinessesand
otherthan normal housekeeping purposes.
•Thismachine isnotintended foruseby
persons(including children)withreduced
physical,sensory ormentalcapabilities,orlack
ofexperienceand knowledge,unlessthey
havebeen given supervision orinstruction
concerning useofthe machine byaperson
responsiblefortheirsafety.
•Keep children and unauthorised personsaway
fromthe machinewhen inuse.
•Beforeusing the appliance,check thatthe
mainspowervoltage correspondswiththe
voltage shownon the rating plate.
•Allpartsaretobe positioned asindicated inthe
instructionsbeforeusing the machine.
•Do not operatethe machine ifitmalfunctionsor
isdamaged inanyway.Contactan authorised
serviceagent forrepairoradjustment.
•Do notoperateswitchesortouchthe mains
plug withwethandsasthismaycauseelectric
shock.
•Whenunplugging pulltheplug,notthe supply
cord.
•Do notpull orcarry bycord,usecordasa
handle,closeadooron cord,orpullaround
sharpedgesorcorners.
•Keep hair,looseclothing,fingersand allparts
of bodyawayfromopeningsand moving parts.
•Keep cordawayfromheated surfaces.
•Do not usewherehazardousdust ispresent.
•Do not useinan explosiveatmosphere.
•Do not pickup oilorotherflammablematerial.
•Do not usetopickup moistureoranyliquids.
•Do notleavethe machine connected tothe
electricitysupplywhen notinuse,always
removethe plug fromthe socket-outlet.
•Switchoffthe machine beforeremoving the
plug.
•Keep the powersupplycordclearofmoving
parts.During operation hazardmayoccur
whenrunning the machine overthe power
supplycord.
•The powersupplycordmustberegularly
inspected forsignsofdamage.Ifthe power
supplycordisdamaged,itshall onlybe
replaced bythe manufacturer,itsserviceagent
orasimilarqualified person inordertoavoida
hazard.
•Onlyreplacethe supplycordwiththe type
specified intheinstruction manual.
•Do notoperatethe machine withadamaged
supplycordorplug,orafterthe machine
malfunctionsorisdamaged inanyway.
Contactan authorised ServiceAgentforrepair
oradjustment.
•The plug ofthe powersupplycordmustbe
removed fromthe socket-outletbefore
commencing cleaning ofthe machine or
undertaking maintenanceoperations.
•Do not kinkortwist the powercord.
•Takecarewhen using amachine nearthe top
of stairstoavoidoverbalancing.

4
1.2Guidelines fortheoperator
WARNING
Operatorsmust be fullytrained inthe use
ofthe machine inaccordancewiththese
instructions,abletoperformuser
maintenanceand the correctselection of
accessories.
•Operatorsshouldbephysicallycapableto
manoeuvre,transportand operatethe
machine.
•Operatorsshouldbe abletorecogniseunusual
operation ofthe machine and reportany
problems.
•Onlyusethe machine onfirmlevelsurfaces.
•Wearsuitablefootweartoavoidslipping.
•Wearsuitableclothingtokeep dryand warm.
•Wherepossibleimplementjob rotation and
adequaterestperiodstoavoidcontinuoususe
of the samemuscles.
•Do not leavemachine running unattended
•Do not smokewhen using the machine.
•Do notputanyobjectsintoopenings.Do not
usewithanyopening blocked:keep free of
dust, debris,hair,oranything thatmayreduce
airflow.
CAUTION -Thismachine isforindoor
useonlyand shouldnotbe used or
stored outdoorsorinwet conditions.
CAUTION -Ifit issuspected thatthereis
hazardousdustorflammablematerials
stop cleaning the area immediatelyand
consult yoursuperior.
WARNING Onlyuseaccessoriesand
sparepartsprovided withthe machine or
thoseapproved bythe manufacturer.
The useofotheraccessoriesmayimpair
the safetyofthe machine.
WARNING –Shouldwateremitfromthe
machine exhaust switchoff
immediately and refertoinstructionsfor
UsingtheMachine
•Ensurethe machine isswitched off before
adding orchanging accessories.
1.3Transportingthemachine
CAUTION –Incorrectlifting techniques
mayresultinpersonalinjury,where
applicabledo notliftlarge and heavy
machineswithout assistance. Weadvisethat the
manual handling regulationsarefollowed.
Pleaserefertothe technicaltablefordetailson
weight ofmachine.
When transporting the machine ensurethatall
components,tanksand removablepartsare
securelyfastened,and thatthe supplycordand
plug arenot trailing. Detachhoseand wandfrom
machine whereapplicable.
Donot lift ortransportthe machine whilst
containing liquidasthiswilladd considerablyto
the weight.
Takeextremecarewhen moving the machine up
ordownstepsorstairs.
1.4Electrical connection
Beforeconnecting the machine tothe power
supply,check thatyoursupplyvoltage
correspondswiththatmarked on the ratinglabel.
The powersupplycordplusanyextension leads
shouldnotexceed 30mintotal,otherwiseyou
mayexperienceproblemsstarting up the
machine.The cross-section ofanyextension
cablewiring must be atleast 2,5mm².
Shouldan extension cordbe used,ensurecord
rating isadequateforthe equipment.Do notuse
extension cordincoiled condition asthiscould
result inoverheating of the cord.
UK only
The supplycordfor230vmodelsisfitted witha
plug containing a13 ampfuse.Shouldthe fuse
requirereplacementit must onlybe replaced bya
13 ampfuseconforming toBS1362,and the fuse
covermust be refitted. Ifthe fusecoverislost the
plug mustnotbe useduntil the correct
replacement coverisfitted.
IMPORTANT -Ifthe supplycordisdamaged,it
must onlybe replaced byaspecialcordavailable
fromthe manufactureroran authorised service
agent.
1.5Symbols&Markings
WARNING
Earth symbol

5
•
•
‘
•
2Controls
1 Hoserelease
catch
2 Vacuumhose
inlet
3 Solution pump
switch
4 Vacuumswitch
5 Solution outlet
6 Solution tank
7 Recovery tank
8 Recovery tank
cover
3Preparing foruse
WARNING-Before undertaking
assemblyorchanging of
accessories/toolsswitchoff machine
and unplug fromtheelectricitysupply.
•Makesurebothtanksareclean beforeuse.
•Connectthe flexiblevacuumhoseontothe
dirtywatertankand the high pressurespray
hosetothe machine.(fig.1)
Fig 1
•Connectthe vacuumhoseand the high
pressuresprayhosetothe appropriate
accessory.
•Fillthe clean watertankwithdetergentand
water.Takecaretousecorrectdilution ratefor
the detergent. Neveroverfill.
•Important-Takecaretoonlyuseappropriate
low-foamcarpetcleaning chemicalswiththe
machine.Incorrectchemicalscouldcause
damage tothe carpetsbeingcleaned orcause
the machine tomalfunction.
4Operation
4.1Starting themachine
•Connect the cabletomainspower.
•Switchon the unitsprayor/and vacuum.
•Depressing thehandleof the accessory sprays
solution.Maintainaconstantpressureofthe
accessory ontothe surfacetobe cleaned.(fig.
2).
Fig 2
4.2Using themachine
•Tomorethoroughlydrythe surfacebeing
cleaned,completethe cleaning withasecond
passwiththe vacuum(and no spray).
•Neversoakthe textilebeing cleaned while
spraying.
4.3Cleaning Carpet
Colourfastness - Beforeusing cleaning solution
orpre-spotter, test carpet forcolourfastnesson
an inconspicuousarea. Applysolution toasmall
pieceof clean whitematerial ortissue, and then
rub on carpetvigorously. Excessiveamountsof
dyeshowing on the material indicatethatthe
coloursarenotfast,and the carpetshouldnot be
wet cleaned.
•Movefurniturearound togiveaclearworking
area.Coverbottomsoffurniturelegswhere
necessary (aluminiumcooking foilisideal).Pin
up curtainsand drapes.
•Vacuumcarpetthoroughlytoremoveany
residualdust ordebris.
•Areasofheavycarpetsoiling can be removed
moreeasilyiffirsttreated withaconcentrated
cleaning solution orpre-spotting solution.
•Rateofcleaning willdepend upon the
thickness ofthe carpetand the degree of dirtin
the area being cleaned.
•Do notclean anymorethan twice.Carpets
mayshrinkiftheyareover-wetornotproperly
fixed down.
Spray

6
4.4Cleaning Stairs
CAUTION- When cleaning on stairs
exercise
greatcaretoensurethatmachine is
stableand
cannot overbalance, possiblycausing injuryto
eitheroperatororthirdparty. Usethe optional
stair/upholstery toolforcleaning inplaceof the
wandassembly.
4.5Cleaning Upholstery
Thisisdone inthe samewayascarpet cleaning
exceptusing the optional upholstery toolinplace
of the wand assembly.Cleaning isachieved
using agentledragging motion ofthe upholstery
tooloverthe material.
•Aninconspicuousareaofthe itemtobe
cleaned shouldalwaysbe tested forcolour
fastness priortocleaning.Shoulddoubtexist
astothe suitabilityofthe fabricforwet
cleaning,the chemical manufacturershouldbe
consulted foradvice.
•Loosecushionsshouldbe removed and
cleaned separately.
•Careshouldbe taken toavoidover-wetting the
fabric.
5When CleaningisFinished
5.1Draining andCleaning
•Beforeremoving the sprayhose,pressurein
the systemmustbe released.Withthe pump
switched off, holdthe spraynozzleoverthe
recovery tankopening and depressthe spray
triggeruntil the remaining solution hasbeen
released.The sprayhosecan nowbe
disconnected.
•Afterusecheck thatbothsolution tanksare
empty.
•Emptythe clean watertankand rinse.
•Emptythe recoverytankand riseclean.
•The clean water/solution tankcan be emptied
intothe recoverytankbyusing the vacuum
hose, and then emptied out.
•Rinsebothtanksoutwithclean waterbefore
storing the machine.
5.2Storage
•Alwaysunplug,empty,wipe downanddry the
machine afteruse.
•Wrap supplycordaround thebodyofthe
machine,orcoiland pushunderthe handle,
ensuring thatthe plug isnottrailing on the
floor.Storethe machine inadry indoorarea
only.
5.3Maintenance
WARNING-Before undertaking
maintenance operationsor
adjustmentsswitchoff machineand
unplugfromtheelectricitysupply.
The machine requiresminimummaintenance
apartfromthe following checksbythe operator.
•Supplycord -Regularlyinspectsheath,plug
and cordanchorage fordamage orloose
connection.
•Solution tank –Check filterisclean and
undamaged.Adamaged ormissing filter
mustbe replaced ordamage topumphead
and sprayjet couldoccur.
•Vacuumhead –Check and removeany
debrisorlintbuild-up fromthe head.
•Spray jet –Check jetforblockage and full
spraypattern.Blowthrough jettoclean. Do
not useapin, asthiscoulddamage the jet.
IMPORTANT –Allotherservicing and repairs
shouldonlybe performed byaTruvoxengineer
orAuthorised ServiceAgent.
6After Sales Service
Truvoxmachinesarehigh qualitymachinesthat
havebeen tested forsafetybyauthorised
technicians. Itisalwaysapparent that afterlonger
working periods,electricaland mechanical
componentswillshowsignsofwearand tearor
ageing.
Underextremeorspecialised conditionsand/or
insufficient maintenance, shortermaintenance
intervalsarenecessary. UseonlyoriginalTruvox
spareparts. Use ofother spare partswill
invalidateall warrantyand liabilityclaims.
Shouldyou requireaftersalesserviceplease
contactthe supplierfromwhomyou purchased
the machine,who will arrange service. Repairs
and servicing of Truvoxproductsshouldonlybe
performedbytrained staff. Improperrepairscan
causeconsiderabledangerstothe user.

7
7Guarantee
Yourproductisguaranteed for two yearfromthe
dateoforiginalpurchase,orhirepurchase,
againstdefectsinmaterialsorworkmanship
during manufacture.Withinthe guarantee period
weundertakeatourdiscretion,torepairor
replacefreeofcharge tothe purchaser,anypart
found tobe defective,subjecttothe following
conditions.
CONDITIONS
1.Claimsmade underthe termsofthe
guarantee mustbe supported bytheoriginal
invoice/billofsaleissuedatthe timeofsale,
orthe machine Serial Number.
2.Forclaimsunderthisguarantee contactthe
supplierfromwhomyou purchased the
productwhowillarrange the appropriate
action.Do notinitiallyreturnthe productas
thiscouldresultintransit damage.
3.NeitherTruvoxnoritsdistributorsshall be
liableforanyincidental orconsequentialloss.
4.Thisguarantee isgoverned bythe lawsof
England.Thisguarantee doesnotcoverany
ofthe following:Periodicmaintenance,and
repairorreplacementofpartsdue tonormal
wearand tear.
5.Thisguarantee isgoverned bythe lawsof
England.Thisguarantee doesnotcoverany
ofthe following:Periodicmaintenance,and
repairorreplacementofpartsdue tonormal
wearand tear.
•Damage caused byaccident, misuseor
neglect, orthe fitting ofotherthan genuine
Truvoxparts.
•Defectsinotherthan genuine Truvox
parts,orrepairs,modificationsor
adjustmentsperformed byotherthan a
Truvoxserviceengineerorauthorised
serviceagent.
•Costsand risksof transportrelating directlyor
indirectlytothe guarantee of thisproduct.
•Consumableitemsand wearpartssuchas
drivebelts.
Thisguarantee doesnotaffectyourstatutory
rights,noryourrightsagainstthe supplierarising
fromtheirsalesorpurchasecontract.
8WasteElectrical &ElectronicEquipment
(WEEE) Do not disposeofthisdevicewith
unsorted waste. Improperdisposal
maybe harmfultothe
environment and human health.
Pleaserefertoyourlocal waste
authorityforinformation on return
and collection systemsinyour
area.
9Technical specification
Allmodels:230-240 V~50 Hz,Class II construction.EnclosuretoIPX4.Fitted with10msupplycord
and 13A fused plug.
ModelHydromist10 Hydromist10
Heavy Duty Hydromist20 Heavy Duty
Code
HM10 HM10HD HM20HD
Voltage V230 230 230
Pumptype magnet diaphragmdiaphragm
PumppowerW40 40 40
PumppressureBar/ psi5/72.5 5/72.55/72.5
Flowratel/min1.5 1.51.5
Vachoselengthm3 33
VacmotorW1100 1100 1100
Waterlift mm /kPa2300 2300 2300
Airflowl/sec46.1 46.146.1
Solution tankcapacitylitre10 10 20
Recovery tankcapacitylitre10 10 20
Sound pressureleveldB(A) 78 78 78
Size(LxWxH)cm61 x37.5x43 61 x37.5x43 61 x37.5x54
Cablelengthm10 10 10
Weightemptykg15.8 14.416.4
Warranty1year
TruvoxInternationalisaBSIRegistered Companyand ourpolicy isone ofcontinuousdevelopment.
Wereservethe righttochange specificationswithout priornotification.

8
10 Accessories and CleaningChemicals
Accessory Partno.Usage
3metrehoseassembly(vachose,
solution hoseand allconnectors) 93-0125-0000 Assupplied withHM10, HM10HD and HM20HD
Standardfloortool
3part stainless tubes, polyethylene
floortool
93-0140-0000 Assupplied withHydromist 10
HeavyDutyFloortool
One piecestainless tube,metalfloor
tool
93-0142-0000 Optionaltool forupholstery
cleaning.
StandardUpholstery Tool-
polyethylene 93-0142-0000 Optionaltool forupholsterycleaning
HeavyDutyUpholstery tool -metal93-0143-0000 Optionaltool forupholsterycleaning
Hosebag 02-3588-0000 Bag forconvenient and tidystorage
of hoseand upholstery tool.
ChemicalBottlesizeBottles
per case PartNo. Usage
Hydromist Carpet
Cleaning Solution 500ml10 HMC01005
1litre10 HMC01010
5litre4HMC01050
The qualitywaytobeautifycarpets
and upholstery. Formulation lifts
dirtand stainsout ofyourcarpets
and helpsprevent re-soiling.
Leavescarpetsand upholstery soft
and fresh.
Hydromist Pre-
spotter 500mltrigger spray 10 HM003005 Formulated tohelpremove stubbornstainsfromcarpetand
upholstery.
IMPORTANT:Genuine accessoriesandchemicalsareonlyavailablefromauthorised ServiceAgents
orthe TruvoxCustomerServiceDepartment.
11 FaultDiagnosis
WARNING-Before undertakingmaintenance operationsoradjustmentsswitchoff
machineandunplugfromtheelectricitysupply
ProblemReasonRemedy
The spraypumpand vacuum
doesnot work •Powerfailure •Check the mainfuse,the power
supplycordand the plug
No sprayorthe sprayisnot
even •Spraynozzleblocked
•Solution tankempty
•Solution feed filter
blockage
•Check the spraypipe and nozzle.
•Istherewaterinthe tank?If
thereiswaterinthe tank,waitfor
acoupleofsecondsforthe pump
tobuildup pressure.
•Ifthe tankisempty,fillitas
indicated.
•The filterinthe clean watertank,
the pipe orthenozzlemaybe
blocked.Switchoff the unitand
performmaintenance
The vacuumpowerfalls. •The recoverytankmay
be full. •Emptyrecoverytank.

Hydromist10 PartsList
ModelRef.:HM10 SeriesB
Service PartsListIssue2
23rdMarch2010
PartNo.Qty
93-0001-0000Label(Vacuum)1
93-0002-0000Label(Spray)1
93-0014-0000Vacuummotor1
93-0021-0000Waterfeedhosecouplingflatwasher1
93-0025-0000Bumperstrip1
93-0028-0000Switch(Pump/Vacuum)2
93-0033-0000Magneticpump1
93-0182-0000Exhaustmoulding(BlackRAL9005)1
93-0042-0000MainsleadfittedwithUKPlug1
93-0057-0000Straightwaterfeedconnection1
93-0058-0000Waterfeedhosecoupling1
93-0078-0000Magneticpumpand pressureswitchwiringkit1
93-0183-0000Solutiontankcover(BlackRAL9005)1
93-0184-0000Basemouldingtop cover(BlackRAL9005)1
93-0185-0000Basemouldingbottomcover(BlackRAL9005)1
93-0105-0000Airflowinletpipe1
93-0116-000010 Litrecastorkit (4off castors)1
93-0119-0000HydromistBasemouldingfastenerkit1
93-0126-0000Magneticpumphosekit1
93-0147-0000Pressureswitch1
93-0148-0000Magneticpumptopressureswitchconnectingkit1
93-0149-0000HM10 Wiringkit1
93-0140-0000Polyethylenefloortoolwithstainless steeltube1
93-0103-00001
93-0084-0000Recoverytanklidfiltershaft1
93-0085-0000Recoverytanklidgauze 5/10E stainless steel1
93-0086-0000Recoverytanklidfoamfloat1
93-0087-0000RecoverytanklidM5Nylonnut1
93-0095-0000Recoverytanklid1
93-0097-0000Recoverytanklidgasket1
93-0099-00001
03-7874-0000Recoverytankinletcover1
03-7893-0000Recoverytankinletcoverseal1
93-0071-0000M5x14 F ZNScrew4
93-0089-0000Vacuumhosesecuringpin1
93-0092-000010 LitreRecoverytank1
93-0107-0000Recoverytankhandleassembly1
93-0186-00001
93-0022-0000Solutiontankfilter1
93-0076-0000Plasticelbowcoupling1/4BSPT1
93-0187-000010 LitreSolutiontank(BlackRAL9005)1
93-0112-0000HydromistLabel2
93-0113-00001
93-0020-0000RubberwasherD.142x78mm EP.4mm 1
93-0030-0000Vacuummotorholderand gasket1
93-0125-00001
93-0027-00003mVacuumhoseassembly1
93-0066-00003mSprayhoseassembly1
93-0074-0000Velcrostrap3off 1
Vacuummotorholder assembly(Includesthefollowingparts)

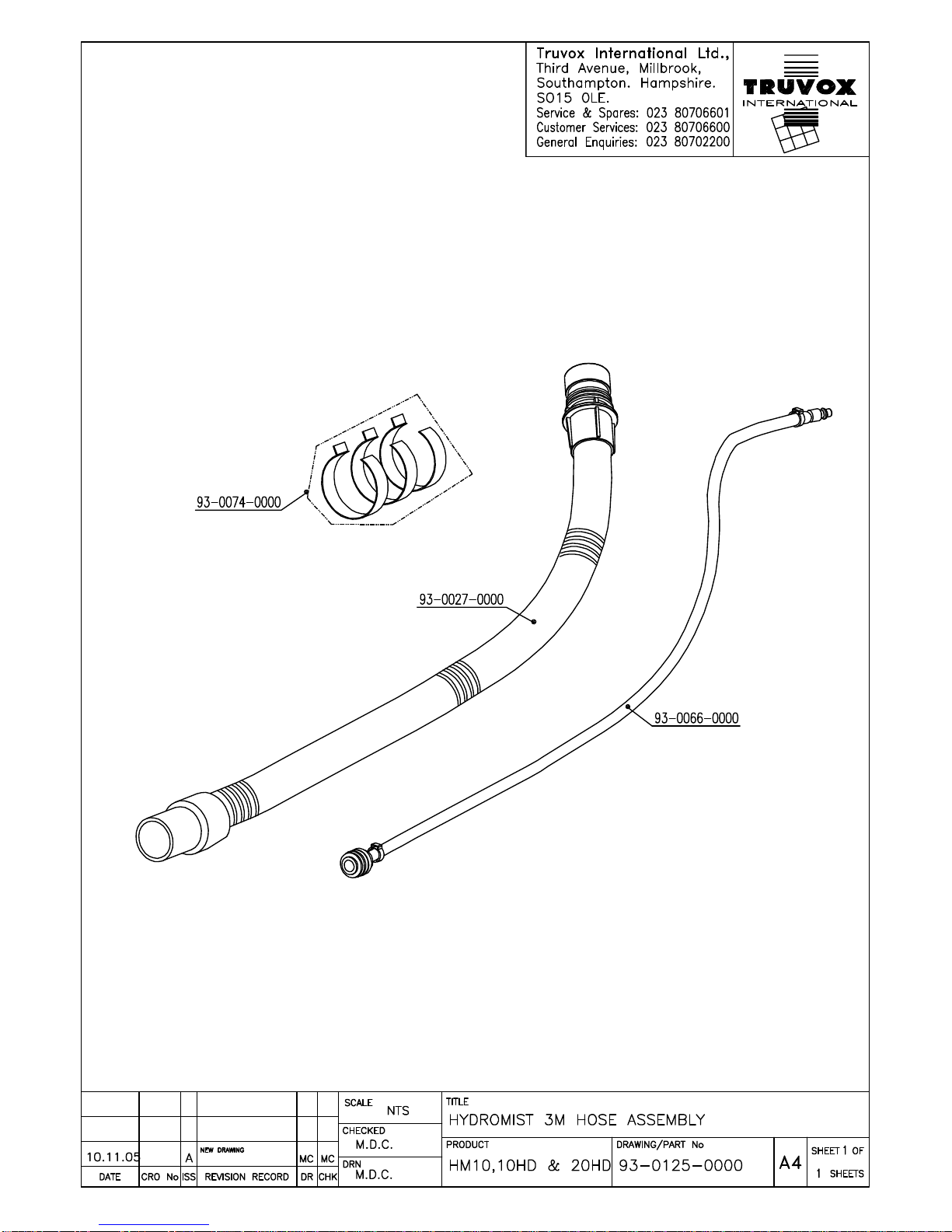

Hydromist3mhoseassembly(Includesthefollowingparts)
Description
Recoverytanklid assembly(Includesthefollowingparts)
10 Litre Recoverytankassembly(Includesthefollowingparts)
10 Litre Solutiontankassembly(BlackRAL9005)(Includesthefollowingparts)
12 Parts List & Diagrams



Hydromist10HD PartsList
ModelRef.:HM10HD SeriesB
Service PartsListIssue2
23rdMarch2010
PartNo.Qty
93-0001-0000Label(Vacuum)1
93-0002-0000Label(Spray)1
93-0007-0000Suppressorwiring1
93-0008-0000DiaphragmPump230v40W1
93-0009-0000Brownwireconnection1
93-0014-0000Vacuummotor1
93-0021-0000Waterfeedhosecouplingflatwasher1
93-0025-0000Bumperstrip1
93-0028-0000Switch(Pump/Vacuum)2
93-0182-0000Exhaustmoulding(BlackRAL9005)1
93-0042-0000MainsleadfittedwithUKPlug1
93-0045-0000Diaphragmpumphose2
93-0057-0000Straightwaterfeedconnection1
93-0058-0000Waterfeedhosecoupling1
93-0183-0000Solutiontankcover(BlackRAL9005)1
93-0184-0000Basemouldingtop cover(BlackRAL9005)1
93-0185-0000Basemouldingbottomcover(BlackRAL9005)1
93-0105-0000Airflowinletpipe1
93-0116-000010 Litrecastorkit (4off castors)1
93-0119-0000HydromistBasemouldingfastenerkit1
93-0127-0000DiaphragmPumpMotor1
93-0150-0000HM10HDand HM20HDWiringkit1
93-0141-0000Metalfloortoolwithstainless steeltube1
93-0103-00001
93-0084-0000Recoverytanklidfiltershaft1
93-0085-0000Recoverytanklidgauze 5/10E stainless steel1
93-0086-0000Recoverytanklidfoamfloat1
93-0087-0000RecoverytanklidM5Nylonnut1
93-0095-0000Recoverytanklid1
93-0097-0000Recoverytanklidgasket1
93-0099-00001
03-7874-0020Recoverytankinletcover1
03-7893-0000Recoverytankinletcoverseal1
93-0071-0000M5x14 F ZNScrew4
93-0089-0000Vacuumhosesecuringpin1
93-0092-000010 LitreRecoverytank1
93-0107-0000Recoverytankhandleassembly1
93-0186-00001
93-0022-0000Solutiontankfilter1
93-0076-0000Plasticelbowcoupling1/4BSPT1
93-0187-000010 LitreSolutiontank1
93-0112-0000HydromistLabel2
93-0113-00001
93-0020-0000RubberwasherD.142x78mm EP.4mm 1
93-0030-0000Vacuummotorholderand gasket1
93-0125-00001
93-0027-00003mVacuumhoseassembly1
93-0066-00003mSprayhoseassembly1
93-0074-0000Velcrostrap3off 1
Vacuummotorholder assembly(Includesthefollowingparts)
Hydromist3mhoseassembly(madeup ofthefollowingparts)
Description
Recoverytanklid assembly(Includesthefollowingparts)
10 Litre Recoverytankassembly(Includesthefollowingparts)
10 Litre Solutiontankassembly(Includesthefollowingparts)
