Turboair TBC-24S N Series User manual

Please read this manual completely before attempting to install or operate this equipment.
WARNING : This product can expose you to chemicals including Bisphenol A(BPA)
and Di(2-ethylhexyl)phthalate(DEHP) and Cobalt sulfate heptahydrate, which are
known to the State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov
AVERTISSEMENT :
Cancer ET Troubles de l'appareil reproducteur - www.P65Warnings.ca.gov
Horizontal Bottle Coolers and Glass Frosters
Installation and Operation Manual
Turbo Air Speeds up the Pace of Innovation
www.turboairinc.com
(*) - May or may not have suffix from A to Z to denote cosmetic difference.
(#) - May or may not be followed by a letter indicating refrigerant type.
SD series: Stainless Steel Exterior
SB series: Black Laminated Vinyl Exterior or Black Powder Coating Exterior
Glass Froster does not include the opener kit.
HORIZONTAL BOTTLE
COOLERS
TBC-24S*-N#
TBC-36S*-N#
TBC-50S*-N#
TBC-65S*-N#
TBC-80S*-N#
TBC-95S*-N#
GLASS FROSTERS
TBC-24S*-GF-N#
TBC-36S*-GF-N#
TBC-50S*-GF-N#

2
Turbo air
NOTICE ......................................................................................................................... 3
FOR HYDROCARBON REFRIGERATION UNITS ........................................................ 4-5
IMPORTANT SAFETY INFORMATION .............................................................................6
- SAFETY PRECAUTIONS............................................................................................6
- INSTALLATION & USAGE.................................................................................... 7 - 8
- PROPER DISPOSAL OF OLD APPLIANCE ...............................................................9
- BEFORE YOU CALL FOR SERVICE ..........................................................................9
SPECIFICATIONS ......................................................................................................... 10
SERIAL NUMBER ......................................................................................................... 10
INSTALLATION OF THE BOTTOM SHELVES (BOTTLE COOLER)................................11
- INSTALLATION OF DIVIDERS (BOTTLE COOLER).................................................12
- INSTALLATION OF SHELVES (GLASS FROSTER) .................................................13
- INSTALLATION OF THE OPENER KIT (BOTTLE COOLER) ...................................14
HOW TO USE THE BOTTLE OPENER (BOTTLE COOLER) ..........................................15
NOTICE TO CUSTOMER ..............................................................................................16
INSTALLATION .............................................................................................................16
CLEANING ...................................................................................................................17
CAUTION.......................................................................................................................17
BASIC OPERATION (BOTTLE COOLER) .....................................................................18
- BASIC OPERATION (GLASS FROSTER) ................................................................19
REMOVING THE FROST IN THE UNIT..........................................................................20
STAINLESS STEEL EQUIPMENT CARE AND CLEANING..................................... 21 - 22
TROUBLESHOOTING ................................................................................................. 23
WARRANTY INFORMATION ................................................................................ 24 - 25
WARRANTY REGISTRATION CARD ............................................................................ 27
PAGE
CONTENTS

3
Turbo air
NOTICE
• This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of this
equipment and the hazards involved by a person responsible for their safety.
• The special instructions for those persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, are
not included in this manual and are not required.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
This manual uses the following safety symbols. These safety symbols with the
words of DANGER, WARNING or CAUTION alert users of the potential hazards
that could cause injury or even death.
Indicates hazards of death or serious injury,
if the instructions are not followed.
Indicates dangers of death or serious injury,
if the instructions are not followed.
Indicates risks of personal injury or material damage,
if the instructions are not followed.
DANGER
CAUTION
WARNING

4
Turbo air
WARNING
FOR HYDROCARBON REFRIGERATION UNITS
This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These
hydrocarbon refrigerants are highly environmentally compatible but also are
flammable and combustible. Please read this manual thoroughly before installing and
operating the unit. Please take cautious measures to avoid risk of fire or explosion.
PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK
REFRIGERATION TYPE AND VOLUME.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
Do not use mechanical devices to defrost refrigerator. Do not
puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
To be repaired only by trained service personnel. Do not puncture
refrigerant tubing.
CAUTION - Risk of fire or explosion. Dispose of properly in
accordance with federal or local regulations. Flammable
refrigerant used.
CAUTION - Risk of fire or explosion. Flammable refrigerant
used. Consult repair manual/owner’s guide before attempting to
service this product. All safety precautions must be followed
CAUTION - Risk of fire or explosion due to puncture of refrigerant
tubing; follow handling instructions carefully. Flammable
refrigerant used.
WARNING
- Keep ventilation opening in the appliance enclosure or in the
built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of a type
recommended by the manufacturer.

5
Turbo air
WARNING
FOR HYDROCARBON REFRIGERATION UNITS
• Handle the unit with care in order to avoid any serious damages to the refrigeration
system.
• The refrigerant tubing, condenser, evaporator coils are easily prone to damage
while handling, moving, installing, and cleaning the unit, which may lead to fire or
even explosion.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is
detected, avoid any open flames or potential sources of ignition and air out the
room in which the appliance is standing for several minutes.
• In order to avoid the creation of a flammable gas-air mixture in case of a leak in the
refrigerating circuit, the size of the room in which the appliance is placed depends
on the amount of refrigerant used. The room must be 35.31ft³ (1m³) in size for every
0.28oz (8g) of R-600a refrigerant inside the appliance. The amount of refrigerant in
your particular appliance is shown on the label inside the cabinet.
This appliance contains a small amount of propane (R-290) or isobutane
(R-600a) refrigerant, a natural gas with high environmental compatibility,
but it is also combustible. When transporting and installing the appliance,
care should be taken to ensure that no part of the refrigerating circuit are
damaged.
• Never start up an appliance showing any signs of damage. When in doubt, contact
a qualified service professional.
• In case of any hazardous activities such as fire or explosion, move the unit away
from any source of ignition to a well ventilated area.
• Further service and repair must be done by a qualified technician who is familiar
with the safety standards, and also has thorough understanding and knowledge of
the flammable refrigerants.
• Any and all technicians handling these units must be equipped with proper personal
protection and equipment and follow applicable safety measures and precaution to
avoid risk of fire or explosion.

6
Turbo air
SAFETY PRECAUTIONS
IMPORTANT SAFETY INFORMATION
To avoid any risk of fire, explosion, electric shock, personal injury, material damage or
incorrect use of the appliance, be sure to observe the following safety precautions.
(After reading these owner’s manual instructions, please keep the manual booklet in
a safe place for reference. Remember to hand it over to any subsequent owners)
WARNING
• The unit must be installed and located in accordance with the manufacturer’s
installation instructions.
• Installation work must be performed in accordance with the National Electric Code
by qualified and authorized personnel only.
• Repairs and replacement work must be performed by a qualified and authorized
service professionals only using genuine replacement parts.
• Do not use an extension cord or an adapter plug. Because of the potential safety
hazards under certain conditions, we strongly disrecommend any use of an
extension cord or an adapter plug.
• Do not, under any circumstances, cut or remove the ground prong from the power
cord. For personal safety, this appliance must be properly grounded.
• Do not store volatile and flammable substances in the refrigerator. The storage of
benzene, thinner, alcohol, ether, LP gas, or other explosive substances may cause
an explosion.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this appliance as well as any other appliances.
• The appliance is not intended for use by children without supervision.
• Do not allow children to climb, stand, or hang on the refrigerator doors or shelves in
the refrigerators. They could damage the refrigerator and seriously injure
themselves.
• To prevent suffocation and entrapment hazards of children, remove the doors and
seals from the refrigerator before disposing of it or discontinuing its use.

7
Turbo air
INSTALLATION & USAGE
IMPORTANT SAFETY INFORMATION
WARNING
CAUTION
• Do not install the unit in a damp place where it could be splashed with water.
Incorrect insulation of the electrical parts may cause fire or electric shock.
• Do not plug several appliances into the same sockets. This could cause overheating
and risk start of a fire.
• Keep the power plug away from the rear of the cabinet. A damaged power plug may
cause fire due to overheating.
• Do not spray water directly to the interior or exterior of the appliance. There is a risk
of fire or electric shock.
• Do not place any containers filled with water on top of the appliance. If the water
spills onto any electrical parts, it may lead to fire or electric shock.
• Do not attempt to repair, disassemble or alter the appliance. It may cause fire or
abnormal operations which may lead to injury.
• Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning.
• Plug into a grounded 3-prong outlet. Do not remove the ground prong.
• Do not store too much food in the appliance. When you open the door, an item may
fall out and cause personal injury or material damage.
• Do not put bottles or any kind of glass in the freezer. The container may break and
cause personal injury.
• Do not disconnect the power cord by pulling on it. This may disconnect a wire and
cause a short circuit.

8
Turbo air
INSTALLATION & USAGE
IMPORTANT SAFETY INFORMATION
CAUTION
• There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• Do not store any articles on top of the appliance. Articles may fall while opening or
closing the door, and could cause personal injury or material damage.
• Do not store pharmaceutical products, scientific materials or other
temperature-sensitive products in the refrigerator. Products that require strict
temperature controls must not be stored in the refrigerator.
• Do not let children hang on the door.
• Do not touch any cold surfaces or food containers in the freezer with damp or wet
hands. Skin may stick to these extremely cold surfaces and may cause frostbite.
• Remove any foreign matter from the power plug pins. Otherwise, there is a risk of
fire.
• Do not insert your hand into the bottom area of appliance. Any sharp edges may
cause personal injury.
• After unplugging the appliance, wait at least five minutes before plugging it back in.
Abnormal operation of the freezer may cause material damage.
• If the appliance is not used for a long period of time, unplug it from the power
supply. Any deterioration in the insulation may cause fire.
• Do not let children touch or play with the control panel on the front of the appliance.
- Do not allow children to play with this appliance.
- Do not stand or lean on the base panel, pull-out parts, or doors.
- Repairs and maintenance of the appliance should only be performed by a qualified
technician. Incorrect repairs done by an unqualified person may be a potential
source of danger that could have critical consequences for the user of the
appliance.
- Never put ice cubes or ice lollies straight from the freezer into your mouth.
The low temperature may cause cold burns.

9
Turbo air
The refrigeration used in refrigerator/freezer and the gases in the insulation
material requires special disposal procedures. Ensure that none of the pipes on
the back of the appliance are damaged prior to disposal.
WARNING
CAUTION
Before disposing of old appliances, make them inoperable. Remove plug from mains,
severe the power cable, and remove or destroy any snap or latch closures.
This eliminates the danger of any children locking themselves into the appliance
(danger of suffocation) or placing themselves into other life-threatening situations.
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the appliance,
may not be damaged.
• Information concerning collection schedules or locations can be obtained from the
local disposal authorities.
PROPER DISPOSAL OF OLD APPLIANCE
BEFORE YOU CALL FOR SERVICE
IMPORTANT SAFETY INFORMATION
For environmental purpose, refrigeration appliances must be disposed of properly.
This applies to your old appliance, and at the end of its service life, for your new
appliance as well.
Before contacting our Service Department, review the detailed troubleshooting tips in
the Owner’s manual.
1. Try to remedy the problem. Please read the “Troubleshooting Guide” section first
and you may not need to call for service.
2. Restart the appliance to check whether the fault repeats. If the malfunction persists,
switch off the appliance and try again after an hour.
3. If the malfunction still persists, then contact our Customer Service, specifying:
• The nature of the problem,
• The appliance model number and serial number
• Your full address, telephone number and area code.

10
Turbo air
The serial number is located on the rating label which is on the right wall inside the
cabinet.
Please retain the unit's serial number for service purpose.
SPECIFICATIONS
SERIAL NUMBER
VCT : VERTICAL CLOSED TRANSPARENT
VCS : VERTICAL CLOSED SOLID
HCT : HORIZONTAL CLOSED TRANSPARENT
HCS : HORIZONTAL CLOSED SOLID
SC : SELF-CONTAINED
M : MEDIUM TEMPERATURE APPLICATION
L : LOW TEMPERATURE APPLICATION
Horizontal Bottle Cooler & Glass Froster
Model
Rating
Temp.
(℉)
Operating
Temp. (℉)
Equipment
Class
Designation
V/Hz Refrigerant AMPS
TBC-24S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-600a / 1.59 oz (45 g) 1.4 A
TBC-36S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-600a / 1.76 oz (50 g) 1.6 A
TBC-50S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-600a / 1.94 oz (55 g) 1.7 A
TBC-65S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-600a / 2.12 oz (60 g) 1.7 A
TBC-80S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-290 / 2.65 oz (75 g) 2.5 A
TBC-95S*-N# 38(M) ≥32 HCS, SC, M (110-120) V~, 60Hz R-290 / 3.00 oz (85 g) 2.5 A
TBC-24S*-GF-N# 0(L) <32 HCS, SC, L (110-120) V~, 60Hz R-600a / 2.12 oz (60 g) 0.9 A
TBC-36S*-GF-N# 0(L) <32 HCS, SC, L (110-120) V~, 60Hz R-290 / 3.53 oz (100 g) 1.6 A
TBC-50S*-GF-N# 0(L) <32 HCS, SC, L (110-120) V~, 60Hz R-290 / 3.88 oz (110 g) 1.7 A

11
Turbo air
INSTALLATION OF THE BOTTOM SHELVES (BOTTLE COOLER)
* Note:
The size and quantities of bottom shelves may be different according to the
model number.
1) Before adding cans or bottles to cooler, bottom shelves must be installed.
2) Install dividers after bottom shelves are installed. (see next page)

12
Turbo air

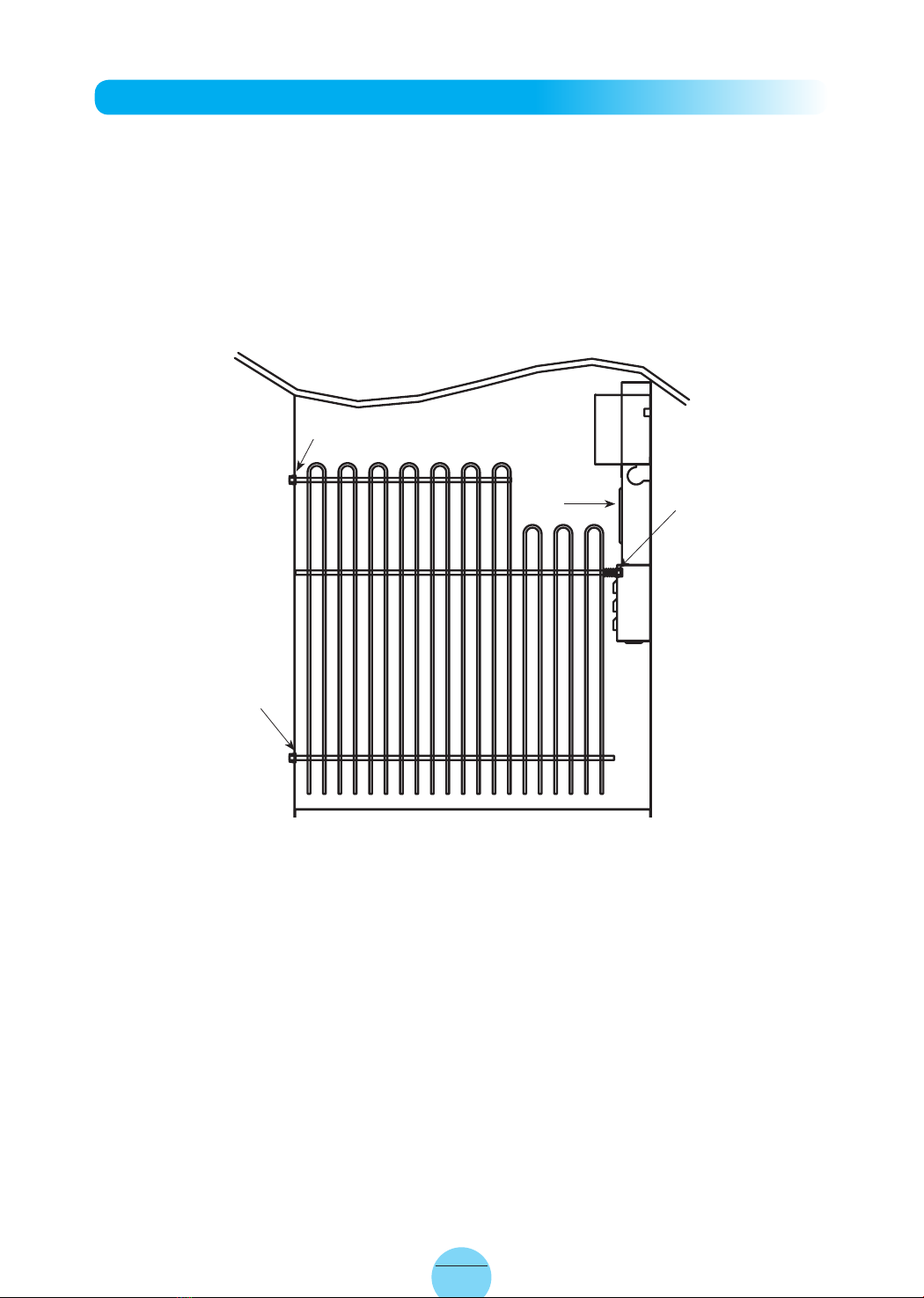

INSTALLATION OF DIVIDERS (BOTTLE COOLER)
* Note :
The shape and quantities of the dividers can be different according to the
model number.
'A'
'B'
'C'
1) To re-position dividers, push backwards.
2) Spring located at point 'C' will be shorten to about 1/2 inch.
3) Front of divider will be able to remove from point 'A' and 'B'.
4) Position divider in the hole, point 'C' where you would like it.
5) Push divider backwards.
6) Insert front of divider in the holes, point 'A' and 'B', where you would like it.

13
Turbo air

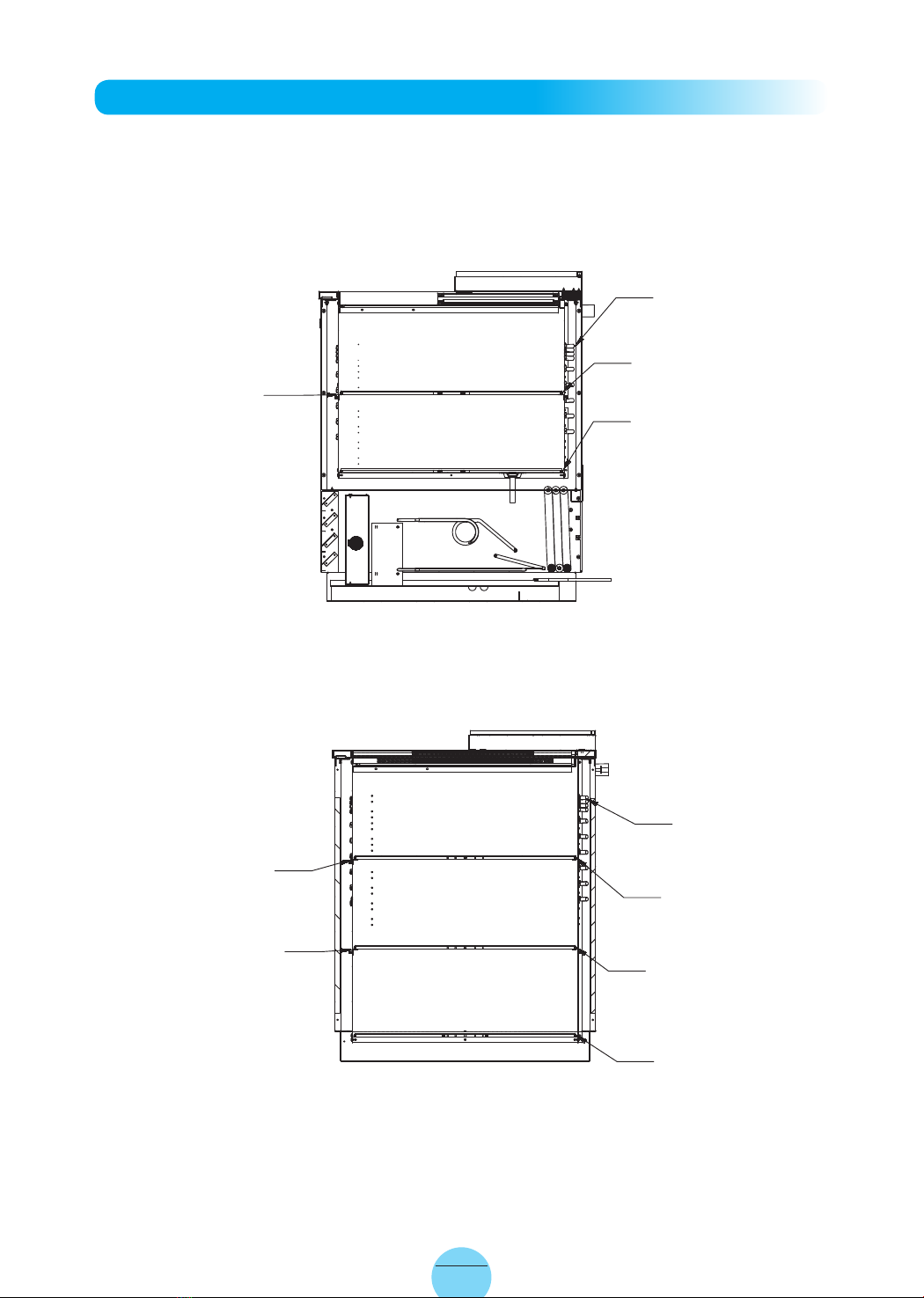

INSTALLATION OF SHELVES (GLASS FROSTER)
Shelf
Shelf
Shelf-Rail
Evaporator
Evaporator
Shelf
Shelf
1st Shelf Rail
2nd Shelf Rail
Shelf
* Note :
The shape and quantities of the shelves can be different according to the
model number.
Shelves shall be placed at the position as follows.
TBC-24S*-GF-N#
TBC-36S*-GF-N#, TBC-50S*-GF-N#

14
Turbo air

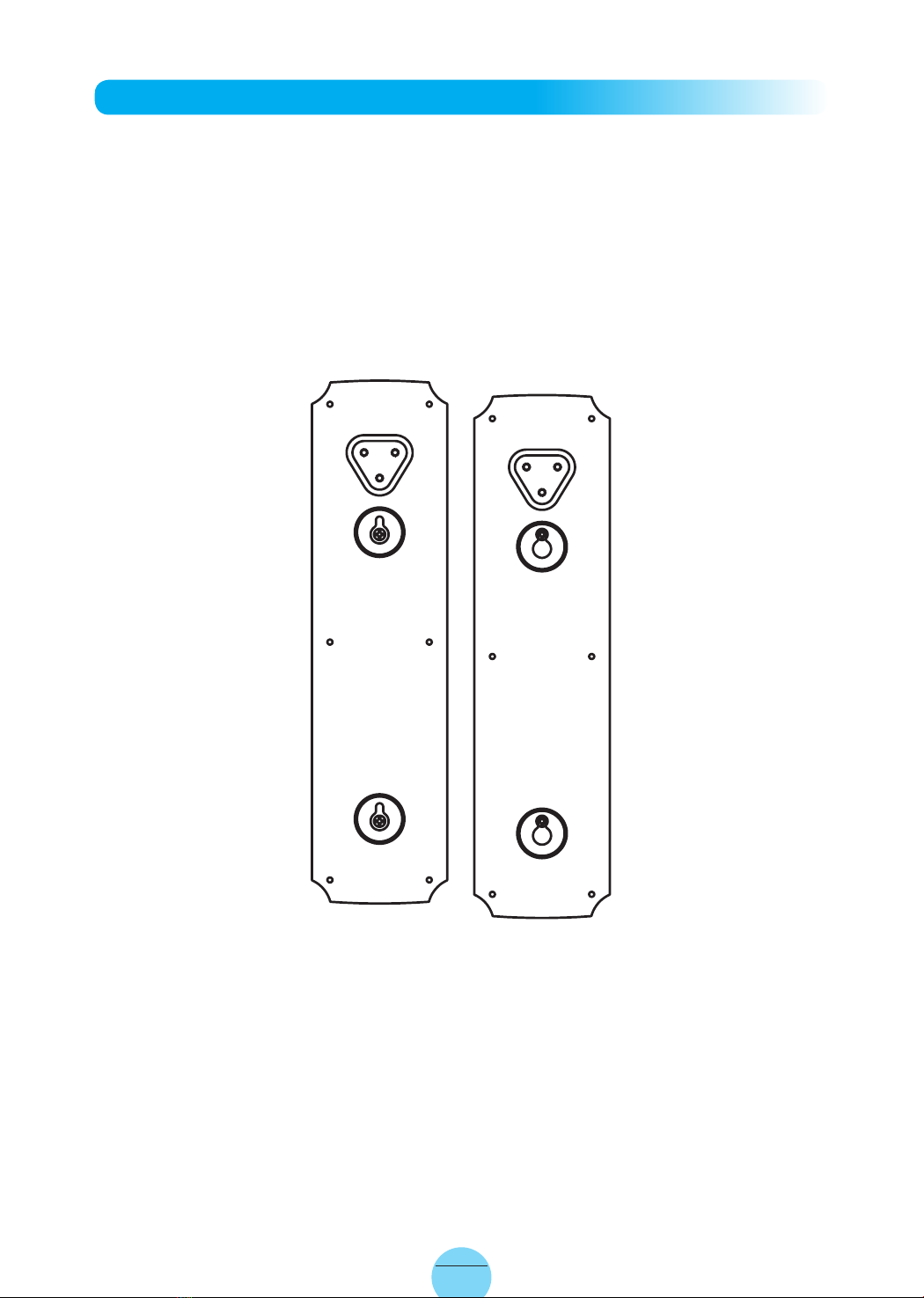

INSTALLATION OF THE OPENER KIT (BOTTLE COOLER)
①②
1) In mounting the bottle opener kit located inside the cabinet, use the screws,
locating on the front of the bottle cooler.
2) Hook the opener kit onto the screws as shown in drawing ①and then slide
down the mounting with the hollow as shown in drawing ②.
Check and see if the bottle opener kit is securely mounted so as to prevent
dislodging through vibration.
3) To detach, follow the above list in reverse.

15
Turbo air
HOW TO USE THE BOTTLE OPENER (BOTTLE COOLER)
1. Insert the bottle cap inwards as shown in diagram.
2. Grip the bottle tightly so it will not fall while removing cap.
3. The cap will drop to the bottom of the opener case.
4. When the opener case is full, separate from a cabinet.
5. Turn the opener case over to empty.

16
Turbo air
1. LOCATION - Allow adequate space and install the refrigerator on a firm, and level
floor. If the appliance is not level, there may be unusual noises and poor cooling
performance.
2. GOOD AIR CIRCULATION - Be sure to avoid any partition and object which may
stop the air flow and that air space is allowed to flow the rear and/or sides of the unit
between the refrigerator and the back wall. Insufficient space causes the noise of
vibration, inefficient refrigeration, damage to the refrigeration system, and the waste
of electricity. (Turbo Air recommends that the rear of the unit would be no less than 5
inches from the wall)
3. PLACE ON STRONG FLOOR - Be sure that the floor of which the unit is to be
installed is strong enough to support the total weight of the cabinet and any other
contents, before starting the installation.
4. DO NOT PLACE NEAR HEAT - Be sure to avoid hot corners and other locations
such as near stoves. High ambient temperature will make much lower cooling
efficiency.
5. INDOOR USAGE ONLY - Be sure to install this unit indoor only. It should prohibit
getting wet from the rain.
Do not install the refrigerator in locations where the temperature is over 100°F (38°C)
or below 50°F (10°C ).
6. STABILIZING - Make sure the unit is installed in a stable condition with the front
wheels locked while in use.
7. LEVELING - Be sure that the unit levels from the front to the back and side to side.
8. UNIT SHOULD BE ON DEDICATED OUTLET - Plug the refrigerator into a wall
socket exclusively for this appliance. Do not run on extension cord.
9. THE ELECTRICAL PLUG MUST BE ACCESSIBLE WITHOUT MOVING THE UNIT.
10. IF A FOOD STORAGE IS IN POSITION, A MAXIMUM OF ONE SHELF MAY BE
LOADED LESS THAN 110lb (50kg), BUT DO NOT ALLOW LOADS TO OVERHANG
FROM THE FRONT AND REAR EDGES OF SHELVES.
INSTALLATION
Loss or spoilage of products in your refrigerator/freezer is not covered by warranty.
In addition to following recommended installation procedures, you must run the
refrigerator/ freezer 24 hours prior to usage.
NOTICE TO CUSTOMER

17
Turbo air
Before cleaning, unplug the unit and disconnect the power.
Wipe and clean the inside and outside of appliance with a damp cloth.
1. CLEANING THE INTERIOR AND EXTERIOR
- The interior and exterior of the unit can be cleaned using warm water with soap.
- Do not use an abrasive cleaner because it will scratch the surface.
2. CLEANING THE CONDENSER COIL
- To maintain proper refrigeration performance, the Condenser coil must be free of dust,
dirt, and grease. This will require periodic cleaning. Condenser coil should be cleaned
at least every three months (90 days) or as needed.
- To clean the condenser, unplug the power cord. Condenser can be cleaned with
vacuum, brush, or CO2 (high pressure air).
3. CLEAN THE DRAIN PAN
- Periodically, empty the drain pan which is located under the unit.
- When reinstalling the Drain Pan, make sure the drain hose is placed back into the pan.
4. CHECK AFTER CLEANING
1) Check the unit again for safety.
2) Plug unit back in and turn on power switch.
3) Check that the unit is operating properly.
CLEANING
NOTE: For a self-cleaning condenser equipped model, condenser cleaning is not
required.
However, it is recommended to blow the condenser coil out with Nitrogen
once or twice a year. Note that the condenser cleaner may not remove grease.
CAUTION
1. P OW E R C O R D
- Be sure the power cord is connected to the proper voltage.
- A protected and dedicated circuit with the correct voltage and amperage must be
running in order to have connection to the line cord.
- Turn 'off' the power switch before disconnecting the power cord, whenever
performing maintenance functions or cleaning the refrigerated cabinet.
- Compressor warranties are void if compressor burns out due to low voltage.
2. RESTARTING
- If disconnected, wait 5 minutes before restarting.
3. POSITIONING DRINKS
- Do not obstruct the air inlet which is located at the back inside of the unit.
4.To prevent a child from being entrapped, keep out of reach of children and not in
the vicinity of the freezer.
5. Never repair or disassemble or amend the cabinet on your own.
- There is a risk of person injury or damage to the freezer.
- It is recommended that any service be carried out by a qualified person.

18
Turbo air
TBC-24S*-N#
TBC-36S*-N#
TBC-50S*-N#
TBC-65S*-N#
TBC-80S*-N#
TBC-95S*-N#
4. The thermostat controls compressor's cycling by sensing temperature inside the unit.
5. When unit will not be used for a long time, turn the power switch off located under
the thermostat knob.
1. The controller(thermostat) is located at the right inside of the unit.
2. The factory setting for the control is '5', and maintains about 38˚F (3˚C) inside.
3. Set toward “1” for warmer temperature and “7” for colder temperature.
REFRIGERATORS
Temperature Controller
(Thermostat)
BASIC OPERATION (BOTTLE COOLER)

19
Turbo air
TBC-24S*-GF-N#
TBC-36S*-GF-N#
TBC-50S*-GF-N#
4. The temp. controller is mounted on the evaporator, and compressor cycles are
determined by detecting the return air temperature inside the cabinet.
5. If the temp. controller is on "OFF" position, refrigeration system will shut off.
1. The controller(thermostat) is located at the right inside the cabinet.
2. The factory setting for the control is 5, and maintains about 14°F (-10°C) inside.
3. Set toward “1” for warmer temperature and “7” for colder temperature.
FREEZERS
Temperature Controller
(Thermostat)
BASIC OPERATION (GLASS FROSTER)

20
Turbo air
While many of Turbo Air’s freezers and refrigerators come with an automatic defrost
feature, some appliances still require manual defrosting including this
Glass Froster-Hydrocarbon Refrigerant Unit. To maintain a proper cooling and
energy efficiency, manual defrost is needed occasionally, especially when you notice
an excess build-up of frost (more than 10mm or 3/8” thick). Excessive frost build-up
can cause not only disturbing evaporator’s proper performance, but also increased
interior temperature and energy consumption rate.
Manual defrost can be performed by following the below instructions:
HOW TO DO MANUAL DEFROST
1) Please take out everything from the interior. If you need your cups and glass mugs
kept chilled, use another freezer or store them in a cooler.
2) Turn off the power and unplug it to stop all operations.
3) Leave the cabinet lid open to allow room-temperature air to flow into the freezer.
Circulated warm air will increase the temperature inside of the unit and start the
defrosting process, melting the ice away.
4) When all frosting is removed completely from the freezer, pull out the drain cock
and let all collected water drain out through the drain hose.
5) Once all water is drained out of the cabinet floor, plug back the drain cock and dry
off all moisture with dry towel.
REMOVING THE FROST IN THE UNIT
