Turbosound TLX LIVERPOOL Series Quick start guide

TLX LIVERPOOL SERIES
TLX215L
Compact Dual 15" Subwoofer for Portable and Fixed Installation Applications
TLX84
Dual 2 Way 8" Line Array Element for Portable and
Fixed Installation Applications
TLX84-FLB
Fly Bar for TLX84 and TLX215L for Suspended or Ground Stacked Arrays
Rigging Manual
 WARNING!
This rigging manual contains important safety information, and it must be kept in a safe place for future reference. It must be supplied with the equipment during the
original sale, rental, or re-sale, and all operators and users of the equipment must be made aware that this manual is available. Please visit our website turbosound.
com regularly and check for any updates to this manual.

2TLX84 and TLX215L Rigging Manual
Table of Contents
Important Safety Instructions ...................................... 3
Legal Disclaimer ............................................................. 3
Limited warranty............................................................ 3
Chapter 1: Safety Information....................................... 4
Chapter 2: Introduction ................................................. 6
Chapter 3: Assembling a TLX84 Array on a
TLX84-FLB Flybar....................................... 21
Chapter 4: Assembling TLX215L Subwoofers
on a TLX84-FLB Flybar............................... 25
Chapter 5: Assembling a TLX84 Array with a
TLX215L Subwoofer................................... 28
Chapter 6: Groundstack of two
TLX215L Subwoofers ................................. 32
Chapter 7: Groundstack TLX215L Subwoofer
and TLX84 Array.........................................34
Chapter 8: Safety Inspection....................................... 37
Chapter 9: Enclosure quantities and
combinations for TLX84-FLB ybar
suspension at 10:1, 7:1, 5:1
design factors............................................. 38
Manufacturer’s Declaration ........................................39

TLX84 and TLX215L Rigging Manual 3

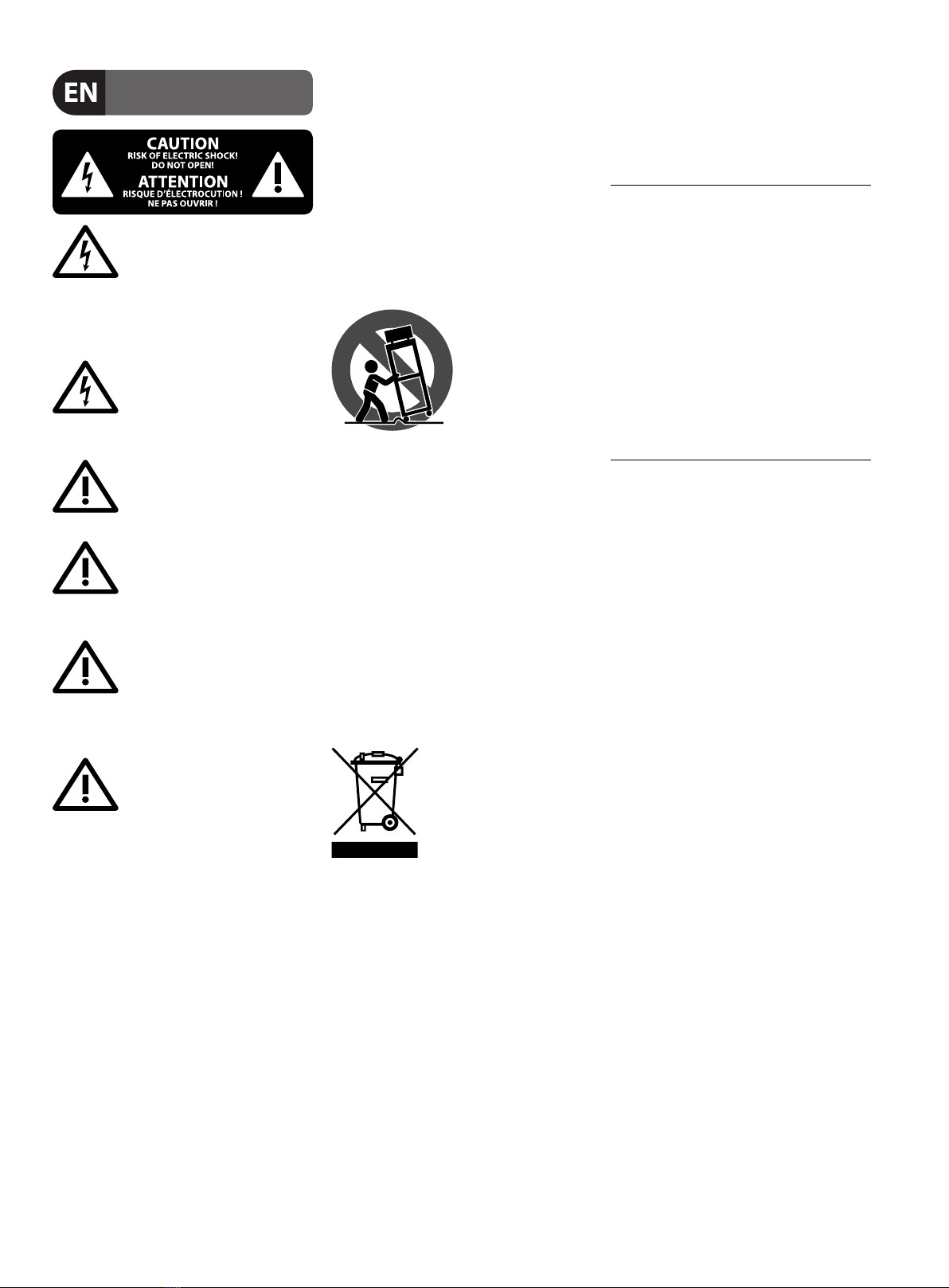

Terminals marked with this symbol carry
electrical current of sucient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼"TS or twist-locking plugs pre-installed. Allother
installation or modication should be performed only
by qualiedpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be sucient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture.The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by qualied service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories specied by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table specied by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
17. Correct disposal of this
product:This symbol indicates that
this product must not be disposed
of with household waste,
according to the WEEE Directive
(2012/19/EU) and your national
law. This product should be taken
to a collection center licensed for the recycling of waste
electrical and electronic equipment (EEE).The
mishandling of this type of waste could have a possible
negative impact on the environment and human health
due to potentially hazardous substances that are generally
associated with EEE. At the same time, your cooperation
in the correct disposal of this product will contribute to
the ecient use of natural resources. For more
information about where you can take your waste
equipment for recycling, please contact your local city
oce, or your household waste collection service.
18. Do not install in a conned space, such as a book
case or similar unit.
19. Do not place naked ame sources, such as lighted
candles, on the apparatus.
20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.
21. Use this apparatus in tropical and/or
moderate climates.
MUSIC Group accepts no liability for any loss which
may be suered by any person who relies either
wholly or in part upon any description, photograph,
or statement contained herein.Technical specications,
appearances and other information are subject to
change without notice. All trademarks are the property
of their respective owners. MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE,TANNOY, TURBOSOUND,
TC ELECTRONIC,TC HELICON, BEHRINGER, BUGERA
and DDA are trademarks or registered trademarks
of MUSIC Group IP Ltd. © MUSIC Group IP Ltd.
2017 All rights reserved.
For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
LimitedWarranty, please see complete details online at
music-group.com/warranty.
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY

4TLX84 and TLX215L Rigging Manual
Chapter 1: Safety Information
1.1 Intended Use
The rigging components (TLX84-FLB ybar, rigging pins, drop links) shall only be used in conjunction with TURBOSOUND TLX84 loudspeakers and TLX215L subwoofers
as described in this manual.
1.2 Intended Use of this Manual
The instructions in this manual describe how to assemble various congurations of TLX84 loudspeaker cabinets, TLX215L subwoofers, and the TLX84-FLB ybar, in
readiness for suspending or ground stacking.
These instructions shall only be used with the TLX84, TLX215L, and TLX84-FLB components.
The instructions do not show details of external lifting equipment and do not contain details of safe lifting procedures or installation.
Possession of these instructions and procedures does not imply authorisation for their use.
1.3 General Safety
The operation of your product as part of a suspended system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and
even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualied and certied (by local, state or national
authorities) personnel prior to any installation.
Installation and setup should only be carried out by qualied and authorised personnel observing the valid local, state and other safety regulations applicable in your
country. If any parts or components are missing please contact your dealer before attempting to set up the system.
It is the responsibility of the person installing the assembly to ensure that the suspension/xing points are suitable for the intended use.
We also recommend you schedule TURBOSOUND line array training with our sales partners and applications team.
Equipment used to connect to the TURBOSOUND rigging system must be properly rated and must conform to the local, state and other safety regulations. Do not use
TURBOSOUND rigging with other types or brands of loudspeakers. This practice may compromise safety standards and MUSIC Group will not be responsible for damage
or injury so caused. Do not modify the rigging accessories, or use them in a way other than that described in this rigging manual. Rigging components supplied as part
of a complete assembly are non-interchangeable and must not be exchanged with the component parts of any other assembly.
Welding, or any other means of permanently xing rigging components to each other or to cabinet xing points is not allowed. Rigging components or assemblies
must only be xed to TURBOSOUND loudspeaker cabinets using the cabinet xing points.
MUSIC Group assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be
conducted by qualied personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the product is suspended, the area
underneath the product is free of human trac. Do not suspend the product in areas which can be entered or used by members of the public.
1.4 Loudspeaker Cabling
Attach and support the speaker cables from your ampliers to the loudspeaker cabinets, so that no signicant additional weight or lateral force is applied to the array
by the input wiring.
Input cables or link cables should never be used to angle the array or used as rigging in any way.
1.5 Load Capacity and System Safety
The TLX84-FLB ybar is designed to suspend a maximum of 8 TLX84 loudspeaker cabinets, or 3 TLX215L subwoofers, or a mixed array of 1 TLX215L subwoofer with
6 TLX84 loudspeaker cabinets.. The speakers may be own with any vertical splay angle conguration and from any of the pick points. This corresponds to a Working
Load Limit (WLL) of 260 kg with a design factor of 10:1. TLX installation procedures and recommendations described in Chapters 3-5 are based on 10:1 design factor.
TLX enclosure counts and combinations are also given for 5:1 and 7:1 design factors in Chapter 9. Check local regulations in order to comply with regional design factor

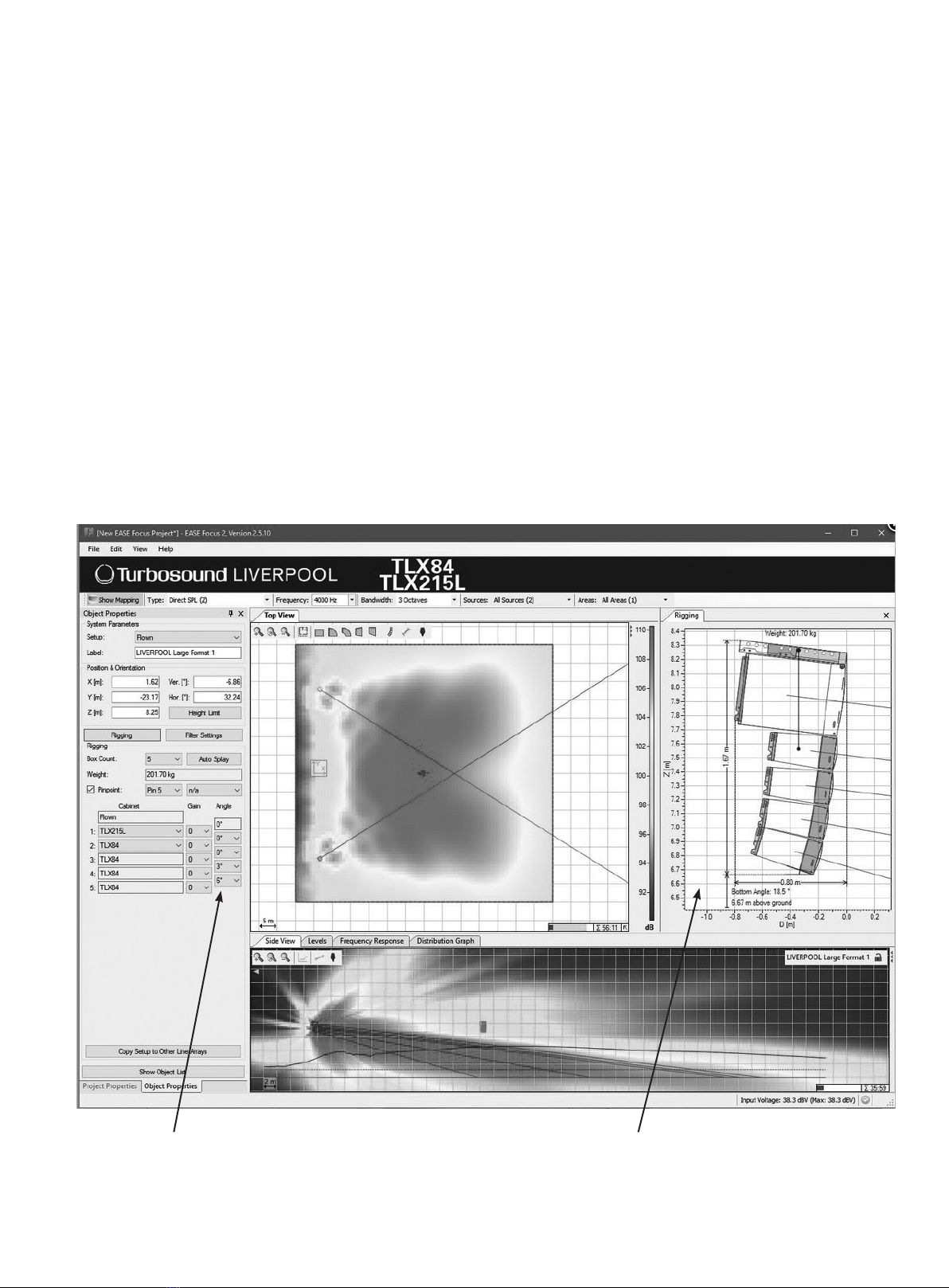

requirements. Always refer to EASE FOCUS II modeling software error and warning indications prior to installation.
1.6 Safety Inspections
Carefully inspect rigging system components and cabinets for defects or signs of damage before proceeding to assemble the array to be own. If any parts are
damaged or suspect, or if there is any doubt as to the proper functioning and safety of the items DO NOT USE THEM and withdraw them from use immediately.
Refer to Chapter 8 for information about care maintenance and disposal.

TLX84 and TLX215L Rigging Manual 5
1.7 Secondary Safeties
All loudspeakers own in theatres, studios or other places of work and entertainment shall, in addition to the principle load bearing means of suspension, be provided
with an independent, properly rated, and securely attached secondary safety. Only steel wire ropes or steel chains of an approved construction and load rating shall be
used as secondary safeties. Plastic-covered steel wire ropes are not permitted for use as secondary safeties.
The secondary safety suspension must be independent of the primary suspension points and capable of carrying the total system weight. The additional safety device
must be mounted in a way that the array is caught by the safety device without any drop and swing in the event that the primary suspension fails.
1.8 Wind Loads
The loudspeakers must not be suspended or ground stacked in winds greater than:
Beaufort Scale 6 bft (39-49 km/h, 25-31 mph, 22-27 knots)
If the forecast or actual winds reach:
Beaufort Scale 8 bft (62-74 km/h, 39-46 mph, 34-40 knots)
1) Clear the area of personnel
2) Lower and secure the array
1.9 Operational Safety
The procedures require the use of two or more authorised persons.
Produce a lift plan: before any lift takes place, you must formulate a lift plan that describes the exact steps and procedures that will be carried out.
The plan must be shared with all assistants and stake-holders in the lift so that each person will understand their responsibilities.
Observe all instructions given on the respective instruction labels of the rigging components and loudspeakers.
When using chain hoists make sure nobody is directly underneath or in the vicinity of the array.
During assembly pay attention to the possible risk of crushing.
Wear suitable protective clothing.

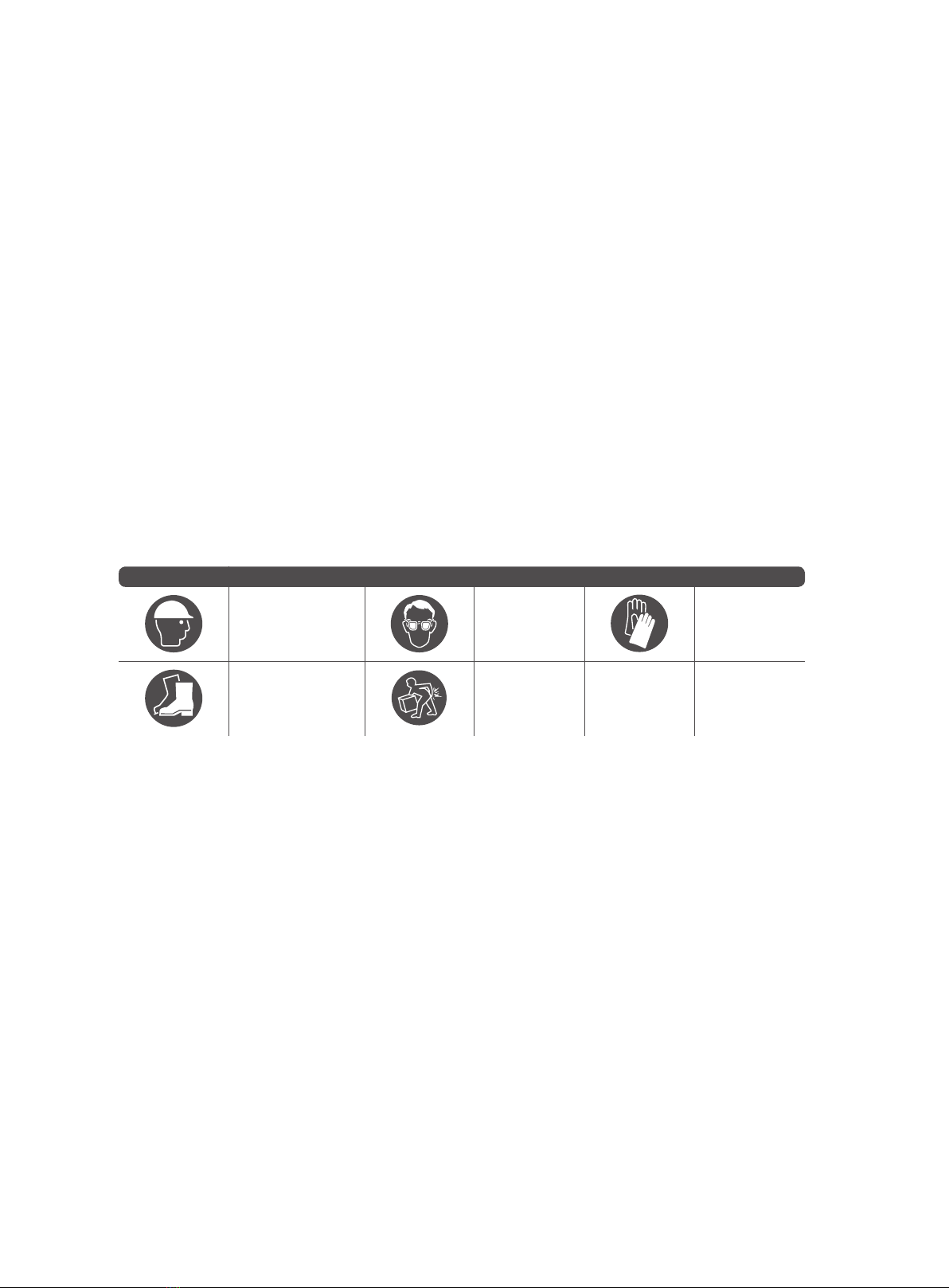

Safety Logo Description Safety Logo Description Safety Logo Description
Protective Headwear
shall be worn
Protective Eyewear
shall be worn
Protective Gloves
shall be worn
Protective Footwear
shall be worn Practice Safe Lifting
1.10 Safety Notices in this manual
 WARNING
This indicates advice that if not followed, may lead to permanent injury or death.
 CAUTION
This indicates advice that if not followed, may lead to damage to the equipment.
NOTE
This indicates extra advice that may be useful when performing the procedures.
