TURFCO TurnAer-26 User manual

®
™
OPERATOR’S MANUAL
MAINTENANCE MANUAL
PARTS LIST
TURFCO®
™
Product Numbers 85370
Product Number 85370 - Honda 2.98 kW (4.0 HP) GX120
Starting Serial Number G00101
U.S. Patent 6,708,773
Manual Number 663509 Rev B
DANGER - IF INCORRECTLY USED THIS MACHINE CAN CAUSE SEVERE INJURY.
THOSE WHO USE AND MAINTAIN THIS MACHINE SHOULD BE TRAINED IN ITS
PROPER USE, WARNED OF ITS DANGERS, AND SHOULD READ THE ENTIRE MANUAL
BEFORE ATTEMPTING TO SET-UP, OPERATE OR SERVICE THE MACHINE.
TURFCO MFG. INC.
1655 101st Avenue NE ● Minneapolis, MN 55449-4420 USA
Phone [phone] ● FAX [phone] ● www.turfco.com
2004 Turfco Mfg., Inc.

™
2
All specifications, information, illustrations or photos in this manual are
based on the latest information at the time of printing. The right is reserved to make changes without notice.
Table of Contents
Product Records .....................................................................................................................2
How To Obtain Parts and Service ..........................................................................................2
Specifications .........................................................................................................................3
Registered Trademarks ...........................................................................................................3
Recognizing Safety Warnings and General Safety Practices ................................................4
Assembly .................................................................................................................................6
Description -
Intended Function and Use ..............................................................................................8
Description of Engine and Operator Controls ..................................................................8
Location of Operator Controls and Components .............................................................8
Description of Handlebar In Storage Position ..................................................................9
Operation -
Pre-Operation Checklist ..................................................................................................10
Work Site Preparation .....................................................................................................10
Moving the TurnAer-26 To the Worksite ..........................................................................10
Maximum Angles of Operation ........................................................................................11
Engine Starting and Stopping Instructions .....................................................................11
TurnAer-26 Operating Instructions .................................................................................11
Operator Daily Inspection ......................................................................................................13
Storage ..................................................................................................................................13
Troubleshooting Table ...........................................................................................................13
Service -
Lubrication .......................................................................................................................14
Adjustments ....................................................................................................................14
Parts Lists ..............................................................................................................................18
Decals ...................................................................................................................................31
Product Records
IMPORTANT: Record the information from the serial number plate of your TurnAer-26. It will be necessary to
furnish your Model Designation, Product Number, and Serial Number when ordering parts.
Model Designation TurnAer-26
Product Number 85370
Serial Number __________________________ Engine Serial Number _________________________
Date Purchased ________________________ Purchased From _____________________________
How To Obtain Parts and Service
To order parts, or to arrange repair service, contact
the nearest authorized TURFCO dealer. For a list
of authorized TURFCO dealers in your area, or for
additional information regarding TurnAer-26, direct
inquiries to:
TURFCO Mfg. Inc.
1655 101st Avenue North East
Minneapolis, MN. 55449-4420 USA
Telephone [phone]
FAX [phone]
E-Mail - [email protected]
Internet - www.turfco.com
To ensure safety and proper operation, always purchase
genuine TURFCO replacement parts from an authorized
TURFCO dealer. Replacement parts from other sources
may damage the TurnAer-26 and/or create a safety hazard.
Always refer repairs to properly trained service personnel.
DO NOT ALTER the TurnAer-26 in any manner.
Unauthorized alterations may affect its operation,
performance, and may result in injury or death to the
operator as well as other individuals in the work area.
PRODUCT RECORDS

™
3
Specifications
Intended Use: The TurnAer-26 is a self-propelled, steerable, coring tine aerator. The TurnAer-26 is
intended to be used for the aeration of the turf or soil at a properly prepared worksite. The TurnAer-26
is NOT intended to be used for any purpose other than the aeration of turf. The TurnAer-26 is NOT designed
for or intended to accept riders.
Aerating Speed ..........Up to 110 Meters Per Minute (359 Feet Per Minute) (21,557 Feet Per Hour)
at 6.6 Km/h (4.1 MPH)
Aerating Rate .............Up to 4068 sq. meters Per Hour (4865 sq. yd.) (43,787 Sq. Ft. Per Hour)
Aerating Depth ...........Up to 70 mm (2-3/4” Inches)
Aerating Width ...........0.619 Meter (24-3/8” Inches)
TurnAer-26 Width .......0.897 Meter (35-5/16” Inches)
TurnAer-26 Length .....0.99 Meter (39” Inches) Handlebars In Folded Storage Position
1.473 Meter (58” Inches) Handlebars In Operating Position, Wheels Down
TurnAer-26 Height ......0.914 Meter (36” Inches) In With Handlebars Folded Storage Position
1.295 Meter (51” Inches) With Handlebar In Operating Position (Middle
Height Setting), Wheels Lowered (Transport Wheels Down)
0.99 Meter (39” Inches) With Handlebar In Operating Position (Middle
Handlebar Height Setting), Wheels Raised (Transport wheels Raised)
Weight ........................152 Kg (335 Pounds)
Engine .........................Product Number 85370 - Honda 2.98 kW (4.0 HP) GX120 With 6:1 Gear Reducer
Drive ............................V-Belt to Differential, RC-40 Roller Chain to Tines Reels and Front Drums
Clutch .........................Belt Idler Type, Controlled From Operating Position
Tines ...........................Coring Type, 19 mm Diameter (3/4” Inch) Heat Treated Alloy Steel
V-Belt ..........................Goodyear B48F 85510
Chain ...........................RC-40 Roller Chain
Bearings .....................Flange Mounted Self-Aligning Sealed Ball Bearings
Wheels ........................8” x 2.5” Inch Semi-Pneumatic Rib Tread Tires With 5/8” Roller Bearings
Registered Trademarks and Patents
TurnAer-26™ is covered under U.S. Patent 6,708,773
Additional Patents Pending
TurnAer-26™ is a trademark on Turfco Mfg., Inc.
TURFCO® is a registered trademark of Turfco Mfg., Inc.
Vibration and Noise Emission Levels
Vibration Level:
Operator Position
on Handlebar = 0.41 m/s2 RMS
Operating Conditions:
Full Throttle, Operating
Noise Emission Level:
Operator Position
Sound Pressure (LpA) = 87.5 dBA
Sound Pressure Level (LwA) = 97 dBA
Operating Conditions:
Full Throttle, Stationary, Aerator Operating
WARNING
THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
ONLY OPERATE ENGINE IN AREAS WITH ADEQUATE VENTILATION.
DO NOT OPERATE ENGINE IN ENCLOSED AREAS.
SPECIFICATIONS

™
4
Recognizing Safety Warnings Used In Manual
LOOK FOR THE SAFETY HAZARD WARNING SYMBOL
The symbol is used to alert the operator of safety hazards.
It is used in conjunction with the words DANGER, WARNING, and CAUTION.
“DANGER” identifies immediate hazards which will result in serious injury or death.
“WARNING” identifies potential hazards which could result in serious injury or death.
“CAUTION” identifies hazardous situations which may result in minor injury and/or could result in
damage or destruction of equipment.
WARNING CAUTION
DANGER
Safety on the job should always be a top priority.
Training and experience are important factors in the
safe operation of equipment. Please consider the
following information and realize that safe operation is
a matter of using common sense as it relates to the
machine, its maintenance, the operator, the training,
and the operating conditions. These are general
safety instructions that apply to most turf maintenance
equipment.
This list includes many, but not all, general
safety instructions as they relate to turf
equipment. Common sense must always be
used to determine the safest way to operate a
machine under specific conditions.
TRAINING:
Always read the manual, the decals, and the safety
warning decals before operating a machine for the first
time.
Always check the location and use of each control
before operating a machine for the first time.
Practice operating the machine in a safe area with no
obstructions until becoming familiar with the controls.
If you have questions, ask your supervisor or call the
factory.
CLOTHING:
Clothes should be snug fit. Loose fitting clothing is
hazardous because it may get caught in the mechanism
during service or operation.
Remove jewelry before operation. Jewelry may get
caught in the mechanism.
Wear shoes that will protect your feet. The protection
of leather shoes, boots, or steel toed safety shoes, is
required.
Hard Hat: A hard hat should be considered when using
equipment on a golf course. The danger of being hit
General Safety Practices
by a golf ball should be a major concern as well as
protection needed while operating under trees or
around obstacles.
Eye Protection: Safety glasses and/or face shields
should be worn when operating, as well as working in
close proximity to high speed rotary equipment. Watch
for rotary mowers, edgers, brush and string trimmers.
Rotary mowers can throw debris at speed up to 320
Km/h.
Hearing: If the noise level of the equipment is too loud,
use ear protection.
Do not use stereo headsets during operation. This is
a distraction that may lead to an accident. Headsets
also make it difficult to hear other people and other
equipment while operating the machine.
Gloves: Use gloves to protect your hands. Use gloves
when handling sharp or hazardous objects.
Respirators: When operating in dusty, windy
conditions, wear a respirator. This is also an important
consideration if operating equipment while spraying
chemicals and fertilizers.
THE OPERATOR:
The operator should never use a machine while under
the influence of alcohol or drugs.
The operator should be aware of the hazards of
working in the sun and should take proper precautions
to avoid heat stress and dehydration. Use sun screen
products when necessary.
The operator should never attempt to ride a machine
that is not designed for that propose. Do not allow
others to ride a machine that is not designed for
passengers.
Do not operate any equipment at unsafe speeds.
Speeds should be reduced when turning or operating
on slopes. The operator must use common sense to
determine a safe speed based on the equipment, the
load, the slope, the surface, and other conditions that
may affect safe operation.
SAFETY

™
5
The operator must be aware of the conditions around
the machine. Be careful to observe other people and
machines in the area.
Beware of slippery conditions. Wet turf can be
encountered on slopes, when turning or stopping, or
at higher speeds.
Keep hands and feet away from cutting devices and
drive components. Shut off the engine and remove the
key or spark plug wire when servicing cutting devices
or drive components.
Care should always be taken when mounting and
dismounting a riding machine. Prevent injuries and
falls by making sure the operator does not slip. Unless
it is an emergency, do not jump off a machine. Injury
may result when an operator’s foot slips trying to jump
from a machine.
If required to lift, an operator should ask for help if the
object is too heavy. The operator should lift with the
legs instead of the back. Care should be taken to avoid
twisting the back while lifting a heavy load.
Never allow children to operate the machine.
THE MACHINE:
Do not modify the machine in any manner. Always
check the machine to make sure it is in good working
order.
Do not place hands or feet near moving or rotating
parts. Check that all guards are functional and properly
installed. Do not operate a machine without all guards
installed.
Do not use your fingers or hands to check for leaks.
High pressure leaks can puncture the skin and force oil
into the body. This can cause severe injury or death.
Check to assure that all controls are in good operating
condition.
Do not overload machinery. The components
are designed for certain weights and capacities.
Overloading machine will cause unsafe conditions
Shut off the engine before servicing the machine.
Check machines on a level area. Machines on a slope
may roll when the engine is off.
Refer unfamiliar repairs and adjustments to mechanics
that have been trained to do them properly.
Replace decals that are damaged or illegible.
THE ENGINE:
Do not run the engine in an enclosed area. The
exhaust gases contain carbon monoxide, an odorless
and deadly poison. The engine exhaust from this
product contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Do not refuel machines indoors or in an unventilated
area. Do not over fill. Do not add fuel while the machine
is hot because spilled fuel may cause a fire. Use
fresh gasoline. Stale fuel can gum the carburetor and
can cause leakage. Check the fuel lines and fittings
frequently for cracks and leaks.
Pull the starter cord slowly until resistance is felt. Then
pull the cord rapidly to avoid kickback and to prevent
hand or arm injury.
Do not remove the fuel tank cap or fill fuel tank while
the engine is hot or running. Allow the engine to cool
before refueling.
Do not operate the engine if gasoline is spilled. Do
not operate the engine when the smell of gasoline
is present or if any other explosive conditions exist.
Move the equipment away from the spill and avoid any
ignition until the gasoline has evaporated.
Do not store, spill, or use gasoline near an open
flame. Do not store, spill, or use gasoline near a stove,
furnace, water heater, or appliance that uses a pilot
light or can create sparks.
Do not choke the carburetor to stop the engine.
Whenever possible, gradually reduce the engine
speed before stopping.
Do not tamper with the governor springs, links or other
parts to increase the engine speed. Run the engine at
the speed set by the equipment manufacturer.
Keep the cylinder fins and the governor parts free of
dirt, grass, and debris which can affect engine speed.
Do not transport the engine with fuel in the tank.
Prevent accidental starting by removing the spark plug
wire(s) when servicing the engine or the equipment.
Disconnect the negative wire from the battery terminal
if the engine is equipped with an electric starting
system.
Do not strike the flywheel with a hammer or any
hard object. This may cause the flywheel to shatter
during operation. Use the correct tools to service the
machine.
Do not check for a ignition spark with the spark plug
removed. Use an approved tester.
Do not crank the engine with the spark plug removed.
If the engine is flooded, place the throttle in fast and
crank until the engine starts.
Do not start the engine with the air cleaner and/or the
air cleaner cover removed. Do not operate the engine
without a muffler. Replace the muffler if it is leaking or
worn. Replace only with correct muffler. Do not touch a
hot muffler, cylinder, or fin. It will cause burns.
Do not operate the engine with an accumulation of
grass, leaves, or other combustible material in the
muffler area.
Do not use the engine on any forest covered, brush
covered, or grass covered unimproved land unless
a spark arrester is installed in the muffler. The spark
arrester must be maintained in good working order.
In the State of California, the above is required by
law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal
laws apply on federal lands.
SAFETY

™
6
SAFETY FIRST!!
WARNING
TO AVOID SERIOUS INJURY,
Remove Wire From Spark Plug Before
Performing Any Assembly Procedure
Do Not Use The Engine To Perform Or
Aid In Any Assembly Procedures.
Always Follow All Safety Hazard Warnings.
Read And Follow All Safety Decals.
Wear The Appropriate Safety Gear.
To Avoid Serious Injury, Support the Tine Reel
Assemblies On a Secure Wooden Surface To
Ensure that the Tine Reel Assemblies Will Not Fall
Or Drop On Hands and Feet.
Use Caution When Working Around the Tine Reel
Assembly, Tines Have Sharp Edges That Can
Easily Cut Hands.
STEP 1. (See Figure 1) Loosen the handlebar locking
nuts and rotate the handlebar from the “storage
position” to the “operating position”. Retighten the
nuts to secure the handlebar.
STEP 2. (See Figure 1) Check the position and routing
of the clutch control cable, the steering brake cables,
and the throttle cable. The cables must not be trapped
or caught on any chassis or handlebar component.
DO NOT START THE ENGINE!
Assembly
FIGURE 1
HANDLEBAR
LOCKING
NUTS
STORAGE
POSITION
OPERATING
POSITION
ROTATE HANDLEBAR
INTO OPERATING
POSITION
AS85370-01
LOW POSITION
MIDDLE POSITION
HIGH POSITION
(1.07 METER)
(0.91 METER)
(0.99 METER)
FIGURE 2
LOW POSITION
MIDDLE POSITIONHIGH POSITION
HIGH
LOW
MIDDLE
AS85370-02
42” INCHES
36” INCHES
39” INCHES
ASSEMBLY
SAFE-14

™
7
STEP 3. (See Figure 2) Select a handlebar mounting
height to match the operator. The handlebar was
set at the factory in the middle position. The highest
position is for tall operators, the lowest for shorter
operators. Loosen and remove the carriage bolts,
raise or lower the handlebar to the next set of
matching holes on the mounting plate. Replace
hardware and securely tighten.

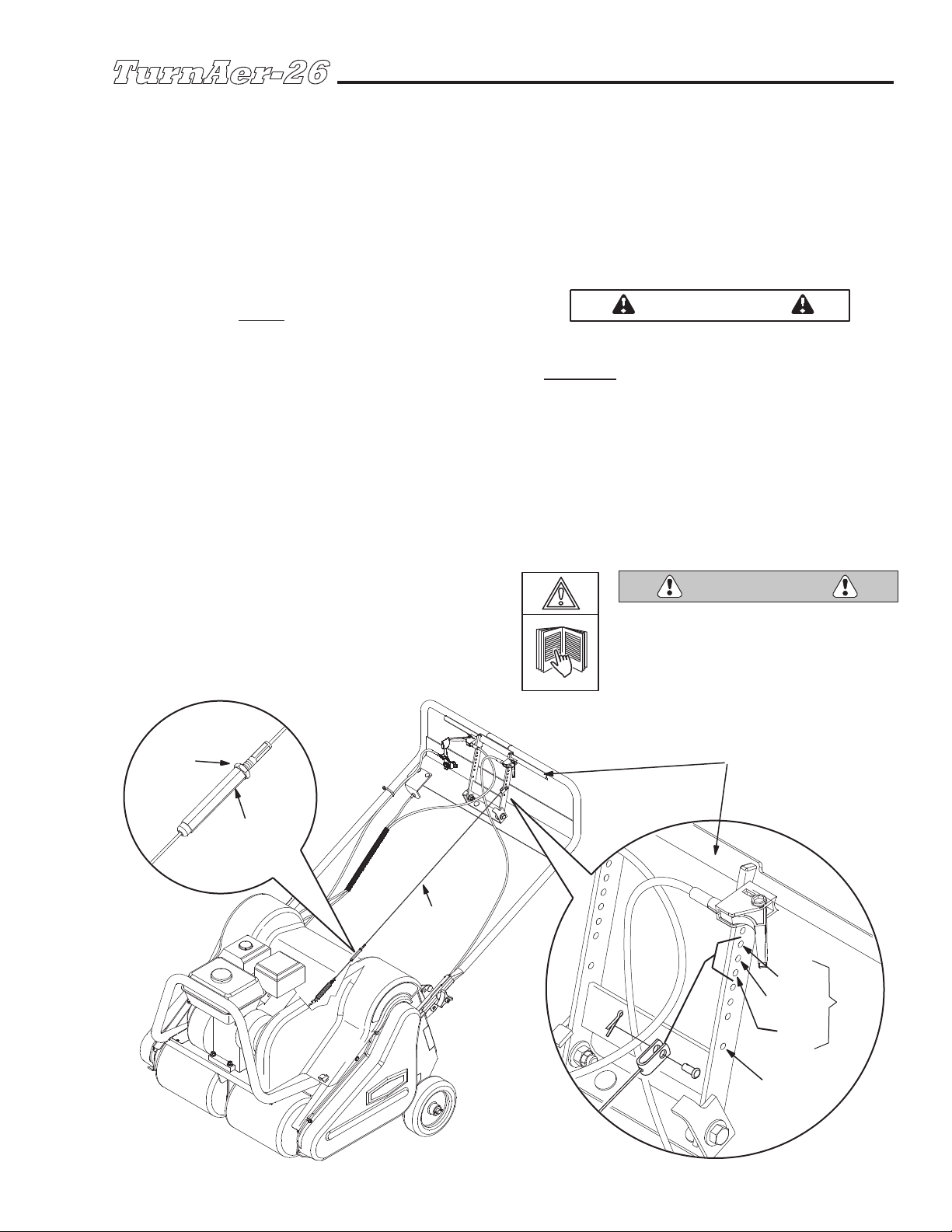

STEP 4. (See Figure 3) The clutch control cable is
attached to the clutch control handle and factory
adjusted for the
middle handlebar mounting position.
If you have changed the handlebar height to either
the high or low position, the clutch cable must also
be repositioned and the cable readjusted.
Reposition the cable to the proper hole in the clutch
handle (shown in Figure 3) that corresponds with
the new height setting of the handlebar. Reattach
using the clevis pin and cotter pin (left hand side of
the clutch handle only). NOTE: The other holes in
the clutch handle are used for readjustment of the
clutch after extended use. Refer to the Maintenance
section in this manual (page 15).
Readjust the cable. Loosen the locking nut on the
clutch cable adjuster and lengthen or shorten the
cable by turning the adjuster. Set the adjuster so
that the spring on the cable stretches a 1/2” to 3/4”
(13 mm to 19 mm) from its original length when
the clutch handle is engaged. When the clutch
handle is released, the machine should not “creep”
forward. Reset the locking nut. NOTE: Additional
clutch adjustment information can be found in the
Maintenance section in this manual (page 15).
STEP 5. Recheck of the positions of the control cables.
Check that they are not trapped or tangled around
the handlebar. DO NOT START THE ENGINE.
Ensure that the clutch handle and throttle control
operate smoothly without binding or rubbing on any
TurnAer-26 components.
WARNING
CAUTION
DO NOT START THE ENGINE.
Engine Maybe Shipped From the Factory
WITHOUT Oil In the Crankcase or In the Gear
Reducer. Crankcase and Gear Reducer Must Be
Filled To Proper Levels With Oil.
STEP 6. CHECK THE OIL LEVEL IN THE ENGINE
CRANKCASE AND GEAR REDUCER - See the
engine manual for proper motor oil types, grades,
and fill levels. Maintain proper lubrication intervals
on the engine.
Read and Understand the Entire Operators Manual.
TO AVOID SERIOUS INJURY,
Read and Understand the Entire
Operator’s Manual Before Operating
This Machine.
LOW
MIDDLE
HIGH
NOT USED
FIGURE 3
CLUTCH
CABLE
ADJUSTER
LOCKING
NUT
CLUTCH
CABLE
CLUTCH
CONTROL
HANDLE
HANDLEBAR
POSITION
AS85370-03
WARNING
ASSEMBLY
SAFE-06

™
8
INTENDED USE AND FUNCTION
The TurnAer-26 is a self-propelled, steerable, coring
tine aerator. The TurnAer-26 is intended to be used for
the aeration of the turf or soil at a properly prepared
worksite. The TurnAer-26 is NOT intended to be used
for any purpose other than the aeration of turf. The
TurnAer-26 is NOT designed for or intended to accept
riders.

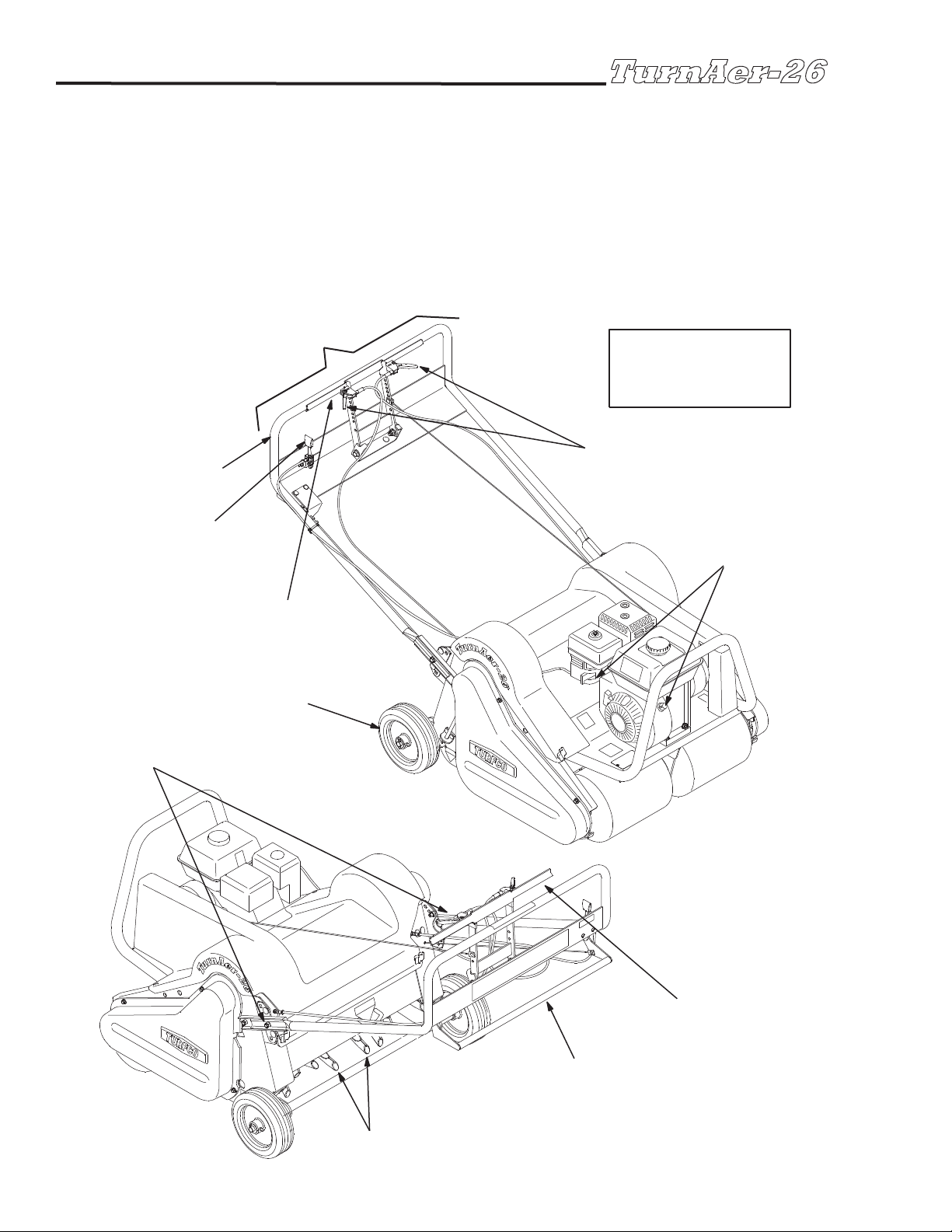

DESCRIPTION OF ENGINE AND OPERATOR
CONTROLS (See Figure 4)
The operator controls are located on the handlebar.
They consist of the engine throttle, the clutch handle,
the steering brake controls, and the transport wheels
lift handle. Ensure that all operator controls are in good
operating condition. Do not alter operator controls
and/or operate the TurnAer-26 with defective or non-
operational operator controls.
Description
FIGURE 4
HANDLEBAR
CLUTCH
HANDLE
ENGINE
CONTROLS
TRANSPORT
WHEELS
TINES AND TINE REELS
ENGINE
THROTTLE
TRANSPORT
WHEELS LIFT
HANDLE
RIGHT AND LEFT TURN
STEERING BRAKE
CONTROL LEVERS
LOCATION
OF OPERATOR
CONTROLS AND
COMPONENTS
OPERATORS
POSITION
CLUTCH
HANDLE
HANDLEBAR
LOCKING NUTS
DS85370-01
DESCRIPTION

™
9
Operators Position: The correct position for the
operator is behind the handlebars. Neither the clutch
control handle or the transport wheel lift handle
should be engaged unless the operator is behind the
handlebars.
Engine Controls: The engine controls are all located
on the engine except for the throttle. The engine is
equipped with a On/Off switch, a fuel shutoff valve,
and a choke. Ensure that all engine controls are in
good operating condition. Do not alter engine controls
and/or operate the TurnAer-26 with defective or non-
operational engine controls.
Engine Throttle: The throttle is located on the right
hand side of the handlebar. Pull the
throttle to the left to increase the
engine speed. Set the throttle at
a speed that is comfortable for the operator to walk
safely behind. Decrease throttle speed when operating
in an area with close obstacles.

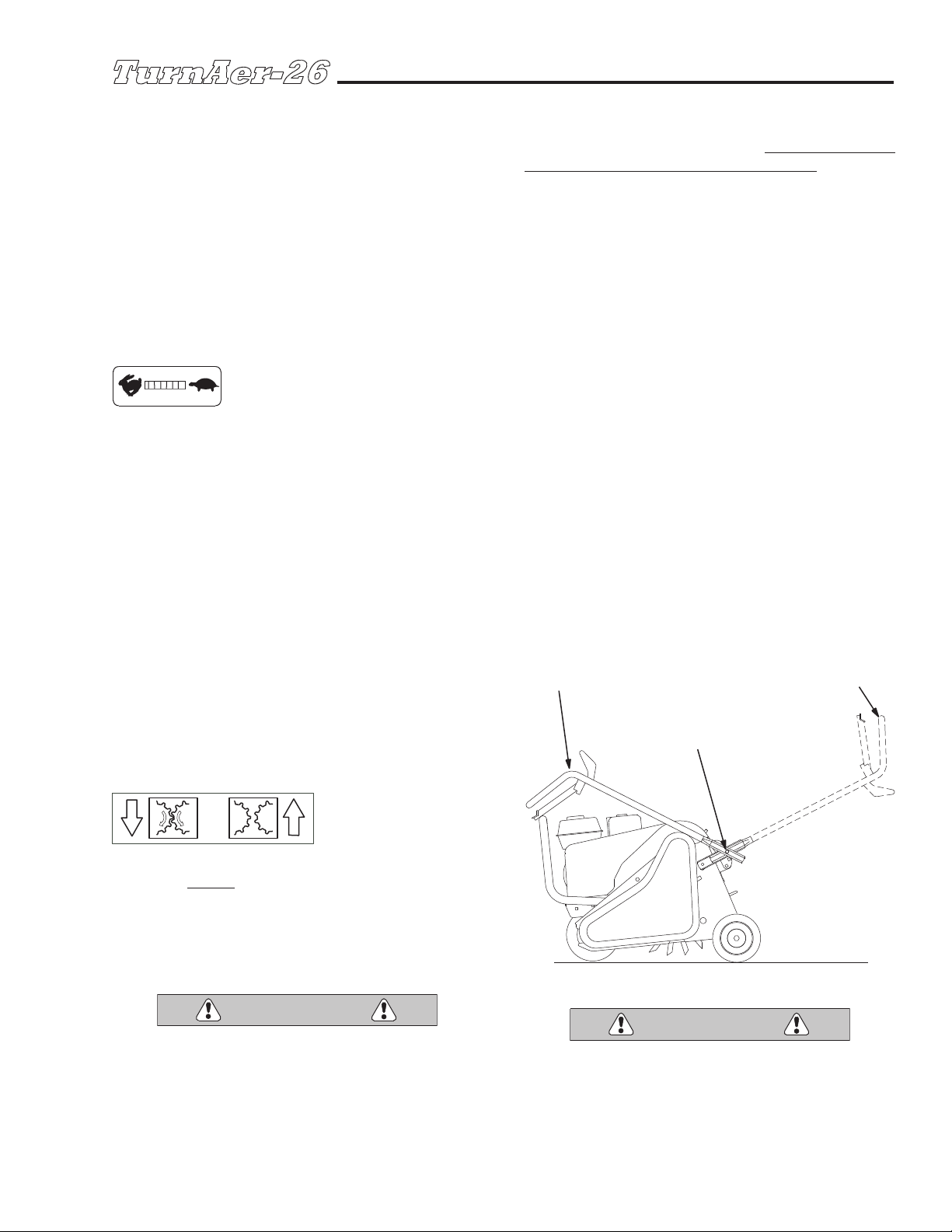

Transport Wheels Lift Handle: The transport
wheels lift handle, located across the rear of the of
the handlebar, controls the latching mechanism that
enables the transport wheels to be raised or lowered.
Pulling up on the transport wheel lift handle while
pushing down on the handlebar will allow the transport
wheels to be raise while the tines are lowered to the
turf. To remove the tines from the turf and lower the
transport wheels, pull up on the transport wheels lift
handle while pushing down on the handlebars until
the wheel latch mechanism releases. Lift up on the
handlebar until the wheels latch into a fully lowered
position. To avoid damage to the transport wheel
control cables, do not pull directly on the cable, always
use the transport wheels lift handle.
Clutch Handle: The clutch handle is located across the
top of the handlebar.
Slowly pull back on
the clutch handle to
engage the drive.
The clutch will not act as a brake when released. If the
clutch is released or disengaged when the TurnAer-26
is going up a slope, the machine will freewheel and
roll backwards towards the operator. If the clutch is
released or disengaged when going down a slope, the
machine will freewheel forward.
WARNING
Slowly Engage The Clutch Handle. Fast
Engagement May Cause The Operator to Lose
Control of the Aerator.
Right and Left Turn Steering Brake Control Levers:
Applying the left brake makes the aerator turn left,
applying the right brake makes the aerator turn right.
The brakes slow down one side of the aerator causing
the other side of the aerator to speed up, resulting in
the desired right or left hand turn. Only light pressure
on the brake lever is needed for a turn. Guide the
aerator during the turn with a slight right or left side
pressure on the handlebar to control the turn.
Apply only one steering brake at a time. Applying both
brakes at the same time will cause undue stress on the
steering system. Applying both steering brakes at the
same time will not stop the aerator. To stop the aerator,
release the clutch handle.
DESCRIPTION OF HANDLEBAR IN STORAGE
POSITION (See Figure 5)
The handlebar can be folded into a storage position.
Figure 5 shows the handlebar in this position. The
handlebar locking nuts have been loosened, the
handlebar rotated forward into the storage position,
and the locking nuts retightened to secure the setting.
When folding, the handlebar should not rest on the
front bumper. Use caution not to over extend, trap or
stress any control cables.
When in the folded storage position, the handlebar
should not be used as a lifting point. Never attempt
to start the engine or operate any controls with the
handlebar in the folded storage position.
HANDLEBAR
LOCKING
NUTS
STORAGE
POSITION
OPERATING
POSITION
FIGURE 5
DS85370-04
WARNING
TO AVOID INJURY,
and Avoid Damage To The TurnAer-26, Do Not
Start the Engine Or Attempt To Operate Any
Control When the Handlebar Is In the
Storage Position.
DS85370-02
DS85370-03
DESCRIPTION

™
10
OPERATION
WARNING
TO AVOID SERIOUS INJURY,
Read and Understand the Entire
Operator’s Manual Before Operating
This Machine.
PRE-OPERATION CHECK LIST
Safety First
Wear the appropriate safety gear.
Hearing protection, gloves and
safety shoes are recommended when
operating the TurnAer-26.
 Check - The oil level in the engine crankcase
with the engine horizontal. If necessary, fill the
engine crankcase in accordance with the engine
manufacturer’s instructions. Engine may have
been shipped from the factory without oil.
 Check - The oil level in the engine gear reducer
with the engine horizontal. Fill in accordance with
the engine manufacturer’s instructions. Engine
gear reducer may have been shipped from the
factory without oil.
 Grease - The fittings in the transport wheel hubs.
 Check Fuel - Use fresh fuel of a type and grade
recommended by the engine manufacturer. Fill the
tank 3/4 full.
 Inspect - The tines and the V-belt for damage.
 Check - For a buildup of dirt, cores, and grass
around the tine reels and under the top guard.
 Check - All guards are in place.
 Check - Retighten any loose nuts and screws to
ensure safe operation.
 Check - The operator controls. Controls must be
fully operational.
 Check - The work site for above and below ground
obstructions and/or dangerous areas.
WORK SITE PREPARATION
Inspect the worksite for safety and any operational
related deficiencies. Deficiencies are anything that
may cause damage to the machine, cause injury to the
operator, or cause injury to bystanders. Prepare the
worksite by correcting any deficiencies found during
the inspection.
The TurnAer-26 tines operate under the ground at
a depth of 70 mm (2-3/4” inches). Under certain
conditions, the TurnAer-26 tines can reach a depth
of 113 mm (4-1/2” inches). Damage will occur to any
buried object that the tines may come in contact with.
Plan your path and know the location of any below
ground as well as above ground objects that could be
damaged by the aerating process.
Locate and mark all shallow buried electric service,
cable TV, telephone, outdoor lighting, and any other
buried cable that may be damaged by the aerating
process.
Locate and mark all irrigation heads, above and below
ground irrigation control boxes, and any shallow
buried irrigation lines that may be damaged by the
aerating process.
Locate and mark any shallow buried natural gas,
propane gas, or other gas or fuel line that may be
damaged by the aerating process.
Locate and mark any shallow buried roof drain pipes,
drain tiling, drain catch basins, or any other buried
drainage items that may be damaged in the aerating
process.
Locate and mark any shallow buried sewer pipes,
drain field tiling pipes, sewer collector boxes, sewer
access covers, sewer vent pipes, or any other
buried sewer items that may be damaged in the
aerating process.
MOVING THE TURNAER-26 TO THE WORKSITE
When moving the aerator in a vehicle or on a trailer, the
machine must be securely tied down. Relying solely
on the aerator drive train to prevent movement may
cause damage to the tines, front drums, and wheels lift
latching mechanism. Use wheel chocks and chains to
secure the aerator to the vehicle or trailer. Ties down
holes are provided to use in securing the unit. Place
a piece of plywood under the tines while it is being
moved to provide extra protection for the aerator tines
and the vehicle or trailer.
WARNING
CAUTION
When Being Moved By Vehicle Or Trailer,
Securely Tie Down The Aerator To Avoid Damage
To The Tines, Front Drums and Wheel Lift
Latching Mechanism.
Do not tip the TurnAer-26 on its back or nose during
transportation, operation, service or cleaning. If tipped,
engine oil from the crankcase will enter the piston
cylinder and foul the spark plug.
The front drums are for moving the unit while on the
ground only. When loading the TurnAer-26, do not try
Operation
SAFE-06

™
11
OPERATION
to use the front rollers to drive the aerator up ramps.
The slick plastic of the drums will not have traction on
ramps of any kind. Do not attempt to use the steering
brakes to aid in traction, they may make the unit turn
and it go off the ramps. Stop the engine, and push the
aerator up the ramps.
WARNING
The TurnAer-26 Weighs 152 Kg (335 Lbs).
TO AVOID SERIOUS INJURY,
Use Proper Rated Lifting Equipment and
Techniques and To Lift the TurnAer-26.
Move the unit from trailer to job site in the raised
position (tines up) using the front drums to pull the unit
along. The small size of the drums and slick nature
of the plastic may cause the drums to spin. The drive
mechanism will allow one front drum to spin and the
other to sit still. If this occurs, lightly apply the steering
brake lever for the side that is spinning. This will cause
the other front drum start moving aiding in transport.
MAXIMUM ANGLE OF OPERATION
WARNING
TO AVOID SERIOUS INJURY,
Do Not Operate the TurnAer-26 On Steep Slopes.
MAXIMUM SLOPE ANGLE IS 15° DEGREES.
The Aerator Can Tip, Roll Over, Or Roll Back Onto
Operator.
Do not operate the aerator on steep
slopes. Serious injury can occur if the
operator slips and gets feet or hands
caught in the revolving tine reels. If
operated on a steep slope or when
operated in an unsafe manner, the
TurnAer-26 can tip, roll over, or roll back
on to the operator or bystanders. When on a slope of
15° degrees or less, never operate straight up or down
the slope, Approach a minor slope (under 15°) moving
up and down at a 45º degree angle to the slope.
Note: Some models of Honda engines are
equipped with an “Oil Alert System” that detects
insufficient oil levels in the engine crankcase. If the
TurnAer-26 is operated on a slope, the “Oil Alert
System” may detect a low oil condition causing the
engine to shut down.
ENGINE STARTING AND STOPPING
INSTRUCTIONS
Keep hands and feet away from tines, tine reels and
front rollers. Ensure that the engine oil levels are
correct and that the gas tank has been filled 3/4 full
with the proper grade of fuel.
The handlebar must be in the upright operator position.
DO NOT start the engine with the handlebar in the
folded storage position.
To Start Engine:
● Ensure that transport wheels are latched in
lowered position (tines out of the ground).
● Ensure that the clutch is not engage.
● Place Fuel Shutoff in ON Position.
● Place Engine ON/OFF Switch in ON Position.
● Set Choke and Throttle As Needed.
● Pull Starter Rope To Start Engine.
● Allow Engine To Warm Up At Idle Speed.
To Stop Engine:
● Disengage clutch.
● Slow Throttle and Allow Engine to Return to Idle
Speed.
● Lower and latch transport wheels (tines out of
the ground).
● Place Engine ON/OFF Switch to OFF Position.
Do Not Use The Choke To Stop The Engine!!
● Place Engine Fuel Shutoff To OFF Position.
In an emergency situation, release clutch and stop the
engine first by placing engine ON/OFF in OFF position.
TURNAER-26 OPERATION INSTRUCTIONS
WARNING
TO AVOID SERIOUS INJURY,
Always Operate the TurnAer-26 Safely.
Follow All Safety Precautions and Wear the
Appropriate Safety Gear.
Move To the Operator’s Position Behind The
Handlebar Before Engaging Any Operator Control
Handle.
Slowly Engage The Clutch Handle. Fast
Engagement May Cause The Operator to Lose
Control of the Aerator.
DANGER
TO AVOID SERIOUS INJURY,
Do Not Operate Without Guards In
Place. Keep Hands and Feet Away
From the Tines and Tines Reels.
15° MAX.
OP85370-01


™
12
Plan Your Path - Choose a path with the longest
straight runs to minimize time spent turning at the ends
of rows. For best results, aerate the turf more than once
to maximize the number of holes. Aerate the same
work site at least twice, changing direction of travel by
90° degrees. Change to 45° degrees if aerating for a
third pass. For safety reasons, approach a minor slope
(under 15° slope) moving up and down at a 45° degree
angle to the slope, never operate straight up or down
or across the slope. Never operate the TurnAer-26 on
slopes over 15° degrees.
For maximum time saving, aerate like you mow. Aerate
around the perimeter of the site first, then proceed
along the inside of your original perimeter path.
If the turn at the end of a row or is too tight to use the
steering brakes or if the turn is too close to an obstacle,
turn the aerator by lowering the transport wheels, and
swiveling the machine on the wheels. Then raise the
transport wheels and return to your planned path.
To Start Aerating - Set the engine throttle to
approximately half speed. Move the TurnAer-26 to the
turf before raising the transport wheels to lower the
tines. Raise the transport wheels by pulling up on the
transport wheels lift handle while pushing down on the
handlebar. Continue pushing down on the handlebar
until the transport wheels latch in the raised position.
Slowly pull the clutch back and start aerating. Adjust
the engine throttle speed to a desired walking speed.
To Turn the Aerator - Apply a light pressure on the
appropriate steering brake lever. Apply the left brake to
turn left or the right brake turn right. For best aerating
results, limit turns to gentle sweeping turns and normal
turns at the end of a row. Very tight turns are possible
with the aerator, but the aerating holes will be enlarged
if turns are too tight.
To back-up the TurnAer-26, the transport wheels must
be lowered to remove the tines from the turf. Use the
handlebars to pull the aerator backwards.
To Stop Aerating - To stop, let go of the clutch and
the unit will stop (the engine will continue running).
Lower the transport wheels by pulling up on the
transport wheels lift handle while pushing down on
the handlebar. When the wheels contact the ground,
the latching mechanism will release the wheels. Lift
lightly on the handlebars and the spring assisted
wheel lift will latch the wheels in a lowered position.
During Operation - Stop and check the depth of the
tine penetration by checking the holes with a pen or
pencil. Also, visually inspect the tines often during the
aerating process to ensure that they have not become
plugged with stones or debris. A plugged tine will still
make a hole, but will compact the soil in the hole
instead of removing a core. Compaction of the soil
is the opposite of the effect desired by the aerating
process. When inspecting the penetration depth or
cleaning the tines, Stop the Engine and move to
a level surface. Use caution and wear the proper
protective items when working around the tines.

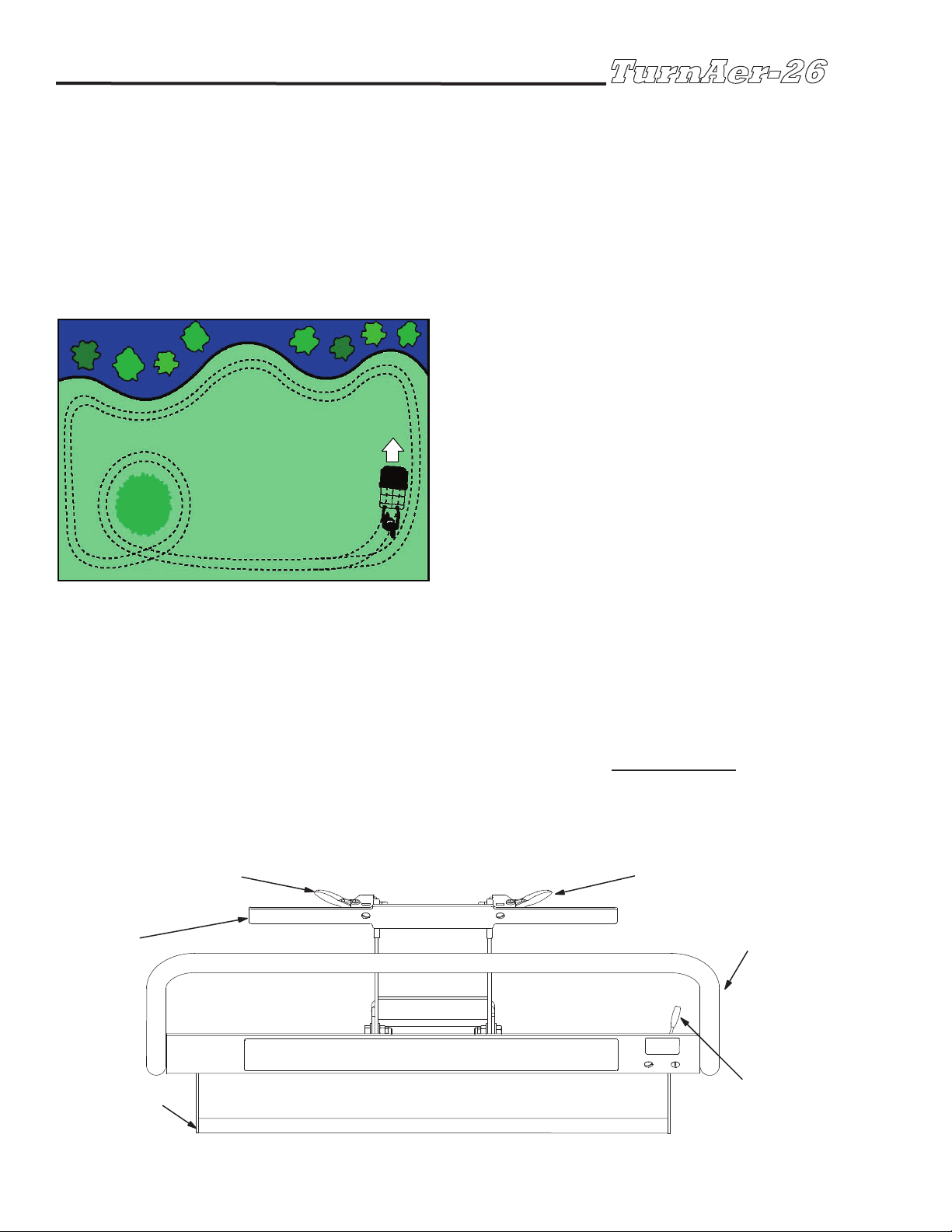

OPERATION
AERATE
LIKE YOU
MOW
OP85370-02
CLUTCH
CONTROL
HANDLE
THROTTLE
TRANSPORT
WHEELS
LIFT
HANDLE
HANDLEBAR
(AS VIEWED FROM OPERATOR'S POSITION BEHIND HANDLEBAR)
RIGHT TURN STEERING
BRAKE CONTROL LEVER
LEFT TURN STEERING
BRAKE CONTROL LEVER
OP85370-03

™
13
Operator Daily Inspection
WARNING
TO AVOID SERIOUS INJURY,
Never Perform Any Inspection With the TurnAer-26
Engine Running.
Wear the appropriate safety gear when Inspecting
the TurnAer-26.
Before each use, check the following items. Refer any
repairs to service personnel.
● Inspect fuel levels. Do not fill fuel tank over 3/4 full.
● Check for proper lubrication of the entire machine.
● Check for proper oil levels in the engine.
● Check condition and sharpness of the tines. Check
for plugged or blocked tines.
● Inspect all controls for proper operation
● Inspect the entire machine for loose fasteners.
Tighten if necessary.
● Inspect for damaged, inoperable, or missing guards
and components. Do not operate any machine
with missing, inoperable, or damaged guards and
components.
● Check for a buildup of dirt, grass, cores or debris
on the machine. Check under the top guard. Clean
machine before use. Do not high pressure wash.
Storage
TO STORE the TurnAer-26 over a extended period,
clean all surfaces and remove any remaining aeration
cores from the machine. Use only Low Pressure Wash
on the machine. High pressure washing can wash away
the grease from the bearings.
Remove fuel from gas tank and run engine until
carburetor is empty. Prepare engine in accordance with
engine manufacturer’s directions.
To avoid getting a flat spot on the front drums, store with
the front elevated.
Check the tines and remove any cores, stones, or
debris. Apply a light film of light machine oil to the tines
to control rust. See the lubrication directions and follow
the procedures.
If needed, fold the handlebar into the storage position.
Loosen the handlebar locking nuts and rotate the
handlebar forward until locks into a forward position. The
handlebar should not rest on the front bumper. Retighten
locking nuts. Take care not to trap or stress any control
cables.
TO RETURN TO SERVICE AFTER EXTENDED
STORAGE, inspect the entire machine for any damage
that may have occurred during storage. Look for loose
or missing parts. Refer any needed correction to the
proper service level maintenance personnel. Check all
lubrication levels.
Troubleshooting Table
OPERATION
PROBLEM POSSIBLE CAUSE
Excessive Vibration
or Noise
Worn Drive Train or Clutch
Idler Bearings. Worn Or
Misadjusted Drive Chains.
Loose Components. Tighten
All Fasteners
Dull, Bent, Broken, Plugged or
Loose Tines.
Engine Speed Wrong For Soil
Conditions.
Poor Tine
Penetration
Blocked Tine Openings.
Buildup of Dirt, Rocks or
Debris In Tines.
Ground Too Hard. Water Turf
To Soften Ground.
Worn, Dull or Damaged Tines.
Transport Wheels
Dragging Or
Catching On Turf
Misadjusted, Disconnected,
Worn or Damaged Wheel Lift
Tension Springs.
Wheel Lift Linkage Not
Latching In Raised Position.
Debris Caught in Mechanism
or Mechanism Damaged.
Transport Wheel Handle
Staying Raised (Actuated).
Wheel Lift Cables Caught.
Operating On Too Steep Of A
Slope.
Clutch Control
Inoperative
Slipping V–Belt At Clutch.
Mis–adjusted Clutch Control
Cable.
Broken or Worn V–Belt. V-Belt
Surface Contaminated.
Disconnected Clutch Control
Cable.
Clutch Control Cable Caught
On Handlebar Components.
Spring On Clutch Control
Cable Damaged, Stretched,
Or Caught On Components
Under or Near Top Guard.
Worn or Damaged Clutch Idler
Pulley.
Steering Brakes
Inoperative
Worn or Misadjusted Brake
Pads. Brake Housings Loose
Misadjusted Brake Cables
Debris Caught In Brake
Housing or debris Coating
Brake Rotors
Worn Bearings on Drive
Shaft Causing Rotors to Be
Misaligned

™
14
TO AVOID SERIOUS INJURY,
Do Not Lubricate Or Adjust The
TurnAer-26 With the Engine Running.
Remove The Wire From The Spark
Plug.
All Of The Following Lubrication And Adjustment
Procedures Involve Or Are Near Rotating Part And
Moving Parts. Follow All Safety Precautions And
Wear The Appropriate Safety Gear.
LUBRICATION
Transport Wheels: Grease fittings on transport wheels
after every 8 hours of operation.
Drive Train Components, Chain, Sprockets, And
Pivot Points: All bearings in the drive train require
no lubrication. Periodic inspection should be done
to insure that any worn bearings are detected and
replaced. The chains requires no lubrication. Protect
chains from rust and moisture with a very light coating
of machine oil. The chain sprockets should be cleaned
of any dirt build-up to ensure proper chain contact.
Periodically inspect the chain and sprockets for wear
or damage. Replace if necessary. Periodically clean
the entire machine of dirt, grease and grass build-up
and lubricate all pivot points with light machine oil.
Engine and Gear Reducer: CHECK OIL LEVELS
DAILY. Follow the engine manufacturer’s manual for
intervals of oil change, proper oil types, and fill levels
for the engine and the gear reduction unit.
ADJUSTMENTS
Check and retighten nuts and screws frequently to
ensure safe operation.
Chain Idler Sprocket Adjustment (See Figure 6):
The chain idler sprockets (one located under each side
chain guard) can be adjusted to remove excess slack
in the drive chains caused by chain wear or stretch.
Remove side guards. Before adjusting idler sprocket
position, ensure that the chain and all sprockets have
been cleaned and that the chain seats properly on
the sprockets. A build-up of dirt on the sprockets or
chain can cause the chain to become too tight. Inspect
all the sprockets, bearings, and the chain for wear or
damage.
Step 1. Remove both side guards and elevate tine reels.
Step 2. Loosen the idler sprockets. Move idler
sprockets along adjusting slot until the chain has an
SERVICE
CLUTCH
CABLE
ADJUSTER
CLUTCH
IDLER
PULLEY
IDLER
CHAIN
SPROCKET
1/2" TO 3/4" UP AND DOWN MOVEMENT
1/2" TO 3/4"
STRETCH
FIGURE 6
BELT STOP
BRACKET
SV85370-01
Service
WARNING
SAFE-12

™
15
up and down movement of 1/2” inch to 3/4” inch. Take
measurement at a center point on the chain between
the front drum sprocket and the tine reel sprocket.
Ensure that all slack in the chain is taken up between
the other sprockets before taking measurement.
Step 3. Retighten idler sprocket and recheck tension
setting measurement. Replace both side guards.
Clutch Cable and V-Belt Adjustment (See Figure
6 and Figure 7): The clutch cable has an adjuster
(located near the spring on the cable) to increase or
decrease the V-belt tension. If the V-belt is slipping
when the clutch handle is fully engaged, the V-belt
tension needs to be increased. If the clutch engages
rapidly or “grabs” when the clutch handle is slightly
engaged, the V-belt tension needs to be decreased.
Also, decrease the V-belt tension if the machine
“creeps” forward when the clutch is not engaged.
Before adjusting, inspect the V-belt, clutch cable, and
the clutch cable spring for damage and wear. Replace
spring or V-belt if proper operation cannot be reached
with cable adjustment.
NOTE: Check the engine mounting hardware. If the
engine has moved during operation, it will affect the
adjustment and operation of the clutch. The engine
should be fully back (towards operator) in the slots in
the frame where the engine is mounted.
Step 1. Refer to Assembly instructions in the front of
this manual (Figures 2 and 3 on Pages 6 and 7).
Ensure that the upper end of the clutch cable is
mounted to the proper hole in the clutch control
handle. Mounting holes correspond to the mounting
height of the handlebar.
SERVICE
Step 2. Loosen the lock nut on the cable adjuster.
Change the tension cable by turning the adjuster.
Limit adjustments to one turn at a time until tension
is correct. Shortening cable increases tension.
Step 3. Proper adjustment range is measured on the
spring at the cable end. The spring should stretch
1/2” to 3/4” (13 mm to 19 mm) from its original length
when the clutch handle is engaged.
Step 4. Test and repeat adjustment as required.
Step 5. If proper adjustment can not be reached within
the range of the adjuster, move the upper cable
mounting point to the next higher hole on the clutch
handle. Repeat the adjusting steps as needed.
NOTE: If the handlebar is mounted in the highest
position, the cable can be moved to the other side of
the clutch handle for added cable tension.
Step 6. If proper tension can not be reached with the
earlier steps, change the location of the engine.
Use the following procedure to properly adjust the
location of the engine:
● Loosen the four bolts that hold the engine to the frame.
Slide engine forward (away from handlebars).
● Verify that the engine is aligned straight and retighten
the bolts securely.
● Move belt stop bracket forward the same distance as
the engine moved forward (if needed).
● Repeat the clutch cable adjustment procedures (after
moving the engine).
● Recheck the adjustment to the belt stop bracket. The belt
should touch the tips of the belt stop when the clutch is
not engaged but not touch when the clutch is engaged.
LOW
MIDDLE
HIGH
NOT USED
FIGURE 7
ADJUSTER
LOCKING
NUT
BELT STOP
BRACKET
ENGINE
MOUNTING
BOLTS
(QTY 4)
SV85370-02A
HANDLEBAR
POSITION

™
16

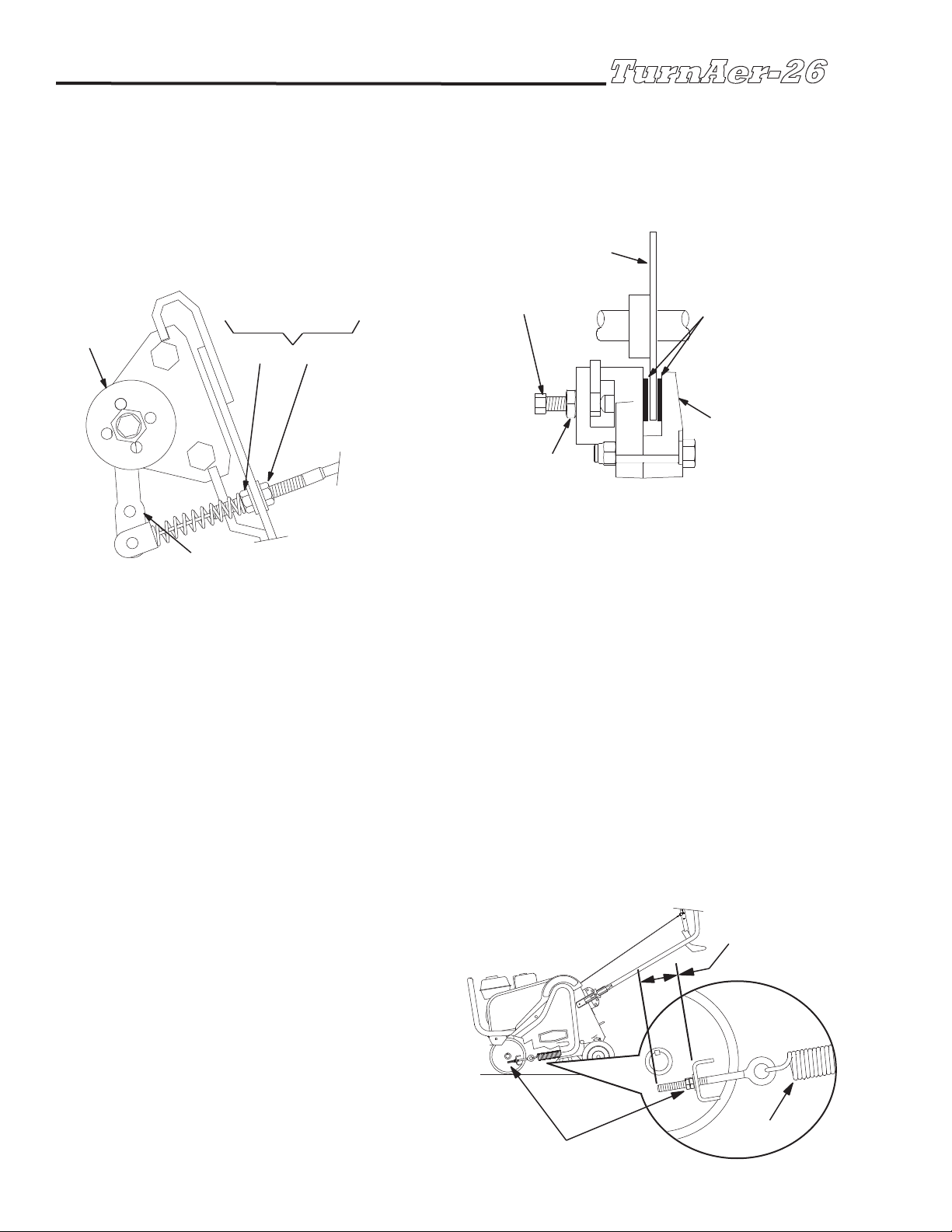

Steering Brakes Cable Adjustment (See Figure 8):
The brake cable conduit end has an adjustment to
take-up any slack in the cable caused by cable stretch.
Cable adjustment is also required if the brake assembly
has been removed for service. After adjustment, check
brake operation to ensure that the brakes will steer the
machine. Both right and left hand brake should require
the same amount of pressure at the steering brake
control levers to control steering. See Steering Brake
Pad Adjustment for further brake adjustment.
Step 1. Remove the top guard from the aerator.
Step 2. At the brake cable conduit end, loosen the
inside jam nut. Turn the outside jam nut until proper
adjustment is reached. Ensure that the brake pads
do not rub on the brake rotor when the steering
brake levers ARE NOT applied. Ensure that the
brake levers completely return when released.
Step 3. Tighten the inside jam nut to lock the adjustment
and to secure the cable conduit end. Replace the
top guard.
Steering Brake Pad Adjustment (See Figure 9): The
brakes have a pad adjusting screw to allow adjustment
for wear in the brake pads and the brake rotor. Before
adjusting, ensure that the steering brake levers are
not depressed, damaged, and do not bind or stick
when operated. Check that the steering brake housing
(caliper) is free to slide back and forth on the upper and
lower brake mounting brackets. Adjust both the right
and left hand brakes to ensure equal and even steering
control. After adjustment, check brake operation to
ensure that the brakes will steer the machine. Follow
Steering Brake Cable Adjustment procedures if cable
needs to be readjusted. Replace pads, brake assembly
or rotor if worn beyond adjustment.
Step 1. Unlock the jam nut for the pad adjusting screw.
Turn the pad adjusting screw until the pads very
lightly touch the rotor.
Step 2. Slightly back off the pad adjusting screw until
the pads not longer touch the rotor. Turn the rotor and
check that the pads do not contact the rotor. Some
pad and rotor contact is normal as the brake housing
“floats” on the brake mounting brackets and rotor will
have some side play, however the pad contact should
be very light and minimal.
Step 3. Tighten jam nut to secure adjusting screw.
Step 4. Steering brake levers and cables must operate
freely without excessive force. Replace top guard.
Wheel Lift Spring Tension Adjustment (See Figure
10): The lift springs are meant to assist in the lifting of
the aerator. The operator should only need to apply a
light lifting force on the handlebars to raise the machine.
If excess lifting force is required or the wheels do not
latch on there own, spring adjustment is required. When
lowering the aerator, only a light downward force on the
handlebars should be needed.
Step 1. Clean & lightly lubricate latching mechanism.
Step 2. Locate spring adjusters. Check the measurement
on the adjusters (See figure 10). Both adjusters
should be set at equally 2-3/4”.
Step 3. If needed, increase lifting force by tightening
adjusters. Tighten both adjusters equally.
Step 4. Test and readjust as needed. If springs fails to
lift, replace springs.
FIGURE 9
STEERING
BRAKE
HOUSING
ROTOR
PAD ADJUSTING
SCREW BRAKE
PADS
JAM NUT SV85307-02
FIGURE 8
CABLE CONDUIT
JAM NUTS
STEERING
BRAKE
HOUSING
STEERING BRAKE ACTUATOR ARM
INSIDE OUTSIDE
SV85370-01
SERVICE
TENSION ADJUSTER
FIGURE 10
SPRING
SV85370-05A
2-3/4” INCHES
(70 mm)

™
17
A
1
2
3
4
TIGHTENING SEQUENCE
(TORQUE TO 23 ft-lbs) C
B
C
B
D
E
Detail A
DISCARD SHIMS
3/16"
TO
1/4"
SEE NOTE IN STEP 7

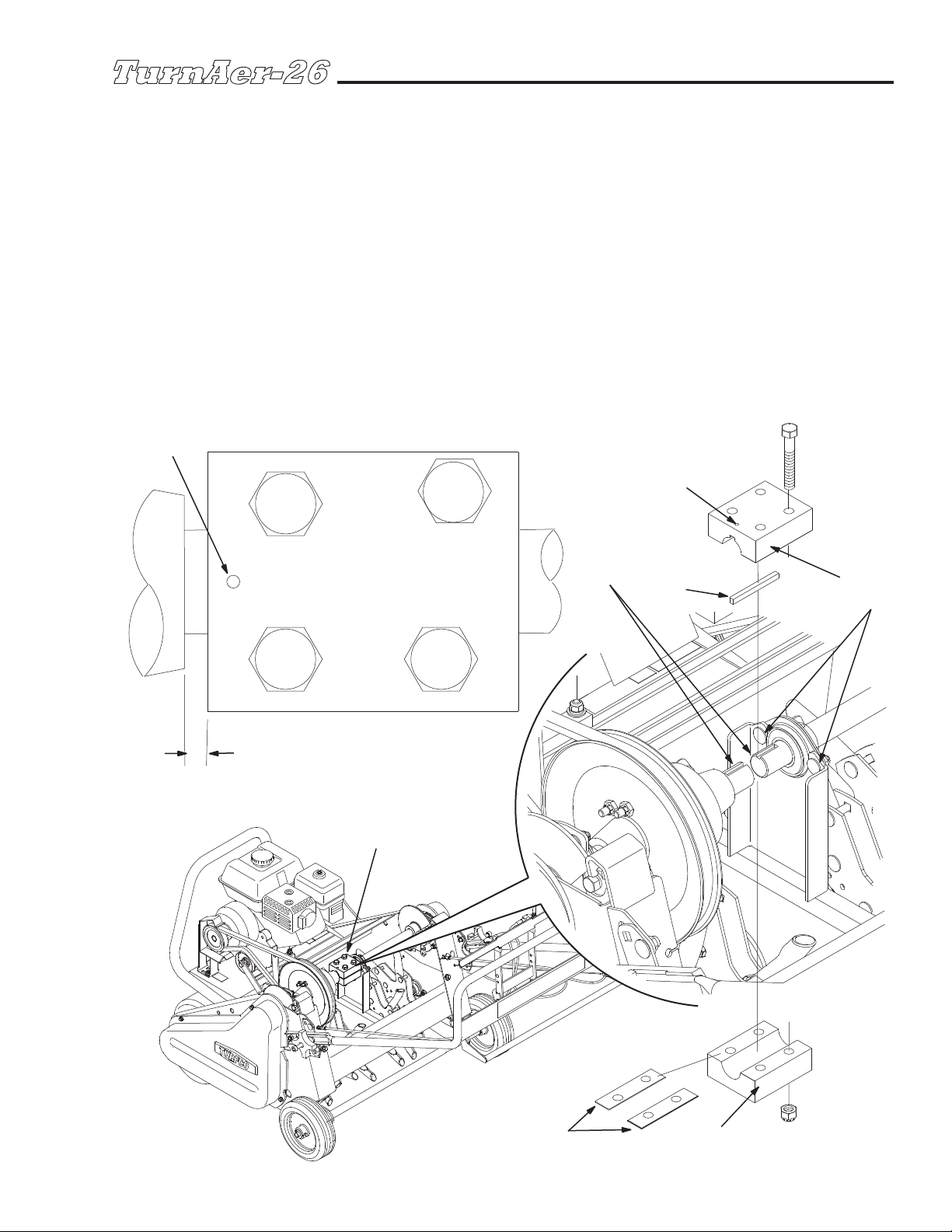

FIGURE 11
SV85370-06
V-Belt Replacement (See Figure 11)
Use the following steps for V-belt replacement:
Step 1. Disconnect the clutch cable at the clutch control
handle. Do not change the cable adjuster setting.
Step 2. Remove the top guard.
Step 3. Locate the shaft coupling [A] and disassemble.
Before disassembly, note the location of the
identifying punch mark [B] on the top half of the
coupling and the matching “X” marks [C] on the
upper and lower halves.
Step 4. Remove the square key [D] from the shafts.
Step 5. Remove and install the old and new V-Belt thru
the space between the shafts [E].
Step 6. Reinstall the key [D].
Step 7. Reinstall shaft connector [A]. Punch mark [B]
must be towards the large pulley, the “X” marks
must both be on the same side of the connector.
The edge of the connector block should be 3/16” to
1/4” inch (4.8 mm to 6.3 mm) away from the edge
of the differential housing. Note: If installing a new
connector, discard shims between the connector
halves.
Step 8. Tighten bolts evenly in an “X” pattern (See
Detail A For bolt tightening sequence). Torque to 23
Ft-Lbs. (276 In-Lbs or 31.1 NM).
Step 9. Replace the top guard.
Step 10. Reinstall the clutch cable to the clutch control
handle.
Step 11. Test and readjust the clutch cable as needed.
SERVICE
