1. Introduction
1.1 Description
The Turner Designs Digital C-FLUOR Submersible Probe is an accurate single-
channel detector that can be used for many different applications. Digital C-
FLUOR can be integrated into multi-parameter systems from which it receives
power allowing it to output digital ASCII data as concentration estimates for a
fluorophore of interest.
Digital C-FLUOR Probes are factory calibrated and a probe-specific calibration
certificate is included with each probe. The certificate contains information that
states the probe’s minimum level of detection and range of concentrations that
can be measured for the specific application.
Digital C-FLUOR Probes are manufactured with a Titanium housing and
connector, ideal for long-term deployments and able to withstand most corrosive
environments. It is available without a connector for integration flexibility; see
Section 2.2 for part numbers.
NOTE: Digital C-FLUOR Probes cannot be used with the C6 Multi-Sensor
Platform, Cyclops Explorer or Databank Handheld Datalogger.

Digital C-FLUOR Submersible Probe
998-2131 Rev. 1.0 Page 5
2. Inspection and Setup
2.1 Instrument Checklist
The Digital C-FLUOR Submersible Probe shipment package consists of:
A Digital C-FLUOR Submersible Probe that is configured and factory
calibrated for the specified fluorophore or material as noted by the
Identification Letter stamped on the connector:
“C” = Chlorophyll
“R” = Rhodamine
“F” = Fluorescein
“P” = Phycocyanin
“E” = Phycoerythrin
“U” = CDOM / FDOM
“O” = Crude Oil
“B” = Optical Brighteners
“T” = Turbidity
“D” = Red Excitation Chlorophyll
Calibration Certificate
Quick Start Guide
2.2 Configurations
C-FLUOR (Digital) P/N 2120-000-“Identification Letter”-232
C-FLUOR Without Connector (Digital) P/N 2120-000-“Identification Letter”-
NC-232
Note: No end cap is supplied for the C-FLUOR Without Connector (Digital) - see
Section 2.5. For end cap specifications, contact [e-mail]
2.3 Optional Accessories
RS-232 Programming Kit P/N 2120-900 includes RS-232 Programming
cable P/N 2120-160 and 12-volt power supply P/N 7000-941

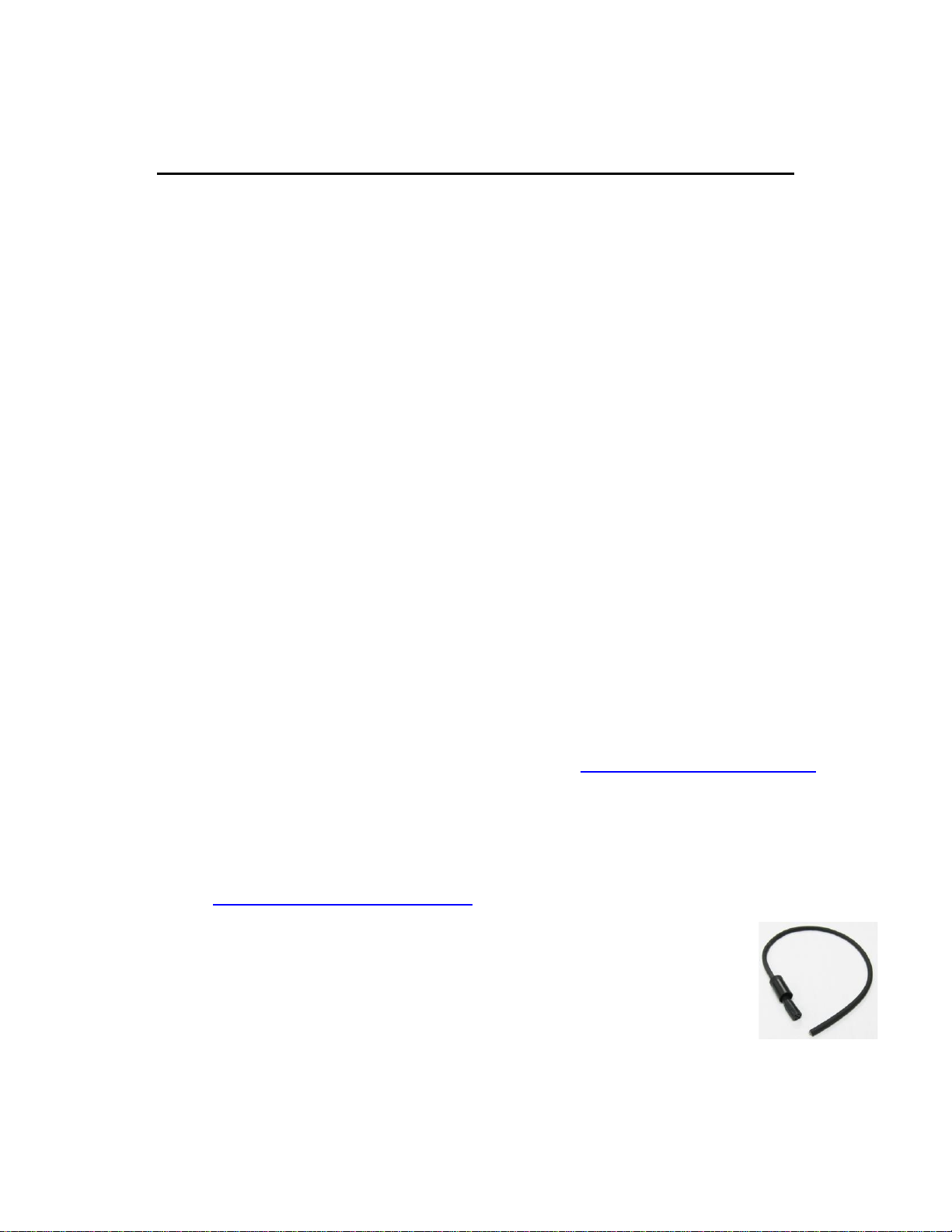

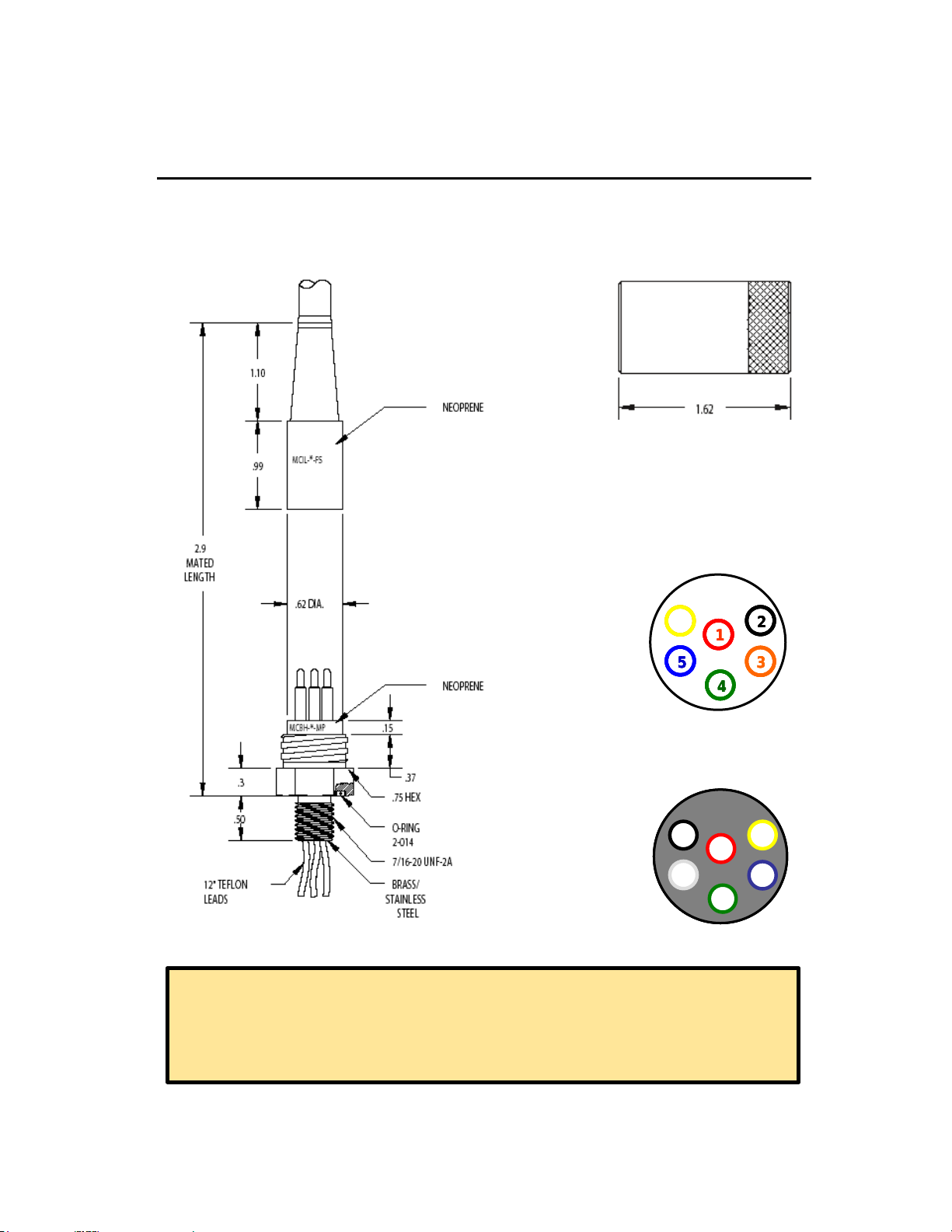

Pigtail Cables with Locking Sleeve - see Appendix D for more information
0.6 Meter Pigtail Cable with Locking Sleeve P/N 2100-750
5 Meter Pigtail Cable with Locking Sleeve P/N 2100-755
10 Meter Pigtail Cable with Locking Sleeve P/N 2100-751
Pigtail Cables longer than 10 meters will require RS422 converter
25 Meter Pigtail Cable with Locking Sleeve P/N 2100-752
Note: Pigtail Cables should NOT be used to tow instruments.
