TV One 1T-CL-322-EU User manual

Firmware versions EU: 2.22 US: 2.12 and above
MNL-1T-CL-322-V1.4
October 2017
1T-CL-322-EU 15-button Wall
Plate Control Keypad
1T-CL-322-US 16-button Wall
Plate Control Keypad
User Guide V1.4

tvONE

In this guide
Features....................................................................................... 1
Requirements ............................................................................. 1
In the box .................................................................................... 2
Safety precautions ..................................................................... 3
Front panel.................................................................................. 4
Rear panel ................................................................................... 4
Example of hardware configuration........................................ 5
External controls ........................................................................ 5
The 1T-CL-SW software ..................................................... 5
The web interface .............................................................. 5
Network settings................................................................ 7
External control with Telnet and UDP............................. 8
Configuring the Control Panel................................................11
Setting the date and time ...............................................11
Macros and extension macros.......................................11
Button modes...................................................................12
Default macros.................................................................12
Creating and editing macros ..........................................13
Labelling buttons .............................................................16
Creating and editing command strings ................................17
Creating a command string ............................................17
Editing a command string............................................... 17
Commands for controlling Control Panels...................18
Commands for controlling relays ..................................20
Controlling other devices................................................20

Commands for controlling tvONE™ devices ................21
Scheduling macros...................................................................23
Creating and editing repeating schedules....................23
Creating and editing one-off events..............................24
Adding and editing devices..................................................... 24
What are devices? ............................................................24
Adding a device ................................................................25
Editing a device ................................................................25
Changing your username and password..............................26
Setting a timeout time.............................................................26
Saving and restoring your settings........................................ 27
Factory default settings........................................................... 27
Restoring the factory default settings...........................27
Rebooting the Control Panel ..................................................28
Firmware ...................................................................................28
Finding your firmware version.......................................28
Updating firmware...........................................................29
Specifications............................................................................31
Regulatory compliance............................................................31
Contact us .................................................................................32

MNL-1T-CL-322 V1.4 1
Thanks for buying this 1T-CL-322 Control Panel from tvONE™.
The Control Panel allows you to control a range of devices through
an Ethernet connection and relay outputs. It has red and blue LED
backlights that you can use to create color themes and show
activation of commands.
The Control Panel comes in two models. The EU model has 15
buttons and the US model has 16 buttons. Each model has a full set
of primary and extended macro commands, and can store up to 128
commands.
Features
15 or 16 macro buttons
15 or 16 virtual buttons accessed
through web interface
Up to 16 commands per macro
Store up to 128 commands
Control devices with relays that
support DC 0-24 V / 8 A
Store settings for all your devices
Scheduling control system and
settings
Control with the keypad, Telnet,
UDP, and web interface
Supports Power over Ethernet
Requirements
Ethernet connection from switch or router
Optional: Power over Ethernet

2 tvONE
In the box
EU model
US model
Wall-mounted keypad
USB Type A to Mini USB
with cable
3.5 mm Phoenix
connectors
5 V / 2.6 A DC power
adaptor, with regional
connectors
Pre-printed labels for
buttons, with regional
differences
User guide
1T-CL-322
1T-CL-

MNL-1T-CL-322 V1.4 3
Safety precautions
Read all instructions before attempting to unpack, install or operate
this equipment, and before connecting the power supply.
Risk of injury from fire or electric shock
•Follow basic safety precautions.
•Do not expose this product to rain or moisture.
•Do not install this product near water.
•
Do not spill liquid onto or into this product.
Risk of damage to equipment
•Do not push an object of any kind into this product
through any openings or empty slots.
•Use only the supplied AC power cord. Do not use the
power cord if it is damaged.
•Do not block any vents or openings in the unit
housing that provide ventilation. Allow sufficient
space for air to circulate around the unit.

4 tvONE

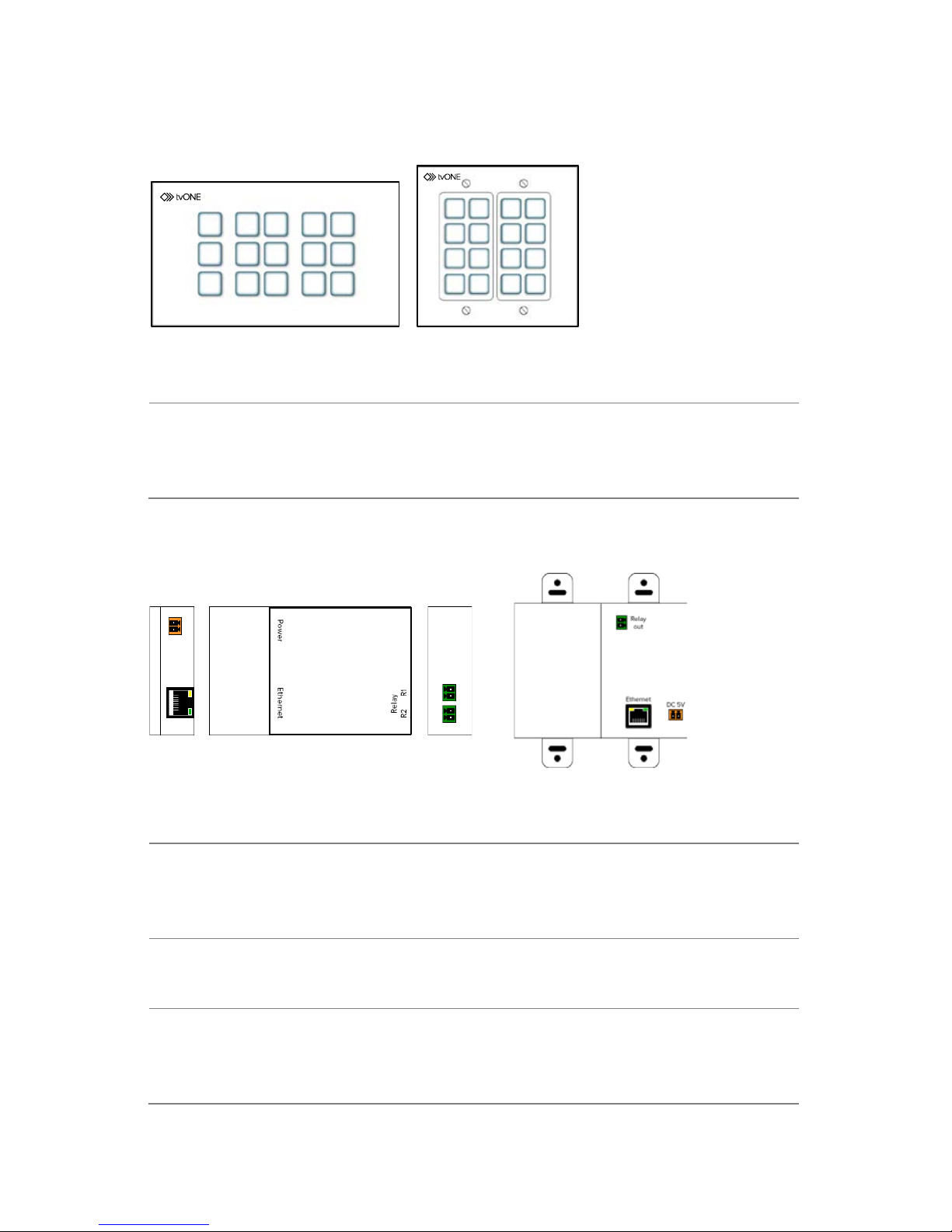

Front panel
Buttons
Each button can support up to 16 commands
and has two LEDs, one red and one blue,
adjustable from 0% to 100%.
Rear panel
Ethernet Connect to an active Ethernet connection, or
direct to a PC or Laptop. This connection
supports 48 V Power over Ethernet (PoE).
Power/DC 5V
If you don’t use PoE, connect the 5 V power
adaptor.
Relay/Relay out
Connect to a device that requires 0-24 V / 8 A
DC power through a relay or contact closure
switch.
1T-CL-322
1T-CL-322
EU version US version
EU version US version

MNL-1T-CL-322 V1.4 5
Example of hardware configuration
In this example the Control Panel controls multiple devices with a
single Ethernet port. Power over Ethernet allows for greater flexibility
in system design and installation as a local power supply is not
required. In addition to the Ethernet port, two relay outputs are used
to trigger mechanical devices such as motorized curtains and an
electric screen.
External controls
The 1T-CL-SW software
You can connect to the Control Panel, find out its IP address and
firmware version, and open the web interface from the 1T-CL-SW
software.
Download the software for both the EU and US models from the
Downloads tab at www.tvONE™.com/wall-plate-control-panel.
The web interface
You can control and configure the Control Panel from any modern
browser with the web interface.
The default port for the web interface is 80.
C2-2855 scaler
AV source
Ethernet Switch
Audio amp
1T-CL-322
ON ON
VC
PC1
PC2 OFF
BR
OFF
Mute
50%
75%
Lighting Controller Curtain Controller
Ethernet Relays
48v PoE

6 tvONE
Finding out the IP address of your Control Panel
The Control Panel automatically uses DHCP to get an IP address
when it is connected to a valid network. You can find out the IP
address of your Control Panel on the 1T-CL-SW software.
1. Connect the Control Panel and a computer to the same
Ethernet network.
2. In the 1T-CL-SW software, select Find Devices on Network.
3. Select your Control Panel from the list.
4. On the InfoFrom window, check the network settings of the
Control Panel.
5. To connect to the Control Panel, the IP address of your
computer and Control Panel must belong to the same range.
If they are not, you can edit the network settings of the
Control Panel.
Contact the network administrator for information about the
network.
If the network doesn’t support DHCP, use the static factory default IP
address 192.168.1.50 and the default subnet mask 255.255.255.0.
Opening the web interface
1. To open the web interface, open any browser and enter the
IP address for the Control Panel, or select the Web GUI link
on the InfoFrom window.
2. Log in with username: admin and password: adminpw.

MNL-1T-CL-322 V1.4 7
Network settings
You can adjust your network settings on the InfoFrom window of
the1T-CL-SW software, and from the Network Settings tab of the
web interface.
Configuring your network address
On the InfoFrom window, you can enable and disable DHCP and
change your IP address, Subnet Mask, Gateway IP and DNS.
On the Network Settings tab, you can choose a static or dynamic IP
address and change your IP address, Netmask and Gateway. You can
also reset your network settings.
Note: If you change your network address, your Control Panel and
your computer can end up with different address ranges. You might
need to modify the network address of your computer to connect to
the Control Panel.

8 tvONE
External control with Telnet and UDP
You can use Telnet or UDP commands to control a specific Control
Panel over IP from any capable device, for example a PC or third-
party control system. You can also use Telnet or UDP commands to
control a specific Control Panel from another Control Panel.
The default port for Telnet and UDP commands is 23.
Before you connect to Telnet or UDP, make sure your Control Panel
and computer are on the same active network.
Connecting to the Control Panel from a PC or Mac
1. Open the command line interface (CLI).
•On a PC, search for cmd.
•On a Mac, select Go > Applications > Utilities > Terminal.
2. For Telnet, in the CLI, enter telnet [space] [IP address
of Control Panel] [space] 23.
For example, enter telnet 192.168.1.50 23.
3. For UDP, in the CLI, enter udp [space] [IP address of
Control Panel] [space] 23.
For example, enter udp 192.168.1.50 23.
4. For a list of available commands, enter help.
Note: follow each command with a carriage return. Commands are
not case-sensitive. If you change the IP address of the Control Panel,
the IP address for Telnet access changes as well.

MNL-1T-CL-322 V1.4 9
Commands for external control
Use these commands with an external Telnet or UDP control device.
You can also use any of the commands for controlling Control Panels,
relays, and other devices on pages 18 to 21.
Command
Parameter
Description
IPCONFIG
Use this command to
display the current IP
configuration.
SIPMODE N
N = STATIC/DHCP Use this command to
set the Ethernet IP
mode.
SIPADDR XXX.
XXX.XXX.XXX
XXX = 0 to 255
Use this command to
set the Ethernet IP
address.
SNETMASK XXX.
XXX.XXX.XXX
XXX = 0 to 255
Use this command to
set the Ethernet
Subnet mask.
SGATEWAY XXX.
XXX.XXX.XXX XXX = 0 to 255 Use this command to
set the Ethernet
gateway.
VER
Use this command to
show the unit
firmware
version.
FADEFAULT
Use this command to
restore all
configurations to the
factory default. This
command resets the
IP address, login ID
and password.
ETH_FADEFAULT
Use this command to
restore all Ethernet
configurations to the
factory default.
REBOOT
Use this command to
reboot the system.

10 tvONE
Command
Parameter
Description
HELP (?)
Use this command to
show the full list of
commands.
HELP N
N = COMMAND
NAME
Use this command to
show the description
of a specific
command.

MNL-1T-CL-322 V1.4 11
Configuring the Control Panel
Configure what the buttons of the Control Panel do with the web
interface. When you configure buttons, you associate one or two
macros with each button. Each macro is a sequence of individual
commands that you enter on the Command Settings tab. You can
even have a macro on a button that is made up of several smaller
macros.
Setting the date and time
Set the date and time on the Time Settings tab.
Tip: select the Now button to use the date and time from your
computer.
The Control Panel can remember the date and time for 48 hours
without power. After 48 hours, the factory default date and time are
restored.
Macros and extension macros
The Control Panel supports up to 15 (EU) or 16 (US) primary macros.
You can also have up to 15/16 extension macros. Extension macros
support toggle mode.

12 tvONE
Button modes
Normal mode
In normal mode, pressing a button sends the primary macro
command to the target device once.
Repeat mode
In repeat mode, pressing and releasing a button sends the primary
macro command to the target device once. Pressing and holding the
button sends the macro repeatedly. Use this mode for tasks like
increasing or decreasing volume.
Toggle mode
In toggle mode, pressing a button toggles between the primary and
extension macro for that button. Each button press sends the macro
command to the target device once. Use this mode for tasks like
muting and unmuting audio.
Note: do not apply toggle mode and repeat mode to the same
button.
Default macros
The Control Panel comes with 6 primary macros installed for
demonstrating and testing the Control Panel’s functionality. Each
macro demonstrates different functions and turns on and off the
LEDs and relays. See the default macros on the Macro Settings tab.

MNL-1T-CL-322 V1.4 13
Button
Macro name
Function
1
LED RED 100%
Turns on the red LEDs sequentially
from 1 to 15/16
2 LED BLUE 100% Turns on the blue LEDs
sequentially from 1 to 15/16
3
RED LIGHT OFF
Switches off all the red LEDs
4
BLUE LIGHT OFF
Switches off all the blue LEDs
5 LED DEMO Toggle the demo mode on or off
6 LEDRLY DEMO A combination of blue LED and
relay functions
Creating and editing macros
You create and edit both primary and extension macros in the same
way. Choose a primary macro on the Macro Settings tab. Choose an
extension macro on the Extension Macro tab.
Creating a macro
1. For the button you want to edit, select .
2. Enter a name for the macro and select .

14 tvONE
3. To add a command string, select the Add button, and then
choose a command string from the list on the Command
Select window.
4. On the Set Destination window, enter a time delay from
0-99999 ms.
The delay is the time between sending command strings. We
recommend that you choose at least 500 ms.
5. Choose a target for the command string from the Interface
drop-down list.
•Device sends the command to a device saved in your list
of devices. Choose a device from the drop-down list.
•SysCMD sends an internal command to the Control Panel.
For example, turn off the red LEDs.
•TELNET sends the command to a device that isn’t saved in
your list of devices. Enter the IP address and port number
of the device. Most tvONE™ devices use port 10001.
•Relay switches on and off equipment connected to a relay
port. For the EU model, choose port 1 or port 2.
•UDP sends the command to a device that isn’t saved in
your list of devices. Enter the IP address and port number
of the device. Most tvONE™ devices use port 10001.

MNL-1T-CL-322 V1.4 15
6. Repeat steps 3-5 to add more commands, then save your
changes.
You can edit your macro to change, remove and reorder
command strings.
7. Optional: choose a button mode on the Key Settings tab.
Note: do not apply toggle mode and repeat mode to the same
button.
Editing a macro
1. For the button you want to edit, select .
2. Edit your macro.
•To move a command string up or down in the list, select
or .
•To edit a command string, select .
•To delete a command string, select .
•To insert a new command above an existing command,
select .
3. Save your changes.
4. To change the name of the macro, select , change the
name, and then select .
5. To change the button mode of the macro, turn the buttons
on and off on the Key Settings tab.

16 tvONE
Labelling buttons
When you’ve finished creating macros, you can label the buttons on
the keypad to help you remember which button triggers which
macro. Each sheet of labels includes some blank labels that you can
customize. We recommend using black-on-clear label tape.
•Remove the protective film from the labels, then stick a label
to the button.
Replacement labels
You can buy extra blank labels, contact your tvONE™ sales
representative. For contact details, see the back page of this guide.
Part numbers:
•EU model: BLS-1T-CL-322-EU
•US model: BLS-1T-CL-322-US
