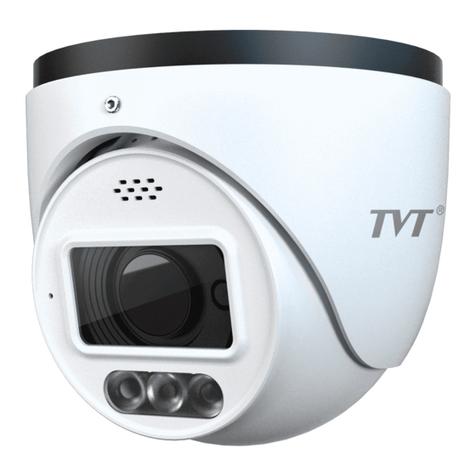

TVT TD-9421E2B User manual

Package
Overview
Installation
1
2
3
4
► Connecting Network Cable
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the water.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and
do not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
Quick Start Guide
Network Camera
Please make sure that the wall or ceiling is strong enough to withstand
3 times the weight of the camera. Please install and use the camera in
the dry environment.
① Install a micro SD card. Remove the plastic cover (a) from the
camera and then loosen the two screws of (b). Remove (b) and then
insert a micro SD card. After that, install back (b) and (a).
Camera Quick start guide
Drill Template
CD Plastic plug × 4
4 tapping screws PA 4×25
■ Please read this instruction carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
2
13
* 1 It is recommended to install the security cap for outdoor installation.
* 2 DC12V power supply is not required if a PoE switch is used to power the
camera.
② Attach the drill template to the place where you want to fix the
camera and then drill the screw holes and the cable hole on the wall
according to the drill template.
Insert a micro SD card
7
8
a
b
2
9
10
11
1
3
4
5
6
DC12V
17
28
39
511
410
6
Fixed ring Micro SD card slot
CVBS output
Ethernet connector
Power connector
Audio input
Mounting base Reset
SD card indicator
Power indicator
Network indicator
Security Cap

Network Connection
5
MENU
IPC
Network Cable Network Cable
Switch
Router Computer
● Access Through IP-Tool
Here we take accessing IP camera via LAN for example.
450043001246 A0
⑤
camera on a monitor and then loosen the fixed ring to adjust the view
angle of the camera.
Bracket adjustment. Before adjustment, preview the image of the
⑥ Tighten the fixed ring after the adjustment.
Fixed Ring
Pan 360°
Tilt 80°
① Make sure that the camera and the PC are well connected via LAN.
② Find the IP-Tool from the CD and then install it in the computer.
After that, run the IP-Tool as shown below.
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Add ress:192.168.1.4Subnet Mas k:255.255.255.0 Gateway: 192.168.1.1 DNS：210.21.196.6
Device Name Device Typ e IP Address Http Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
③ Modify the IP address. The default IP address of this camera is
192.168.226.201. Click the information of the camera listed in the
above table to show the network information on the right hand.
Modify the IP address and gateway of the camera and make sure its
network address is in the same local network segment as that of the
computer. Please modify the IP address of your device according
to the practical situation.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 . 168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
For example, the IP address of your computer is 192.168.1.4. So the
IP address of the camera shall be changed to 192.168.1.X and the
gateway shall be changed to 192.168.1.1. After modification, please
enter the password of the administrator and click “Modify” button to
modify the settings.
The default password of the administrator is “123456”.
④ Double-click the camera listed in the IP-Tool or manually enter the
IP address in the address bar of the web browser to connect IP-CAM.
Then follow directions to download and install the plugin.
⑤ Enter the username and password in the login interface.
The default username is admin; the default password is 123456.
③
④ Secure the mounting base with camera to the wall with screws as
shown below.
Route and connect the cables .
48mm
48mm
∅4.5
