TW Audio M8 User manual

M8 Operating Manual

Operating Manual M8
Introduction
Thank you for choosing a high quality product "MADE IN GERMANY" from TW AUDiO.
One of the most popular TW AUDiO loudspeakers is the M8 multifunctional speaker, a
compact loudspeaker with an 8"/1" configuration developed for uncompromising quality.
The passive combination of the M8 and B15, making up our M-SYS-TWO, deserves
special mention. In the actively driven bi-amped combination with B15, B18 or even
B30s loudspeakers, the M8 with its 124 dB SPL will remain acoustically superior for a
long time.
If you lend your product to another party, inform that party of the safety-related operating
procedures and hand over this operating manual. If you therefore require additional cop-
ies of this operating manual, they can be obtained free of charge from TW AUDiO or
downloaded from:
www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
Instructions in the operating manual
WARNING
This symbol in combination with the signal word "Warning" identifies a potentially haz-
ardous situation. Failure to comply with this safety instruction can lead to serious injury
or even death.
WARNING
This symbol in combination with the signal word "Warning" identifies a potentially haz-
ardous situation for persons with a pacemaker. Failure to comply with this safety instruc-
tion can lead to serious injury or even death.
CAUTION
This symbol in combination with the signal word "Caution" identifies a potentially hazard-
ous situation. Failure to comply with this safety instruction can lead to light or moderate
injury.
NOTE
This symbol in combination with the signal word "Note" identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
TIP
This symbol in combination with the signal word "Tip" identifies additional information or
notes that will simplify working with TW AUDiO products on the basis of practical experi-
ence.

Operating Manual M8
Operating manual: OM-M8
Version 1.0 en, 05/2016
© by TW AUDiO 2016; all rights reserved.
All information contained in this operating manual was correct to the best of our knowl-
edge at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the tech-
nical specifications, dimensions and weights are not granted by TW AUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage
and/or personal injury) nor for the failure to comply with this operating manual.
TW AUDiO reserves the right to make changes that take into account the latest engi-
neering advancements.
TW AUDiO is pleased to receive suggestions for improvement and recommendations on
this operating manual. Please send us any feedback you may have to the following e-
mail address.
[email protected]
TW AUDiO GmbH
Osterholzallee 140-2
71636 Ludwigsburg, Germany
Telephone: [phone]
Telefax: +49 (0) 71 41 - 48 89 89 99
Notes on the products
Read manual
before use!
Before setting up the device, read the operating manual carefully and keep this docu-
ment in a safe place together with the M8 loudspeaker.
General information

Operating Manual M8
Contents
Safety | Intended use .....................................................................................................1
Overview ........................................................................................................................3
Components ....................................................................................................................... 3
Variants .............................................................................................................................. 4
Technical data ................................................................................................................5
Data sheet .......................................................................................................................... 5
Wiring diagram ................................................................................................................... 5
Setting up the loudspeaker ..........................................................................................6
Setup .................................................................................................................................. 6
Rotating the horn ................................................................................................................ 6
Connecting cables ..............................................................................................................7
Operation ............................................................................................................................ 7
Transport and storage ..................................................................................................8
CE Conformity Declaration ...........................................................................................9
Disposal ........................................................................................................................10

1
Operating Manual M8
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating the loud-
speakers.
The M8 loudspeaker was developed for professional use in sound systems. The loud-
speaker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual.
Other uses are not permissible.
TW AUDiO GmbH shall not be held liable for any damage that ensues from unintended
use.
WARNING
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not per-
mitted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields
can cause pacemakers to malfunction.
WARNING
Ensure that the units are in a stable position and are firmly attached. A falling loud-
speaker can result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the appli-
cable safety regulations.
NOTE
When using the loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• Direct sunlight
• Moisture
• Jolting
•Dust
WARNING
Keep away from the immediate vicinity of loudspeakers that are operated at high sound
pressure levels. These loudspeaker systems are capable of endangering your health.
Sound levels beginning as low as approx. 90 dB SPL can lead to long-term hearing im-
pairment.
NOTE
Avoid:
• Feedback
• Distorted signals (clipping)
• Peaks that result when devices are switched on or hot plugged and unplugged.
These signals can lead to loudspeaker overload..
WARNING
Ensure that the loudspeaker is not exposed to permanent thermal overloads. This may
cause a fire and result in serious personal injury and property damage.

2
Operating Manual M8
Note that TW AUDiO does not provide a warranty for damage that can be attributed to
this type of overload and therefore cannot be held liable for any secondary damage.
NOTE
A permanent, magnetic field is present in the immediate vicinity of loudspeakers. Ensure
that objects which react sensitively to magnetic fields are not located in the immediate
vicinity of the loudspeaker. In particular, this applies to magnetic data carriers, EC cards
and CRT displays. A distance of approx. one meter is sufficient to avoid damage.
NOTE
Check loudspeakers and accessory parts regularly for visible wear. This is essential to
ensure fault-free operation on a permanent basis. Replace worn parts promptly. Spare
parts can be obtained from TW AUDiO.

3
Operating Manual M8
2. Overview

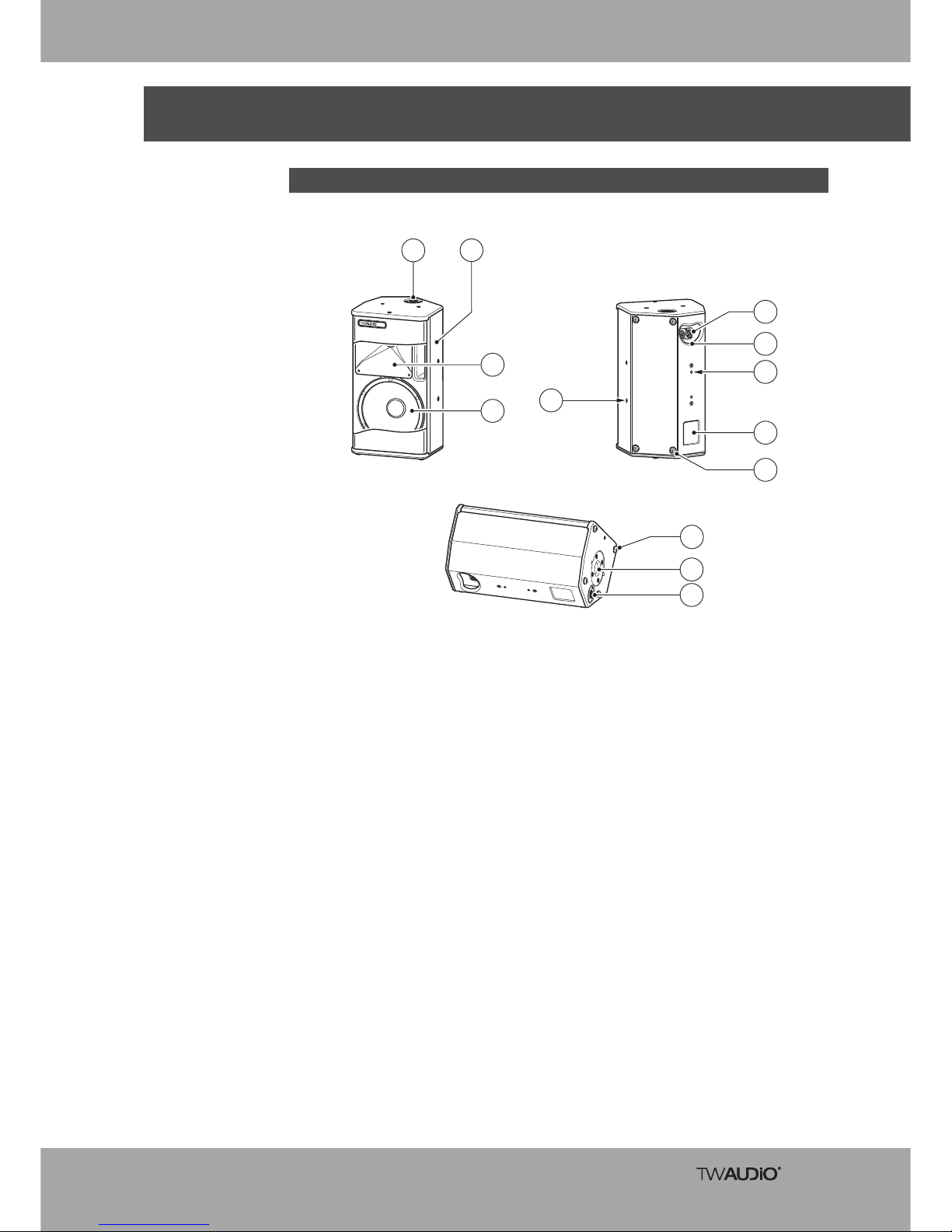

Figure 2.1 - Overview
1. Connection panel with one SpeakON®connector each at the top and bottom
2. 12 mm multiplex enclosure – Warnex surface finish
3. Rotable horn with 1" compression driver
4. 8" cone driver
5. Threaded socket (10 mm) for attaching accessory parts (8 pieces)
6. Connection panel with two SpeakON®connectors in handle recess
7. Ergonomic carrying handles (rear)
8. Threaded socket (6 mm) for attaching accessory parts (2 pieces)
9. Type label
10. Rubber feet (4 pieces)
11. Cabinet flange for attaching to speaker stand
2.1 Components
1
3
5
7
10
10
6
4
2
8
9
11
1

4
Operating Manual M8

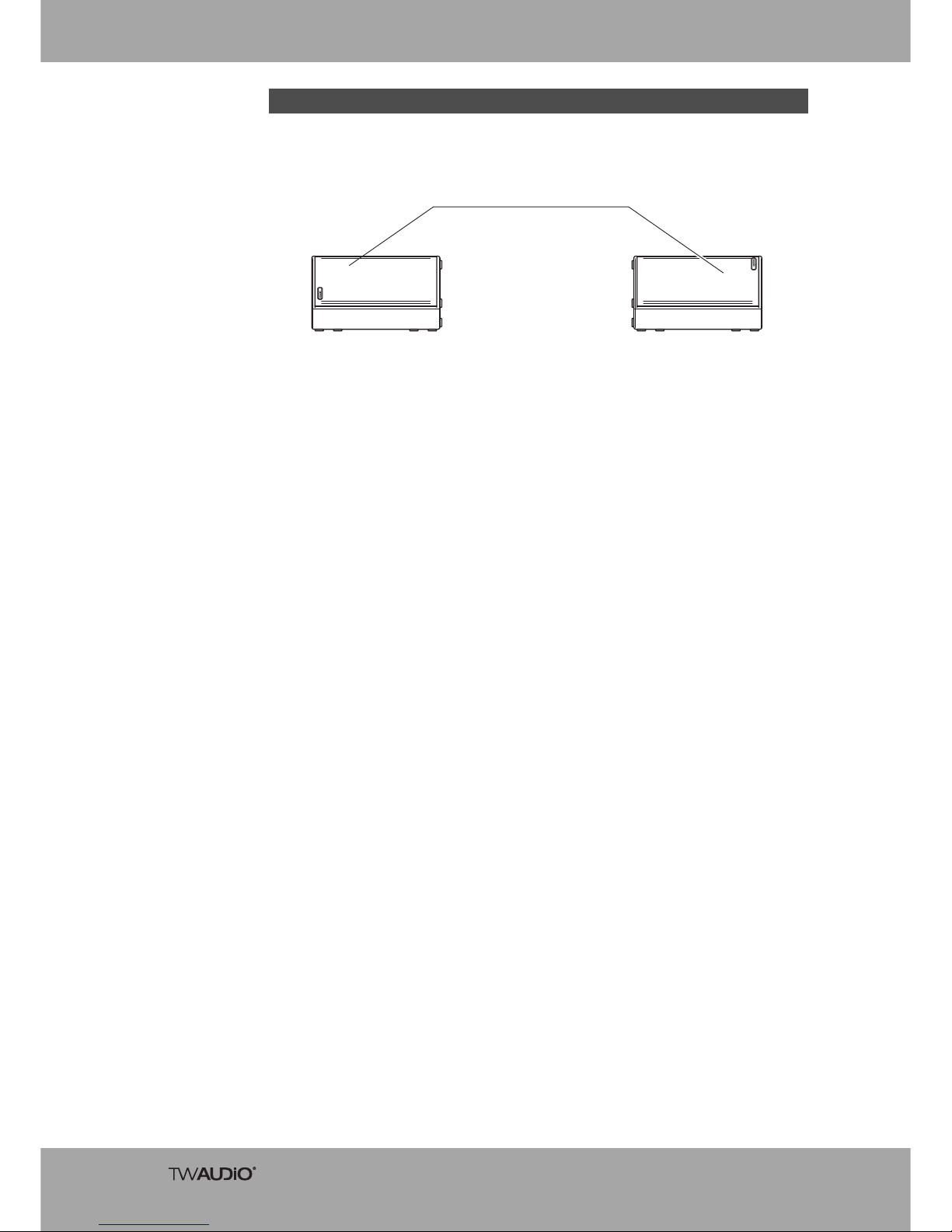

The M8 loudspeaker is available in right and left variants. These versions differ in the
side on which the slanted wedge is located on the enclosure.
Figure 2.2 - Left and right versions
2.2 Variants
left version right version
1" compression driver

5
Operating Manual M8
3. Technical data

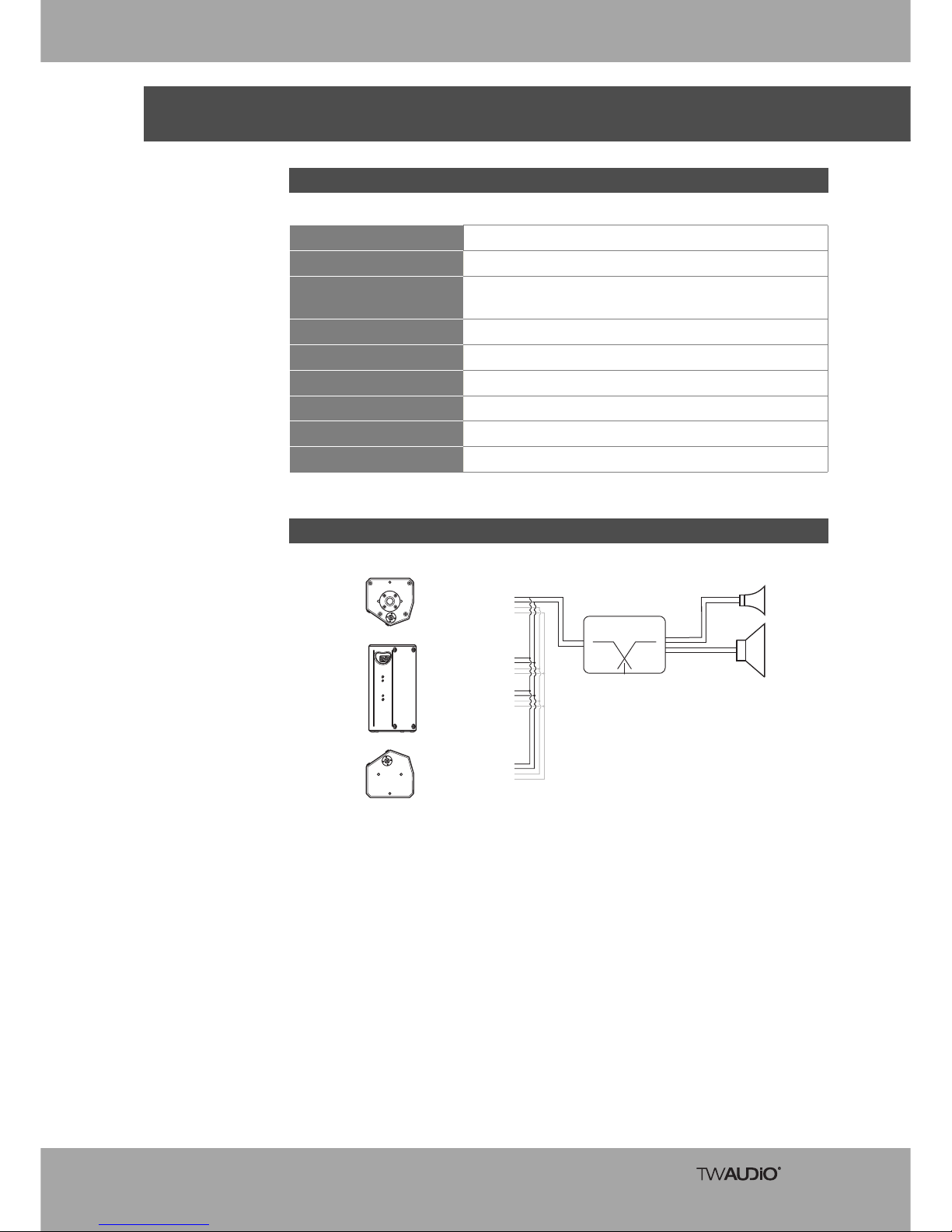

Figure 3.2 - Wiring diagram
3.1 Data sheet
Components 1x 8" LF/1x 1" HF
Frequency response 70 – 20,000 Hz
Power handling, program/
peak 400/800 W
Impedance 8Ω
Coverage angles (h × v) 90° x 60°
SPL max./1 m 124 dB
Dimensions (h x w x d) 445 x 240 x 240 mm
Weight 10 kg
Finish Warnex texture paint
3.2 Wiring diagram
LF 8"
HF 1"
8 OHM
8 OHM
8 OHM
+
--
+
--
2 kHz
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PASSIVE
X-OVER

6
Operating Manual M8
4. Setting up the loudspeaker
The M8 loudspeaker is designed for standing and suspended vertical and horizontal op-
eration. A variety of accessories is available from TW AUDiO to securely attach the loud-
speaker, e.g. on stands or suspended horizontally or vertically from trusses and motor
lifts.
The horn of the M8 loudspeaker is mounted at the factory in such a way that the horizon-
tal coverage is 90° and the vertical coverage is 60°. In some situations, it may be advan-
tageous to switch the coverage of the high frequency range. For this purpose, the horn
can be rotated. Proceed as follows.
1. Place the M8 loudspeaker with the wedge inclined toward you with the front grill
facing up. Ensure that the working surface is clean with a non-slip finish.
2. To remove the front grill of the loudspeaker, use a 3 mm hex key. Remove the four
fixing screws at the top and bottom of the loudspeaker enclosure.
3. Release the four screws of the horn using a 3 mm hex key. Pull the horn and the
compression driver upward out of the loudspeaker enclosure.
4. Check that the seal between the enclosure and horn is properly seated.
5. Rotate the horn carefully by 90° and reinsert the horn and driver back into the re-
cess. Screw it onto the enclosure using medium-strength thread locker.
6. Screw the front grill back on.
4.1 Setup
WARNING
Ensure that the loudspeakers are securely attached to prevent personal injury and prop-
erty damage.
NOTE
TW AUDiO recommends using only the accessories specified by TW AUDiO to secure
the loudspeakers.
4.2 Rotating the horn
