To Our Valued Customers Table of contents
23
Table of Contents To Our Valued Customers
To Our Valued Customers
Table of Contents
Before Usage
Safety Precautions and Warnings
Product Features
Package Contents
Unit Overview
How to Install the Unit
Water Hose Installation
Customer Serviceable Parts
How to Change the Filters
How to Reset the Filters
Operation of the Touch Screen
When Using the Touch Screen
pH Level Adjustment
System Setup Method
Selecting Voice On/Off
Cleaning Function
ECO Mode
TURBO Function
Usage Recommendations
Temperature Sensor
Unit Specifications
Troubleshooting
Product Warranty
2
3
4
5
10
14
15
16
18
20
21
22
23
27
30
31
36
37
38
39
40
42
43
44
47
o Our Valued Customers
able of ContentsT
ntended UseI
Thank you for purchasing the Tyent Ace YT20-TL series Water Ionizer.
Please read all safety warnings and this User Manual carefully before using this product
to ensure proper product usage. (Keep the manual handy for easy reference.)
This device creates
functional alkaline ionized water . It changes the properties
of regular tap water through the use of electrolysis. Following are the changes normal
tap water undergoes via this process:
We are not responsible for any accidents and/or malfunctions due to the
improper use of this machine
Please keep the manual and warranty card in a safe place, so that it’s
easily accessible when you need it
Please refer to this manual often when you have questions when using or
when troubleshooting this unit
An increase or decrease in pH level
Creation of negatively charged hydrogen ions (antioxidants)
Purification through filtration
T

45
Before Usage Safety Precautions and Warnings
afety Precautions and WarningsS
Do not use if the power cord is damaged or in a
loose power outlet.
Always use a grounded power outlet.
Do not pull the power cord. Never touch the power
cord or the power outlet with wet hands.
Do not forcibly bend, squeeze, damage or crush
the power cord under heavy objects.
Unplug the power cord during general maintenance,
repair and inspection and while replacing parts.
Do not use power surge protectors with this unit.
Use unit with its own dedicated power source.
Regarding the Power Supply
efore UsageB
Safety precautions are provided for the safe and proper use of this unit and can prevent
danger, bodily harm and/or possible damage due to misuse. Please make sure you are
familiar with all the safety precautions and warnings associated with this unit.
Do not drink functional water with medication. When taking medication, use “clean H2O”
filtered water thirty minutes prior to taking medication as well as with medication.
You may resume drinking functional water thirty minutes after taking medication.
Always consult your primary care physician before drinking functional water. Only
drink a small amount near a neutral pH level for the first week. This will give the body
time to adjust to functional water during the detoxification period. See Welcome
Guide for full details on getting started.
If you notice any negative effects from drinking functional water, stop drinking the
functional water immediately and consult your primary care physician about
changes in your body’s pH level.
If you are currently under the care of a primary care physician for an existing condi-
tion, consult your primary care physician about how changes in pH and other
characteristics of functional water could affect your medical condition.
If you suffer from gastric anacidity, kidney failure or potassium excretion, you should
not drink functional water.
Verify the pH levels of the functional water dispensed from this unit on a monthly
basis to ensure proper function. This can be done with the supplied reagent drops
and a pH color chart.
When switching from one pH to another, it is good practice to let the water run for
several seconds before using.
It is common to drink half your body weight in ounces. For example, if you weigh 180
pounds, it may be wise to drink 90 ounces every day of water per day. This especially
applies after you have given your body some time to adjust to the new pH level.
The recommended drinking level for functional water is 9.5 pH (+-0.3). It is not
recommended to drink functional water above a pH of 10.
IIf you wish to store functional water, use a glass or other nonleaching material with
an airtight lid and store it in the refrigerator. Functional water will begin to weaken
immediately and will lose most of its benefits after 3 days.
Never run hot water through this unit.
Never drink acidic water.
DANGER (Red Warning Sign) indicates an imminent hazard that could result in serious injury
or death. If you see this sign, stop using this unit immediately.
WARNING (Orange Warning Sign) indicates a potential hazard that could result in significant
bodily harm or damage to the unit. If you see this sign, stop the use of this unit.
ATTENTION (Yellow Warning Sign) indicates a potential hazard that could result in minor
bodily harm or damage to the unit.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Before Usage Safety Precautions and Warnings

67
Safety Precautions and Warnings Safety Precautions and Warnings
To reduce the risk of electric shock, do not remove
the cover; there are no user-serviceable parts
inside. Refer servicing to qualified service person-
nel. Removing the cover will void the warranty.
Only use the unit with the correct voltage. All units sold
within North America are made to be plugged into 115
Volt outlets only. Do not plug unit into an outlet outside
of North America. If you plan to leave the country with
your unit, please consult with your service provider first.
Do not place this unit near heat sources.
Do not place this unit on an uneven surface.
Do not drop or use excessive force on this unit.
Do not connect the water line to a hot water supply.
Do not use unfit raw water in accordance with the
standards of the water service act.
Installation
Do not use in areas of high humidity and/or high
temperature.
Usage
Place this product near a sink and always allow the
water to drain into the sink.
Place the acidic water outlet hose within the height of
the unit. Make sure the end of the hose is placed less
than 8 inches (20 cm) from the bottom of the unit.
If the unit won't be used for a long time, shut off the
valve and unplug the power cord.
If you hear strange noises, smell a burning odor or
see smoke, unplug the power cord immediately
and call qualified personnel for service.
Turn off
Replace filters every 6 months to optimize the purifica-
tion performance of this unit even if the replacement
indicator light isn’t turned on.
If the unit is not used for a few days, let the water run
for 1-2 minutes before drinking functional water.
Safety Precautions and Warnings Safety Precautions and Warnings

F1 50% F2 50%
A L K H 2O
ACD
TURBO
a
14:59
89
Safety Precautions and Warnings Safety Precautions and Warnings
Do not poke or scratch the touch pad or LCD
display with sharp objects.
Do not place any objects on top of this unit no
matter how small they are.
If water leaks out of the unit (other than the
hoses) or if the unit is standing in a puddle of
water, shut off the water supply, unplug the
power cord and contact qualified service personnel
for service.
Do not use alkaline or acidic water in fish bowls
or aquariums. The sudden change in pH could
be harmful or fatal to some marine life.
In areas of hard water (calcium scaling present
on faucets), notify your service provider and
install a cell safe antiscale prefilter to protect the
ionizer from scaling.
It is beneficial for the maintenance of the
machine to run a strong acidic level for 5-minute
cycles twice weekly. This will help to maintain a
clean chamber.
It is normal for condensation to be present on the
unit during humid summer months. If condensa-
tion persists despite weather conditions, unplug
the power cord and refer servicing to qualified
service personnel.
Turn off
Cleaning
Do not store the unit near chemicals, food,
metals or medication
Do not spray water on the main unit. Do not
clean the unit with benzene or other chemicals,
which may leak into the unit. If using a damp
cloth, be very careful not to get electronic display
wet.
Storage
If the original packaging is not available, cover
the unit in plastic to avoid scratching the surface.
Store the unit in its original packaging in a cool,
dry place when not in use.
Carefully remove this unit from its packaging.
Keep the original packaging for future storage
and unit transportation.
Remove the filters and turn them upside down to
remove excess water before storing.
Safety Precautions and Warnings Safety Precautions and Warnings

10 11
Product Features Product Features
FULL TOUCH LCD – TRANSFORMATION AT YOUR FINGERTIPS
Product Features Product Features
roduct FeaturesP
The Industry’s First Full Touch Screen Panel
The full touch screen panel system automatically activates the
unit’s operations through a simple touch to the desired icon
displayed on the screen.
GUI [Graphical User Interface]
Touch LCD Screen with a Clear Picture Tone
A 262,000 color touch and LCD display provides a range of
information in true vivid colors for user convenience.
IMPORTANT CONSIDERATIONS FOR THE USER
Electrodes with Solid/Mesh Hybrid Technology
These platinum-coated titanium plates are made with highly
stable, durable Solid/Mesh Hybrid Technology that enhances
the instantaneous electrolysis effect.
A graphical user interface is designed specifically for ease of use
and operation. Communication between the user and ionizer
has never been this simple!
A MORE POWERFUL SYSTEM ENGINE!
Upgraded Power Turbo System
Turbo upgrades to the SMPS power supply system produce both
the acid turbo water and strong alkaline water you need!
Excellent Sound Quality with Guided Support
Multiple Languages Supported
Functions under operation can be further identified by the
top-quality voice guided system.
Diversified language guide support is available by selecting 1
of 4 languages featured from around the world.
Temperature Sensor Function for Safe Operation
If the temperature of the source water exceeds 95℉(35℃),
then water will stop flowing and a warning message will
appear on the screen.
Automatic Water Discharge Interruption Function
In order to prevent the overflow of water due to user
negligence, the water discharge is automatically stopped after
15 minutes of use.
(*Turbo: 5 minutes)
15minutes
1. KOREAN
2. ENGLISH
3. CHINESE
4. SPANISH
F1 50% F2 50%
A L K H 2 O
ACD
TURBO
a
Powered by SMPS Plus Power Supply System
SMPS Plus Power Supply System provides the maximum output
needed to produce highly stable electric power required for each
phase of electrolysis. SMPS Plus is engineered specifically for
adjustability and variable voltage, which allows the unit to be custom-
ized for your unique source water.
®
®

12 13
Product Features Product Features
CARE FOR THE ENVIRONMENT
FRESH, PURIFIED WATER IS A MUST ALONG WITH HEALTHY MINERALS!
Product Features Product Features
roduct FeaturesP
Automatic Electrolysis Tank Cleaning Function
The interior of the electrolysis tank is automatically cleaned on
a regular basis, ensuring stable electrolysis operating condi-
tions.
Automatic Memory Function
The last function used by the user is automatically memorized
and displayed on the standby screen for fast and convenient
operation.
SELF-MAINTENANCE MADE EASY – FROM INSTALLATION TO AFTER SERVICE
Filter Usage Indication and Replacement Time Guide
Super Simple Filter Replacement System
The level of filter usage can be identified through the LCD
screen on a real-time basis. The recommended replacement
time is automatically displayed on the screen with a voice guide.
A simple filter replacement system along with a one- filter
usage initialization setting system makes filter management
easy for anyone.
Convenience of Operating Condition Setting System
The unit features an easy setting system, allowing users to
conveniently set or cancel the desired settings through the
LCD screen."
pH Control Function
Respective alkali, acid and turbo phases can be easily
controlled by the user.
Self-Diagnosis Function
When the condition of the source water is not suitable, the
water discharge is automatically suspended, displaying a
warning sign on the screen.
Water Discharge Nozzle with Directional Control
The water discharge direction may be adjusted to many
diverse angles based on user preference.
Earth-Friendly Technology When in ECO Mode
When setting the eco-mode, the LCD backlight will be turned
off automatically during periods of nonuse and the Time
function is displayed.
Water Purification through a Clean Process
Perfect, seamless elimination of foreign substances including
residual chlorine, organic & inorganic compounds through the
filtering process using functional UF and π Ceramic materials,
enhancing the alkali water producing condition.
360˚
10:30 AM
23 / Oct / 2015
F1 RESET
H 2 O
F2 RESET

14 15
Unit Overview Package Contents
Package Contents Unit Overview
ackage ContentsPnit OverviewU
Tools You Will Need
Make sure you are familiar with the parts and features of this unit, and carefully read the
user manual and other important information
1 Water Outlet Tube
1 Water Ionizer
2 Stem Elbows 1 Faucet Diverter
1 pH Testing
Solution Bottle
8.2 ft (2.5 m)
of Hose
1 User Manual
2 Tube Suction Cups
Assortment of Connectors
and Rubber Washers
Adjustable WrenchUtility Scissors Plumber’s Tape
Front View
Water Outlet Unit
Front Cover
LCD Display
Front Case
Middle Case
Water Outlet Tube
1.
2.
3.
4.
5.
6.
Rear View
Hanging Groove
Rear Case
Power Cord
1.
2.
3.
Bottom View
Water Inflow
Power Switch
Water Outflow
1.
2.
3.
2
1
3
2
56
4
3
1
Wrench
2
3
1

How to Install the Unit How to Install the Unit
16 17
How to Install the Unit How to Install the Unit
ow to Install the UnitH
Determine whether you will connect the unit directly to the cold water supply line (under
sink) or to the faucet (see image).
Do not turn on the main water supply until all hoses are properly installed to the unit.
The unit and components are subject to change without prior notification in
order to enhance performance.
Many faucets vary in design, and your faucet may require different setup instruc-
tions than those featured in this manual. Please consult a qualified service profes-
sional if you are unable to correctly complete the installation. For more help with instal-
lation, please visit tyentusa.com/support.
Shut off both the hot and cold water main supply at the pipe under the sink.
If your faucet features a screw-on style aerator, remove it by unscrewing it from
the tip of the faucet.
If the included faucet diverter does not fit directly to the tip of the faucet, select an
appropriate size connector and rubber washer (included).
When connecting the diverter or adapter to the faucet, be sure to use plumbing
pipe thread seal tape (not included) to prevent leaks.
If necessary, connect the faucet diverter with the appropriate connector to the faucet.
Be sure all connections are secure but do not overtighten them.

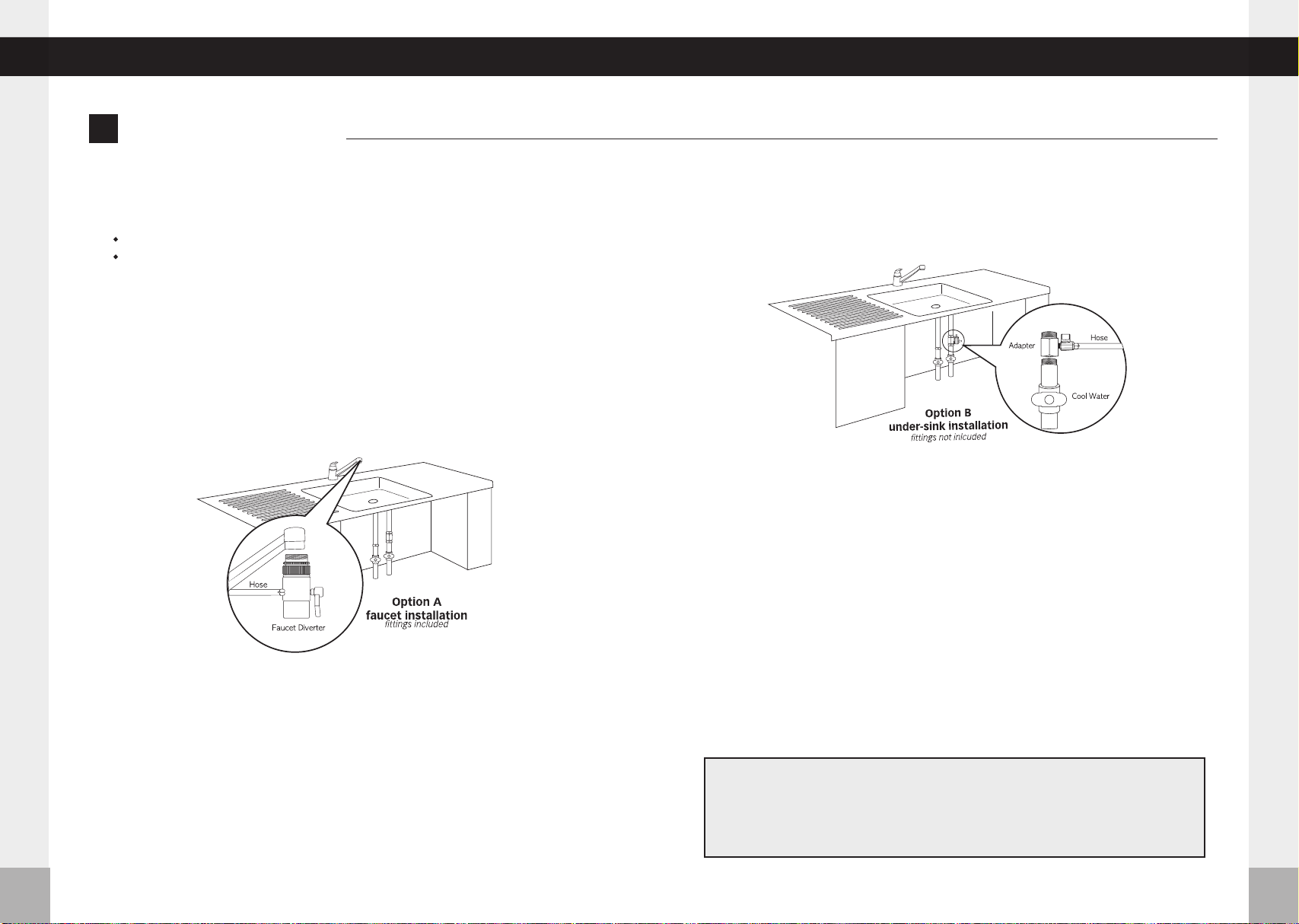

Option A l Faucet: A faucet connection requires a faucet diverter (included).
Option B l Under-Sink: An under sink connection requires an under-sink adapter kit
(not included) or a compatible t-valve (available from most hardware stores). For more
information see Welcome Guide or call support.
Option A – Faucet Installation
1.
2.
3.
4.
5.
6.
Purchase either an under-sink installation kit (not included) or purchase a
T-connection (with shut-off valve) from a hardware or plumbing supply store.
Shutoff both the hot and cold water main supply at the pipe under the sink.
Locate the cold water supply line valve.
Disconnect the faucet cold water supply line from main cold water pipe. Use a
towel to catch the small amount of water that may come from the faucet supply line.
When connecting the T-connection to cold water pipe, be sure to use plumb-
ing pipe thread seal tape (not included) to prevent leaks.
Reconnect the faucet cold water supply line to the T-connection (now secured
to the main cold water pipe).
Be sure all connections are secure but do not overtighten them.
1.
2.
3.
4.
5.
6.
7.
Option B – Under-Sink Installation
Both Options

Inflow
Water Hose Installation Water Hose Installation
18 19
Water Hose Installation
※INTRO screen appears in about 1 minute only when
initial power is supplied.
Water Hose Installation
ater Hose InstallationW

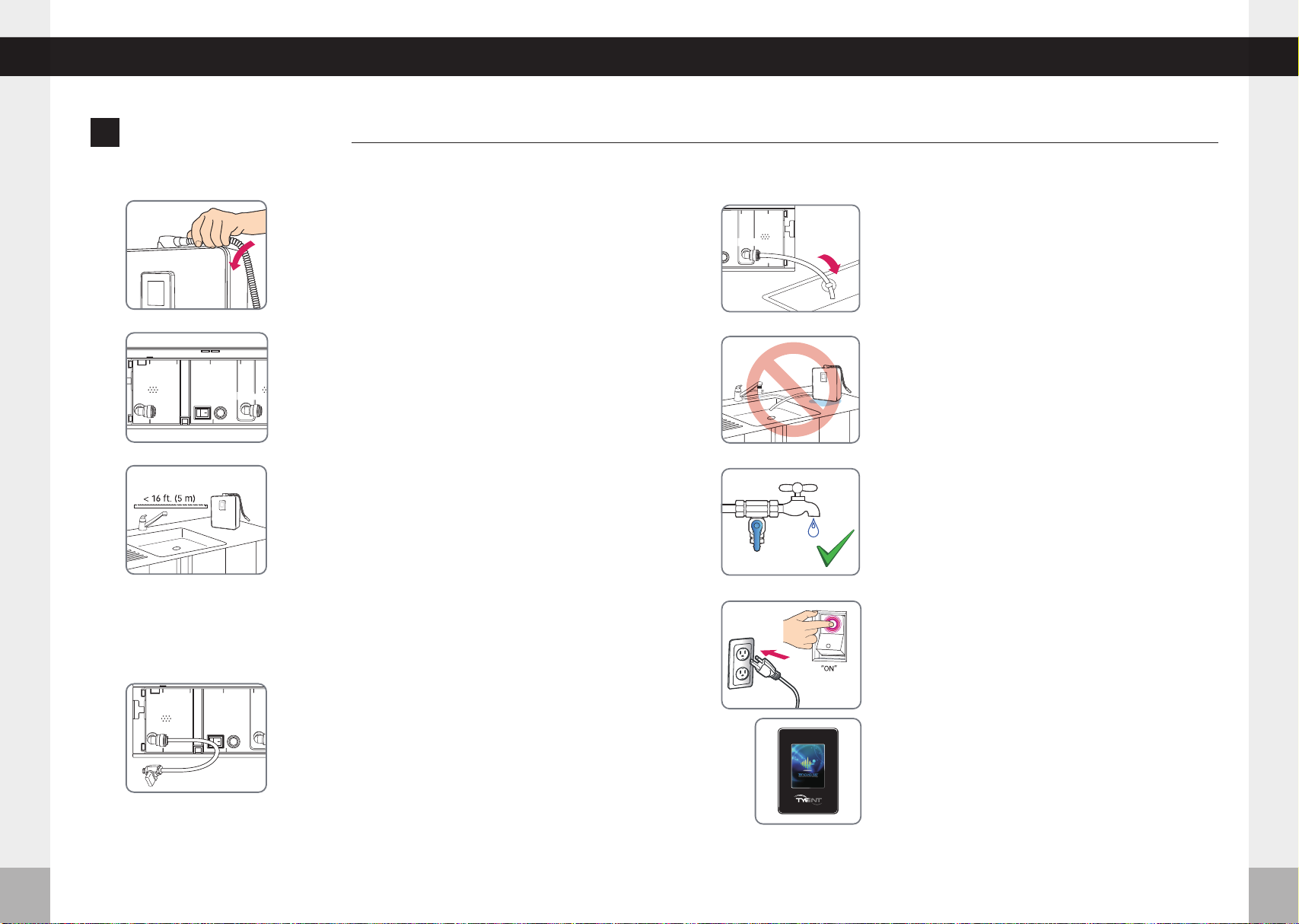

1. Place the unit on the planned installation location and
screw the flexible tube clockwise into the water outlet
hole positioned at the top of the unit. Do not overtighten.
5. Cut an appropriate length of drain hose and connect
it to the drain on the rear of the unit.Make sure the
drain hose is positioned lower than the unit and in the
sink to drain properly.
6. Make sure all hose connections are firmly seated in
the correct holes, both on the unit and at the water
supply.
7. Turn on the cold water supply. Make sure there are
no leaks at any of the connections. Make sure the
faucet is working with the cold water. Make sure
there are no leaks from the hose connections on the
bottom of the unit. Make sure the hoses are firmly
seated in the unit holes.
8. Plug in the power cord and turn on the unit. You
should hear a series of tones when you power up the
unit.
2. Press the stem elbows into the water inflow and
outflow holes located on the bottom of the unit until
you hear a click and feel the hose sit firmly in place.
3. Measure between where the unit will be located (on
the counter) and the water faucet (or under-sink
T-connection) where the diverter (or T-connection)
will be installed. Cut enough hose to allow connec-
tion from the rear of the unit to the water supply
(either faucet diverter or under-sink T-connection).
Note: Keep the length under 16 feet (5 meters) from
the unit to the faucet. You may need a pressure
pump or larger size hose if the pressure is too low.
Be sure to leave a few extra inches (centimeters) of
length so the faucet can still be rotated.
4.
Connect the hose from the inflow hole to the cold
water supply, either at the faucet diverter (Option A
- Remove the nut from the diverter, slide the nut on
to the hose, firmly seat the hose on the faucet
diverter and screw the nut over the hose and back
onto the faucet diverter) or the under-sink
T-connection. (Option B – Route the hose through
the counter top to the T-connection, firmly seat the
hose on the T-connection, make sure the connec-
tion is sealed completely)
Inflow Drain
hose to faucet
hose to sink
Drain

Customer Serviceable Parts How to Change the Filters
20 21
How to Change the Filters Customer Serviceable Parts
1.
ustomer Serviceable PartsC
Primary Filter: ACE YT20 1st Filter
1st Filter
2nd Filter
ATTENTION: The consumer accepts any and all responsibility and/or liability if
replacement filters and/or purchased parts are not manufacturer specific. This unit
contains high-performance purifying filters and an advanced control system.
The life of the filter can vary greatly due to use, water pressure, water quality and the
changing of the seasons. Filters may need to be replaced sooner than the scheduled
time due to these reasons, you may notice reduced water quality or declining water taste.
Recommended filter replacement cycle:
951.0 gallons (3,600 L) / Every 6 months
Removes harmful chemicals like chlorine,
compounds such as agrichemicals and deter-
gents, large suspended matters like rust and
sediments as well as other volatile organic
compounds through an efficient, an activated
absorption method. It also eliminates bad
smells and any remaining dissolved chlorine.
Secondary Filter: ACE YT20 2nd Filter
Recommended filter replacement cycle:
951.0 gallons (3,600 L) / Every 6 months
0.01 micrometer filter helps eliminate contami-
nated materials including bacteria, while
maintaining minerals in the water.

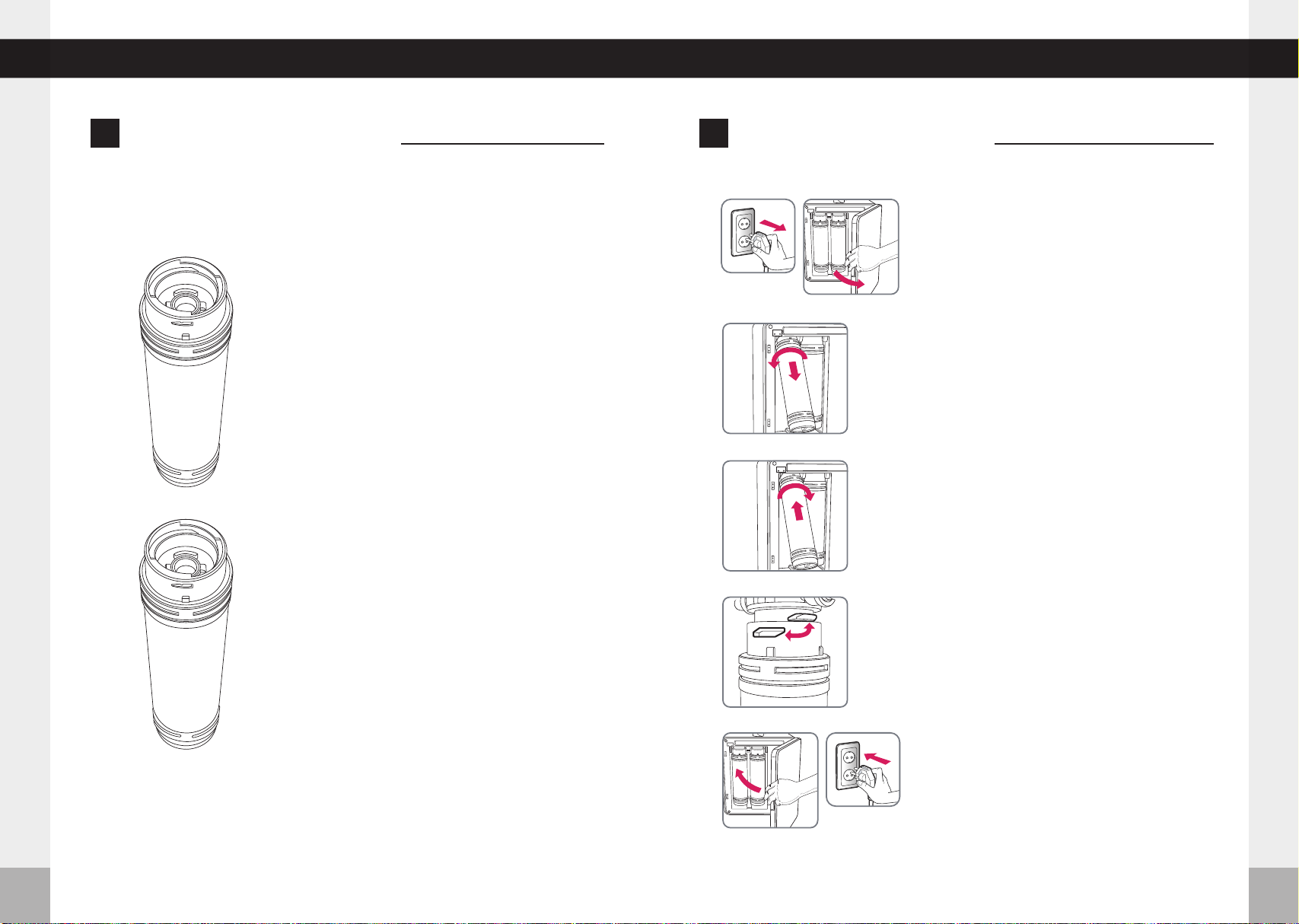

ow to Change the FiltersH
Shut off the water supply to the unit.
Turn the power off and unplug the power
cord. Open the door in front of the
product.
2.
3.
4.
5.
Raise the filter to be replaced and turn it
counter clockwise to remove it.
Put the new filter into the right position by
turning it clockwise.
When installing the filter, the connection
bump of the head and the connection
groove on the top of the filter should be
completely combined.
Close the door, plug the power cord
back in, reengage the water supply and
switch the unit back on.
Close
Open

F1 50% F2 50%
A L K H 2O
ACD
TURBO
ALK ACD
F1 RESET
F1 100% F2 100%
H 2O
F2 RESET
F1 RESET
H2O
F2 RESET
How to Reset the Filters Operation of the Touch Screen
22 23
Operation of the Touch Screen How to Reset the Filters

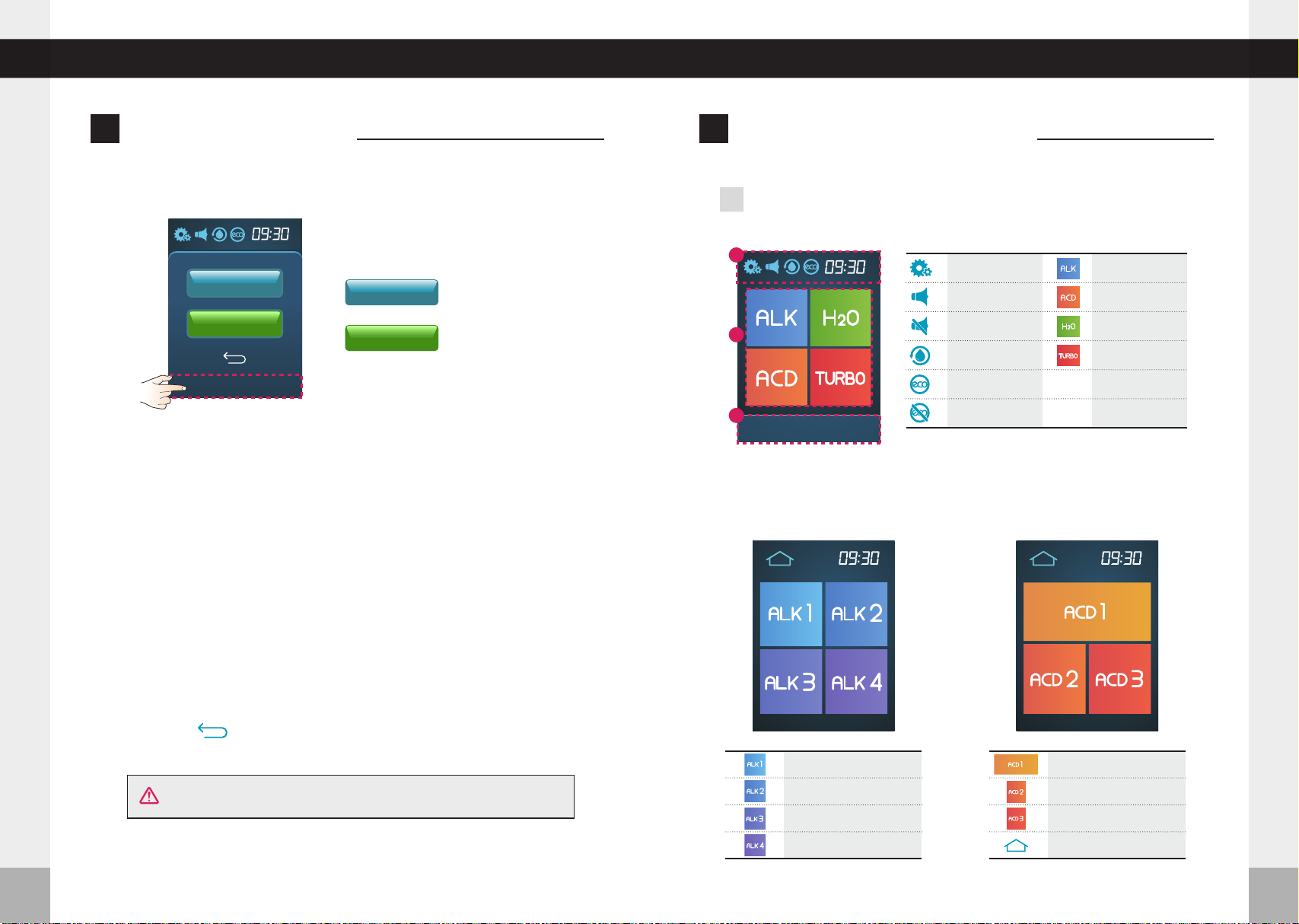

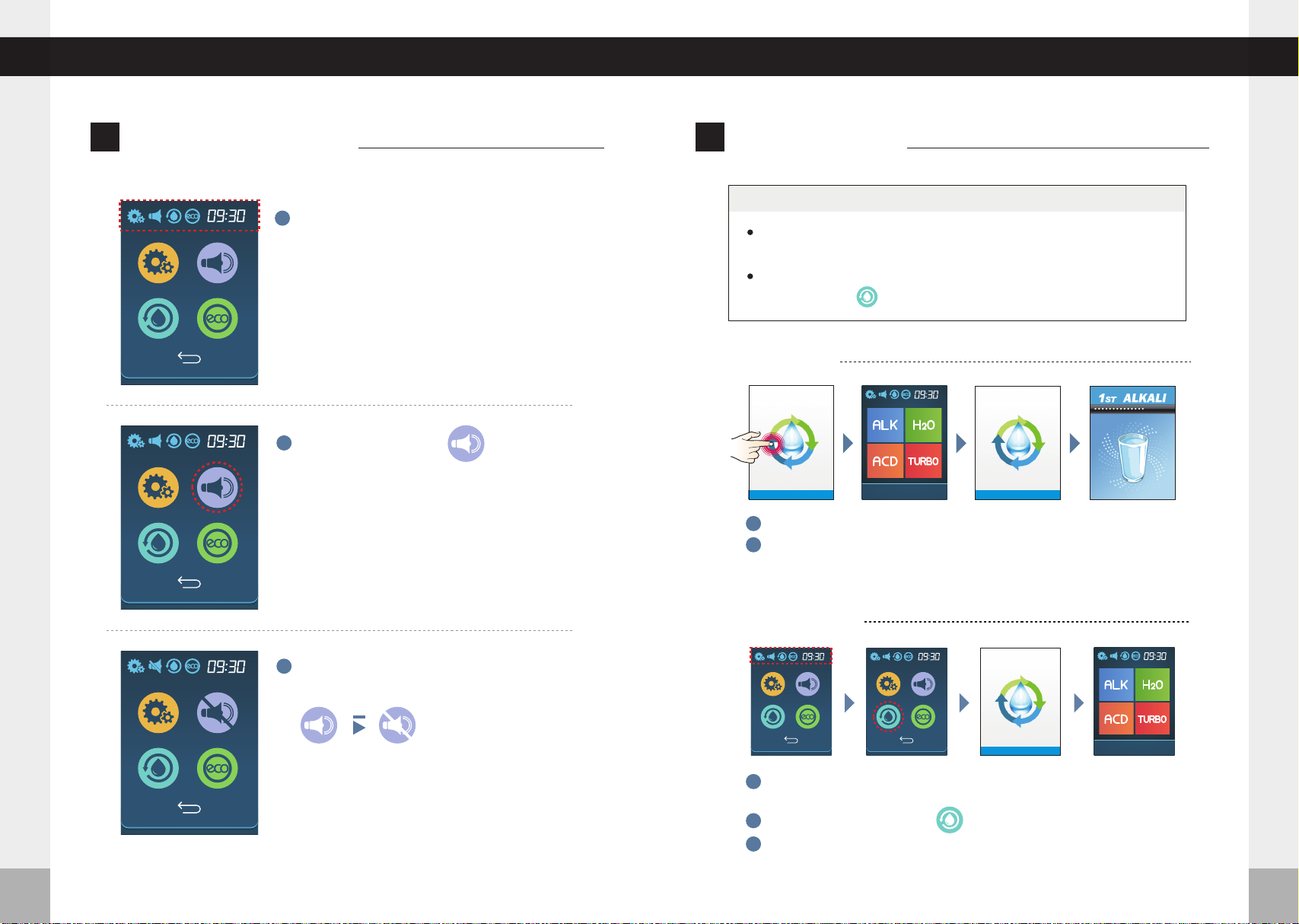

Standby mode1
1. First Filter Reset
①Press the bottom part of the LCD screen.
A menu will appear on the LCD screen.
②To initialize, press the F1 RESET icon 2 times.
※LCD: Percentage (%) of initialization of filter
①Press the bottom part of the LCD screen.
A menu will appear on the LCD screen.
②To initialize, press the F2 RESET icon 2 times.
※LCD: Percentage (%) of initialization of filter
2. Second Filter Reset
Use the filter initialization icon only after the filter is changed.
CAUTION!
: Filter 1 reset
: Filter 2 reset
ow to Reset the FiltersHperation of the Touch ScreenO
F1 50% F2 50%
A L K H 2O
ACD
TURBO
Home screen
Set up
Voice on
Voice off
Cleaning
Eco mode on
Eco mode off
Display line of the set status
Functional water operation
Display line of filter usage (Default : 00%)
Alkaline water
Acidic water
Purified water
Turbo water
Filter 1 usage
Filter 2 usage
ALK
H 2 O
A C D
T U R B O
F1
F2
Alkaline screen
ALK 1ALK 2
ALK 4 ALK 3
Alkaline level 1
Alkaline level 2
Alkaline level 3
Alkaline level 4
Press the “ ”RETURN” bottom when returning to the home screen
Acidic screen
ACD
1
ACD
2
ACD
3
Acidic level 1
Acidic level 2
Acidic level 3
Home button
①
②
③
1
2
3
a
a
aa

알칼리
정 수
산 성
F1 50% F2 50%
09:30
a
F1 50% F2 50%
A L K H 2 O
ACD
TURBO
ALK ACD
F1 RESET
F1 100% F2 100%
H2O
F2 RESET
09:30
a
24 25
Operation of the Touch Screen Operation of the Touch Screen
Push the upper part of the LCD screen.
The menu window will appear on the LCD screen.
15:00
Selected mode
Auto flow stop
time indicator
Working indicator
1
Setup (page 31)
2
Voice on/off (page 36)
3
Cleaning (page 37)
4
Eco mode on/off (page 38)
1
Filter 1 reset
2
Filter 2 reset
Push the upper part of the LCD screen.
The menu window will appear on the LCD screen.
Use the Filter Initialization Icon only after the filters have
been changed.
CAUTION!
DISPLAY CHANGES
LCD display will match the pH level color according to water pH level being used
after icon is pressed.
Alkaline Water 1
light Blue Color
15:00 15:00 15:00
Turbo Water
Dark Red Color
05:00
Alkaline Water 2
Blue Color
15:00
Alkaline Water 3
Dark Blue Color
Alkaline Water 4
Purple Color
Acidic Water 1
Light Yellow Color
15:00
Acidic Water 2
Light Orange Color
15:00
Acidic Water 3
15:00
Red Color
Clean Water
Green Color
15:00
Menu window2 LCD Display3
Operation of the Touch Screen Operation of the Touch Screen
F1 RESET
H2O
F2 RESET
1
2
a
a

OUTFLOW STOP
26 27
When using the Touch Screen Operation of the Touch Screen
Message Display4

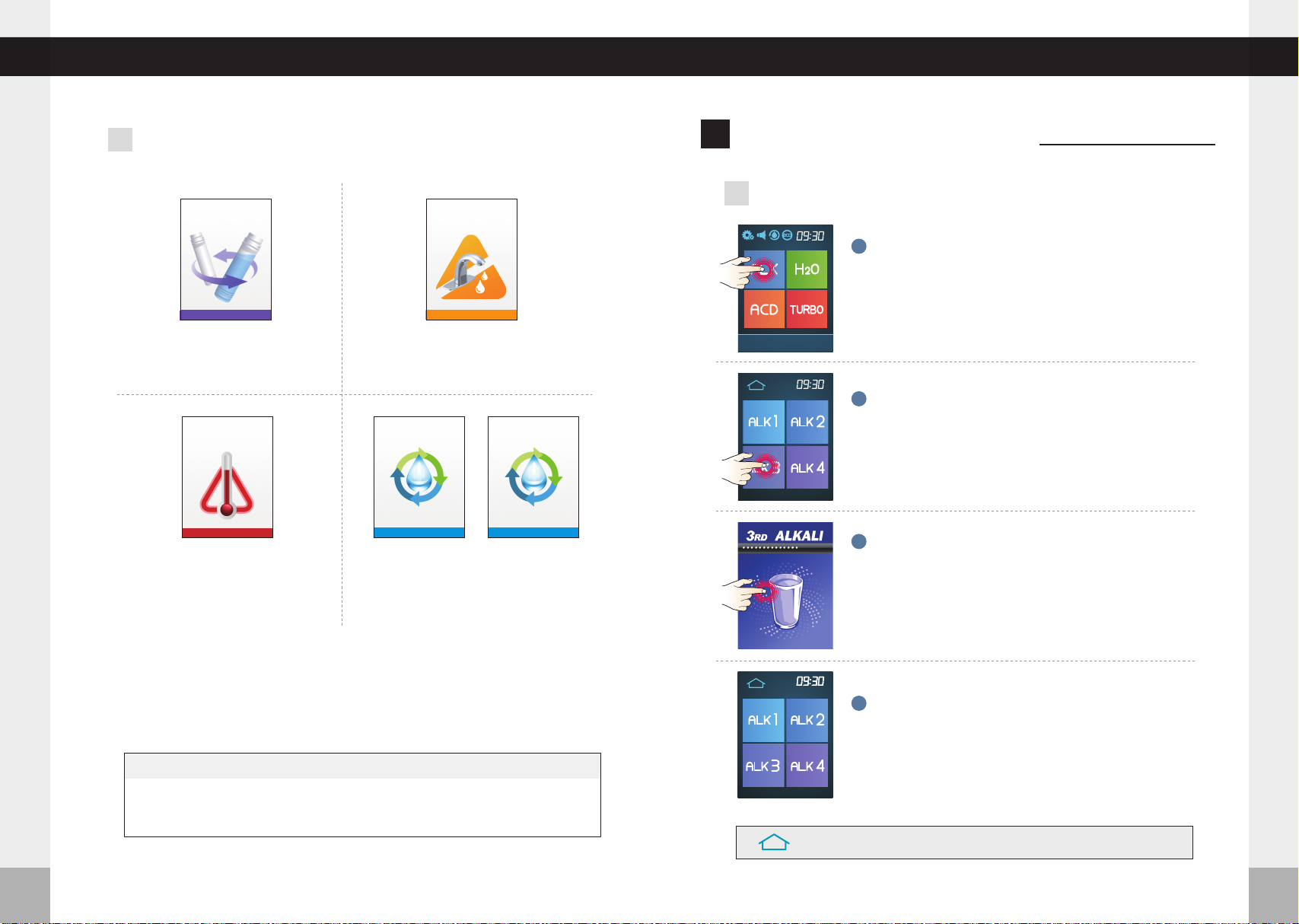

Alkaline water outow1
Operation of the Touch Screen When using the Touch Screen
:15
When this image is displayed, it is
time to replace the filters (p. 21~22)
When this is displayed, water inside
the unit is hotter than 95℉(35℃). The
water supply will then be shut off and
the unit will stop operating temporarily.
(p. 42)
When the automatic
cleaning time comes,
this warning will be
displayed.
When this image is
displayed, the unit is
being cleaned, which
can be done automati-
cally and/or manually.
CAUTIONS in using the touch screen
1.
2.
It may be difficult to see the screen in direct sunlight.
Do not use sharp or pointy objects to press the screen.
After you suspend the water supply to
the unit, this message will appear before
the water outflow stops.
Press the “ALK” icon on the Home screen.
1
Press the desired water level icon on the alkaline screen.
2
The water outflow starts. The screen will display the current
level and stop time.
Press the screen to stop the flow of water.
3
When done, the screen will return to the alkali screen.
4
hen using the Touch ScreenW
FILTER REPL.
TEMP. ERROR CLEANING
00:15
F1 50% F2 50%
ALK H2O
ACD
TURBO
ALK
1
ALK
2
ALK
4
ALK
3
15:00
ALK 1ALK 2
ALK 4 ALK 3
Press the Home button to return to the home screen.
a
a
aaa
CLEANING
NOTICE
Touch the screen

05:00
09:30
a
ACD
1
ACD
2
ACD
3
15:00
ACD
1
ACD
2
ACD
3
28 29
When using the Touch Screen When using the Touch Screen
When using the Touch Screen When using the Touch Screen
Acidic water outow2
Press the ACD icon on the Home screen.
1
Press the desired water level icon on the acidic screen.
2
The water outflow starts. The screen will display the current
level and stop time.
Press the screen to stop the flow of water.
3
When done, the screen will return to the acidic screen.
4
F1 50% F2 50%
ALK H2O
ACD
TURBO
Puried water outow3
Turbo function outow4
Press the H2O icon on the Home screen.
1
The water outflow starts. The screen will display
the current level and stop time. Press the screen
to stop the flow of water.
2
When done, screen moves to Home screen.
3
F1 50% F2 50%
ALK H
2 O
ACD
TURBO
F1 50% F2 50%
ALK H2O
ACD
TURBO
15:00
The water outflow starts. The screen will display
the current level and stop time. Press the screen
to stop the flow of water.
2
When done, the screen will return to the standby
mode screen
3
09:30
a
F1 50% F2 50%
ALK H
2 O
ACD
TURBO
F1 50% F2 50%
ALK H2O
ACD
TURBO
Press the Turbo icon on the Home screen.
1
Press the Home button to return to the home screen. Press the Home button to return to the home screen.
a
a
a
a
a
a

알칼리
정 수
산 성
F1 50% F2 50%
1
30 31
System Setup Method
H Level Adjustment
H Level Adjustment
pSystem Setup Method

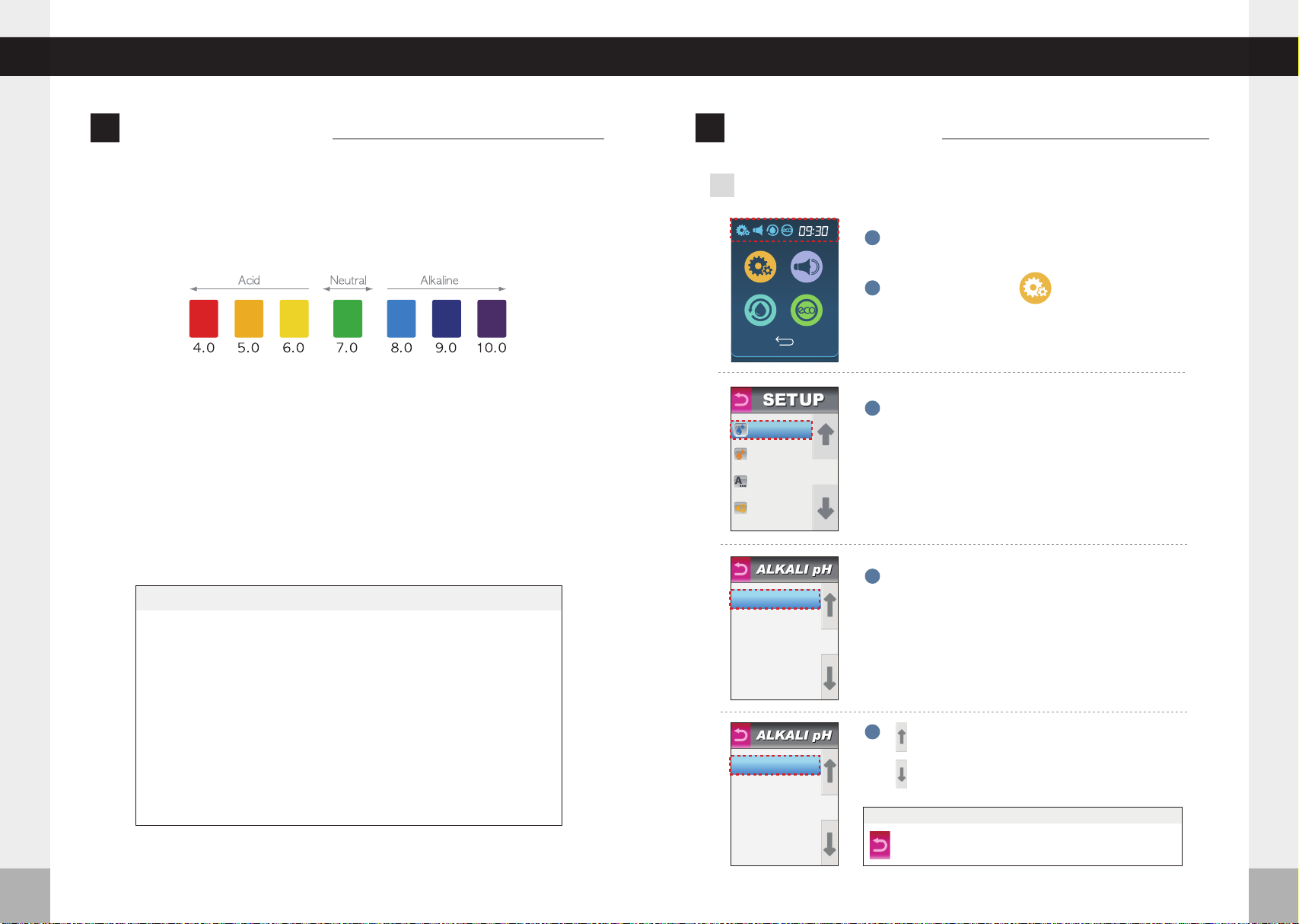

Color of pH testing of each level:
When testing the pH, be sure to allow the unit to run for 2 minutes before
taking a sample of the water. If you have to adjust the percentage, after
adjusting, run an additional 2 minutes before taking a sample. When
testing pH values, we like to use 2 tablespoons of the water being
produced and 4 drops of the reagent in a clear glass.
The minimum and maximum Turbo waters produced will depend on the
water source quality. Set Turbo at 99% for maximum pH levels. These
levels can range normally as follows:
pH Chart
Alkaline Turbo (dark purple)
Acid Turbo (red)
Alkaline Level 1 Approx. 8.0-8.5 pH  (light blue)
Alkaline Level 2 Approx. 8.5-9.0 pH (dark blue)
Alkaline Level 3 Approx. 9.0-9.5 pH (light purple)
Alkaline Level 4 Approx. 9.5-10.0 pH (med purple)
H2O = Approx. 7.0 pH (green) Purified Water
Acid Level 1 Approx. 5.5 pH (light yellow)
Acid Level 2 Approx. 4.5 pH (light orange)
Acid Level 3 Approx. 3.5 pH (red)
※pH value indicated for each level is based on standardized test result which have used average tap water.
H Level Adjustment
pystem Setup MethodS
p
ALK 1ST :
ALK 2ND :
ALK 3RD :
ALK 4TH :
ALKALI pH
ACIDICpH
LANGUAGE
VOLUME
Press ALKALI pH.
Press the desired level.
3
4
1
Press the setup icon.
2
Press the top left corner of the screen. The menu
options will fall below the upper part of the screen.
ALK 1ST :
ALK 2ND :
ALK 3RD :
ALK 4TH :
: ALK pH level up (9%, 10%, 11%...)
5
: ALK pH level down (7%, 6%, 5%...)
ALKALI H Level Adjustment
p
Push the RETURN icon for the previous menu screen. Voice says :“ Applied ”
Push the RETURN icon again to complete setup.
Voice says :“ Setup was completed ”
If you push the UP/DOWN icon, the digital number will increase or decrease by one level.
4
5
6
7
%
%
%
%
4
5
6
7
%
%
%
%
a

알칼리
정 수
산 성
F1 50% F2 50%
32 33
System Setup Method System Setup Method
System Setup Method System Setup Method

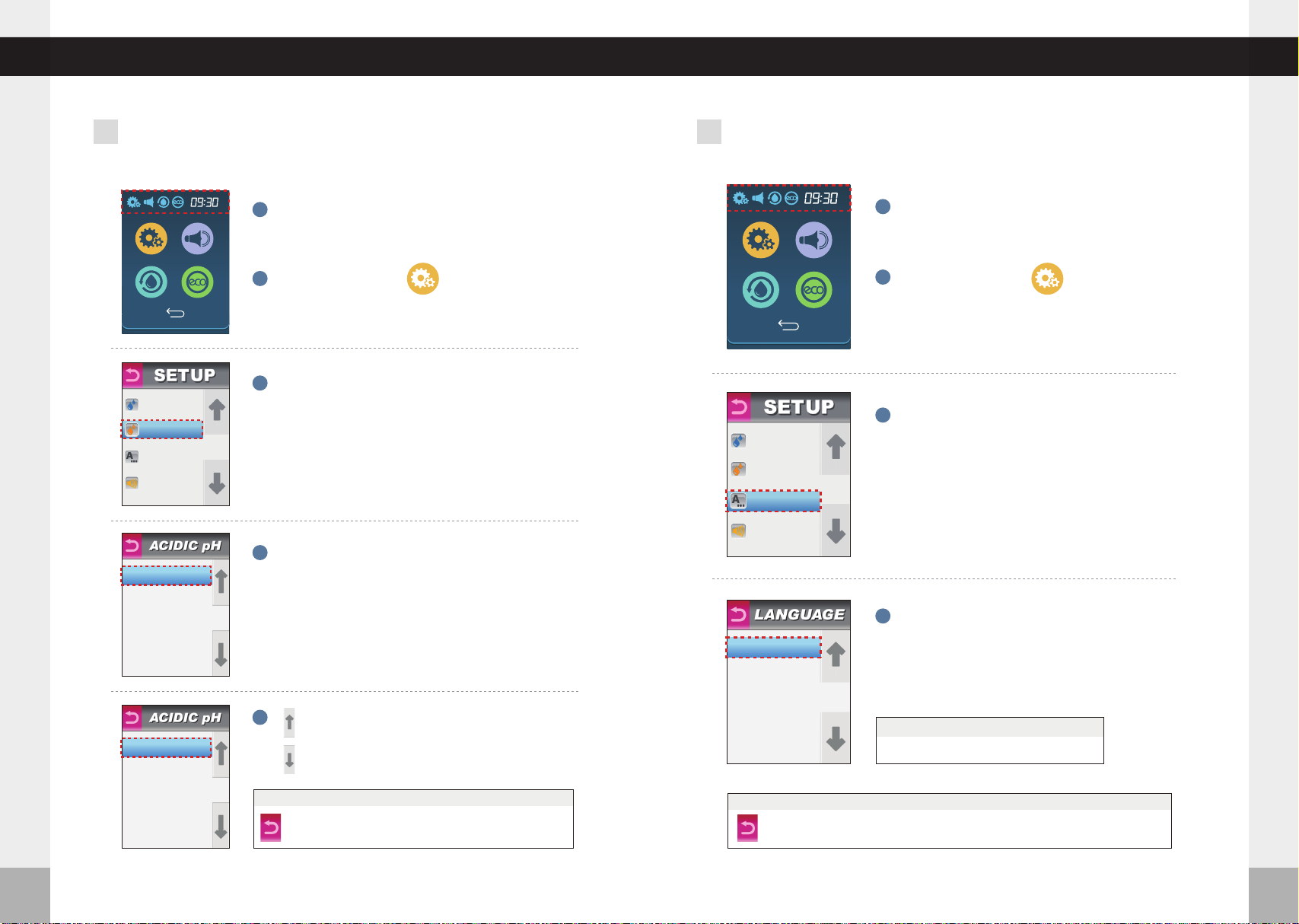

2ACIDIC H Level Adjustment
p3LANGUAGE Mode
ACD 1ST :
ACD 2ND :
ACD 3RD :
TURBO :
ALKALI pH
ACIDIC pH
LANGUAGE
VOLUME
Press ACIDIC pH.
Press the desired level.
3
4
ACD 1ST :
ACD 2ND :
ACD 3RD :
TURBO :
: ACD pH level up (8%, 9%, 10%...)
5
: ACD pH level down (6%, 5%, 4%...)
Push the RETURN icon for the previous menu screen. Voice says: “ Applied ”
Push the RETURN icon again to complete setup. Voice says: “ Set up was completed ”
If you push the UP/DOWN icon, the digital number will increase or decrease by one level.
15
26
36
70
%
%
%
%
15
26
36
70
%
%
%
%
ALKALI pH
ACIDICpH
LANGUAGE
VOLUME
Press the desired language.
4
1
Press the top left corner of the screen. The
menu options will fall below the upper part
of the screen.
3
Press LANGUAGE.
KOREAN, ENGLISH, CHINESE, SPANISH
Supported language
1. KOREAN
2. ENGLISH
3. CHINESE
4. SPANISH
알칼리
정 수
산 성
F1 50% F2 50%
Press the setup icon.
2
1
Press the setup icon.
2
Press the top left corner of the screen. The
menu options will fall below the upper part
of the screen.
aa
Push the RETURN icon for the previous menu screen. Voice says :“ Applied ”
Push the RETURN icon again to complete setup.
Voice says :“ Setup was completed ”
If you push the UP/DOWN icon, the digital number will increase or decrease by one level.

Year
Month
Day
Hour
Min
Year
Month
Day
Hour
Min
ACIDICpH
LANGUAGE
VOLUME
TIME
34 35
System Setup Method System Setup Method
System Setup Method System Setup Method
알칼리
정 수
산 성
F1 50% F2 50%

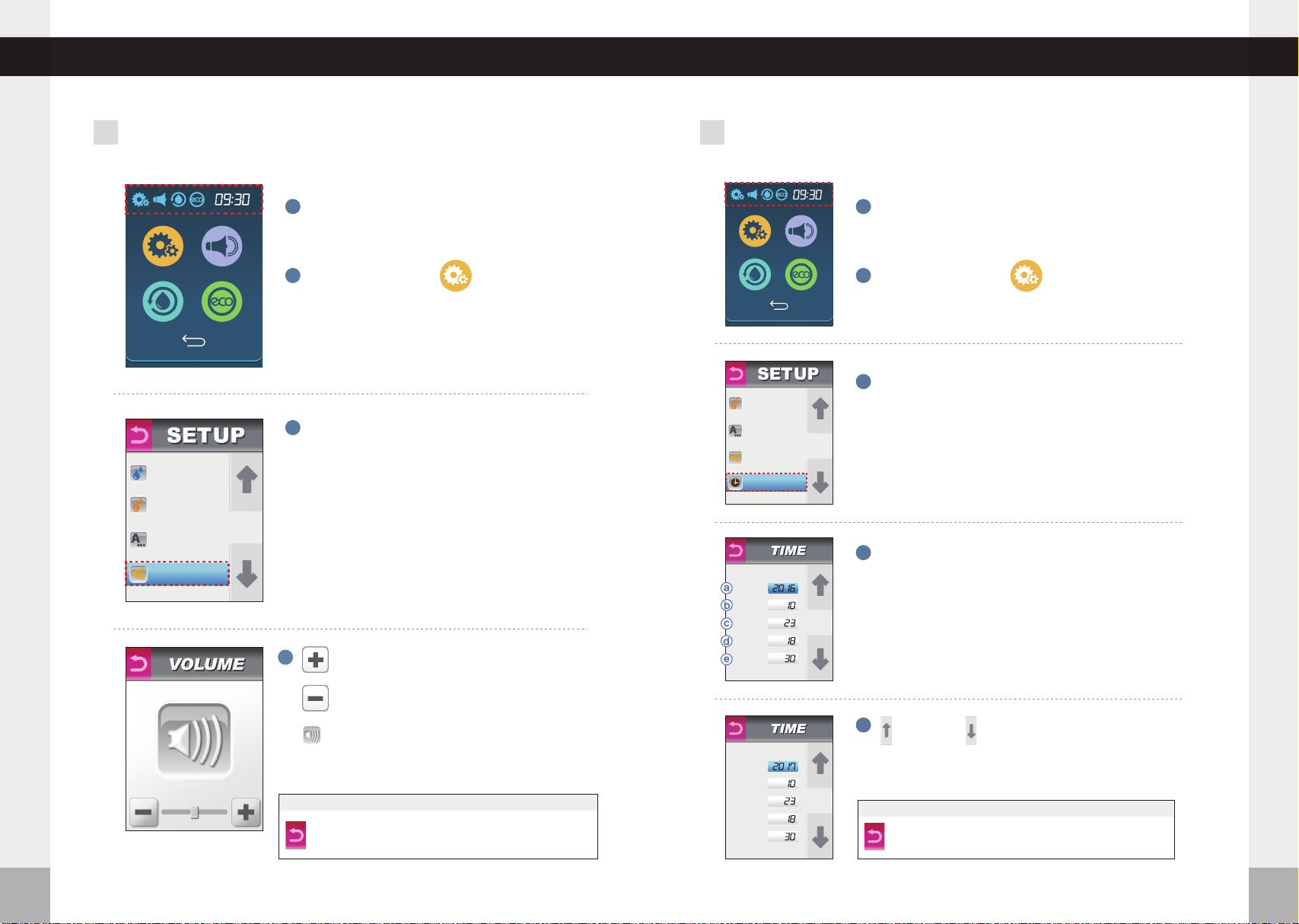

4VOLUME Level Adjustment 5Setting the TIME
ALKALI pH
ACIDICpH
LANGUAGE
VOLUME
3
Press VOLUME.
4
5
: Volume up (0 - 10) (delete step)
: Volume down (0 - 10) (delete step)
Pressing this icon will let you hear the current volume.
Adjust the time and date with the arrows :
Year
Day
Minute
Month
Hour
ⓑ
ⓓ
ⓐ
ⓒ
ⓔ
Time setup is complete.
Press TIME .
3
4
: for up
5
: for down
Push RETURN icon for previous menu screen. Voice says :“ Applied ”
Push RETURN icon again to complete set up.
Voice says :“ Set up was completed ”
If UP/DOWN Icon is pushed, digital number moves by one step.
1
Press the setup icon.
2
Press the top left corner of the screen. The
menu options will fall below the upper part
of the screen.
1
Press the setup icon.
2
Press the top left corner of the screen. The
menu options will fall below the upper part
of the screen.
알칼리
정 수
산 성
F1 50% F2 50%
aa
Push the RETURN icon for the previous menu screen. Voice says :“ Applied ”
Push the RETURN icon again to complete setup.
Voice says :“ Setup was completed ”
If you push the UP/DOWN icon, the digital number will increase or decrease by one level.

CLEANING
NOTICE
Touch the screen
알칼리
정 수
산 성
F1 50% F2 50%
알칼리
정 수
산 성
F1 50% F2 50%
CLEANING
00:15
CLEANING
00:15
36 37
Cleaning Function Selecting Voice ON/OFF
Selecting Voice ON/OFF Cleaning Function
leaning FunctionC
1
If the screen is touched, it changes to the previous used screen.
2
When functional water is selected on Standby mode, it goes into auto-
matic cleaning for 15 seconds, and the selected functional water will
be dispensed.
1
Press the top left corner of the screen. The menu options will fall below
the upper part of the screen.
2
Press the CLEANING icon.
3
Cleaning mode stops after 15 seconds and the screen changes to the
home screen.
Cleaning can take place automatically and/or manually.
Auto Cleaning (15 seconds) is performed during water outflow after
more than 24 hours of non-operating or after 30 liters of water outflow.
Manual Cleaning (15 seconds) is performed whenever desired simply
by touching the icon.
Auto Cleaning
15:00
Manual Cleaning
알칼리
정 수
산 성
F1 50% F2 50%
알칼리
정 수
산 성
F1 50% F2 50%
알칼리
정 수
산 성
F1 50% F2 50%
electing Voice ON/OFFS
Select the VOICE icon.
2
3
1
Press the top left corner of the screen. The
menu options will fall below the upper part of
the screen.
The voice will be turned on/off by selecting
the voice icon in this sequence.
Even if the volume is turned off, warning notifica-
tions will still play through the speaker if necessary.
(filter replacement, water not supplied, TEMP,
cleaning, setup mode).
※
F1 50% F2 50%
A L K H 2 O
ACD
TURBO
a
a
a
a
F1 50% F2 50%
A L K H 2 O
ACD
TURBO
a
a a

38 39
TURBO Function ECO Mode
ECO Mode TURBO Function
CO ModeE
Select the ECO icon.
2
3
1
Press the top left corner of the screen. The
menu options will fall below the upper part of
the screen.
Turn on/off ECO Mode by selecting the ECO
icon in this sequence.
ECO Mode is a feature to indicate the time on the display during periods of nonuse.
When ECO Mode is set, the unit consumes less
power during periods of nonuse. The screen will
display the time if ECO Mode is set 10 minutes
after using the unit. If the screen is touched, it
changes to standby mode by displaying the last
screen used.
알칼리
정 수
산 성
F1 50% F2 50%
알칼리
정 수
산 성
F1 50% F2 50%
URBO FunctionT
The TURBO function allows you to create strong alkaline and acidic water. These types
of water are
ONLY to be used for cleaning, sanitizing and disinfecting purposes.
Caution
TURBO
Strong Acidic Water
pH 2.5
~ pH 3.8
Used to disinfect
and sterilize
TURBO
Strong Alkaline Water
pH 10.0
~ pH 11.8
To remove stains from
fabrics/carpet/upholstery
Alkaline Turbo Water Outflow Acidic Turbo Water Outflow
The waters produced in TURBO mode are not intended for drinking.
DO NOT DRINK these types of waters.
DO NOT Use the TURBO function in a manner other than directed.
05:00 05:00
a
a
10:30 AM
23 / Oct / 2016
