USER GUIDE
Single and Double Tap Tower Kits
RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: [email protected]
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm
CST T: +1.414.354.0300
Service Email: [email protected]
Parts Email: [email protected]
WELCOME TO U-LINE

for
multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete product collection
includes Wine Captain Models, Beverage Centers, Clear ice Machines, Crescent Ice Makers, Glass and Solid Door Refrigerators,
Drawer Models, Freezers, Combo Models, and more.

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design, 
 decades
and is proud to have the opportunity to ship to you. U-Line - RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE®.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and
Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been


Table of Contents
Introduction ................................................................................................ 1
Safety and Warning ....................................................................................... 1
Parts Lists .................................................................................................. 2
Tower Installation ......................................................................................... 3
Install on Refrigerator .......................................................................... 3
Install on Countertop .......................................................................... 4
Connections ............................................................................................... 5
CO...........................................................................................5
Beverage Line ................................................................................... 6
Set COPressure ...........................................................................................7
Beverage Line Cleaning .................................................................................. 8
Potential Draft Issues .................................................................................... 10
Warranty ................................................................................................... 11
Countertop Installation Template ....................................................................... 12

1
Introduction
U-Line Single and Double Tap Kits are designed to work with the U-Line keg refrigerator model 1224KEGRSOD. Tap kits
can be installed directly on top of the keg refrigerator in a free-standing application or through a countertop in a built-in


CAUTION
!
Safety and Warning
WARNING
!
CO2can be dangerous. Handle with care.
Never exceed 60 PSI.
Most draft beers are dispensed between 8-14
PSI and most stouts are dispensed at 30-14 PSI.
Pressures above 50 PSI will release the built-in
pressure relief.
Always connect CO2tank to regulator. Never
connect the tank directly to the keg.
Ventilate area after CO2leak:
If it becomes dicult to breathe and your head
starts to ache, high levels of CO2may be present.
LEAVE THE ROOM IMMEDIATELY.
Safety and Warning
Keep CO2tank in an upright position. The regulator
may break if the tank falls.
Secure the CO2tank.

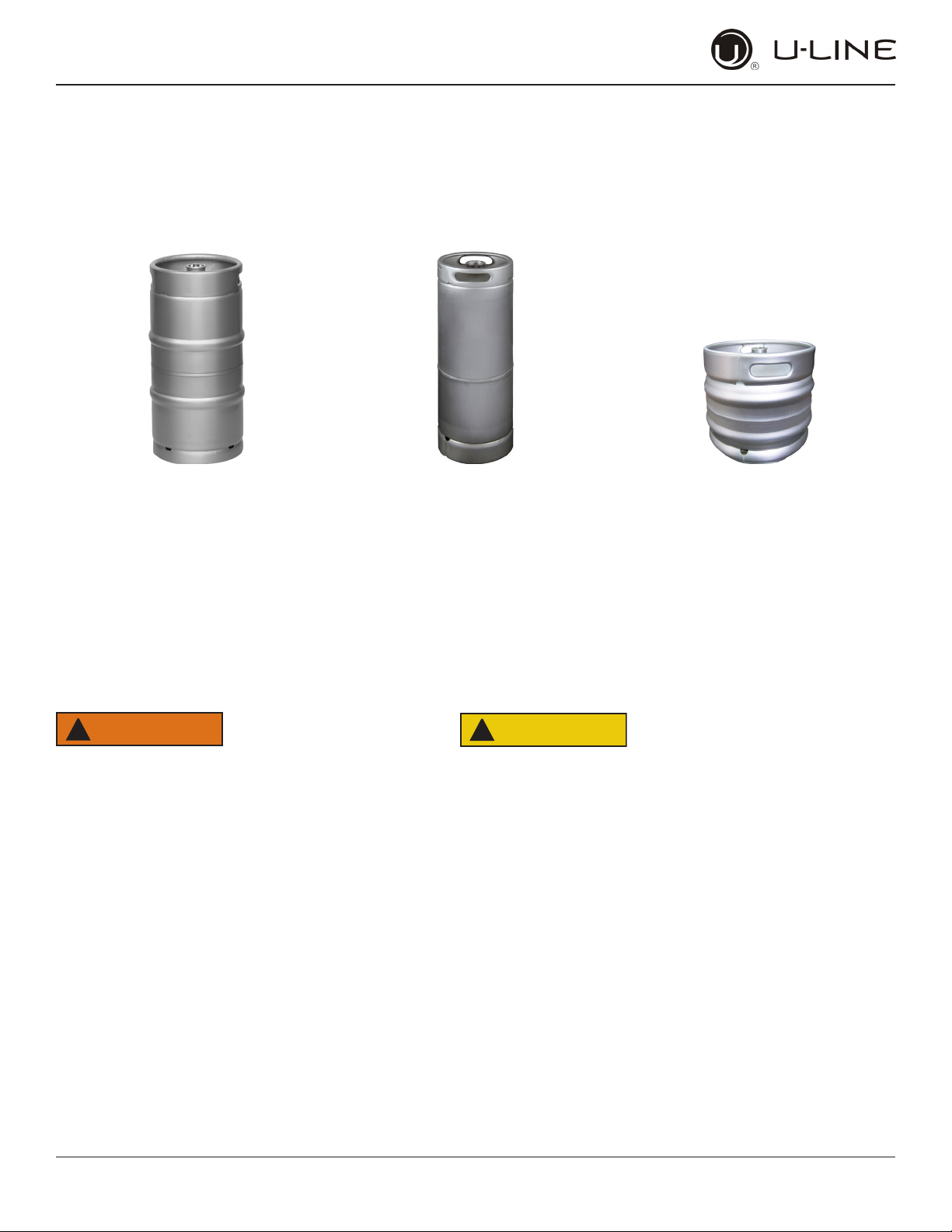

1/4Slim Barrel
Quarter Slim
7.75 Gallons
82 - 12 oz. cups

1/6 Slim Barrel

5 Gallons
53 - 12 oz. cups

Standard 1/4 Barrel
Pony Keg
7.75 Gallons
82 - 12 oz. cups


2
U-SINGLETAP
Single-Faucet Tap
Kits include:
1. Single or Double Tower (includes faucet, handle, gasket, wrench, & clamp)
2. Low prole keg coupler (D system for North American Beers)
3. Regulator / CO
2
gauge (includes hose and clamps)
4. 5 lb. CO
2
cylinder (ships empty)
5. Drip tray
6. Cleaning kit (includes cleaning pump, detergent, faucet brush, washers)
7. Hardware for freestanding and built-in applications
U-DOUBLETAP
Double-Faucet Tap
1
1
2
2
3
3
4
4
5
5
6
7
6
7

3

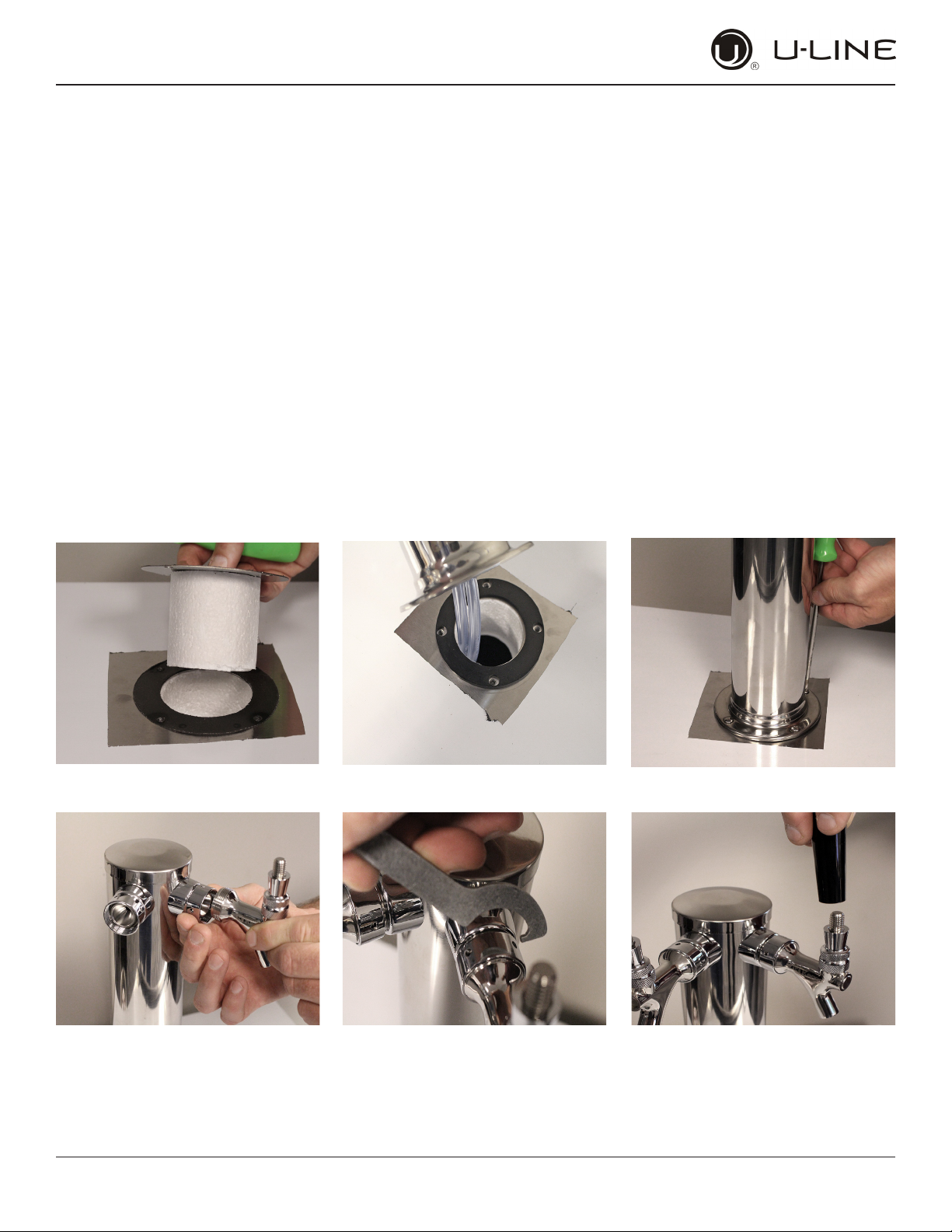

Install Tower on Keg Refrigerator
Note: Save gasket and cap plug for conversion back to a standard refrigerator.
 
Note: These instructions are designed for a standard 36" countertop application.

tower is installed.
2. Insert tap assembly tubing through the provided gasket and then all the way into the refrigerator.
3. Insert and tighten four screws to secure tower to keg refrigerator.
4. Install faucet onto the tower: Line up teeth on the outside of the faucet with the teeth inside the shank.
6. Screw the handle onto the faucet.
5. Screw the coupling nut onto the faucet and tighten with the faucet wrench.

4

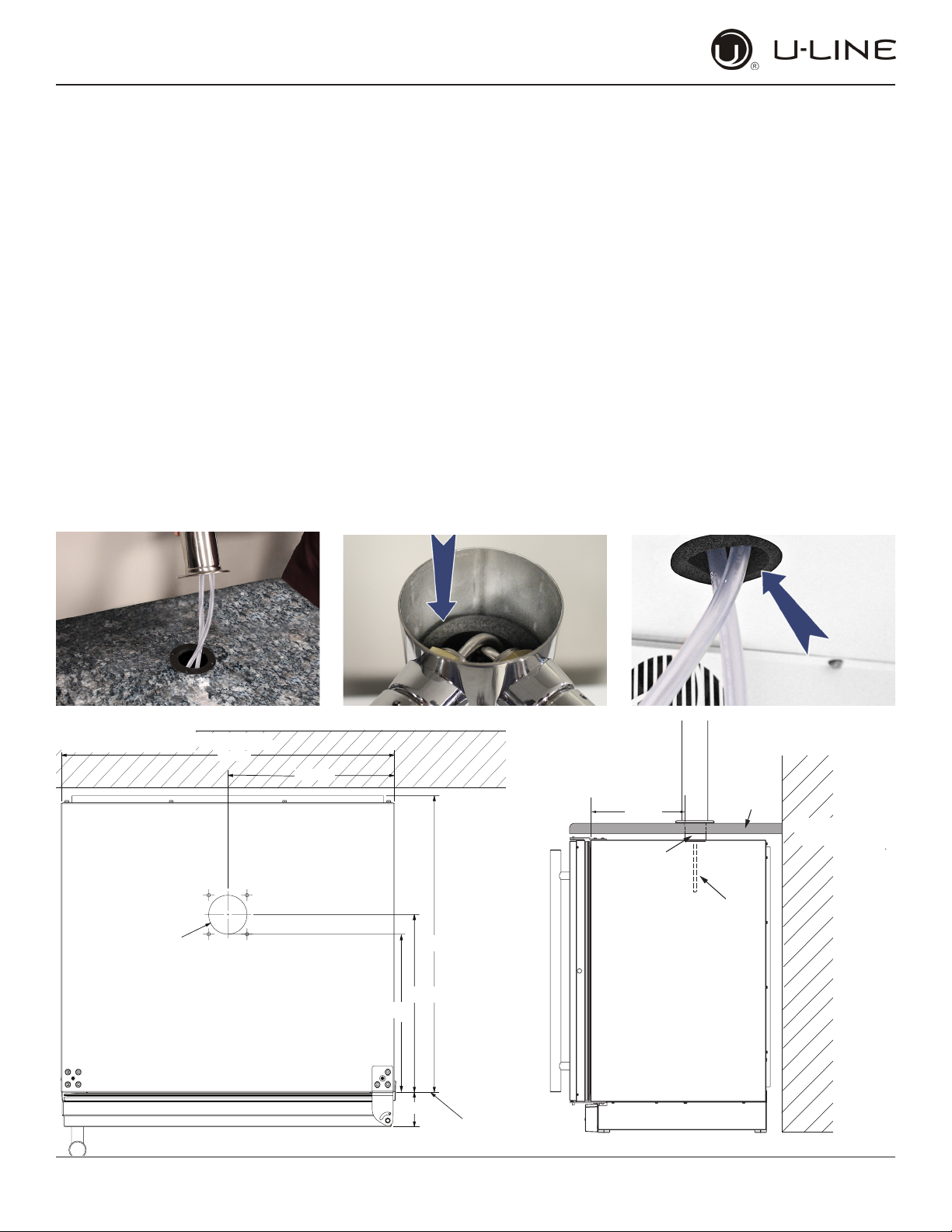

Install Tower on Countertop (see template at the end of this user guide)
Note: Screws included with the kit will accommodate many dierent countertops. For a customized t, it may be
necessary to acquire screws that are sized to the thickness of your countertop.
2. Use the dimensions from Diagram A to determine the centerpoint of the tower mounting hole.
1. Position keg refrigerator under countertop to determine the desired depth.
 
3. Remove keg refrigerator from under countertop.
4. Use template to drill four mounting holes.
Front Face
of Refrigerator
Rear Wall
23-7/8”
11-15/16”
20-7/8”
2-7/16”
2-3/4”
Hole Diameter
12-1/2”
11-1/8”
Rear Wall
Countertop
Insulation
11-1/8”
Front edge of hole
to front face of
refrigerator
Beverage
Tube
8. Position keg refrigerator in front of opening and feed tubing into the uncapped opening.
10. Remove cap from top of tower and push insulation down into the keg refrigerator - see Diagram B.
11. Continue with CO2and beverage connections - see pages 5-6.
9. Slide keg refrigerator into place.
 
7. Secure tower to countertop.
Diagram A Diagram B
Insulation

5
COConnection
Our CO2

1. Attach regulator to CO2tank. Hand tighten the coupling nut and then use an adjustable wrench for an additional quarter
turn. DO NOT OVER TIGHTEN
3. Attach and clamp CO2tubing to tap coupler.
2. Attach” CO2tubing to regulator nipple and clamp into place. If necessary, make the tubing more pliable by heating
the end in boiling water.

6
Beverage Connection
1. Attach and clamp beverage tubing to tap coupler.
2. Attach tap coupler to keg. Locate notch and rotate clockwise  turn.
3. Press down and rotate clockwise an additional  turn.
4. Open valve on CO
2
tank and adjust regulator to desired pressure by turning the handle clockwise.
1/4
turn
1/4
turn

7
Setting CO2Pressure
To minimize foam for most beverages the pressure should be set between 8-12 PSI.
• Set the pressure by turning the handle on the front of the regulator counterclockwise until it is all the way out. This will

• Turn the valve on the bottom of the regulator to the side to ensure no CO
2
will pass through the regulator.
• Pull the pin on the side of the coupler to release built up pressure from the keg. Open the faucet. Nothing should come
out initially as there is no pressure to the keg.
• Place a container under the faucet and open the valve on the bottom of the regulator.
• Turn the handle clockwise with the faucet open and your beverage will start to pour. Stop turning when you get the best

If you are dispensing at altitude, you will need to increase your output pressure by one pound for every 2,000 feet of elevation
above sea level.

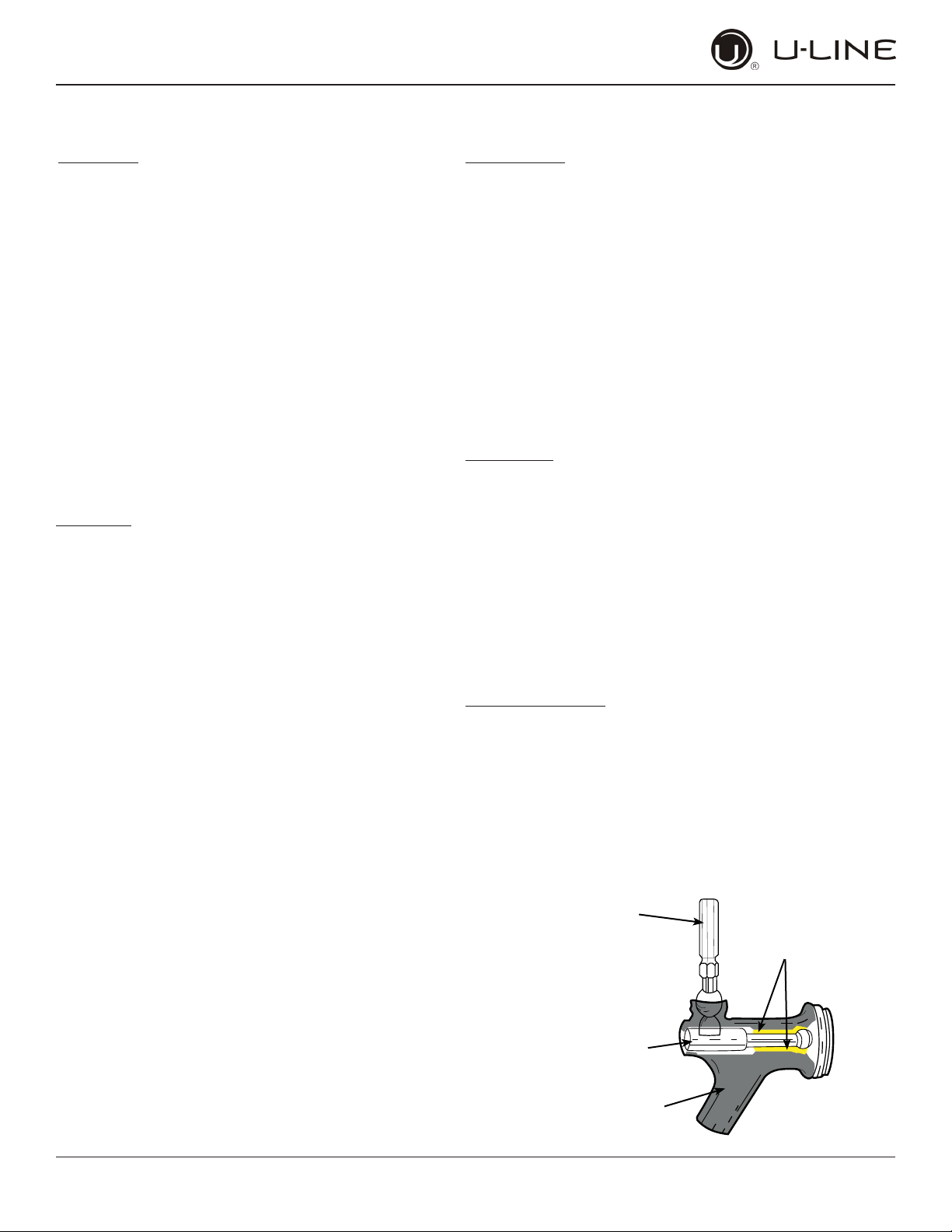

Handle
Valves
