Ubiquiti RocketDish RD-2G24 User manual

Installation Guide
Dish Series Antenna
Welcome
Thank you for purchasing this Ubiquiti Networks Backhaul Antenna.
This instruction is for model RD-2G24.
Tools Required for Mounting
1. Screw driver Phillips #1 (Qty. 1)
2. 16mm or 5/8 inch wrench (Qty. 1)
3. 24mm wrench (Qty. 1)
Support
Ubiquiti support engineers are located in the U.S. and in Europe and are
dedicated to helping customers resolve software, hardware compatibility, or
Internet: www.ubnt.com
Internet Support Forum: www.forum.ubnt.com
IMPORTANT NOTICE
Deformations in the shape will reduce the products effectiveness.

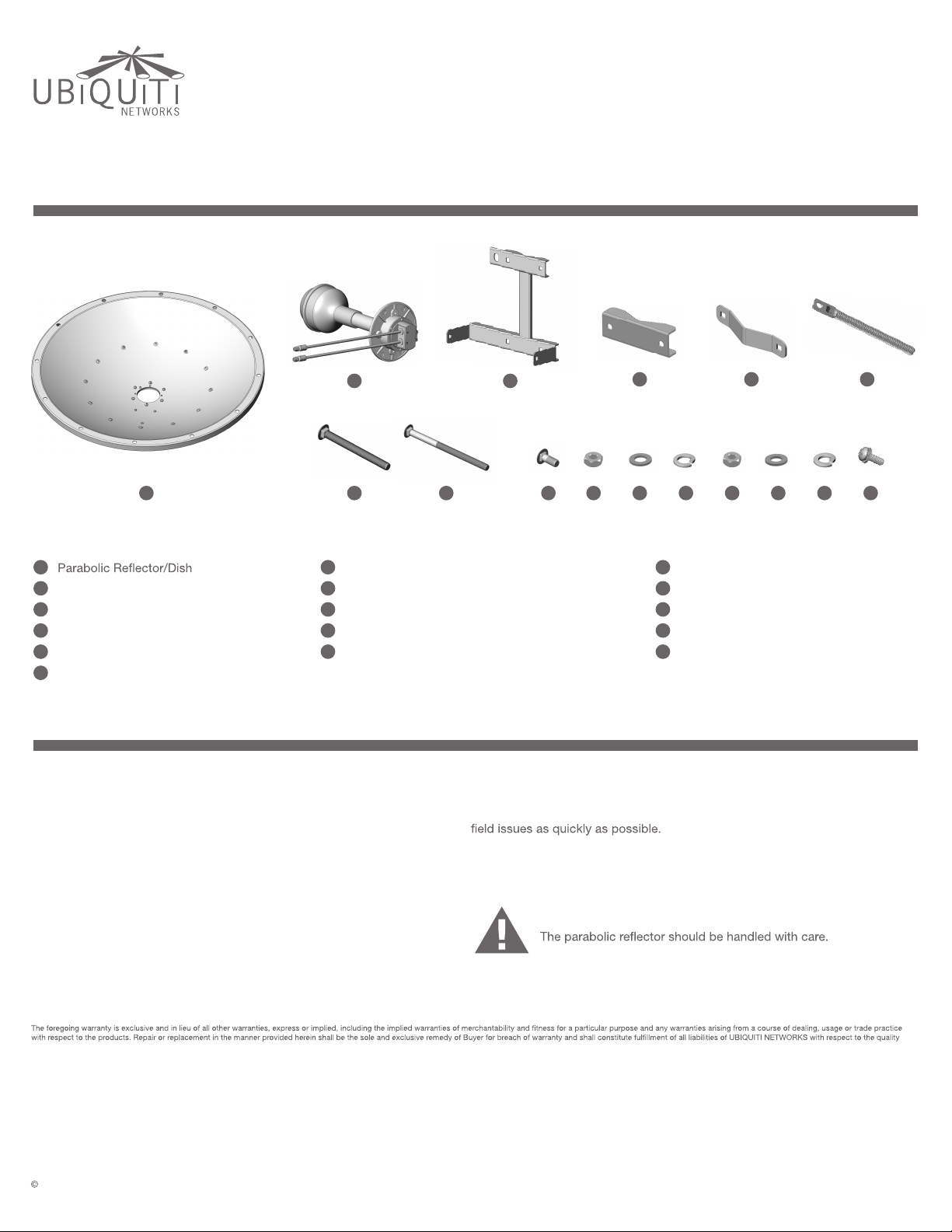

Contents Qty.
Feed
Main Mounting Bracket
Pole Bracket
Stabilizer Bracket
M16 Elevation Rod
1
1
1
2
2
1
A
B
C
D
E
F
M10X150 Bolt
M10X25 Bolt
M16 Nut
M16 Washer
M16 Spring Lock Washer
4
3
2
2
1
G
H
I
J
K
M10 Nut
M10 Washer
M10 Spring Lock Washer
M4 Bolt-Springlock-Washer Assembly
* Products may be different from pictures and are subject to change without prior notice
9
9
9
4
M10X100 Bolt 2
M
L
N
O
P
General Warranty:
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warrants that the Products furnished hereunder shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS
under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option, any defective Product that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned to Buyer freight
collect. UBIQUITI NETWORKS shall have no obligation to make repairs or replacement necessitated by catastrophe, fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or any other parties. The warranty period of any repaired or
replaced. Product shall not extend beyond its original term.
Warranty Conditions
The foregoing warranty shall apply only if:
Disclaimer. UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating
to system performance, including coverage, buyer’s selection of products for buyer’s application and/or failure of products to meet government or regulatory requirements.
2010 Ubiquiti Networks, Inc. All Rights Reserved. Contents may vary depending on model version - Features and specications subject to change without notice.
(I) The Product has not been subjected to misuse, neglect or unusual physical, electrical or electromagnetic stress, or some other type of accident.
(II) No modication, alteration or addition has been made to the Product by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORKS’s authorized representatives or otherwise approved by UBIQUITI NETWORKS.
(III) The Product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation.
D
CB EF
G H K L M N O PI JA
Returns
In the unlikely event a defect occurs in this product, please work through the dealer or distributor from which this product was purchased.

M10X25 Bolt (Qty. 3)
M10 Washer (Qty. 3)
M10 Spring Lock Washer (Qty. 3)
M10 Nut (Qty. 3)
M16 Washer (Qty. 2)
M16 Spring Lock Washer (Qty. 1)
M16 Nut (Qty. 2)
6. Adjust Azimuth and Elevation
After a visual alignment of both elevation and azimuth, azimuth can be
adjusted by rotating the antenna while supported by the stabilizer bracket.
Elevation is adjusted by tightening/loosening the elevation rod.
When azimuth/elevation are set tighten nuts to approximately
14N-m(10 lb-ft) or less should the mounting pole show deformation.
6
5
5. Attach Antenna to Mounting Pole
Mounting bracket can accommodate 1.5"-4"pole.
Mount the antenna slightly above the stabilizer bracket as shown in gure 5
using the following parts:
M10X150 Bolt (Qty. 4)
M10 Washer (Qty. 4)
M10 Spring Lock Washer (Qty. 4)
M10 Nut (Qty. 4)
H
N
O
M
2
1. Install Feed to Dish
Install Feed to Dish by:
M4 Bolt-Springlock-Washer Assembly (Qty. 4)
The Dish/Feed are keyed so that the feed can only be installed one way.
To install, line up the alignment pin on the Dish with the hole on the Feed
as shown in gure 1.
B A
2. Install Main Mounting Bracket and Elevation Rod
Put M10X150 Bolt on the Main Mounting Bracket. Install
Main Mounting Bracket and Elevation Rod to Dish by:
Pivot Points should be loose to allow mounting frame to move so that
elevation rod can be installed.
1
3. Install Rocket
Install Rocket by lining up slots on Rocket/Dish Fast Mount. Slide into
place.
Locate the pigtail cables that came with the antenna feed. Create a
loop with the cables as shown in gure 3. Connect pigtail cables to
the Rocket connectors.
3
P
I
N
O
K
L
J
M
4
4. Attach Stabilizer Bracket to Pole
Select location for Dish antenna and attach the stabilizer bracket to
mounting pole just below where Dish will be installed as shown in gure 4.
Tighten to 14M-m (10 lb-ft). Install Stabilizer Bracket to pole by:
M10X100 Bolt (Qty. 2)
M10 Washer (Qty. 2)
M10 Spring Lock Washer (Qty. 2)
M10 Nut (Qty. 2)
G
N
O
M
E
H C
F A
C
P
G E
B
A
A
C
O
N
M
O
M
N
H
H L
M O N I
F JK
