Ubiquiti RocketDish RD-5G30 User manual

F
Installation Guide
Rocket Dish 5G-30
B C D
E
A
G H I
J K L M N O P Q

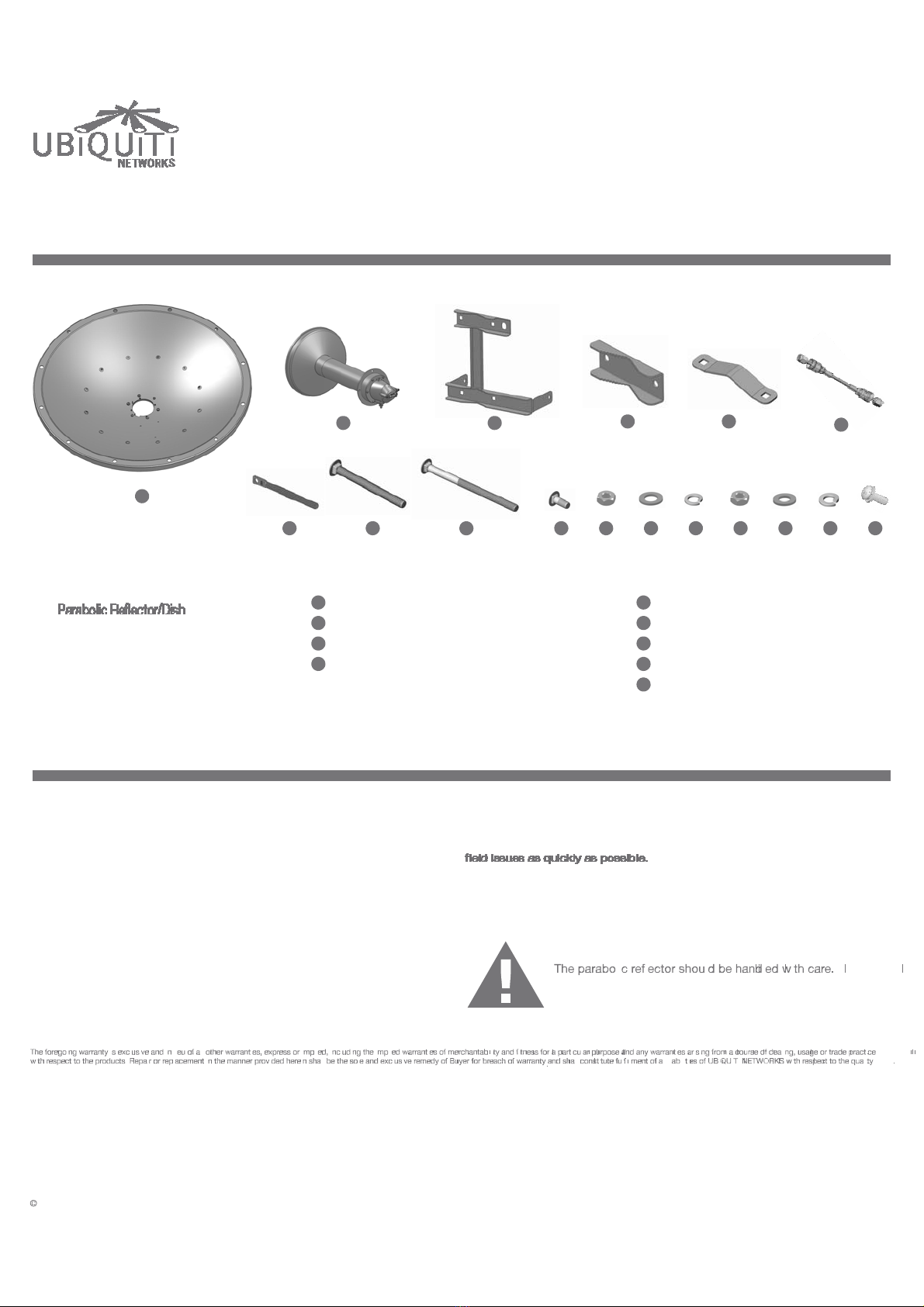

Contents Qty.
A 1 G M16 Elevation
R od 1
M
M16 Spring Lock Washer 1
B Feed 1 H M10X100
Bolt 2
N
M10 Nut 9
C Main
Mounting Bracket 1
I M10X150
Bolt
4
O
M10 Washer 9
D Pole
Bracket 2
J M10X25
Bolt
3
P
M10 Spring Lock Washer 9
E Stabilizer
Bracket 2
K M16
Nut
2
Q
M4 Bolt-Springlock-Washer Assembly 4
F Waterproof Cable* 2 L M16 Washer 2
* For model RD-5G30 and RD-3G26 only
** Products may be different from pictures and are subject to change without prior
notice
W
elcome
Thank you for purchasing this Ubiquiti
Networks Backhaul Antenna.
Theseinstructions are for
the following model numbers:
(I) RD-5G30
(II) MD-5G30
(III) RD-3G26
(IV)
MD-
3G26
Tools Required for Mounting
1. Screw driver Phillips #1 (Qty. 1)
2. 16mm or 5/8 inch wrench (Qty. 1)
3. 24mm wrench (Qty.1)
Support
Ubiquiti support engineers are located in the U.S. and in Europe and are
dedicated to helping customers resolve software, hardware compatibility,
or
Internet: www .ubnt.com
Internet Support Forum:
www .forum.ubnt.com
IMPORTANT
NOTICE
Deformations in the shape will reduce the
p r oducts effective-
ness.
General Warranty:
UBIQUITI
NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and warrants that the Products furnished hereundershall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI
NETWORKS under normal use and operation. UBIQUITI NETWORKS sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option, anydefective Product that fails during the warranty period. Theexpenseof
removal
and reinstallation of anyitem is not included in this warrant y.
and performance of the Products.
UBIQUITI NETWORKS reservesthe right to inspect all defective Products (which must be r etu r ned by Buyer to UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization
(RMA) number f r om UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned to Buyer
f r eight collect. UBIQUITI NETWORKS shall have no obligation to make repairs or replacement necessitated by catastrophe, fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or any other parties. Thewarranty period of any
repaired or replaced. Product shall not extend beyond its original
term.
Warranty Conditions
The foregoing warranty shall apply only
if:
(I) TheProduct has not been subjected to misuse, neglect or unusual physical, electrical or electromagnetic stress, or some other type of accident.
(II)
No modi cation, alteration or addition has been made to the Product by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORKS’s authorized representatives or otherwise approved by UBIQUITI
NETWORKS. (III) TheProduct has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation.
Disclaimer.
UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating
to system performance, including coverage, buyer’s selection of products for buyer’s application and/or failure
of products to meet government or regulatory requirements.
2010 Ubiquiti Networks, Inc. All Rights Reserved.Contents may varydepending on model version - Featuresand speci cations subject to change without
notice.

2
1. Install Feed to Dish
Install B Feed to A Dish by:
Q M4 Bolt-Springlock-Washer Assembly (Qty.4)
The Dish/Feed are keyed so that the feed can only
be installed one way.
To install, line up the alignment pin
on the Dish with the hole on the Feed
as shown in gure 1.
1
2. Install Main Mounting Bracket and Elevation Rod
Put
I M10X150 Bolt on the C Main Mounting Bracket. Install C
Main Mounting Bracket and G Elevation Rod to A Dish by:
J M10X25 Bolt (Qty.3)
O M10 Washer(Qty.3)
P M10 Spring Lock Washer (Qty.
3)
N M10 Nut (Qty. 3)
L M16 Washer(Qty.2)
M M16 Spring Lock Washer(Qty. 1)
K M16 Nut (Qty.2)
Pivot Points should be loose to allow mounting frame
to move so that
elevation rod can be installed.
3. Install Rocket and Waterproof C a b l e s
Model MD-5G30 and MD-3G26 go to step 4.
Install Rocket by lining up slots on Rocket/Dish bracket. Slide into
place.
Install F Waterproof Cables (Qty.2)to
Rocket/Dish
connectors. Rubber boot to be placed over connectors for
weatherproo ng.
3
4 . Attach Stabilizer Bracket to Pole
Select location for Dish antenna and attach the stabilizer bracket to
mounting pole just below where Dish will
be installed as shown in gure 4.
Tighten to 14M-m (10
lb-ft). Install E Stabilizer Bracket to pole by:
H M10X100 Bolt (Qty. 2)
O M10 Washer(Qty.2)
P M10 Spring Lock Washer(Qty.2)
N M10 Nut (Qty.2)
4
5. Attach Antenna to Mounting Pole
Mounting bracket can accommodate 1.5"-4"pole.
Mount the antenna slightly above the stabilizer bracket as shown in gure 5
using the following
parts:
I M10X150 Bolt (Qty.4)
O M10 Washer(Qty.4)
P M10 Spring Lock Washer(Qty.4)
N M10 Nut (Qty.4)
5
6. Adjust Azimuth and Elev a tion
After a visual alignment of both elevation and azimuth, azimuth can be
adjusted by rotating the antenna while supported by the stabilizer bracket.
Elevation is adjusted
by tightening/loosening the elevation rod.
When azimuth/elevation are set tighten nuts to
approximately
14N-m(10 lb-ft) or less should the mounting pole show
deformation.

6
