Ubiquiti UniFi SmartPower USP-RPS User manual

UniFi SmartPower RPS USP Cable Rack-Mount Brackets (Qty. 2)
Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)
Package Contents
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Power Cord Rubber Feet (Qty. 4)
System Requirement
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi
Hardware Overview
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

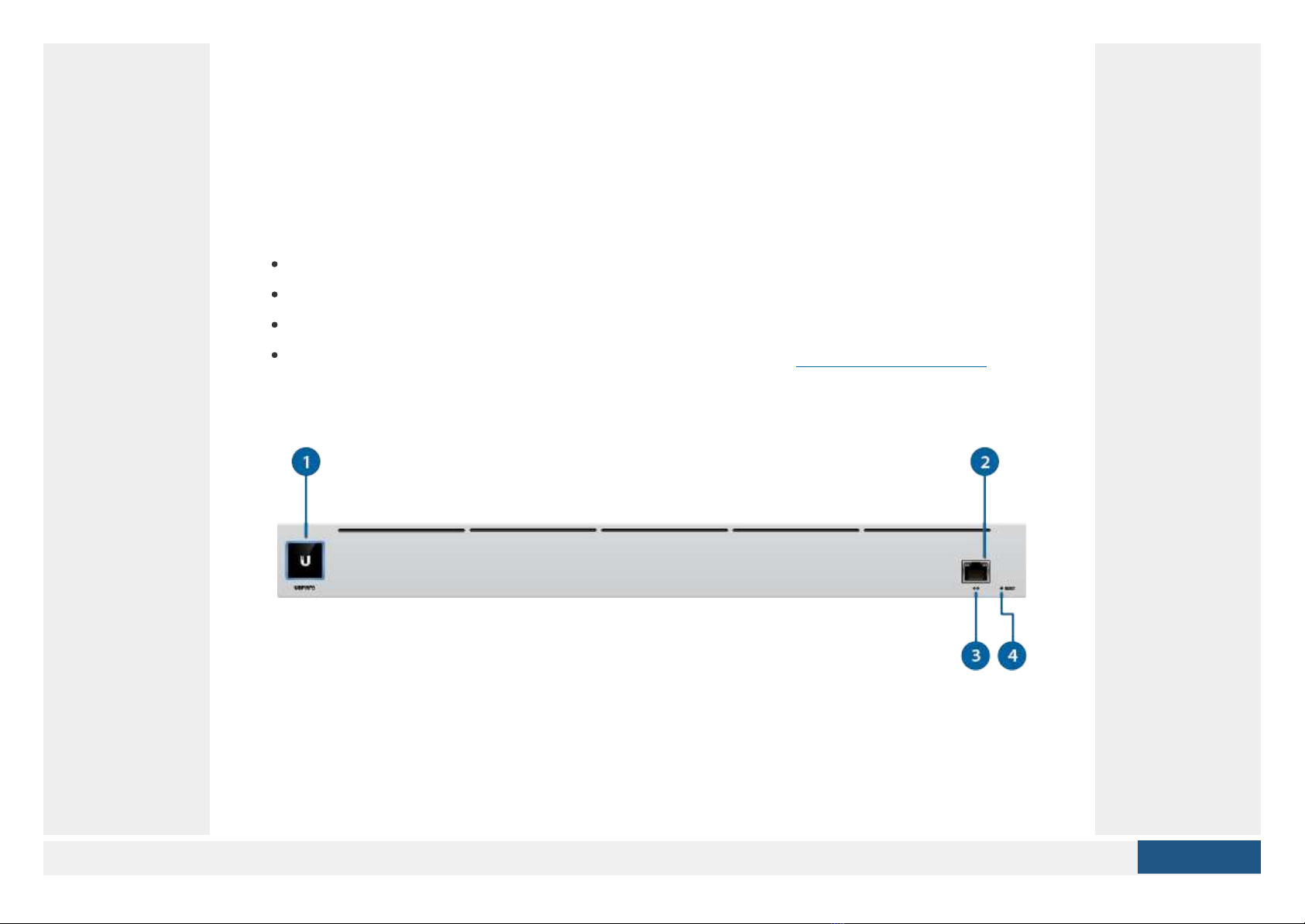

Touchscreen Display
RJ45 Speed/Link/Activity LED
Bootup Animation Initializing.
Steady White Factory defaults, waiting for adoption.
Steady Blue Successfully adopted by a network and working
properly.
Location Animation
This indicates that you clicked Locate in the UniFi
Controller software. The software will also display the
location of the device on the map.
Off No Link
Green
Link Established at 10/100/1000 Mbps
Flashing Indicates Activity
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

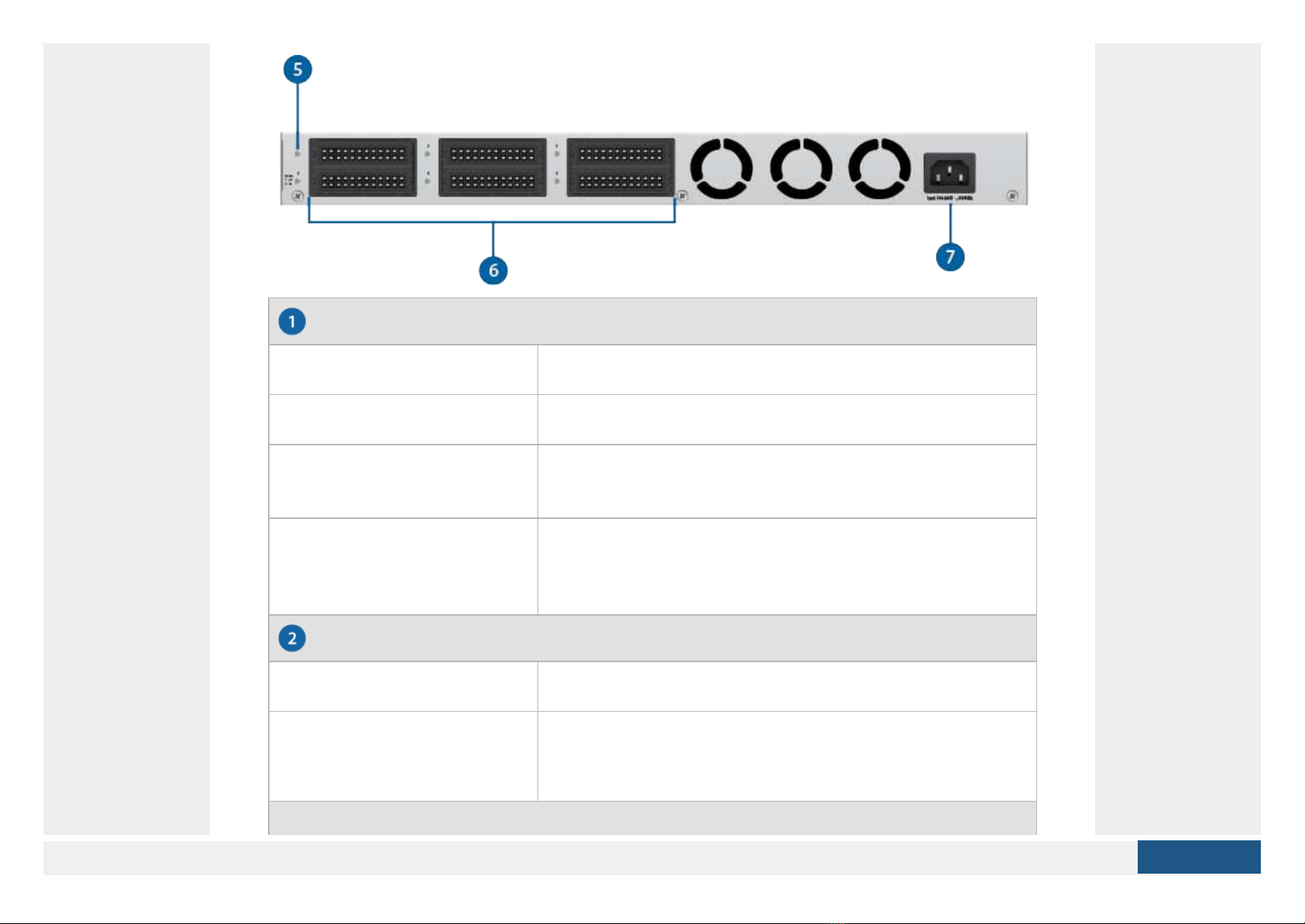

LAN Port
Reset Button
USP RPS LED (Ports 1 - 6)
USP Connect DC Output (Ports 1 - 6)
Power Port
The RJ45 port supports a 10/100/1000 Ethernet connection. Set to DHCP Client by
default.
Resets to factory defaults. The device should be running after bootup is complete.
Press and hold the Reset button for about 10 seconds until the display indicates that
the device has reset itself. After a few seconds, the LED will turn off, and the device
will automatically reboot.
The LED lights up blue when there is an active power connection.
Connect the included USP Cable to a UniFi device with a USP Connect DC input.
(Additional USP cables are sold separately as model USP-Cable.)
Connect the included Power Cord to the Power port.
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor
use.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

For outdoor applications, shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the USP-RPS itself
should be housed inside a protective enclosure.
Hardware Installation
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
OR
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Connecting Power
1.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Connecting the USP Cable
Some UniFi devices have a proprietary USP port that allows them to be connected
using a Ubiquiti USP-Cable (sold separately).
1.
2.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Note: The stop line should not be visible when the cable is completely
plugged in.
4.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

5.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Note: The stop line should not be visible when the cable is completely
plugged in.

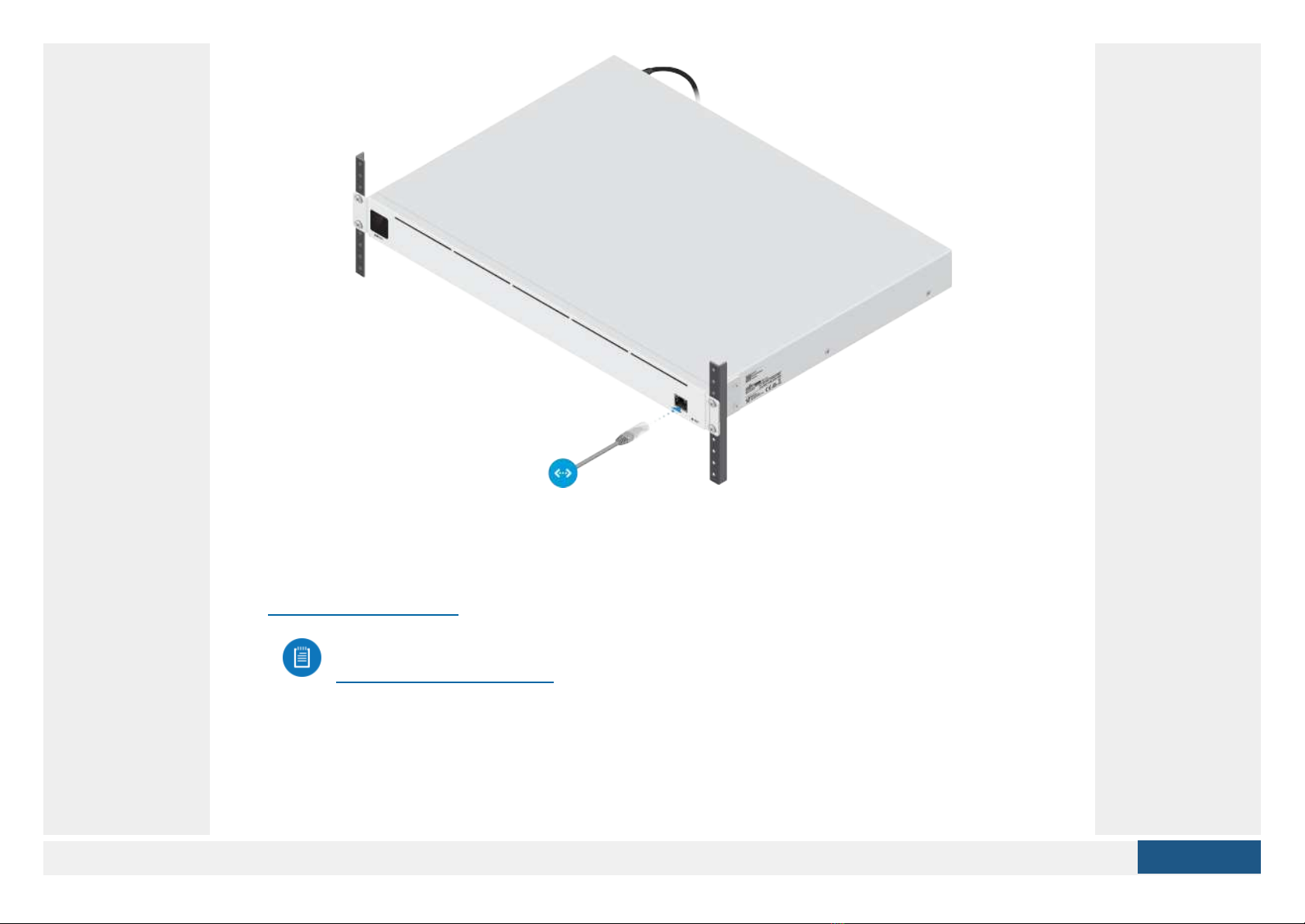

Connecting to the LAN
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Software Installation
Download and install the latest version of the UniFi Controller software at
ui.com/download/unifi and follow the on-screen instructions.
Note: If you already have UniFi Controller v5.12.x or newer installed, skip to
“Adopting the USP-RPS”.
After you have installed the software and run the UniFi Installation Wizard, a login
screen will appear for the UniFi Controller management interface. Enter the admin
name and password that you created and click Sign In.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

To adopt the UniFi Switch, proceed to “Adopting the USP-RPS”.
You can manage your network and view network statistics using the UniFi Network
Controller management interface. For information on using the UniFi Network Controller
software, refer to the User Guide located on our website at: ui.com/download/unifi
Adopting the USP-RPS
1. From the UniFi Controller dashboard, click Devices in the left menu bar.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

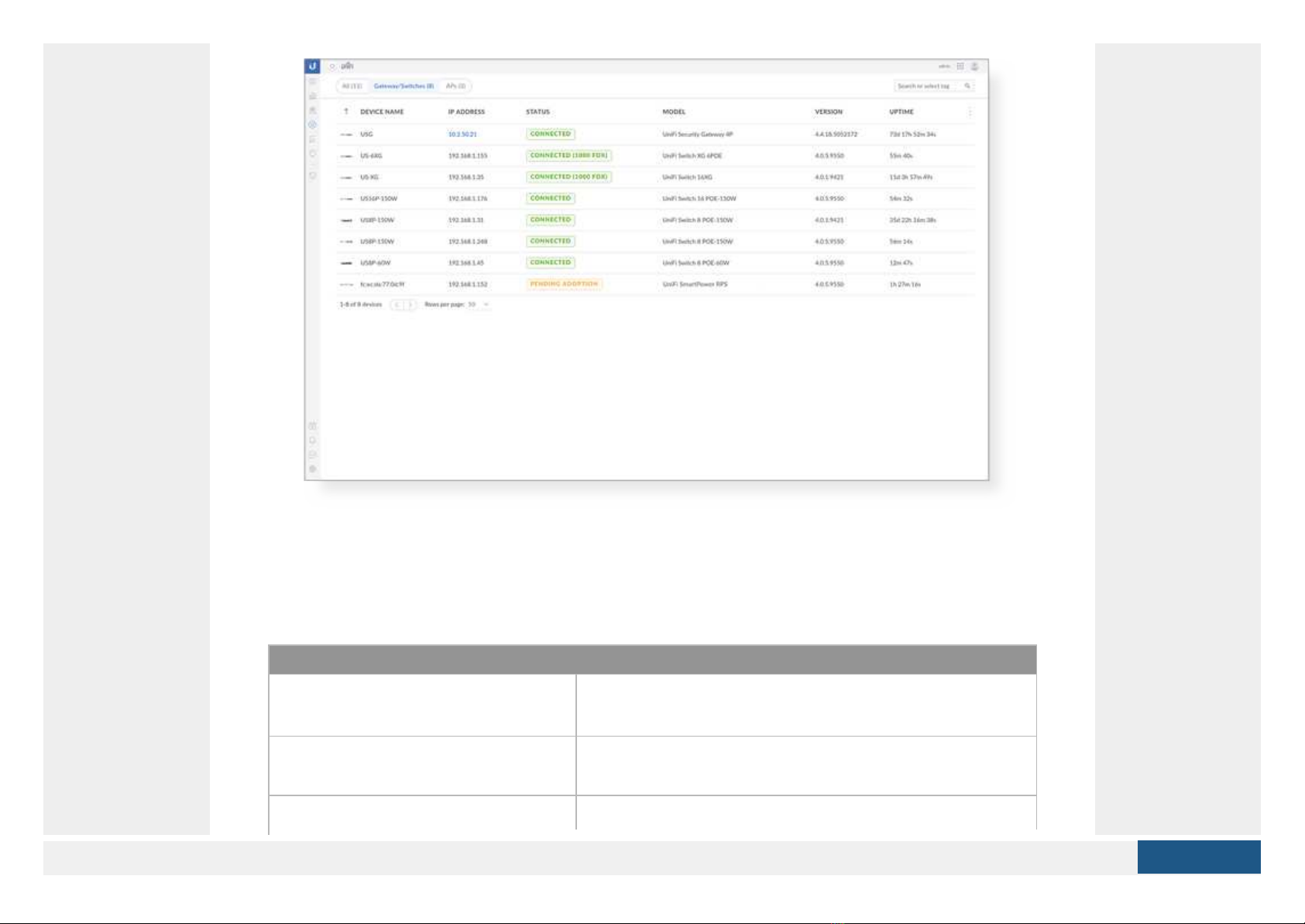

2. On the Devices screen, locate the USP-RPS in the list of devices under the Model
column. To adopt the USP-RPS, click Adopt.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3. The System LED on the device will turn blue to confirm that it has been successfully
adopted.
Specifications
USP-RPS
Dimensions 442.40 x 325.60 x 43.70 mm
(17.42 x 12.82 x 1.72")
Weight 5.500 kg (12.13 lb)
With Mount Brackets 5.590 kg (12.32 lb)
Interfaces
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

USP-RPS
Networking (1) 10/100/1000 Mbps RJ45 Port
Management Ethernet In-Band
Power Output (6) RPS DC Ports
Max. Power Consumption 995W
Power Method (1) Universal AC Input, 100 to 240VAC
Power Supply Internal 350W AC/DC
Internal 645W AC/DC
Supported Voltage Range 100 - 240VAC
Display 1.3" Color Touch Panel
LED
System Status
RJ45 Link/Activity
USP RPS Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
RPS
Total Output Power
52VDC 11.54A (600W)
11.5VDC 30.44A (350W)
Max. Output Power per RPS Port
52VDC 11.54A (600W)
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RPS
11.5VDC 30.44A (350W)
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20
mm of clearance next to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated
on the manufacturer’s label. Connection to a different power source than those specified may
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are
not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only
by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground
wire intended for connection to a grounded safety outlet.
Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
