Ubiquiti EdgePower 54V User manual

54V, 72W DC Power Supply
with UPS and PoE
Model: EP-54V-72W

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgePower™.
This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
EdgePower EP-54V-72W
Mount Brackets
(Qty. 2)
Bracket Screws
(Qty. 8)
Wall Mount
Screws
(Qty. 2)
Wall Mount
Anchors
(Qty. 2)
Power Cord Power Cable with
DC Jack
Power Cable with Ring
Terminals
Installation Requirements
For wall-mounting:
• Drill with 6 mm drill bit
• Phillips screwdriver
WARNING: To reduce the risk of fire or electric shock, do
not expose the EdgePower to rain or moisture.
Note: Although the cabling can be located outdoors, the
EdgePower itself should be housed inside a protective
enclosure.

Hardware Overview
Front Panel Ports
DC Out
RJ45 Ports 1-2
Battery In Power
Interface Description
RJ45 1-2 RJ45 switch ports support 10/100 Ethernet
connections and 54V Passive Power over
Ethernet (PoE) output.
DC Out Connect the Power Cable with DC Jack to this
terminal block for 54V, 1.3A output.
Battery In Optional: Connect the Power Cable with Ring
Terminals to a 12V lead acid battery (not
included).
Power Connect the included Power Cord.
Note: The external battery may be used as a hot backup.
It will provide continuous power in the event of an
interruption or loss of power on the Powerport.

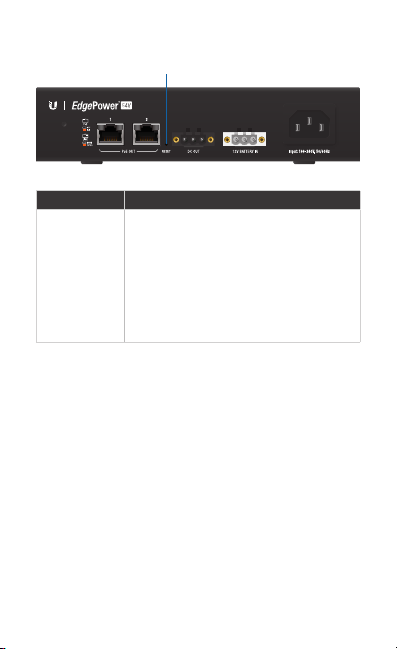

Front Panel Button
Reset
Button Description
Reset
To reset to factory defaults:
1. Disconnect power from the EdgePower.
2. Reconnect power while holding the
Reset button. The port LEDs will
repeatedly light up in sequential order
(this takes approximately 5 seconds).
3. When both port LEDs flash twice at the
same time, release the Reset button.

Front Panel LEDs
System
System LED
State Status
Flashing White Bootup in progress.
White Ready for use, not connected to Ubiquiti®
Network Management System (UNMS™).
Blue Ready for use, connected to UNMS.
Steady Blue
with Occasional
Flashing
Ready for use, unable to connect to
UNMS, check connection to UNMSserver.
Quickly Flashing
Blue Used to locate a device in UNMS.
Alternating
Blue/White Firmware upgrade in progress.
You can use the EdgePower Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,
upgrade, and back up your devices using a singleapplication.
Get started at www.unms.com

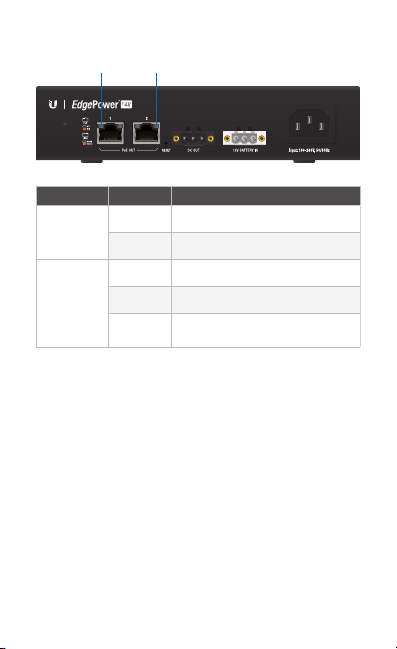

RJ45 LEDs
PoE Link/Act
LED State Status
PoE
Off No Power over Ethernet
Amber 54V Power over Ethernet
Link/
Activity
Off No Link
Amber Link Established at 10/100 Mbps
Amber
Flashing Link Activity at 10/100 Mbps

Hardware Installation
The EdgePower can be mounted on a horizontal surface,
mounted on a vertical surface, or mounted in a rack
(rackmount accessory not included).
WARNING: The EdgePower must not be stacked. Do not
place it on top of another device. Do not place anything
on top of the EdgePower.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
Connecting Power
Use the included Power Cord to power the EdgePower. You can
also use the Battery Input option as a hot backup.

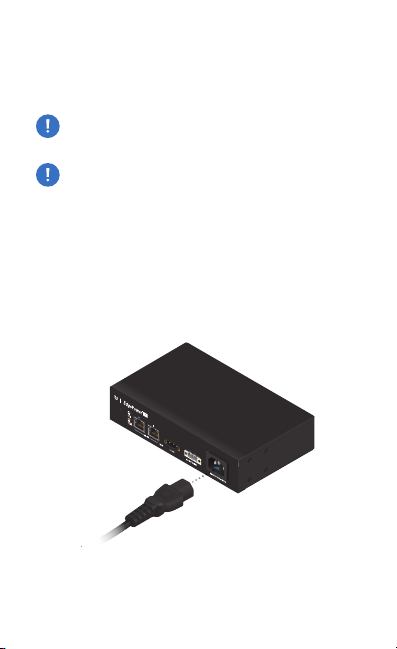

Using the Power Cord
1. Connect the Power Cord to the Power port.

2. Connect the other end of the Power Cord to a power outlet.

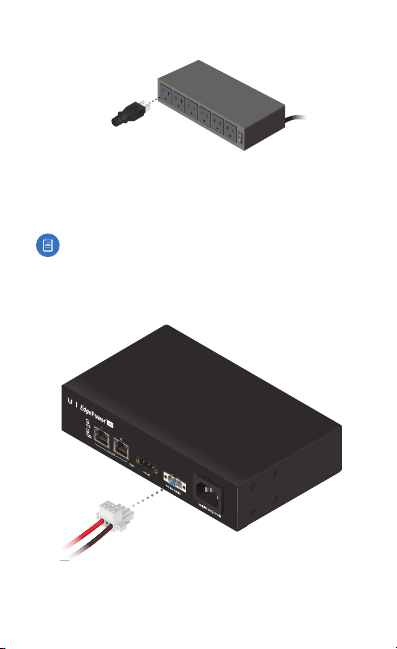

Using the Battery Input (Optional)
For redundant power backup, connect an external battery (not
included) to the EdgePower.
Note: Only one power source can be used at any one
time. With both power sources connected, the AC input
will be used; the battery input defaults to backup.
1. Connect the 3-pin terminal block connector of the Power
Cable with Ring Terminals to the Battery In port.
2. Wire the other end of the DC/DC power cable to an
external 12VDC battery.

Connecting Ethernet
1. Connect an Ethernet cable from your 54V PoE device(s) to
ports 1-2 on the EdgePower.
WARNING: Before enabling PoE out in the EdgePower
Configuration Interface, ensure that the connected
PoE device supports 54V Passive PoE.
Connecting DC Output
1. Connect the 3-pin terminal block connector of the Power
Cable with DC Jack to the DC Out port.
2. Connect the other end of the DC/DC power cable to a
device with a DC jack.

Accessing the Configuration Interface
Access the EdgePower Configuration Interface to monitor
status and power consumption, or to configure 54V Passive
PoE and network settings.
Note: The EdgePower is set to DHCP by default with a
fallback IP address of 192.168.1.20.
1. Launch your web browser. Type the appropriate IP address
in the address field. Press enter (PC) or return (Mac).
https://192.168.1.20
2. The login screen will appear. Enter ubnt in the Username
and Password fields. Click Login.
The EdgePower Configuration Interface will appear.
Customize additional settings as needed. For 54V Passive PoE
configuration, refer to the Configuring PoE Settings section.
You can also manage your device using UNMS, which lets you
configure, monitor, upgrade, and back up your devices using a
singleapplication. Get started at www.unms.com

Configuring PoE Settings
The PoE setting for ports 1-2 is set to Off by default.
WARNING: Before activating PoE, ensure that the
connected device supports passive PoE and the
supplied voltage.
1. In the EdgePower Configuration Interface, click the
Power tab.
2. For the appropriate port, click to enable 54V Passive PoE.
3. Click Save Changes.

Specifications
EP-54V-72W
Dimensions 115 x 192 x 43.7 mm
(4.53 x 7.56 x 1.72")
Weight 650 g (1.43 lb)
Interfaces
Networking
Management
(2) 10/100 Mbps RJ45 Ports
Ethernet In-Band
PoE Output (2) 54VDC Passive PoE
(Pins 4, 5+; 7, 8-)
DC Output 54V, 1.3A
Power Method
AC Input
Battery Input
100-240VAC, 50-60 Hz, Universal Input
DC Terminal Block
Power Supply
AC Input
Battery Input
AC/DC 72W
12VDC Lead Acid Battery*
Max. Power Consumption
System
Output
2W
72W
LEDs
System
RJ45 Data Ports
Status
PoE; Link/Activity
ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certications CE, FCC, IC
* Battery not included.

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may
cause fire hazard. Keep at least 20 mm of clearance next
to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
www.ubnt.com/support/warranty/
The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This Class A digital apparatus complies with Canadian CAN ICES-003.
CAN ICES-3(A)/NMB-3(A)
Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
Australia and New Zealand
Warning: Operation of this equipment in a residential environment
could cause radio interference.

CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.

Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.

Declaration of Conformity
български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че това устройство
EP-54V-72W е в съответствие със съществените изисквания и други приложими разпоредби
на Директиви 2014/30/ЕС, 2014/35/ЕС. Цялостният текст на ЕС декларацията за съответствие
може да се намери на следния интернет адрес: www.ubnt.com/compliance
Hrvatski [Croatian] UBIQUITI NETWORKS ovim putem izjavljuje da je ovaj uređaj EP-54V-72W
sukladan osnovnim zahtjevima i ostalim bitnim odredbama Direktiva 2014/30/EU,
2014/35/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:
www.ubnt.com/compliance
Čeština [Czech] UBIQUITI NETWORKS tímto prohlašuje, že toto EP-54V-72W zařízení, je ve
shodě se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/EU,
2014/35/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese:
www.ubnt.com/compliance
Dansk [Danish] Hermed, UBIQUITI NETWORKS, erklærer at denne EP-54V-72W enhed,
er i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiver
2014/30/EU, 2014/35/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende
internetadresse: www.ubnt.com/compliance
Nederlands [Dutch] Hierbij verklaart UBIQUITI NETWORKS, dat deze EP-54V-72W apparaat, in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijnen
2014/30/EU, 2014/35/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden
geraadpleegd op het volgende internetadres: www.ubnt.com/compliance
English Hereby, UBIQUITI NETWORKS, declares that this EP-54V-72W device, is in compliance
with the essential requirements and other relevant provisions of Directives 2014/30/EU,
2014/35/EU . The full text of the EU declaration of conformity is available at the following internet
address: www.ubnt.com/compliance
Eesti keel [Estonian] Käesolevaga UBIQUITI NETWORKS kinnitab, et antud EP-54V-72W seade,
on vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivide 2014/30/EL,
2014/35/EL. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:
www.ubnt.com/compliance
Suomi [Finnish] Täten UBIQUITI NETWORKS vakuuttaa, että tämä EP-54V-72W laite, on
yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivien 2014/30/EU,
2014/35/EU. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa: www.ubnt.com/compliance
Français [French] Par la présente UBIQUITI NETWORKS déclare que l’appareil EP-54V-72W,
est conforme aux exigences essentielles et aux autres dispositions pertinentes des directives
2014/30/UE, 2014/35/UE. Le texte complet de la déclaration UE de conformité est disponible à
l’adresse internet suivante: www.ubnt.com/compliance
Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses EP-54V-72W
Gerät, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen
relevanten Vorschriften der Richtlinien 2014/30/EU, 2014/35/EU befindet. Der vollständige
Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
www.ubnt.com/compliance
Ελληνικά [Greek] Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή
EP-54V-72W, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις
των οδηγιών 2014/30/EE, 2014/35/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ
διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.ubnt.com/compliance
Magyar [Hungarian] Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a EP-54V-72W készülék
megfelel az alapvető követelményeknek és más vonatkozó 2014/30/EU, 2014/35/EU irányelvek
rendelkezéseit. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes
címen: www.ubnt.com/compliance
Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta EP-54V-72W tæki er í samræmi við
grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB
samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance

Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo
EP-54V-72W, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive
2014/30/UE, 2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al
seguente indirizzo Internet: www.ubnt.com/compliance
Latviešu valoda [Latvian] Ar šo, UBIQUITI NETWORKS, deklarē, ka EP-54V-72W ierīce, ir saskaņā ar
būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES. Pilns
ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: www.ubnt.com/compliance
Lietuvių kalba [Lithuanian] UBIQUITI NETWORKS deklaruoja, kad šis EP-54V-72W įrenginys
atitinka esminius reikalavimus ir kitas 2014/30/ES, 2014/35/ES Direktyvų nuostatas. Visas ES
atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: www.ubnt.com/compliance
Malti [Maltese] Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz EP-54V-72W
huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta‘Direttivi
2014/30/UE, 2014/35/UE. Id-dikjarazzjoni tal-konformità tista’tiġi kkonsultata minn
www.ubnt.com/compliance
Norsk [Norwegian] Herved UBIQUITI NETWORKS, erklærer at denne EP-54V-72W enheten,
er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene
2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på
følgende internettadresse: www.ubnt.com/compliance
Polski [Polish] Niniejszym, UBIQUITI NETWORKS , oświadcza, że urządzenie EP-54V-72W, jest
zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektyw
2014/30/UE, 2014/35/UE . Pełny tekst deklaracji zgodności UE jest dostępny pod następującym
adresem internetowym: www.ubnt.com/compliance
Português [Portuguese] UBIQUITI NETWORKS declara que este dispositivo EP-54V-72W,
está conforme com os requisitos essenciais e outras disposições das Directivas 2014/30/UE,
2014/35/UE . O texto integral da declaração de conformidade está disponível no seguinte
endereço de Internet: www.ubnt.com/compliance
Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv EP-54V-72W
este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivelor 2014/30/UE,
2014/35/UE . Textul integral al declarației UE de conformitate este disponibil la următoarea adresă
internet: www.ubnt.com/compliance
Slovenčina [Slovak] Týmto UBIQUITI NETWORKS, prehlasuje, že toto EP-54V-72W zariadenie,
je v súlade so základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice
2014/30/EÚ, 2014/35/EÚ . Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese:
www.ubnt.com/compliance
Slovenščina [Slovenian] Družba UBIQUITI NETWORKS izjavlja, da je naprava EP-54V-72W
v skladu z obveznimi zahtevami in drugimi ustreznimi določbami direktiv 2014/30/EU in
2014/35/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu:
www.ubnt.com/compliance
Español [Spanish] Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo
EP-54V-72W, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables
o exigibles de las Directivas 2014/30/UE, 2014/35/UE . El texto completo de la declaración UE de
conformidad está disponible en la dirección Internet siguiente: www.ubnt.com/compliance
Svenska [Swedish] Härmed UBIQUITI NETWORKS, intygar att denna EP-54V-72W enhet är i
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiven 2014/30/EU, 2014/35/EU . Den fullständiga texten till EU-försäkran om
överensstämmelse finns på följande webbadress: www.ubnt.com/compliance
Online Resources
Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com

©2018-2019 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti,
UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX,
EdgeOS, EdgePower, TOUGHCable, and UNMS are trademarks or registered
trademarks of UbiquitiNetworks,Inc. in the United States and in other
countries. Apple and the Apple logo are trademarks of Apple Inc., registered
in the U.S. and other countries. App Store is a service mark of Apple Inc.,
registered in the U.S. and other countries. Android, Google, Google Play, the
Google Play logo and other marks are trademarks of Google LLC. All other
trademarks are the property of their respective owners. JLNB032819
www.ubnt.com
Ubiquiti Networks, Inc.
685 Third Avenue, 27th Floor
New York, NY 10017
USA
