Ubiquiti USP-RPS User manual

UniFi SmartPower RPS USP Cable Rack-Mount Brackets (Qty. 2)
Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)
Power Cord Rubber Feet (Qty. 4)
Package Contents
System Requirement
• Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (1.8 or newer recommended)
• Web Browser: Google Chrome (Other browsers may have limited functionality.)
• UniFi Network Application v5.12.x (or newer), available at: ui.com/download
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
1 of 12 31/03/2022, 16:13

Touchscreen Display
RJ45 Speed/Link/Activity LED
LAN Port
/unifi
Hardware Overview
Bootup Animation Initializing.
Steady White Factory defaults, waiting for adoption.
Steady Blue Successfully adopted by a network and working
properly.
Location Animation
This indicates that you clicked Locate in the UniFi
Network Application. The Application will also
display the location of the device on the map.
Off No Link
Green
Link Established at 10/100/1000 Mbps
Flashing Indicates Activity
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
2 of 12 31/03/2022, 16:13

Reset Button
USP RPS LED (Ports 1 - 6)
USP Connect DC Output (Ports 1 - 6)
Power Port
The RJ45 port supports a 10/100/1000 Ethernet connection. Set to DHCP
Client by default.
Resets to factory defaults. The device should be running after bootup is
complete. Press and hold the Reset button for about 10 seconds until the
display indicates that the device has reset itself. After a few seconds, the LED
will turn off, and the device will automatically reboot.
The LED lights up blue when there is an active power connection.
Connect the included USP Cable to a UniFi device with a USP Connect DC
input. (Additional USP cables are sold separately as model USP-Cable.)
Connect the included Power Cord to the Power port.
Installation Requirements
• Phillips screwdriver
• Standard-sized, 19" wide rack with a minimum of 1U height available
• For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
• For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the AC
ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the USP-RPS itself
should be housed inside a protective enclosure.

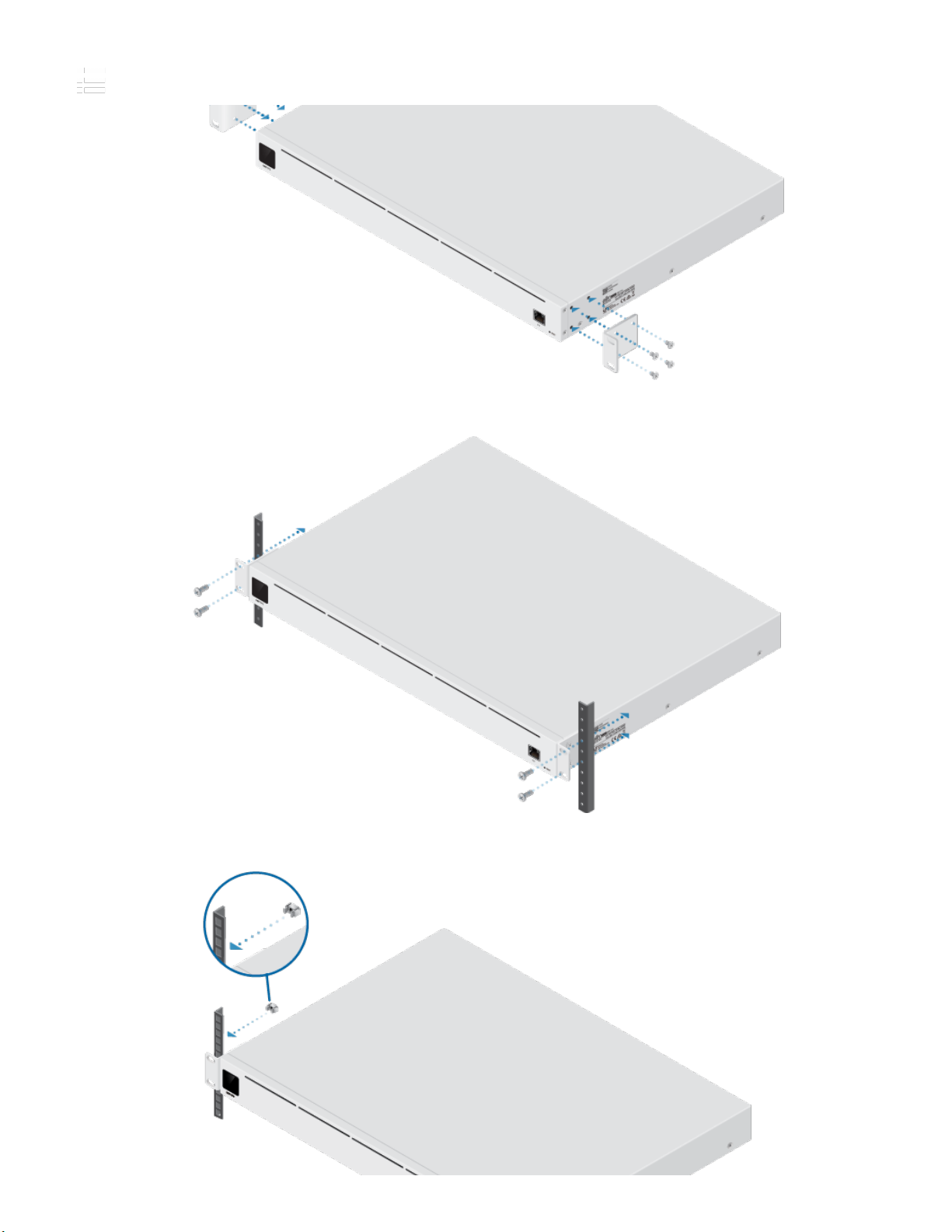

Hardware Installation
1.
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
3 of 12 31/03/2022, 16:13

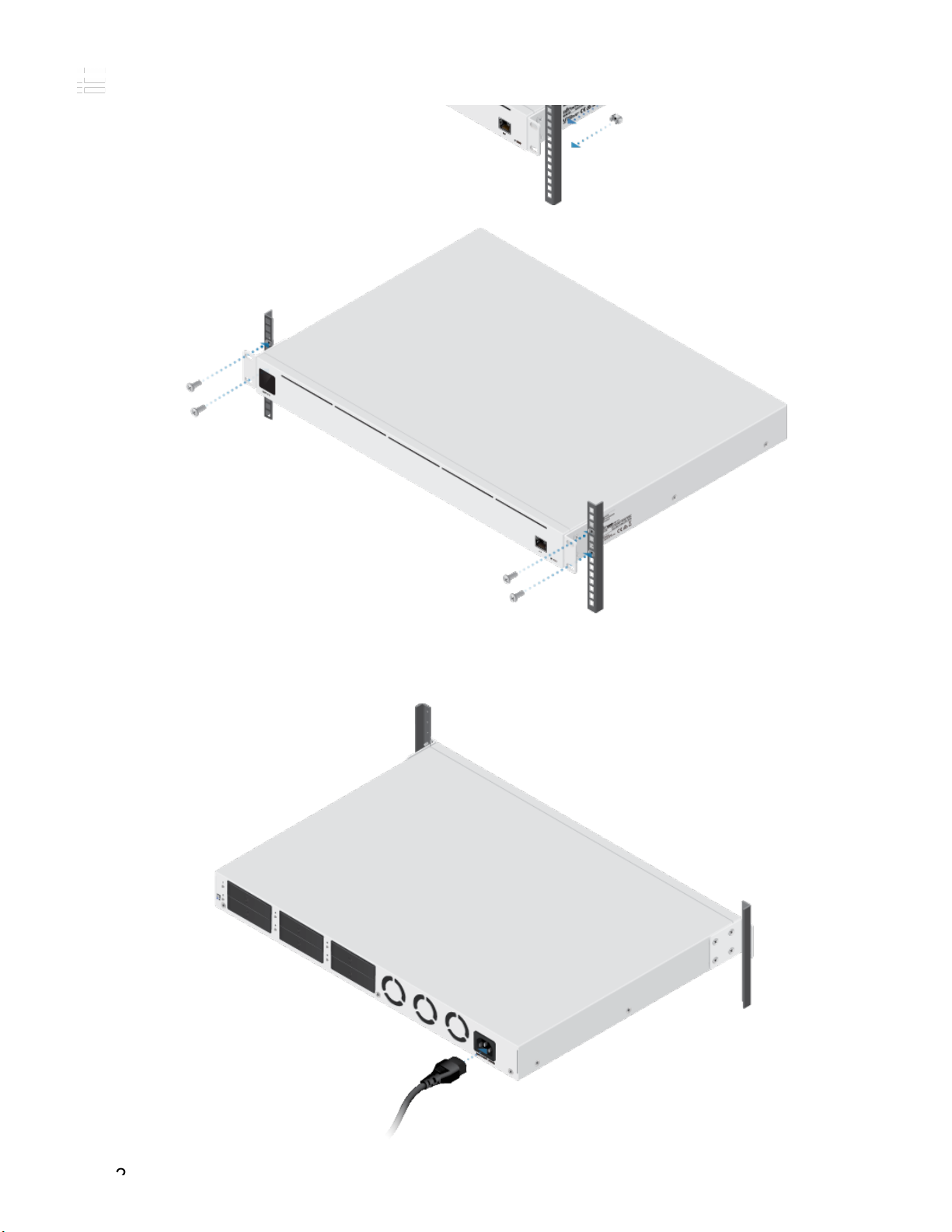

2.
OR
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
4 of 12 31/03/2022, 16:13

Connecting Power
1.
2.
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
5 of 12 31/03/2022, 16:13

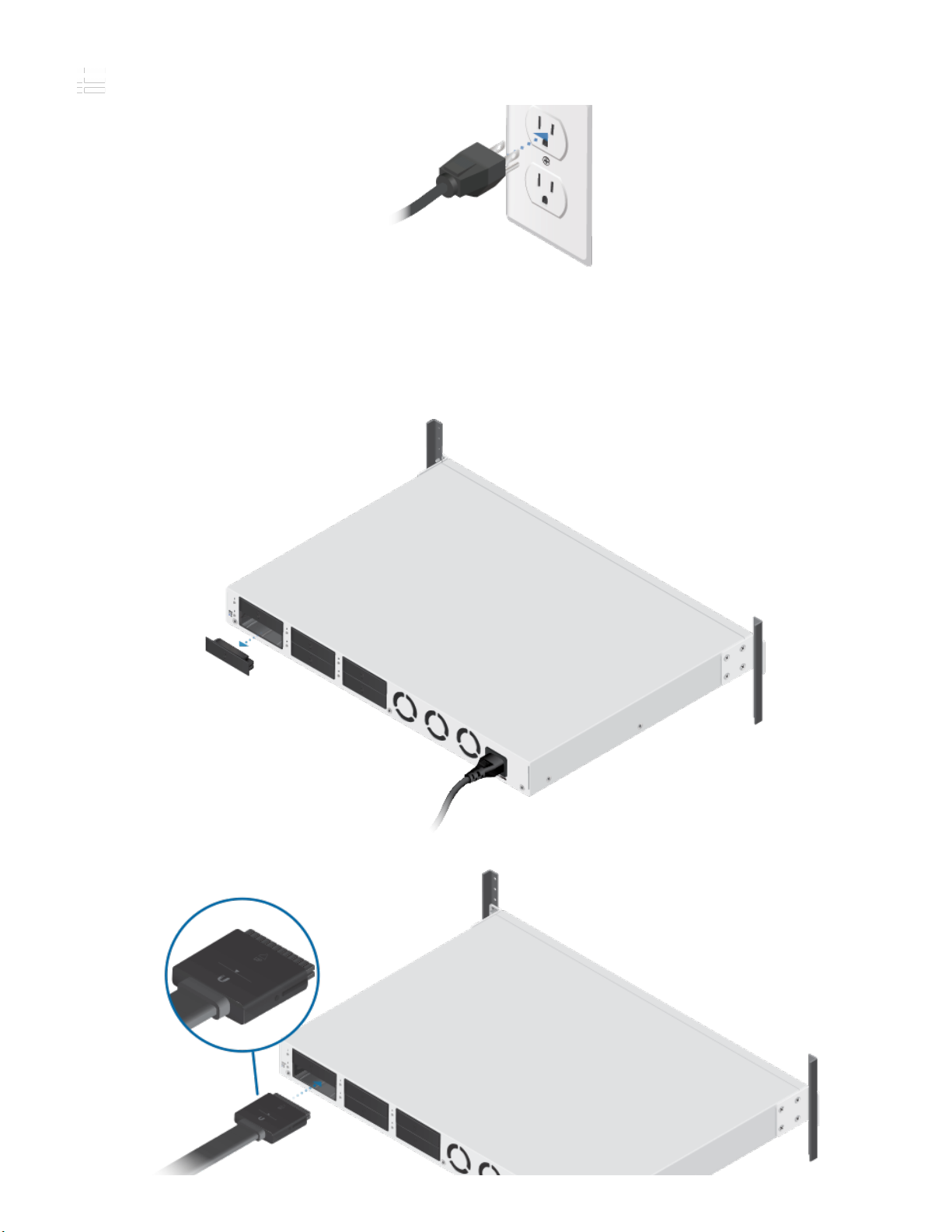

2.
Connecting the USP Cable
Some UniFi devices have a proprietary USP port that allows them to be connected
using a Ubiquiti USP-Cable (sold separately).
1.
2.
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
6 of 12 31/03/2022, 16:13

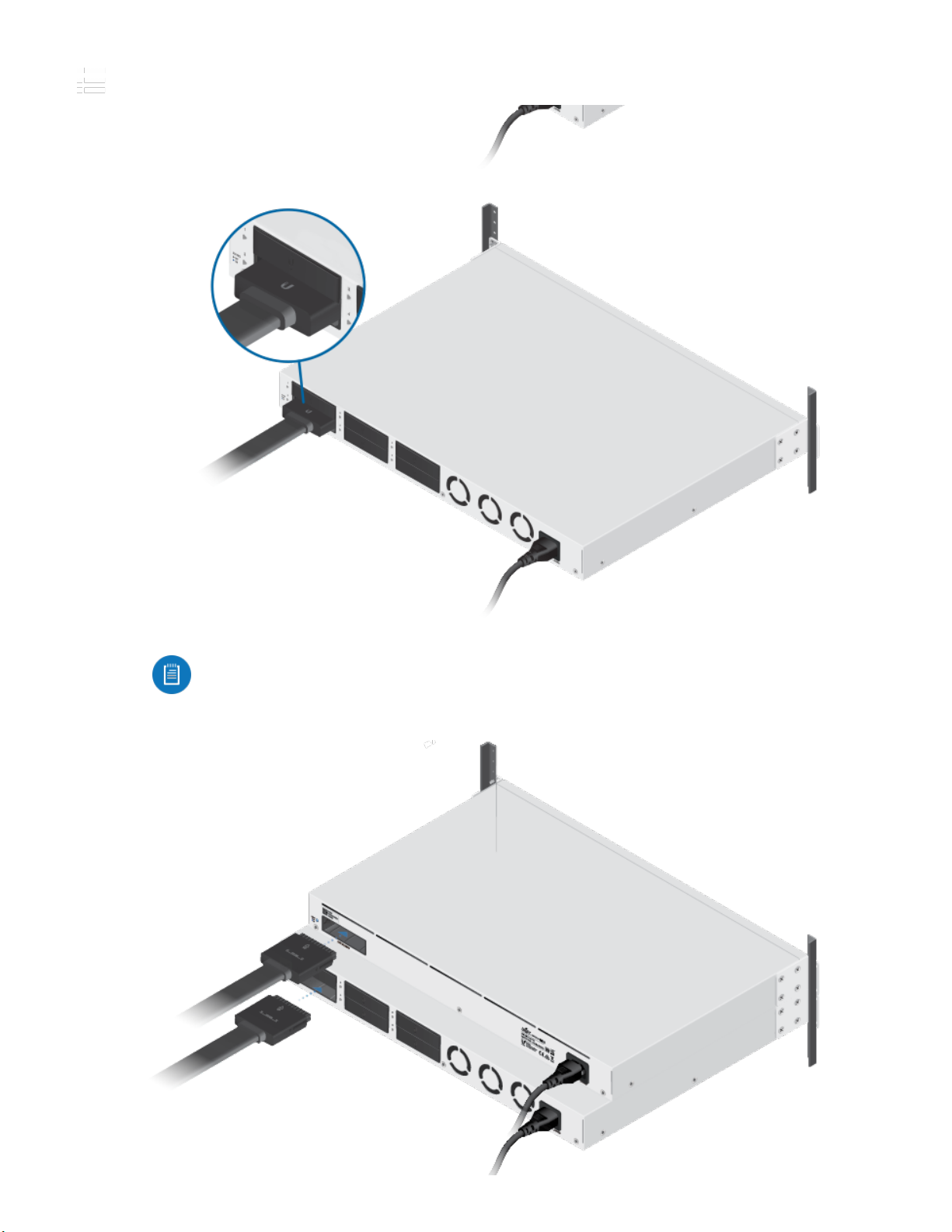

3.
Note: The stop line should not be visible when the cable is completely
plugged in.
4.
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
7 of 12 31/03/2022, 16:13

5.
Note: The stop line should not be visible when the cable is completely
plugged in.
Connecting to the LAN
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
8 of 12 31/03/2022, 16:13

Specifications
USP-RPS
Dimensions 442.40 x 325.60 x 43.70 mm
(17.42 x 12.82 x 1.72")
Weight 5.500 kg (12.13 lb)
With Mount Brackets 5.590 kg (12.32 lb)
Interfaces
Networking (1) 10/100/1000 Mbps RJ45 Port
Management Ethernet In-Band
Power Output (6) RPS DC Ports
Max. Power Consumption 995W
Power Method (1) Universal AC Input, 100 to 240VAC
Power Supply Internal 350W AC/DC
Internal 645W AC/DC
Supported Voltage Range 100 - 240VAC
Display 1.3" Color Touch Panel
LED
System Status
RJ45 Link/Activity
USP RPS Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
RPS
Total Output Power
52VDC 11.54A (600W)
11.5VDC 30.44A (350W)
Max. Output Power per RPS Port
52VDC 11.54A (600W)
11.5VDC 30.44A (350W)
Safety Notices
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
9 of 12 31/03/2022, 16:13

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at
least 20 mm of clearance next to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a
remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements
indicated on the manufacturer’s label. Connection to a different power source than those
specified may result in improper operation, damage to the equipment or pose a fire hazard
if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided
only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety
ground wire intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never
use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the
grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification,
modification or misuse can provide a shock hazard that can result in serious injury or
death.
c. Contact a qualified electrician or the manufacturer if there are questions about the
installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide
appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and
regulations.
4. The product is used in Service Access Area.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis,
and, where applicable, specify arbitration instead of jury trials or class actions.
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
10 of 12 31/03/2022, 16:13

Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operations of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32. In a residential
environment this equipment may cause radio interference.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
WEEE Compliance Statement
Declaration of Conformity
USP-RPS Quick Start Guide
USP-RPS Quick Start Guide https://dl.ui.com/qsg/USP-RPS/USP-RPS_EN.html
11 of 12 31/03/2022, 16:13

Online Resources
© 2022 Ubiquiti Inc. All rights reserved.
