Uebo M400 User manual

www.uebo.net
M400 MEDIA PLAYER USER MANUAL

Table of Contents
1. Introduction ........................................................................................................... 3
1.1 Product Overview.........................................................................................3
1.2 Package Contents ........................................................................................4
1.3 Radio Interference........................................................................................4
1.4 Repair........................................................................................................... 5
1.5 Disposing of the Player................................................................................. 5
1.6 Cautions.......................................................................................................5
1.7 Technical Support......................................................................................... 6
1.8 Connection...................................................................................................6
1.9 Front Panel................................................................................................. 10
1.10 Side Panel.................................................................................................11
1.11 Back Panel.................................................................................................11
1.12 First Time Usage .......................................................................................11
1.13 Remote Control ........................................................................................ 14
2. Main Functions.................................................................................................... 15
2.1 Setup Menu................................................................................................ 15
2.2 Movie Library.............................................................................................. 26
2.3 Photo Library.............................................................................................. 29
2.4 Music Library.............................................................................................. 32
2.5 File Manager .............................................................................................. 34
2.6 Playlist management .................................................................................. 45
2.7 Copy Function ............................................................................................ 46
2.8 Internet Media............................................................................................. 48
2.9 Web Browser.............................................................................................. 51
2.10 SAMBA Server and Client......................................................................... 51
2.11 FTP Server ............................................................................................... 52
2.12 Remote Management............................................................................... 54
3. Upgrading the Firmware...................................................................................... 55
4. Appendixes ......................................................................................................... 56
4.1 Specifications ............................................................................................. 56
5.2 Frequently Asked Questions....................................................................... 57
5. Copyrights and Trademarks ................................................................................ 58
6. Warranty..............................................................................................................59
7. GPL Statement.................................................................................................... 59

1. Introduction
1.1 Product Overview
Congratulations on the purchase of your brand new UEBO M400 Media Player. We hope you
will enjoy using it as much as we did designing it. With this Player you can enjoy HD movies,
music, and photos of all your memorable moments.
Network Feature
•A/V streaming via Ethernet(10M/100M/1000M) & WLAN (802.11b/g/n)
•A/V streaming via UPnP Media Server
•File sharing via SAMBA server
•FTP Server
•UPnP Server
•Internet Radio (SHOUTcast)
•BT/Transmission download
•Video podcast
•Web browser
•Remote management
•USB 3.0 Support
Media Library
•Equipped with a powerful search engine that allows you to browse and search multimedia
files with ease.
Movie Playback
•Fast forward/rewind
•View subtitle
•Supports major video formats (1080p HD video decoding)
•Subtitle control: color/offset/size
•Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/
WMV/ASF/RM/RMVB/FLV
Music Playback
•Fast forward/rewind
•Shuffle
•Repeat
•Music format: MP3/OGG/WMA/WAV/FLAC/APE

Photo Viewing
•You can view photos in slide show mode with background music.
•Zoom in/out, Rotate
•Photo format: HD JPEG/BMP/GIF/TIF/PNG
USB 3.0 &2.0 Support
•USB 3.0 DEVICE port (for computer connection, compatible to USB 2.0 )
•USB 2.0 HOST port (for USB storage devices)
Card reader
•SD/MMC
File Copy
•Supports copying & moving files among USB, HDD and/or memory card.
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.
1.2 Package Contents
Part Quantity
M400 Media Player 1
USB 3.0 cable 1
A/V cable 1
Remote Control 1
Remote Control Battery 2
AC/DC adaptor 1
Quick Installation Guide 1
User Manual 1
Note:
The actual contents in the package might be different from the packing list in this manual.
1.3 Radio Interference
This Player complies with Part 15 of the FCC Rules. Operation of this Player is subject to the
following two conditions: 1), this Player must not cause harmful interference and 2), must
accept any interference received, including interference that may cause undesired operation.

1.4 Repair
If you experience problems in operating the Player, or need the Player repaired, please call
UEBO Technical Support. Contact information for Technical Support can be found in the
Service section of our website, http://www.uebo.net or in Section 1.7 below.
1.5 Disposing of the Player
UEBO strongly encourages recycling of this Player if and when you decide to dispose of it.
Since each city has different regulations with respect to recycling, please consult your local
recycling information center for advice on proper methods of disposal.
1.6 Cautions
You should not modify this Player in any way, as this will void your product warranty.
1. Make sure the power cable is not subjected to weight pressure or sharp objects that
might damage the outer shell of the cable and expose the inside wire.
2. To avoid the risk of electric shock, please be sure to unplug the power adapter before
cleaning the Player.
3. Do not replace the power adapter, power cable or power connector with a 3rd party
product; instead, call UEBO Customer Service to obtain the replacement part.
4. Do not disassemble the Player; doing so will void your Player Hardware Warranty.
5. Do not operate the Player near water or in a wet or highly humid environment, so as to
avoid electrical shock.
6. Do not use the Player during a thunderstorm as there may be a remote risk of electric
shock from lightning.
7. Do not hit the Player with a hard object.
8. Do not shake the Player, as this could cause damage to the hard disk.
9. Do not place the Player close to an electromagnetic or magnetic field, as this could
cause damage to the hard disk.
10. Keep the Player and its cables away from children, so as to protect them from
electrical shock or suffocation hazard.

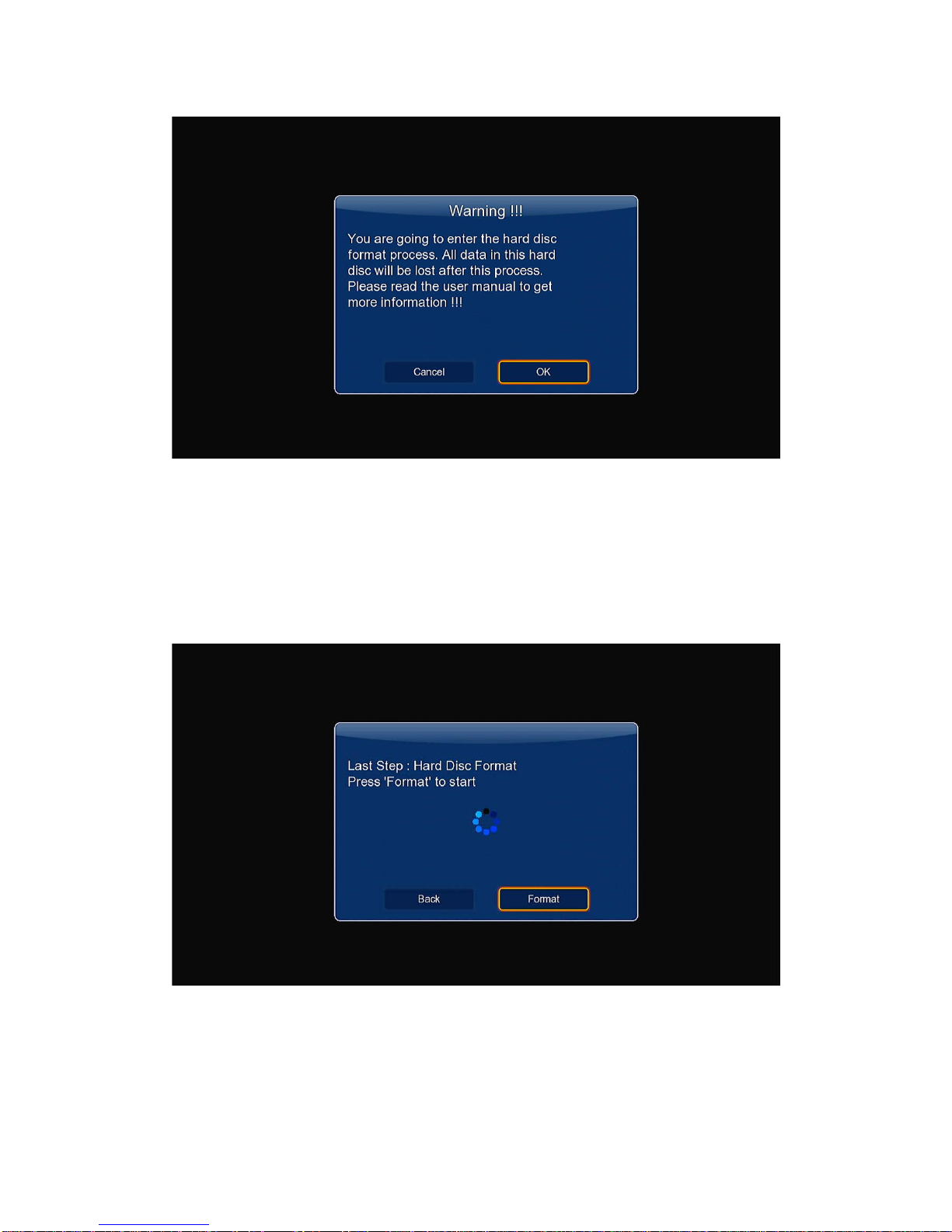

1.6.1 A WARNING Regarding the Hard Disk
The Player uses an internal hard disk for media data storage. If you need to format the hard
drive after the initial format, you should first read the <Frequently Asked Questions> section
carefully, as well as check our website for the most-up-to-date information before you proceed.
1 Physical impact may create a bad sector in the hard disk. If this is the case, the best way
to fix the problem is to connect the hard disk to the Windows PC and run a CHKDSK
command.
2 All data stored in the Player may be lost due to physical impact, electrical shock, power

failure, HDD format and other causes, so please backup your data regularly.
It is recommended that in order to maintain consistent hard disk performance, you should
routinely perform defragmentation (by connecting it to your PC and run Disk Defragmentation
utility) of the hard disk after long periods of usage.
1.7 Technical Support
For all troubleshooting and technical issues you can contact UEBO Technical Support by
doing the following:
•Email us at [e-mail].
•Go on www.uebo.net and activate live chat.
•Call us Toll Free at 1-877-986-8588
•Send us a Fax at 1-408-986-8585
Our representatives are ready to assist you Monday through Friday from 9am – 6pm (PST).
Also find Frequently Asked Questions, as well a Knowledge Base with many articles on known
issues, of our products at www.uebo.net/help.asp.
1.8 Connection
1.8.1 Connecting the Power Supply
1. Follow the instructions below and connect the AC adaptor to the Player’s DC IN jack.
2. Follow the instructions below and plug the AC adaptor into the power outlet.
1.8.2 USB Mass Storage Device (like USB stick, USB HDD etc.) Connection
Note:The Player will recognize the device as soon as it’s plugged in and all files can be
accessed through the appropriate home menus or the file manager.
In order to access the contents of the external USB devices (purchased separately):
1 Make sure the Player’s power is on.

2 Plug the USB stick, USB HDD, USB Camera, USB Camcorder, or any USB storage
devices into the USB HOST port of this Player.
3 You can then browse the contents of the connected USB devices.
1.8.3 Connecting a Memory Card
Note:The Player will recognize the device as soon as it’s plugged in and all files can be
accessed through the appropriate home menus or the file manager.
The Player has a built-in memory card slot, which enables you to view the contents of the
memory card. To do this, please follow these instructions:
1 Insert the memory card into the memory card slot on the Player’s front panel.
2 Make sure to properly orient the memory card before insertion. And remember that the
memory card can only be inserted from one direction, please don’t try to force it in as
that may damage the memory card or the memory card reader in the Player.

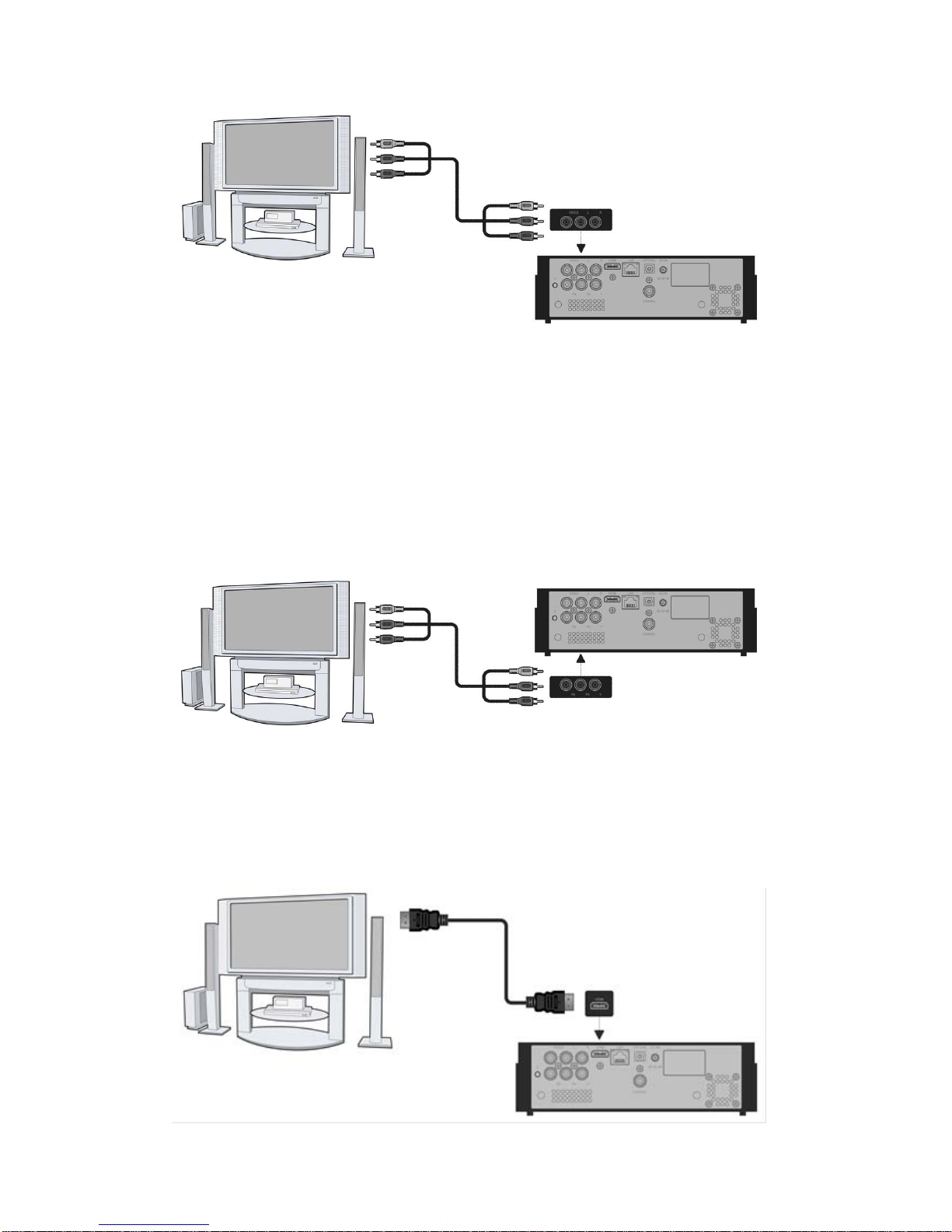

1.8.4 TV connection
1.8.4.1 A/V OUT (Composite A/V)
1 Plug the composite cable connector (3 colors - Yellow/Red/White) into the Player’s
A/V OUT jack.
2 Plug the other end of the composite cable into your TV’sA/V IN jack.
3 Changing the input on the TV to the jack you used in step 2.

1.8.4.2 Y/Pb/Pr Component OUT
1 Plug the component cable (3 colors – Yellow, Blue and Red) into the Player’s
Y/Pb/Pr jack.
2 Plug the other end of the component cable into your TV’s Y/Pb/Pr jack.
3 The component cable does not carry audio; to facilitate audio connection, please do
one of the following:
a) Use the audio output from the A/V OUT jack;
b) Use the audio output from the S/PDIF Coaxial or Optical jack.
1.8.4.3 HDMI OUT
1. Plug one connector from your HDMI cable to the Player’s HDMI jack.
2. Plug the other connector from your HDMI cable into the TV’s HDMI jack.
IMPORTANT: The HDMI cable is an optional accessory and is sold separately

1.8.5 Digital Audio Device connection
To enjoy special sound processing by Dolby Digital or DTS (Please refer to “3.1 Changing
Audio Settings” for configuration), do the following:
1. Plug the coaxial RCA connector into the Player’s S/PDIF coaxial jack.
2. Connect the other end of the coaxial RCA cable to your amplifier or your home stereo
system.
3. Using your optical TOSLink cable is another option. Connect the TOSLink cable to the
optical jack.
4. Connect the other end of the TOSLink cable to your Amplifier or home stereo system.
NOTE:We do not supply TOSLink Optical fibers or Coaxial RCA cables.
1.8.6 Connecting to a LAN
To connect to a LAN (Local Area Network) you need a CAT5, CAT5e or CAT6 network cable
(not supplied).
1. Connect one end of the network cable to the Player’s RJ45’s LAN jack.
2. Connect the other end of the network cable to the network router/switch/hub.

1.8.7 Connecting to a WLAN
This Player has built in Wi-Fi and doesn’t require additional accessories in order to connect to
your network. For configuration information, please refer to section ‘2.1.4 Changing Network
Settings’.
1.9 Front Panel
1. VFD display screen
2. POWER indicator
