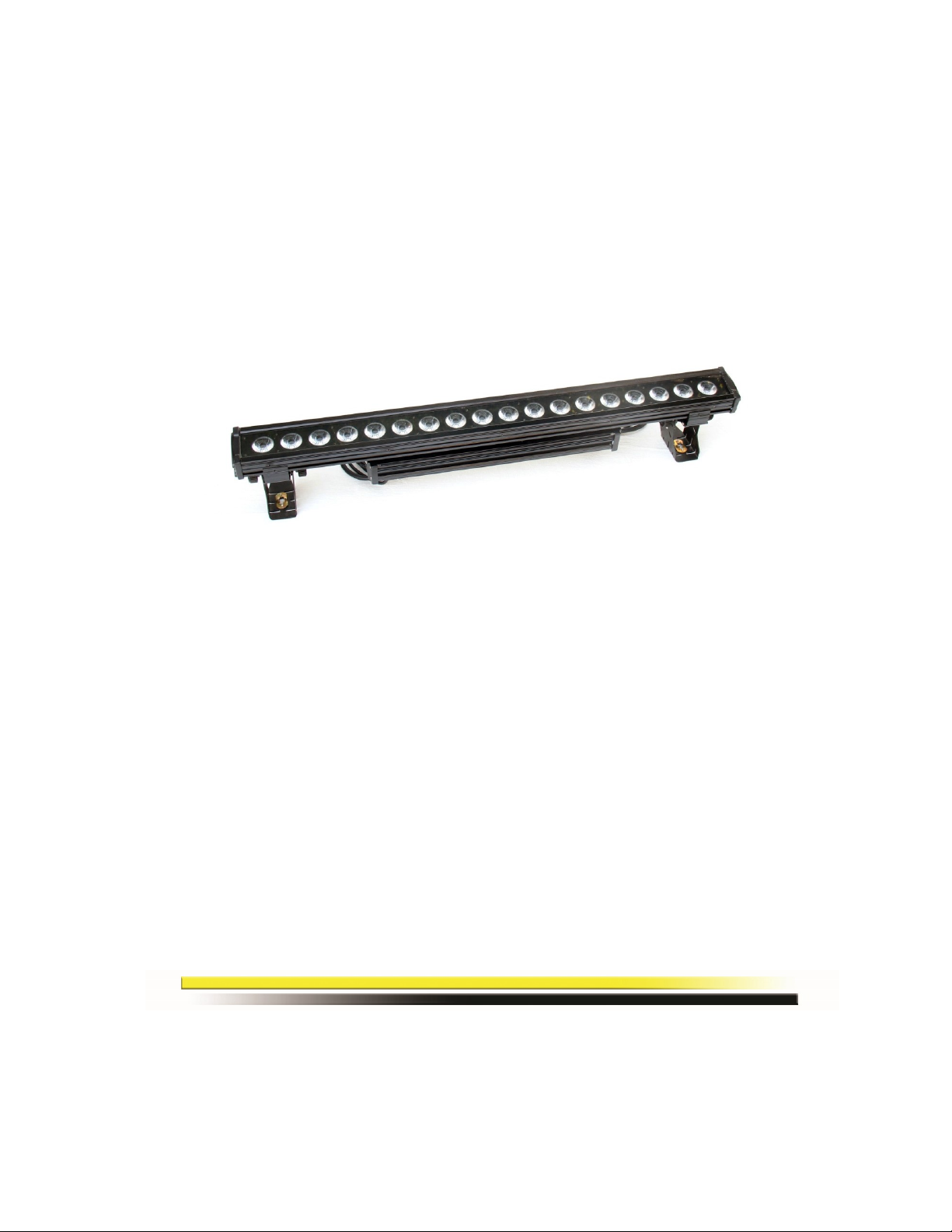

ULS ULSHIM User manual

ULS Manufacturing
‘ULSHIM’
18 x 15 watt RGBWA+UV
Pixel Map
IP65 RATED
WWW.ULTRALIGHTSOUND.CO.UK
 18PCS RGBWAUV 6 IN 1 LEDS
 Colour range :16.7 million colours

 Beam Angle: 25 degree
 Life 50,000 hours
 Dimmer : 0 -100% with regulated constant colour control
 Strobe: 10 flashes per second
 Control panel: 4 digit led segment display
 Supply volts 90-240v AC 50/60hz
 Waterproof IP65
 Aluminium housing
 Packing box 110x15x18cm
 8kg

Safety intructions - Please read this manual carefully before your intial startup
CAUTION! TAKE CARE USING THIS DEVICE
RISK OF ELECTRIC SHOCK
Each person involved with the fitting, maintenance and operation of this device should be competent and follow
these instructions.
Before Initial start-up check the mains cable and device for any damage.
Should the fuse in the plug need replacing ensure a 3amp fuse with a British kite mark is used.
ULS manufacturing will not accept liability for any damages caused by the non-observance of this manual, or any
modification to this device.
Never remove warning or information labels.
Do not open this device or modify the equipment
Do not connect this device to a dimmer pack.
Do not switch this device on and off at short intervals.
Make sure the voltage is between 90 and 240v ac
Make sure the power cable is never crushed or forced, check the cable periodically.
If the equipment has been exposed to drastic temperature change (normally after transportation), allow device to
reach room temperature before powering on.
Do not touch this device during a thunderstorm.
If any of the following conditions occur, remove the ac plug:
Smoke or unusual smell.
Water or foreign objects inside the unit.
Damage to the housing caused by physical damage.
Never pull the power cord, always grasp the main body of the plug top.
Thank you for purchasing our premium Led Batten.

Rugged Design and build for out on the road use with a feature set to rival existing products on the market.
Key features
Dmx control modes 11, 29, 119, 108 and Dmx channel modes
Pixel mapping ability with individual Dmx control of 6 colours per led.
On board standalone control of patterns, chases and fixed colours. With advance control of speed and fade times.
Units can be linked together with the integral power and data cables.
Menu Keys
NOTE: Press enter after each change to save settings into the internal memory.
Main Menu
Value Function
A001 001 - 512 Dmx Address, display flashes when dmx data is not present
ID01 11/29/119/108ch Dmx channel model setting
CCOO 01-99 Colour snap standalone mode
Ed00 01-99 Colour crossfade standalone mode
Er00 01-99 Colour running 1
Po00 01-99 Colour running 2
Tr00 0-8 Chase effect
TU00 00-99 Chase Speed
BE50 0-50 Sound sensitivity
R200 001-255 Red Brightness
G200 001-255 Green Brightness
B200 001-255 Blue Brightness
W200 001-255 White Brightness
Y200 001-255 Amber Brightness
P200 001-255 UV Brightness
ID00 00-14 Id for chase effect

11 Channel Dmx Mode
Strobe
channel 5
speed
control
of each
colour
available
from
channel
6 - 11
dmx 1
Master
dimmer
dmx 2 Strobe open - fast
Chases from channel 3 generally
are more complex with longer
sequence times to complete each
loop
dmx 3 0-035 no function
036-045 Waterfall effect sharp – set your own colour   
046-055
Waterfall effect fade
–
set your
own colour   
056-065 Colour macros – set colour using channel 5/speed channel  
065-076 Colour chase/snap loop   
076-085 Colour chase/fade loop   
056-095 chase effect 1   
096-105 chase effect 2   
106-115 chase effect 3   
116
-
125
chase effect 4
  
126
-
135
chase effect 5
  
136
--
145
chase effect 6
  
146
-
155
chase effect 7
  
156
-
165
chase effect 8
  
166
-
175
chase effect 9
  
Chase
s
10 to 15 layers the colours
you chose from channel 6 to 11.
The more colours you add to your
chase the more complex the
chase loop becomes
176-185 chase effect 10   
186-195 chase effect 11   
196-205 chase effect 12   
206-215 chase effect 13   
216
-
225
chase effect 14
  
226
-
235
chase effect 15
  
246-255
Sound control - internal
microphone
Chases from channel 4 are more basic and traditional styles. However all allow you to set your
own background colour which the chase is implement ontop
Strobe channel 5 control

speed
of each
colour
available
from
channel
6 - 11
dmx 4 0-035 no function
036-045 chase effect 1   
046-060 chase effect 2   
061-075 chase effect 3   
076-090 chase effect 4   
091-105 chase effect 5   
106-120 chase effect 6   
121-135 chase effect 7   
136-150 chase effect 8   
151-165 chase effect 9   
166-180 chase effect 10   
181-195 chase effect 11   
196-215 chase effect 12   
216-230 chase effect 13   
231-245 chase effect 14   
246-255 chase effect 15   
dmx 5 0 -255 Speed slow to fast
dmx 6 0 -255 Red
dmx 7 0 -255 Green
dmx 8 0 -255 Blue
dmx 9 0 -255 White
dmx 10 0 -255 Amber
dmx 11 0 -255 UV
29 Channel Dmx Mode
Strobe
channel 5
speed
control
of each
colour
available
from
channel
6 - 11

dmx 1 Master dimmer
dmx 2 Strobe open - fast
Chases from channel 3 generally
are more complex with longer
sequence times to complete each
loop
dmx 3 0-035 no function
036-045
Waterfall effect sharp
–
set your
own colour   
046-055 Waterfall effect fade – set your own colour   
056-065 Colour macros – set colour using channel 5/speed channel  
065
-
0
76
Colour chase/snap loop
  
076
-
0
85
Colour chase/fade loop
  
056
-
095
chase effect 1
  
096
-
105
chase effect 2
  
106-115 chase effect 3   
116-125 chase effect 4   
126-135 chase effect 5   
136--145 chase effect 6   
146-155 chase effect 7   
156-165 chase effect 8   
166-175 chase effect 9   
Chases 10 to 15 layers the colours
you chose from channel 6 to 11.
The more colours you add to your
chase the more complex the
chase loop becomes
176-185 chase effect 10   
186-195 chase effect 11   
196
-
205
chase effect 12
  
206-215 chase effect 13   
216-225 chase effect 14   
226-235 chase effect 15   
246-255 Sound control - internal microphone
Chases from channel 4 are more basic and traditional styles. However all allow you to set your
own background colour which the chase is implement ontop
Strobe channel 5 speed
control
of each
colour
available
from

channel
6 - 11
dmx 4 0-035 no function
036-045 chase effect 1   
046-060 chase effect 2   
061-075 chase effect 3   
076-090 chase effect 4   
091-105 chase effect 5   
106-120 chase effect 6   
121-135 chase effect 7   
136-150 chase effect 8   
151-165 chase effect 9   
166-180 chase effect 10   
181-195 chase effect 11   
196-215 chase effect 12   
216-230 chase effect 13   
231-245 chase effect 14   
246-255 chase effect 15   
dmx 5 0 -255 Speed slow to fast
dmx 6 0 -255 Red
dmx 7 0 -255 Green
dmx 8 0 -255 Blue
dmx 9 0 -255 White
dmx 10 0 -255 Amber
dmx 11 0 -255 UV
dmx 12 0 -255 WHITE LED 1 OF 18
dmx 13 0 -255 WHITE LED 2 OF 18
dmx 14 0 -255 WHITE LED 3 OF 18
dmx 15 0 -255 WHITE LED 4 OF 18
----- ------ -------------------------------
dmx 29 0 -255 WHITE LED 18 OF 18
119
Channel Dmx Mode
Strobe
channel 5
speed
control
of each
colour
available
from
channel
6 - 11
dmx 1 Master dimmer
dmx 2 Strobe open - fast

Chases from channel 3 generally
are more complex with longer
sequence times to complete each
loop
dmx 3 0-035 no function
036-045 Waterfall effect sharp – set your own colour   
046-055 Waterfall effect fade – set your own colour   
056-065
Colour macros
–
set colour using
channel 5/speed channel  
065
-
0
76
Colour chase/snap loop
  
076-085 Colour chase/fade loop   
056-095 chase effect 1   
096-105 chase effect 2   
106-115 chase effect 3   
116-125 chase effect 4   
126-135 chase effect 5   
136--145 chase effect 6   
146-155 chase effect 7   
156-165 chase effect 8   
166-175 chase effect 9   
Chases 10 to 15 layers the colours
you chose from channel 6 to 11.
The more colours you add to your
chase the more complex the
chase loop becomes
176
-
185
chase effect 10
  
186
-
195
chase effect 11
  
196
-
205
chase effect 12
  
206-215 chase effect 13   
216-225 chase effect 14   
226
-
235
chase effect 15
  
246-255
Sound control
-
internal
microphone
119 Channel Dmx Mode
Chases from channel 4 are more basic and traditional styles. However all allow you to set your
own background colour which the chase is implement ontop
Strobe channel 5 speed
control
of each
colour
available
from
channel
6 - 11

dmx 4 0-035 no function
036-045 chase effect 1   
046-060 chase effect 2   
061-075 chase effect 3   
076-090 chase effect 4   
091-105 chase effect 5   
106-120 chase effect 6   
121-135 chase effect 7   
136-150 chase effect 8   
151-165 chase effect 9   
166-180 chase effect 10   
181-195 chase effect 11   
196-215 chase effect 12   
216-230 chase effect 13   
231-245 chase effect 14   
246-255 chase effect 15   
dmx 5 0 -255 Speed slow to fast
dmx 6 0 -255 Red
dmx 7 0 -255 Green
dmx 8 0 -255 Blue
dmx 9 0 -255 White
dmx 10 0 -255 Amber
dmx 11 0 -255 UV
dmx 12 0 -255 RED LED 1 OF 18
dmx 13 0 -255 GREEN LED 1 OF 18
dmx 14 0 -255 BLUE LED 1 OF 18
dmx 15 0 -255 WHITE LED 1 OF 18
dmx 13 0 -255 AMBER LED 1 OF 18
dmx 14 0 -255 UV LED 1 OF 18
----- ------- ------------------------
dmx
119 0 -255 UV LED 18 OF 18
108
channe
l dmx mode 108
CH
dmx 1 red led 1 0 - 100%
dmx 2 Green led 1 0 - 100%
dmx 3 Blue led 1 0 - 100%
dmx 4 White led 1 0 - 100%
dmx 5 Amber led 1 0 - 100%
dmx 6 UV led 1 0 - 100%

dmx 7 red led 2 0 - 100%
dmx 8 Green led 2 0 - 100%
dmx 9 Blue led 2 0 - 100%
dmx 10 White led 2 0 - 100%
dmx 11 Amber led 2 0 - 100%
dmx 12 UV led 2 0 - 100%
---- ------ -------------------
dmx 108 Uv - 18 0 - 100%
ULS Manufacturing is a trading name of Ultra Light & Sound Limited.
UK based with readily available spares and new units in the UK.
This product was designed and manufactured in the UK by ULS Manufacturing.
Our engineers have a detailed knowledge and are able to provide technical support both over the telephone,
email and at our UK Headquarters.
Our ethos is to be able to maintain service and extend product life and minimise the “beyond economic repair”
approach, helping reduce waste and saving time, money and the environment.

Ultra Light& Sound limited
Tel [phone]
www.UltraLightSound.co.uk
[e-mail]
WEE Declaration
This symbol indicates that this piece of electrical equipment must
be disposed of separately from normal waste at the end of its
operational life. Please dispose of this produced by contacting ULS
manufacturing or taking it to your local recycling or collection
centre.
