Ultra Creation Limited UCT-CMT1 User manual

User manual
Peace of mind
Wireless Thermometer
Product model: UCT-CMT1
Version: V1.0
Precaution！！！
In order to avoid unnecessary issues, please read the following
information before using the wearable thermometer.
1. Warning: Any form of modification to this device is forbidden.
2. To avoid risk of explosion, do not use device with flammable
anesthetic gas.
3. A qualified doctor should make the diagnosis of clinical
manifestation and symptoms, with device as a subsidiary tool.
4. Please check device regularly to make sure that it is in firm contact
with the skin. Otherwise data may be inaccurate.
5. Soaking device in liquid or disinfectant may lead to incorrect date
or breakage.
6. Sudden movement of the users may lead to incorrect data.
7. Make sure to keep receiver charged when using it to monitor body
temperature for a long period time
8. The temperature monitoring feature of device is primarily
applicable to children. Muscle and fat affect wireless transmission,
so range of transmission decrease if an adult or obese child uses
device.
9. Pay attention to operating temperature and humidity. Using device
in conditions that do not satisfy requirements may lead to
measurement error.
10.Device is for indoor use only.
11.DO NOT apply pressure to device. If the cover is broken, stop
using the device.
12.DO NOT use device together with MRI or CT equipment.
13.DO NOT use the patch for any other purpose besides measuring
human body temperature.
14.DO NOT place the patch over wounds, sores or abrasions.

15.DO NOT excessively bend or twist the patch prior to application.
16.DO NOT immerse the patch in water. Patch may be removed for a
bath or shower and then re-applied afterwards.
17.DO NOT use the patch if it has been damaged or immersed in
water.
18.DO NOT attempt to take apart the patch.
19.DO NOT wear successive patches under the same arm. When
removing one patch and starting another, place the second patch
on the other side of the body.
Package contents
1.Baby thermometer host x 1pc
1.CR2025 battery x 1pc
2.Silicon rubber case x 1pc
3.Medical Patches x 10pcs
4.User manual x 1pc
Functional description
1.Monitoring and recording
APP can monitor body temperature continuously and keep data
record for your doctor reference when needed any time.
2.Reminding
When body temperature reaches threshold you already set up;
when your phone is out of the “thermometer” Bluetooth range;
When medicine is administered;
When the device is in a low battery;
3.Remote Monitoring via WIFI
WIFI connectivity (connect via Bluetooth to thermometer) allow to
access real time data with another smart phone which connects to
the WIFI network.
4.Remote Monitoring via Sever
One smart phone via Bluetooth access real time data indoor and
login in account, when another phone with same app and login in
same account then can share any data. Ease at work. （待核对）
Specifications
Product name: Wireless Thermometer
Product model: UTC-CMT1
Battery ：3V CR2025 (Can be replaced)

Battery life: 150 days at 8 hours per day
Product dimension: 45 X 27 X 6 (mm)
Weight :7g （Excluding rubber case）
Response time :10S
Measurement range:25℃-45℃
Accuracy :±0.05℃(35℃-38.5℃)，±0.1℃(<35℃and >38.5);
Or ±0.09°F(95°F-101.3°F),±0.18°F(<95°F and>101.3°F)
Operation environment: Temperature 5℃-40℃(41°F-104°F),
Humidity:15%RH - 85%RH
Receiver: iOS: BLE4.0&iOS8.0 and above
Android: BLE4.0&Android4.3 and above
Getting Started

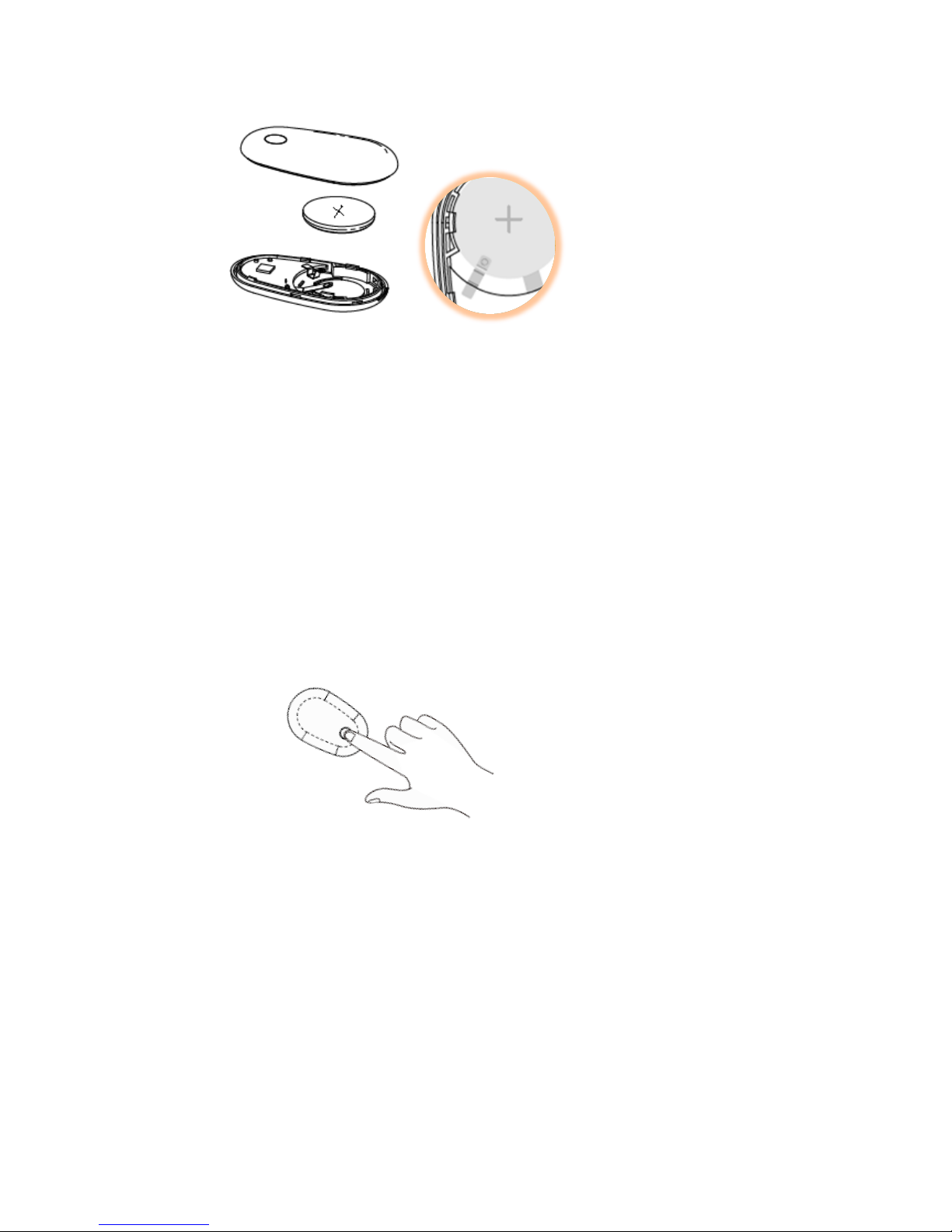

1.Insert Battery
-Take the rubber case off and find the “Opening position” on side of
host to open case even using your fingernail.
-Put the battery in （+ - attention ）then close the case .

2.Download APP
-Scanning the QR code
(QR code need)
Or search for “Baby thermometer” in Google play or Apple store.
-Download and install APP on your smart phone.
3.Setting up connection
-Turn on your smart phone and its Bluetooth.
-Switch on the device (Press the button for 2 seconds. A single LED
blink in Blue 5times quickly indicates power is on.)
-Open the “Baby thermometer” APP and create a new user.
-Connection will be established automatically and APP synchronize
the current data.
For the most accurate results, make sure the device has been at
room temperature for at least 5 minutes before using it.

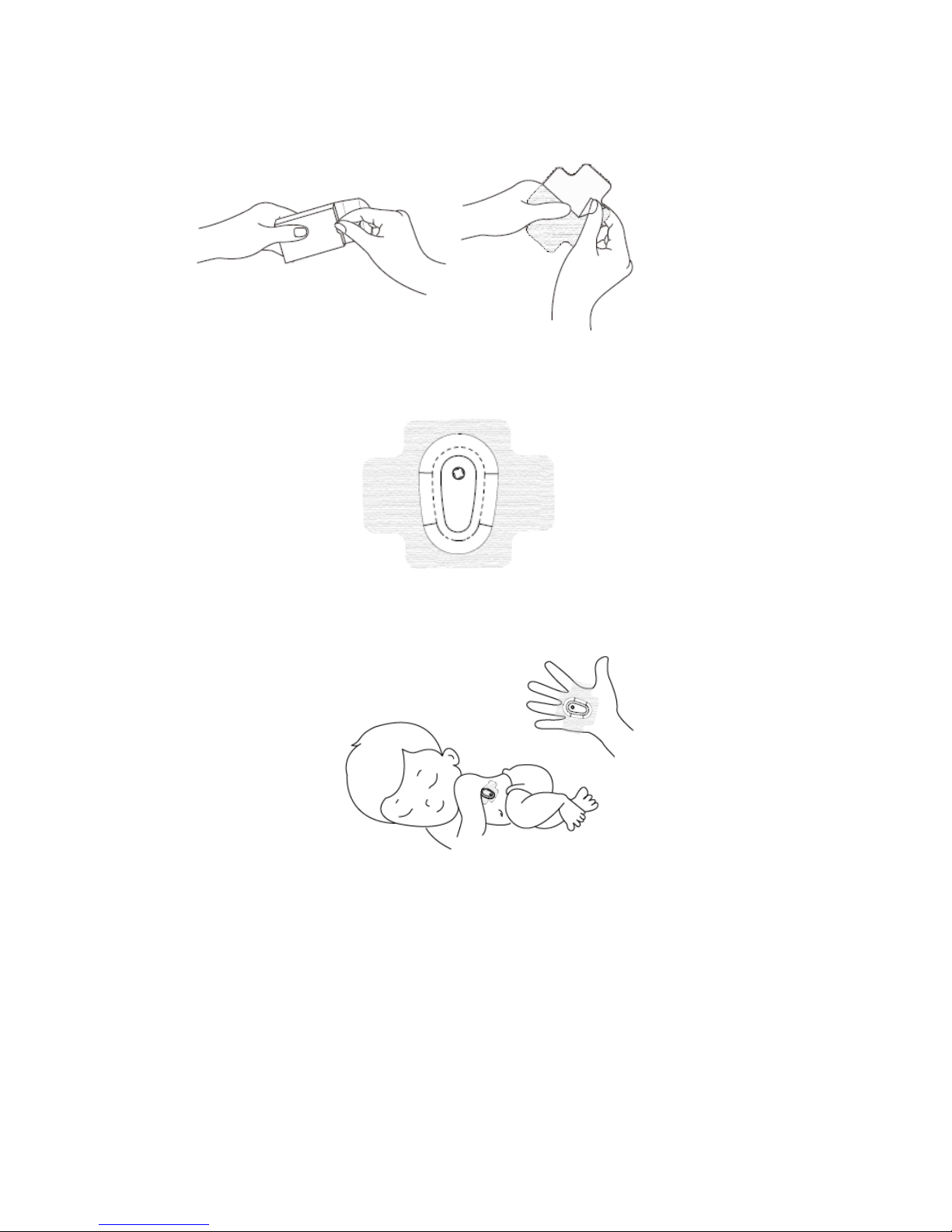

4.Wearing preparation
Make sure the device being on power before followings ：

-Take one patch from box and remove the cover away.
-Face the temperature sensor up and stick the other side（with
button）to the patch. Make sure the device is in the center of the
patch.
5.Wearing
-Lift the arm naturally then apply the device just below the armpit.
-Hold arm tight against side for at least 8 minutes.
Note:
-Make sure the area of the skin that contacts with the device stays
flat and smooth.
-Make sure the device taken the rubber case on when working for
child.
6.Switch the device off
Press the button 2 seconds a single LED blink in RED indicates
power is off.

Make us feel at ease even forget turning device off after using ,since
“thermometer” will switch off in 2mins automatically when monitor
less 30℃(°F ).
Warning: Children MUST be used with the help of the guardian.
Maintenance
The probe should be cleaned and disinfection.
-Replace the battery when low battery is indicated on app,
otherwise the device will not function as intended.
-Clean the surface of the device and rubber case with 75%
concentrated medicinal alcohol before and after using.
-Do not soak the device in any liquid.
-Do not sterilize or use an autoclave on the device.
-If you notice any deterioration or damage, stop using the device
immediately.
Troubleshooting
1.The device is not switched on?
Please check if low or no battery power. If yes, please replace battery.
2.App cannot read data?
Please check if device switch on and worn correctly; if your phone’s Bluetooth
on; if the deice and your phone being on valid range.
3.Unusual temperature data?
Please check the wearing position; make sure held tight for first 8mins; make
sure device already being indoor for 5mins before using.
Read instructions before use.
Device classification: Type BF
Waste Electrical and Electronic Equipment Directive

EMC DESCRIPTIONS
The EMC declaration according to the requirement of EN 60601-1-2
Cautions:
User must regard EMC, please install and put in service K-020 according to the EMC
information provided in the accompanying documents.
Portable and mobile RF communications equipment can affect medical electrical
equipment.
The performance of the EQUIPMENT and SYSTEM that was determined to be essential
performance.
Table 201-Guidance and manufacturer’s declaration-electromagnetic emissions-for
K-020, as following table.
Table 202-Guidance and manufacturer’s declaration-electromagnetic immunity -for
K-020, as following table.
Table 204 -Guidance and manufacturer’s declaration-electromagnetic immunity -for
K-020, as following table.
Table 206 Recommended separation distances between portable and mobile RF
communications equipment and K-020, as following table.
Table 201
Guidance and manufacturer’s declaration – electromagnetic
emissions
The K-020 is intended for use in the electromagnetic environment specified below. The customer
or the user of the K-020 should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1
The K-020 uses RF energy only for its internal function.
Therefore, its RF emissions are very low and are not likely to
cause any interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B
The K-020 is suitable for use in all establishments, including
domestic establishments.
Harmonic
emissions
IEC 61000-3-2
Not applicable
Voltage
fluctuations /
flicker emissions
IEC 61000-3-3
Not applicable

Table 202
Guidance and manufacturer’s declaration – electromagnetic
immunity
The K-020 is intended for use in the electromagnetic environment specified below.
The customer or the user of the K-020 should assure that it is used in such an environment.
Immunity
test
IEC 60601
test level
Compliance
level
Electromagnetic environment –
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
± (2, 4, 6) kV
contact
± (2, 4, 8) kV
air
± (2, 4, 6) kV
contact
± (2, 4, 8) kV air
Floors should be wood, concrete or ceramic
tile. If floors are covered with synthetic
material, the relative humidity should be at
least 30 %.
Electrical fast
transient/burs
t
IEC 61000-4-4
±2 kV for
power
supply lines
±1 kV for
input/output
lines
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment.
Surge
IEC 61000-4-5
±1 kV
differential
mode
±2 kV common
mode
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment.
Voltage dips,
short
interruptions
and
voltage
variations
on power
supply
input lines
IEC
61000-4-11
<5 % UT
(>95 % dip in
UT)
for 0,5 cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
Not applicable
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the K-020
requires continued operation during power
mains interruptions, it is recommended
that the K-020 be powered from an
uninterruptible power supply or a battery.

<5 % UT
(>95 % dip in
UT)
for 5 sec
Power
frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
3A/m
Power frequency magnetic fields should be
at levels characteristic of a typical location
in a typical commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Table 204
Guidance and manufacturer’s declaration – electromagnetic
immunity
The K-020 is intended for use in the electromagnetic environment specified below.
The customer or the user of the K-020 should assure that it is used in such an environment.
Immunity
test
IEC 60601
test level
Compliance
level
Electromagnetic environment –guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80
MHz
3 V/m
80 MHz to 2,5
GHz
Not applicable
3 V/m
Portable and mobile RF communications equipment
should be used no closer to any part of the K-020,
including cables, than the recommended separation
distance calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance
Pd 2,1
Pd 2,1
80 MHz to 800 MHz
Pd 3,2
800 MHz to 2,5 GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a should
be less than the compliance level in each frequency
range’s
Interference may occur in the vicinity of equipment
marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
aField strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic
site survey should be considered. If the measured field strength in the location in which the K-020 is used
exceeds the applicable RF compliance level above, the K-020 should be observed to verify normal operation.
If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating
the K-020.
bOver the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Table 206
Recommended separation distances between
portable and mobile RF communications equipment and the K-020
The K-020 is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the K-020 can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the K-020 as recommended below, according to
the maximum output power of the communications equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
150 kHz to 80 MHz
Pd 2,1
80 MHz to 800 MHz
Pd 2,1
800 MHz to 2,5 GHz
Pd 3,2
0,01
0.12
0.12
0.23
0,1
0.38
0.38
0.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23

For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
Manufacturer
Company Name: Ultra Creation Limited
Address: Unit 10-18, 32/F, Tower 1, Millennium City 1,
388 Kwun Tong, Kowloon, Hong Kong
www.ultracreation.com.hk
EC Representative（详细待定）
Representative Name:
Address:
Contact person:
Telephone No:
Fax No:
Email:

Caution:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
RF Exposure
The equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment.
