Ultra Start KE-6 User manual

KE-6
REV.2009.04.10
ADVANCED KEYLESS ENTRY SYSTEM
INSTALL GUIDE
TM
FCC ID NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance void the user’s authority to operate
this devise.
www.ultrastarters.com

Wire Diagram..................................................................Page 3
Quick View Programing Chart.......................................Page 4
Program Menu 1 Page 4
Program Menu 2 Page 4
Transmitter Programming.............................................Page 5
System Wiring................................................................Page 6-9
10 Pin Connector Page 6-7
3 Pin Power Connector Page 6-7

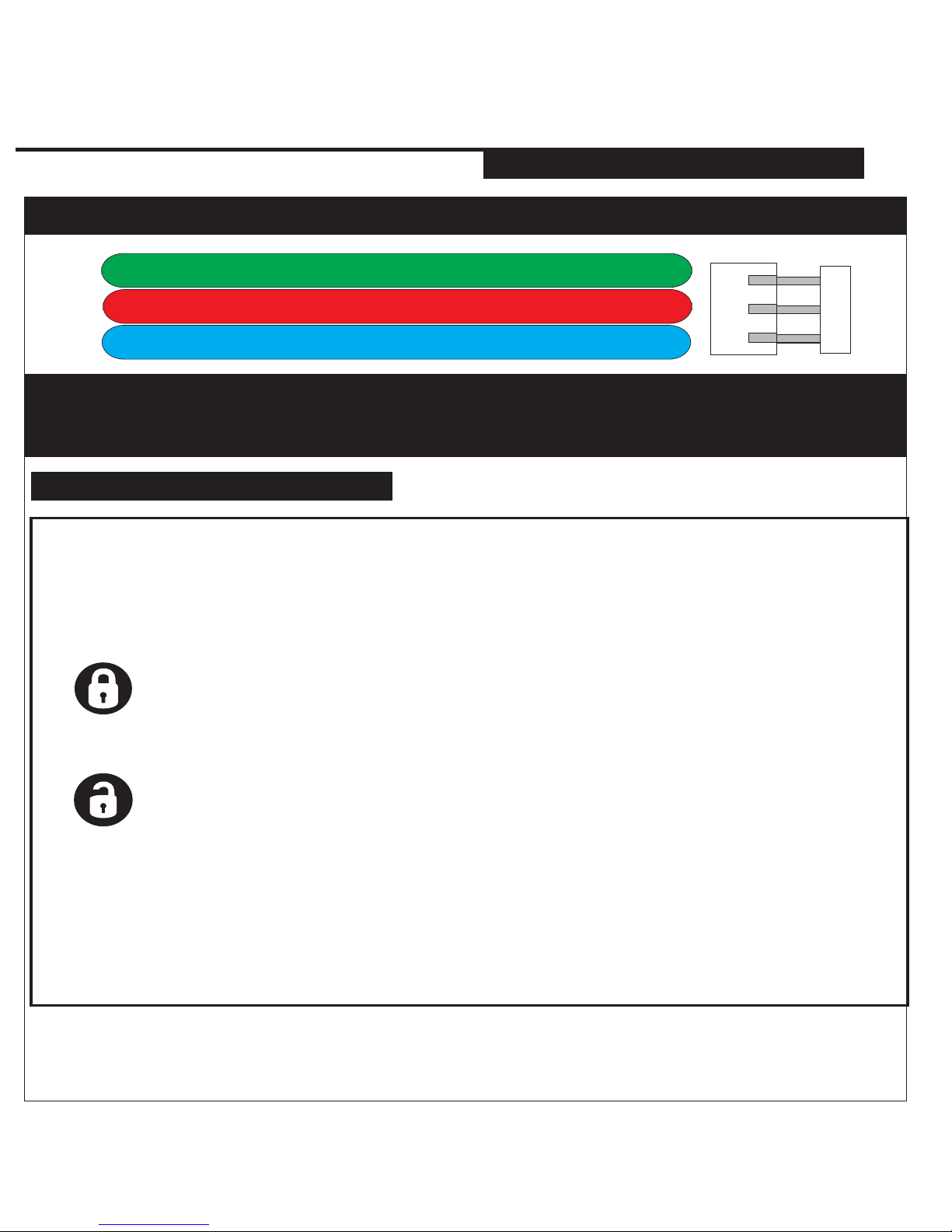

Door Lock Connector Page 8-9
Entering Program Mode................................................Page 8
System Reset.................................................................Page 9

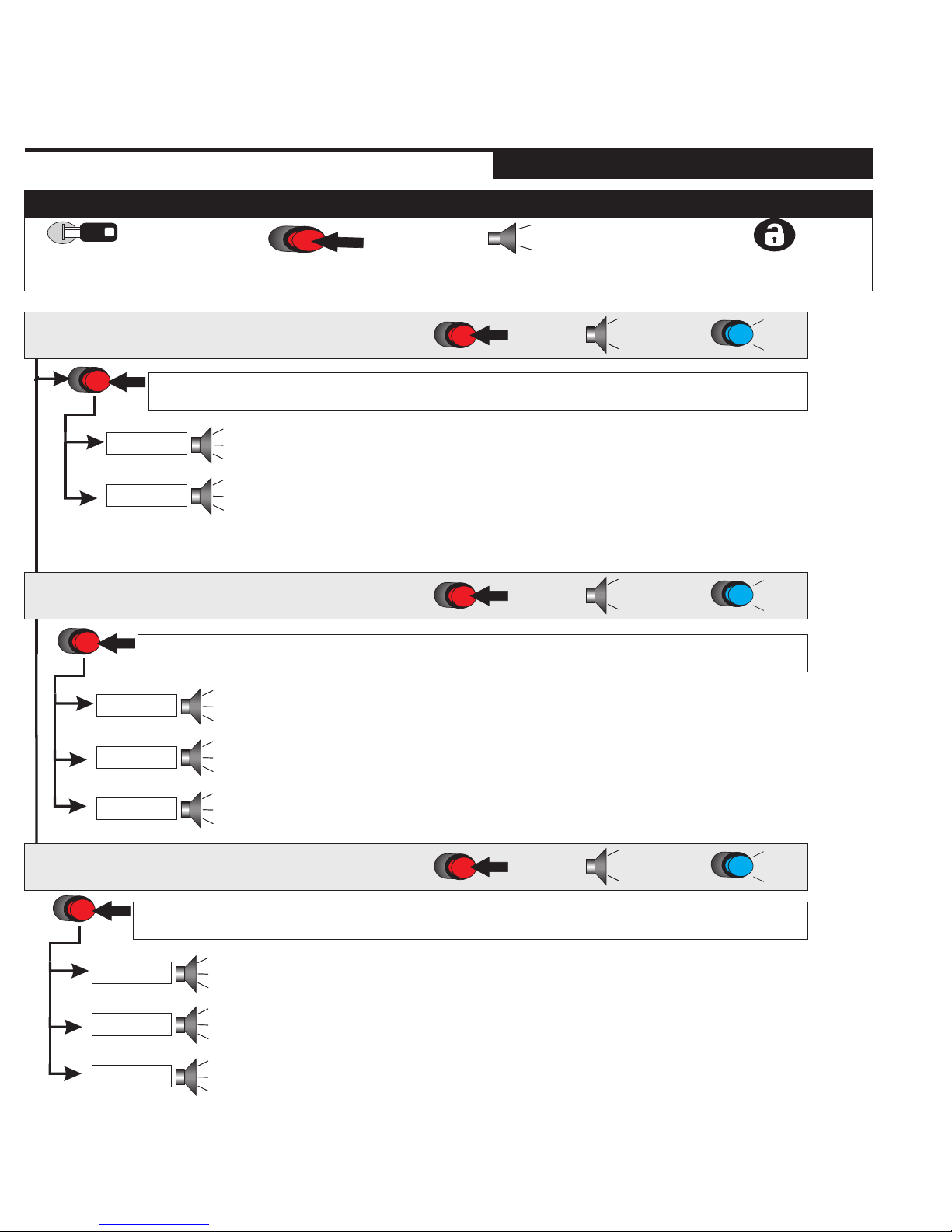

System Programming...................................................Page 10-12
Program Menu1 Setting 1-3 Page 10
Program Menu 1 Setting 4-7 Page 11
Program Menu 2 Setting 1-3 Page 12
Quick View Operation Chart........................................Page 13
Lock Doors
Unlock Doors
Panic Mode
Silent Lock/ Unlock
Installer Check Sheet & Notes.....................................Page 14
Product Warranty..........................................................Page 15
Contact Information .....................................................Page 16
SYSTEM PROGRAMMING - Menu 1
PAGE 2
KE-6
INSTALL MANUAL
TABLE OF CONTENTS
SYSTEM PROGRAMMING - Menu 1
PAGE 3
KE-6
INSTALL MANUAL
WIRE DIAGRAM
WHITEPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
REDCONSTANT 12 VOLT INPUT (20AMP)
OUTPUT TO ACTIVATE SIREN (+) 2amp
GRAYOUTPUT FOR TRUNK RELEASE (-)
OUTPUT TO ACTIVATE HORN/ AUX (-)
STARTER DISABLE (-) WHEN LOCKED
DOME LIGHT (-) WHEN UNLOCKED (30sec)
WHT/GRNSECOND UNLOCK OUTPUT (-)
BLUEN/A
GREENN/A
PURPLEN/A
YELLOWSWITCHED IGNITION INPUT (+)
GREENNEGATIVE OUTPUT FOR LOCK
RED12VOLT OUTPUT FOR DOOR LOCK MODULE
BLUE
WHT/BLUE
ORANGE
BLK/WHT
BLACK
BROWN
LED
PROGRAM SWITCH
NEGATIVE OUTPUT FOR UNLOCK

Wire Diagram..................................................................Page 3
Quick View Programing Chart.......................................Page 4
Program Menu 1 Page 4
Program Menu 2 Page 4
Transmitter Programming.............................................Page 5
System Wiring................................................................Page 6-9
10 Pin Connector Page 6-7
3 Pin Power Connector Page 6-7
Door Lock Connector Page 8-9
Entering Program Mode................................................Page 8
System Reset.................................................................Page 9
System Programming...................................................Page 10-12
Program Menu1 Setting 1-3 Page 10
Program Menu 1 Setting 4-7 Page 11
Program Menu 2 Setting 1-3 Page 12
Quick View Operation Chart........................................Page 13
Lock Doors
Unlock Doors
Panic Mode
Silent Lock/ Unlock
Installer Check Sheet & Notes.....................................Page 14
Product Warranty..........................................................Page 15
Contact Information .....................................................Page 16
SYSTEM PROGRAMMING - Menu 1
PAGE 2
KE-6
INSTALL MANUAL
TABLE OF CONTENTS
SYSTEM PROGRAMMING - Menu 1
PAGE 3
KE-6
INSTALL MANUAL
WIRE DIAGRAM
WHITEPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
REDCONSTANT 12 VOLT INPUT (20AMP)
OUTPUT TO ACTIVATE SIREN (+) 2amp
GRAYOUTPUT FOR TRUNK RELEASE (-)
OUTPUT TO ACTIVATE HORN/ AUX (-)
STARTER DISABLE (-) WHEN LOCKED
DOME LIGHT (-) WHEN UNLOCKED (30sec)
WHT/GRNSECOND UNLOCK OUTPUT (-)
BLUEN/A
GREENN/A
PURPLEN/A
YELLOWSWITCHED IGNITION INPUT (+)
GREENNEGATIVE OUTPUT FOR LOCK
RED12VOLT OUTPUT FOR DOOR LOCK MODULE
BLUE
WHT/BLUE
ORANGE
BLK/WHT
BLACK
BROWN
LED
PROGRAM SWITCH
NEGATIVE OUTPUT FOR UNLOCK

SETTING #
LED FLASHES
1
2
3
VALET
SETTINGS
SECURE VALET
15 SECONDS
STANDARD VALET
8 SECONDS
OPTION 3
3 HONK
OPTION 1
1 HONK
OPTION 2
2 HONK
PARK LIGHT
OUTPUT
HORN/ AUX OPTIONS
OPTIONS
30 SECOND ON
FOR DISARM
AUX OUTPUT 0.75 SEC
PULSED
POS TRUNK
RELEASE OUTPUT
AUX OUTPUT ACTIVE
WHEN HELD
NORMAL OPERATION
HORN OUTPUT
SETTING
DESCRIPTION
SETTING #
LED FLASHES
1
2
3
4
5
6
7
IGNITION
AUTO-LOCK
IGNITION AUTO-LOCK &
UNLOCK ENABLED
IGNITION AUTO-LOCK
ONLY
OPTION 3
3 HONK
IGNITION AUTO-LOCK
DISABLED
OPTION 1
1 HONK
OPTION 2
2 HONK
HORN SETTINGS
DOOR LOCK
OPTIONS
DOOR LOCK
PULSE TIMES
HORN OUTPUT TIMING
PASSIVE ARMING
PASSIVE
DOOR LOCKS
HORN HONK
DISABLED
DOUBLE UNLOCK /
SINGLE LOCK PULSES
0.25 SECOND
PULSES
LOUD HONK
FULL
PASSIVE ARMING
PASSIVE DOOR LOCKS
DISABLED
HORN HONK
ENABLED
DOUBLE LOCK /
SINGLE UNLOCK PULSES
3 SECOND
PULSES
REGULAR
PASSIVE SAFETY
REARM ONLY
PASSIVE DOOR LOCKS
ENABLED
HORN HONK
ENABLED
SINGLE UNLOCK /
SINGLE LOCK PULSES
0.75 SECOND
PULSES
ALL PASSIVE ARMING
DISABLED
SETTING
DESCRIPTION
To Enter Program Mode
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and release the Program Switch 1 time.
(HORN will chip to confirm program mode entered)
3 - Press the Lock Button To Enter Menu 1
Press the Unlock Button to Enter Menu 2
4 - Press and Release the Program Switch to advance through the settings.
(Confirmed by HORN HONK & LED flashes)
5 - Press and hold the Program Switch to change the setting
(Confirmed by HORN HONK)
6 - To exit Program Mode, turn ignition key off
(Confirmed by Long HORN HONK)
ENTERING PROGRAM MODE
PROGRAM MODE 1
PROGRAM MODE 2
SYSTEM PROGRAMMING - Menu 1
PAGE 4
KE-6
INSTALL MANUAL
QUICK VIEW PROGRAM CHART
SHORT HONK
TRANSMITTER PROGRAMMING
ENTERING REMOTE PROGRAM MODE
The system can lean up to 4 different remote’s. Each remote to be used MUST be programmed
together during the same sequence. For security, when a new remote is programmed all
previous remote’s are deleted. Please see remote operation chart for information on using
Second Car / Pad Lock Operations.
Press and HOLD the valet switch, HORN will HONK ONCE
(If HORN does not HONK repeat step 1)
CONTINUE TO HOLD until HORN HONK 5 times
Press & Release LOCK button on 1st Remote to be
Programmed for Normal Operation If remote(s) are to be
programmed for "PADLOCK" skip and goto step 6
Press & Release BUTTON 4 on Remote to be Programmed for
2ND CAR OR PAD LOCK
HORN will HONK 1 time to confirm remote has been
programmed (If HORN does not HONK press button again)
HORN will HONK 1 time to confirm remote has been
programmed (If HORN does not HONK press button again)
PROGRAMMING REMOTE’S
Cycle the Ignition Key - ON/OFF ON/OFF ON
(Leaving the key ON)
Turn ignition key OFF to exit remote program mode when all
required remote’s have been programmed.
1 HONK confirms program mode entered followed by
5 HONK confirming transmitter program mode
1 -
2 -
3 -
4 -
6 -
5 -
7 -
8 -
REPEAT STEP 4 IF A SECOND REMOTE IS TO BE PROGRAMMED FOR NORMAL OPERATION
REPEAT STEP 6 IF A SECOND REMOTE IS TO BE PROGRAMMED FOR 2ND CAR / PADLOCK OPERATION
NOTE: ALL REMOTE’S TO BE USED MUST BE PROGRAMMED IN SEQUENCE
WHILE IN REMOTE PROGRAM MODE, RE-ENTERING REMOTE PROGRAM MODE
WILL ERASE ALL PREVIOUS REMOTE’S
SYSTEM PROGRAMMING - Menu 1
PAGE 5
KE-6
INSTALL MANUAL
TRANSMITTER PROGRAMMING

SETTING #
LED FLASHES
1
2
3
VALET
SETTINGS
SECURE VALET
15 SECONDS
STANDARD VALET
8 SECONDS
OPTION 3
3 HONK
OPTION 1
1 HONK
OPTION 2
2 HONK
PARK LIGHT
OUTPUT
HORN/ AUX OPTIONS
OPTIONS
30 SECOND ON
FOR DISARM
AUX OUTPUT 0.75 SEC
PULSED
POS TRUNK
RELEASE OUTPUT
AUX OUTPUT ACTIVE
WHEN HELD
NORMAL OPERATION
HORN OUTPUT
SETTING
DESCRIPTION
SETTING #
LED FLASHES
1
2
3
4
5
6
7
IGNITION
AUTO-LOCK
IGNITION AUTO-LOCK &
UNLOCK ENABLED
IGNITION AUTO-LOCK
ONLY
OPTION 3
3 HONK
IGNITION AUTO-LOCK
DISABLED
OPTION 1
1 HONK
OPTION 2
2 HONK
HORN SETTINGS
DOOR LOCK
OPTIONS
DOOR LOCK
PULSE TIMES
HORN OUTPUT TIMING
PASSIVE ARMING
PASSIVE
DOOR LOCKS
HORN HONK
DISABLED
DOUBLE UNLOCK /
SINGLE LOCK PULSES
0.25 SECOND
PULSES
LOUD HONK
FULL
PASSIVE ARMING
PASSIVE DOOR LOCKS
DISABLED
HORN HONK
ENABLED
DOUBLE LOCK /
SINGLE UNLOCK PULSES
3 SECOND
PULSES
REGULAR
PASSIVE SAFETY
REARM ONLY
PASSIVE DOOR LOCKS
ENABLED
HORN HONK
ENABLED
SINGLE UNLOCK /
SINGLE LOCK PULSES
0.75 SECOND
PULSES
ALL PASSIVE ARMING
DISABLED
SETTING
DESCRIPTION
To Enter Program Mode
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and release the Program Switch 1 time.
(HORN will chip to confirm program mode entered)
3 - Press the Lock Button To Enter Menu 1
Press the Unlock Button to Enter Menu 2
4 - Press and Release the Program Switch to advance through the settings.
(Confirmed by HORN HONK & LED flashes)
5 - Press and hold the Program Switch to change the setting
(Confirmed by HORN HONK)
6 - To exit Program Mode, turn ignition key off
(Confirmed by Long HORN HONK)
ENTERING PROGRAM MODE
PROGRAM MODE 1
PROGRAM MODE 2
SYSTEM PROGRAMMING - Menu 1
PAGE 4
KE-6
INSTALL MANUAL
QUICK VIEW PROGRAM CHART
SHORT HONK
TRANSMITTER PROGRAMMING
ENTERING REMOTE PROGRAM MODE
The system can lean up to 4 different remote’s. Each remote to be used MUST be programmed
together during the same sequence. For security, when a new remote is programmed all
previous remote’s are deleted. Please see remote operation chart for information on using
Second Car / Pad Lock Operations.
Press and HOLD the valet switch, HORN will HONK ONCE
(If HORN does not HONK repeat step 1)
CONTINUE TO HOLD until HORN HONK 5 times
Press & Release LOCK button on 1st Remote to be
Programmed for Normal Operation If remote(s) are to be
programmed for "PADLOCK" skip and goto step 6
Press & Release BUTTON 4 on Remote to be Programmed for
2ND CAR OR PAD LOCK
HORN will HONK 1 time to confirm remote has been
programmed (If HORN does not HONK press button again)
HORN will HONK 1 time to confirm remote has been
programmed (If HORN does not HONK press button again)
PROGRAMMING REMOTE’S
Cycle the Ignition Key - ON/OFF ON/OFF ON
(Leaving the key ON)
Turn ignition key OFF to exit remote program mode when all
required remote’s have been programmed.
1 HONK confirms program mode entered followed by
5 HONK confirming transmitter program mode
1 -
2 -
3 -
4 -
6 -
5 -
7 -
8 -
REPEAT STEP 4 IF A SECOND REMOTE IS TO BE PROGRAMMED FOR NORMAL OPERATION
REPEAT STEP 6 IF A SECOND REMOTE IS TO BE PROGRAMMED FOR 2ND CAR / PADLOCK OPERATION
NOTE: ALL REMOTE’S TO BE USED MUST BE PROGRAMMED IN SEQUENCE
WHILE IN REMOTE PROGRAM MODE, RE-ENTERING REMOTE PROGRAM MODE
WILL ERASE ALL PREVIOUS REMOTE’S
SYSTEM PROGRAMMING - Menu 1
PAGE 5
KE-6
INSTALL MANUAL
TRANSMITTER PROGRAMMING

OUTPUT TO ACTIVATE SIREN (+) 2amp
GRAYOUTPUT FOR TRUNK RELEASE (-)
OUTPUT TO ACTIVATE HORN/ AUX (-)
STARTER DISABLE (-) WHEN LOCKED
DOME LIGHT (-) WHEN DISARMED (30sec)
WHT/GRNSECOND UNLOCK OUTPUT (-)
BLUEN/A
GREENN/A
PURPLEN/A
YELLOWSWITCHED IGNITION INPUT (+)
WHT/BLUE
ORANGE
BLK/WHT
BROWN
WHITEPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
RED
CONSTANT 12 VOLT INPUT (20AMP)
BLACK
10 PIN CONNECTOR
3 PIN POWER CONNECTOR
FOR MORE DETAILED INFORMATION ON PROGRAMMING, WIRING DIAGRAMS, DOOR LOCK
CONFIGURATION AND OTHER INFORMATION, PLEASE VISIT
WWW.ULTRASTARTERS.COM
SYSTEM PROGRAMMING - Menu 1
PAGE 6
KE-6
INSTALL MANUAL
SYSTEM WIRING
Pin 1- Brown Wire- SIREN Output (+) (2amp Maximum)
Connect this wire for optional siren activation.
Pin 2- Grey Wire- Trunk Release/Auxiliary Channel 2 (-250ma Output)
This output activates for 0.75 sec when the unlock button is held for 5 seconds.
Pin 3- White/ Blue Wire- HORN (-) / Aux Output (-250ma Output)
Connect this wire to the factory horn wire (-) type only. Output is programmable for an
auxiliary channel output.
Pin 4- Orange Wire- Ground When Locked (-250ma Output)
This wire switches to ground when the lock button is pressed. This output can be used
for a external starter disable or to activate such devises as a window roll-up modules.
Pin 5- Black/White Wire- Dome Light Supervision (-250ma Output)
This output activates for 30 seconds when the unlock button is pressed. Connect to a
relay to activate the interior lights or to the headlight circuit for illuminated entry.
Pin 6- White/Green Wire- Second Unlock Output (-250ma Output)
This output will activate when unlock is pressed twice with three seconds.
This wire can be used to install “Driver’s Door Priority” or to activate
Pin 7- Blue Wire- N/A
Pin 8- Green Wire- N/A
Pin 9- Purple Wire- N/A
Pin 10- Yellow Wire- Switched Ignition Input
12volt switch ignition input. Connect to the vehicles primary ignition wire.
Pin 1- White Wire- Park Light Output (+)
Connect this wire to the vehicles positive parking light wire. If the vehicle has a
negative or multiplex park light switch a relay must be installed to convert the output of
the alarm from positive to negative.
Pin 2- Black Wire- System Ground (-)
Using a self tapping screw, connect this wire to a solid section of the vehicles frame. If
required scrape away the paint to expose bare metal.
Pin 3- Red Wire- 12volt Power Input (+)
Connect this wire to a constant 12volt source such as the main 12volt power for the
ignition switch.
SYSTEM PROGRAMMING - Menu 1
PAGE 7
KE-6
INSTALL MANUAL
SYSTEM WIRING

OUTPUT TO ACTIVATE SIREN (+) 2amp
GRAYOUTPUT FOR TRUNK RELEASE (-)
OUTPUT TO ACTIVATE HORN/ AUX (-)
STARTER DISABLE (-) WHEN LOCKED
DOME LIGHT (-) WHEN DISARMED (30sec)
WHT/GRNSECOND UNLOCK OUTPUT (-)
BLUEN/A
GREENN/A
PURPLEN/A
YELLOWSWITCHED IGNITION INPUT (+)
WHT/BLUE
ORANGE
BLK/WHT
BROWN
WHITEPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
RED
CONSTANT 12 VOLT INPUT (20AMP)
BLACK
10 PIN CONNECTOR
3 PIN POWER CONNECTOR
FOR MORE DETAILED INFORMATION ON PROGRAMMING, WIRING DIAGRAMS, DOOR LOCK
CONFIGURATION AND OTHER INFORMATION, PLEASE VISIT
WWW.ULTRASTARTERS.COM
SYSTEM PROGRAMMING - Menu 1
PAGE 6
KE-6
INSTALL MANUAL
SYSTEM WIRING
Pin 1- Brown Wire- SIREN Output (+) (2amp Maximum)
Connect this wire for optional siren activation.
Pin 2- Grey Wire- Trunk Release/Auxiliary Channel 2 (-250ma Output)
This output activates for 0.75 sec when the unlock button is held for 5 seconds.
Pin 3- White/ Blue Wire- HORN (-) / Aux Output (-250ma Output)
Connect this wire to the factory horn wire (-) type only. Output is programmable for an
auxiliary channel output.
Pin 4- Orange Wire- Ground When Locked (-250ma Output)
This wire switches to ground when the lock button is pressed. This output can be used
for a external starter disable or to activate such devises as a window roll-up modules.
Pin 5- Black/White Wire- Dome Light Supervision (-250ma Output)
This output activates for 30 seconds when the unlock button is pressed. Connect to a
relay to activate the interior lights or to the headlight circuit for illuminated entry.
Pin 6- White/Green Wire- Second Unlock Output (-250ma Output)
This output will activate when unlock is pressed twice with three seconds.
This wire can be used to install “Driver’s Door Priority” or to activate
Pin 7- Blue Wire- N/A
Pin 8- Green Wire- N/A
Pin 9- Purple Wire- N/A
Pin 10- Yellow Wire- Switched Ignition Input
12volt switch ignition input. Connect to the vehicles primary ignition wire.
Pin 1- White Wire- Park Light Output (+)
Connect this wire to the vehicles positive parking light wire. If the vehicle has a
negative or multiplex park light switch a relay must be installed to convert the output of
the alarm from positive to negative.
Pin 2- Black Wire- System Ground (-)
Using a self tapping screw, connect this wire to a solid section of the vehicles frame. If
required scrape away the paint to expose bare metal.
Pin 3- Red Wire- 12volt Power Input (+)
Connect this wire to a constant 12volt source such as the main 12volt power for the
ignition switch.
SYSTEM PROGRAMMING - Menu 1
PAGE 7
KE-6
INSTALL MANUAL
SYSTEM WIRING

3 PIN KEYLESS CONNECTOR
This connector is used when installing the optional keyless entry feature. If the door
lock type of the vehicle is not negative see the following pages for the appropriate door
lock diagram.
Pin 1- Green Wire- Negative Lock Output
Connect to lock wire from the switch on vehicles with a negative type switch.
**LOW CURRENT ONLY**
Pin 2- 12volt Output for Door Lock Module
This output will supply 12volts for a plug-in type door lock module. Do not use this input
to power-up relays **LOW CURRENT ONLY**
Pin 3- Blue Wire- Negative Unlock Output
Connect to lock wire from the switch on vehicles with a negative type switch.
**LOW CURRENT ONLY**
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and RELEASE the Program Switch 1 time.
(HORN will chip to confirm program mode entered)
3 - Press and HOLD the Program Switch for until the HORN HONKS 3 times.
4 - Turn ignition key OFF to exit.
SYSTEM RESET
ENTERING REMOTE PROGRAM MODE
Cycle the Ignition Key - ON/OFF ON/OFF ON
(Leaving the key ON)
1 HONK confirms program mode entered followed by
3 HONK confirming that the system has reset.
1 -
2 -
3 -
Press and release the program switch (The HORN will HONK)
**If the HORN does not HONK repeat step 1-2.
Hold the program switch until the HORN HONKS 3 times.
SYSTEM PROGRAMMING - Menu 1
PAGE 9
KE-6
INSTALL MANUAL
SYSTEM RESET
3 PIN KEYLESS CONNECTOR
BLUENEGATIVE OUTPUT FOR UNLOCK
RED12+ OUTPUT FOR DOOR LOCK MODULE
NEGATIVE OUTPUT FOR LOCK GREEN
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and release the Program Switch 1 time.
HORN will chip to confirm program mode entered
3 - Select the Program Menu by pressing...
ENTERING PROGRAM MODE
4 - Press and Release the Switch to advance through the settings.
(Confirmed by HORN HONK & LED flashes)
5 - Press and hold the Program Switch to change the setting.
(Confirmed by HORN HONK)
6 - To exit Program Mode, turn key off.
(Confirmed by Long HORN HONK)
The HORN will HONK to confirm that the system is in MENU 1
Continue to step 4.
Press Lock
Press Unlock
The HORN will HONK to confirm that the system is in MENU 2
Continue to step 4.
FOR MORE DETAILED INFORMATION ON PROGRAMMING, WIRING DIAGRAMS, DOOR LOCK
CONFIGURATION AND OTHER INFORMATION, PLEASE VISIT
WWW.ULTRASTARTERS.COM
SYSTEM PROGRAMMING - Menu 1
PAGE 8
KE-6
INSTALL MANUAL
SYSTEM WIRING

3 PIN KEYLESS CONNECTOR
This connector is used when installing the optional keyless entry feature. If the door
lock type of the vehicle is not negative see the following pages for the appropriate door
lock diagram.
Pin 1- Green Wire- Negative Lock Output
Connect to lock wire from the switch on vehicles with a negative type switch.
**LOW CURRENT ONLY**
Pin 2- 12volt Output for Door Lock Module
This output will supply 12volts for a plug-in type door lock module. Do not use this input
to power-up relays **LOW CURRENT ONLY**
Pin 3- Blue Wire- Negative Unlock Output
Connect to lock wire from the switch on vehicles with a negative type switch.
**LOW CURRENT ONLY**
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and RELEASE the Program Switch 1 time.
(HORN will chip to confirm program mode entered)
3 - Press and HOLD the Program Switch for until the HORN HONKS 3 times.
4 - Turn ignition key OFF to exit.
SYSTEM RESET
ENTERING REMOTE PROGRAM MODE
Cycle the Ignition Key - ON/OFF ON/OFF ON
(Leaving the key ON)
1 HONK confirms program mode entered followed by
3 HONK confirming that the system has reset.
1 -
2 -
3 -
Press and release the program switch (The HORN will HONK)
**If the HORN does not HONK repeat step 1-2.
Hold the program switch until the HORN HONKS 3 times.
SYSTEM PROGRAMMING - Menu 1
PAGE 9
KE-6
INSTALL MANUAL
SYSTEM RESET
3 PIN KEYLESS CONNECTOR
BLUENEGATIVE OUTPUT FOR UNLOCK
RED12+ OUTPUT FOR DOOR LOCK MODULE
NEGATIVE OUTPUT FOR LOCK GREEN
1 - Cycle the Ignition Key On/Off On/Off On (Leaving the key ON)
2 - Press and release the Program Switch 1 time.
HORN will chip to confirm program mode entered
3 - Select the Program Menu by pressing...
ENTERING PROGRAM MODE
4 - Press and Release the Switch to advance through the settings.
(Confirmed by HORN HONK & LED flashes)
5 - Press and hold the Program Switch to change the setting.
(Confirmed by HORN HONK)
6 - To exit Program Mode, turn key off.
(Confirmed by Long HORN HONK)
The HORN will HONK to confirm that the system is in MENU 1
Continue to step 4.
Press Lock
Press Unlock
The HORN will HONK to confirm that the system is in MENU 2
Continue to step 4.
FOR MORE DETAILED INFORMATION ON PROGRAMMING, WIRING DIAGRAMS, DOOR LOCK
CONFIGURATION AND OTHER INFORMATION, PLEASE VISIT
WWW.ULTRASTARTERS.COM
SYSTEM PROGRAMMING - Menu 1
PAGE 8
KE-6
INSTALL MANUAL
SYSTEM WIRING

Cycle the Ignition Key
ON/OFF ON/OFF ON
(Leaving the key ON)
Press and release the
Program Switch 1 time.
HORN will chip to confirm
program mode entered
Press Lock Button on
Remote to Select Menu 1
1 HONK
SETS OPTION 1 – AUTO-LOCK & UNLOCK ENABLED- The doors will
lock when the key is turned on and unlock the when the key is turned off.
SETS OPTION 2 – AUTO LOCK ONLY ENABLED- The doors will lock
when the key is turned on but will not unlock when te key is turned off.
SETS OPTION 3 – AUTO LOCK DISABLED- The doors will not lock or
unlock when the key is turned on or off.
SETS OPTION 1 – HORN DISABLED- The HORN and will activate with
Panic and Car Finder Mode only.
SETS OPTION 2 – HORN HONK ONLY- The HORN will Honk for all
functions. When the alarm is activated, the HORN output will activate.
* SETS OPTION 3 – HORN OUTPUT- The HORN and output will
activate for all functions.
CHANGE SETTING 1 -
GOTO SETTING 2 - PRESS & RELEASE THE VALET SWITCH
PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
1 HONK
2 HONK
2 HONK
3 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
STEP 2 - SELECT / CHANGE PROGRAM SETTINGS
SETS OPTION 1 – DOUBLE UNLOCK & SINGLE UNLOCK- The system
will provide 2 unlock pulses w/unlock and 1 lock pulse w/lock.
SETS OPTION 2 - DOUBLE LOCK & SINGLE UNLOCK- The system will
provide 2 lock pulses w/lock button and 2 unlock pulses w/unlock button.
SETS OPTION 3 – NORMAL OUTPUT- Single output for both the lock and
unlock outputs.
CHANGE SETTING 3 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
2 HONK
3 HONK
STEP 1 - ENTER PROGRAM MODE MENU 1
SETTING 1- IGNITION LOCKS
THE HORN WILL HONK 1 TIME WHEN SETTING 1 IS SELECTED
PRESS
1 TIME
X1
1 HONK
SETTING 2-HORN HONK
THE HORN WILL HONK 2 TIMES WHEN SETTING 2 IS SELECTED
PRESS
2 TIMES
X2
2 HONK
SETTING 3-DOOR LOCK OPTIONS
THE HORN WILL HONK 3 TIMES WHEN SETTING 3 IS SELECTED
PRESS
3 TIMES
X3
3 HONK
DEFAULT SETTING
SYSTEM PROGRAMMING - Menu 1
PAGE 10
KE-6
INSTALL MANUAL
PROGRAMMING
SETS OPTION 1 – LONG PULSES- The horn will output for about 50ms
SETS OPTION 1 - PASSIVE LOCK DISABLED- The doors will not lock when Passive Arming
sets the alarm.
SETS OPTION 1 – PASSIVE ARMING ENABLED- The alarm will automatically arm 30
seconds after the last door is closed.
SETS OPTION 2 – PASSIVE LOCK ENABLED- The doors will lock when Passive Arming
set the alarm.
SETS OPTION 2 – PASSIVE REARM- The alarm will automatically arm 30 seconds after
unlock is pressed..
SETS OPTION 3 – PASSIVE ARMING DISABLED- The alarm will not automatically. Must be
armed by the remote.
1 HONK
1 HONK
1 HONK
2 HONK
2 HONK
2 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
DEFAULT SETTING
SETS OPTION 1 - SHORT PULSES- The output for lock and unlock is .25sec.
This helps prevent the windows from rolling up/down on some vehicles..
SETS OPTION 2 – LONG PULSES- The output for lock and unlock is 3 seconds.
Used for vacuum door lock systems.
SETS OPTION 3 – NORMAL PULSES- The output for lock and unlock is .75sec.
Used for most vehicles
1 HONK
2 HONK
3 HONK
DEFAULT SETTING
SETTING 4- DOOR LOCK TIMING
THE HORN WILL HONK 4 TIMES WHEN SETTING 4 IS SELECTED
PRESS
4 TIMES
X4
4 HONK
CHANGE SETTING 4 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 5 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 5 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 6 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 6 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 7 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 7 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GO BACK TO SETTING 1 - PRESS & RELEASE THE VALET SWITCH
SETTING 5- HORN TIMING
THE HORN WILL HONK 5 TIMES WHEN SETTING 5 IS SELECTED
SETTING 6- PASSIVE ARMING
THE HORN WILL HONK 6 TIMES WHEN SETTING 6 IS SELECTED
SETTING 7- PASSIVE LOCKS
THE HORN WILL HONK 7 TIMES WHEN SETTING 7 IS SELECTED
PRESS
5 TIMES
X5
5 HONK
PRESS
6 TIMES
X6
6 HONK
SETS OPTION 2 – SHORT PULSES- The horn will output for about 10ms
PRESS
7 TIMES
X7
7 HONK
SYSTEM PROGRAMMING - Menu 1
PAGE 11
KE-6
INSTALL MANUAL
PROGRAMMING
SETS OPTION 3 – NORMAL PULSES- The horn will output for about 15ms
3 HONK
DEFAULT SETTING

Cycle the Ignition Key
ON/OFF ON/OFF ON
(Leaving the key ON)
Press and release the
Program Switch 1 time.
HORN will chip to confirm
program mode entered
Press Lock Button on
Remote to Select Menu 1
1 HONK
SETS OPTION 1 – AUTO-LOCK & UNLOCK ENABLED- The doors will
lock when the key is turned on and unlock the when the key is turned off.
SETS OPTION 2 – AUTO LOCK ONLY ENABLED- The doors will lock
when the key is turned on but will not unlock when te key is turned off.
SETS OPTION 3 – AUTO LOCK DISABLED- The doors will not lock or
unlock when the key is turned on or off.
SETS OPTION 1 – HORN DISABLED- The HORN and will activate with
Panic and Car Finder Mode only.
SETS OPTION 2 – HORN HONK ONLY- The HORN will Honk for all
functions. When the alarm is activated, the HORN output will activate.
* SETS OPTION 3 – HORN OUTPUT- The HORN and output will
activate for all functions.
CHANGE SETTING 1 -
GOTO SETTING 2 - PRESS & RELEASE THE VALET SWITCH
PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
1 HONK
2 HONK
2 HONK
3 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
STEP 2 - SELECT / CHANGE PROGRAM SETTINGS
SETS OPTION 1 – DOUBLE UNLOCK & SINGLE UNLOCK- The system
will provide 2 unlock pulses w/unlock and 1 lock pulse w/lock.
SETS OPTION 2 - DOUBLE LOCK & SINGLE UNLOCK- The system will
provide 2 lock pulses w/lock button and 2 unlock pulses w/unlock button.
SETS OPTION 3 – NORMAL OUTPUT- Single output for both the lock and
unlock outputs.
CHANGE SETTING 3 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
2 HONK
3 HONK
STEP 1 - ENTER PROGRAM MODE MENU 1
SETTING 1- IGNITION LOCKS
THE HORN WILL HONK 1 TIME WHEN SETTING 1 IS SELECTED
PRESS
1 TIME
X1
1 HONK
SETTING 2-HORN HONK
THE HORN WILL HONK 2 TIMES WHEN SETTING 2 IS SELECTED
PRESS
2 TIMES
X2
2 HONK
SETTING 3-DOOR LOCK OPTIONS
THE HORN WILL HONK 3 TIMES WHEN SETTING 3 IS SELECTED
PRESS
3 TIMES
X3
3 HONK
DEFAULT SETTING
SYSTEM PROGRAMMING - Menu 1
PAGE 10
KE-6
INSTALL MANUAL
PROGRAMMING
SETS OPTION 1 – LONG PULSES- The horn will output for about 50ms
SETS OPTION 1 - PASSIVE LOCK DISABLED- The doors will not lock when Passive Arming
sets the alarm.
SETS OPTION 1 – PASSIVE ARMING ENABLED- The alarm will automatically arm 30
seconds after the last door is closed.
SETS OPTION 2 – PASSIVE LOCK ENABLED- The doors will lock when Passive Arming
set the alarm.
SETS OPTION 2 – PASSIVE REARM- The alarm will automatically arm 30 seconds after
unlock is pressed..
SETS OPTION 3 – PASSIVE ARMING DISABLED- The alarm will not automatically. Must be
armed by the remote.
1 HONK
1 HONK
1 HONK
2 HONK
2 HONK
2 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
DEFAULT SETTING
SETS OPTION 1 - SHORT PULSES- The output for lock and unlock is .25sec.
This helps prevent the windows from rolling up/down on some vehicles..
SETS OPTION 2 – LONG PULSES- The output for lock and unlock is 3 seconds.
Used for vacuum door lock systems.
SETS OPTION 3 – NORMAL PULSES- The output for lock and unlock is .75sec.
Used for most vehicles
1 HONK
2 HONK
3 HONK
DEFAULT SETTING
SETTING 4- DOOR LOCK TIMING
THE HORN WILL HONK 4 TIMES WHEN SETTING 4 IS SELECTED
PRESS
4 TIMES
X4
4 HONK
CHANGE SETTING 4 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 5 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 5 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 6 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 6 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 7 - PRESS & RELEASE THE VALET SWITCH
CHANGE SETTING 7 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GO BACK TO SETTING 1 - PRESS & RELEASE THE VALET SWITCH
SETTING 5- HORN TIMING
THE HORN WILL HONK 5 TIMES WHEN SETTING 5 IS SELECTED
SETTING 6- PASSIVE ARMING
THE HORN WILL HONK 6 TIMES WHEN SETTING 6 IS SELECTED
SETTING 7- PASSIVE LOCKS
THE HORN WILL HONK 7 TIMES WHEN SETTING 7 IS SELECTED
PRESS
5 TIMES
X5
5 HONK
PRESS
6 TIMES
X6
6 HONK
SETS OPTION 2 – SHORT PULSES- The horn will output for about 10ms
PRESS
7 TIMES
X7
7 HONK
SYSTEM PROGRAMMING - Menu 1
PAGE 11
KE-6
INSTALL MANUAL
PROGRAMMING
SETS OPTION 3 – NORMAL PULSES- The horn will output for about 15ms
3 HONK
DEFAULT SETTING

Cycle the Ignition Key
ON/OFF ON/OFF ON
(Leaving the key ON)
Press and release the
Program Switch 1 time.
HORN will chip to confirm
program mode entered
Press Unlock Button on
Remote to Select Menu 2
1 HONK
SETS OPTION 1 – SECURE VALET - The LED/ Program Switch must
be held for 15 seconds to place the system into Valet Mode.
SETS OPTION 2 – STANDARD VALET- The LED/ Program Switch must be
held for 5 seconds to place the system into Valet Mode.
SETS OPTION 1 – 30 SECOND- The park light output will flash for all
functions and will stay active for 30 seconds when unlock is pressed.
SETS OPTION 2 – Trunk Release- The park light output will act as a
positive trunk output. The trunk output acts as a negative park light.
SETS OPTION 3 – Normal Operation- The park lights will flash for all
alarm functions.
CHANGE SETTING 1 -
GOTO SETTING 2 - PRESS & RELEASE THE VALET SWITCH
PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
1 HONK
2 HONK
2 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
STEP 2 - SELECT / CHANGE PROGRAM SETTINGS
SETS OPTION 1 – Pulsed Output- The AUX output will pulse for .75 seconds when
activated.
SETS OPTION 2 – Active Output- The AUX output will stay active for as long as the
AUX button is held.
SETS OPTION 3 – Horn Output- Horn output on the WHITE/BLUE wire.
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO BACK TO SETTING 1 - PRESS & RELEASE THE VALET SWITCH
1 HONK
2 HONK
3 HONK
STEP 1 - ENTER PROGRAM MODE - MENU 2
SETTING 1 - VALET SETTINGS
THE HORN WILL HONK 1 TIME WHEN SETTING 1 IS SELECTED
PRESS
1 TIME
X1
1 HONK
SETTING 2 - PARKING LIGHT OUTPUT
THE HORN WILL HONK 2 TIMES WHEN SETTING 2 IS SELECTED
PRESS
2 TIMES
X2
2 HONK
SETTING 3 - HORN / AUX OUTPUT
THE HORN WILL HONK 3 TIMES WHEN SETTING 3 IS SELECTED
PRESS
3 TIMES
X3
3 HONK
DEFAULT SETTING
SYSTEM PROGRAMMING - Menu 1
PAGE 12
KE-6
INSTALL MANUAL
PROGRAMMING
SYSTEM PROGRAMMING - Menu 1
PAGE 13
KE-6
INSTALL MANUAL
QUICK VIEW CHART
1 SEC 1 LOCK DOORS
3 SEC 1ACTIVATE PANIC
PRESS THEN
RELEASE THEN
PRESS & HOLD
1ACTIVATE CONSTANT LOCK
OUTPUT **
LOCK
BUTTON PRESS HONK /
FLASH SYSTEM FUNCTION
BUTTON
1 SEC 2 UNLOCK DOORS
1 SEC
WHILE ALARM IS
TRIGGERED
NONE TURNS OFF PANIC BUT DOORS
ARE STILL LOCKED
UNLOCK
PRESS & HOLD FOR 1 -
5 SEC 1 ACTIVATES AUX OUTPUT
** PROGRAMMABLE OUTPUT - CHECK WITH INSTALLATION CENTER FOR DETAILS
PRESS & HOLD FOR 3
SEC ON ACTIVATES CAR FINDER
PRESS TOGETHER
THEN RELEASE
PRESS TOGETHER
THEN RELEASE
1
2
ACTIVATES SILENT LOCK
ACTIVATES SILENT UNLOCK
+
NO HORN HONK - ACTS AS A TOGGLE - IF LOCKED WILL UNLOCK, IF UNLOCKED WILL LOCK

Cycle the Ignition Key
ON/OFF ON/OFF ON
(Leaving the key ON)
Press and release the
Program Switch 1 time.
HORN will chip to confirm
program mode entered
Press Unlock Button on
Remote to Select Menu 2
1 HONK
SETS OPTION 1 – SECURE VALET - The LED/ Program Switch must
be held for 15 seconds to place the system into Valet Mode.
SETS OPTION 2 – STANDARD VALET- The LED/ Program Switch must be
held for 5 seconds to place the system into Valet Mode.
SETS OPTION 1 – 30 SECOND- The park light output will flash for all
functions and will stay active for 30 seconds when unlock is pressed.
SETS OPTION 2 – Trunk Release- The park light output will act as a
positive trunk output. The trunk output acts as a negative park light.
SETS OPTION 3 – Normal Operation- The park lights will flash for all
alarm functions.
CHANGE SETTING 1 -
GOTO SETTING 2 - PRESS & RELEASE THE VALET SWITCH
PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO SETTING 3 - PRESS & RELEASE THE VALET SWITCH
1 HONK
1 HONK
2 HONK
2 HONK
3 HONK
DEFAULT SETTING
DEFAULT SETTING
STEP 2 - SELECT / CHANGE PROGRAM SETTINGS
SETS OPTION 1 – Pulsed Output- The AUX output will pulse for .75 seconds when
activated.
SETS OPTION 2 – Active Output- The AUX output will stay active for as long as the
AUX button is held.
SETS OPTION 3 – Horn Output- Horn output on the WHITE/BLUE wire.
CHANGE SETTING 2 - PRESS & HOLD THE VALET SWITCH UNTIL THE HORN HONK(S)
GOTO BACK TO SETTING 1 - PRESS & RELEASE THE VALET SWITCH
1 HONK
2 HONK
3 HONK
STEP 1 - ENTER PROGRAM MODE - MENU 2
SETTING 1 - VALET SETTINGS
THE HORN WILL HONK 1 TIME WHEN SETTING 1 IS SELECTED
PRESS
1 TIME
X1
1 HONK
SETTING 2 - PARKING LIGHT OUTPUT
THE HORN WILL HONK 2 TIMES WHEN SETTING 2 IS SELECTED
PRESS
2 TIMES
X2
2 HONK
SETTING 3 - HORN / AUX OUTPUT
THE HORN WILL HONK 3 TIMES WHEN SETTING 3 IS SELECTED
PRESS
3 TIMES
X3
3 HONK
DEFAULT SETTING
SYSTEM PROGRAMMING - Menu 1
PAGE 12
KE-6
INSTALL MANUAL
PROGRAMMING
SYSTEM PROGRAMMING - Menu 1
PAGE 13
KE-6
INSTALL MANUAL
QUICK VIEW CHART
1 SEC 1 LOCK DOORS
3 SEC 1ACTIVATE PANIC
PRESS THEN
RELEASE THEN
PRESS & HOLD
1ACTIVATE CONSTANT LOCK
OUTPUT **
LOCK
BUTTON PRESS HONK /
FLASH SYSTEM FUNCTION
BUTTON
1 SEC 2 UNLOCK DOORS
1 SEC
WHILE ALARM IS
TRIGGERED
NONE TURNS OFF PANIC BUT DOORS
ARE STILL LOCKED
UNLOCK
PRESS & HOLD FOR 1 -
5 SEC 1 ACTIVATES AUX OUTPUT
** PROGRAMMABLE OUTPUT - CHECK WITH INSTALLATION CENTER FOR DETAILS
PRESS & HOLD FOR 3
SEC ON ACTIVATES CAR FINDER
PRESS TOGETHER
THEN RELEASE
PRESS TOGETHER
THEN RELEASE
1
2
ACTIVATES SILENT LOCK
ACTIVATES SILENT UNLOCK
+
NO HORN HONK - ACTS AS A TOGGLE - IF LOCKED WILL UNLOCK, IF UNLOCKED WILL LOCK

SETTING #
LED FLASHES
1
2
3
VALET
SETTINGS
TRUNK RELEASE
SECURE VALET
15 SECONDS
STANDARD VALET
8 SECONDS
OPTION 3
3 HONK
OPTION 1
1 HONK
OPTION 2
2 HONK
PARK LIGHT
OUTPUT
AUX OUTPUT
AUX CHANNEL 5
OPTIONS
STARTER DISABLEDOOR LOCKS
30 SECOND ON
FOR DISARM
AUX OUTPUT 0.75
OUTPUT
POS TRUNK
RELEASE OUTPUT
AUX OUTPUT
AS LONG AS HELD
NORMAL
OPERATION
HORN OUTPUT (-)
SETTING
DESCRIPTION
SETTING #
LED FLASHES
1
2
3
4
5
6
7
IGNITION
AUTO-LOCK
AUTO-LOCK &
UNLOCK ENABLED
IGNITION AUTO-
LOCK ONLY
OPTION 3
3 HONK
IGNITION AUTO-
LOCK DISABLED
OPTION 1
1 HONK
OPTION 2
2 HONK
HORN SETTINGS
DOOR LOCK
OPTIONS
DOOR LOCK
PULSE TIMES
HORN OUTPUT
PASSIVE ARMING
PASSIVE
DOOR LOCKS
HORN HONK
DISABLED
DOUBLE UNLOCK /
SINGLE LOCK
PULSES
0.25 SECOND
PULSES
LOUD
FULL
PASSIVE ARMING
PASSIVE DOOR
LOCKS
DISABLED
HORN HONK
ENABLED
DOUBLE LOCK /
SINGLE UNLOCK
PULSES
3 SECOND
PULSES
PASSIVE SAFETY
REARM ONLY
PASSIVE DOOR
LOCKS
ENABLED
HORN HONK
ENABLED
SINGLE UNLOCK /
SINGLE LOCK
0.75 SECOND
PULSES
ALL PASSIVE
ARMING
DISABLED
SETTING
DESCRIPTION
PROGRAM MODE 1
PROGRAM MODE 2
INSTALLER PROGRAM OPTION CHART - PLACE A CHECK MARK BY THE OPTION PROGRAMMED
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
aa
a
a aaa
a
a
a
OPTIONAL FEATURES INSTALLED
After checking off the programmed options and optional features, please provide a copy of this
page to customer for reference and keep a copy with customer file for future reference
NOTES:
NORMAL
a
QUITE
SYSTEM PROGRAMMING - Menu 1
PAGE 14
KE-6
INSTALL MANUAL
INSTALLER NOTES
SYSTEM PROGRAMMING - Menu 1
PAGE 15
KE-6
INSTALL MANUAL
WARRANTY
Applicated Security Technologies, Inc. ("AST") promises to the original purchaser to repair or replace
with a comparable reconditioned model any AST control module ("module") excluding without
limitation the any other accessories, including but not limited to the antenna, remote, HORN and
wiring harness, proves to be defective in workmanship or material under reasonable use during the
lifetime of the vehicle it was originally installed, provided the following conditions have been met: the
module was professionally installed and serviced by an authorized AST dealer; the unit will be
professionally reinstalled in the vehicle in which it was originally installed by an authorized AST dealer;
the warranty information card was sent to AST within 10 days of the original installation date. Any
warranty returns include a warranty return authorization number issued by AST, original bill or sale and
be pre-paid shipped directly to AST. After an initial period of 2 years from the date of installation, AST
reserves the right, at its sole discretion, to charge a warranty processing fee of $30.00 USD. AST
does not cover the cost for return freight on warranty items, this cost is the sole responsibility of the
purchaser.
All components included with the original packaged unit other than the module, including but not
limited to the HORN, antenna and the remote transmitters, carry a one-year warranty from the date of
purchase of the same. Any warranty returns on components must include a warranty return
authorization number issued by AST, original bill or sale and be pre-paid shipped directly to AST. This
warranty is non-transferable and is automatically void if: the original purchaser has not completed the
warranty card and mailed it within ten (10) days of the date of purchase to the address listed on the
card; the unit's date code or serial number is defaced, missing or altered; the unit has been modified
or used in a manner contrary to its intended purpose; the unit has been damaged by accident,
unreasonable use, neglect, improper service, installation or other causes not arising out of defects in
materials or construction. The warranty does not cover damage to the unit caused by installation or
removal of the unit. AST, at its sole discretion, will determine what constitutes excessive damage and
may refuse the return of any unit with excessive damage, including, but not limited to, overloading,
moisture and physical damage.
To the maximum extent allowed by law, any and all warranties are excluded by the manufacturer and
each entity participating in the stream of commerce therewith. This exclusion includes but is not limited
to, the exclusion of any and all warranty of merchantability and/or any and all warranty of fitness for a
particular purpose and/or any and all warranty of non-infringement or patents, in the United States of
America and/or abroad. Neither the manufacturer or any entities connected therewith shall be
responsible or liable for any damages whatsoever, including but not limited to, any consequential
damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of
economic opportunity and the like. Notwithstanding the above, manufacturer does offer a limited
warranty to replace or repair the control module as describe above.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or
limitation on how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may also have other
rights, which vary State to State.

SETTING #
LED FLASHES
1
2
3
VALET
SETTINGS
TRUNK RELEASE
SECURE VALET
15 SECONDS
STANDARD VALET
8 SECONDS
OPTION 3
3 HONK
OPTION 1
1 HONK
OPTION 2
2 HONK
PARK LIGHT
OUTPUT
AUX OUTPUT
AUX CHANNEL 5
OPTIONS
STARTER DISABLEDOOR LOCKS
30 SECOND ON
FOR DISARM
AUX OUTPUT 0.75
OUTPUT
POS TRUNK
RELEASE OUTPUT
AUX OUTPUT
AS LONG AS HELD
NORMAL
OPERATION
HORN OUTPUT (-)
SETTING
DESCRIPTION
SETTING #
LED FLASHES
1
2
3
4
5
6
7
IGNITION
AUTO-LOCK
AUTO-LOCK &
UNLOCK ENABLED
IGNITION AUTO-
LOCK ONLY
OPTION 3
3 HONK
IGNITION AUTO-
LOCK DISABLED
OPTION 1
1 HONK
OPTION 2
2 HONK
HORN SETTINGS
DOOR LOCK
OPTIONS
DOOR LOCK
PULSE TIMES
HORN OUTPUT
PASSIVE ARMING
PASSIVE
DOOR LOCKS
HORN HONK
DISABLED
DOUBLE UNLOCK /
SINGLE LOCK
PULSES
0.25 SECOND
PULSES
LOUD
FULL
PASSIVE ARMING
PASSIVE DOOR
LOCKS
DISABLED
HORN HONK
ENABLED
DOUBLE LOCK /
SINGLE UNLOCK
PULSES
3 SECOND
PULSES
PASSIVE SAFETY
REARM ONLY
PASSIVE DOOR
LOCKS
ENABLED
HORN HONK
ENABLED
SINGLE UNLOCK /
SINGLE LOCK
0.75 SECOND
PULSES
ALL PASSIVE
ARMING
DISABLED
SETTING
DESCRIPTION
PROGRAM MODE 1
PROGRAM MODE 2
INSTALLER PROGRAM OPTION CHART - PLACE A CHECK MARK BY THE OPTION PROGRAMMED
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
aa
a
a aaa
a
a
a
OPTIONAL FEATURES INSTALLED
After checking off the programmed options and optional features, please provide a copy of this
page to customer for reference and keep a copy with customer file for future reference
NOTES:
NORMAL
a
QUITE
SYSTEM PROGRAMMING - Menu 1
PAGE 14
KE-6
INSTALL MANUAL
INSTALLER NOTES
SYSTEM PROGRAMMING - Menu 1
PAGE 15
KE-6
INSTALL MANUAL
WARRANTY
Applicated Security Technologies, Inc. ("AST") promises to the original purchaser to repair or replace
with a comparable reconditioned model any AST control module ("module") excluding without
limitation the any other accessories, including but not limited to the antenna, remote, HORN and
wiring harness, proves to be defective in workmanship or material under reasonable use during the
lifetime of the vehicle it was originally installed, provided the following conditions have been met: the
module was professionally installed and serviced by an authorized AST dealer; the unit will be
professionally reinstalled in the vehicle in which it was originally installed by an authorized AST dealer;
the warranty information card was sent to AST within 10 days of the original installation date. Any
warranty returns include a warranty return authorization number issued by AST, original bill or sale and
be pre-paid shipped directly to AST. After an initial period of 2 years from the date of installation, AST
reserves the right, at its sole discretion, to charge a warranty processing fee of $30.00 USD. AST
does not cover the cost for return freight on warranty items, this cost is the sole responsibility of the
purchaser.
All components included with the original packaged unit other than the module, including but not
limited to the HORN, antenna and the remote transmitters, carry a one-year warranty from the date of
purchase of the same. Any warranty returns on components must include a warranty return
authorization number issued by AST, original bill or sale and be pre-paid shipped directly to AST. This
warranty is non-transferable and is automatically void if: the original purchaser has not completed the
warranty card and mailed it within ten (10) days of the date of purchase to the address listed on the
card; the unit's date code or serial number is defaced, missing or altered; the unit has been modified
or used in a manner contrary to its intended purpose; the unit has been damaged by accident,
unreasonable use, neglect, improper service, installation or other causes not arising out of defects in
materials or construction. The warranty does not cover damage to the unit caused by installation or
removal of the unit. AST, at its sole discretion, will determine what constitutes excessive damage and
may refuse the return of any unit with excessive damage, including, but not limited to, overloading,
moisture and physical damage.
To the maximum extent allowed by law, any and all warranties are excluded by the manufacturer and
each entity participating in the stream of commerce therewith. This exclusion includes but is not limited
to, the exclusion of any and all warranty of merchantability and/or any and all warranty of fitness for a
particular purpose and/or any and all warranty of non-infringement or patents, in the United States of
America and/or abroad. Neither the manufacturer or any entities connected therewith shall be
responsible or liable for any damages whatsoever, including but not limited to, any consequential
damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of
economic opportunity and the like. Notwithstanding the above, manufacturer does offer a limited
warranty to replace or repair the control module as describe above.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or
limitation on how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may also have other
rights, which vary State to State.

technical support: [email protected]
additional product information: www.ultrastarters.com
TM
