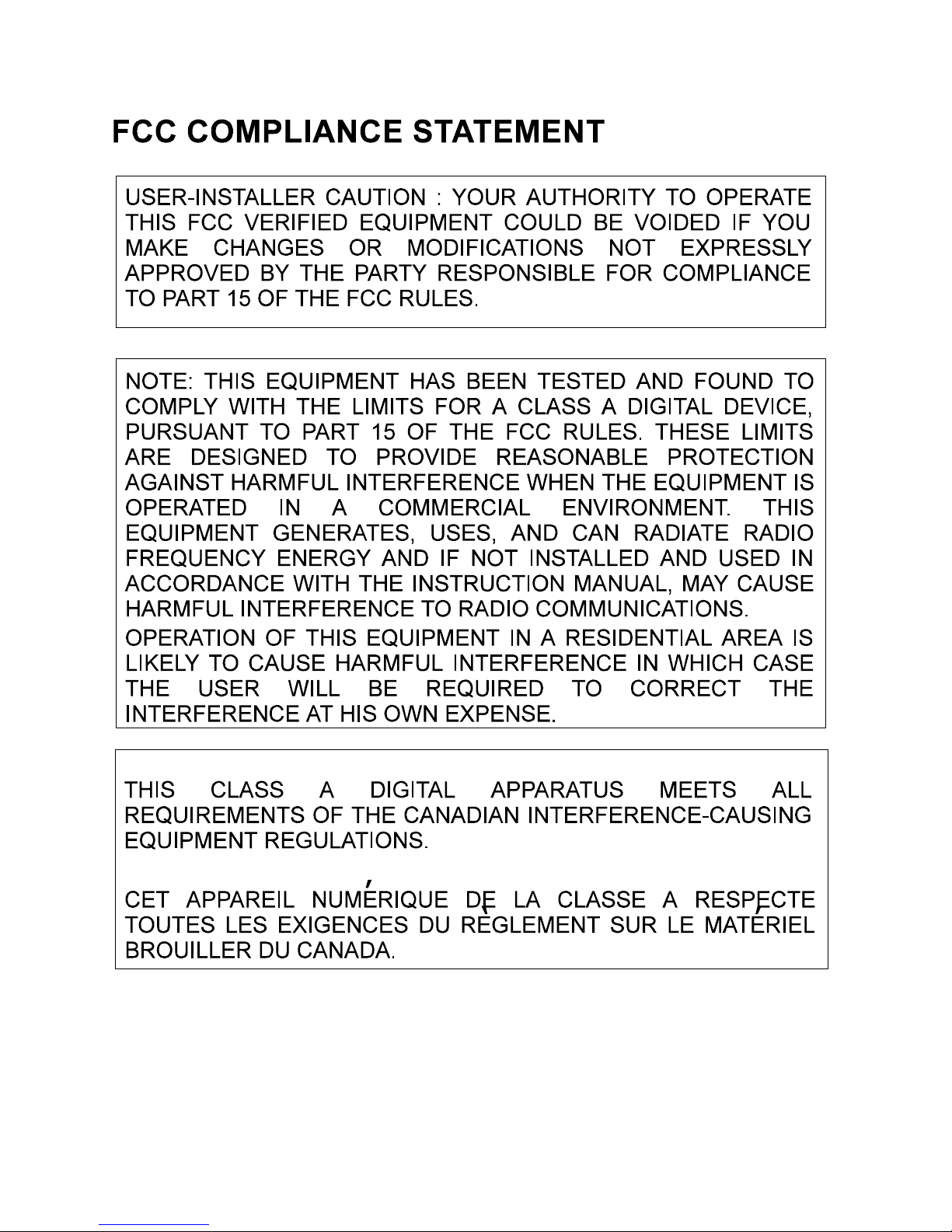

SECTION 1
KC6300 CCD BLACK & WHITE
HIGH RESOLUTION CAMERA
1.1 PURPOSE
The KC6300 CCD high resolution black & white camera provides
a low-cost solution to closed circuit television and security
surveillance applications. The KC6300 camera features:
•1/3" interline transfer CCD image sensor
•Supports standard CS or C-mount lens
•Equipped with electronic iris
•Compatibility with video or dc auto-iris lens
•Operates on 24V ac with line lock and LED power indicator
•Excellent picture quality
•Two-year warranty
This manual describes how to setup and operate the KC6300
camera.
1.2 SYSTEM INSTALLATION
Installation of the KC6300 camera must be performed by
qualified service personnel in accordance with all local and
national electrical and mechanical codes. Perform the following
steps to install the KC6300 camera.
A. Remove all components from the package and identify the
items that will be used during installation:
•KC6300 camera with CS-mount
•Mini-din connector (for dc-type auto iris lens)
•C-mount ring
Other items used during the installation that are NOT
supplied with the KC6300 camera may include:
•24V ac power supply
•Camera lens
•Mounting hardware
•Camera stand or mounting bracket
•Video cable
•Monitor
Refer to Figure 1 for identification of the KC6300 Camera.

2

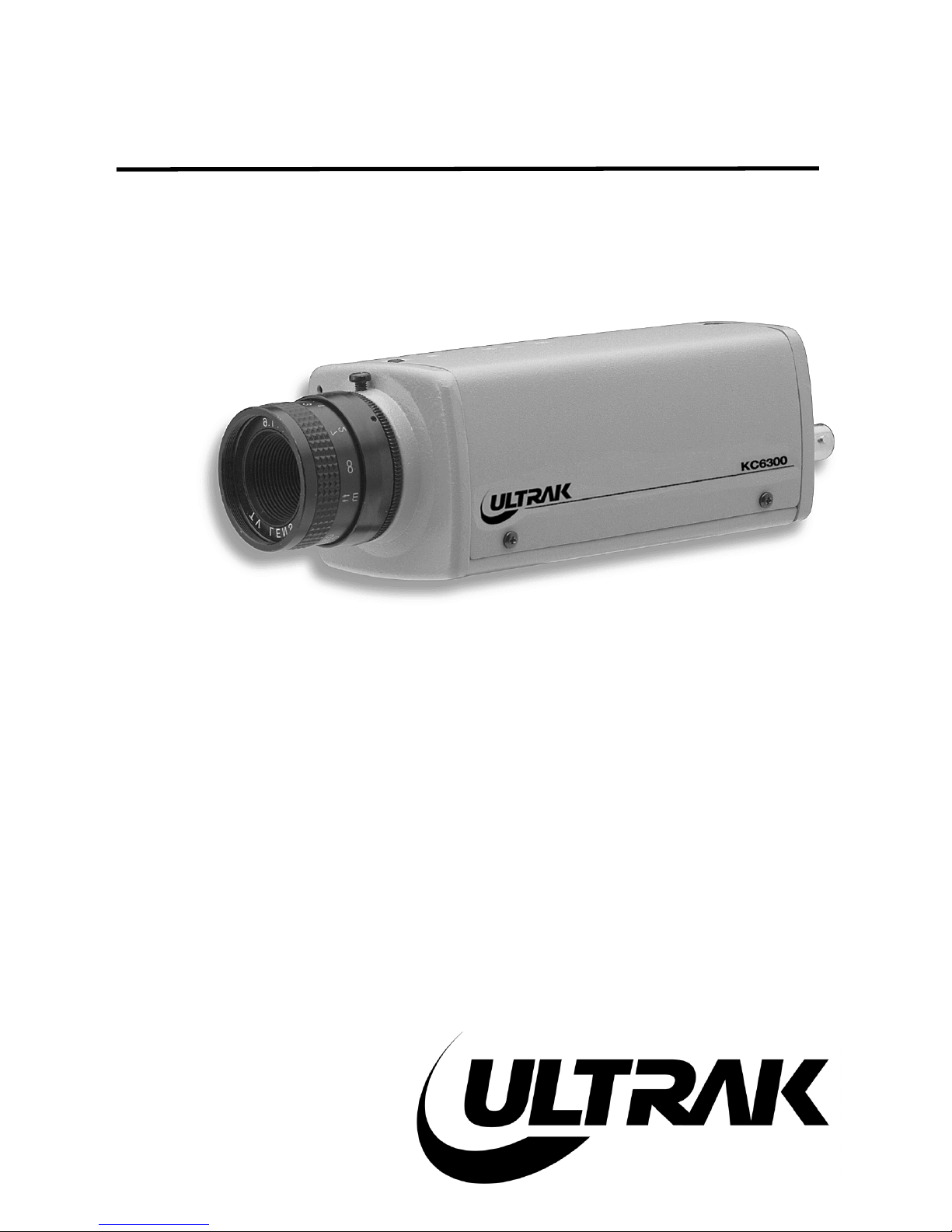

FIGURE 1. KC6300 CAMERA

3
B. Select a suitable location for the camera. Install the camera
stand or mounting bracket in the selected location using a
suitable fastener. The camera stand or mounting bracket
must be attached to a structural object, such as a wall stud
or ceiling rafter, that supports the weight of the camera and
mount.
C. The KC6300 camera has a camera mounting block attached
to the bottom of the camera housing. The ¼"-20 UNC
threaded mounting hole attaches to the bolt on the camera
stand or mounting bracket.
The two screws on the camera mounting block allow the
block to be removed and repositioned on top of the camera
housing.
NOTE: Do not aim or point the camera toward the sun or into
a strong light.
D. Attach a CS-mount lens directly to the front of the camera. If
a C-mount lens is used, attach the C-mount ring before
attaching the C-mount lens.
E. Connect a video coaxial cable from the VIDEO OUT
connector on the back of the KC6300 camera to the input
port of the monitor.
F. Wire the 24V ac power supply to the green ac power
connector on the back of the camera. Use only a UL listed
Class 2 power transformer.
G. Apply 24V ac power to the camera. The power LED on the
back of the camera illuminates and remains illuminated as
long as power is applied to the camera.
H. Adjust the lens focus and iris controls for an optimum picture.

4
SECTION 2
KC6300 CAMERA ADJUSTMENTS
2.1 MANUAL-IRIS LENS ADJUSTMENT
When using the manual-iris lens, turn the iris to the ON position
and adjust the manual iris for the appropriate range. Adjust
during the brightest conditions, opening the lens without
saturating the picture. Set the EI switch to ON. Adjust the lens
opening for the minimum F-number yielding a good picture under
the brightest scene conditions.
The manual iris is used in indoor applications where lighting from
windows can considerably affect the light level of the room.
2.2 VIDEO-TYPE AUTO-IRIS LENS INSTALLATION AND
ADJUSTMENT
The KC6300 camera supports video-type auto-iris lenses to
adjust for changing light levels. Perform the following steps to
install and adjust a video-type auto iris lens.
A) Thread the video-type auto-iris lens on to the lens mount.
B) Connect the lens control wiring to the three position terminal
block on the back of the camera. The following diagram
illustrates the Pin connections. Red, white and black are the
most common colors used for wiring on video-type auto iris
lens.
Pin Name Wire Color
+B Voltage + Red
VI Video White
G Ground Black
C) Set the EI switch on the back of the camera to OFF.
D) Apply power to the camera.
E) Adjust the focus ring on the lens for an optimum picture. If a
picture is not visible, set the lens for proper exposure by
adjusting the ALC (automatic level control) and Level on the
lens. The ALC setting can range between AVG (average) or

5
PK (peak). A mid-range setting is appropriate for most
applications.
For ALC adjustments:
AVG To slow the reaction of the lens to changing light,
set the range to the AVG setting to average the
video level from the camera. Use when there are
bright spots in the picture such as lights or glare
from the sun.
PK To increase the speed of the lens reaction to the
changing light, set the lens adjustment to PK so
the lens will adjust to the brightest or peak object in
the video. Use this setting if you want to see the
brightest object and not the background objects.
For level adjustments:
Adjust the level control for the best picture during the day. A
night adjustment may not provide the proper setting for
controlling the light during the day.
F) Set the back focus of the camera before the final adjustment
of the video level.
G) If the auto iris has a gain adjustment:
1. If the lens oscillates between open and closed under
bright lights, slowly turn the gain adjustment counter
clockwise until the oscillating stops.
2. Increase the light getting to the camera by adjusting the
level control and re-adjusting the gain control as
necessary.
3. Reset the level control as noted in step E.
2.3 DC IRIS LENS INSTALLATION AND ADJUSTMENT
The KC6300 camera supports dc-iris lens. Perform the following
steps to install and adjust a dc-type auto-iris lens.
A) Thread the dc-iris lens to the lens mount on the front of the
camera.
B) Solder the lens control wires to the mini-DIN connector
supplied with the camera.

6
Pin Name Wire Color
1 Damp Coil - Blue
2 Damp Coil + Red
3 Drive Coil + White
4 Drive Coil - Green

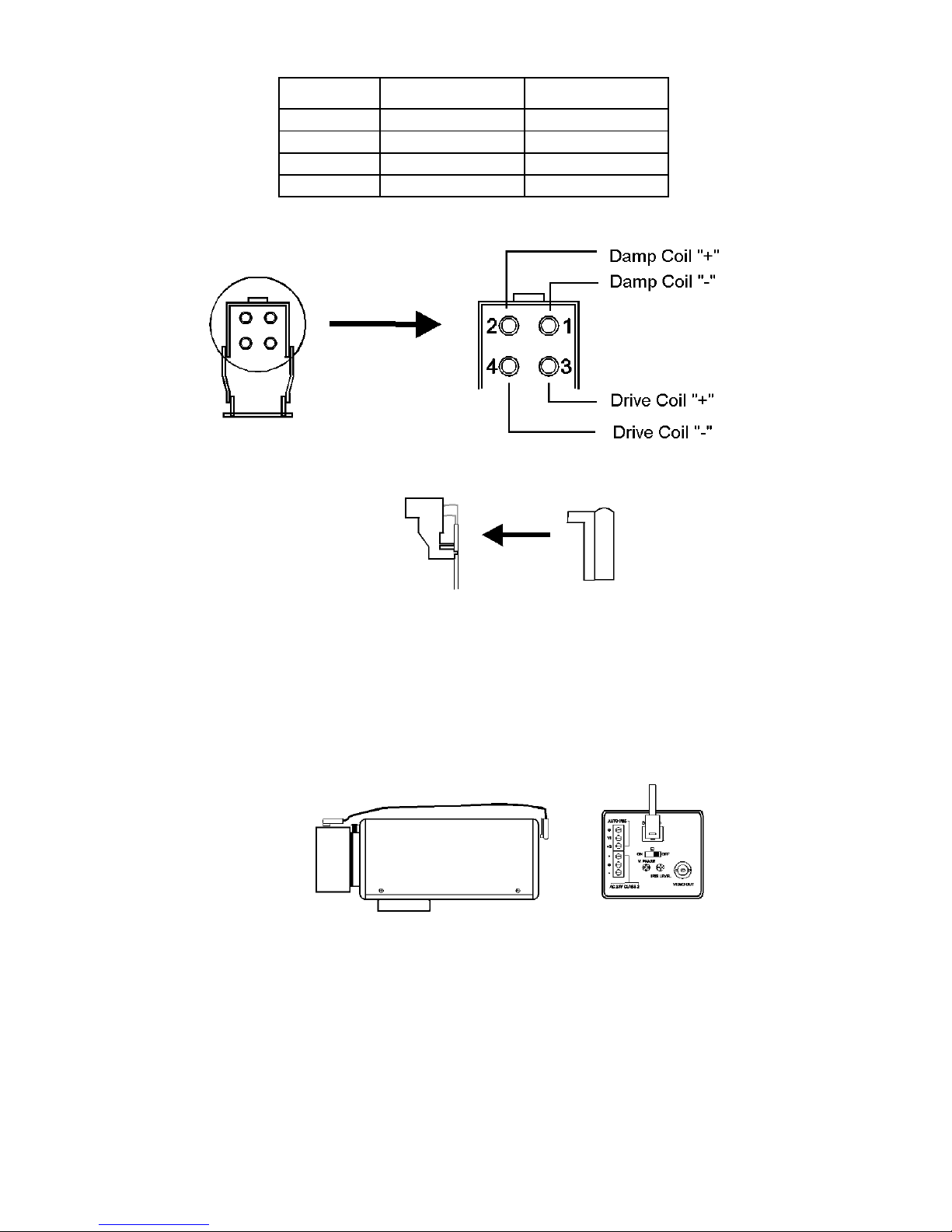

FIGURE 2. LENS CONTROL CONNECTIONS
C) Plug the connector into the DC IRIS jack on the back of the
camera. The connector is polarized and can only be inserted
into the jack one way.
FIGURE 3. CAMERA SIDE AND BACK VIEW
D) The EI switch should be in the OFF position.
E) Apply power to the KC6300 camera.

7
F) Adjust the dc iris lens for an optimum picture. Use the IRIS
LEVEL control on the back of the camera for optimum
picture quality.
2.4 BACK FOCUS ADJUSTMENT
For best results, perform back focus adjustments at night or
while using a #6 or #8 welder's glass in front of the lens. The
focus of the camera will change slightly if the camera iris was
adjusted on a light scene, then changes to a dark scene.
However, the camera will remain in focus if the iris was focused
on a dark scene and the scene lightens.
A) The lens should be mounted on the camera, then apply
power.
B) If a picture is visible, focus on the picture. If the picture is not
visible, open the iris on the lens. Open the lens as wide as
possible by adjusting the iris ring on the lens for the brightest
picture or by placing the welders glass in front of the lens and
forcing the lens to automatically open.
C) When the iris is open to the widest point, re-adjust the focus
for a clear picture. It a clear picture is not possible, set the
focus ring to midrange.
D) Loosen the back focus lock screw.
E) Adjust the back focus ring for a clear picture.
F) Tighten the back focus lock screw.
G) Fine tune the focus with the focus ring on the lens.
H) Remove the welders glass from in front of the lens.
I) Adjust the iris of the lens for the best picture quality.

8
2.5 PHASE ADJUSTMENT
Phase adjustment is used in multi-camera systems when power
is supplied from different sources, causing the cameras to be out
of phase. This situation affects auto switching of the cameras by
causing a vertical flip or roll during the switch interval. The
vertical phase adjustment allows the camera’s line lock sync to
by adjusted from 0 to 260 degrees with reference to the zero line
crossing the ac frequency.
A) Ensure that all cameras are powered from the same
electrical source and wired in a similar fashion.
B) Adjust the phase control on the back of the camera until
there is no vertical flip or roll on the monitor when using the
auto switcher.

9
SECTION 3
TROUBLESHOOTING AND MAINTENANCE
3.1 TROUBLESHOOTING
If problems occur, verify the installation of the camera with the
instructions in this manual and with other operating equipment.
Isolate the problem to the specific piece of equipment in the
system and refer to the equipment manual for further information.
Problem Possible Solution
No Video 1. Verify power to all pieces of equipment
in the system.
2. Verify that the power switches are in
the ON position.
3. Verify that the lens cap has been
removed from the lens or that the iris
of the lens is open.
Video, but no control 1. Power down the system for one
minute, then turn power back ON.
3.2 PREVENTIVE MAINTENANCE
Preventive maintenance allows detection and correction of minor
faults before they become serious and cause equipment failure.
Every three months, perform the following maintenance:
A) Inspect all connecting cables for deterioration or other
damage.
B) Clean components with a clean damp cloth.
C) Verify that all the mounting hardware is secure.

10
SPECIFICATIONS
Video Output 1.0Vp-p, EIA, 525 Lines
Output Impedance 75 ohms unbalanced
Pick Up Device 1/3" CCD
Picture Element 768 X 494
Scanning System 2:1 Interlace
Scanning Frequency H: 15.75 KHz
V: 60 Hz
Sync System Line lock (only ac model)
Resolution 570
S/N Ratio 46 dB (AGC off)
Min Illumination 0.08 Lux (F.1.2, 50% IRE)
AGC Built-in automatic on
Electronic Iris On/Off
1/60 sec – 1/50,000 sec
Back Light Window 40%
Connector BNC
Video Iris Out: 3P terminal
dc-iris: 4P mini din
Switch E/I On/Off
Adjust Line phase
dc-iris level
Lens Mount C & CS
Dimensions 2.3"(w) X 2.0"(h) X 5.2"(d)
58mm(w) x 52mm(h) x
132mm(d)
Weight 1 lb. (480 g)
Power Consumption 3.0W (3.5W max with auto-iris)
Power Source 24V ac
Ambient Temperature 14°F – 114°F (-10°C - +45°C)
Ambient Humidity 30% - 90% (non-condensing)
Printed in Korea
FORM 1859, REV. 09/97
