UltraLift MERCURY SLIM User manual

PRODUCT MANUAL
MERCURY SLIM
CEILING TILT TV LIFT

2
TABLE OF CONTENTS
MERCURY SLIM
PRODUCT DIAGRAM ............................................................................................................................................................ 3
PRE-INSTALLATION............................................................................................................................................................... 4
INSTALLATION ...................................................................................................................................................................... 7
Mounting The TV Screen .................................................................................................................................................. 9
CABLE MANAGEMENT........................................................................................................................................................ 11
MOTOR LIMITS ADJUSTMENT............................................................................................................................................ 12
WIRING AND OPERATION .................................................................................................................................................. 13
WARRANTY AND RETURNS................................................................................................................................................ 15
MOVING PARTS
Do not obstruct operation of mechanism with fingers or any object. Injury or damage could
result. If adjusting the limits, do so prior to wiring into control systems.
RISK OF ELECTROCUTION
Do not connect any power to the lift until installation is complete.
Attach the display panel after the lift has been properly installed and tested.
WEAR PROTECTIVE EYEWEAR
During installation, this product, or parts of it may move in unexpected ways.
Always wear protective eyewear to ensure safety.
BE PREPARED
Organise your mounting hardware and have the necessary tools readily accessible be-fore
installation.
NOTE
Do not expose to extreme temperatures or corrosive materials.
Minimize exposure to the elements. This will void your warranty and reduce the life of the
product.

3
PRODUCT DIAGRAM
MERCURY SLIM
PRODUCT DIAGRAM
SIDE MOUNT ING HOLES
CORFLUTE COVER
TV HANGING RAILS
HANGING RAILS
SECURING ACCESS HOLES
LIFTING CABLES
GAS STRUT
MICRO SWIT CH
TUBULAR MOT OR
ADJUSTMENT ACCESS

4
PRE-INSTALLATION
MERCURY SLIM
PRE-INSTALLATION
BEFORE INSTALL:
•When choosing your lift, keep in mind variances of the display panel size due to things like speakers on
the side, top or bottom. These can increase the size of the lift that you will need. Check that the screen is
not larger than the maximum screen size allowed.
•Check above the ceiling for obstructions (i.e., water pipes, cables, and duct work) before beginning
installation.
•After establishing the correct location for the lift and display panel, cut a hole in the ceiling at the size
listed on the following page.
•Organise a qualified trades person to frame up the roof to accommodate the Spartan so that it can be
mounted in the correct position.
•Route AV cables from the source to the roof location where the Lift will be in-stalled.
•Ensure that a double power point has been installed in the roof (or where suit-able) so that the Lift and
display panel can receive power.
•Before mounting the display panel to the Lift, ensure that it will suit the Lift in relation to dimensions,
loading capacity and functionality.
•Read instructions completely before proceeding. Follow instructions carefully. Installation contrary to
instructions invalidates warranty.
CAUTION
•Do not obstruct operation of lift with fingers or any object. Injury or damage could result.
•Check above the ceiling for obstructions (i.e., water pipers, cable, and duct work) before beginning
installation.
•Do not connect any power to the lift until installation is complete
•Attach the display panel only after the lift has been properly installed and tested.
•Unit operates on a 240V with a current draw of 1A and a 6.5mA standby.
•If adjusting the limits, do so prior to wiring into control systems.
•Organise your mounting hardware and have the necessary tools readily accessible before installation.
IMPORTANT WARNING
Follow cable spooling orientation as shown below when installing new motor and adjusting
limits. See the page for motor limit adjustment, motor type, and wire colour combination for
more information.

5
PRE-INSTALLATION
MERCURY SLIM
It is critical that the tension of the cables on the Mercury remains unchanged.
Changing the tension of the cables will damage the Mercury and void your warranty.
To ensure the tension remains unchanged from factory defaults, please note the following:
•NEVER open or close the Mercury lift manually (i.e., by hand):
Doing so may reduce the tension in the cables, causing them to bunch up on the tubular motor and
prevent the lift from raising or lowering properly. The cables may snap if this is the case.

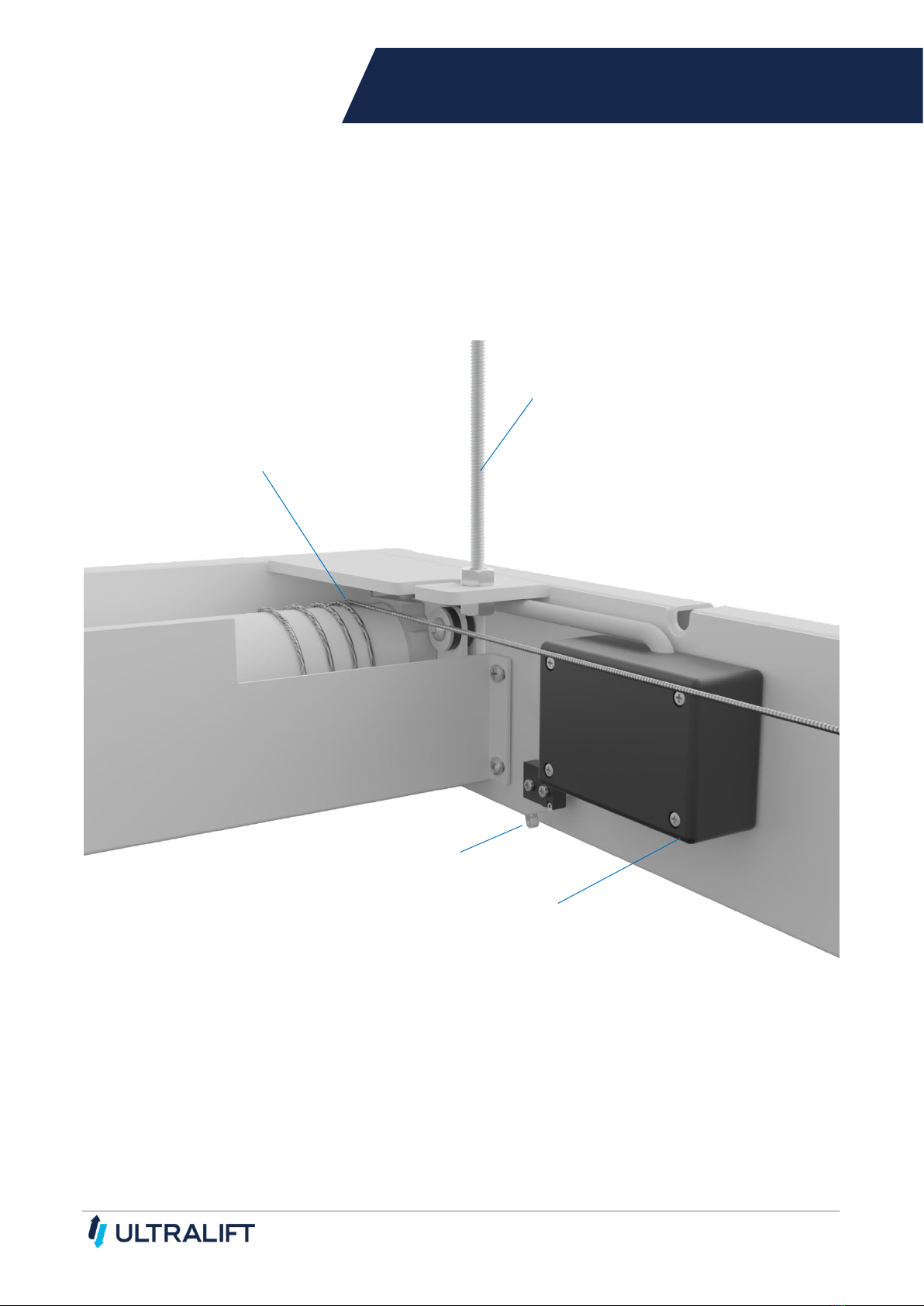

8 mm Threaded Rod to Fasten Mercury to
Concrete Slab above Ceiling
LIFTING CABLE
Should Spool from Top of the Drum Down and
Should Never be Crossed Over as It Could
Fray and Ultimately Snap the Cable
Micro-Switch
Motor Junction Box

6
PRE-INSTALLATION
MERCURY SLIM
•NEVER disconnect the spool cables:
Doing so will cause the tension of each cable to become uneven/unbalanced, making the load
applied to the lifting mechanism uneven. This can cause the Mercury Lift to malfunction and may
cause the cables to snap.
Preparation:

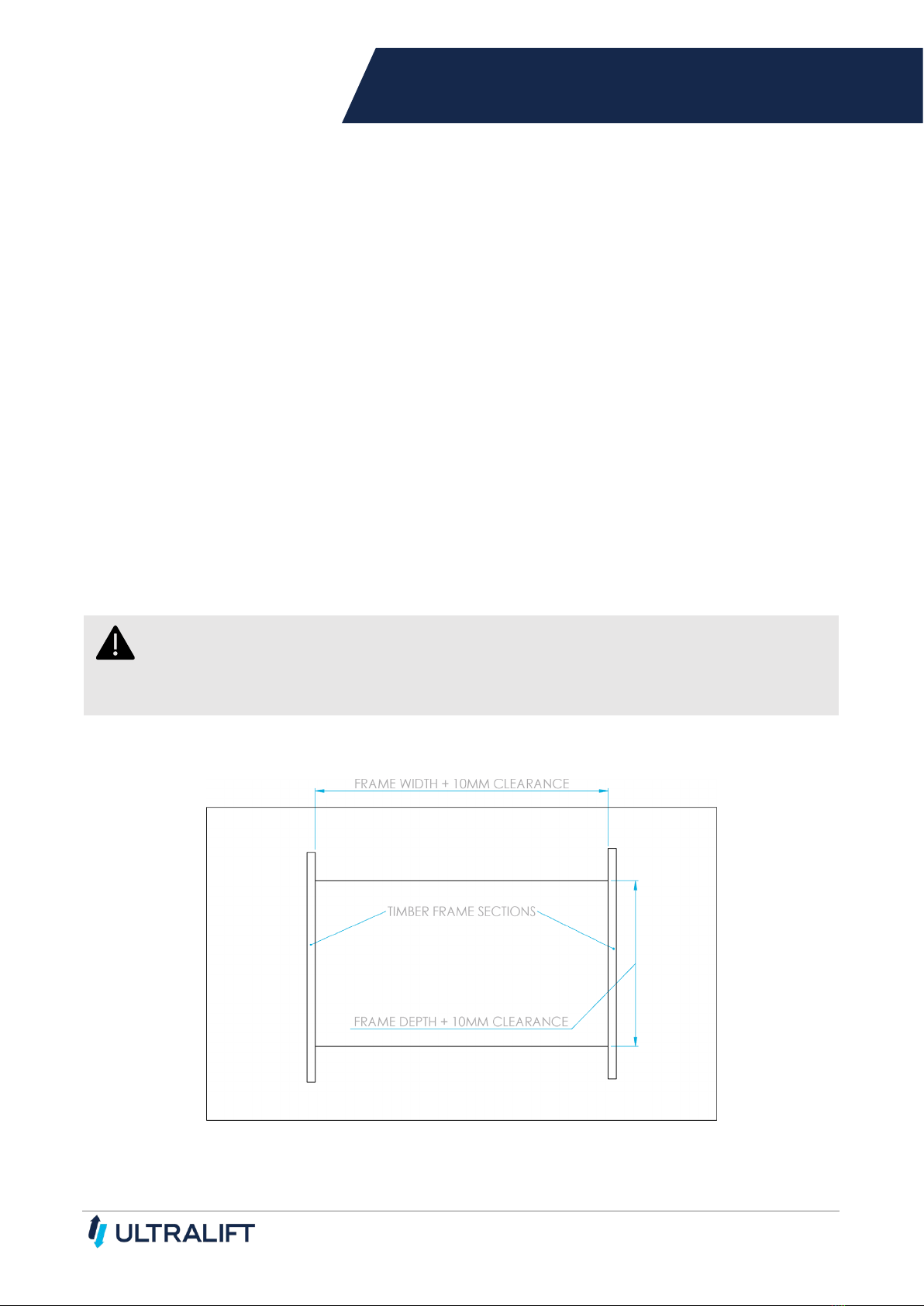

1. Prepare the ceiling cut-out according to the Ceiling Cut-out sizes (CW and CD) in the Specifications of your
lift.
2. Frame up the ceiling joists or hanger rails using a qualified trades person.
3. Route the Audio-Visual cables to the lift position in the ceiling.
4. A double power point is required in the ceiling to power the Mercury Slim and the display
panel.
Note
•Access to the power point in the ceiling is advisable

7
INSTALLATION
MERCURY SLIM
INSTALLATION
1. Cut 8 mm threaded rods to suit the distance from
the slab/hanger rails to the Lift fixing points on the
top corners of the Mercury Slim.
2. Fix the pre-cut threaded rod to the slab or ceiling
hanger rails as shown below.
3. Fit one M8 nut and washer to each threaded rod.
4. Fit one M8 nut and washer 100 mm up from the
bottom of the threaded rod.
5. Raise the Mercury Slim unit into the pre-cut hole
from the underside. Fit the threaded rod through
the top frame of the lift. Fit nuts and washers to suspend the lift.
6. Adjust nuts until the lower frame sits 1-2mm above the plaster underside. Screw a minimum of four
M8 x 50 coach screws through the fixing holes on the inside frame of the Lift, into the pre-built
timber support frame.
M8 All Thread
Leng th as requ ired with
Nuts and washers.

8
INSTALLATION
MERCURY SLIM
7. Cover the bolts with the supplied end caps.
8. Route the AV cables into the lift as per diagram on page 13 (cable management).
9. Expose the IR eye in a suitable position to achieve line of sight to the remote.
10. Expose double sided tape on loose corflute dust cover and fit to frame.
Fasten 4 Coac h
Screws into Ceili ng
Joi sts throughholes in
the framework.
Cover coach
Screws with white
Plas�c end caps.

9
INSTALLATION
MERCURY SLIM
Mounting The TV Screen
1. Connect power to the lift and lower the lift using the IR remote control handset
2. Disconnect power to the lift
3. Remove the Mounting Rails by loosening the two 5mm locking screws.
4. Fit the rails to the back of the TV screen and bolt using the four Phillips head screws and washers, as per
diagram below, noting the orientation from the top of the screen to the top of the rails.

10
INSTALLATION
MERCURY SLIM

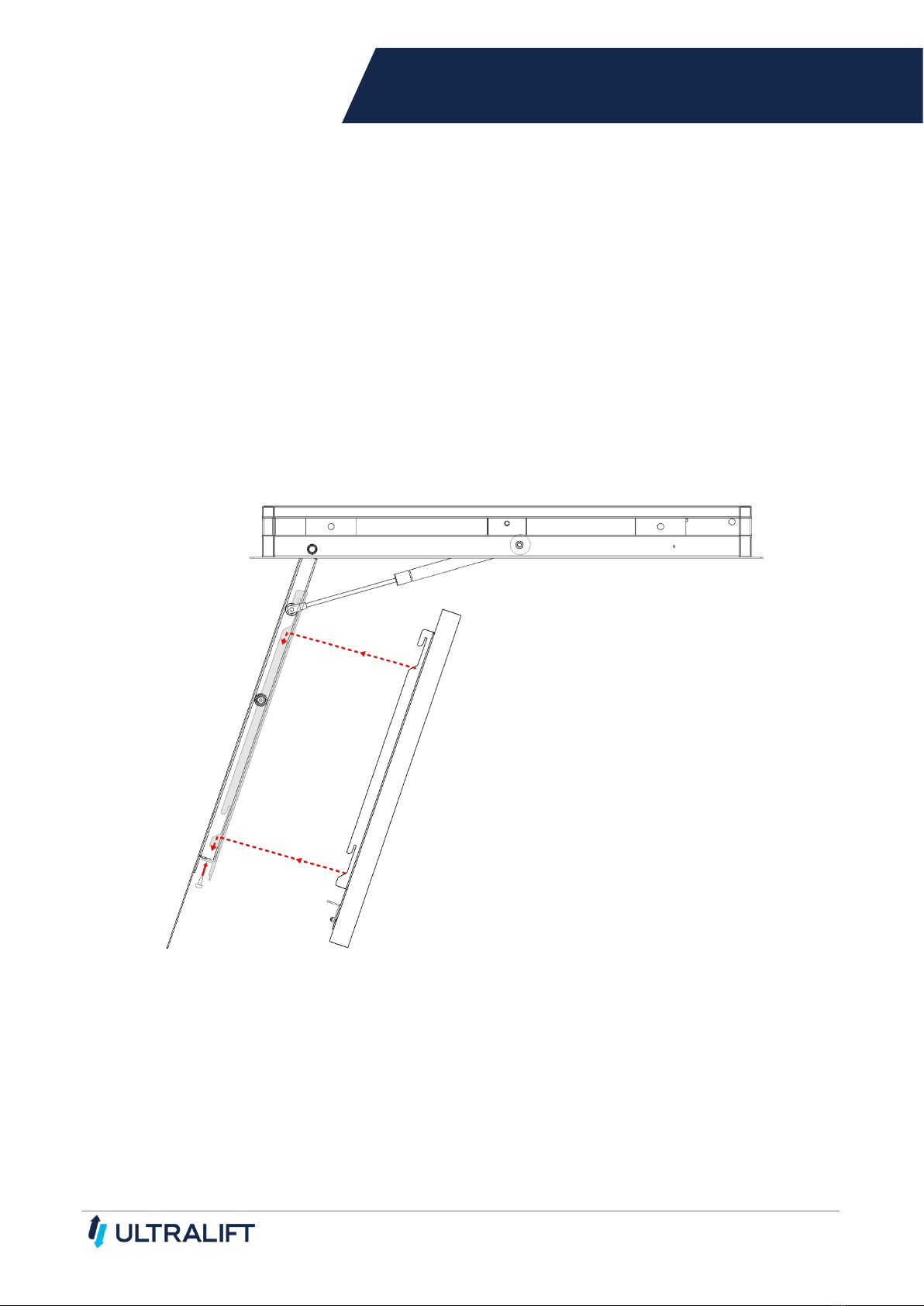

5. Lift the display Panel and hook rails onto the lift.
6. Tighten the locking screws to lock the rails into position, ensuring that the screws are tight.
7. Ensure the display panel is mounted centrally
Step 5: Lift displ ay panel
and hookrails onto lift.
Step 6: Tighten
locki ng screws
to lock the rails
in to positio n.

11
CABLE MANAGEMENT
MERCURY SLIM
CABLE MANAGEMENT
1. Connect cables to the display panel and run-down cable management arms as per diagram below. Make
use of Cable Ties to fix the cables to the lift.
2. Be sure to allow the extra cable length on the cable management arm. Be careful to avoid potential
pinching of cables, particularly around the cut-out area.
3. Reconnect power to the lift.
IMPORTANT WARNING
Cables must be securely attached to the frame to avoid pinching of the cables. Raise and
lower the lift several times using the controller, closely watching the cables to make sure
they do not interfere with the lift operation. The Installer is responsible for ensuring the
cables do not interfere with the mechanism as the unit raises and lowers.
AV and Power Outlet
Cab les to Screen

12
MOTOR LIMITS ADJUSTMENT
MERCURY SLIM
MOTOR LIMITS ADJUSTMENT
When adjusting the motor limits use the motor key.
1. Lower the Lift using the remote-control handset.
2. Adjust the motor down limit if required with caution.
3. Raise by adjusting the desired-up motor limit.
CAUTION
When setting the motor limits, adjust the Up and Down limits with caution. The Up and Down limits are set
in the factory to recommended positions. Minor adjustment may be necessary. In the rare case that the
factory settings are slightly out, the down limit may be adjusted with caution. Minor adjustment may be
necessary if the weight of your screen or projector has sagged the cable length.
+ -
+ -
II
I
+
+
Drum Rotation Direction
Drum Rotation Direction

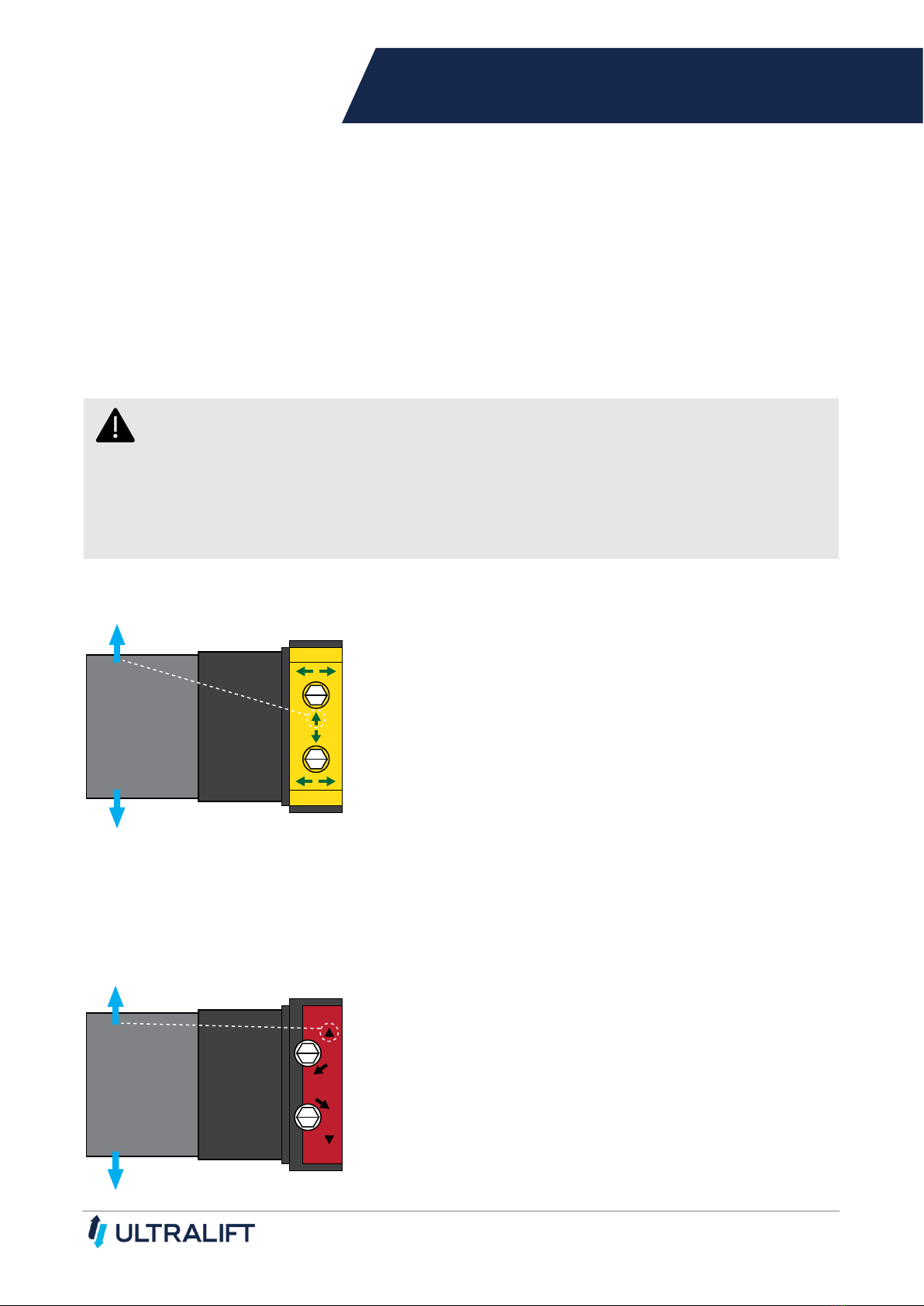

SELECTING THE RIGHT SCREW SWITCH
The vertical arrows on the motor correspond with the drum
rotation direction (viewed from the front).
UP LIMIT ADJUSTING SCREW
Use the hexagonal adjustment tool and the corresponding
switch to adjust the Up Limit. Turn towards the +sign for more
rotations in this direction. To make the motors stop sooner, turn
this switch in the opposite direction.
DOWN LIMIT ADJUSTMENT SCREW
Use the hexagonal adjustment tool and the corresponding
switch to adjust the Down Limit. Turn towards the +sign for
more rotations in this direction. To make the motors stop
sooner, turn this switch in the opposite direction.

13
WIRING AND OPERATION
MERCURY SLIM
WIRING AND OPERATION
Motor Controller Speciation
•Input: 220 VAC / 50 Hz ± 10%
•Output: 220 VAC
•Power: Max. 500 W
•Maximum motor running time: 5 minutes
•Both RF and IR receiver
•Dry contact closures.
•External IR Lead & Built in IR Eye.
•12 Volt trigger input for projectors
•Programmable

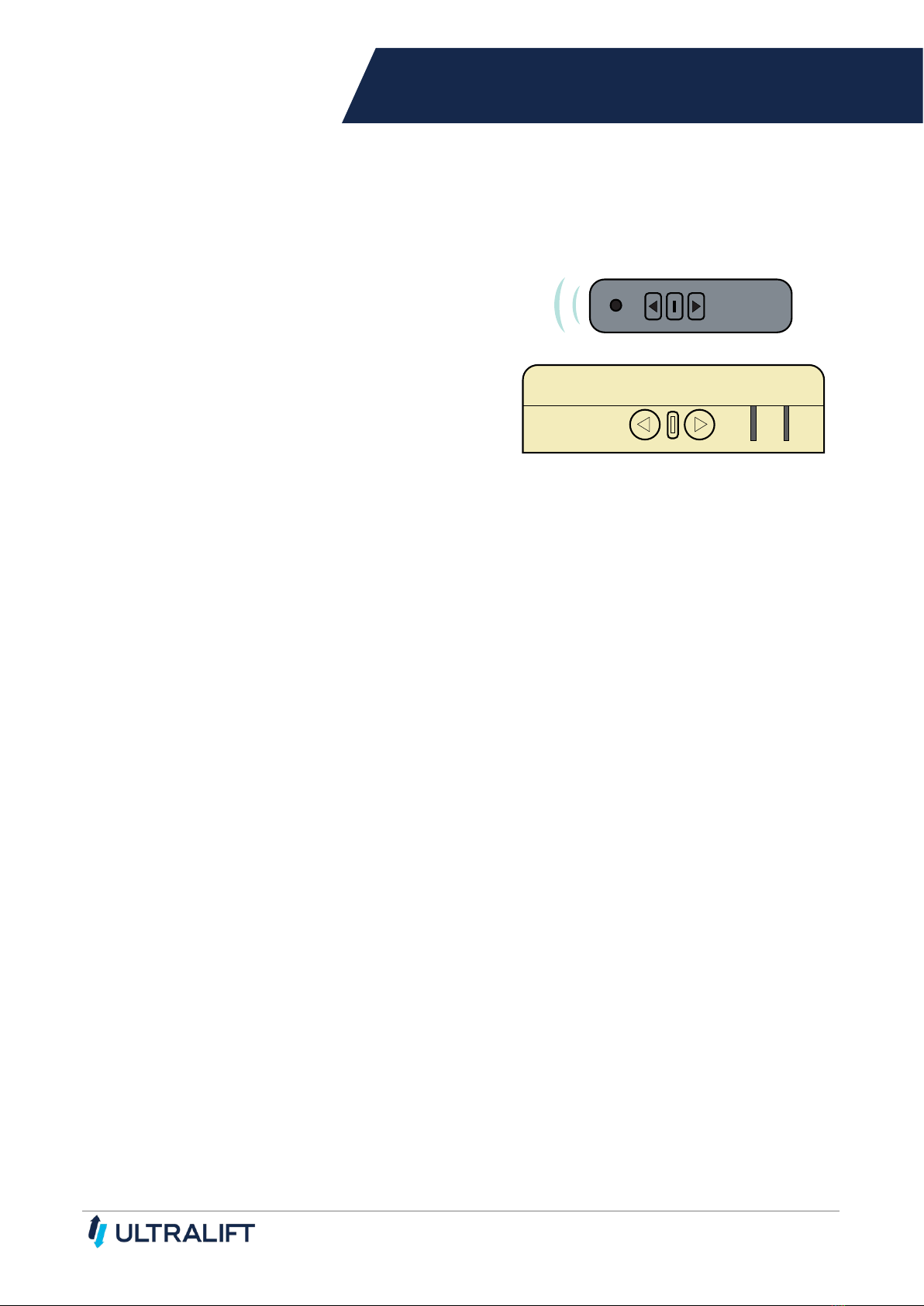

Pairing Remote Control to Receiver:
Aim the Remote-control unit towards the receiver IR eye (IR1) or to the external IR eye while
programming.
Push button switch (SW4), (LED1 blinks) then press the UP button of the remote-control unit.
Unpairing Remote Control from Receiver:
Press SW4 (LED1 blinks) then press the DOWN button of the remote-control unit.
Unpairing All Remote Controls from Receiver:
Press and hold SW4 for about 4 seconds until LED1 blinks at faster rate, then release the Button. Then
press SW4 again.
Reversing The Up-Down Button Direction:
Press SW4 (LED1 blinks) then press the STOP button of the remote-control unit.
HEX Codes
Up 0x0B
Down 0x43
Stop 0x23
Mo tor Controller Box (Side View )
Remote Control

14
WIRING AND OPERATION
MERCURY SLIM
JP2
IR1
SW4
LED1
JP1
JP2

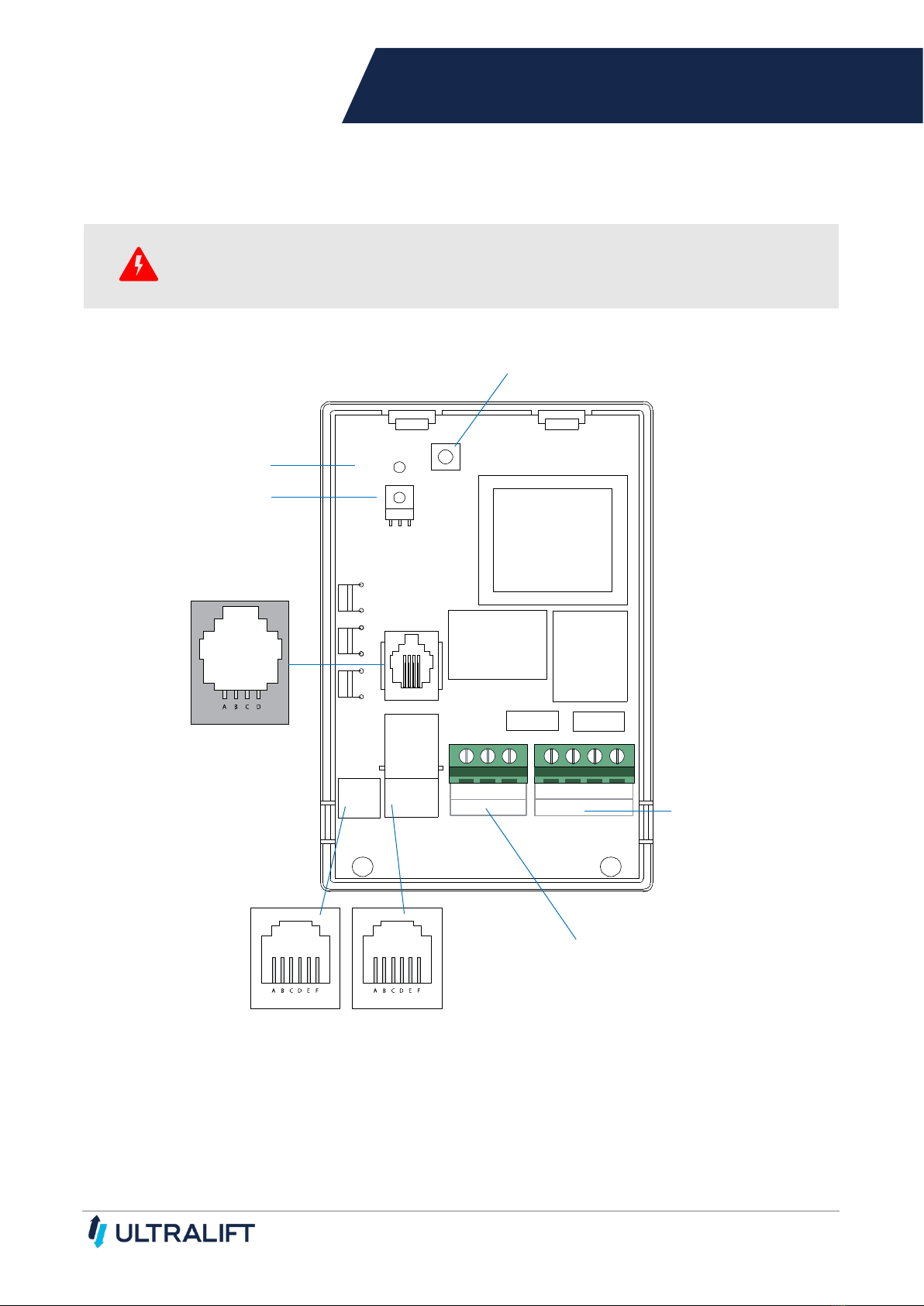

DO NOT OPEN BOX WITH POWER ON!
Please refer to instructions of the Motor Controller Box for further information.
Program Button
Signal Light
IR Receiver
12 V Trigger
A: NC
B: GND
C: +12V
D: NC
Contact
Closure
External
IR Receiver
C: Up
D: Stop
E: Down
F: Common
A: +5 V
B: IR Signal
F: GND
L N E E N L R
Power Cable
220 VAC
Motor Cable Terminal
E: Earth
N: Neutral
L: Up or Down
R: Up or Down

Copyright © Ultralift Australia, all rights reserved
82 Dougharty Road, Heidelberg West
Victoria 3081, Australia
Phone: [phone]
Email: [e-mail]
WARRANTY AND RETURNS
MERCURY SLIM
WARRANTY AND RETURNS
At Ultralift Australia Pty Ltd, we take pride in the fact that our products are of the highest quality. Because of
this, we offer the following programs to ensure your satisfaction.
ULTRALIFT 3 YEAR WARRANTY
1. The product is warranted for 36 months from the date of invoice. Subject to the conditions of this warranty,
Ultralift Australia or an authorised installer will perform necessary service on the product without charge
for parts or labour if, in the opinion of Ultralift Australia, the product is found to be faulty within the
warranty period.
2. This warranty only applies to Ultralift Australia products when purchased from Ultralift Australia or from an
authorised dealer.
3. This warranty only applies if the product has been installed and used in accordance with the
manufacturer’s recommendations (as noted in the instruction manual) under normal use and reasonable
care (in the opinion of Ultralift Australia). The warranty covers normal domestic, commercial or
educational use only. It does not cover damage, malfunction, neglect, build-up of dirt or dust, abuse,
maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects
or vermin, tampering or repair by unauthorised persons (including unauthorized alterations), exposure to
abnormally corrosive conditions or any foreign object or matter having entered the product.
4. If warranty service is required, you should:
•Contact your installer for advice on how to rectify the issue.
•If this does not solve the problem, please call Ultralift Australia on [phone] for advice.
•If the device requires service, return the product to Ultralift Australia for repair.
•Please Note: Freight and insurance to and/or from the location of the device must be arranged by you.
•Please ensure that items returned are packed in an appropriate manner.
5. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation,
de-installation, or re-installation of a product. This includes costs related to the mounting, de-mounting, or
re-mounting of any screen (and any other ancillary devices), delivery, handling, freighting, transportation
or insurance of the product or any part thereof or replacement to such installation, deinstallation,
reinstallation or transit.
