UltraLift Ultralift Phoenix Quick start guide

WIRING DIAGRAM
WIRING DIAGRAM
for Cabinet Lifts with Manual Swivel
The wiring diagram shown below isthe standard wiring arrangement for Ultralift’s Phoenix and Titan with the
Manual Swivel.
This should not needto be changed unless swapping to an integrated automation setup using contact closure.
Ports and their uses:
•AC: 240 V, 50-60 Hz, 200 W
•A1 & A2: Parallel Controller Ports (Bluetooth, IR, or Dry Contact Closure for automation)
•1, 2:Actuator/Column connected through the SLS unit
•Safety Switch: Connected to the SLS unit
Page 1
CBD SLS
ACTUATOR CABLE
SAFETY SWITCH CABLE
POWER CABLE
CBD6S-200W
DPG1C
A1 PORT
ACTUATOR 1 PORT
240V IN
ACTUATOR PORT
SAFETY SWITCH PORT

OPERATION
OPERATION
TO SET TRAVEL LIMITS:
1. Use the DP1U controller “Up” and “Down” buttons to drive the lifter to the desired up limit position.
2. Once the desired up limit position has been reached press “S” then “1” within two seconds.This
saves the up limit to the lift controller. Holding “1” should now drive the lift to the saved up limit.
3. Use the DP1U controller “Up” and “Down” buttons to drive the lifter to the desired down limit position.
4. Once the desired down limit position has been reached press “S” then “2” within two seconds.This
saves the down limit to the lift controller. Holding “2” should now drive the lift to the saved down limit.
5. The infrared remote will now control the lift between the set limits.
LEARNING A NEW REMOTE:
To learn a new remote handset, point the remote at the IR receiver then press and hold the stop “-“ button for
10 seconds.

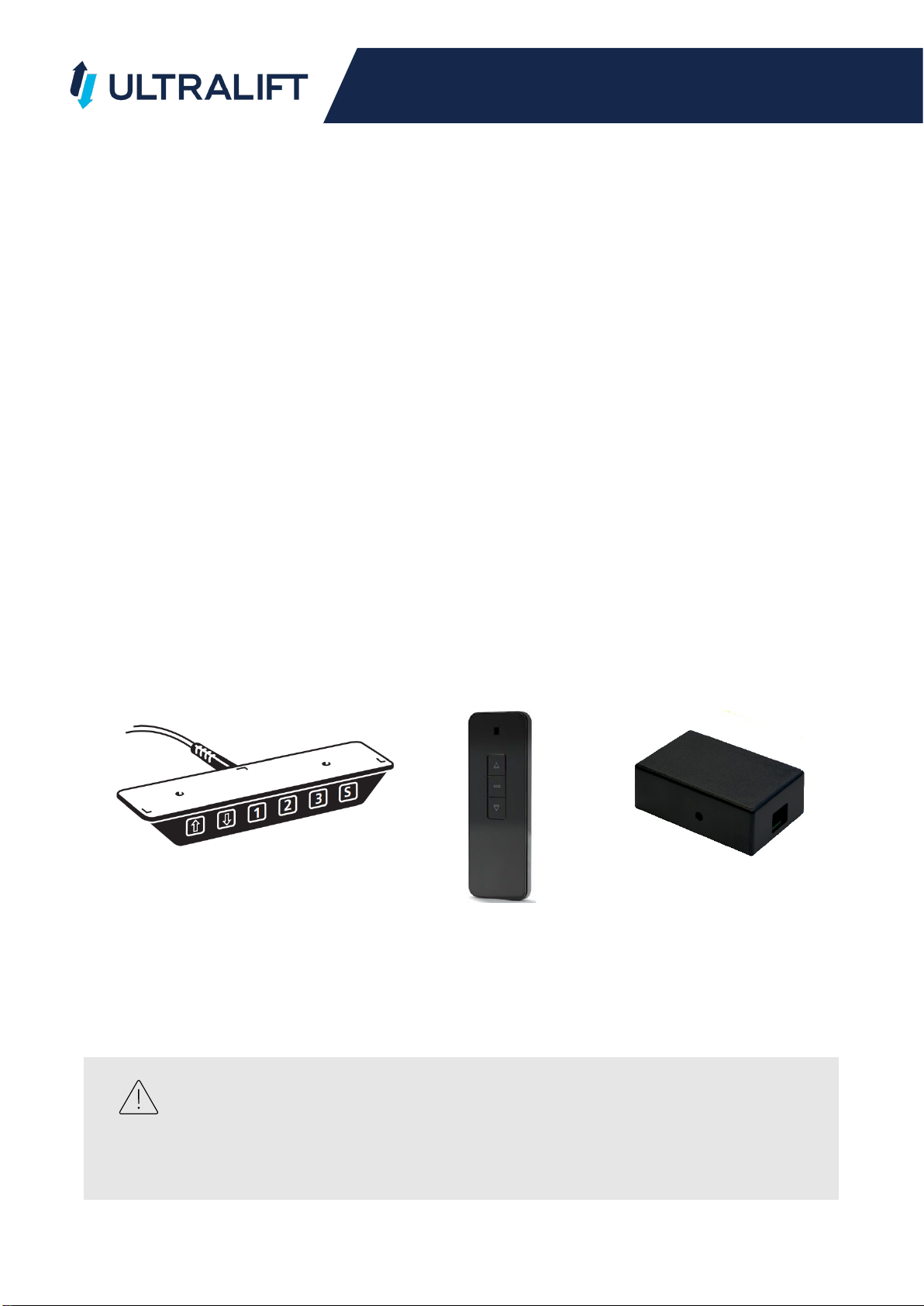

DP1U Infrared Remote Ultralift UIRC
IMPORTANT
The lift should not be run up and down more than 4 times, or continuously at full load for
more than 1 minute without a 10-minute break.
Overheating will damage the Control Box.
Page 2

OPERATION: AUTOMATION
OPERATION: AUTOMATION
Your product can be integrated into most control systems using dry contact relays. These instructions are
provided for Automation specialist reference only. Please contact us, or an Automation specialist, before
attempting this change.
If your existing product does not have a DP1U Controller:
•Unplug and remove the original controller and replace it with a DP1U Controller. DP1U isused to set
the Up and Down limits in the main control unit.
•On the DP1U, press the UP arrow to bring to the desired height. Press the DOWN arrow tostop.
Press the Sbutton and within 2 seconds press the 1 button. Memory 1 is now set.
•Repeat procedure for other Memory positions.
TO AUTOMATE:
Plug in a standard CAT category LAN cable between the Control unit port A1 (or A2) and external relays. Use
the pinouts below to activate the desired action. Note: The lift will only travel to the memory position while the
relay is held. To stop the lift release the relay contact.
CONTROL BOX PINOUT:
Function Pins Colour (T568A) Colour (T568B)
Up 4 & 5 Blue & Blue/White Blue & Blue/White
Down 4 & 8 Blue & Brown Blue & Brown
Store 2 & 8 Green & Brown Orange & Brown
Memory 1 3 & 5 Orange/White &
Blue/White
Green/White & Blue/White
Memory 2 3 & 8 Orange/White & Brown Green/White & Brown
Memory 3 2 & 5 Green & Blue/White Orange & Blue/White
DPU1 CONTROLLER STANDARS CAT LAN CABLE
Page 3

OPERATION: AUTOMATION
OPERATION: AUTOMATION
The product can also be integrated using infrared emmiter or universal remote products. When using these
codes, the “LEARNING A NEW REMOTE” procedure should be followed.
The Ultralift UIRC has a built in infrared receiver located behind the small hole on the side of the box to
accommodate adhesive backed infrared emmiters without using the infrared eye extension.
PRONTO HEX CODES:
Up
0000 0068 0000 0032 00C8 0018 0010 0030 0030 0010 0030 0010 0010 0030 0010 0030 0010 0030
0030 0010 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0030 0010 0010 0030 0030 0010 0030 0010 0010 04E2
Down
0000 0068 0000 0032 00C8 0018 0010 0030 0030 0010 0030 0010 0010 0030 0010 0030 0010 0030
0030 0010 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010
0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0030 0010 0010 04E2
Stop
0000 0068 0000 0032 00C8 0018 0010 0030 0030 0010 0030 0010 0010 0030 0010 0030 0010 0030
0030 0010 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030 0010 0030 0010 0030 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0030 0010 0010 0030
0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030 0010 0030
0030 0010 0010 0030 0010 0030 0010 0030 0030 0010 0030 0010 0010 04E2
Page 4

Copyright © Ultralift Australia, all rights reserved
82 Dougharty Road, Heidelberg West
Victoria 3081, Australia
Phone: [phone]
Email: [e-mail]
TROUBLESHOOTING
TROUBLESHOOTING
If you are having issues with your TV Lift, please try the following steps:
TV Lift Will Not Rise:
•Check power isavailable and active
•Attempt to “Force Initialise” linear actuators using the DP1U (see below)
•Check that allappropriate cables are plugged in correctly
•If using Bluetooth, make sure the app is paired
TV Lift Will Not Lower:
•Check power isavailable and active
•Check that allappropriate cables are plugged in correctly
•Hold down button on the DP1U
•If using Bluetooth, make sure the app is paired
•Check the Safety Switch connection to the SLS unit
TV Lift Will Not Raise Past Desired Position:
•Reset the travel limits using the DP1U Console
Forced Initialisation:
Forced initialisation is only needed if the two actuators are not level at the same height. It isrecommended
to remove the TV before attempting this procedure.
Press the “DOWN”button once on the DP1U (or insome cases, press and hold) until the unit iscompletely
in the down position. Release the “DOWN”button then press and hold again for 6 seconds. The lift should
move up and down slightly. The system is now initialised.
If you are still having issues, please contact Ultralift Australia on [phone] for further support.
