Underground Magnetics MAG Series User manual

USER’S MANUAL
Underground Magnetics
www.undergroundmagnetics.com

Contents of MAG series
Contents of MAG seriesContents of MAG series
Contents of MAG series
1. Caution………………………………………………………………………………………. 3
2.Producthighlights……………………………………………………………………………………4
3. Receiver………………………………………………………………………………….. 5
4. Battery and charger………………………………………………………… …… . 18
5. FCC Statement……………………………………………………………………………... 18
6. Warranty……………………………………………………………………………………...19

1Caution
The user must understand safety procedures and correct operation methods before operating the
HDD and the locating system.
HDD machines can cause property damages and personal injuries upon striking underground
power lines, gas lines, phone lines, television cables, fiber optic cables, or sewage lines. Make
sure to confirm and mark all underground utilities before operations.
Do not use the locating system near flammable and explosive substances.
Wear proper safety gear including steel-toed boots, safety gloves, helmets, reflective vests, and
safety goggles.
Obey all the local safety regulations.
This locating system is only a tool to assist the operator to locate the drill head. It is the operator
not the Mag series locating system that is responsible for identifying the drill head location.
Underground Magnetics is not responsible for any loss caused by using the Mag series. Users
should operate the Mag according to the manual. If you have any questions, please contact
Underground Magnetics.

2 Product highlights
1. High precision and high anti-interference Faraday shield 3D antenna structure
2. Industrial gold-plated industrial rated electronic modules
3. High-performance DSP
4. 2 in 1 locating system, functioning as two locators independently tracking to provide better
accuracy and reliability
5. up to 50m depth range, up to 200 hours continuous usage

3
33
3.
..
.Receiver
3.1 Specifications
Mag 7
System receive frequency: 4k, 19k, 30k
Water proof: IP65
Telemetry: 915MHz operation range up to 1.2km
Rechargeable lithium battery：12.5V
Battery life：up to 50 hours
Size：68.5cm*13cm*30cm
Weight：3kg
Mobile device, please keep away from at least 20cm distance when used.
3
33
3.2
.2.2
.2 Receiver Operation
Receiver OperationReceiver Operation
Receiver Operation
Power key: Press and hold to turn on or off. Tap to turn back light on or off.
Up key: Move up to next cursor selection.
Down key: Move down to next cursor selection.
Confirm key: Confirm cursor selection.
Setup key: Tap to enter calibration page. Press and hold to enter setup page.

3
33
3.3
.3.3
.3 Icons
IconsIcons
Icons
3.3.1Main page icon
Transmitter model and frequency
Transmitter temperature Distance between transmitter Transmitter pitch
and receiver
Transmitter battery status Receiver and display Transmitter signal
Connection strength

3.3.2 Deputy page icon
Transmitter model、frequency and power
Receiver battery power Telemetry channel

3.3.3 Calibration and depth forecast icon page
A1:3m calibration
A2:15m calibration
A3:Depth prediction

3.3.4Setup page
3.4Mag7 calibration
3.4.1 Depth calibration(3m and 15m)
1. Make sure that transmitter is working properly. Place
it in the housing.
2. Place housing containing the transmitter in a location
away from interference.

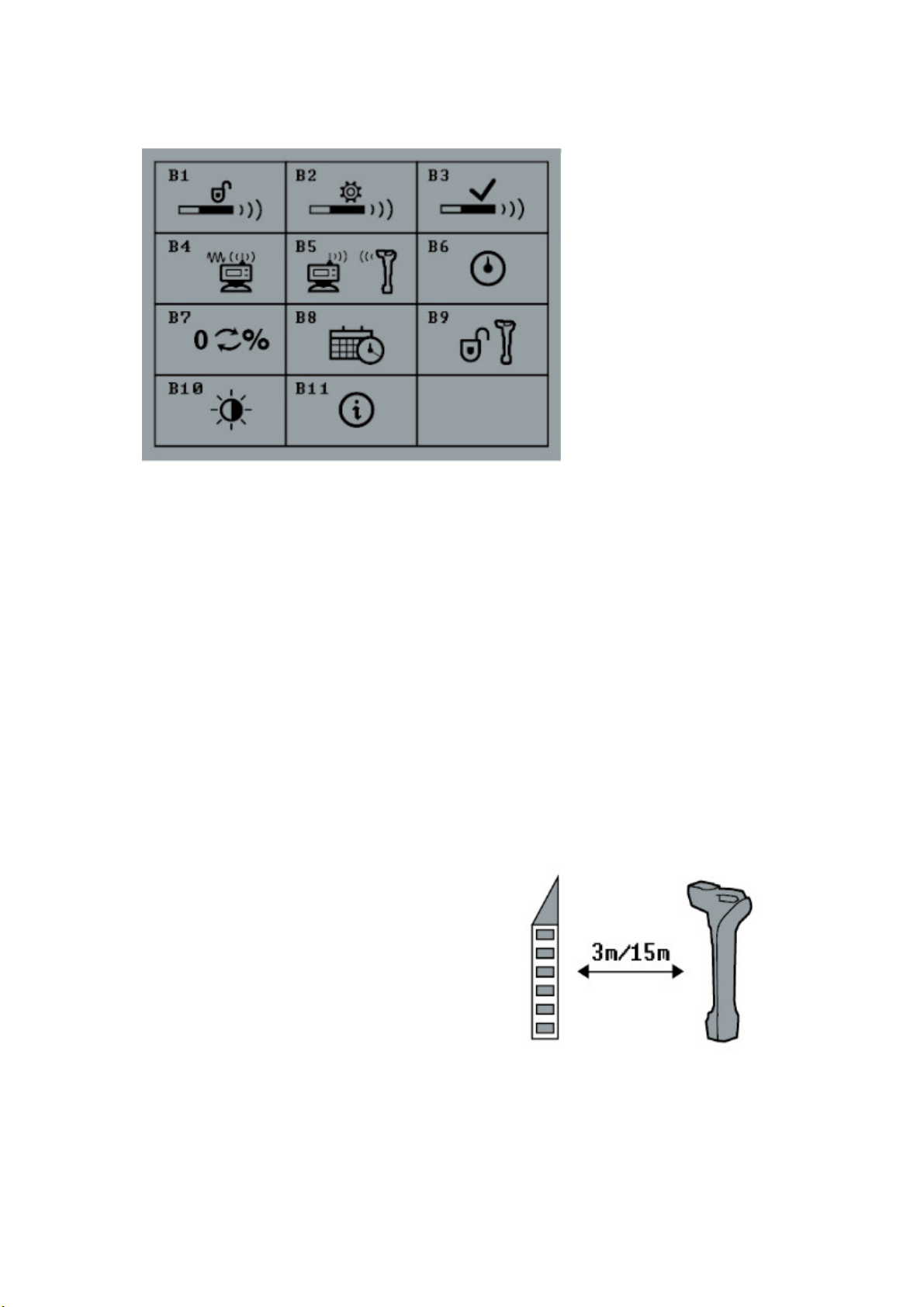

3. Set transmitter 3m/15m apart as shown:
B1: Transmitter activation
B2: Transmitter settings
B3: Transmitter selection
B4: Telemetry selection
B5: Receiver and display pairing
B6: Roll calibration
B7: Pitch unit selection
B8: Time setting
B9: System lock/unlock
B10: Brightness control
B11:System info
Warning: Warning: Even if the
transmitter’s roll, pitch, battery
status and temperature are
displayed correctly, calibration
may not be reliable due to a
distorted magnetic field.
Directions as shown:

4.Tap to enter calibration page 5.Tap to choose 3m or 15m calibration.
6.Tap two times to start 3m or 15m 7.Calibration complete.
Calibration and wait for calibration to complete
8.Tap to return to main page.
3.4.2 Roll calibration
1.Place transmitter housing in a 12 o`clock position.

2.Tap to enter calibration page. 3.Tap 3 times to start roll calibration
Tap choose roll calibration icon. and wait for calibration to complete.
4.Calibration complete. 5.Tap to return to main page.
3.5 Mag operation
3.5.1Depth forecast
1.Tap to enter calibration page. 2.Tap to enter depth prediction page.
(after frequency selection and calibration,
the middle value is the depth forecast at the
site )30m is the depth shown in the following
diagram.

3.Tap to return to main page.

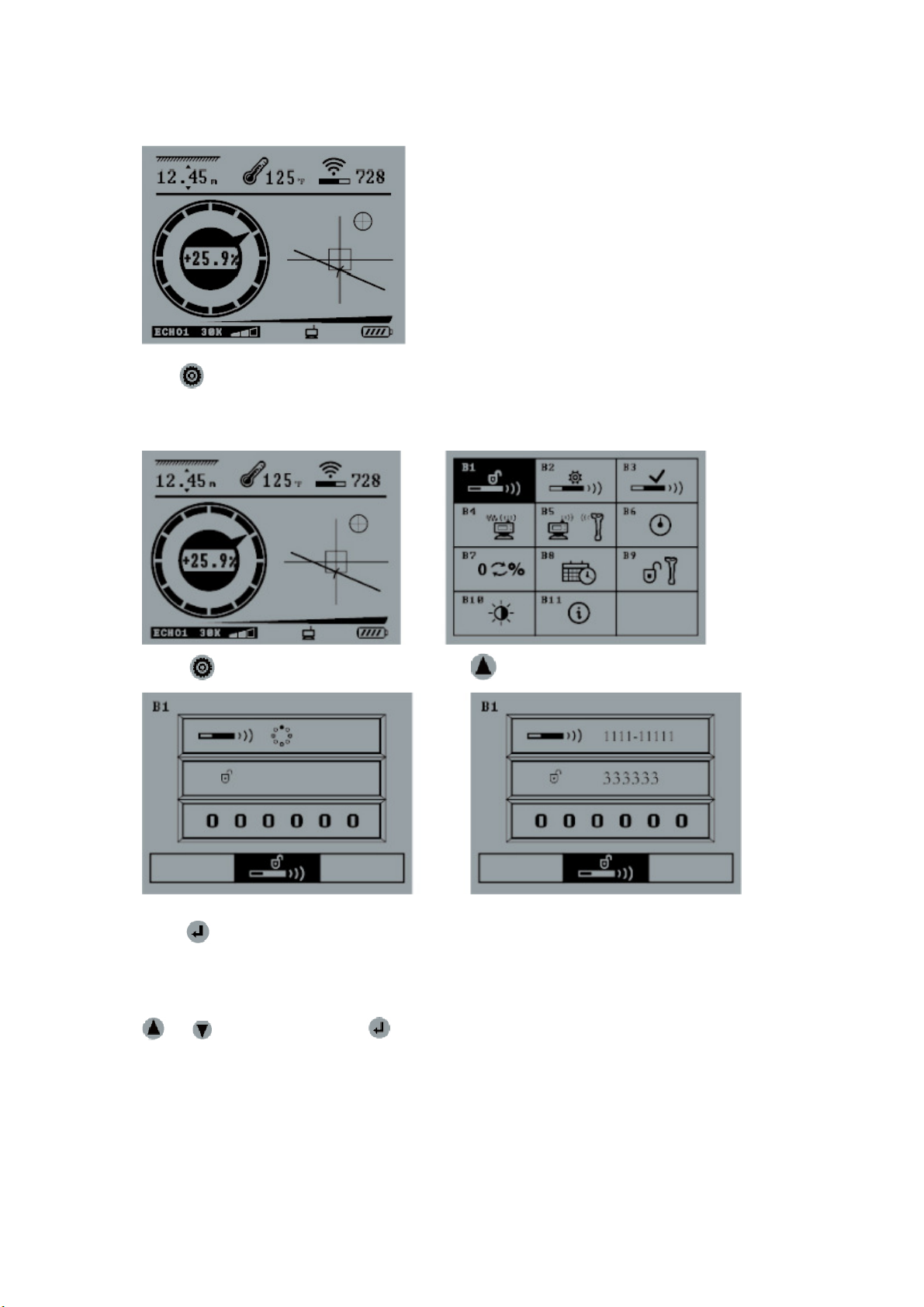

3.5.2 Transmitter activation(must be started within 10 minutes after batteries
have been placed in transmitter.)
1.hold to enter settings page. 2.Tap to choose transmitter activation icon.
3. Tap to enter B1 transmitter activation 4. 1111-1111 is the transmitter identification
number and 3333-3333 is the prompt code in the diagram. Send the transmitter identification
number and the prompt code to the dealer. The dealer will give you an activation password. Use
and to input password, tap to confirm activation.
3.5.3Transmitter setting(Must be started within 10 minutes after batteries have
been placed in the transmitter)

1.Hold to enter settings page 2. Tap to choose icon.
3. Tap to enter transmitter settings page 4. Tap to return to main page.
3.5.4 Transmitter selection
1. Hold to enter setting page. 2. Tap to select B3.

3.Tap to enter transmitter selectionpage. 4. Tap to return the main page.
Tap or to selec receiver model,frequency
and power.
3.5.5 Radio channel selection
1. Hold to enter setup page. 2. Tap to select B4 radio channel.
3. Tap to enter radio channel,and use 4. Tap to return to main page.
or to select radio channel.
3.5.6 Radio registration

1. Hold to enter setup page. 2. Tap to select B5 radio registration
3. Tap to enter radio registration page. 4. Tap 2 times to start radio registration.
(It is required that the following
procedure is performed on the display at
the same time.)
5. Radio registration complete 6. Tap to return to main page.
3.5.7 Pitch unit selection

1.Hold to enter the setup page. 2. Tap to select B7
3. Tap to enter B7 page. 4.Tap to swith pitch mode
5. Tap to return to the main page.
3.5.8 Time setting
1. Hold to enter setup pages 2. Tap to select B8

3. Tap or to set time 4. Tap to return to main page.
3.5.9 System unlock
1. Hold to enter setup page. 2. Tap to select B9 icon.
3. Tap to enter B9 system unlock page 4. Tap or and to input password
(to get the password please contact you dealer)
5. Tap to return to main page

3.5.10 Brightness adjust
1. Hold to enter setup page. 2. Tap to select B10
3. Tap to enter B10 and tap or 4. Tap to return to main page
To adjust brightness
3.6 Receiver maintenance
a）The receiver uses rechargeable lithium batteries. The receiver will automatically shutoff if
there is no key pressed over a time period of 20 minutes or if there is no information received
from the transmitter. It is strongly recommended that the batteries are taken out of the receiver if
not to be used for a long period of time to avoid potential erosion from a leaking battery.
b）The receiver is an electronic measurement device. Severe shock and impact can damage the
housing and the electronics inside the housing. Treat the receiver as a measurement device.
c）Keep the receiver away from excessive heat to avoid damages to the plastic housing and
electronics inside the housing.
d）Do not submerge the receiver in excessive amounts of water.
4.Battery and Charger
Mag locators use alkaline C-cell batteries or lithium rechargeable batteries.
This lithium rechargeable battery comes with a special charger. Any use of other
lithium rechargeable battery or charger for the receiver may cause fire, explosion,

leaking or other damages. Keep the battery at the normal temperature of 15-25
degrees Celsius. Extreme high or low temperatures will short the battery life. Do not
submerge the battery in water or any other liquids. Do not throw the battery into fire.
Do not disassemble the battery. Avoid any kind of damage to the battery. Do not
discard the battery as normal trash. Please dispose of it properly.
When charging the battery, red light of the charger is on. When charging complete,
green light will be on. Please place the battery properly as shown in the diagram.
5.FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
6.Warranty
Underground Magnetics offers standard warranty on parts and labor of the Mag series
locating system under normal usage. The warranty period is one year for the receiver
and display and six months for the transmitter.
