unicraft HZ 751 User manual

HZ-SERIE
HZ 751
Operating Instructions
Lever hoist
HZ 751
HZ 1501
HZ 3001

2HZ-Serie | Version 1.03
Imprint
Product identification
Lever hoist item number
HZ 751 6171175
HZ 1501 6171115
HZ 3001 6171130
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone] - 55
E-Mail: [email protected]
Internet: www.unicraft.de
Indications regarding the operating instructions
Original instructions
Edition: 05.12.2017
Version: 1.03
Language: English
Author: FG/MS/SN
Indications regarding the copyright
Copyright © 2017 Stürmer Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company Stürmer.
Passing on as well as copying of this document, the use
and distribution of its content are prohibited if not explic-
itly permitted. Contraventions are liable to compensa-
tion.
Subject to technical modifications and error.
Content
1 Introduction ............................................................. 3
1.1 Copyright.............................................................3
1.2 Customer service.................................................3
1.3 Limitation of liability .............................................3
2 Safety........................................................................ 3
2.1 Symbol explanation .............................................3
2.2 Obligations of the operating company................4
2.3 Requirements to staff...........................................5
2.4 Personal protective equipment............................5
2.5 General safety regulations...................................5
2.6 Safety information for operating personnel .........6
2.7 Checks.................................................................6
3 Intended use ............................................................ 6
3.1 Foreseeable misuse ............................................6
3.2 Residual risks ......................................................6
4 Technical Data......................................................... 7
4.1 Type plate............................................................7
5 Transport, packaging, storage............................... 7
5.1 Transport .............................................................7
5.2 Packaging............................................................7
5.3 Storage ................................................................8
6 Description of the device........................................ 8
6.1 Image...................................................................8
6.2 Safety marking on the lever hoist ........................8
6.3 Function...............................................................8
7 Start-Up .................................................................. . 8
8 Operation ................................................................. 9
8.1 Operating conditions...........................................9
8.2 Test run................................................................9
8.3 Raising a load......................................................9
8.4 Load lowering .................................................... 10
9 Care, maintenance and repair.............................. 10
9.1 Care by cleaning ............................................... 10
9.2 Care, maintenance and repair........................... 10
10 Testing of the lever hoist.................................... 14
11 Trouble shooting................................................. 15
12 Disposal, recycling of used devices.................. 15
12.1 Decommissioning........................................... 15
13 Spare parts........................................................... 16
13.1 Ordering spare parts ...................................... 16
13.2 Spare parts drawing.......................................17
14 EC Declaration of Conformity ............................ 18
15 Maintenance plan ................................................ 19

Introduction
HZ-Serie | Version 1.03 3
1Introduction
You have made a good choice by purchasing the Uni-
craft lever hoist.
Read the operating manual thoroughly before commissioning
the machine.
It gives you information about the proper commission-
ing, intended use and safe and efficient operation and
maintenance of your lever hoist.
The operating manual is part of the lever hoist package.
Always keep this operating manual in the location where
your lever hoist is being operated. All local accident pre-
vention regulations and general safety instructions for
the operating range of your lever hoist must also be
complied with.
1.1 Copyright
The contents of these instructions are copyright. They
may be used in conjunction with the operation of the le-
ver hoist. Any application beyond those described is not
permitted without the written approval of Stürmer
GmbH.
For the protection of our products, we shall register
trademark, patent and design rights, as this is possible
in individual cases. We strongly oppose any infringe-
ment of our intellectual property.
1.2 Customer service
Please contact your dealer if you have questions con-
cerning your lever hoist or if you need technical advice.
They will help you with specialist information and expert
advice.
Germany:
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Repair service:
Fax: [phone]-111
Email: [e-mail]
Internet: www.unicraft.de
Spare part orders:
Fax: [phone]-119
Email: [e-mail]
We are always interested in valuable experience and
knowledge gained from using the application-which
then could be shared and be valuable to develop our
products even further.
1.3 Limitation of liability
All information and notes in these operating instructions
were summarised while taking applicable standards
and rules, the state-of-the-art technology and our long-
term knowledge and experiences into consideration.
In the following cases the manufacturer is not liable for
damages:
- Non-observance of the operating instructions,
- Inappropriate use
- Use of untrained staff,
- unauthorised modifications
- technical changes,
- Use of not allowed spare parts.
The actual scope of delivery may deviate from the ex-
planations and presentations described here in case of
special models, when using additional ordering options
or due to latest technical modifications.
The obligations agreed in the delivery contract, the gen-
eral terms and conditions as well as the delivery condi-
tions of the manufacturer and the legal regulations at the
time of the conclusion of the contract are applicable.
2 Safety
This section provides an overview of all important safety
packages for the protection of operating personnel as
well as for safe and fault-free operation. Other task-
based safety notes are included in the paragraphs of
the individual phases of life.
2.1 Symbol explanation
Safety instructions
The safety notes in these operating instructions are
highlighted by symbols. The safety notes are introduced
by signal words which express the concern of the risk.
DANGER!
This combination of symbol and signal words indi-
cates an imminently dangerous situation which may
lead to death or severe injury if not avoided.

4HZ-Serie | Version 1.03
Safety
Tips and recommendations
It is necessary to observe the safety notes written in
these operating instructions in order to reduce the risk of
personal injuries and damages to property.
2.2 Obligations of the operating company
of the operator
The operating company is the person who operates the
lever hoist for business or commercial reasons by her-
self, or leaves it to a third party for use or application,
and who bears the legal product responsibility for the
protection of the user, the staff or for third parties.
Obligations of the operating company
If the lever hoist is used for commercial purposes, the
operating company of the lever hoist must comply with
the legal working safety regulations. Therefore, the
safety notes in this operating manual, as well as the
safety, accident prevention and environment protection
regulations applying for the area of application of the le-
ver hoist must be met. The following applies in particu-
lar:
- The operating company must be informed about
the applying industrial safety regulations and fur-
ther analyse hazards resulting from the special
working conditions at the place of use of the lever
hoist. She must implement these in form of operat-
ing manuals for the operation of the lever hoist.
- During the entire lifetime of the lever hoist, the op-
erating company must verify whether the operat-
ing manuals prepared by her correspond to the
current status of the regulations, and must adapt
these if necessary.
- The operating company must unambiguously reg-
ulate and determine the responsibilities for instal-
lation, operation, troubleshooting, maintenance
and cleaning.
- The operating company must ensure that all per-
sons who work with the lever hoist, have read and
understood this manual. Furthermore she must in-
struct the staff in regular intervals and inform them
about the hazards.
- The operator must provide the necessary protec-
tive equipment to the staff and order the use of the
necessary protective equipment in a binding way.
Furthermore the operating company is responsible to
keep the lever hoist always in a technically flawless
state. Thus, the following applies:
- The operator must ensure that the maintenance in-
tervals described in this manual are kept.
- The operator must have all safety devices
checked regularly for their good working order
and their integrity.
WARNING!
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to death or severe injury if not avoided.
CAUTION!
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to slight or minor injury if not avoided.
ATTENTION!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may
lead to property and environmental damages if they
are not avoided.
NOTE !
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to material or environmental damage if not
avoided.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for an efficient and trou-
ble-free operation.

Safety
HZ-Serie | Version 1.03 5
2.3 Requirements to staff
Qualifications
The different tasks described in this manual represent
different requirements to the qualification of the persons
entrusted with these tasks.
Only persons reliable working procedures can be ex-
pected from, are allowed to perform all works. Persons
the responsiveness of which is affected by e. g. drugs,
alcohol or medication, are not allowed to work with the
machine.
The qualifications of the personnel for the different tasks
are mentioned below:
Operator
The operator is instructed by the operating company
about the assigned tasks and possible risks in case of
improper behaviour. Any tasks which need to be per-
formed beyond the operation in the standard mode
must only be performed by the operator if it is indicated
in these instructions and if the operating company ex-
pressively commissioned the operator.
Qualified personnel
Due to their professional training, knowledge and expe-
rience as well as their knowledge of relevant regulations
the specialist staff is able to perform the assigned tasks
and to recognise and avoid any possible dangers them-
selves.
Manufacturer
Certain works may only be performed by specialist per-
sonnel of the manufacturer. Other personnel is not au-
thorized to perform these works. Please contact our cus-
tomer service for the execution of all arising work.
2.4 Personal protective equipment
The personal protective equipment serves to protect
persons against impairments of safety and health while
working. The staff member has to wear personal protec-
tive equipment while performing different tasks on and
with the machine which are indicated in the individual
paragraphs of these instructions.
The personal protective equipment is explained in the
following paragraph:
2.5 General safety regulations
Setting up, retrofitting, maintenance and inspection
work may be carried out only on equipment that is not in
operation. The work is allowed for trained personnel
only.
WARNING!
Danger in case of insufficient qualification
of the staff!
Insufficiently qualified persons cannot estimate the
risks while using the lever hoist and expose them-
selves and others to the danger of severe or lethal
injuries.
- Have all works only performed by qualified per-
sons.
- Keep insufficiently qualified persons out of the
working area.
Head protection
The industrial helmet protects the head against fall-
ing objects and hitting on fixed objects.
Protective gloves
The protective gloves serve to protect the hands
against sharp components as well as against fric-
tion, abrasions or deep injuries.
Safety boots
Safety boots protect the feet from being crushed, fall-
ing parts and slipping over on slippery ground.
Protective clothes
Protective clothes are made of a tightly fitted fabric
without the protruding parts of low tear strength.
NOTE!
All local regulations (the latest valid version) which
apply in the country where the device is used must
be complied with
In Germany, currently
BGV A1 - Principles of Prevention
BGV D8 - Winching, lifting and pulling equipment
BGR 500 (VBG 9a) - Load carrying devices used
with lifting equipment
BGG 905 (ZH 1/27) - Principles for testing cranes
EN 1494 - Mobile or movable jacks and associated
lifting equipment.
EC Machine guidelines 2006/42/EC

6HZ-Serie | Version 1.03
Intended use
It is important to point out that the making of any unau-
thorised modifications or changes to the machine is not
permitted.
Operating personnel must always ensure that the maxi-
mum load is never exceeded.
Personnel must not stand underneath a suspended load
as this could come loose and fall.
Personnel must not ride on or be lifted by the equip-
ment. Access to lifting equipment is not permitted.
2.6 Safety information for operating personnel
No operational mode which could compromise the
safety of the lever hoist may be undertaken.
It is the responsibility of the operator to ensure that no
unauthorised personnel work on the lever hoist (e.g.
also by working on equipment in a manner contrary to
authorised use).
It is the responsibility of the operator to check the lever
hoist at least once before use (once a day) for externally
apparent damage or defects and to report any changes
(including to the way the machine is operating) which
are likely to compromise safety.
It is the responsibility of the operator to ensure that the
the lever hoist is operated only in perfect order and con-
dition.
It is the responsibility of the operator to insist that oper-
ating personnel must wear protective clothing wherever
necessary.
Under no circumstances must safety devices be re-
moved or put of operation (potential risk of serious
crushing, danger to life).
If it is necessary to remove any safety devices for fitting,
repair or maintenance work, they must be reinstalled im-
mediately after maintenance or repair is complete.
2.7 Checks
Hoisting chains are classed as a load-carrying device
requiring inspection. For this reason, the following
guidelines issued by the trade association central office
for accident prevention regarding round steel chain
used in lifting operations must be complied with: DIN
685 Part 5 Nov. 1981, UVV, BGV D8 (VBG 8 April 1997)
and UVV, BGV D6 (VBG 9 April 2001) and DIN EN 818-7
September 2002.
A record of maintenance and inspections carried out
must be entered in the crane inspection log book (e.g.
any adjustment to the brakes or clutch).
3 Intended use
The lever hoist is used exclusively for manual vertical lift-
ing and lowering as well as for pulling and lashing freely
movable loads up to the specified maximum load.
The lever hoist may be operated only by personnel who
have been trained in its use.
The proper use also includes observing all indications in
these operating instructions. Any use beyond the proper
use or any other use is regarded as misuse. Under no
circumstances may personnel be lifted.
Stürmer Maschinen GmbH accepts no liability for any
constructional or technical modifications carried out on
the lever hoist.
Any claims due to damages because of not intended
use are excluded.
3.1 Foreseeable misuse
If the intended use is observed, any reasonably foresee-
able misuse which could lead to hazardous situations
with personal damage is impossible with the lever hoist.
3.2 Residual risks
Even if all safety regulations are observed a residual risk
in the operation of the lever hoist will remain, as de-
scribed below.
All persons working with the lever hoist must be aware
of these residual risks and follow the instructions which
prevent any accidents or damage caused by these re-
sidual risks.
- Risk of crushing of upper and lower limbs while
equipment is operating.
- During set-up and adjustment works it may be-
come necessary to remove safety devices in-
stalled by the customer. This causes different re-
sidual risks and hazard potentials each operator
must be aware of.
Read the operating manual
Read the operating manual thoroughly until you
have the content understood before commissioning
the machine.

Technical Data
HZ-Serie | Version 1.03 7

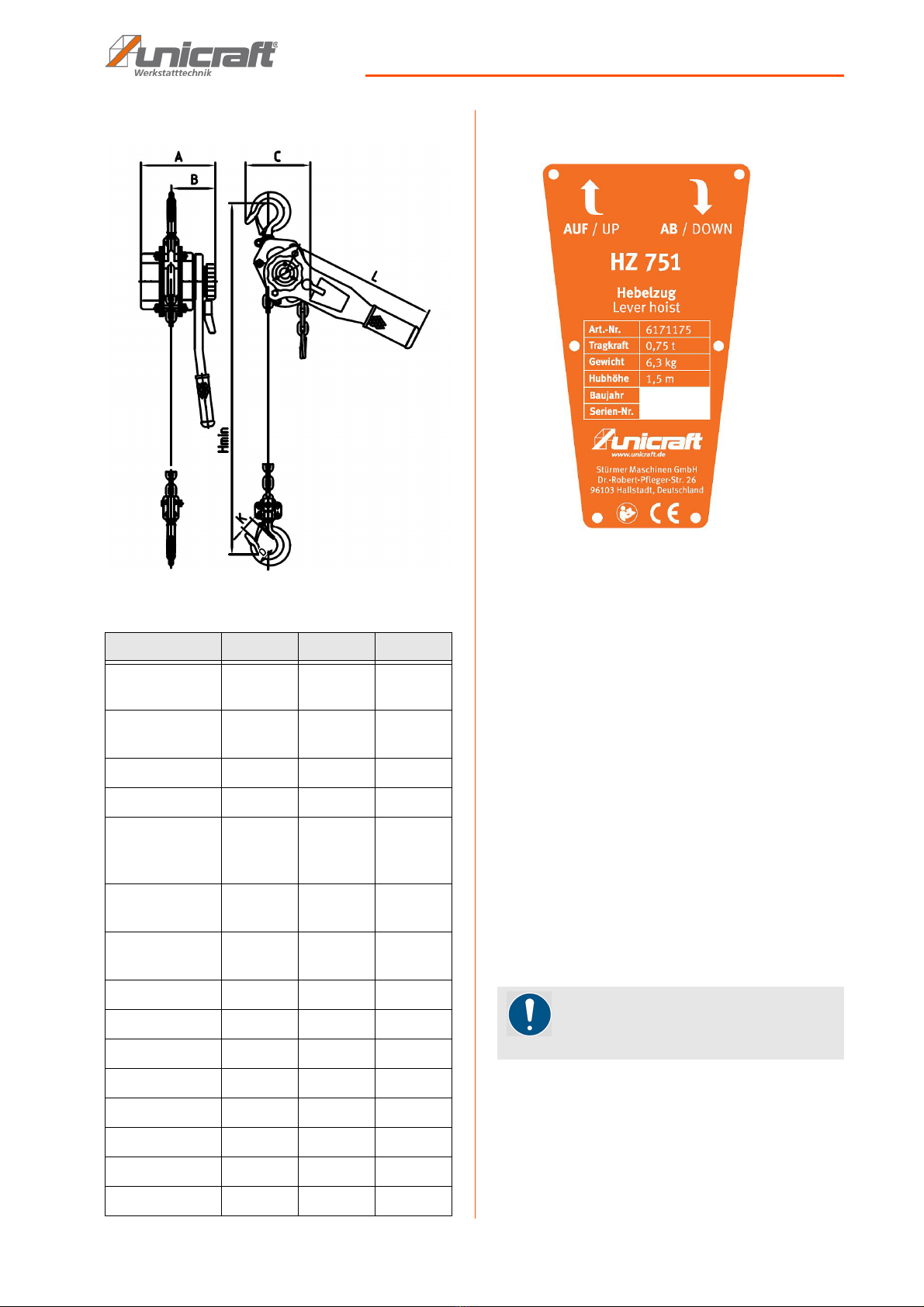

4 Technical Data
Fig. 1: Drawing with dimension lines
4.1 Type plate
Fig. 2: Type plate lever hoist HZ 751
The type plate is located on the lever and contains the
following information:
- Manufacturer
- Type
- Item number
- Year of manufacture
- Serial number
- Technical Data
5 Transport, packaging, storage
5.1 Transport
Check the lever hoist on delivery for any visible trans-
portation damage. If you notice any damage to the de-
vice please report this immediately to the carrier or
dealer.
5.2 Packaging
All used packaging materials and packaging aids are
recyclable and should be taken to a materials recycling
depot to be disposed of.
Type HZ 751 HZ 1501 HZ 3001
Maximum load
(Tone)
0,75 1,5 3
Lifting height
(mm)
1500 1500 1500
Load test 9,2 kN 18,4 kN 36,8 kN
Lifting force 140 N 240 N 320 N
Min. Load of
the activation
of the brake
3%
(22,5 kg)
5%
(45 kg)
8%
(240 kg)
Number of
chain strands
111
Thickness
chain link
6 mm 8 mm 10 mm
Dimension A 148 mm 176 mm 195 mm
Dimension B 88 mm 102 mm 109 mm
Dimension C 135 mm 162 mm 211 mm
Dimension D 37 mm 45 mm 50 mm
Dimension H 320 mm 380 mm 480 mm
Dimension L 290 mm 420 mm 420 mm
Dimension K 26 mm 32,5 mm 38 mm
Weight (kg) 6,3 11,0 18,7
D
NOTE!
The lever hoist should be protected from humidity.

8HZ-Serie | Version 1.03
Description of the device
The delivery packaging is made of cardboard, so
please dispose carefully by having it chopped up and
given to the recycling collection.
The film is made of polyethylene (PE) and the cushioned
parts of polystyrene (PS). Deliver these substances to a
collection point for recyclable materials or to the waste
disposal company which looks after your region.
5.3 Storage
The lever hoist should be lubricated and then stored in a
dry, frost-free environment. Do not set anything down on
the lever hoist.
6 Description of the device
6.1 Image
Fig. 3: Description of the device
1 Support hook with safety bracket
2 Handwheel
3 Levers (with choice of position)
4 Load chaine
5 Hand lever with rubber handle
6 Load hook with safety bracket
Illustrations in these operating instructions may deviate from
the original.
6.2 Safety marking on the lever hoist
The following safety markings are attached to the lever
hoist (Fig. 4). They have to be observed and followed.
Fig. 4: safety markings
The safety markings which are applied on the lever hoist
must not be removed. Damaged or missing safety mark-
ings may lead to errors, personal and material dam-
ages. Immediately replace them.
The lever hoist must be put out of operation from the mo-
ment when the signs are unable to be recognized and
understood at first glance, until new signs are attached.
6.3 Function
The lever hoist has three functions:
Position NEUTRAL
Pulling through the load chain.
Position UP
Lift the load upwards or pull the load.
Position DOWN
Lever down the load.
7 Start-Up
All commissioning work on the hoist must only be car-
ried out by licensed specialists.
Furthermore, all functions of the lever hoist must be
checked.
1
2
4
3
5
6

Operation
HZ-Serie | Version 1.03 9
8 Operation
8.1 Operating conditions
The working area must be dry, fire and explosion pro-
tected and free of any corrosive or poisonous sub-
stances.
The lever hoist must not be used to lift or move danger-
ous goods such as molten, poisonous or radioactive
materials.
Operating temperature range: -10 °C to +50 °C
8.2 Test run
Before using the lever hoist to lift a load, a no-load test
should be carried out to test all functions.
8.3 Raising a load
Step 1: Attach the lever hoist to a suitable carrier with
the carrier hook and close the safety catch.
Step 2: Set the shift lever to the NEUTRAL position.
Step 3: Pull through the unloaded chain.
Step 4: Hook the hook of the lever hoist at a suitable at-
tachment point of the load and close the safety
lock.
DANGER!
Danger of life by crashing the load!
Falling loads can cause serious injury or death.
- Overload is prohibited! Check that the load never
exceeds the maximum load stated on the name-
plate.
- Loads may only be moved under supervision.
- Never swing the lifted load.
- Never step under suspended loads or work there.
- Under no circumstances may a load be subjected
to a heavy blow or collision.
- Make sure that the stop on which the lever hoist is
mounted has sufficient load capacity to hold the
load.
- Never lift a load that can fall off, or fall down, or
whose parts are not firmly connected to each other,
with the lever hoist.
- Never use a rusted or damaged lever hoist.
- Never leave a load lifted by the lever hoist unat-
tended.
- When lifting or lowering a load, make sure that the
operator is out of range of the load at all times.
- When leaving the workplace, lower the load.
DANGER!
Danger of life by crashing the load!
Unsuitable lifting points can fail and the load can
crash.
- Only attach to suitable points of the load.
Head protection must be worn!
Use protective gloves!
Use protective boots!
Wear protective clothes!
NOTE!
- Operating personnel must be familiar with the oper-
ation and functions of the lever hoist and the safety
regulations pertaining to it.
- The operator is responsible for ensuring that all op-
erating personnel have had the necessary training.
ATTENTION!
The operator must have a clear view over the entire
stroke. If this is not possible, a second person must
be available for instruction.
The operator must check that the entire lifting proce-
dure is safe before operating the hoist.
ATTENTION!
Do not overtighten the load chain with the mode-
selection switch in the middle position, as this will
activate the brake.
RESET: For releasing the brake, pull the load chain a
short distance in the opposite direction.

10 HZ-Serie | Version 1.03
Care, maintenance and repair
Step 5: Set the shift lever to the AUF position.
Step 6: Lift the load carefully until the load chain is un-
der tension.
Step 7: At first lift the load only a little and check
whether the load and chain is stable.
Step 8: Lift the load smoothly and equally upwards.
8.4 Load lowering
Step 1: Set the shift lever to the position AB.
Step 2: Lower the load smoothly and equally down-
wards.
Step 3: Set down the load on a firm, safe surface.
Step 4: Set the shift lever to the NEUTRAL position to re-
lease the load from the lever hoist.
Step 5: Pull the load chain through, open the safety latch
and take down the load.
9 Care, maintenance and repair
9.1 Care by cleaning
The lever hoist must always be kept in a clean condition.
All plastic and lacquered surfaces should be cleaned
using a soft, damp cloth and a neutral cleaning agent.
Remove any excess lubricant or leaked oil using a dry,
lint-free cloth.
9.2 Care, maintenance and repair
Daily inspection of the hoist
Step 1: Check the chain links, the hooks and the safety
brackets before every use for wear and outer
damages.
Step 2: Check the lever hoist for outer damages, for
completeness and firm seat of all screws and
nuts before every use.
NOTE!
- Do not wrap the load chain around the load.
- Load chain must not be turned in itself.
- Check the location of the centre of gravity in order
to prevent the load from slipping or moving.
- The means of attachment (eyelet, chain or similar)
must sit loosely in the base of the hook.
- The point of the hook must not bear the load.
- Close the safety catch.
NOTE!
The operator must have sufficient freedom of move-
ment.
The lever hoist must be able to swing freely in the
direction of pulling.
DANGER!
Danger of life by crashing the load!
Danger of overheating of the brake system with par-
ticularly frequent lowering of loads within a short
time without cooling phase.
CAUTION!
Risk of crushing!
Lowering the load can cause bruising of the upper
and lower limbs.
- Do not hold the upper and lower limbs between the
load and the ground when lowering the load.
WARNING!
Danger of injury by the use of wrong spare
parts!
Dangers may result for the user and damages as
well as malfunctions may be caused by using wrong
or damaged spare parts.
- Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
- Always contact the manufacturer in case of uncer-
tainties.
NOTE!
Loss of waranty
- The manufacturer's warranty will become null and
void if non-permissible spare parts are used.
Use protective gloves!
NOTE !
Never use strong cleaning agents to clean the de-
vice. Such cleaning agents might damage or destroy
the device.

Care, maintenance and repair
HZ-Serie | Version 1.03 11
Maintenance plan
If an increase in wear is noted during regular inspec-
tions, the maintenance intervals should be decreased in
accordance with the actual signs of wear. Contact the
manufacturer for further information concerning mainte-
nance tasks and intervals. Please find the contact data
on chapter 1.2 Customer service.
If the lever hoist is not functioning properly, contact a
specialised dealer or our customer service.
Immediately reassemble all protective and safety equip-
ment after completing the repair and maintenance of the
device.
Step 1: Lubricate all moving parts of the Lever hoist
(gears, bearings) with good quality grease. Oil
the chain well.
Step 2: Check the lever hoist before each operation for
visible signs of wear.
Step 3: Always ensure that all safety information on the
lever hoist is clearly legible.
Visual inspection and maintenance
Checking the brake system:
Brake tests and ratchet tests have to be done as explained
in the following:
ATTENTION!
- Maintenance and repair works must only be per-
formed by specialists.
Use only original spare parts in case of a repair.
Maintenance
intervals
Maintenance tasks
before each
operation
Check lever hoist for damage and
wear, look particularly at the cable
and check for deflection, stretching,
fissures or corrosion.
before each
operation
Check brake and ratchet with pawl
for damage and wear. Clean brake
discs, ratchet disc and pawl if neces-
sary. Replace them if they are heavily
worn.
before each
operation
Check the load and suspension
hooks for wear or loss of substance
from abrasion. If the wear exceeds
5% of the normal working level, the
hook must be replaced.
Functional test:
Set the mode-selection switch to the
UP and DOWN positions and check
the lifting and lowering functions.
- ease of operation
- Brake function:
During operation the following
troubles must not occur:
The brake blocks lifting of the
load.
Load lowers itself slowly in
spite of actviated brake.
The load falls down, when the
lever is released.
After each
use
Clean the lever hoist thoroughly and
lubricate well. Oil the load chain, load
hook and the support hook well.
every 40
hours
Lubricate gear and bearing well.
every 40
hours
Check the function of the brake and
the ratchet.
every 40
hours
Cleaning of the brake discs and
ratchet disc.
every 200
hours
Check and measure the amount of
wear on the brake disc, the ratchet
disc with pawl.
every 200
hours
Check and measure the amount of
wear on the chain links, load hook
and support hook.
as required Replacing the brake disc and ratchet
disc with pawl.
as required Replacing the chain links, the sup-
port hook and the load hook.
annually Safety check: If the lever hoist is
used commercially it must be in-
spected annually in compliance with
industrial safety regulations and the
inspection must be recorded as per
Section 10.
ATTENTION!
Check the function of the brake system regularly!
Maintenance
intervals
Maintenance tasks

12 HZ-Serie | Version 1.03
Care, maintenance and repair
Step 1: Hook the load.
Step 2: Lift the load upwards.
Step 3: Lift and lower the load to different heights.
Step 4: Check whether a secure holding of the load is
ensured in every position.
Inspection of the load chain for abrasion
Continuous monitoring of the load chain is a mandatory
requirement in accordance with DIN 685 Part 5 or UVV
BGV D8 § 27 (VBG 8 § 27). The load chain must be
checked after commissioning and under normal operat-
ing conditions after approx. 200 operating hours or
10,000 load cycles, and at shorter intervals in case of
severe operating conditions.
The links should be checked especially at the points of
contact for wear, cracking, deformation and other dam-
age.
The chain has to be replaced in the following cases:
- Reduction of the nominal thickness at the contact
points by 10%.
- Elongation of a link by 5% or the chain over 11
links by 2%.
- stiff drawn chain links.
When the chain is replaced the chain guide has to be
checked and replaced if necessary.

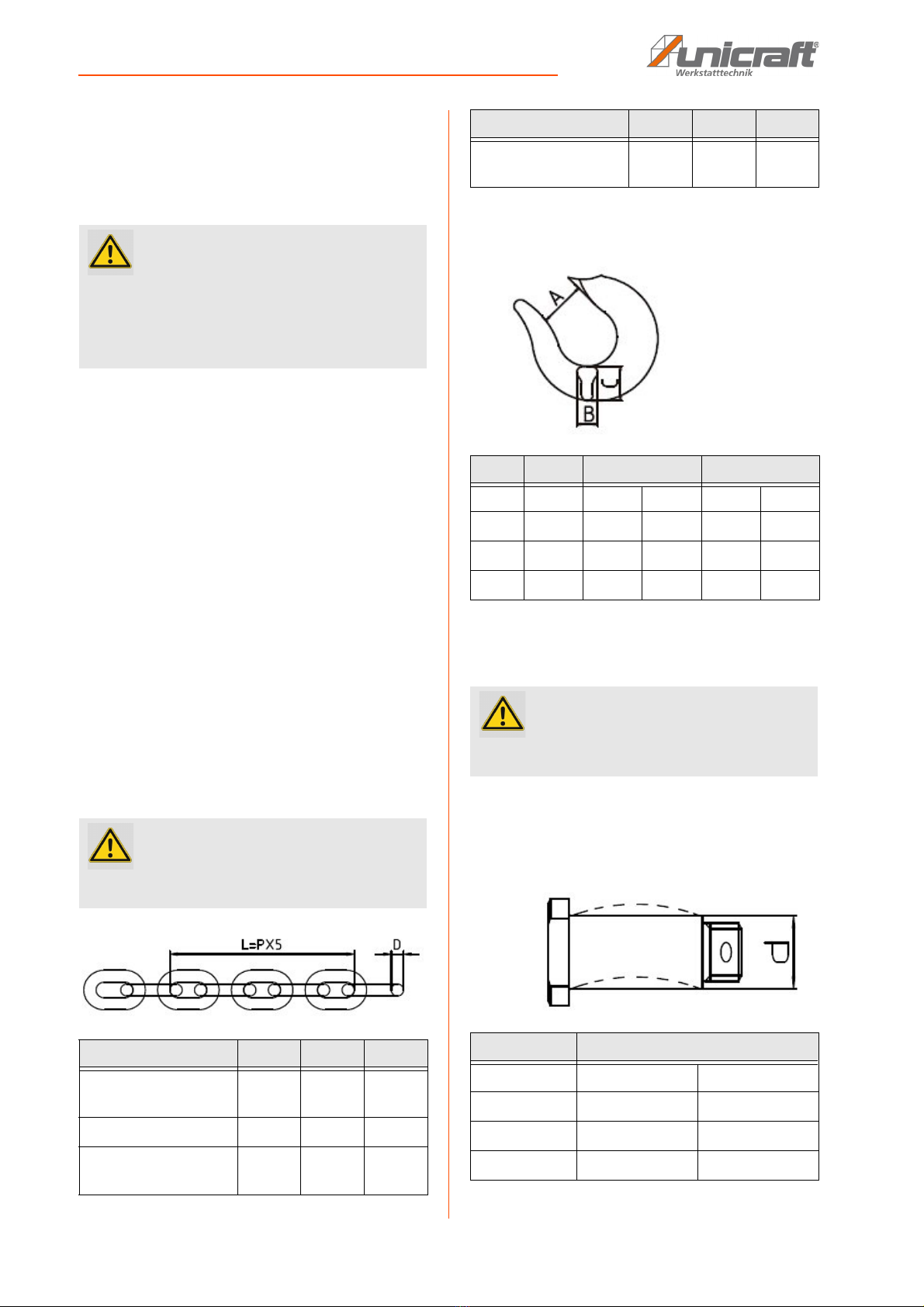

Fig. 5: Chain dimension
Wear measurement and replacement of the hook
* Nominal values. The concrete value must be measured at the new hook.
The expansion may not be more than 5% of the extent of the new state.
Fig. 6: Dimension of the hooks
Wear measurement and replacement of the load hook holding pin
The load hook holding pin has to be replaced as soon
as a deformation is shown (Fig. 7).
Fig. 7: Dimension load hook holding pin
ATTENTION!
The brake discs (Standard- thickness 3mm) has to
be replaced when brake disc thickness is 2,5 mm or
less than 2,5 mm.
The brake disk has to be replaced when the secure
holding of the load isn‘t ensured in every position.
ATTENTION!
As spare chain use only original spare chain from
the manufacturer of the hoist.
Model HZ 751 HZ 1501 HZ 3001
Chain link -diameter D
[mm]
6 8 10
D min. [mm] 5,4 7,2 9,0
Inner Standard-Length
L [mm] (3 chain links)
90 120 150
L max. [mm]
(Elongation in mm)
92,5 123,3 154,0
A*[mm] B [mm] C [mm]
Standard Limit Standard Limit
0,75 t 30 13 12,4 21,5 20,3
1,5 t 36 17 16,2 28,8 27,3
3 t 40 25 23,8 43,8 41,6
ATTENTION!
Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
Model P [mm]
Standard Limit
HZ 751 7,5 7,1
HZ 1501 10,0 9,5
HZ 3 001 14,5 13,8
Model HZ 751 HZ 1501 HZ 3001

Care, maintenance and repair
HZ-Serie | Version 1.03 13
Wear measurement and replacement of the support hook holding pin
The support hook holding pin has to be replaced as
soon as the abrasion has reached the limit listed in the
following table.
* Nominal values. The concrete value must be measured at the new holding
pin.

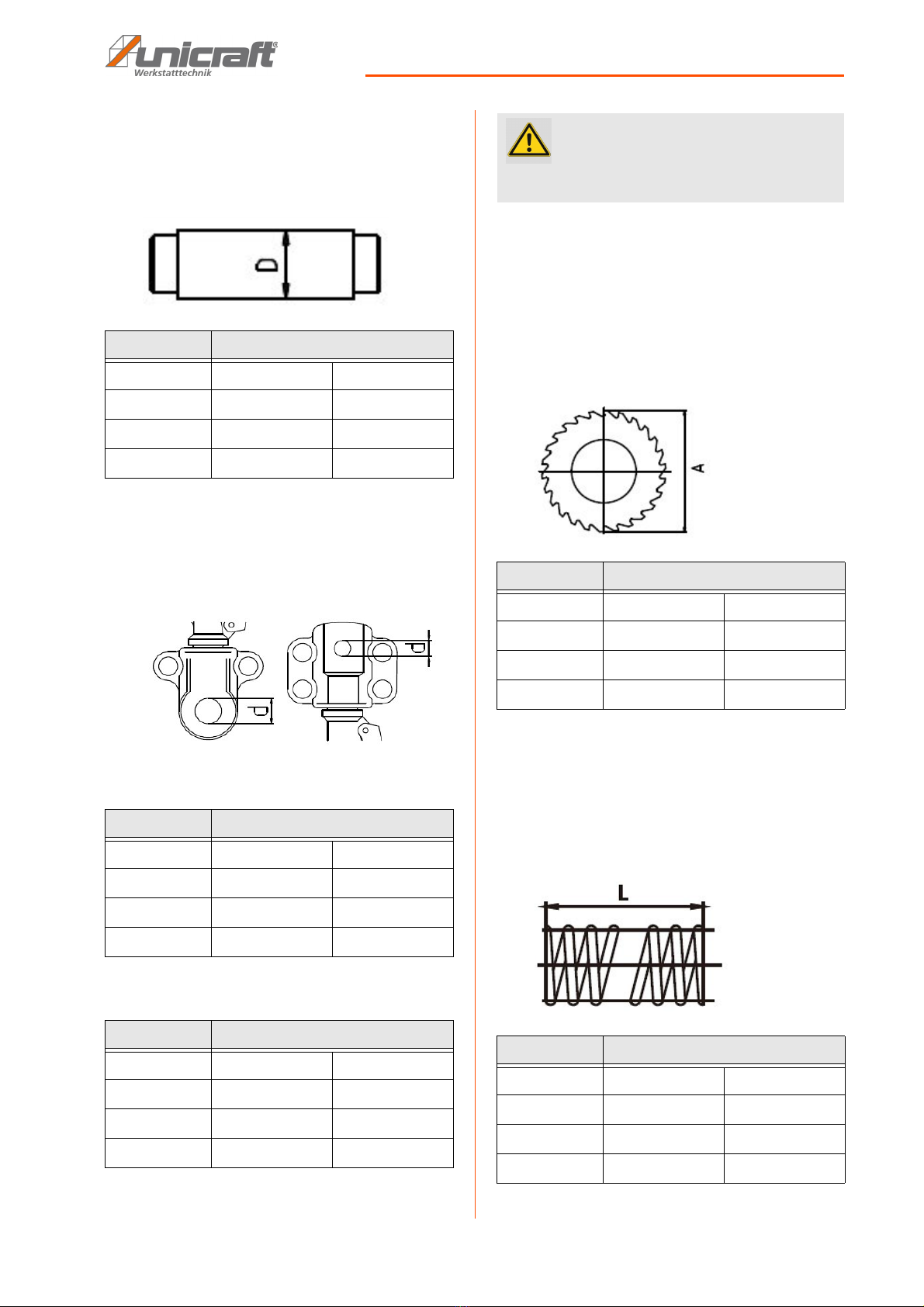

Fig. 8: Dimension of the holding pins
Wear measurement of the holding pin hole, replacement of the
complete hook.
Holding pin of the load hook:
Holding pin of the support hook:
Fig. 9: Dimension holding pin hole
Wear measurement and replacement of the brake system / ratchet
The brake discs have to be replaced as soon as the ma-
terial thickness (standard value 3,0 mm) has reached
2,5 mm.
The ratchet disc has to be replaced as soon as the
abrasion has reached the limit listed in the following ta-
ble.
Fig. 10: Diameter ratchet disc
Check the pawl and the pawl spring regularly for wear.
Check the pawl spring regularly for deformation. Re-
place them if necessary.

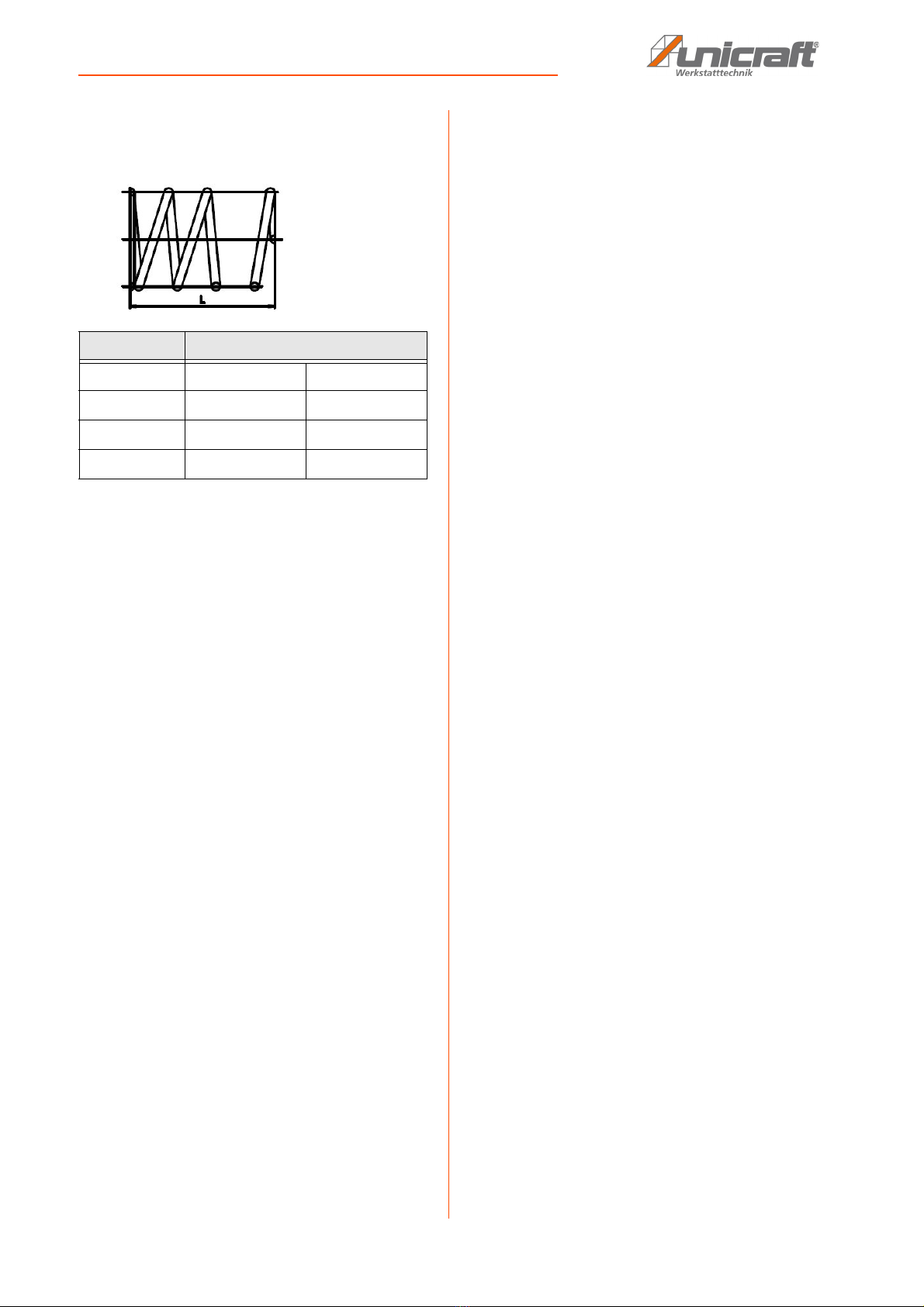

The coupling spring has to be replaced as soon as its
length has reached the limit listed in the following table.
Model D [mm]
Standard* Limit
HZ 751 12,0 9,5
HZ 1501 14,0 12,4
HZ 3001 18,0 16,1
Model P [mm]
Standard Limit
HZ 751 7,5 8,0
HZ 1501 10,5 11,0
HZ 3001 15,0 15,7
Model P [mm]
Standard Limit
HZ 751 12,5 13,1
HZ 1501 14,5 15,2
HZ 3001 18,0 18,9
ATTENTION!
Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
Model A [mm]
Standard Limit
HZ 751 74,5 71,5
HZ 1501 85,0 83,0
HZ 3001 94,0 91,0
Model L [mm]
Standard* Limit
HZ 751 37 mm
HZ 1501 39 mm
HZ 3001 39 mm

14 HZ-Serie | Version 1.03
Testing of the lever hoist
The spring (41, spare part drawing) has to be replaced
as soon as the length has reached the limit in the follow-
ing table.
* The concrete value has to be measured at the new spring.
Fig. 11: Length of the spring
10 Testing of the lever hoist
The hoist must be tested by a qualified person for safe
operation in accordance with the provisions of the Ger-
man Industrial Safety Regulation and the BGR 500,
Chapter 2.8, before first use and as required at intervals
of no more than 1 year.
A person may be considered qualified if he / she has at
least the qualifications that previously were given to the
expert. The scope of testing and the inspection dead-
lines have to be carried out i.a. according to the results
of the risk assessment.
Type, extent and deadlines of the tests described in the
BGR 500 are previous practice and comply with the
rules of technology. The test is essentially a visual and
functional test. It covers the examination of the condition
of the components and equipment, the completeness
and effectiveness of the safety equipment and the com-
pleteness of the inspection book.
If an inspection period of no more than one year is ad-
hered to, the operator can assume that this period is
sufficient. The results of the checking of the chain hoists
has to be written down in an inspection book.
Model L [mm]
Standard* Limit
HZ 751 27 mm
HZ 1501 22,5 mm
HZ 3001 27 mm

Trouble shooting
HZ-Serie | Version 1.03 15
11 Trouble shooting
12 Disposal, recycling of used devices
Please take care in your own interest and in the interest
of the environment that all component parts of the ma-
chine are only disposed of in the intended and permit-
ted way.
12.1 Decommissioning
Immediately decommission disused machines in order
to avoid later misuse and endangering of the environ-
ment or personal safety.
Step 1: Eliminate all environmentally hazardous operat-
ing materials from the used device.
Step 2: If required, disassemble the machine into easy-
to-handle and usable components and parts.
Step 3: Dispose of machine components and operating
materials by the disposal channels provided.
Failures Possible cause Solution
Hoist doesn‘t work 1. Pawl does not engage; possibly
because of pollution.
2. Pawl spring is defect.
3. Ratchet spring is loose or dam-
aged.
1. Clean and lubricate the pawl and
ratchet.
2. Replace pawl spring.
3. Replace or fix the ratchet spring.
Load slides or moves, while it is low-
ered.
1. There is dirt or corrosion at the de-
vice parts.
2. Brake slides as a result of wear or
overload.
1. Clean or lubricate the hoist.
2. Check the brake discs for wear,
replace if necessary. Do not over-
load the hoist.
Load drops as soon as it is lowered. 1. Dirty brake discs.
2. Oily brake discs. The brake discs
must not get in contact with oil or
lubricants.
1. Clean or replace the brake discs.
2. Clean or replace the brake discs.
The lever hoist does not lower the
load.
1. The brake is blocked. (Lever hoist
was under load for a long time)
2. Brake components are corroded
or damaged.
1. Set the Mode-selection switch to
the AB-Position and pull strongly
at the lever hold. or bring the
brake in starting position (RE-
SET).
2. Replace brake components if
necessary. Keep lever hoist clean
and lubricate it well.
The chain is badly movable even
without load.
1. The gears are heavily worn be-
cause of heavy load or irregularly
lubrication.
1. Replace gear wheels/gear.

16 HZ-Serie | Version 1.03
Spare parts
13 Spare parts
13.1 Ordering spare parts
The spare parts may be purchased with the authorised
dealer or directly with the manufacturer. Please find the
corresponding contact data in Chapter 1.2 Customer
service.
Indicate the following basic information for requests or
orders of spare parts:
- Type of device
- Item No.
- Position No.
- Year of construction:
- Quantity
- Required mode of dispatch (mail, freight, sea, air,
express)
- Address of dispatch
Spare part orders which do not include the above indi-
cations may not be taken into consideration. If the indi-
cations regarding the mode of dispatch are missing, the
product is dispatched at the discretion of the supplier.
You will find information regarding the device type, item
No. and year of manufacture on the type plate fixed to
the lever hoist.
Example
Load hooks for the lever hoist must be ordered.
- Type of device: Lever hoist HZ 751
- Item number: 6171175
- Position No.: 10
The order No. is: 0-6171175-10
The order number consists of the item number, the posi-
tion number and one digit in front of the item number.
- Place the digit 0 in front of the item No.
- Also place the digit 0 in front of the position No 1
through 9.
The item No. of your device:
Lever hoist HZ 751: 6171175
Lever hoist HZ 1501: 6171115
Lever hoist HZ 3001: 6171130
DANGER!
Danger of injury by the use of wrong spare
parts!
Dangers may result for the user and damages as
well as malfunctions may be caused by using wrong
or damaged spare parts.
- Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
- Always contact the manufacturer in case of uncer-
tainties.
Tips and recommendations
The manufacturer's warranty will become null and
void if non-permissible spare parts are used.

Spare parts
HZ-Serie | Version 1.03 17
13.2 Spare parts drawing
In case of service, the following drawing shall help to identify the necessary spare parts. If necessary, send a copy of
the parts drawing with the marked components to your authorised dealer.
Fig. 12: Spare parts drawing

18 HZ-Serie | Version 1.03
Laufende K/F 1
14 EC Declaration of Conformity
According to machine directive 2006/42/EC Annex II 1.A
Manufacturer/distributing company: Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
herewith declares that the following product
Product group: Unicraft® Werkstatttechnik
Designation of the machine: HZ 751
HZ 1501
HZ 3001
Machine type: Lever hoist
Item number: 6171175
6171115
6171130
Serial number: ______________________
Year of manufacture: 20_____
complies with all relevant provisions of the above mentioned directive as well as the other applied directives (below) -
including their applicable modifications at the time of the declaration.
The following harmonized standards were applied:
DIN EN 13157:2010-07 Cranes - Safety - Hand powered cranes
Person responsible for the documentation: Kilian Stürmer, Stürmer Maschinen GmbH,
Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt
Hallstadt, 28.11.2016
______________________
Kilian Stürmer,
Manager

Maintenance plan
HZ-Serie | Version 1.03 19
15 Maintenance plan
maintenance plan HZ
40 h 40 h 40 h 200 h as re-
quired
200 h as re-
quired
annu-
ally
Bearing, gear lubricate Function check brake system Cleaning brake disks and ratchet Wear test brake disk Replacement of the brake disk Wear measurement chain, hooks Replacement of chain, hooks Safety check lever hoist
Date Operating
hours
Employee Signature
