Uniden BW34 Series User manual

1
BW34xx Series
4.3” LCD Portable Wireless
Baby Monitoring System
For more exciting new products please visit our website:
Australia: www.uniden.com.au

2
This manual contains important information about this product’s operation. If you are installing
this product for others, you must leave this manual or a copy with the end user. When using your
equipment, always follow basic safety precautions to reduce the risk of re, electric shock and
injury to persons, including the following:
• This equipment is NOT waterproof. DO NOT expose it to rain or moisture.
• DO NOT immerse any part of the product in water. Do not use this product near water, e.g.,
near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming
pool.
• To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except
battery powered ones) during an electrical storm.
• Use only the power cord and/or batteries indicated in this manual. Never dispose of any bat-
teries in a re: they may explode. Check with local codes for possible special disposal instruc-
tions.
• Never tug or pull on any power cord: be sure to leave some slack in the cord when placing
your equipment, and always use the plug to unplug cord from the wall outlet.
• Never leave power cords where they can become crushed, cut, or frayed; when running power
cords, avoid letting them rub against any sharp edges or lie across any high trafc areas
where people might trip over them.
• Do not use the device if the adaptor cords or plugs have been damaged, the unit has been
exposed to liquids, or the unit has been dropped or is damaged.
IMPORTANT SAFETY INSTRUCTIONS

3
Warnings to Parents and Other Users
Failure to follow these warnings and the assembly instructions could result in serious injury or
death. This product is not designed or intended for use as a medical monitor, nor should this
product be used as a substitution for medial or parental supervision. Always be sure that both the
transmitter and monitor are working properly and are within range of each other.
• STRANGULATION HAZARD. Keep the adaptor cords out of the reach of children.
• WARNING: KEEP OUT OF THE REACH OF CHILDREN. Allow for proper ventilation when
units are in use. Do not cover the camera or monitor with any object such as a blanket. Do not
place it in a drawer or in any location which would mufe the sound or interfere with the normal
ow of air.
SAVE THESE INSTRUCTIONS!
For best results:
To avoid damage to your equipment, follow these simple precautions:
• Do not drop, puncture or disassemble any part of the equipment. There are no user-servicea-
ble parts inside.
• Do not expose the equipment to high temperatures, and avoid leaving the equipment in direct
sunlight for more than a few minutes. Heat can damage the case or electrical parts.
• Do not place heavy items on top of the equipment or expose the equipment to heavy pressure.
• Remove the power adaptor during long periods between usages.
• Clean only with a dry cloth.
Failure to follow the instructions in this operating manual will void the warranty.
Uniden assumes no liability for damages to property or injury to persons caused by
improper handling or failure to comply with these safety instructions.

4
IMPORTANT SAFETY INSTRUCTIONS ......................................2
GETTING STARTEd.....................................................................5
WHAT’S IN THE BOX?................................................................................5
GETTING TO KNOW THE MONITOR AND THE CAMERA.............6
What the Lights Mean? ........................................................................7
SETTING UP THE EQUIPMENT...............................................................8
Set Up the Monitor ................................................................................8
Attach The Indoor Camera..................................................................8
SETTING UP YOUR SYSTEM................................................................. 10
BW34xx SERIES SOFTWARE OPERATION OvERvIEW ........ 11
LIVE SCREEN.............................................................................................. 11
What The Icons Mean ........................................................................ 12
Changing How the LIVE Screen Displays.................................... 14
Using the Pentazoom™ Feature..................................................... 14
USING YOUR SYSTEM ........................................................................... 15
Recording LIVE Video......................................................................... 15
Playing Back Recorded Video ......................................................... 15
Adding New Cameras........................................................................ 16
BW34xx SERIES SCREEN dESCRIPTIONS............................. 18
OVERVIEW.................................................................................................. 18
BW34XX SERIES SETTINGS SCREEN ................................................ 18
CAMERA SETUP SCREEN ..................................................................... 20
Pairing ..................................................................................................... 20
Camera On............................................................................................. 21
RECORDER SETUP SCREEN ................................................................. 22
Motion Detection ................................................................................. 22
Email Alert ............................................................................................... 23
Schedule Record ................................................................................... 26
NETWORK SETUP SCREEN................................................................... 27
Internet Setup ....................................................................................... 28
Security Code ........................................................................................ 29
Network Information .......................................................................... 30
ALARM SETUP SCREEN......................................................................... 30
Period ....................................................................................................... 31
Melody ..................................................................................................... 31
SYSTEM SETUP SCREEN........................................................................ 32
Power Saving ......................................................................................... 32
Screen Auto Lock.................................................................................. 33
Time........................................................................................................... 34
Format Storage ..................................................................................... 36
System Upgrade ................................................................................... 37
Language ................................................................................................ 37
QUICK TIPS................................................................................................. 38
REMOTE ACCESS ..................................................................... 39
OVERVIEW.................................................................................................. 39
System Requirements........................................................................ 39
Connecting to the Internet.............................................................. 39
Connecting to the Intranet (HOME NETWORK)........................ 40
REMOTELY VIEW YOUR BW34XX SERIES SYSTEM ..................... 41
Record Video......................................................................................... 42
Take a Snapshot................................................................................... 42
Zoom ....................................................................................................... 42
DOWNLOADING APPS.......................................................................... 43
Android................................................................................................... 43
iPhone ..................................................................................................... 48
SOLVING PROBLEMS ............................................................................. 53
AddITIONAl INFORMATION................................................. 55
PRODUCT SPECIFICATIONS................................................................ 55
ONE-YEAR lIMITEd WARRANTY ........................................... 57
CONTENTS

5
What’s in the Box?
If any item is missing or damaged, contact your place of purchase immediately.
Never use damaged products!
Need Help? Get answers at our website:
www.uniden.com.au for Australian model
GETTING STARTED
4.3” Monitor with Cradle Camera
Not pictured:
2x AC Adaptors
1x Ethernet Cable
1x SD Card
Owner’s Manual

6
GETTING TO KNOW THE MONITOR AND THE CAMERA
Monitor-
Power Dock
Ethernet Cable
Connection
AC Power
Connection
Power
On/O
SD slot
AC Power
Connection
Monitor
(back/side)
Cradle
Pull-Out
Stand
Reset
Antenna
Light Sensor
IR LEDs
Charge Link Power
LEDs
Microphone
Antenna
Power
Link
DC Jack
Camera
Lens

7
Light State What it means?
Power Status On The camera is on.
Off The camera is off.
Link Status Flashing The camera is in pairing mode.
On The camera is connected to the monitor.
Off The camera is in standby.
Charge Status On (Green) The battery is charging.
Off The battery has charged.
What the Lights Mean?

8
The screen remains dark until the cameras are powered up.
SETTING UP THE EQUIPMENT
Set Up the Monitor
1. If you are using the monitor as a stand-alone unit, flip out the stand on the back of the monitor,
and extend the antenna. Connect an AC adaptor to the power input on the side of the monitor.
If you are using the monitor in the cradle, insert the monitor into the cradle and connect an AC
adaptor to the power input on the back of the cradle.
2. Connect the other end of the adaptor to a 240 volt AC (standard indoor) power outlet.
3. Press and hold the
POWER button on the top of the monitor for 3 - 4 seconds to power it up.
4. The monitor displays the Uniden
Welcome screen for a few seconds and then transitions to the
LIVE view.
Attach The Indoor Camera
Slide the camera on to the stand swivel mount until it clicks in place.

9
1. Connect one end of an AC adaptor to the camera and plug the other end into a 240 volt AC
(standard indoor) power outlet.
2. Press and hold
POWER button and make sure the Power LED turns on. If it doesn’t, try
reconnecting the AC adaptor, and make sure the power outlet isn’t controlled by a wall switch.
AC adapter
power plug

10
SETTING UP YOUR SYSTEM
You can now set your cameras and system to your preferred settings.
Camera Settings
• Pairing (Page 20)
• Camera On (Page 21)
• Brightness (Page 21)
System Settings
• Power Saving (Page 32)
• Screen Auto Lock (Page 33)
• Time (Page 34)
• Format Storage (Page 36)
• System Upgrade (Page 37)
• Language (Page 37)
Recording Settings
• Motion Detection (Page 22)
• Email Alert (Page 23)
• Schedule Recordings (Page 26)
Network Settings
• Internet Setup (Page 28)
• Security Code (Page 29)
• Network Information (Page 30)
Alarm Settings
• Period (Page 31)
• Melody (Page 31)

11
Your BW34xx Series software operates through a series of screens that let you choose groups
of operations. For example, when you tap on the camera icon in the Pop-up menus, you can
set how you want the main viewing screen - called the LIVE screen - to display images from the
paired cameras. You can scan between cameras, show all cameras on a single screen (Quad
view), or only display a speci c camera.
The LIVE screen lets you view the camera transmissions. It also lets you set up your screen
display and make adjustments to it. Icons on the screen itself let you monitor power and camera
status.
The BW34xx Series system always defaults to the LIVE screen in Quad mode after be-
ing idle for 2 minutes while in any other system screen. This default ensures that the
system is ready to record video even if you forget to return to the LIVE screen. The
system can only start a recording while in LIVE screen mode.
LIVE SCREEN
BW34XX SOFTWARE OPERATION OVERVIEW
SD card
status
Battery
status Record
status
Camera number/
Signal strength
Pop up
menus
Pop up
menu tab
Motion
status
Internet
connection
status

12
Icon What does it mean
CAMERA MODE Select how you want the LIVE screen to display camera input:
• Scan between cameras (5 seconds)
• Quad view (all paired cameras display)
• Full view (1 camera displays on full screen)
VOLUME Adjust the volume level.
BW34XX SERIES SYSTEM
SETTINGS
Access the BW34XX Series Software Operation screens or view
recorded events.
SD CAPACITY Indicates memory capacity remaining.
BATTERY CAPACITY Displays battery capacity. This graphic shows battery at nearly
full.
INTERNET/INTRANET STATUS Appears in LIVE view. Indicates connection to the internet is in
progress.
Appears in LIVE view and Pop-Up Menu. Indicates internet
connection is established.
What The Icons Mean

13
Icon What it does
Appears in LIVE view. Indicates remote viewing in progress.
Appears in LIVE view. Indicates the intranet connection is es-
tablished.
CAMERA NUMBER Displays the camera number and signal strength through the
status lines to the left of the number.
RECORD STATUS Tap to start or stop recording for that camera
• Steady on - Not recording
• Flashing - Recording
MOTION System indicates motion detection recording in progress.
SCHEDULED System indicates scheduled recording in progress.
POP UP MENU TAB Opens and closes the pop up menu display.
NO SD CARD INDICATOR Displays red when the SD card is not present or is damaged.

14
Changing How the LIVE Screen Displays
The LIVE screen displays in 2 views - Quad View or Full View. Quad View divides the screen’s
image area into 4 quadrants and displays camera video in each quadrant. If less than 4 cameras
are on, only those cameras’ video will display on the LIVE screen.
Full view displays a single camera’s video on the entire screen. If you are in Quad View, tap on
the camera quadrant you want to expand to Full View. Tap on that image to return to Quad View.
Using the Pentazoom™ Feature
While in the camera’s full screen view, selecting the + icon on the right side of the screen enables
the PentaZoom feature. PentaZoom lets you select from 5 sections of the video image. Tap on a
section and it will digitally zoom to full screen. Tap on the video to return to full screen mode or to
go back to the PentaZoom screen, tap .

15
On the playback progress bar, tap the double arrow to skip forward or backwards
about 10 seconds. Tap the arrow and bar to skip to the next or previous video.
USING YOUR SYSTEM
Recording LIVE Video
1. On the LIVE screen, tap for the camera to begin recording.
2. Tap it again to stop recording.
You can record from all cameras at the same time.
Playing Back Recorded Video
From the pop-up menus, tap
the following icons as they
appear on the screens:
The Record List screen displays.


1. Tap on the highlighted day containing the recording you want to view or on a specific camera
to only view that camera’s recordings. The Record List screen displays those recordings listed
in a folder.
If you tap on a day that is not highlighted, a folder displays with no recordings listed.
2. Tap on the recording you want to view. It displays on the screen.
3. Tap on any area of the screen that does not have control icons to bring up the playback
progress bar. Tap that area again to close it.
4. While playback progress is visible, you can fast forward/rewind by dragging the playback bar
forwards or backwards.
5. When playback ends, tap to return to the Record List.
You can delete a recording by tapping X, next to the camera icon.
Recordings are saved to the SD card (approximate recording time per GB is 225 min-
utes). The SD card must be installed for recording to begin.

16
Adding New Cameras
Your monitor supports a total of four active cameras at a time. When you add a camera, you
have to pair it to the monitor (that is, you have “introduce” the camera and monitor so they can
communicate, see page 20).
• If a camera is already assigned to the selected channel, the monitor overwrites that camera
link with the new one.
• Only pair one camera at a time! The monitor links to the rst camera it detects. If two or more
cameras are in pairing mode, you can’t control which camera the monitor will detect rst.
SOME THINGS TO KNOW ABOUT PAIRING CAMERAS

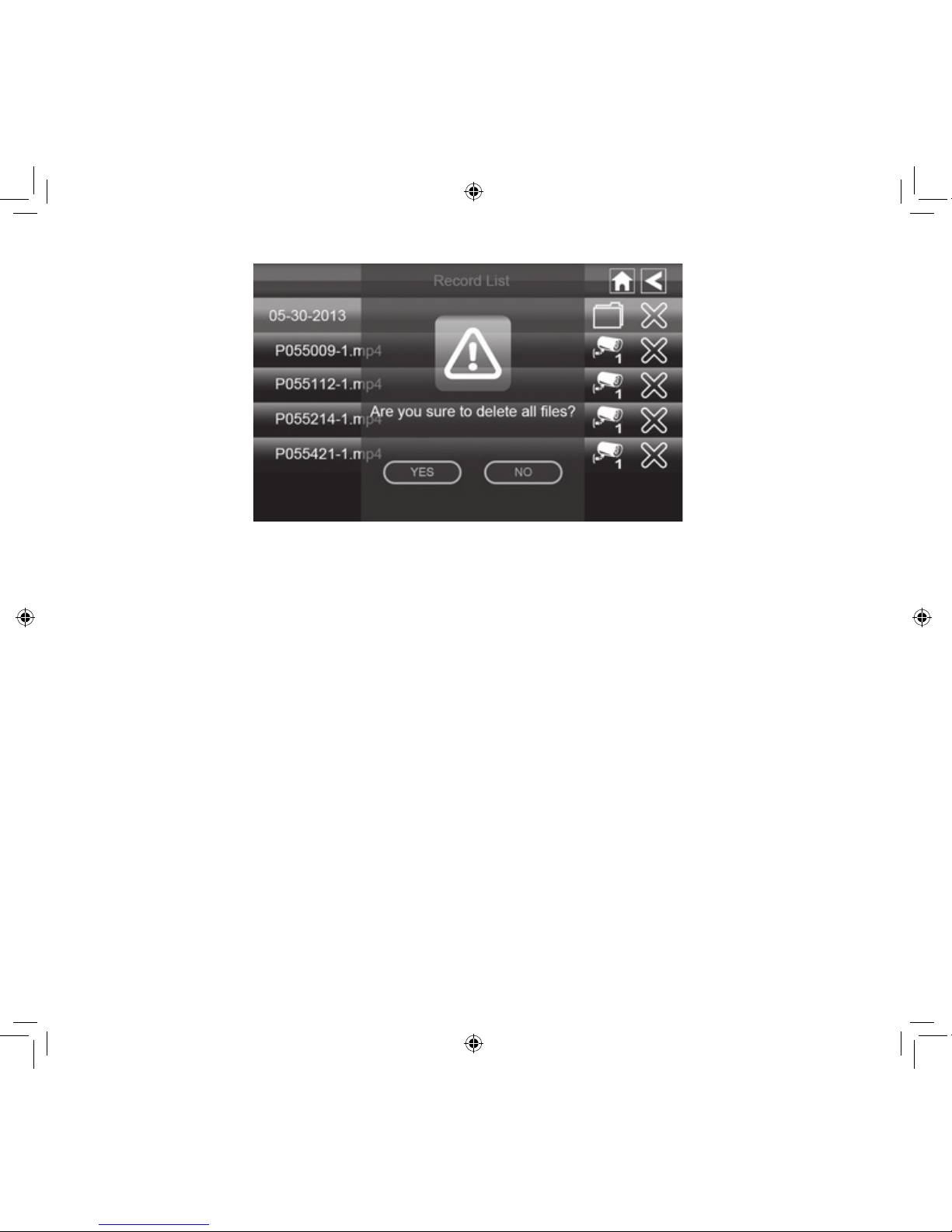

Deleting Recorded Files
You can delete a single recorded le or a folder containing all recorded les for a specic day.
1. On the Record List screen (see previous Record List screen), tap the day with recorded files
you want to delete. The list of recorded files displays.
2. Tap the X on the right-hand side of the entry. If you are deleting a folder, a confirmation screen
displays. If you are deleting a single recorded file, that file deletes without a confirmation
required.

17
TROUBLESHOOTING CAMERA PAIRING
Consult the following table for camera pairing troubleshooting suggestions:
If... Try...
• the camera’s signal status
icon shows no bars
• making sure the camera is plugged in and the Power LED is
on.
• making sure that the camera’s antenna is extended.
• making sure that the monitor’s antenna is extended.
• making sure the camera is paired to the correct channel
• re-pairing the camera and monitor
• the camera won’t pair with
the monitor
• making sure the camera is plugged in and the Power LED is
on.
• pressing and releasing the Link button quickly. Do not press
and hold the Link button.

18
OVERVIEW
This section describes the BW34xx Series screens in detail. It provides a path to the screen be-
ing viewed.
BW34xx Series SETTINGS SCREEN
The BW34xx Series Settings screen highlights the Camera Setup option as the default.
Main Screen Sub screens What it does
Camera Setup Pairing Pairs new cameras to the monitor.
Camera on Makes the cameras visible to the monitor.
Brightness Brightens or darkens the video of that camera.
Recorder Setup Motion Detection Records when something moves in front of the
camera. Continues recording for 2 minutes.
Motion Detection is on by default.
Email Alert Sends email notication to user’s PC and/or
mobile when Motion Detection senses motion
in front of the camera.
Schedule Record Set up a schedule for pre-determined recording
times and lengths.
BW34XX SERIES SCREEN DESCRIPTIONS
From the pop-up menu, tap the
following icons as they appear
on the screens:
This screen should display:



19
Main Screen Sub Screens What it does
Network Setup Internet Setup Select the type of internet connection to
be used. (DHCP is most common.)
Security Code Set a security code for remote access.
Network Information Displays information about your network
and the monitor’s unique DID number.
Alarm Setup Period Set a length of time for the alarm to
sound.
Melody Select a melody to play for the alarm.
System Setup Power Saving Temporarily turns off the LCD after the
system is idle for 2 minutes to conserve
power.
Screen Auto Lock Locks the screen from further activity
until the screen is unlocked.
Time Clock Alarm - set an alarm.
Time Setting - set the current time.
Time Zone - select the time zone.
Format Storage Formats/erases all the data on the SD
card.
Permits new records to overwrite old
records when the SD card is full.
System Upgrade Upgrades the monitor rmware.
Language Changes default language setting for the
Monitor (English, French or Spanish).
Quick Tips NA Provides a list of 10 common questions.

20
Camera Setup Screen
Pairing
Your camera is paired to the monitor at the factory. When you add a new camera to your system,
you have to pair it to the monitor (that is, you have “introduce” the camera and monitor so they
can communicate).
• If a camera is already assigned to the select-
ed channel, the monitor overwrites that cam-
era link with the new one.
• Only pair one camera at a time! The monitor
links to the  rst camera it detects. If two or
more cameras are in pairing mode, you can’t
control which camera the monitor will detect
 rst.
From the pop-up menus, tap
the following icons as they
appear on the screens:
This screen should display:


1. Tap the camera image you want to pair. A processing icon displays for a 60 second
countdown.
2. Press and release the Link button on that camera. The 60 second countdown will end when
the pairing process is complete.
Tap button, X icon comes up, tap that to stop processing.
3. The system will automatically adjust the Camera On screen.
Use this procedure to move a camera from one channel to a different channel.
Remember:
