UNIDEN UH6060 UHF CB Transceiver

The Uniden UH6060 is designed to provide you with years of trouble
free service. Its rugged components and materials are capable of
withstanding harsh environments. Please read this Operating Manual
carefully to ensure you gain the optimum performance of the unit.
NOTE
The citizen band radio service is licenced in Australia by
ACMA Radio-communications (Citizen Band Radio Stations)
Class Licence and in New Zealand by MBIE General User
Licence for Citizen Band Radio and operation is subject to
conditions contained in those licenses.
Features
• Narrow Band (NB) 80 Channel
Radio*
• Compact Black Box
• Remote LCD Speaker
Microphone (Remote SPK/MIC)
• 12V DC Power Input
• Transmission Power 5W
• LCD Display with Backlight
• LCD Backlight brightness control
• Signal Strength/ Power Meter
• One touch Instant Emergency
Channel (CH05/CH35)
• Instant Channel Programming
• One touch Instant Channel recall
• Dual Watch
• Duplex Capability*
• Group Scan with Priority Watch
• Open Scan
• Scan Channel Memory for Open
Scan and Group Scan
• Channel Select
• Busy Channel Lock-out Function
• Roger Beep Function
• 5 Different Call Tones
• 50 Built-in CTCSS (Continuous
Tone Coded Squelch System)
and 104 additional DCS (Digital
Coded Squelch) codes
• Volume Control
• Base Speaker
• External Base Speaker Jack
• External Remote Speaker
/MIC Jack
• Power On/Off Push Switch
• Front MIC Jack
• Auto Squelch
• Under and over voltage alert
function
* Refer to p.27 - p.29 for channel
information
3
Introduction
UHF CB TransceiverUNIDEN UH6060

SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
4
Controls & Connectors
UNIDEN UH6060 UHF CB Transceiver
6
8
17
9
18
10
19
24
27
11
20
21
22
16
7
3
4
5
2
12
13
1
23
15
14
25

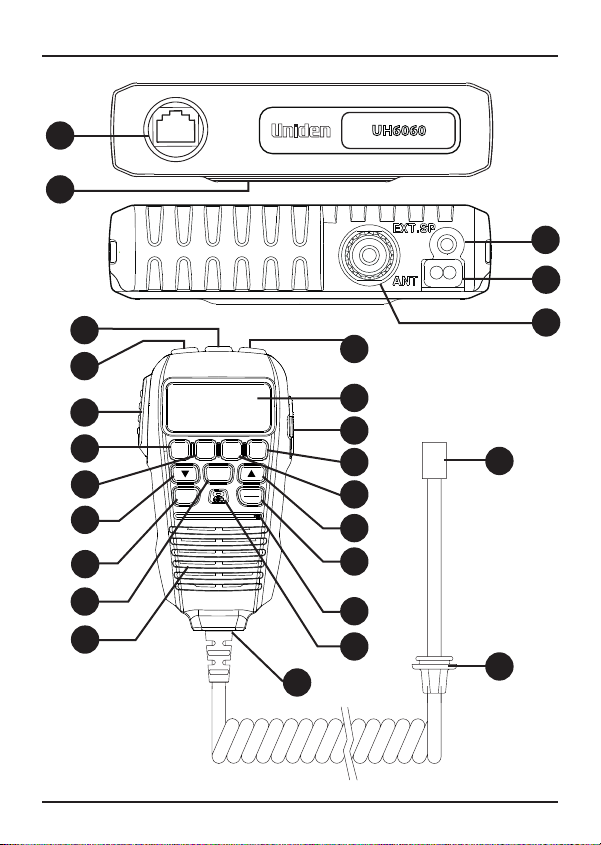

1MIC Jack
2Base Speaker
3EXT SP - External Speaker
Jack (Base)
4Power Input Connection
(13.8VDC)
5UHF Antenna Connection
6POWER - Power ON/OFF
Button
7VOL+ Volume Up Button
8VOL- Volume Down
Button
9PTT - Push To Talk Button
10 CALL - Call Tone Button
11 EMG - Emergency CH 05/35
| - Add/Remove CH from
Scan Memory
12 - Channel/Select Down
Button
13 SCAN - Scan Button
| - OS (Open)/GS (Group)
14 MENU - Menu/Select Button
| - Duplex Mode (Repeater)
15 Remote Speaker
16 Liquid Crystal Display (LCD)
17 SP/MIC - Accessory Speaker
Mic Jack
18 INST - Instant Channel Button
19 SQL - Auto Squelch
| - Monitor Button
20 - Channel/Select Up
Button
21 DCS/CTCSS - DCS &
CTCSS Button
| - Dual Watch
22 Transmit/Receive Indicator
LED
23 Microphone
24 RJ45 plug to Base
25 Detachable RJ45 plug
27 MIC Jack Cover
5
Controls & Connectors
UNIDEN UH6060 UHF CB Transceiver
|- Indicates 2nd function
(press & hold)

6
Indicators
UNIDEN UH6060
1Channel Number
2RX - Receive Indicator
3TX - Transmit Indicator
4CTCSS - Continuous Tone
Coded Squelch System is set
for current channel
5Channel is in Scan Memory
/Flashes during Scan
6BCL - Busy Channel Lockout
7DCS - Digital Coded Squelch
is set for current channel
8MON - Monitor Mode
9Signal Strength Meter
10 Function/Scan Mode
Indicator
11 DW - Dual Watch
12 Volume Level
13 RP - Duplex Mode
(Repeater)
UHF CB Transceiver
8
13 10
9
234
6
1 5
1112
7

Optional Accessories:
• UHF Antenna
• External Speaker
• Earpiece Mic
Visit the UH6060 page on the website for more information on the
availability of optional accessories;
www.uniden.com.au for Australia
7

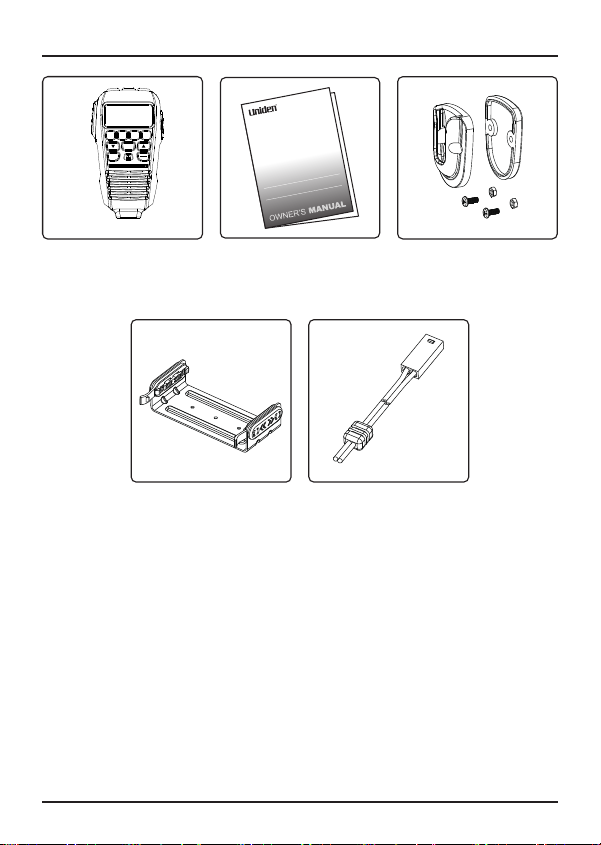

Included with your UH6060 Transceiver
UNIDEN UH6060
Remote LCD Speaker
Microphone
Owner’s Manual Microphone Hanger
with screws, washers
Mounting Bracket with
mounting screws
DC Power Cord
with fuse
UH6060
UHF Mobile Radio
For more exciting new products please visit our website:
Australia: www.uniden.com.au
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

MIC Jack
Before connecting the Microphone Jack decide if you need to use the
Extension Cable - simply connect the MIC plug into the jack end of the
Extension Cable
Push the MIC plug or Extension Cable plug into the MIC jack of the radio
until the connection locks into place. Gently tug the MIC or Extension
Cable cord to test that the connection is locked. Use the rubber cover
which is on the cord to seal the MIC jack entry from dust.
Disconnecting the MIC from the MIC Jack
Pull back the rubber cover and move it down along the cord. Using the
at blade of a screwdriver or similar object carefully push the lock tab of
the MIC plug towards the MIC cord and at the same time tug on the MIC
cord to draw back the MIC plug.
8
Connecting the Microphone
UNIDEN UH6060 UHF CB Transceiver

The Microphone Hanger comes in two parts. How and where you mount
the MIC hanger will determine which parts to use.
Conventional Mounting with Screws
Use the front part of the MIC Hanger only.
Locate a suitable mounting position and mark and drill two 3mm holes.
Fix the MIC Hanger into place with screws.
9
Mounting the MIC Hanger
UNIDEN UH6060 UHF CB Transceiver

10
UNIDEN UH6060
Conventional Mounting with Double Sided Tape
(not supplied)
Secure the front and back pieces of the MIC Hanger using the supplied
binding screws.
Locate a suitable mounting position.
Remove (peel off) the plastic covering the adhesive tape on the at area
of the MICHanger back piece and then press rmly to the mounting
position.
Mounting the MIC Hanger
UHF CB Transceiver

11
this page blank
UNIDEN UH6060 UHF CB Transceiver

12

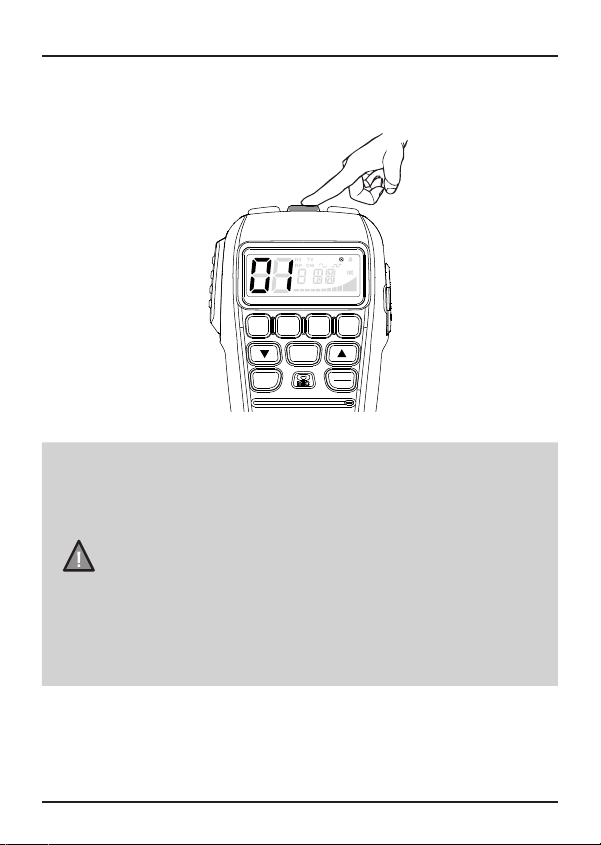

Turning on the Power
Press and hold the [POWER] button.
NOTE
Low-Voltage/High-Voltage Alert
If the power supply voltage exceeds 18VDC, an alert tone
sounds and HI DC ashes for 5 seconds. The power source
must not exceed 25VDC otherwise permanent damage
may occur to your radio, which may not be covered by the
manufacturer’s warranty.
If the input voltage falls below 10VDC, LO DC ashes for 5
seconds. The power turns off automatically if voltage falls
below 8.5VDC.
Switch your UH6060 OFF and disconnect it from the power
source, before locating the cause of the power supply problem.
UNIDEN UH6060
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
Operation
UHF CB Transceiver

13

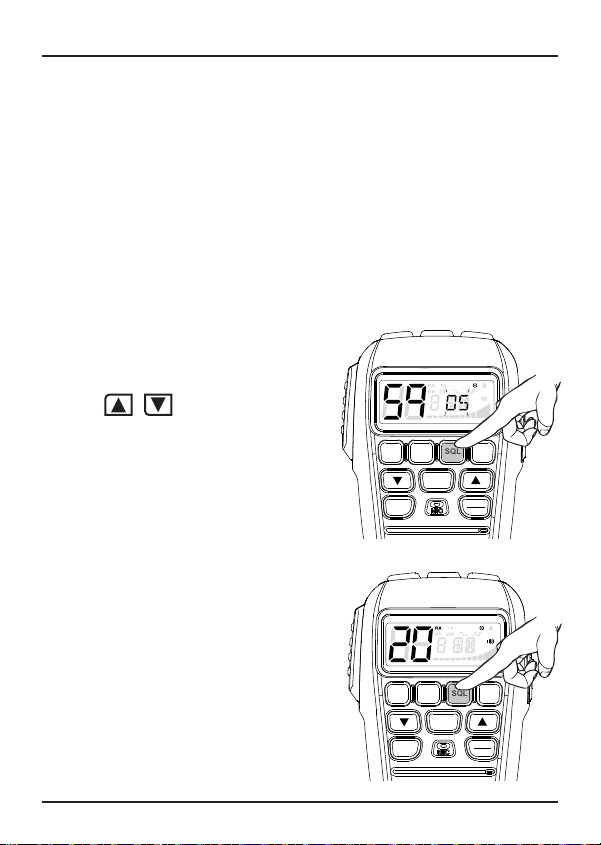

Setting the Auto Squelch
The Squelch circuit determines when the radio’s audio output (speakers)
turn on, based on the strength of received signals. This avoids noise and
undesired signals constantly coming through the speakers.
The Auto Squelch feature has an Off setting and 9 preset squelch levels:
oF (off) - squelch is fully open to noise & signals. Equivalent to Monitor Mode
1 - max sensitivity (min squelch): Weak (distant) signals can open the squelch.
5 - med sensitivity (med squelch): Medium and strong signals can open the squelch.
9 - min sensitivity (max/tight squelch): Strong/nearby signals can open the squelch.
It requires no adjustment.
1. Press [SQL].
The squelch setting ashes.
2. Press / to change the setting.
3. Press [SQL] again to store the setting.
Monitor
Press and hold [SQL] to open the
squelch and receive all weak signals.
Press and hold [SQL] to cancel.
UNIDEN UH6060
Operation
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

14
UNIDEN UH6060

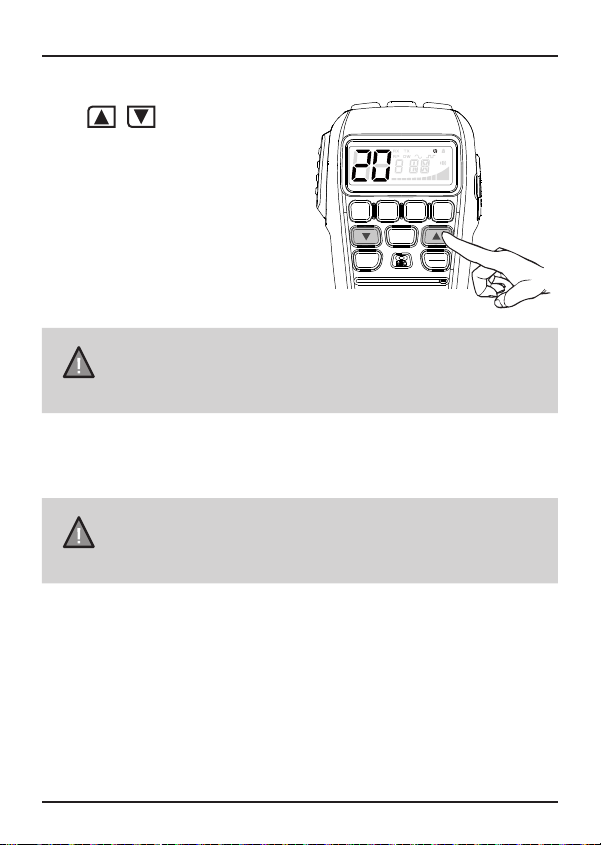

Selecting a Channel
Press / to select the desired
channel.
NOTE
For your reference a list of the available channels,
corresponding frequencies and guidelines for their use is
printed on p.27 - p.29. For Australia, Channels 05 and 35
are reserved for Emergency Calls.
Transmitting
The UHF CB Radio uses UHF-CB Channels.
NOTE
For your reference a list of the available channels,
corresponding frequencies and guidelines for their use and
selection is printed on p.27 - p.29. For Australia, Channels
05 and 35 are reserved for Emergency Calls.
Select the desired channel. Listen to the channel to make sure there is
no activity.
Hold the microphone approx. 7cm from your mouth.
Press the microphone’s [PTT] button and speak normally across (not into)
the microphone.
Release the [PTT] button to end the transmission and listen for a reply.
Operation
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

15
UNIDEN UH6060
Operation
Programming the Instant Priority Channel
Press / to select the Priority
Channel you prefer. Press and hold [INST]
button on the microphone for 2 seconds to
store the new setting. Picon appears
for this channel.
Recalling the Instant Channel
Momentarily press the [INST] button on
the microphone at any time to return to
the Instant Channel. Press [INST] again to
return to the previous channel.
EMG (Emergency Button)
Press [EMG] to toggle between the current channel and the emergency
channels 05 and 35.
In EMG mode CH 05 and CH35 ash, and the EM icon displays.
NOTE
When in EMG CH05 or EMG CH35 mode, the / ,
[INST], [DCS/CTCSS] and [SCAN] buttons are disabled.
Press [EMG] again to exit EMG mode and return to the
current channel.
Call Function
Press the microphone [CALL] Button. A three second ringing tone
will be transmitted.
You may select from 5 types of tones (see p.21).
NOTE
Current regulations require calling tones to be restricted to
one transmission per minute. If a second transmission is
attempted within one minute then an error tone will sound.
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
EMG
CALL INST

16
UNIDEN UH6060
Operation
DUAL Watch
Dual watch will continuously monitor the Instant channel no matter what
other channel is on (see Programming the Instant Priority Channel above).
Press and hold [DCS/CTCSS]. DW icon appears and a short tone beep
is heard.
To cancel DUAL Watch press and hold [DCS/CTCSS]. DW icon
disappears.
Using Repeater Channels
UHF CB repeaters are used to retransmit or relay your signal. Repeaters
will extend the range of your radio and overcome the shielding effect
caused by solid obstructions. In normal Simplex operation, your radio
transmits on one particular frequency and receives on that same
frequency.
If there is a barrier that partially blocks your transmitted signal, the
probability of another radio receiving the signal is very slim. Hills, tall
buildings, metallic structures,...etc tend to act as a screen between radios.
Standard Operation without the aid of a Repeater station.
UHF CB Transceiver

17
UNIDEN UH6060
Operation
Operation with the aid of a Repeater Repeater Station (Duplex).
The signal coming from your radio is received by the Repeater Station
and the re-transmitted at the same time on another channel. This
operation is called “Duplexing”.
For example,
CH01 on Duplex Mode will Receive on CH01 but Transmit on CH31
CH02 on Duplex Mode will Receive on CH02 but Transmit on CH32
etc...
If you transmit on CH01 Duplex mode, you are actually transmitting
on CH31 the repeater station down-coverts your signal and
retransmits on CH01.
Operating the UHF CB Radio in Duplex Mode
1. Select a channel you wish to use in Duplex (Repeater) Mode.
Only channels 01 - 08 and 41 - 48 are available for Duplex.
2. Press and hold [MENU]. RP icon
appears, indicating the current
channel is now in Duplex mode.
3. Press and hold [MENU] again on the
repeater channel to disable Duplex mode.
NOTE
Check with your local Retailer or ACMA (AUS) / RSM (NZ)
website for information on available repeaters.
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

18
UNIDEN UH6060
Operation
Scanning
The UHF CB Radio has a scanning feature
that allows you to search for active channels
automatically.
Furthermore, the UHF CB Radio is designed
to have two types of scanning; Open Scanning
(OS) and Group Scanning (GS), to give you
exibility and allow you to use the radio more

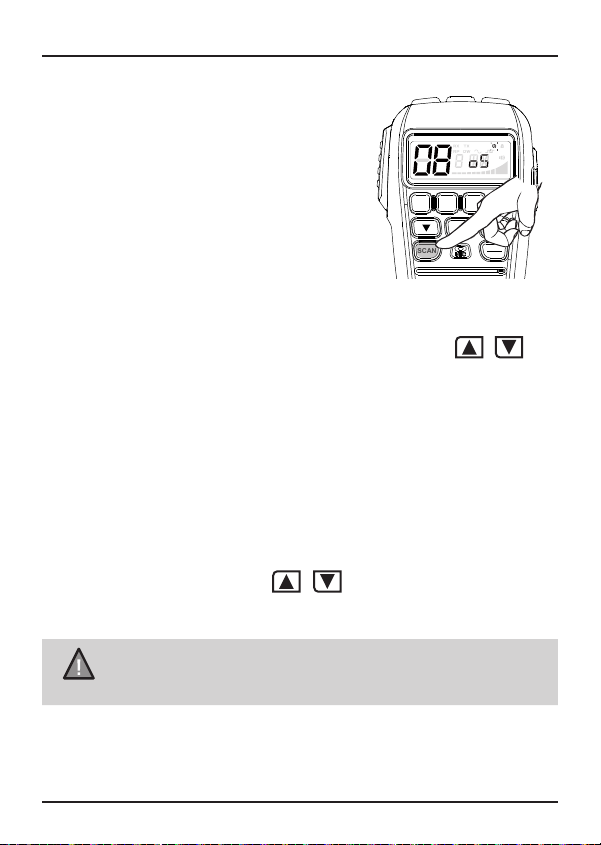

effectively. Press [SCAN] and Scanning starts.
The scan mode (oS or GS) appears during scan.
The scan direction can be changed at any time by pressing / .
Open Scan (OS) Mode
Allows continuous scanning of all channels. By default, all channels are
stored in OS scan memory. If an active channel is found, scanning will
stop on that channel. If the received signal ceases, the unit will wait 3
seconds for the signal to return, otherwise scanning resumes.
After transmission in scan mode, the unit will wait 20 seconds for the
signal to return, otherwise scanning resumes.
To skip the active channel, press / momentarily.
To deactivate SCAN, press [SCAN].
NOTE
If SCAN is deactivated while on an active channel, the UHF
CB Radio will stay on that active channel. If no channels are
active, the UHF CB Radio will reinstate the starting channel.
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

19
UNIDEN UH6060
Operation
Group Scan (GS) Mode
Allows scanning of channels added into the Group Scan memory.
By default, the GS scan memory is empty and channels need to be added
before GS scan can be activated.
See Add/Remove Channels from GS Scan Memory, p.20.
Includes the accessory feature Priority Watch
which allows you to monitor the Instant Priority
Channel while scanning (see p.15 for setting
Instant Priority Channel and p.20 to turn on
Priority Watch).
To use GS Mode Scanning, press and hold
[SCAN]. GS (or oS) momentarily ashes on
the display.
GS Scanning checks the Instant Priority
Channel for activity regularly when Priority
Watch is ON.
If the Priority Channel becomes active the radio will stay on that channel
for as long as the signal is present. If the received signal ceases, Priority
Scanning continues after 3 seconds.
If scanning stops on a channel which is not a Priority Channel, UHF CB
Radio will continue monitoring the Priority Channel for activity
while listening to the active one.
To deactivate SCAN, press [SCAN].
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST

20
UNIDEN UH6060
Operation
Priority Watch
To switch Priority Watch On/Off;
1. Press [MENU] one time.
The Priority Watch setting ashes.
2. Press / on the Remote SPK/MIC
to change the setting between ON or OFF.
3. Press the PTT button to save &
exit from the menu mode.
NOTE
If SCAN is deactivated while it is tuned to an active channel,
the UHF CB Radio will stay on that active channel.
If none of the channels are active, the UHF CB Radio will
reinstate the scan start channel.
NOTE
If GS Scanning is initiated when there are no channels
programmed in GS memory, an error tone will be heard and
scanning will not start (see Add/Remove Channels from GS
Scan Memory - below).
Add/Remove Channels from GS Scan Memory
Select the scan mode (OS or GS) you wish to add/remove
channels from scan memory.
Select the channel you want to add/remove.
Press and hold [EMG] to add/remove.
The mem icon appears or disappears
and a short tone.
UHF CB Transceiver
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
SCAN DCS
CTCSS
CALL
MENU
EMG SQL INST
