Uniden FP105T User manual

OPERATING GUIDE
Caller Display with
Centrex Speaker Phone
FP105T
caller display
speaker

caller display
speaker
1
Welcome
TO YOUR NEW PHONE

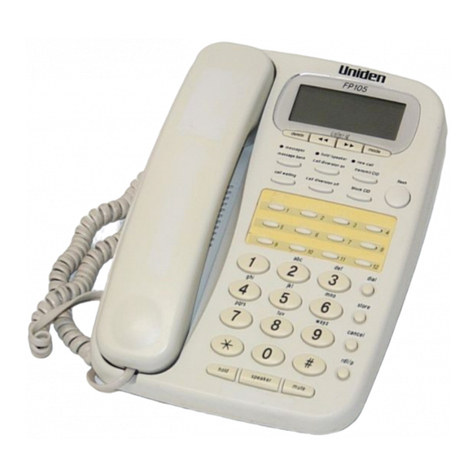

Congratulations on the purchase of your Uniden FP105H Telephone
The FP105H has been designed and engineered to exacting standards for
reliability, long life and outstanding performance.
To obtain the full benefit from your new telephone, please read this Operating
Guide thoroughly.
For your future reference, please fill in the panel below and attach your
Purchase Receipt / Sales Docket.
Serial No: Date of Purchase:
(found on the bottom of the product box)
Name and Address of Dealer:
WELCOME
INTRODUCTION

Contents
CONTENTS
2
Important Safety Instructions
Contents
Introduction / Welcome
4
Included in Package
5
Features 6
7
8
Controls and functions 11
Installing your phone 11
12
13
14
Wall mounting
14
Using your phone
14
Placing a telephone call
Redial
Receiving a telephone call
2
1
CONTENTS
OF YOUR OPERATING GUIDE
Important Information
Handset cord connection
Connecting the power
14
14
Adjusting the ringer volume control
Adjusting the ringer tone control
Adjusting the handset volume control
15
Mute
Placing a call on hold
14
15
14
16
16
Speaker phone
17
Adjusting the speaker phone volume control
17
Storing one-touch speed dial numbers 17
Memory dial numbers
18
Pause
18
Dialing stored numbers
18
Chain dialing
19
Call timer
LCD backlight display
19
Editing a stored one-touch speed dial memory
19
Deleting one speed dial memory
Deleting all speed dial memories
Memory storage card
18
18

3
Contents
CONTENTS
OF YOUR OPERATING GUIDE
Using the pre-programmed feature buttons - Centrex 20
Messages 20
Call Diversion 20
New call notification 22
New call review 22
Caller Display summary 23
Call review 23
Deleting a call from the call history 24
Deleting all calls from the call history 24
Speed dialling from the Caller Display list 24
Transferring a Caller Display number to a speed dial memory 24
Display messages 25
26Special features - VIP
Setting a VIP call 26
Reviewing VIP calls 26
Speed dialling from the VIP list 26
Resetting a VIP call 27
Deleting a VIP call 27
Name matching 27
Advanced user options menu 28
Setting the LCD contrast 28
Setting the time and date 28
Setting VIP alert on / off 28
Setting the stutter dial tone detect on / off 28
Troubleshooting 29
Specifications / Warranty 30
60 memory Caller Display 22
21
Call Waiting 21
Call Transfer / Conference Call
Call Pickup 21
21
Headset
22
Using Caller Display

4
Important Information
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, these basic safety precautions should always be followed to
reduce the risk of fire, electrical shock, and injury to persons:
1) Read and understand all instructions.
2) Follow all warnings and instructions marked on the product.
3) Unplug this product from the wall outlet before cleaning, and use a dry cloth, without liquid or
aerosol cleaners.
4) Do not use this product near water; for example, near a bath tub,wash bowl, kitchen sink or
laundry
tub, in a wet basement or near a swimming pool.
5) Do not place this product on an unstable cart, stand or table. The telephone may fall, causing
serious damage to the unit.
6) This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your dealer or local
power company.
7) Do not allow anything to rest on the power cord. Do not locate this product where the cord will
be damaged by persons walking on it.
8) Do not overload wall outlets and extension cords, as this can result in the risk of fire or electrical
shock.
This unit is not waterproof. To reduce the risk of fire, electrical shock or damage,
DO NOT expose this product to rain, water or any other liquid or moisture.

5
Important Information
Immediately disconnect this equipment should it become physically damaged,
and arrange for its disposal or repair.
IMPORTANT INFORMATION
CARING FOR YOUR TELEPHONE
·Clean your telephone using a soft damp cloth.
·DO NOT use solvents, detergents, sprays, abrasive pads, scouring powder
or otherproducts that may damage your telephone.
·DO NOT place the telephone in direct sunlight.
·DO NOT use in extreme humidity.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operation, maintenance and service
instructions in the literature accompanying this product.
IMPORTANT NOTES
1.
2.
The grant of a Telepermit for any item of terminal equipment indicates only that
Telecom has accepted that the item complies with minimum conditions for
connection to its network. It indicates no endorsement of the product by Telecom,
nor does it provide any sort of warranty. Above all, it provides no assurance that
any item will work correctly in all respects with another item of Telepermitted
equipment of a different make or model, nor does it imply that any product is
compatible with all of Telecom's network services.
This telephone has been designed to conform to local regulations, and you can connect
it to most telephone lines, however you must not connect your phone to any of the
following:
PLEASE READ BEFORE USE AND SAVE THESE INSTRUCTIONS
·Coin operated systems
·Party-line systems
·Most electronic key phone systems
Each device that you connect draws power from the phone line. We refer to the power
drawn as the device’s Ringer Equivalence Number (REN or RN). This number is shown
on the bottom of your telephone. If you are using more than one phone or other device
on the line, add up all the RN’s. If the total is more than three, your phones may not ring.
This equipment shall not be used in any manner which could constitute a
nuisance.
3.

caller display
speaker
Features
6
FEATURES
Telephone
·LCD with backlight
·Hands-free speaker phone
·12 one-touch speed dial
·32 digit memory per speed dial
·7 Pre-programmed feature buttons
·Hearing aid compatible
·Call Waiting compatible
·Redial, Flash and Pause
·Mute
Caller Display
·60 memory Caller Display
·24 digits and 16 characters per record
·Advanced Caller Display review functions
·VIP alert – 3 different ringer tones
·Name matching
·
·Call timer
·Wall mountable
Adjustable ringer volume control
·Adjustable handset volume control
·Adjustable ringer tone control
·Adjustable speaker phone volume control
caller display
·Headset (optional)

7
Included in your package
Quick start guide
NOTE
TIP
INCLUDED IN YOUR PACKAGE
Base Unit Handset Curly Cord
Telephone line cord AC Adaptor
Memory storage card
Registration card Operating guide
If any of these items are missing or damaged, contact
the place of purchase.
To get the most from your purchase, please read this
Operating Guide thoroughly. Also be sure to complete
the Product Registration Form.
2 x Wall mounting
screws and plugs Wall mounting bracket
caller display
speaker

8
Controls and functions
CONTROLS AND FUNCTIONS
mode
messages hold / spkr new call
messages divert imm. on
divert imm. off
call pickup
transfer/
conference
call waiting
headset
caller display
redial
9
3
2
4
10
1
FP105T
5611 7
8
9
22
12
13
16
14
15
17
18
19
20
21
Base Unit
LCD screen
Time
1
6
7
8
9
10 Call waiting icon
11
Caller Display delete button
hold / spr LED
12
17 new call LED
12 one-touch speed dial buttons
Memory storage card
Handset retainer tab
20
21
22
New call counter
Numeric line
Alpha line
Date 7 Service buttons
18
19
VIP on icon
2<< Scroll left button
13
VIP call icon
3>> Scroll right button
14
Low battery icon
4Caller Displaymode button
15
iconenvelopeMessage waiting
5message waiting LED
16

9
Controls and Functions
dial button
store button
cancel button
redial / pause button
hold button
speaker phone button
mute button
Memory storage
instructions tray
23
24
25
26
27
28
29
30
Handsetvolume control
Speaker volume control
31
32
Battery cover located
underneath phone.
AC adaptor power socket
Telephone line socket
Ringer tonecontrol
Ringer volumecontrol
33
34
35
36
37 reset button
38

10
Optional Backup Battery
OPTIONAL BACK-UP BATTERY
on the screen means;
·The back-up battery is either low or not fitted.
If the power fails or you unplug the AC adaptor, the optional 9v back up battery
would save the telephone memory.
Always use a new 9v alkaline battery for optimum performance.
Disconnect the telephone line cord before replacing the battery.
Follow these steps to install the back-up battery.
1. Use a Phillips screwdriver to remove the two screws on the battery compartment
cover.
2. Remove the battery compartment cover.
3. Snap the battery’s contacts firmly to the battery connector, then place the battery
inside the compartment.
4. Replace the cover and secure with the screws.
Dispose of old batteries promptly and properly.
Disconnect the telephone line cord before replacing the battery and
always use a new 9v alkaline battery for optimum performance.
TIP
CAUTION

11
Installing your phone
WALL MOUNTING
If required, you can mount your phone directly on a wall.
Before mounting your phone, please consider the following:
·Select a location away from electrical cables, pipes or other items behind the
mounting location that could cause a hazard when inserting screws into the
·Make sure the wall material is capable of supporting the weight of the telephone.
·Use the screws (supplied) with anchoring devices suitable for the wall material
where theTelephone will be placed.
1. Insert two mounting screws 80mm apart. Allow
about 5mm between the wall and screw heads for
mounting the phone.
2. Gently pull out the handset retainer
tab, turn 180° and re-fit.
3. Attach the wall mounting bracket to the
bottom of the telephone as shown.
4. Place the base unit on the screws and push down until it’s firmly seated.
INSTALLING YOUR PHONE

12
HANDSET CORD CONNECTION
Plug one end of the Handset Cord (curly) into the Handset and the othe end into the jack
on the side of the telephone.
Installing your phone
TELEPHONE LINE CORD CONNECTION
Plug one end of the Line Cord (straight) into the telephone line jack on the back of the
telephone and the othe end into the wall outlet.
CAUTION
Never install telephone wiring during a lightning storm.
Never touch uninsulated telephone wires or terminals unless the telephone
line has been disconnected.
Use caution when installing or modifying telephone lines.
NOTE: Most phone equipment available now use modular jacks. Phone cards
are fitted with a molded plastic connector which plugs into this type of jack. If
you do not have modular phone jacks, contact your telephone company or your
local electrician for information about their installation.

13
Installing your phone
CONNECTING THE POWER
2. Plug the AC adaptor into a standard 230~240V AC wall outlet and switch on.
1. Plug the AC adaptor lead into the power.
Use only the AC adaptor supplied with this phone.
Place the power cord and line cord so that they do not create a trip hazard or
where they could become chaffed and create fire or electrical hazard.
The telephone will beep and the display will show SET TIME / DATE
When you subscribe to Telecom Caller Display service, the time and date will be
automatically updated when the first message is received.
After 10 seconds the display will show TOTAL CALLS 00
If you do not subscribe to Telecom Caller Display service, or you wish to set
the clock manually, please refer to the Advanced User Options Menu on page
28.
Once you have installed the phone, lift the handset and check for dial tone.
If there is no dial tone, please refer to the troubleshooting section on page 29.
CAUTION
TIP
DISPLAYS
NOTE

Using your phone
USING YOUR PHONE
PLACING A TELEPHONE CALL
1. Remove the handset from the base, or press the speaker button.
2. Press the keypad buttons to dial the phone number you want.
3. After you have completed the call, place the handset back on the cradle.
REDIAL
If you want to redial the last number dialled, simply pick up the handset or press the
speaker button, then press the redial button. The telephone will automatically redial the
last number dialled.
RECEIVING A TELEPHONE CALL
When the phone rings, pick up the handset from the cradle or press the speaker button
and begin the conversation.
ADJUSTING THE RINGER VOLUME CONTROL
While the phone is ringing, you can adjust the ringer volume of your telephone by moving
the ringer volume switch, located at the rear of the telephone, to the desired off/lo/hi
position.
ADJUSTING THE RINGER TONE CONTROL
While the phone is ringing, you can adjust the ringer tone of your telephone by moving
the ringer tone switch, located at the rear of the telephone, to the desired position.
ADJUSTING THE HANDSET VOLUME CONTROL
While using the telephone, you can adjust the handset volumeslider control, located
at the side of the telephone, to the desired position.
14

15
Using your phone
MUTE
Press the mute button to turn off the handset microphone,
allowing private conversations in the same room without the
calling party hearing.
Press the mute button again to resume the
conversation with the calling party.
During the mute condition, the display will show < MIC MUTE >.
PLACING A CALL ON HOLD
1. To place a call on hold, press the hold button
and hang up.
2. To begin conversation again:
Pick up the handset or press the speakerbutton or pick up an extension phone,
the hold will then be automatically released.
NOTE
The hold/speaker LED will flash, the display
will show < CALL ON HOLD >.
caller display
headset

16
Using your phone
SPEAKERPHONE
To answer an incoming call ;
1. Press the speaker button and begin your hands-free
speaker phone conversation.
2. Press the speaker button to hang up.
At any time during the conversation you can pick up the
handset to resume normal conversation.
To make a speaker phone call ;
Press the speaker button, listen for dial tone and then use the keypad to dial the number
you wish to call. Lift the handset to resume normal conversation.
During a regular conversation ;
Press the speaker button and replace the handset. The hold/speakerLED turns red
and you can begin your speaker phone conversation.
ADJUSTING THE SPEAKER PHONE VOLUME CONTROL
During a speaker phone conversation, you can adjust the speaker volume slider control,
located on the side of the telephone, until you hear the desired volume.
When the telephone is in the speaker phone mode, the hold/speaker LED turns red and
the display shows <SPEAKER PHONE>.
It is not recommended to operate the speaker phone mode under noisy room
conditions.
NOTE
NOTE
caller display

17
TIP
NOTE
Using your phone
MEMORY DIAL NUMBERS
12 one-touch speed dial numbers can be programmed into the memory of your telephone.
Each memory location can store a maximum of 32 digits.
STORING ONE-TOUCH SPEED DIAL NUMBERS
Eg : To program BOB DAY’s telephone number, 1234567 into speed dial location 3
1. Press the store button (Display shows NUMBER ?)
2. Enter the phone number 1 2 3 4 5 6 7 using the keypad
3. Press the store button (Display shows NAME ?)
4. *Enter the name BOBD A Y using the keypad
(22 666 22 1 3 2 999)
5. Press the store button (display shows LOCATION ?)
6. Press the speed dial button number 3
The phone will beep and the display will show STORED
* If you do not want to store a name, skip step 4 by pressing store again.
In the above example, pressing the keypad digit ‘1’ once inserts one space
between letters B and D.
If you want to insert more than one space, use the >> button to move the
cursor to the position required.
Repeated pressing of the keypad digit ‘1’ will step through the following symbols
;– ‘ ( ) & , .
Repeated pressing of any other keypad digit will step through the letters and
number associated with that key.
Examples A=2, B=22, C=222, 2=2222, D=3, E=33, F=333, 3=3333
Repeated pressing of the << or >> button will move the cursor backwards or
forwards to the position required.
When the cursor is flashing on top of any character, you can press the delete
button to delete that character.
MEMORY STORAGE CARD
When you have programmed a number
into the speed dial memory, you can write
the name of the person on the memory
storage card (supplied).

Using your phone
PAUSE
During the memory storage procedure, you may wish to press the redial button to insert
a pause between numbers. (This is sometimes useful for accessing a switch board,
telephone banking or long distance dialling).
Pressing the redial button more than once will increase the pause between digits.
Each time the redial button is pressed, a ‘P’ will show on the LCD to indicate a 2 second
pause in the dialling sequence. Each pause counts as one digit.
For options 3 & 4, the LCD will show <EMPTY> if there is no number
stored in the memory button pressed.
CHAIN DIALING
On certain occasions (such as telephone banking), after dialing one number, you may
wish to dial another number without hanging up. This is known as chain dialling or cascade
dialling.
Simply store the second number in another memory location and press the corresponding
speed dial button when required. In this way you can recall both numbers that are stored
into their own memory locations at the relevant times.
CALL TIMER
Approximately 10 seconds after the handset is picked up,
or the speaker button is pressed, the call counter will
begin and show the elapsed time on the display screen.
LCD BACKLIGHT DISPLAY
The LCD has a back light that will turn on under the
following conditions;
·Any incoming call
·Picking up the handset
·Pressing any button
The backlight will switch off automatically approximately 15 seconds after the
last activity. The back light will not work if the AC adaptor is switched off,
disconnected or there is a power cut.
DIALING THE STORED NUMBERS
There are four different ways to dial a stored speed dial number, depending on your
preference.
1. Pick up the handset and press the desired speed dial button (1 ~ 12).
2. Press the speaker button and then press the desired speed dial button (1 ~ 12).
3. Press the desired speed dial button (1 ~ 12), and check the LCD shows the
If you have selected a speed dial button that does not have a stored
number, the telephone will not dial.
18
NOTE
NOTE
caller display
correct information then press the dial button (the phone enters speakerphone
mode and dials the displayed number).
4. Press the desired speed dial button (1 ~ 12), and check the LCD shows the
correct information then pick up the handset and then press the dial button.

19
Using your phone
.
EDITING A STORED ONE-TOUCH SPEED DIAL MEMORY
DELETING ONE SPEED DIAL MEMORY
Example : To delete the details stored in speed dial location 3.
1. Press the speed dial button 3 (Display shows contents of this memory).
2. Press the delete button (Display shows DELETE 03 ?).
3. Press the delete button again.
The phone beeps and the display shows DELETED.
Example : To edit the details stored in speed dial location 3 from BOB DAY 1234567
to BOB MAY 1235467.
1. Press the store button then the speed dial button 3(Display shows NUMBER ?).
2. Edit the phone number using the << or >> button.
(Move the blinking cursor to after the digit 3 then enter 5 4 delete delete).
3. Press the store button (Display shows NAME ?).
4. Edit the name by using the << or >> button.
(Move the blinking cursor to the letter D. press the delete button to delete the letter
D, then select the letter M by pressing the keypad digit 6).
5. Press the store button (Display shows LOCATION ?).
6. Press the speed dial
location number 3.
The phone will beep & the number will be stored.
button 3to store this edited information into speed dial memory
