Unimac Hvlp series User manual

Electric HVLP Paint Sprayer

User Manual

[Revision 1.0 February 2016]

RETAIN THIS MANUAL FOR FUTURE REFERENCE

PLEASE READ THIS MANUAL CAREFULLY BEFORE USE

Electric HVLP Paint Sprayer

i

Table of Contents

Safety .................................................................................................................................................................1

Included Items ...................................................................................................................................................1

Set-Up ................................................................................................................................................................2

Checking the Viscosity of Your Paint .............................................................................................................2

Sprayer Set-Up .............................................................................................................................................3

Maintenance ......................................................................................................................................................5

Specifications....................................................................................................................................................6

Electric HVLP Paint Sprayer

1

Safety

ATTENTION! When using power tools, the following basic safety measures are to be taken as protection against

electric shock, personal injury and risk of fire. Read and observe these instructions before using the equipment.

•Spray materials emerge from nozzle tips under high pressure. ATTENTION! Danger of injection- Never point

the spray stream towards human beings or animals.

•The spray gun is to be used only for paints and solvents with a 21°C flash point or higher (See information

on the material tin. Hazard class A II and A Ill permitted).

•The spray gun is not to be used in work places covered by Ex-protection regulations.

•To avoid the hazard of explosion when spraying, provide for effective natural or artificial ventilation.

•No sources of ignition are to be in the immediate area when spraying, e.g. open flame, cigarettes, sparks,

glowing wires and hot surfaces.

•Before carrying out any work on the spray gun, unplug the lead from the power socket.

•Do not use spray guns to spray flammable liquids.

•The spray guns are not to be cleaned with flammable solvents which have a flash point under 21 °C.

•Take precautionary measures against potential hazards from the spray liquid and follow any instructions

given on containers or laid down by the manufacturer of the liquid.

•Do not spray any liquid of unknown hazard potential.

•Wear a breathing mask and ear protection.

Included Items

1x Handheld sprayer with canister

1x Air hose

1x Base air compressor

2x Viscosity cups

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Electric HVLP Paint Sprayer

2

Set-Up

Checking the Viscosity of Your Paint

1. Get the larger viscosity cup and dip it into your paint:

2. Ensuring it's full to the rim, lift it up and time how long it takes to empty.

Below is a chart for comparison:

Handling Table for Viscosity

Spray Material Viscosity (Runout Time in Seconds)

Thinner-soluble varnishes/ primers 20 – 35 20 – 45

Water-soluble varnishes / primers 20 – 50 20 – 60

Automobile spray paint 18 – 22 18 – 22

Wood preservatives, disinfectants, plant

protectants, polishes, strippers, oils Undiluted Undiluted

Hammer effect enamel 25 – 35 30 – 45

Aluminium paints 20 – 30 20 - 30

NOTE: if paint it too thick, please add appropriate thinner to your paint mix to ensure your sprayer does not

clogged up.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Electric HVLP Paint Sprayer

3

Sprayer Set-Up

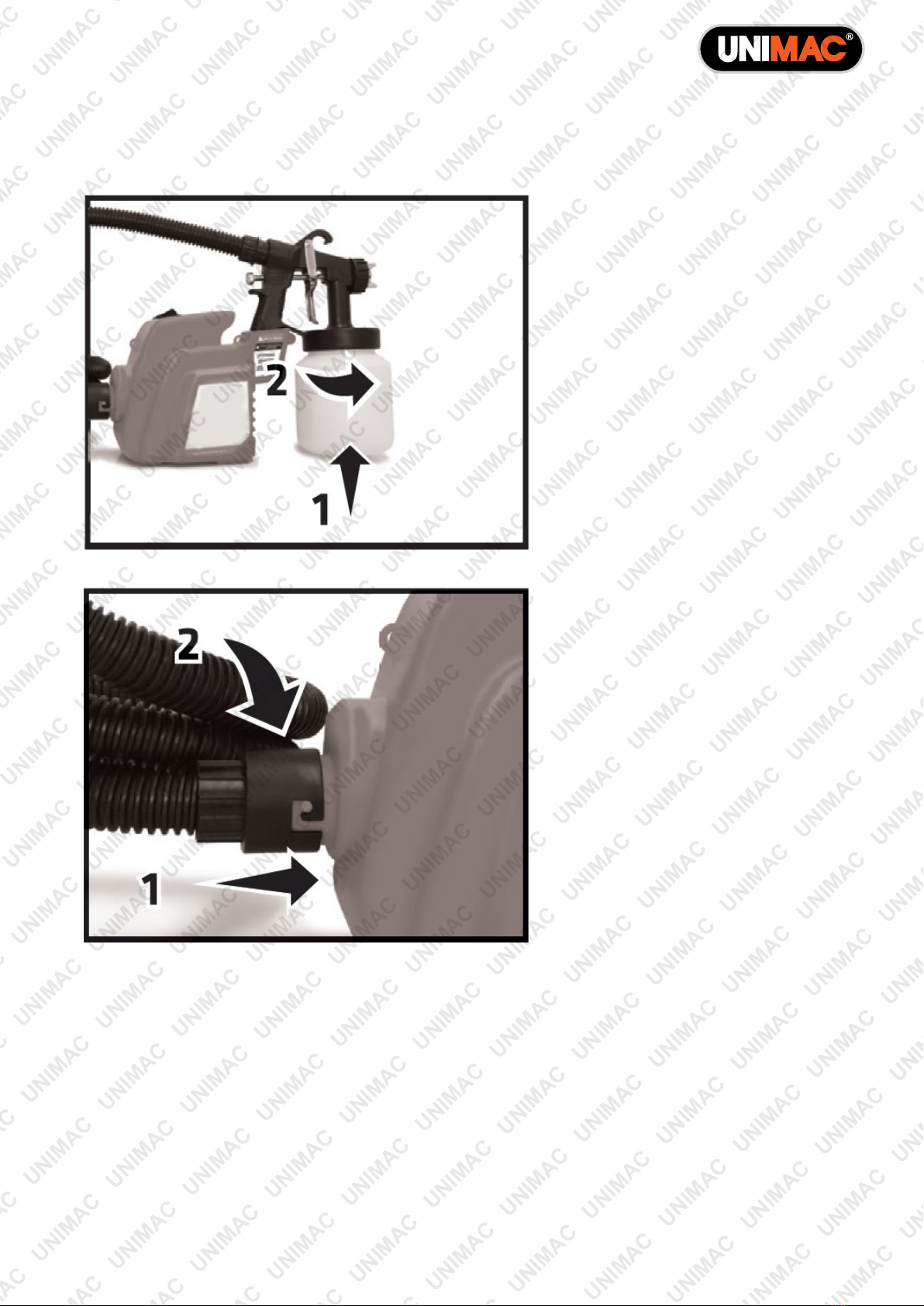

1. Remove canister and pour paint into it.

2. Screw canister back onto sprayer.

3. Connect the hose.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Electric HVLP Paint Sprayer

4

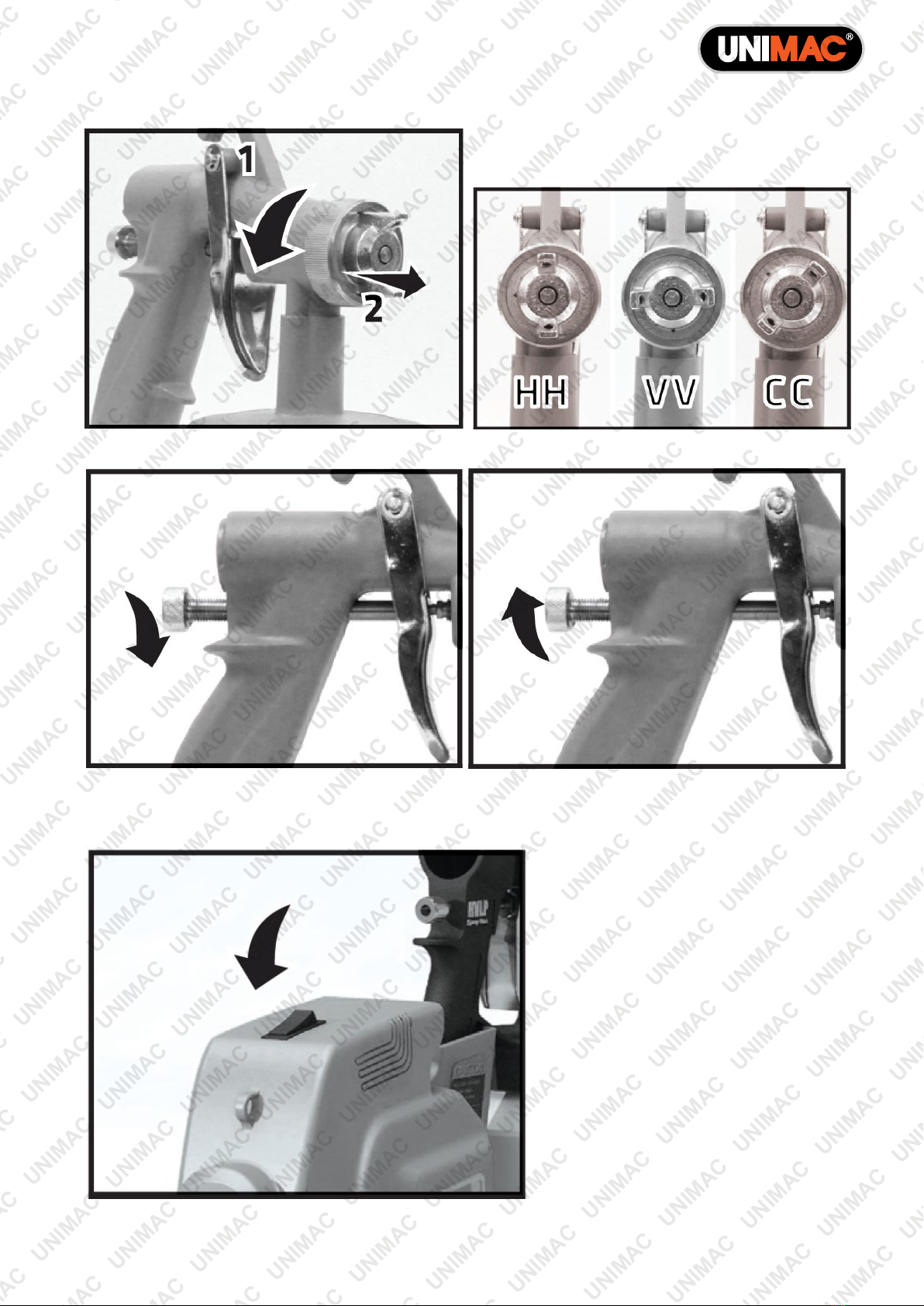

4. Adjust the horizontal (HH), vertical (VV) or diagonal (CC) nozzle. Unscrew, turn nozzle and screw back on.

5. Adjust the spray amount.

Less Spray More Spray

6. Connect to mains and power on.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Electric HVLP Paint Sprayer

5

7. Always do test coats and ensure canister is refilled when there is roughly one quarter remaining, otherwise

your paint will splatter.

8. Always aim the sprayer facing directly to the surface and keep your wrist firm. Do not move with your wrist

as spraying on an angle with result in uneven coverage. Also always use the same motion:

Maintenance

•Clean your sprayer after every use.

•Use appropriate cleaning solvents (depending on the base of the material used).

•Remove all removable parts (canister, nozzle, etc.) and also clean with appropriate cleaning solvents.

•Allow to completely dry.

•Turn off sprayer when not in use.

•Store in a clean and dry environment.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Electric HVLP Paint Sprayer

6

Specifications

Fluid Nozzle ￠1.8mm (1.0-1.8mm)

Spray Gun Tank Capacity 1 Litre

Air Hose Length 1.6 Meters

Power Supply 240/50Hz

Rated Power 450W

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC
