Unipro UniGo 3005 User manual



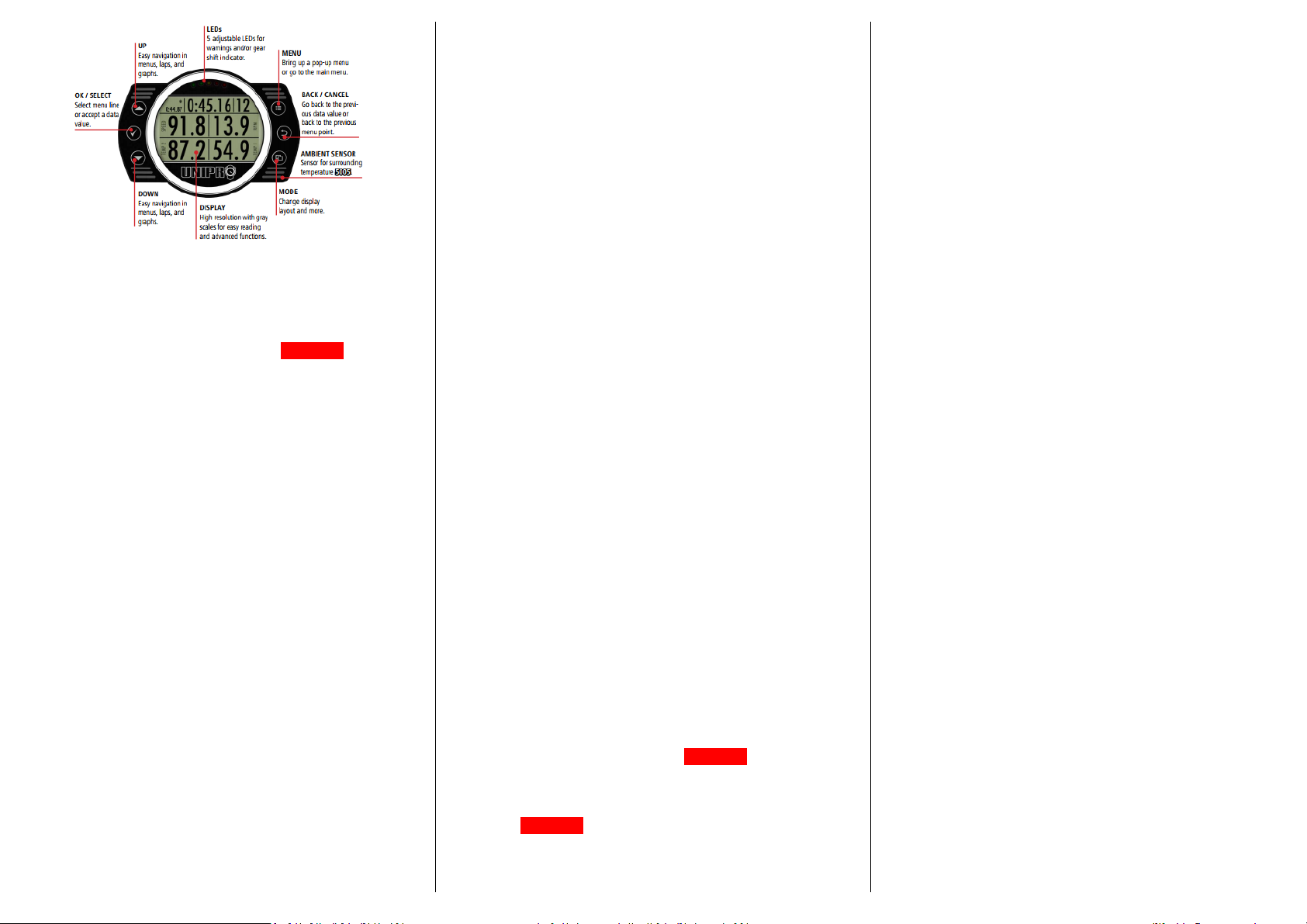

TurnonUniGo
YouturnonUniGobypressingtheMODEbuttonshortlyorby
startingtheengine.
Note!ItisrecommendtousetheMODEbuttontoturnonUniGoa
whilebeforestartingtheengine,thatwayUniGowillfindsome
satellitesbeforeyougooutontheracetrack.[6005/8005]

Setupmode
TherearealotofsettingsyoucanchangetocustomizeyourUniGo.
InthisguideIwillgothrusomebasicsettings.Youwillfindallthe
settingsunderthesetupmenuanditssubmenus.
 TurnonUniGo
 FromtheMAINMENUselectSETUPMENU.
 Selectthe<submenuoption>(seebelow)
TrackMenu
Thismenuoptioncontainsallthesettingsregardingtheracetrack,
e.g.thenameofthetrack,thereceiveryouareusingetc.
Seeseparateguide“UniproUniGoQuickGuide#2”.
KartMenu
Thismenuoptioncontainsallthesettingsregardingthekart.The
settingsIwanttohighlightare:
 WHEELSIZE
Ifyouareusingafrontwheelorarearaxlespeedsensoryou
needtosetthecircumferenceofthewheeltogetthecorrect
speedanddistance.IfnotsettheoptiontoOFF.
 NAME/TYPE
Hereyousetthenameofyourkart/class.Whenyouimport
datatoOffCamberDatathissettingwillautomaticallyfillthe
optionKart.
 WHEELMAGNETS
Ifyouareusingafrontwheelorarearaxlespeedsensoryou
needtosetthenumberofmagnetsonthesensordisc.
ENGINEMENU
Thismenuoptioncontainsallthesettingsregardingtheengine.The
settingsIwanttohighlightare:
 RPMFACTOR
SettheinputandfactorfortheRPMsensor.Themostcommon
settingforkartingis“RPMinputx1”.
 RPMSHIFT
SettheRPMtoturnontheLEDwhenit’stimetoshiftgear.If
youuseanon‐shifterkart,setthissettingtoahighervaluethen
themaxRPMofyourenginetoturntheLEDoff.
 RPMBARGRAPHMAX
SetthemaxRPMforthebargraph.Setthissettingtothemax
RPMofyourengine.
Note!ThisgraphisusedontheRunMode2screens.
UNIGOMENU
ThismenuoptioncontainsallthesettingsregardingtheUniGounit.
ThesettingsIwanttohighlightare:
 LANGUAGE
Setthedisplaylanguage.UniGosupportsalotoflanguage.
 SETUPSCREENS…
Onthisoptionyouselectthechannels/sensorsyouwantto
showintherunmode.UniGohavethreerunmodescreens(see
RunModeformoreinformationaboutthisscreens).
Note!UseMODEbuttontobrowsebetweenthescreens.Use
UP/DOWNbuttontobrowsebetweenchannel/sensorpositions
onthescreen.UseOK/SELECTbuttontoselecta
channel/sensor.
Note!Onthesamerow,ifyouonlyselectonechannel/sensor
andtheotherisnone.Theselectedchannel/sensorwillbe
centeredontherunmodescreen.
 WARNINGLEDSETUP…
UnderthisoptionyoucancontrolthefiveLEDsatthetopof
UniGo.Youfirstselectthewarningled1‐5,youthenselectthe
channel/sensoryouwanttoconnecttothisLED,andlastyou
decideiftheLEDshouldflashorhaveaconstantlightforthe
MINand/orMAXvalueofthechannel/sensor.E.g.youcanhave
oneledflashingifthewatertempistolowandanotherifitis
toohighorthesameLEDlightisavalueisinside/outsidetwo
values.
 SETTIME…
Underthisoptionyousetthetime,12/24hourclockandtime
zonecorrection.IfyouusingaGPS[6005/8005]thetimeis
automaticallyset.
 SETDATE…
Underthisoptionyousetthedateanddateformat.Ifyouusing
aGPS[6005/8005]thedateisautomaticallyset.
DriverMenu
Thismenuoptioncontainsallthesettingsregardingthedriver.
 NAME
Enterthenameofthedriver

RUNMODE
Therunmodeisthescreenthatthedriverseewhendriving.When
youstarttheengineUniGoautomaticallyopenstherunmode.
Youcanalsoopenitmanually:
 TurnonUniGo
 FromMAINMENUselectRUNMODE.
Inrunmodeyouhavetheoptiontoselectbetweenthreemode
screens,usetheMODEbuttontobrowsebetweenthescreens.
Onthisthreescreensyouhavesomefixeddatae.g.laptimeandlap
number.Youalsohavetheoptiontoselectchannels/sensorsofyour
choice(seeaboveSETUPSCREENSandRPMBargraphMax).
Thethreescreensare:
 RunMode1(Isusedtoshowthemaximumnumberofdata)
Itwillshowthelaptime,lapnumberandbestlaptimeatthe
top.Andupto4channels/sensorsofyourchoice.
 RunMode2(Isprimarilyusedforshifterkarts)
ItwillshowtheRPMbargraph,laptime,gearindicator,lap
numberandbestlaptimeatthetop.Andupto2
channels/sensorsofyourchoice.
 RunMode3(Isforpermanentlydataand2channels/sensor)
Atthetopitwillshowthebestlapandit’slapnumber
permanently,underthatthelastlaptimeandcurrentlap
number.Itwillshow2channels/sensorsofyourchoice,andat
thebottomlineitwillpermanentlyshowthelastlapmaximum
valueforyour2selectedchannels/sensors.

AnalyzeMenu
TheAnalyzemenuareaquickanalyzefunction.Ifyouwanttodoa
deeperanalysis,youneedtodownloadtheruntoOffCamberData.
Toopenanalyzemenu
 TurnonUniGo
 FromtheMAINMENUselectANALYZEMENU
TheAnalyzemenuhavefoursubmenus.
 Selectthesessionyouwanttoanalyze
 Analyzelapandsplittimes
 Analyzeminimumandmaximumvalue
 Analyzecountersandtimers(willnotbecoveredinthisguide).
Selectthesessionyouwanttoanalyze
Bydefaultthelatestsessionisautomaticallyselectedafterarun.If
youwanttoanalyzeearliersessionsyouselectthatsessionunder
thismenuoption.Thelatest32sessionarelistedinreversedorder
withthelatestfirst.
Note!ItisrecommendedtosetupUniGowithdate,time,trackand

drivername.Thesessionfilesiscreatedwiththisinformation
<date>_<time>_<track>_<driver>.
Note!IfyoupresstheMenubuttonyoucanDeleteSelectedSession,
ToggleBacklightOn/OffandgobacktoMainMenu.
Analyzelapandsplittimes 
Thismenuoptioncontainsoffourscreens,youtabthruthescreens
withtheModebutton.
 Thethreebestlaptimes
Displaythethreebestlaptimeswithlapnumber,laptime,min
andmaxvalueforthreeselectablechannels.Atthetopitalso
displaythetheoreticallaptime,numberoflaps,maxRPMand
atthebottomthesessionname.
Note!Selectwhichchannelstobedisplayedbypressingthe
Menubutton.
 Alllapandsectortimes
Displayalllapswithlapnumber,laptimeandthesplit/sector
times.Atthetopitalsodisplaythebestlaptime,theoreticallap
timeandrollingbesttimeandatthebottomthesessionname.
Note!UsetheUpandDownbuttontoscroll.
 Bestlapwithminandmaxvalue
DisplayMinandMaxvalueforthefourchannelsyouhave
selectedforRunMode1.AtthetopitalsodisplaytheBestlap
time,onwhatlapnumberandintheupperleftcornerthetext
MINorMAX.
Note!UsetheMenubuttontoswitchbetweenMinandMax
value.
 Barchart
Displayabarcharttovisualizelaptimes.Atthetopitshowsthe
selectedlapnumber,laptimeanddifftobestlaptime.Under
thebarchartisanarrowthatshowselectedlap.
Note!UseUpandDownkeystobrowsebetweenlaps.

Customize
Ownername
Requirements:AUSBcableforUniGo(p/n:11‐01‐004).
Theownernameisnotthesameasthedrivername.Theowner
namecouldforinstancebetheteamname.
Theownernameisdisplayedonthestartupscreenwhenyouturn
onUniGoandundertheInfoMenuoption.
 Createatextfilecontainingtheownernameonasingleline.
 ConnectaUSBcablebetweentheUniGoandthecomputer.
 Savethefileas“ownername.txt”totherootfolderonthe
UniGo.
 RemovetheUSBcable
Note!Ifnoownernamefileiscreated,thestartupscreenwillshow
theserialnumberinstead.

Problem
RPMsignalinterference
IfyouhaveRPMsignalinterference,youneedtofindthecauseof
theproblem.Itcanbymanydifferentthings,buttheinterferenceis
usuallycausedbytheRPMsignalistooweak/strongoritgets
interferencefromotherwiring.
 FirstmakesurethattheRPMwireisrunningalonealltheway
fromtheUniGototheengineignition.
 Weaksignal:WraptheRPMwirearoundtheignitionwireafew
turnstogetabettersignal.
 Strongsignal:AddadistancebetweentheRPMwireandthe
ignitionwire,andavoidtwistingtheRPMwireroundthe
ignitionwire.
UniGocrashes/hangs/restarts
TominimizethistypeofproblemsitisrecommendtouseaLiPo
battery(p/n:11‐04‐006)oraDC/DCconverter(p/n:11‐04‐007).

FirmwareUpdate
ItisimportantthatyoukeepyourUniGoupdatedwiththelatest
firmware.Thelatestfirmwarefilecanbefoundonthefollowing
siteswww.uniprolaptimer.comorwww.offcamberdata.com.
Note!RemembertodownloadthecorrectfirmwareforourUniGo
model.
UsingaUSBFlashkey [6005/8005] 
Requirements:AUSBFlashKeyforUniGo(p/n:11‐01‐005).
 ConnecttheUSBFlashkeytothecomputerwhereyou
downloadedthefirmwarefile.
 CopythefirmwarefiletotheFirmwarefolderontheUSBFlash
key.(YoumightneedtocreatetheFirmwarefolder).
 TurnonUniGo
 ConnecttheUSBFlashkeytotheUniGoUSBport.
 OntheUSBMENUselectFirmwareUpdate.
 WhentheFirmwareisdownloadedtotheUniGo,removethe
USBFlashkeyandfollowtheinstructionontheUniGodisplay.
 UniGowillturnoffwhentheupdateiscomplete.
UsingaUSBcable
Requirements:AUSBcableforUniGo(p/n:11‐01‐004).
 TurnonUniGo
 ConnecttheUSBcablebetweenthecomputerandtheUniGo
USBport.TheUniGowilldisplayamessageUNIGOLOCKEDBY
USB.
 CopythefirmwarefiletotheFirmwarefolderontheUniGo.
ThedriveisnamedUNIGO.
 RemovetheUSBcablefromtheUniGoandfollowthe
instructionontheUniGodisplay.
 UniGowillturnoffwhentheupdateiscomplete.













UniproUniGo
QuickGuide#1
Run,Analyze&Setup



Author: NiclasAndersson
Rev1
 November23,2017













 
