Uniweld Smarttech USMAN5 User manual

2850 Ravenswood Road, Fort Lauderdale, FL 33312 U.S.A.
Customer Service: 800.323.2111 • 954.584.2000 • Fax: [phone]
[email protected] • www.uniweld.com
55.4 87.7
107.9 309.5
T1 ˚F T2
Lo Hi
Psig
APO
HOLD MAX MIN
Psig
MENU PAIR
O
Enter Right
––––
Hold
Left
––––
MaxMin
Down
––––
–
Up
––––
+
TM
MENU
PAIR
Right
––––
Hold
Left
––––
Max Min
O
Power Button, Hold for 2 seconds to power On/OFF meter.
Backlight Button, On/OFF
Menu Button, push to enter menu functions
Left or Max/Min Button, Push once to activate
and repeat to cycle through options
Right or Hold Button, Push once to activate.
Push again to deactivate
Pair Button, On/O Wireless BLE Module.
When powered on, the wireless
module will strobe when searching for smart
device. When connected with smart device,
symbol will indicate signal strength.
Display Features
Temperature Readings:
T1 Low Side Temperature
T2 High Side Temperature
ºC Degree Celsius
ºF Degree Fahrenheit
Pressure Readings:
Lo Low Side Pressure
Hi High Side Pressure
Psig Pressure (pounds/in2)
Bar Pressure (bar)
kPa Pressure (kilo-Pascals)
Kg/cm2Pressure (kilograms/centimeter2)
inHg Negative Pressure (inches of mercury)
cmHg Negative Pressure (cm of mercury)
Hold Value is held
Max Show maximum value in record mode
Min Show minimum value in record mode
APO Auto Power O enabled, Settings; 30 Min., 120 Min. or Manual
ON/OFF
Battery Life indicator
When powered on, the wireless module will strobe while searching
for smart device. When connected with smart device, symbol will
indicate wireless connection strength.
Controls
Down
––––
–
Up
––––
+
MENU
Right
––––
Hold
Left
––––
Max Min
O
ROTAT E
RUBBER
BOOT
Enter
Getting Started
1. Install (6) AA batteries by removing the protective rubber boot. Start at the top
of the meter and rotate boot around meter to gain access to the rear battery
compartment. NOTE: Do not peel back and bend the protective rubber boot
as this may stretch and deform the material.
2. Hold the Power Button for 2 seconds to power on your new manifold.
3. Connect hoses and temperature clamps to manifold; use the Velcro cable straps
to organize the lead wires onto the blue and red hoses. Attach protective padded
case and secure to meter with velco straps.
4. Download the free Uniweld SmarTech Digital Manifold app on your compatible
smart device from the Google Play Store or the Apple App Store.
Open app and send email registration; once completed the app will open and
appear on your smart device.
You are now ready to CONNECT to the SmarTech Manifold.
5. Turn on the SmarTech Manifold and press CONNECT on the app.
Press SCAN and the USMAN device will appear. Press CONNECT (wait 5
seconds), your meter will beep once conrming connectivity.
6. Press to go back to the Home Screen and view system’s real-time pressures,
temperatures, Superheat and Subcooling readings. CONNECT will change to
indicating connectivity.
UNBOXING
Menu Navigation
Menu button accesses Auto Power, Pressure, and Temperature
preferences.
Right and Left buttons navigate menu options.
Up and Down buttons change the preference
in the menu.
Enter button selects the preference.
Press the SmarTech logo to visit the
website for tutorial videos, FAQ,
and Resources.
Export a SmarTechVeried Report and
email system performance data as a PDF
or CSV le that can be easily tracked and
saved. Images from the jobsite can be
attached to the email for a complete
back up report before and after the
work is completed.
Enter data for Company Information,
Project Details, and Project Notes
that will be saved and automatically
appear in the SmarTech Veried Report.
Project Details and Project Notes must
be edited for each job location.
Device Settings for Wireless
and Manual Input, Superheat and
Subcooling Input, Elevation, Email
Preferences, and Update Prole.
There are also instructions for
restoring the meter to Factory
Default, Temperature and Pressure
Calibration, and selecting Pressure
and Temperature preferences.
Pressing the HOME button will take you back to the
Home Screen.
Home Screen Home Screen Icons
EMAIL
REPORT
SETTINGS
HOME
REPORT
CONNECT
CONNECTED
Select from
109 refrigerant
proles and
create saved list
or
or
R-410A
35.0
VAPOR SATURATION
F F
FF
LIQUID SATURATION
98.0
107.9
LOW SIDE PSIG HIGH SIDE PSIG
309.5
TARGET
ACTUAL
10.0
10.3
LOW TEMP
55.4
HIGH TEMP
87.7
OUTDOOR DRY BULB INDOOR WET BULB
RETURN AIR DRY BULB SUPPLY AIR DRY BULB
DELTA T
FF
F
F
F
DIFF.
00.3
F
F
F
SUBCOOLING (TXV)
SUPERHEAT (NON-TXV)
TM
SUPERHEAT (NON-TXV)
NON-TXV
PUSH HERE
NON-TXV
PUSH HERE
TXV
PUSH HERE
MANUAL
DATA
ENTRY
82.4 57.0
68.4
20.2
48.2
TARGET System is
over charged
with refrigerant
and requires
removal of excess
refrigerant
ACTUAL
10.0
14.6
F
F
DIFF. 4.6 F
SUBCOOLING (TXV) RED ZONE
TARGET System is
properly charged
for maximum
eciency and
optimal performance
ACTUAL
10.0
10.3
F
F
DIFF. 0.3 F
SUBCOOLING (TXV) GREEN ZONE
TARGET System is
under charged
and requires
additional
refrigerant
ACTUAL
10.0
4.2
F
F
DIFF. 5.8 F
SUBCOOLING (TXV) BLUE ZONE
SMART CHARGE ZONE™
Color coded dierential for
accurate“In the Zone” system charge.
APP

10. Close (A) Low Side and (B) High Side manifold valves.
11. Disconnect (C) Blue EZ Turn Hose from refrigerant cylinder.
12. Disconnect (E) Red EZ Turn Hose from (C) Blue Hose EZ Access“T” tting.
13. The hoses have now been purged of non-condensable gases with the
refrigerant needed for service.

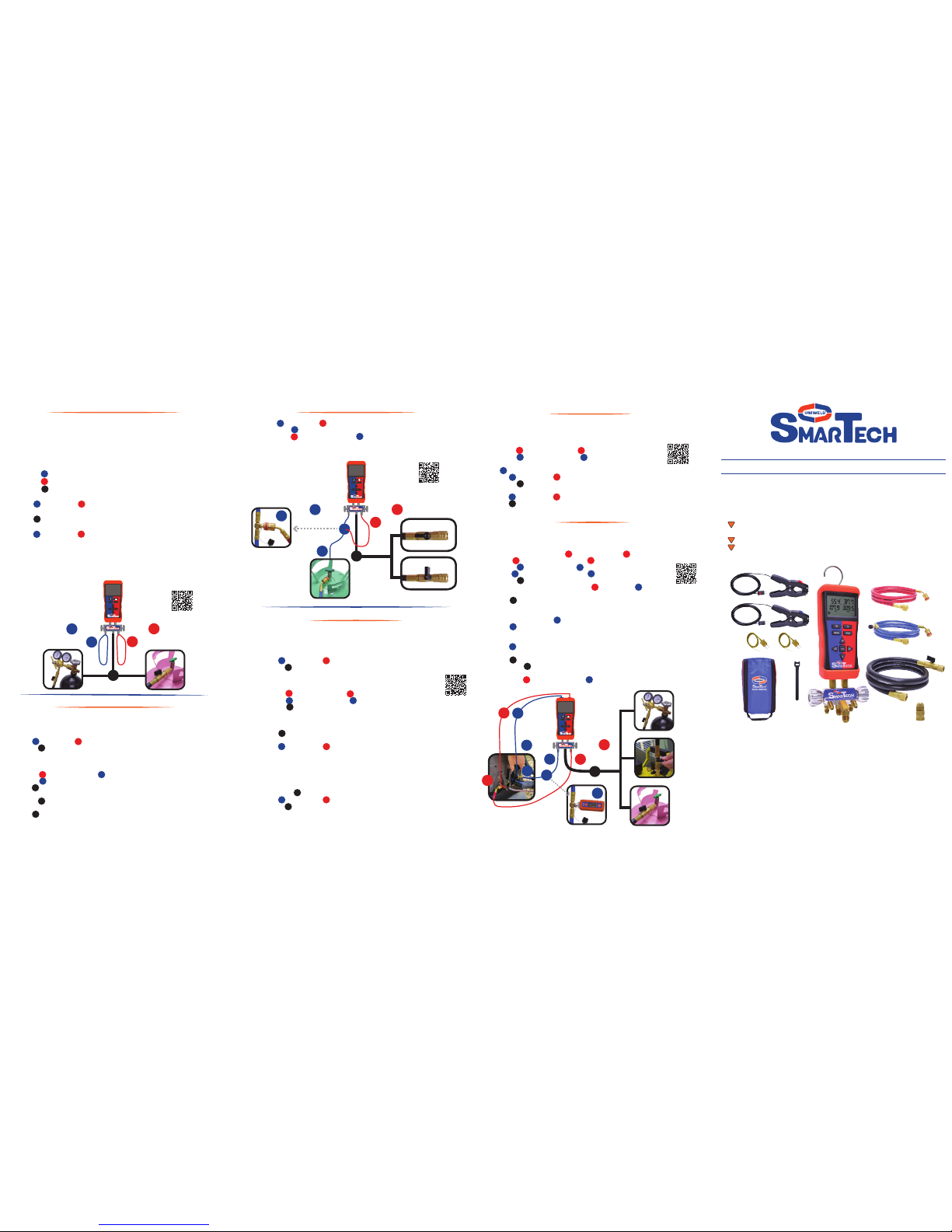

USER MANUAL - PART# USMAN5
Uniweld SmarTech Wireless Digital Manifold
FOR USE BY PROFESSIONALS. This manifold is designed for use by technically
trained refrigeration and air conditioning service technicians, due to the
unusually HIGH PRESSURE AND HAZARDOUS GASES IN ALL SYSTEMS,
misapplication could result in injury or death. The manufacturer warns
against the sale of this product to, or its use by, other than professional
trained personnel.
WARNING: Read carefully and completely before using equipment.
Keep for reference and store in back of protective case.
WARNING: Always wear safety goggles when working with refrigerants.
WARNING: CALIFORNIA PROPOSITION 65: This product contains chemicals
known to the State of California to cause cancer and birth defects or other
reproductive harm
Package Contents
1. SmarTech Wireless Digital Manifold w/ Rubber Boot
2. (1) Blue and (1) Red Temperature Clamp K-Type with 6 Ft. lead
3. (2) Thermocouple Bead Probes K-Type
4. (1) Red 5 Ft. EZ Turn® Anti-Blowback Hose
5. (1) Blue 5 Ft. EZ Turn® Anti-Blowback Hose with 1/4”EZ Access “T” Fitting™
6. (1) Black 5 Ft. Fast-Flo 3/8”Vacuum & Charging Hose with Ball Valve
7. (1) Adaptor 3/8”MF x 1/4” FF
8. SmarTech Protective Padded Case
9. (6) AA Batteries (not shown)
10. (10) Velcro Cable Tie Straps OI0047
!
!
!
The SmarTech Digital Manifold is extremely accurate and can be used to pressure
test the hoses and manifold valves for leaks. Note: The POE oil used in R410A is very
aggressive and causes the rubber seals in the hoses and manifold valve stems to
wear rapidly; they may need replacing every couple of months depending on usage.
It is recommended to check your manifold and hoses regularly for leaks due to
normal wear on rubber gaskets and seats.
1. Connect (C) Blue EZ Turn Hose to manifold 45º hose holder tting.
2. Connect (E) Red EZ Turn Hose to manifold 45º hose holder tting.
3. Connect (D) Black 3/8” Hose with Ball Valve open to nitrogen regulator
using the 3/8”x1/4”adaptor.
4. Open (A) Low Side and (B) High Side manifold valves.
5. Open nitrogen tank valve and set delivery pressure between 400 to 500 psi.
6. Close (D) Black 3/8” Hose Ball Valve. A slight pressure drop is normal as the hoses
stretch under pressure but will stabilize after a couple of minutes.
7. Close (A) Low Side and (B) High Side manifold valves.
8. If digital pressure readings are stable the hoses and manifold are
functioning properly.
9. If the pressure reading continues to decrease there is a leak in the hoses or
manifold that must be repaired. Determine origin of the leak and replace
the gaskets and O-rings as needed. Repeat pressure test.
Manifold and Hoses Leak Test
Prior to purging the hoses with the refrigerant needed for service it may be
necessary to discharge unwanted refrigerant or nitrogen from the hoses.
1. Open (A) Low Side and (B) High Side manifold valves.
2. Aim the (D) Black 3/8”Hose Ball Valve in a safe direction and open
the ball valve to discharge the unwanted refrigerant or nitrogen from the hoses.
3. The digital pressure readings for both Hi and Lo should read zero before
continuing to the next step of purging the hoses with refrigerant.
4. Connect (E) Red EZ Turn Hose to (T) Blue Hose EZ Access “T” tting.
5. Connect (C) Blue EZ Turn Hose to refrigerant cylinder.
6. Close (D) Black 3/8”Hose Ball Valve.
7. Open refrigerant cylinder valve.
8. Aim the (D) Black 3/8”Hose Ball Valve in a safe direction, open ball valve
and begin purging non-condensable gases.
9. Close (D) Black 3/8”Hose Ball Valve when all non-condensable gases have
been purged.
The SmarTech Digital Manifold is extremely accurate and can be used to
pressure test the system for leaks. Prior to pressure testing with nitrogen it
may be necessary to discharge unwanted refrigerant from the hoses.
1. Open (A) Low Side and (B) High Side manifold valves.
2. Aim the (D) Black 3/8”Hose Ball Valve in a safe direction and open
the ball valve to discharge the unwanted refrigerant from the hoses.
3. The digital pressure readings for both Hi and Lo should read
zero before continuing to the next step.
4. Connect (E) Red EZ Turn Hose to (F) High Side service tting.
5. Connect (C) Blue EZ Turn Hose to (G) Low Side service tting.
6. Connect (D) Black 3/8” Hose with Ball Valve open to nitrogen regulator
using the 3/8”x1/4” adaptor.
7. Open nitrogen tank valve and set delivery pressure to system manufacturer’s
recommended test pressure.
8. Close (D) Black 3/8” Hose Ball Valve. A slight pressure drop is normal as the
hoses stretch under pressure but will stabilize after a couple of minutes.
9. Close (A) Low Side and (B) High Side manifold valves.
10. If after a few minutes the pressure reading continues to decrease there
is a system leak. The leak must be repaired then repeat the system
pressure test.
11. If after a few minutes the digital pressure readings are stable the system is
leak-free.
12. Close the nitrogen cylinder valve.
13. Disconnect (D) Black 3/8” Hose from the nitrogen regulator.
14. Open (A) Low Side and (B) High Side manifold valves.
15. Aim the (D) Black 3/8” Hose Ball Valve in a safe direction and open
the ball valve to discharge the nitrogen from the system and hoses.
16. Proceed with evacuating the system.
Prior to charging a system with refrigerant the hoses must be evacuated or purged with
the refrigerant needed for service, see Discharge and Purge Hoses before proceeding.
1. Turn system o and connect (E) Red EZTurn Hose to (F) High Side service tting.
2. Attach (H) Red Temperature Clamp to (F) High Side copper tubing.
3. Connect (C) Blue EZ Turn Hose to (G) Low Side service tting.
4. Attach (J) Blue Temperature Clamp to (G) Low Side copper tubing.
5. Connect (D) Black 3/8”Hose with Ball Valve closed to refrigerant cylinder.
6. If this is a new system installation, open (F) High Side and (G) Low Side
condenser service valves.
7. Open (D) Black 3/8”Hose with Ball Valve and refrigerant cylinder valve.
8. Turn system on; SmarTech Superheat and Subcooling features can be used at this time
to properly charge the system for maximum eciency and optimal performance.
9. To add refrigerant open (A) Low Side manifold valve.
10. Close (A) Low Side manifold valve and let the system temperatures and pressures
stabilize. Check Superheat and Subcooling“Smart Charge Zone”, if additional
refrigerant is needed repeat steps 9 and 10 until the“Smart Charge Zone”is “Green”.
11. Close (A) Low Side manifold valve when desired amount of refrigerant has
been added.
12. Close (D) Black 3/8” Hose BallValve and refrigerant cylinder valve.
13. Disconnect (D) Black 3/8” Hose with BallValve from refrigerant cylinder and
connect to manifold hose holder tting.
14. Disconnect (E) Red EZ Turn Hose and (C) Blue EZ Turn Hose from system and
connect to manifold hose holder ttings.
Prior to evacuating the system it may be necessary to discharge unwanted
nitrogen or refrigerant from the hoses, see Discharge & Purge Hoses steps 1-2
before proceeding.
1. Connect (E) Red EZ Turn Hose to (F) High Side service tting.
2. Connect (C) Blue EZ Turn Hose to (G) Low Side service tting.
3. Optional: Connect (Uniweld Part# UVG) Digital Vacuum Gauge
to (T) Blue Hose EZ Access “T” tting.
4. Open (A) Low Side and (B) High Side manifold valves.
5. Connect (D) Black 3/8” Hose with Ball Valve open to vacuum pump.
6. Evacuate system according to manufacturer’s specication.
7. Close (A) Low Side and (B) High Side manifold valves.
8. Close (D) Black 3/8” Hose Ball Valve and disconnect from the vacuum pump.
9. Turn vacuum pump o and proceed with charging system with refrigerant.
A
A
C
T
C
E
E
A
B
B
B
D
D
MENU PAIR
O
Enter Right
––––
Hold
Left
––––
MaxMin
Down
––––
–
Up
––––
+
Digital Manifold
A
CE
D
B
LOW HIGH
MENU PAIR
O
Enter Right
––––
Hold
Left
––––
MaxMin
Down
––––
–
Up
––––
+
Digital Manifold
A
J
H
C
G
E
D
B
F
LOW HIGH
NITROGEN
NITROGEN
REFRIGERANT
REFRIGERANT
VACUUM
Figure 2
Figure 3
Figure 1
MENU PAIR
O
Enter Right
––––
Hold
Left
––––
MaxMin
Down
––––
–
Up
––––
+
Digital Manifold
A
C
TE
D
B
LOW HIGH
CLOSED
T
T
T
Multi-function ¼”
Male Flare“T” Fitting
built into the blue hose
for Simplied
Purging and Charging
Refrigerant.
EZ Access “T” Fitting™
OPEN
Discharge and Purge Hoses
Discharge and Purge Hoses
Pressure Test System
Evacuating System
Charging System
See Figure 1
See Figure 2
See Figure 3
See Figure 3
See Figure 3
A
A
C
E
B
B
D
D
D
AB
D
D
A
A
A
A
A
C
J
T
C
C
G
G
G
G
E
H
E
E
F
F
F
F
G
F
B
B
D
D
D
D
D
D
A
C
T
E
B
D
D
D
D
