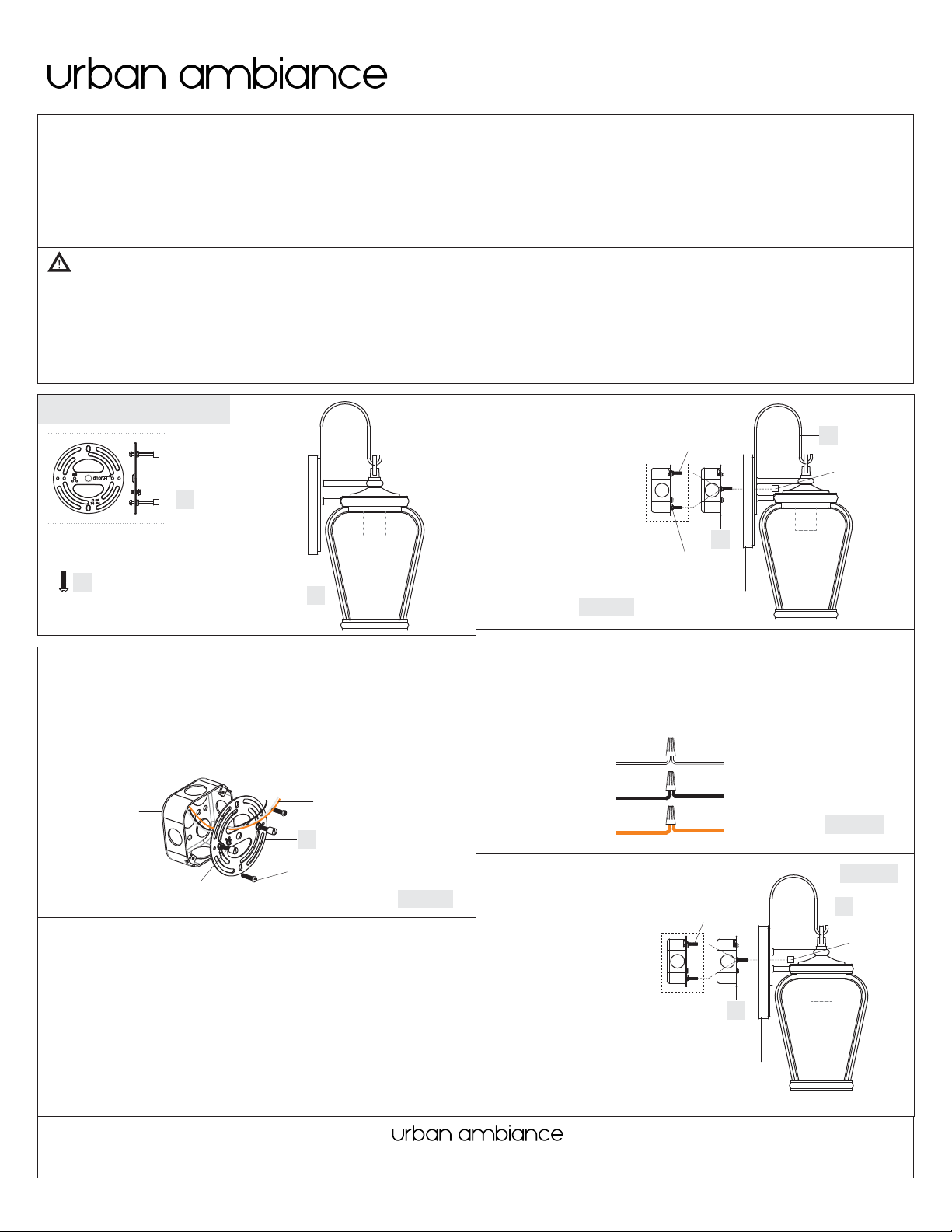

Package Contents
Warnings and Cautions
1of2
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
A
Fixture
Body
x1
STEP 1 -Install Crossbar Assembly
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
C
Crossbar
Assembly
x1
Supply Wires with
Ground Wire
Outlet Box Screws
(not included)
Outlet Box
Figure 1
Figure 2
A
STEP 2 -Test Fitting Backplate to Crossbar Assembly
A. Remove mounting balls from the Crossbar Assembly (A). Fit the
backplate on Fixture Body (C) to the Crossbar Assembly (A) and
secure with mounting balls. Note: The backplate on Fixture Body
(C) should be snug against the wall and the mounting balls. If not,
adjust the length of the mounting screw or alternate short mounting
screw on the Crossbar Assembly (A) by unscrewing the
preassembled hex nut and lock washer and then screwing the
mounting screws or alternate short mounting screws in or out of the
crossbar until the correct length is achieved. Once the backplate on
Fixture Body (C) is secure, remove the mounting ball and Fixture
Body (C) and proceed to Step 3.
(Step 2 Continued)
B
Alternate
Mounting
screw
x2
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Light Source: (1)A19 Medium Base bulb 100W Maximum,Alternate bulb (1) 23W CFL.
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Fixture can only be mounted in the direction indicated on page 2.
Mounting Screw
or Alternate Short
Mounting Screw
C
Mounting
Ball
A
Backplate
Hex Nut and
Lock Washer
Mounting Screw
or Alternate Short
Mounting Screw
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
STEP 4 Install Fixture
Body
-
A. Carefully tuck all wires
into the outlet box and
position the backplate of
Fixture Body (C) over
the outlet box. Align the
holes in the backplate
with the mounting
screws or alternate short
C
Mounting
Ball
A
Backplate
Mounting Screw
or Alternate Short
Mounting Screw
mounting screws. Place caulk
(not supplied) into the previously
removed mounting balls and then
attach Fixture Body (C) using the
mounting balls. Hand tighten
until snug.
Figure 4
Installation Instructions: UQL1200
