urban ambiance UQL1376 User manual

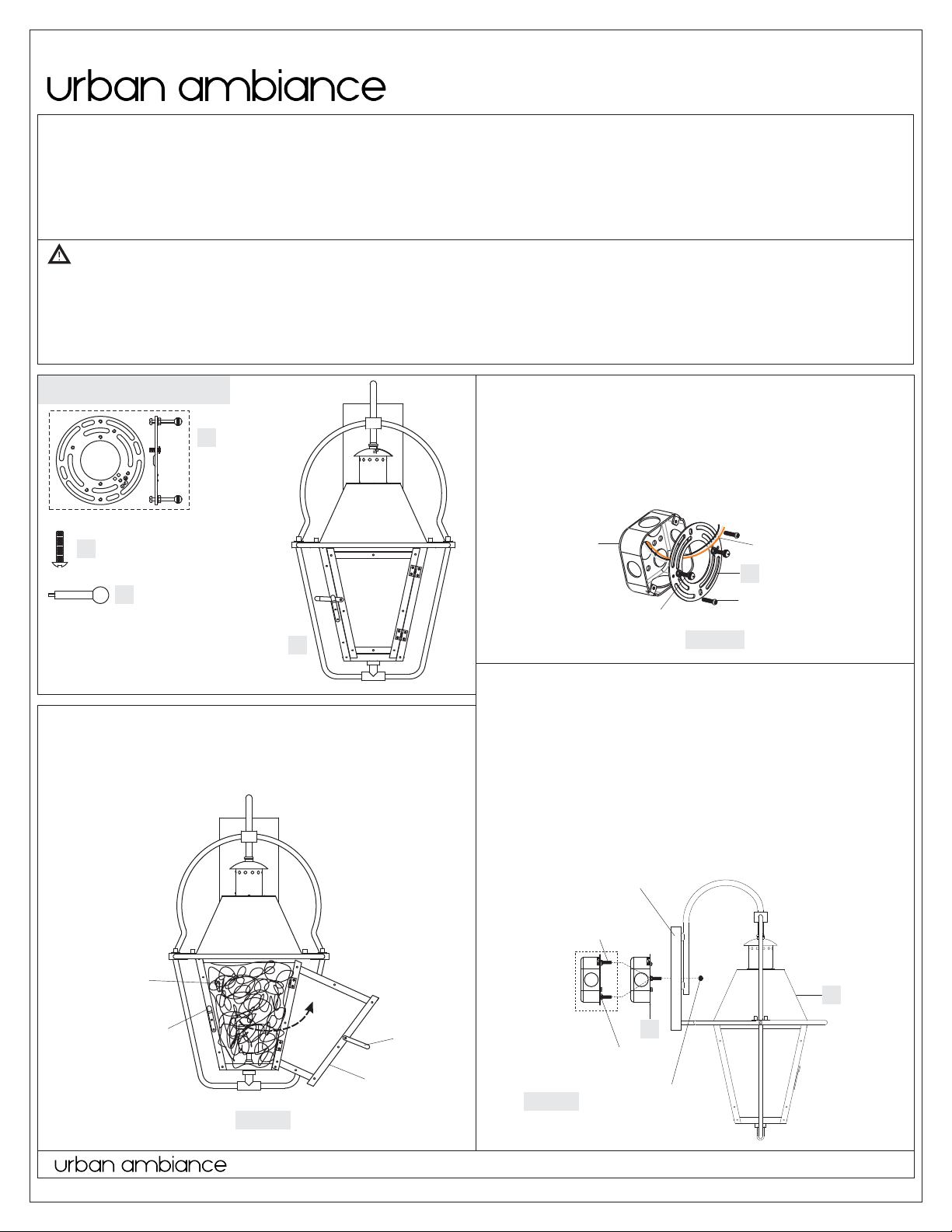

Package Contents
Warnings and Cautions
1of2
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
A
Crossbar
Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A21MediumBaseBulb150WMaximum,MediumBaseVintageBulbisrecommended,bulbnotincluded.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Fixture Body
x1
C
Figure 1
STEP 2 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Mounting Screw
or Alternate Short
Mounting Screw
B
Alternate
Mounting screw
x2
STEP 3 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (D) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (D) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screws
or alternate short mounting screws on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws or alternate short mounting screws in
or out of the crossbar until the correct length is achieved. Once the
backplate and Fixture Body (D) is secure, remove the mounting ball
and Fixture Body (D) and proceed to Step 4.
Side Rod
x2
D
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet Box
A
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Figure 2
D
Mounting Screw
or Alternate Short
Mounting Screw
Figure 3
STEP 1 Remove Papers Inside of the Cage-
A. Rotate the bolt and remove it from the bolt holder to open the door.
B. Remove papers inside of the cage.
C. Close the door and place the bolt back onto the bolt holder.
Bolt
Door
Paper
(Remove)
Bolt Holder
Installation Instructions: UQL1376
www.urbanambiance.com

2of2
STEP 7 -Apply Silicone Sealer
A. Make sure the exterior wall surface and fixture backplate are free
of dirt before applying caulk. Using exterior grade caulk, caulk over
top of backplate and down both sides. Do not caulk the bottom of
the fixture backplate to ensure proper moisture drainage.
Your fixture is now assembled and ready to use. Enjoy!
Exterior
Grade Caulk
Exterior
Grade Caulk
Backplate
Figure 7
STEP 4 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Figure 4
STEP 5 -Install the Fixture Body
A. Position the backplate and Fixture Body (D) onto the Crossbar
Assembly (A). Place the holes in the backplate over the mounting
screws or alternate short mounting screws. Secure the Fixture Body
by using the mounting balls and hand tighten the mounting balls
until snug.
Figure 5
STEP 6 -Install Bulb and Side Rods
A. Rotate the bolt and remove it from the bolt holder to open the door.
B. Insert the bulb onto the socket and screw snugly into place.
C. Close the door and place the bolt back onto the bolt holder.
D. Thread Side Rods (C) onto the Fixture Body (D) and hand tighten
until snug.
Vintage Bulb
(recommended
but not included)
Socket
Figure 6
Mounting Ball
A
Backplate
D
Mounting Screw
or Alternate Short
Mounting Screw
Bolt
Door
Bolt Holder
RO8418IZ
FINISH: INDUSTRIAL BRONZE
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
17.75” 13.5”
8.5”
9”
22.5”
9.25”4.5”
9.25”
D
C
