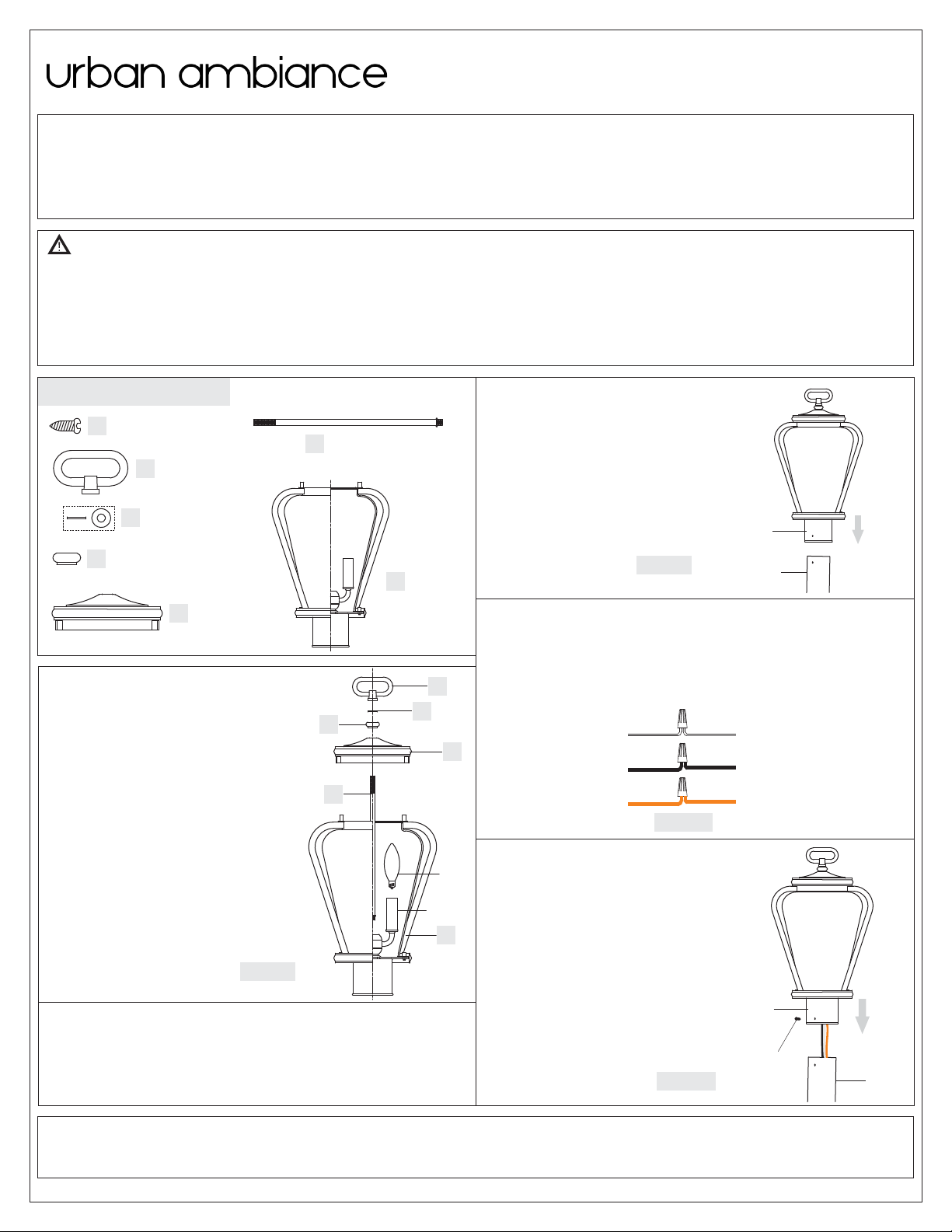

urban ambiance UQL1203 User manual

1of2
Package Contents
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
BulbRecommended: (3)CandelabraBase60WMaximum
EstimatedAssemblyTime:
Preparation:
30-45minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerservice for replacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
AMounting Screw
x3
G
BLoop
x1
C
Waterproof
Washer
x1
DSupport Block
x1
EFixture Hood
x1
FCenter Stem
x1
Fixture
Body
x1
STEP 1 Attach Fixture Hood and
Loop
-
A.
B.
C. Place Fixture Hood (E),
and over
the top end of the Center Stem (F) in
turn. Secure them with the Loop (B).
Hand tighten until snug.
This fixture uses candelabra bulb with
standard screw base. Maximum 60
watts. Insert bulb and screw snugly
into place.
Thread the beaded end of the Center
Stem (F) into the mounting hole in the
center of the Fixture Body (G). Hand
tighten until snug.
Support Block
(D) Waterproof Washer (C)
E
B
Bulb
Socket
C
D
Figure 1
F
G
Post
Post Fitter
STEP 2 Drill Pilot Holes on Post-
A. Carefully fit the Post Fitter over the end of the Post (not supplied),
making sure the Post Fitter is fully seated.
B. Mark the drill point for the (3) Mounting Screws, using (3) Mounting
Holes as reference. After marking hole locations, remove fixture
from post and drill 1/16” pilot
holes for screws.
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
Figure 2
STEP 4 Attach Fixture Body to Post-
A. Coat the top 1” of the Post with Clear
Silicone Caulk (not supplied) and
position the Post Fitter onto the Post.
Be sure to seat it completely, aligning
the holes in the Fitter with the 1/16”
Pilot Holes drilled into the Post.
B. Secure the Fixture to Post with (3)
Mounting Screws.
Your fixture is now assembled and
ready to use. Enjoy!
Post
Fitter
Post
Figure 4
Mounting
Screw
Installation Instructions: UQL1203

2of2
2014 QuoizelInc.
STEP 2 Replace Shade-
Quoizel recommends two people for this step.
A. Remove two Side Arms by unscrewing Lock Screws on the top of
the Shade Holder and the bottom of Pallet.
B. With one person hold fixed Side Arms, another person replace the
Shade inside of the Side Arms.
C. Reassemble removed Side Arms back onto the Shade Assembly
and secure with Lock Screws. Tighten until snug.
D. Reassemble the rest parts back onto the Socket Assembly and
hand tighten until snug.
Lock Screw
Shade Holder
Shade
Side Arm
Pallet Lock Washer
Lock Screw
Socket
Assembly
SKU: UQL1203
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/2"
1
NO. PART NUMBER REPLACEMENT PART REQ.
UQL1203SHSHADE 1
(3) 60W Candelabra
Bulbs
(Not Supplied)
Base
9.5” 9.5”
8.5” 8.5”
11” 18”
1
STEP 1 Remove Fixture Hood-
A. Unscrew Loop, remove
Waterproof Washer,
and Fixture Hood from the
Fixture Body.
B. Remove Center Stem and bulbs
from the Shade Assembly.
Support
Block
Fixture
Body
Replace Shade
Fixture
Hood
Loop
Waterproof
Washer
Support
Block
Center Stem
