urban drivestyle Unimoke V2 User manual

UNIMOKE V2
Manual

1

Content
1. Introduction
2. Description
3. Safety notices and symbols
4. Serial number and part numbers
5. Before your first ride
6. Operating information and tips
7. Special Operations/ Cargo
8. General safety advices
9. Warranty
10. Declaration of EU Conformity
11. Maintainance-Schedule
2
3
4
6
8
10
16
17
19
24
26
28

Dear UNIMOKE owner,
Congratulations on the purchase of a UNIMOKE urban utility e-bike!
Your UNIMOKE is a robust and versatile EU EPAC e-bike with a power output of 250 W and a max. powered
speed of 25 km/h. We also offer a non-EU conform high-power version with 750 W and optional hand throttle.
Please check your local laws about.
This manual is part of your UNIMOKE and provides you with all the necessary information on how to assemble
your e-bike, ride and maintain your UNIMOKE e-bike, along with important safety tips and details!
Enjoy your UNIMOKE and always ride safe!
Your UNIMOKE Team
3
This%manual%is%constantly%updated%and%revised.%The%most%up-to-date%version%can%be%found%under:%%
www.Urbandrivestyle.de%

The UNIMOKE is a sport utility e-bike
designed for everyday urban opera-
tions and rough road conditions. It is
designed as a EU-legal 250 W/25 km/h
EPAC, but can also be ordered with
higher power/ speed setting for use
on private properties or in countries
with higher legal limits.
4
Description

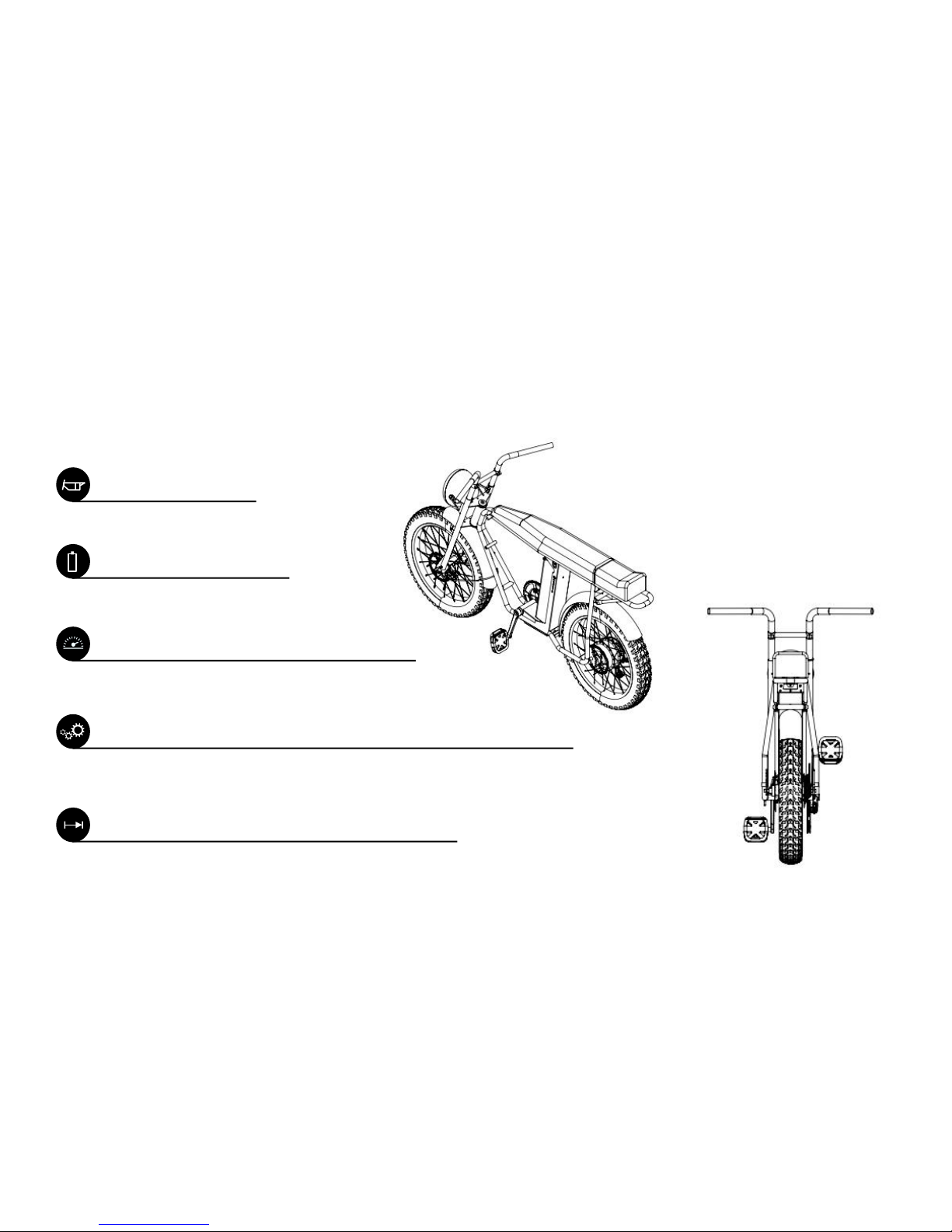

All dimensions in mm
Wheelbase 1126
Trail 40
Total Length 1714
294 302
1030
839
764
190 140 692
Dimensions
Hight: 839 mm
Total Length: 1714 mm
Wheelbase: 1126 mm
Trail: 40 mm

Description
5
Frame
Chro-Moly steel
Battery
36 V/ 14 AH Lithium Akku
Speed
25 km/h power cut-off speed (EU)
Engine
1BAFANG G06/ 250 W max. continuos power
Range
Approx. 40 km under dry, flat road conditions and one rider

Important information and symbols
Please read this manual carefully and follow our instructions. The following warning symbols mark
parts of special importance. Please keep this manual with your bike.
6

7
Symbols
Important sections of the manual are marked with different levels of importance!
Please1read1all1marked1sections1carefully:%
WARNING!%
This symbol marks sections of extreme importance. Neglection of this information may lead to severe injuries or
death.
!%
CAUTION!%
This symbol marks sections of high importance. Neglecting this information may lead to injury or damage to your
UNIMOKE.
INFO:%
This Symbols marks sections with tips and information that may help extend the product lifetime and protects
your warranty.

Serial-Number and part numbers
Your UNIMOKE has a unique Frame number that is layered into the side part of your metal battery
holding structure. Please NOTE and keep this number.
8
Part Numbers Data Plate
The main data plate of your
UNIMOKE is attached to the top
rear of the battery holder
structure and contains all VIN, CE
and ROHS declaration logos.
Frame Number
Engine1Serial1Number1
Engraved into the engine housing
Controller%
On%the%controller%housing%
Battery%
On%the%housing%of%your%battery%
Charger%
On%your%charger%housing%
..%

9

Before riding the first time…
Your UNIMOKE comes very complete and pre-assembled and tested. There
are only a few steps to be done to get it to the road. If you are not
mechanically inclined, please have your bike checked by a mechanic before
your first ride!
10
Warning!
We strongly recommend to have your UNIMOKE checked
by a mechanic before taking it for a first ride!

1. Handle bar adjustment and fastening
11

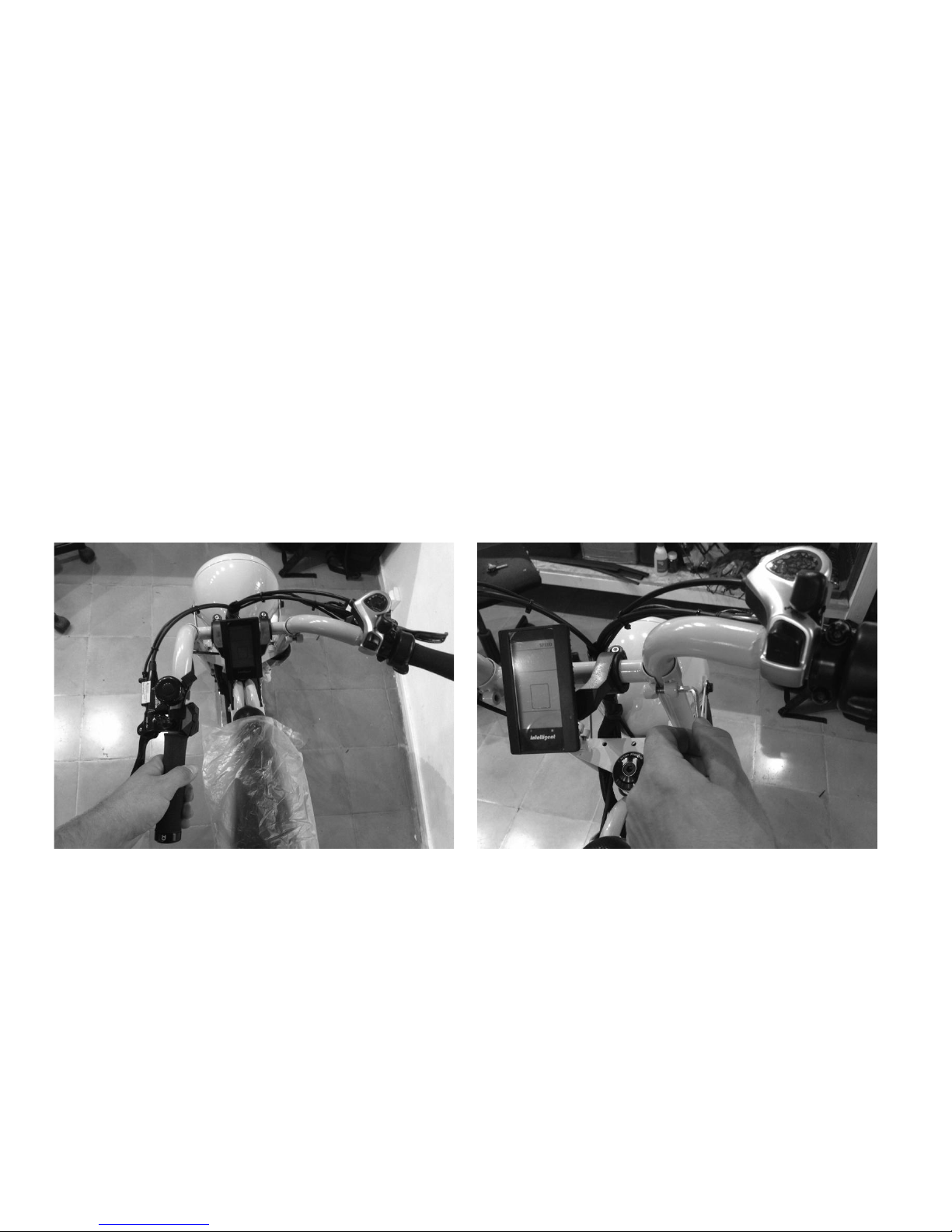

The handlebars of your UNIMOKE are folded inwards for transport. To adjust them, sit on the bike
in a comfortable position and HORIZONTALLY unfold the handle bars until you find your most
comfortable setting. Fasten ALL 6 SCREWS TIGHTLY to fix the position of your handlebars.

Locker/nicht fest sitzende Lenkstangenverklemmungen können dazu führen, dass sich ein oder
beide Lenker während der Fahrt unter Last verstellen! Sturz und schwere Verletzungen können die
Folge sein!
12
!% WARNING!
INFO:
The handle bars are fixed to a height that fits 99 % of all users. You can LOWER the handlebars if
neccesary, but please NOTE that this step can not be reverted without visible scratches to the
steering bar tubes!

2. Installing the pedals
13

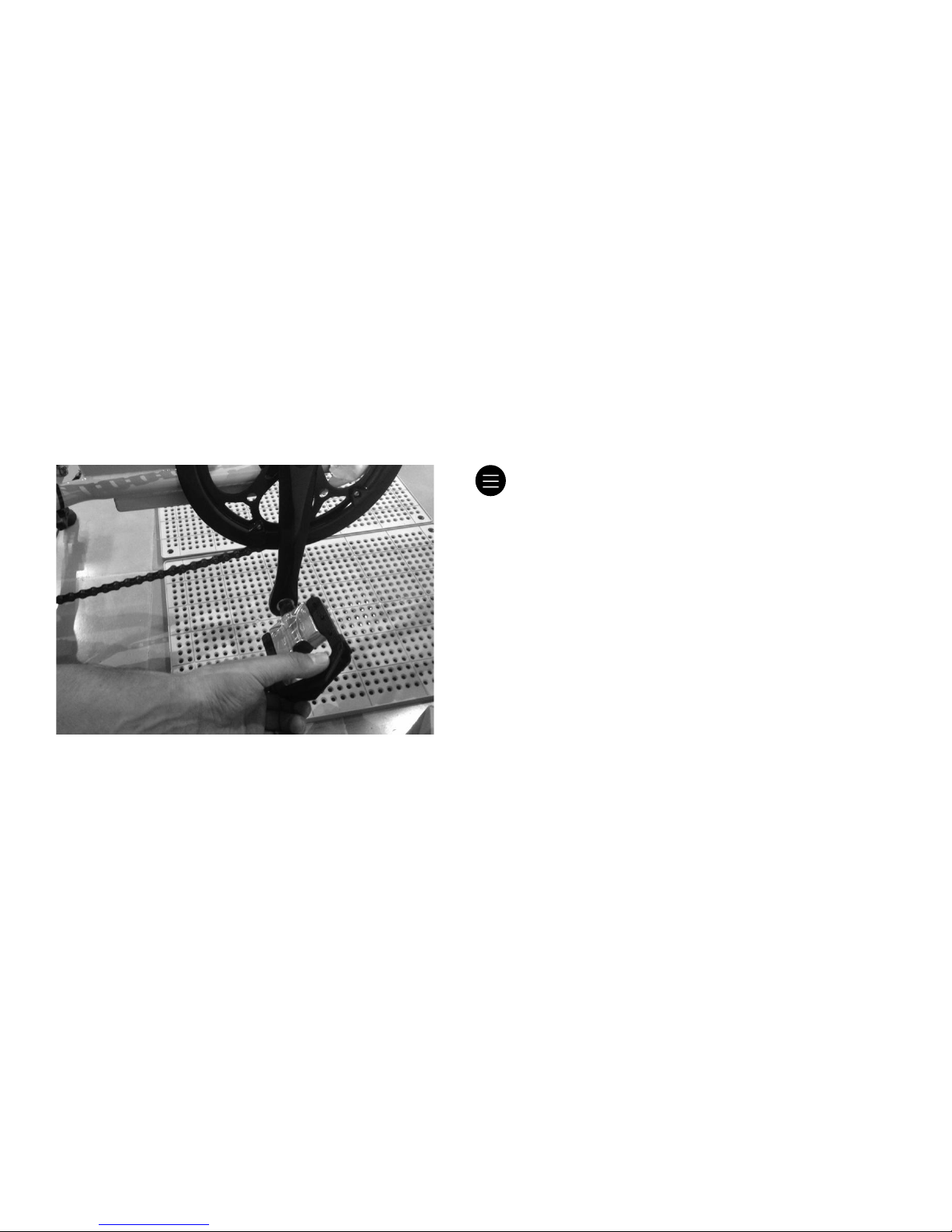

Install your L and R pedals by using the tool included. Tighten the pedals strongly.
The UNIMOKE pedals are designed to FOLD
when your bike tips over. To unfold, press
on the pedal towards the frame and fold it
back until it snaps into place. Tighten the
pedals strongly and recheck regularly to
avoid pedals getting loose while riding!
INFO:%
3. Installing side stand
Install the side stand with the two M6 screws and the tools provided.

4. Charging and installation of your battery
Charge your battery FULLY before
your first ride. The battery is fully
charged when the indicator on your
battery charger goes to GREEN.
14
Vorsicht!
Always keep the SECOND RESERVE KEY in a sepa-rate and safe
location. IF BOTH KEYS ARE LOST, THERE IS NO REPLACE-MENT
POSSIBLE! If using the reserve key, have a COPY made.
1. Unlock the battery with the key
2. Take out the battery key to insert it into
the bike
3. Fold the seat up
4. Insert the battery into the rail and all
the way down.
5. Insert key and turn clockwise to LOCK
and START

15

General operating manual
To ride your UNIMOKE, follow these steps:
16
WARNING!
1. Insert%the%key%into%your%battery%and%turn%key%into%ON%position%
2. Press%LONG%on%the%central%START%button%on%your%controller%panel.%The%display%will%come%alive%and%the%battery%status%and%drive%level%1.%
3. Select%your%drive%level%(1-9),%LOW%assist%to%HIGH%assist%
4. Use%LONG%press%on%“+”%to%switch%on%the%light%or%to%switch%it%off.%
5. Use%LONG%press%on%“-“%to%activate%the%6%km/h%push%assistance.%
6. Engine%power%will%gradually%increase%as%you%start%to%pedal%and%will%cut%off%at%the%cut-off%speed%of%25%km/h.%
Please practice with your UNIMOKE before going on public roads!
Get practice with the controls, brakes, different drive levels and the specific handling characteristics of an EPAC before
riding on public roads. ONLY take cargo or children with you after being fully confident with your UNIMOKE and its
behaviour!
Especially practice full stops and manoeuvres at different speeds and situations.
!%

Special use and Cargo operations
17
The UNIMOKE is a versatile, strong and ro-
bust utility e-bike for everyday use. Please
note that cargo operations, trailer operations
and taking children with you should be done
with care and preparation!
WARNING!
1. Only use safe and certified child seats. Taking
older children on the rear rack may NOT be
legal in your country.
2. Only use trailers with safe side-mounted
hitches (Weber, hinterher.com)
3. Always secure baskets, cargo boxes and racks
safely and in a way that they can not shake
loose while riding.
Taking children, persons or using a trailer is on
your descretion only!
Please NOTE that operating your UNIMOKE with
high loads or cargo needs to be done with extreme
care.
ONLY take children when you feel fully confident on
riding your UNIMOKE safely and use certified seats
and helmets for them! Ride at low speeds and avoid
long downhill stretches when operating at or above
the normal load limit of one driver.
Your brakes may be overloaded or fade due to
overheating if used extensively on downhill rides.
Adjust your speed accordingly when riding with
children, passengers, trtailers or high load!
Note that taking passengers is NOT legal in all
countries!
Note:
!%

18

General safety precautions
19
Read all of the following precautions carefully!
Neglecting those precautions may affect your warranty and safety!
General
AVOID hard bumps, impacts and shocks.
Take care that your bikes does not fall over. Handle your battery with care and caution!
Accidents, hard bumps or shocks and other impacts may damage the electronics, frame, battery and connectors. Do NOT intentionally
ride over potholes, off-road or in tough conditions. Adjust your riding speed accordingly to avoid excess vibration and hard impacts.
Check your UNIMOKE regulary.
Check breaks, screws and connectors regularly and do not ride your UNIMOKE with loose parts or components. Have your e-bike checked
whenever you note strange sounds or unusual vibrations. Keep your bike clean and in a tidy condition to avoid corrosion or excessive
wear and tear. Damaged or worn part and components my lead to injuries or loss of warranty!
Only ride on public roads with correct equipment and experience.
If you use your UNIKOKE on public roads, make sure you have front and rear lights in working condition. get practice with your e-bikes
behaviour before riding on public roads. We recommend to wear a certified helmet and reflective clothing on public roads. Obey traffic
rules and apply common sense when riding on public roads.
Do not ride without your battery in place.
Your battery acts as power source for your lighting equippement. Riding without working lights may be a traffic law violation.
Do not manipulate the battery, controller or engine.
Manipulating your electronics, battery or controller may lead to permanent damage, short circuits, fire or even explosion of your battery.
Do NOT temper with electronic parts or attempt to “tune” or speed up your UNIMOKE using unauthorised means. Any tampering with
your UNIMOKE electronic components will void any warranty or liability from our side and may be a criminal offence.
