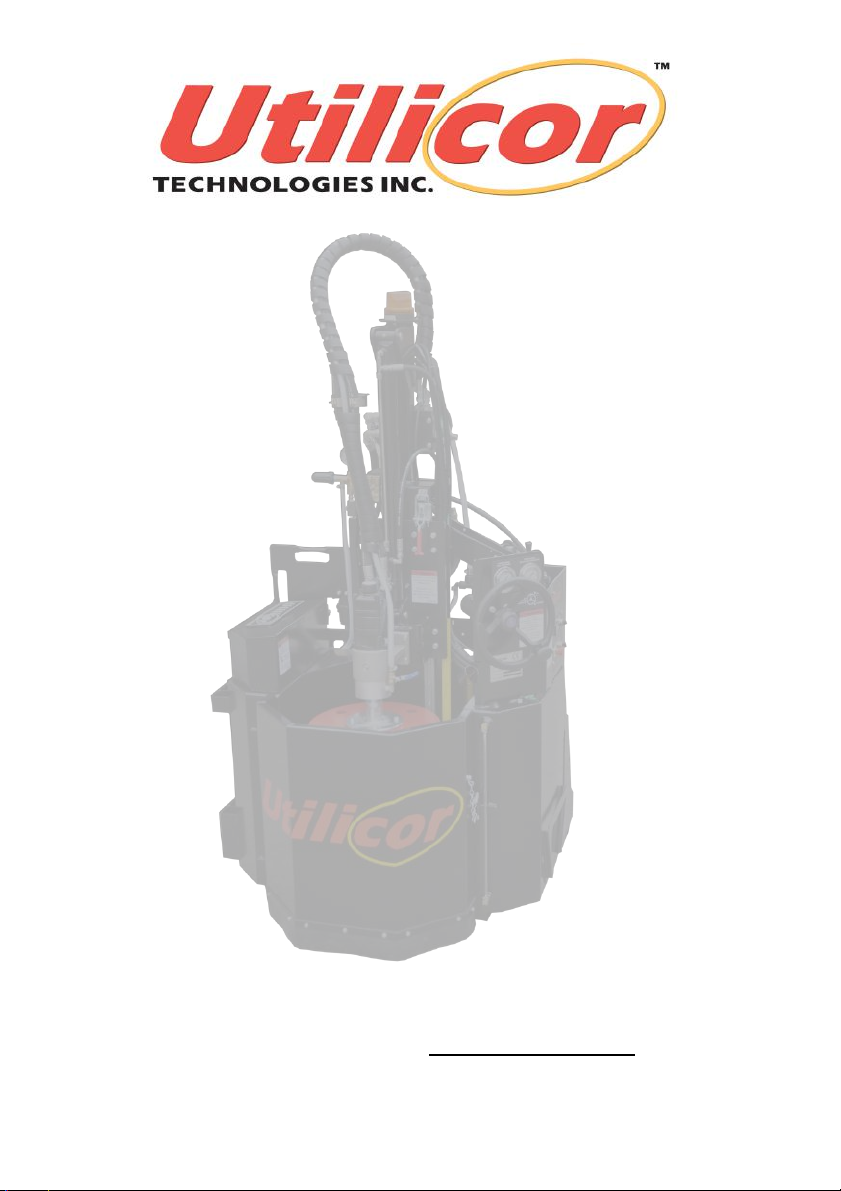

Utilicor minicor-3 User manual

minicor-3™
Rotary Coring Attachment
Operator’s Manual
2018
Version MC3 1.5
Utilicor Technologies Inc.
1-800-572-6666 www.utilicor.ca

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
1
Contents
Safety Instructions 2
Equipment Safety Guidelines 3
Preparation 5
Operational Safety 7
Transport Safety 10
Maintenance Safety 11
Storage Safety 13
Safety Warning Labels 14
Introduction 15
Suggested Operator Qualification and Training 17
Pre-Trip Procedure 18
Pre-Departure Checklist 19
Utilicor Process Pilot Bit and Integral Center Pilot Hole 20
Tips for a Successful Coring Operation 21
Step 1: Operating the minicor-3 23
Step 2: Coring Process 24
Step 3: Site Clean Up 29
Step 4: Detach Minicor-3 30
Tips for Successful Core Reinstatement 31
Winterizing 33
minicor-3™Equipment Maintenance 34
Drill Carriage Schematic 36
Core Drum Assembly 37
Pillow Block Assembly 38
Drylin Rails and Cars 39
Troubleshooting 40
minicor-3™Hydraulic Schematic 41
minicor-3™Electrical Schematic 42
Warranty (Please complete Warranty card) 43

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
2
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this
manual, and the manual for your power equipment, before installing or
operating, to acquaint yourself with the machines. It is the implement owner’s
responsibility, if this machine is used by any person other than yourself, is
loaned or rented, to make certain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be
protected against by mechanical means or product design. All operators of
this equipment must read and understand this entire manual, paying attention
to safety and operating instructions, prior to using. If there is something in this
manual you do not understand, ask your supervisor, or your dealer, to explain
it to you.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
3
SAFETY INSTRUCTIONS
EQUIPMENT SAFETY GUIDELINES
Safety of the operator is one of the main concerns in designing and
developing a new piece of equipment. Designers and manufacturers build in
as many safety features as possible. However, every year many accidents
occur which could have been avoided by a few seconds of thought and a
more careful approach to handling equipment. You, the operator, can avoid
many accidents by observing the following precautions in this section. To
avoid personal injury, study the following precautions and insist those
working with you, or for you, follow them.
Replace any CAUTION, WARNING, DANGER or instruction safety sign that
is not readable or is missing. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while operating this equipment. Consult
your doctor about operating this machine while taking prescription
medications.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its
operation. The operator should be a responsible adult familiar with machinery
and trained in this equipment’s operations.
Do not allow persons to operate or install this unit until they have read
this manual and have developed a thorough understanding of the safety
precautions and of how it works.
To prevent injury or death, use a prime mover equipped with a Roll-Over
Protective System (ROPS). Do not paint over, remove or deface any safety
signs or warning signs on your equipment. Observe all safety signs and
practice the instruction on them.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
4
Never exceed the limits of a piece of machinery. If its ability to do a job, or to
do so safely, is in question – DON’T TRY IT.
Do not modify the equipment in any way. Unauthorized modification may
impair the function and/or safety and could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety
Signs and Safety Equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and proper training of
personnel involved in the operation, transport, maintenance, and storage of
the machine. Refer also to Safety Messages and Operation Instructions in
each of the appropriate sections of the Power Unit and Minicor-3. Pay close
attention to the Safety Signs affixed to the Power Unit and the Minicor-3.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
5
PREPARATION
Never operate the power unit and minicor-3 until you have read and
completely understand this manual, the Power Unit Operator’s Manual, and
each of the Safety Messages found on the safety signs on the prime mover
and minicor-3. Only fully trained operators or trainee operators under the
close supervision of a fully trained person should use this machine.
Personal protection equipment including hard hat, safety glasses, sturdy
rough-soled safety shoes, and gloves are recommended during assembly,
installation, operation, adjustment, maintaining, repairing, removal, or moving
the implement. Do not allow long hair, loose fitting clothing or jewelry to be
around moving parts. Always wear relatively tight and belted clothing to avoid
entanglement in moving parts.
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT
HEARING LOSS!
Power units with or without implements attached can often be noisy enough
to cause permanent, partial hearing loss. We recommend that you wear
hearing protection on a full-time basis if the noise in the Operator’s position
exceeds 80db. Noise over 85db on a long-term basis can cause severe
hearing loss. Noise over 90db adjacent to the Operator over a long-term
basis may cause permanent, total hearing loss.
NOTE: Hearing loss from loud noise (from engines, chain saws, radios, and
other such sources close to the ear) is cumulative over a lifetime without
hope of natural recovery.
Operate the minicor only with a power unit Rated for 1500 pounds.
Minicor-3 operating power is supplied from the prime mover hydraulic
system. Refer to your prime mover manual for hydraulic engagement and
disengagement instructions. Know how to stop prime mover and minicor-3
quickly in case of an emergency. When engaging hydraulic system, the
engine RPM should always be low.
Personal protection equipment including safety glasses, safety shoes, and
gloves are recommended during assembly, installation, operation,
adjustment, maintaining, repairing, removal, or moving the attachment.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
6
Operate only in daylight or good artificial light.
Ensure minicor-3 is properly mounted, adjusted and in good operating
condition.
Check prime mover tire pressure before operating. Check tire ratings to be
sure they match the prime mover load.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
7
OPERATIONAL SAFETY
The use of this equipment is subject to certain hazards which cannot be
protected against by mechanical means or product design. All operators of
this equipment must read and understand this entire manual, paying attention
to safety and operating instructions, prior to using. If there is something in this
manual you do not understand, ask your supervisor, or your dealer, to explain
it to you.
Most accidents occur because of neglect or carelessness. Keep all helpers
and bystanders fifty feet (10’) from an operating power unit and attached
equipment. Only properly trained people should operate this machine. Always
stop the power unit, set brake, before engaging
auxiliary hydraulics and leaving the cab or operators platform. Never leave
equipment unattended with the engine running.
Please remember it is important that you read and heed the safety signs on
the attachment and power unit, and the safety rules set forth. Clean or
replace all safety signs if they cannot be clearly read and understood. They
are there for your safety as well as the safety of others. The safe use of this
machine is strictly up to you, the operator.
Be sure power unit is in good condition. Read all the safety precautions and
make sure all operators are familiar with the safety rules of operation.
Working with unfamiliar equipment can lead to careless injuries. It is the
equipment owner’s responsibility, if this machine is used by any person other
than yourself, is loaned or rented, to make certain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
Train all new personnel and review instructions frequently with existing
workers. A person who has not read and understood all operating and safety
instructions is not qualified to operate the machine. An untrained operator
exposes himself and bystanders to possible serious injury or death.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
8
Do not allow children to operate this machine.
Know your controls and how to stop the power unit and engine quickly in an
emergency.
READ THIS MANUAL AND THE ONE PROVIDED WITH YOUR POWER
UNIT.
Protective glasses must be worn while you operate the prime mover and
while you operate the minicor-3.
While you operate the minicor-3, check for proper operation of all controls
and all protective devices. Note any needed repairs during operation of the
minicor-3. Report any needed repairs.
Always stop the power unit, set brake, shut off the engine, remove the
ignition key, lower implement to the ground before dismounting. Never leave
equipment unattended with the power unit running.
Never place hands or feet under minicor-3 with power unit engine running or
before you are sure all motion has stopped. Stay clear of all moving parts.
Keep hands, feet, hair, and clothing away from moving parts.
Do not reach or place yourself under equipment until it is blocked securely.
Take all possible precautions when leaving unit unattended: Disengage
hydraulic power, set parking brake, stop engine and remove key from
ignition.
Park in level area.
Do not allow riders on the minicor-3 or power unit at any time. There is no
safe place for any riders.
Disengage hydraulic power and place transmission into neutral before
attempting to start engine.
Always use two people to handle heavy, unwieldy components during
assembly, installation, removal, or moving the attachment.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
9
Many varied objects, such as wire, cable, rope, or chains, can become
entangled in the coring drum. These items could then swing outside the
housing at great velocities. Such a situation is extremely hazardous. Inspect
the area for such objects before coring. Removing any like object from the
site. Never allow the rotating core drum to contact such items.
Remove from the sweeping area all property that could be damaged by flying
debris.
Use extreme care and maintain minimum ground speed when transporting on
hillside, over rough ground and when operating close to ditches or fences. Be
careful when turning sharp corners.
Reduce speed on slopes and sharp turns to minimize tipping or loss of
control. Be careful when changing directions on slopes. Do not start or stop
suddenly on slopes. Avoid operation on steep slopes.
Before leaving the operator's area for any reason – lower the minicor-3 to the
ground, stop the power unit engine, set the brakes and remove the key from
the ignition.
When coring, adhere to all government rules, local laws and other
professional guidelines for your coring application.
Never raise the minicor-3 more than a few feet off the ground. The minicor-3
can tip back or the prime mover can tip over causing death or serious injury.
When maneuvering close to buildings or passing through narrow areas, be
sure to allow sufficient clearance for the power unit and minicor-3 attachment.
Drive slowly.
Keep hands and feet away from core drum pivot points and from under the
core drum
Keep alert and watch the rear as well as the front when driving the power
unit.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
10
TRANSPORT SAFETY
Comply with state and local laws governing highway safety and movement of
machinery on public roads.
The use of flashing amber lights is acceptable in most localities.
However, some localities prohibit their use. Local laws should be checked for
all highway lighting and marking requirements.
When driving the power unit and equipment on the road or highway under 20
mph (32 kph) at night or during the day, use flashing amber warning lights
and a slow-moving vehicle (SMV) identification emblem.
Always be sure the implement is in the proper raised position for transport.
Plan your route to avoid heavy traffic.
Do not drink and drive!
Watch for traffic when operating near or crossing roadways.
Reduce speed when transporting mounted implements to avoid bouncing and
momentary loss of steering control.
Turn curves or go up or down hills only at a low speed and at a gradual
steering angle. Make certain that at least 20% of the prime mover’s weight is
on the front wheels to maintain safe steerage. Slow down on rough or uneven
surfaces, and loose gravel.
Use extreme care and maintain minimum ground speed when transporting on
hillside. Be careful when turning sharp corners.
Never allow riders on either power unit or minicor-3. Falling off can kill.
Be a safe and courteous driver. Always yield to oncoming traffic in all
situations, including narrow bridges, intersections, etc.
Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
11
MAINTENANCE SAFETY
Before adjusting or servicing the minicor-3, raise the coring drum to its
maximum height. If raising the minicor to service the coring drum block up
the arms into place.
Remove hydraulic pressure prior to doing any maintenance. Place the
minicor-3 on the ground or securely blocked up, and turn off the engine.
With the engine off and the key in the ACC position toggle hydraulic flow
controls on and off to release the pressure in the lines.
Repair or replace componetne in a safe area, away from road traffic and
other hazards.
Repair loose lines and loose hoses. Repair damaged lines and damaged
hoses. Leaks can cause fires. Do not bend high pressure lines. Do not strike
high pressure lines. Do not install bent lines or kinked hoses. Do not install
damaged lines or damaged hoses.
Before working on this machine, drive to a level area, disengage the
hydraulic power, lower implement (or if working underneath, raise and block
securely), shut off the engine, set the brakes, and remove the ignition keys.
Be certain all moving parts on attachments have come to a complete stop
before attempting to perform maintenance.
Never work under equipment unless it is blocked securely. Never depend on
hydraulic system to keep implement in raised position.
Keep all persons away from operator control area while performing
adjustments, service, or maintenance.
Always use personal protection devices such as eye, hand and hearing
protectors, when performing any service or maintenance.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
12
When working on or around the minicor-3, lower it to the ground or secure it
with transport chains.
Periodically tighten all bolts, nuts and screws and check that all cotter pins
are properly installed to ensure unit is in a safe condition.
Never use your hands to locate a hydraulic leak on attachments. Use a small
piece of cardboard or wood. Hydraulic fluid escaping under pressure can
penetrate the skin.
Openings in the skin and minor cuts are susceptible to infection from
hydraulic fluid. If injured by escaping hydraulic fluid, see a doctor at once.
Gangrene and death can result. Without immediate medical treatment,
serious infection and reactions can occur.
After servicing, be sure all tools, parts and service equipment are removed.
Check to ensure all safety signs are installed and in good condition.
A fire extinguisher and first aid kit should be kept readily accessible while
performing maintenance on this equipment.
Never replace hex bolts with less than grade five bolts unless otherwise
specified,
Where replacement parts are necessary for periodic maintenance and
servicing, genuine factory replacement parts must be used to restore your
equipment to original specifications. The manufacturer will not claim
responsibility for use of unapproved parts and/or accessories and other
damages as a result of their use.
If equipment has been altered in any way from original design, personal injury
could result. The manufacturer does not accept any liability for injury or
warranty.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
13
STORAGE SAFETY
Following operation, or when unhooking, stop the power unit, set the brakes,
disengage the hydraulic power, shut off the engine and remove the ignition
keys.
Store the unit in an area away from human activity. Do not permit children to
play on or around the stored unit.
Do not park equipment where it will be exposed to livestock for long periods
of time. Damage and livestock injury could result.
Make sure all parked machines are on a hard, level surface and engage all
safety devices. Storage location should be level and solid to make connecting
and disconnecting to power unit easy.
If blocking is used, make sure it is solid and secure before leaving area.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
14
UTIWL-010
KEEP ALL BODY PARTS AND
CLOTHING CLEAR OF
CORING DRUM AND OTHER
MOVING PARTS WHILE
OPERATING THIS EQUIPMENT.
MOVING PARTS
CREATE
PINCH POINTS.
FAILURE TO DO SO MAY RESULT
IN INJURY OR DEATH!
SECURE LOCK DOWN
LATCH(ES) BEFORE
TRANSPORT.
RELEASE LOCK
DOWN LATCH(ES)
BEFORE OPERATING
EQUIPMENT.
UTIWL-012
DO NOT OPERATE THIS
EQUIPMENT WITHOUT
READING THE
OPERATIONS MANUAL.
FAILURE DO TO FOLLOW
OPERATING PROCEDURES
MAY RESULT IN PROPERTY
DAMAGE, PERSONAL
INJURY OR DEATH.
UTIWL-009
ATTENTION
ALWAYS WEAR
APPROPRIATE PERSONAL
PROTECTION
EQUIPMENT (PPE)
WHILE OPERATING THIS
EQUIPMENT.
FAILURE TO DO SO MAY
RESULT IN PERSONAL
INJURY OR DEATH
UTIWL-006
SAFETY WARNING LABELS

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
15
Introduction
Utilicor Technologies Inc. (Utilicor)
Utilicor is the exclusive manufacturer and distributor of a field-proven,
keyhole coring and pavement reinstatement system. Our mission is to
develop new, innovative and cost effective technologies for the utility
industry.
Utilicor Process
The Utilicor process, referred to as "Utilicoring", combines the purpose-built,
field proven, truck or minicor-3™ skid-steer mounted, Utilicor Rotary Coring
Unit with Utilibond™, a proprietary bonding compound, that have been
specially engineered for coring and the permanent reinstatement of the cored
coupon in asphalt, asphalt-concrete, concrete and reinforced concrete road
surfaces, and concrete sidewalks. The process has been approved as a
permanent pavement repair by several transportation authorities in both
Canada and the USA since 1992, on thousands of keyhole excavations, with
ZERO failures.
Utilibond™, our proprietary core bonding compound is an integral part of the
reinstatement process and has been independently tested and shown to
create a bond (in less than 30 minutes at 70ºF) that is stronger than the
original pavement and can support the combined weight of five transit buses
in under half an hour.
The Purpose of The Operations Manual
This manual is intended as a reference guide for operating and maintaining
the Utilicor coring equipment and performing core reinstatements using
Utilibond™. It is designed to familiarize the operator with the main elements
of the process, and to answer common questions, but does not replace
comprehensive, on-the-job training performed by a competent trainer. Neither
should it be considered as a replacement for common sense or a substitute
for the maintenance requirements of the vehicle or equipment on which your
Utilicor unit has been installed or mounted. Most importantly, this operations
manual is intended to be used in conjunction with the internal policies,
procedures and maintenance schedules already established by your
company, and does not supersede them.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
16
If you feel the information provided in this manual is not sufficient to operate
the equipment or carry out the processes described, Utilicor Technologies
Inc. is available to answer your questions and to facilitate any training needs
you may require. Please contact us directly for more information at 1-888-
572-6666 (toll free), or via email to [email protected].
For safety reasons, this entire Operations Manual should be reviewed prior to
operation of the Utilicor Rotary Coring Unit. Failure to review the entire
manual prior to commencing operations, or to follow warnings and operating
procedures outlined in this manual, may result in damage to the equipment,
injury, or possibly death.
Always take extreme care when operating or working around all
equipment.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
17
Suggested Operator Qualifications and Training
Proper training and qualification of operators is a key factor in the success of
any operation or maintenance program. All operators who operate this
equipment should have the appropriate skill set, accreditation, training and/or
certification, as well as a good amount of common sense.
The operator should be a “competent person” whose qualifications include:
• A valid driver’s license for the appropriate class or level of motor
vehicle or piece of equipment being operated.
• Successful completion of a practical, on-site training program and
operating examination for the Utilicor equipment, administered by a
qualified trainer.
• First Aid and CPR training.
• Traffic safety and awareness training for construction sites.
• Safe excavation procedures training
• Underground electrical awareness training.
• Familiarity with ONE-CALL (Call before you dig) local requirement.
REMEMBER: This manual is only a guide. Always consult, and follow
your own company's policies and procedures that pertain to safety and
training and use your common sense.

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
18
Pre-Trip Procedures
Circle-Check
Safe and reliable operation of any piece of equipment starts with a
comprehensive and thorough pre-trip and post trip procedure. Walk around
(circle-check) the Utilicor coring equipment to ensure that the unit is safe to
operate.
Pre-Trip Inspection
The following is a suggestion of some important elements of a pre-trip
procedure. Consult your own company's procedures before continuing.
Before inspection, ensure that the vehicle is positioned on a clean, dry and
level surface, with wheels chocked both front and back.
(1) External:
• Visually inspect the minicor-3™ unit
• Check for hydraulic fluid and other leaks.
• Fill water tank
• Inspect Core Drum and Pilot Bit
(2) Skid-steer:
• Check hydraulic reservoir
• Check fuel level

© 2018 Utilicor Technologies Inc.
minicor-3 V1.5
19
Pre-Departure Checklist
This checklist is designed to make your job and your day run much smoother.
You may find it helpful to keep a copy of this list in the coring unit. Feel free to
add to it as you see fit.
(1) Has the power source been refueled?
(2) Is the water tank full?
(3) Are all other fluid levels topped up?
(4) Are the pilot bit and coring drum in good condition? Examine both for
excess wear and replace if necessary. Check to make sure the truck
has spares of both items.
(5) Do you have all necessary personal protection equipment?
(6) Is the equipment secured to the trailer for transit?
(7) When loading the power source and MTC on the trailer, ensure that
MTC is raised high enough to clear the trailer in loading forwards or to
clear the ground if loading backwards, otherwise serious damage to
the unit may result.
(8) Are your Driver's Licensed, H2S, WHIMIS, First Aid certificates and are
other necessary documents available and current?
(9) Have you completed all other pre-departure checks and procedures
mandated by your company?
(10) Do you have all the required work-orders and paperwork?
