Parts List
1Crossover truck tool box
2Key
1Divider tray
(not included with all models)
2Rail pad
2J-hook, 3"
2Washer, 1/4"
2Nut, 1/4"
INSTALLATION MANUAL
Tools Required
Ratchet Socket set
Tape measure --
Level of Difficulty
Easy

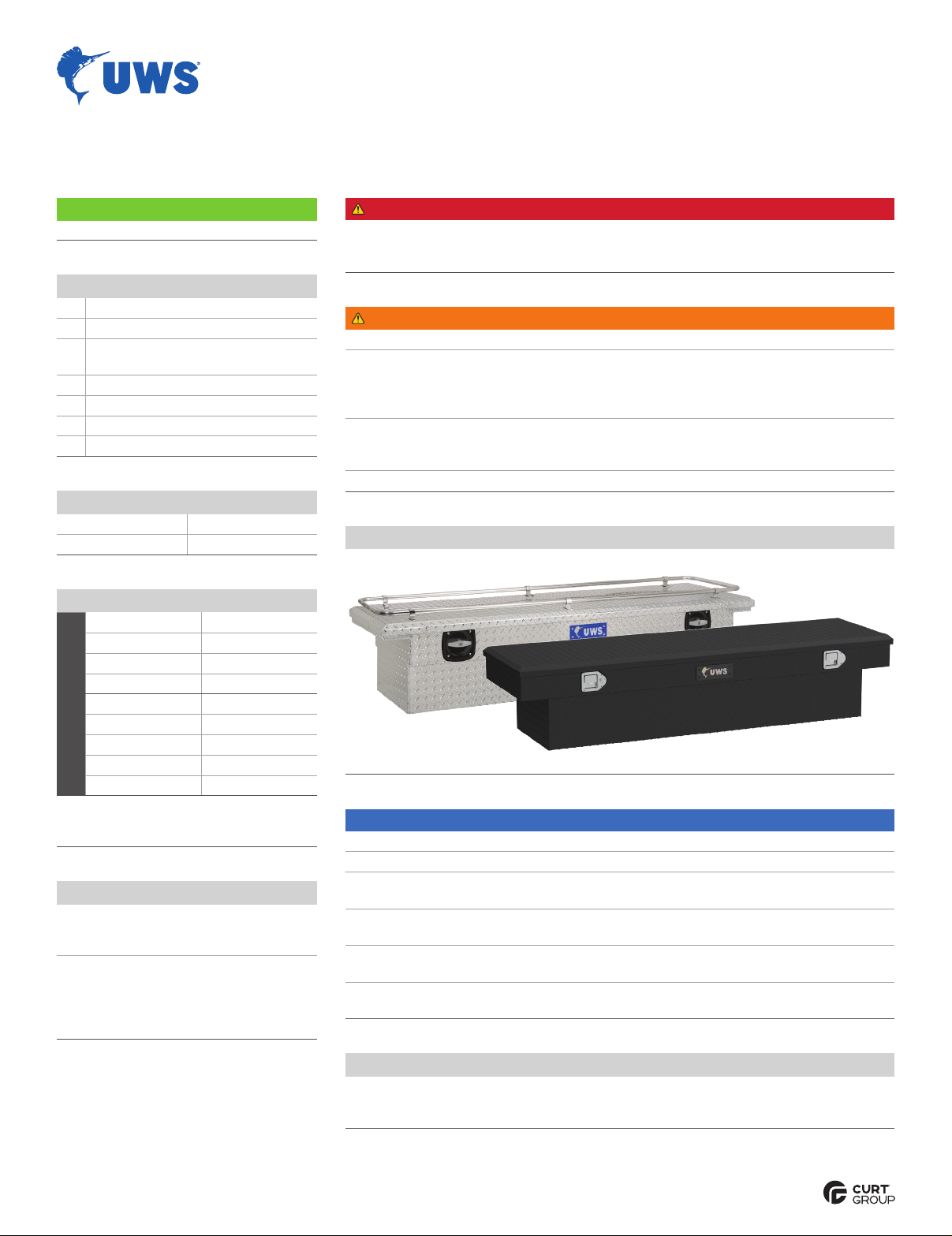

Representative Product Photos (your specific box may vary in style, size or finish)
CROSSOVER
TRUCK TOOL BOX
Maintenance
For polished, gloss and other smooth
finishes, polish may be used to clear
small scratches and scuffs on the finish.
Mild automotive detergent may be used to
clean the product. Do not use dish detergent,
abrasive cleaners, abrasive pads, wire
brushes or other similar products that
may damage the finish.
DANGER
Danger of explosion. Do not use this product for storing or transporting flammables,
explosives, hazardous materials or hazardous waste, such as containers of gasoline,
solvents, gun powder, dynamite, propane tanks, acetylene tanks and cutting torches.
WARNING
Never exceed the vehicle manufacturer's recommended capacity.
Before drilling into your truck bed, check under your vehicle to ensure the drill location does
not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks, etc.
Precaution must be taken that all fasteners near the fuel tank do not create the possibility
of fuel tank puncture or other damage during a collision.
This product can reduce the driver's ability to clearly see roadways, vehicular or pedestrian
traffic and other objects through the rear and side windows of the vehicle, which may cause
an accident. Extra precaution should be taken when driving a vehicle with this product.
Do not interfere with factory-installed safety equipment.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the torque
specifications when securing hardware during the installation process.
Do not use this product for purposes other than those
for which they were designed. Never modify this product.
Consult your dealer if you have any questions regarding
the installation, operation, use and limits of this product.
Treat or seal all fasteners and exposed metal in any
holes drilled in vehicle to prevent corrosion.
Torque Specifications*
Metric
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
SAE
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
* Above specifications are general guidelines.
If purchasing hardware use the torque
specifications provided with that hardware.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys

UWSTA.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •RA •PAGE 2
Step 1
Place the tool box in the truck bed, as shown.
Check the clearance with the lid open.
Attach the adhesive side of the rail pad
to the underside of the tool box ends.
Place the tool box with the rail pads
adhered on top of the truck bed rails.
Using a tape measure, make sure the
tool box is centered in the truck bed.
Open the tool box lid. Ensure there is clearance
between the open lid, top and back of the cab.
Step 4
CAUTION
Ensure all knobs, bolts, screws, straps and
locks are firmly secured before every trip.
Periodically re-tighten and inspect all components
for signs of wear, corrosion and fatigue.
With the crossover tool box installed, periodic
inspections should be performed to ensure
all mounting hardware remains tight.
To protect your investment, see the
'Maintenance' section on page 1.
Congratulations on the installation of
your new UWS crossover truck tool box.
Rail pad
Center
Rail pad
Step 2
Place a J-hook under the lip of the bed rail and
insert the threaded end up through the slot.
Only use one hole and J-hook assembly on each
side.
Attach with a washer and nut.
Snug the hardware, but do not fully tighten.
Repeat on the other side of the vehicle.
Re-measure to ensure the tool box is centered
and allows lid clearance when open.
Fully tighten all hardware.
Step 3
Tool boxes come with adjustable strikers.
If the strikers are ever out of alignment,
simply loosen, adjust and re-tighten.
Periodically lubricate the strikers and
locks to ensure optimum performance.
Rail pad Nut
Washer
J-hook
