v.link CI-RL4-MIB3-E User manual

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Video-inserter
CI-RL4-MIB3-E
Compatible with
VW vehicles with
MIB3 Entry - Composition with 8.25inch monitor
Seat vehicles with
MIB3 Entry - with 8.25inch monitor
Skoda vehicles with
MIB3 Entry with 8.25inch monitor
Video-inserter for front- and rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the interface compatibility of vehicle and accessories
1.3. Connectors - video interface
1.4. Connectors - daughter PCB
1.5. Dip-switch settings
1.5.1. 8 dip –black
1.5.1.1. Activating the front camera input (dip 1)
1.5.1.2. Enabling the interface’s video inputs (dip 2-3)
1.5.1.3. Rear-view camera setting (dip 5)
1.5.2. 4 dip - red
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Installation –Daughter PCB
2.3.1. Head units with DIN housing
2.3.2. Special case: Head units without DIN housing
2.3.3. Warning notes, concerning the installation of ribbon cables
2.4. Connection –20pin picture signal cable
2.5. Connection –10pin Power / CAN cable
2.6. Analogue power supply
2.7. Power supply output
2.8. Connection –video inputs
2.8.1. Audio insertion
2.8.2. After-market front camera
2.8.3. After-market rear-view camera
2.8.3.1. Case 1: Interface receives the reverse gear signal
2.8.3.2. Case 2: Interface does not receive the reverse gear signal
2.9. Connection –external keypad
3. Interface operation by external keypad
4. Picture settings
5. Specifications
6. Frequently asked questions

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior toinstallation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation has to be free of
moisture and away from heat sources.

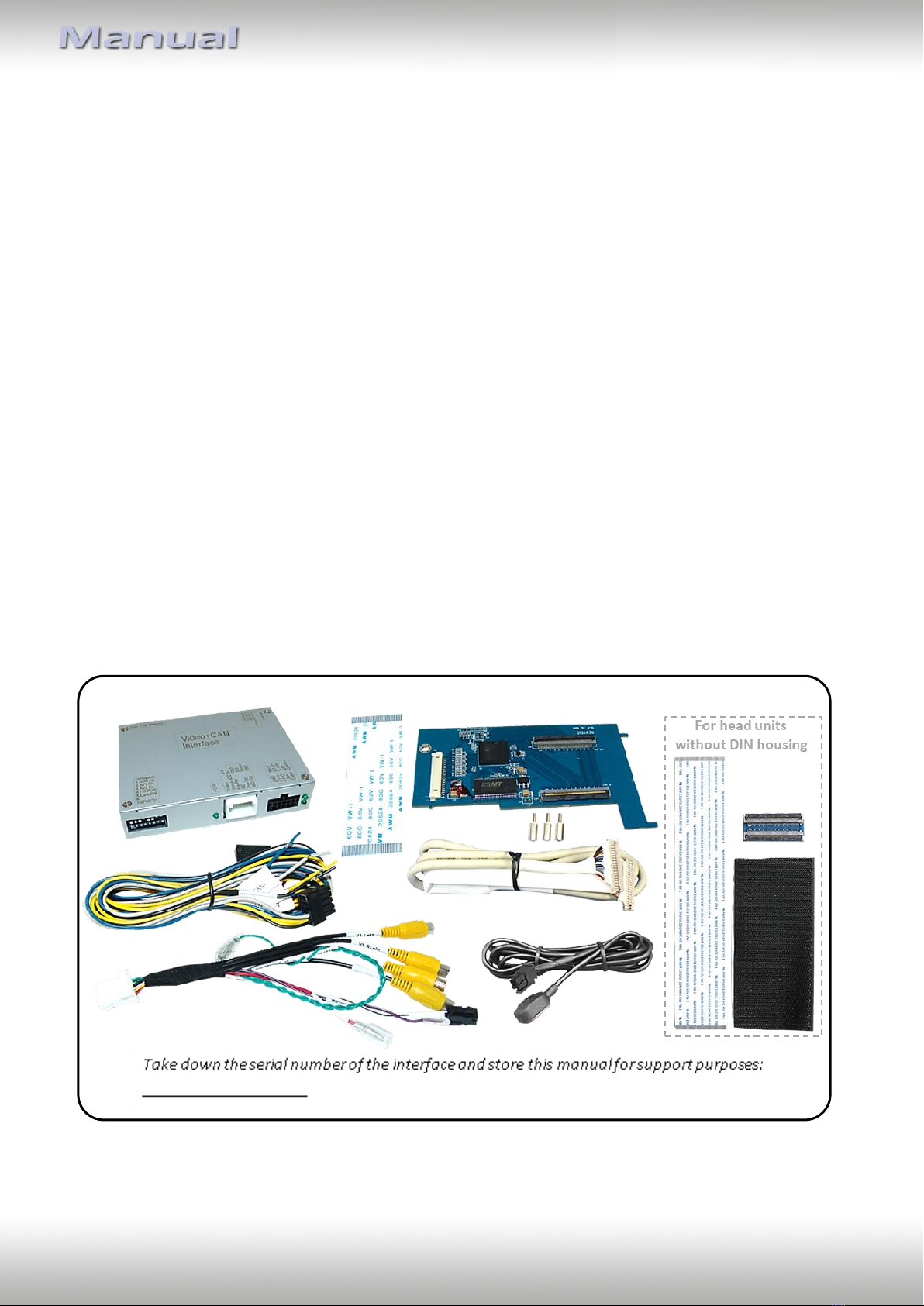

1.1. Delivery contents

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page4
Requirements
Brand
Compatiblevehicles
Compatiblesystems
Seat/Cupra
Arona (KJ7) sincemodelyear2022
Ateca (KH7) sincemodelyear2021
Ibiza5 (KJ) sincemodelyear2022
Tarraco (KN2) since12/2018
MIB3 Entry infotainment
with 8.25inch monitor
Skoda
Fabia 4 (PJ) ab 09/2021
Octavia4 (NX) since07/2019
Scala (NW1) since01/2019
MIB3 Entry - Compositioninfotainment
with 8.25inch monitor
VW
Caddy5 (SB) since11/2020
Golf8 (CD) since12/2019
MIB3 Entry –Composition infotainment
with DIN cage behind 8.25inch monitor
or MIB3 Entry - Composition 825 short version
without DIN cage behind 8.25inch monitor
Limitations
Insertedvideopicture In theinsertedvideopicture (front andrearviewcamera, video 1 andvideo 2)
a 5mm wideblackstripremains on bothsidesthatcannotbefaded out.
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory audio-AUX-input or
a FM-modulator can be used.
In case that 2 AV sources shall be connected, a desired audio switching will
require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging
the reverse gear. A manually front camera switching is possible by external
keypad.
Guidelines Displayed guidelines are not available in all vehicles.
1.2. Checking the compatibility of vehicle and accessories

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page5
1.3. connectors - video-interface
The video-interface (daughter PCB) converts the video signals of connected after-market
sources in a factory monitor compatible picture signal which is inserted in the factory
monitor, by using separate trigger options.
1.4. connectors–daughter PCB

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page6
1.5. Dip-switch settings
1.5.1. 8 dip - black
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down is ON and position up is OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear (see following information).
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
1.5.1.1. Activating the front camera input (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
Description of the front camera power supply: see chapter “Power supply output”.
1.5.1.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs, disabled inputs
will be skipped when switching through the video-interfaces inputs.

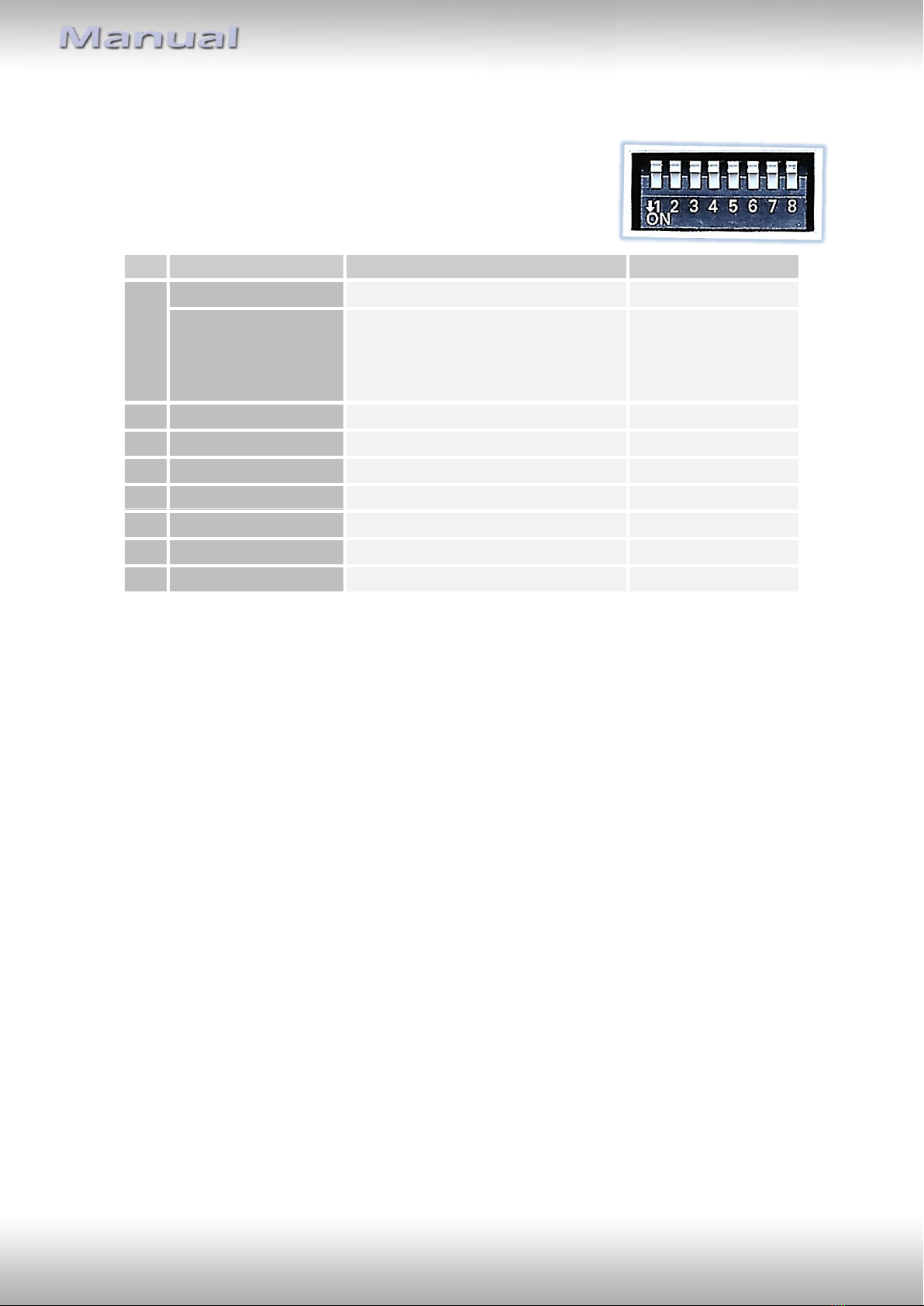

Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
Set to OFF
7
No function
Set to OFF
8
No function
Set to OFF

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page7
1.5.1.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera.
If set to ON, the interface switches to its rear-view camera input „V4 Reverse“ while the
reverse gear is engaged.
Note: Dip 4, 6, 7and 8 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!

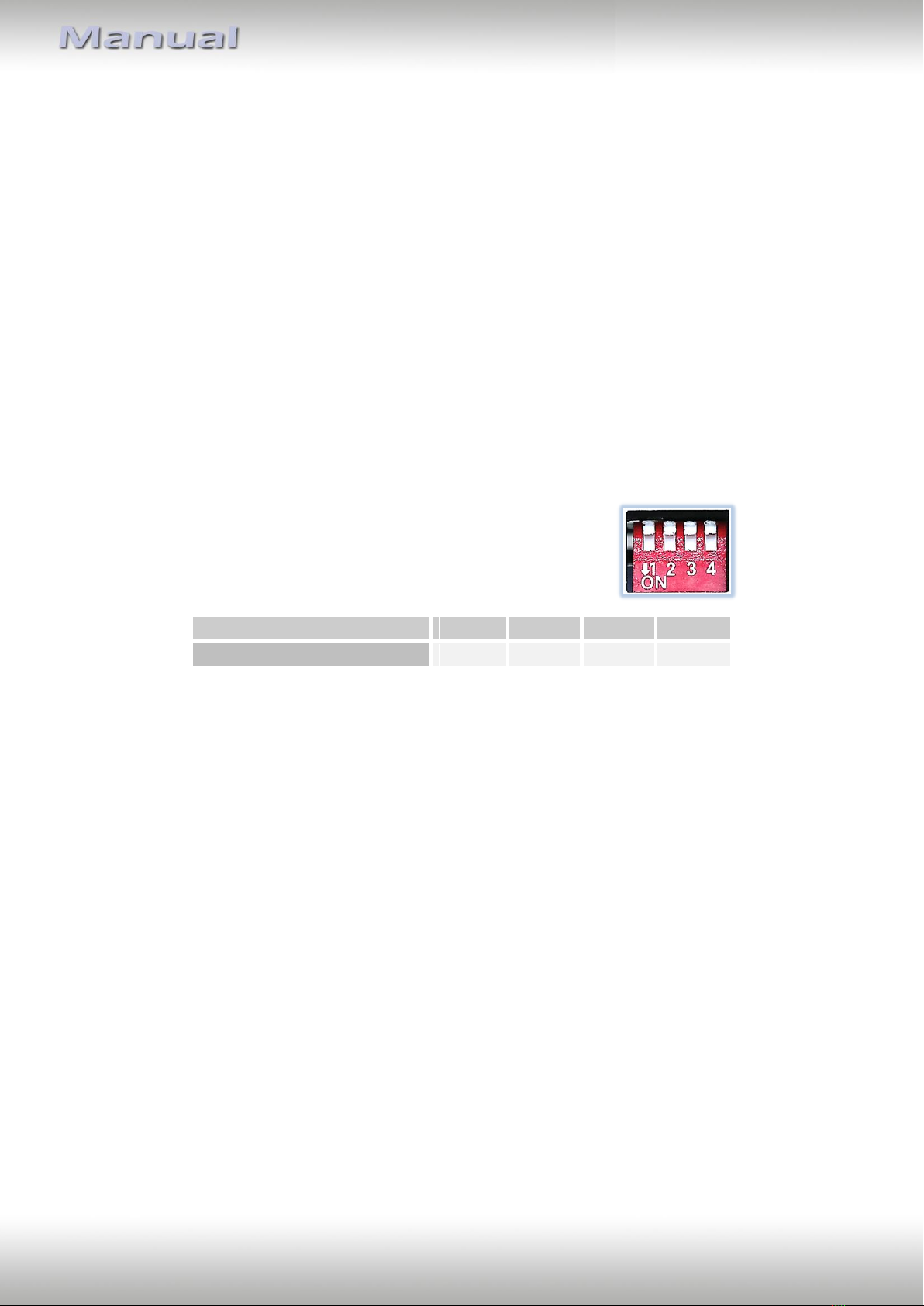

1.5.2. 4 dip - red
By using the Dip-switches, the factory Head-unit or vehicle can be chosenwhich the interface
will be connected to.
Dip position down is ON and position up is OFF.
Set all dip switches to off
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page8
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle to“Sleep-Mode”. In case it does not succeed,
disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place ofinstallation
The video interface is designated to be connected behind the vehicle`s head unit.
The daughter PCB is prepared to be connected inside the factory head unit).

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page9

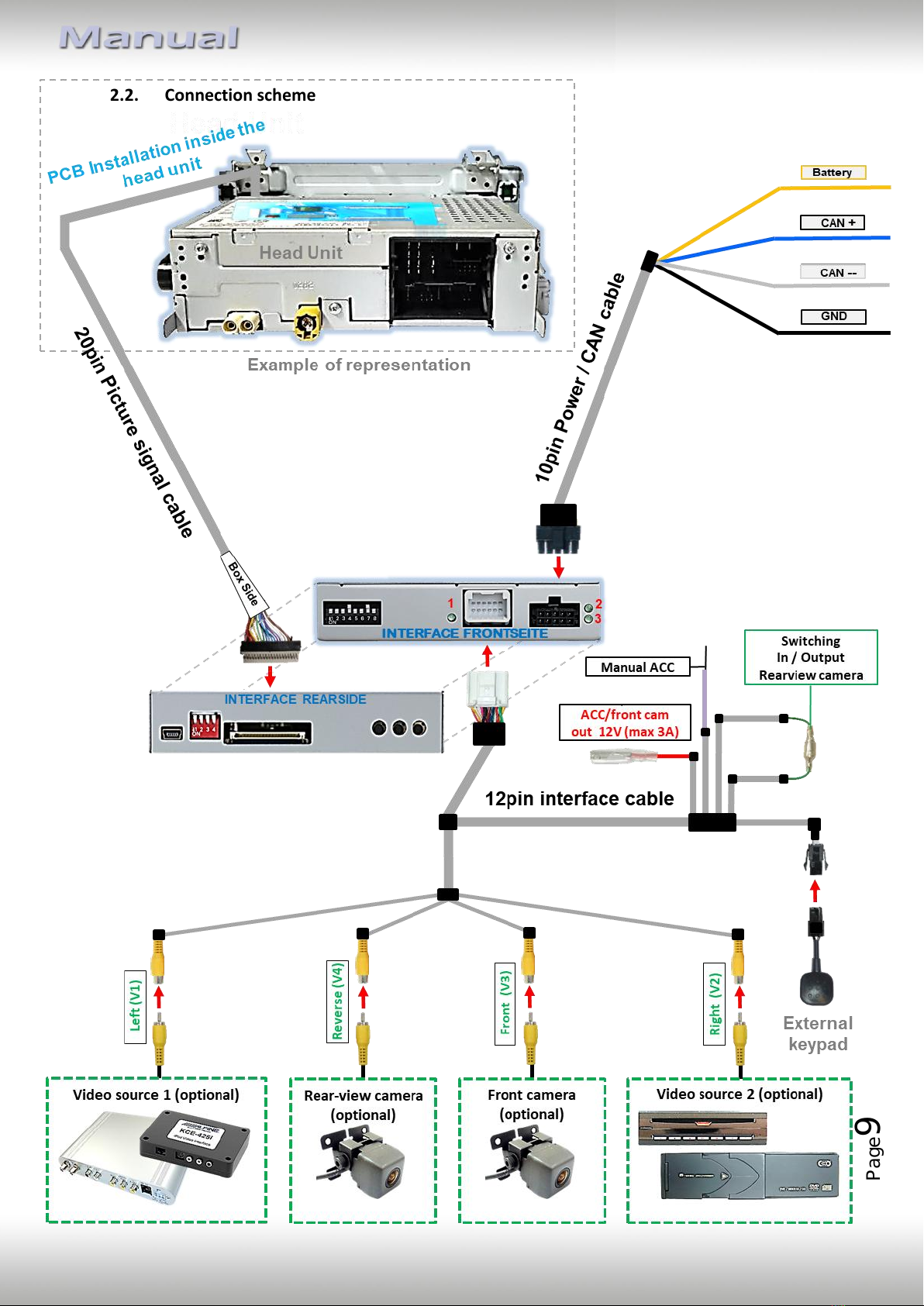

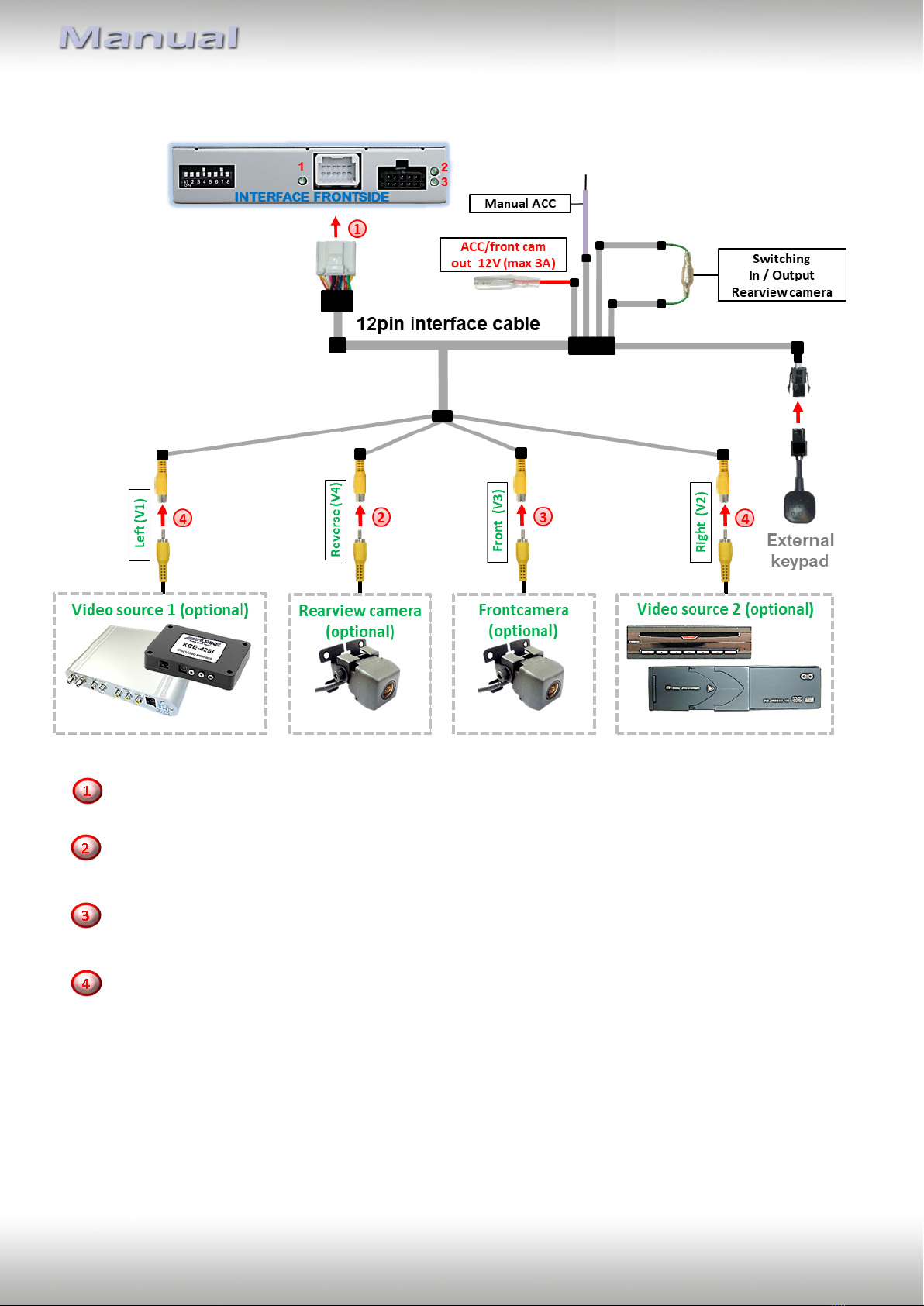

2.2. Connection scheme

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page10
2.3. Installation –daughter PCB
2.3.1. Head units with DIN housing
Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed
into the optical lead between the monitor panel and mainboard of the vehicles monitor.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page11
2.3.2. Special case: Head units without DIN housing
For installation on head units without DIN housing, the enclosed
long ribbpn cable and the flex cable merger are used in addition
to the short ribbon cable.
The mounting location of the daughter PCB is at the rear-side of
the head unit (with enclosed Velcro tape).

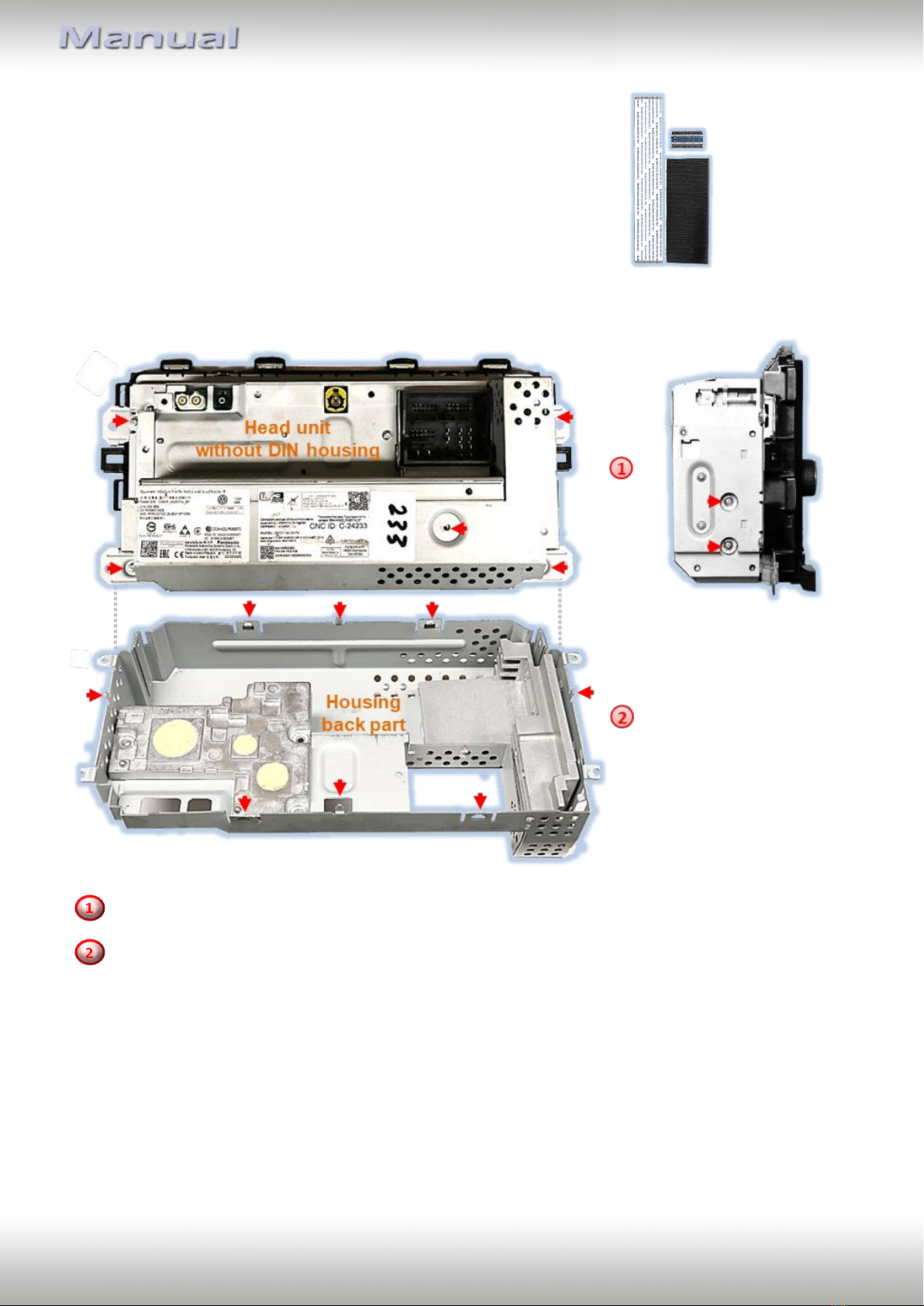

Remove themarkedscrews on therear-sideandsideofthe backhousing.
Unclickthemarkedmetaltabsofthehousing‘s back sectionandcarefullylift off the back
sectionandthenlayitaside.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page12
Unscrewthemarkedscrewsofthemainboard.
Carefully lift off the main board and unclip the copper-coloured 60pin factory picture signal
cable, coming from the monitor, from the bottom side of the main board.
After the main board has been put aside, unscrew the marked screws of the intermediate
metal sheet and put it aside as well.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page13
Mill away enough of the plastic housing at the marked point to allow the flex cables to pass
through without friction between the housing and the intermediate plate later on.
Clip the copper-coloured 60pin factory picture signal cable coming from the monitor to the
enclosed ribbon cable mergerin the shown position.
Clip the enclosedshort 60-pin picture signal cable to the other side of the enclosedribbon
cable merger in the shown position.
Caution: It is impossible to feed the flex cables through at another location without
damaging them!

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page14
Protect the two 60pin ribbon cables from injury by using fabric tape and refit the
intermediate metal sheet.

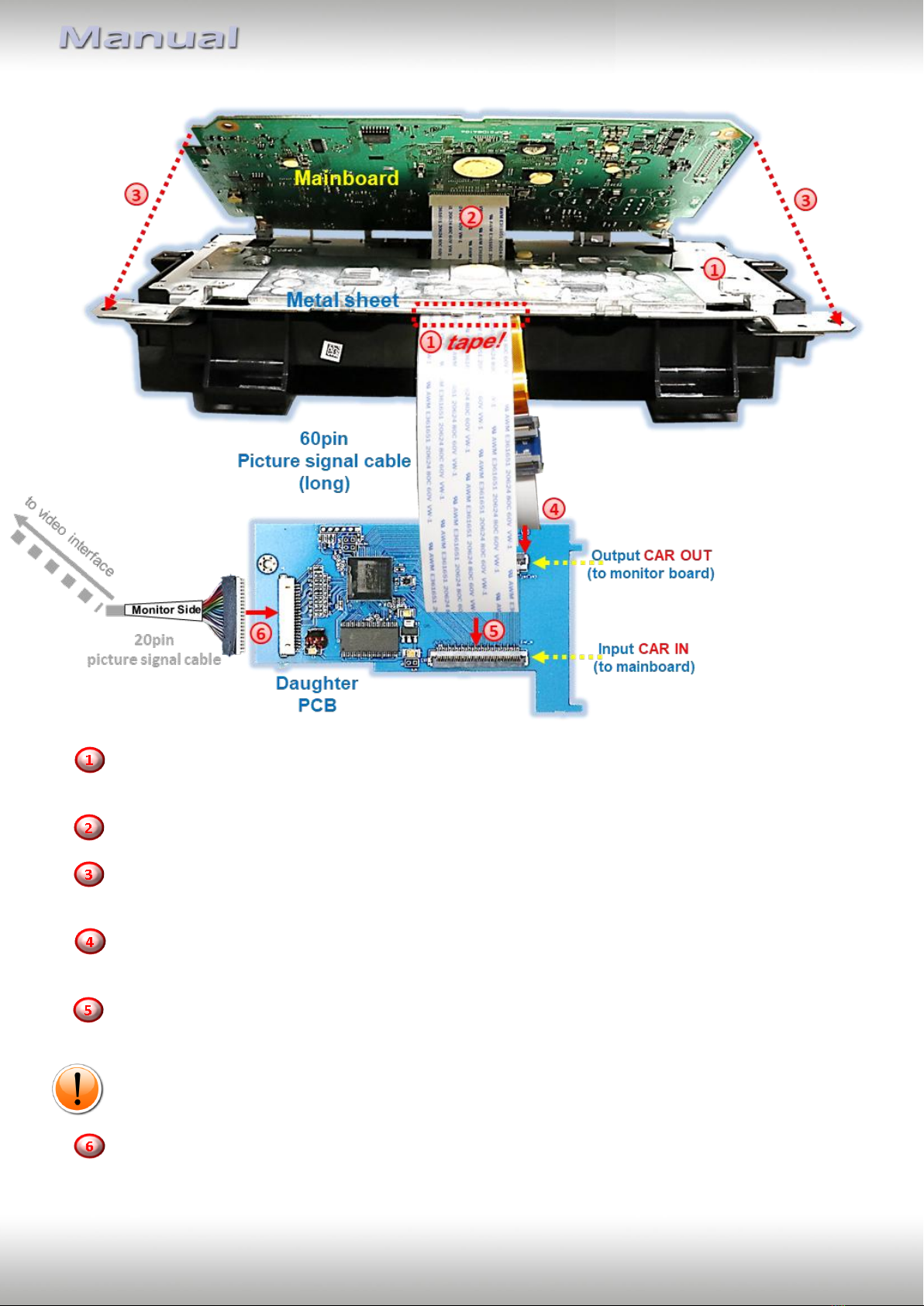

Clip-in the enclosedlong 60pin ribbon cable at the ribbon cabe base below the main board.
Place the main board back on the intermediate metal sheet and fasten it with the original
screws (then also refit the housing back part).
Clip-in the enclosed short 60pin ribbon cable(previously attached to the flex line socket of
the mainboard) to the ribbon cable baseCAR OUT of the daughter PCB.
Clip the long 60pin flex line previously attached to the ribbon cable base of the mainboard to
the ribbon cable baseCAR IN of the daughter PCB.
Caution: Inadvertently mixing up the inputs and outputs CAR IN and CAR OUTmay cause
considerable damage to the head unit’s electronics!
Connect the 20pin connector of the 20pin picture signal cable to the 20pin connector of the
daughter PCB.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page15
2.3.3. Warning notes, concernin the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and precise
180° position to the connector. Each deviation froma perfect contact position will curse
faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the
connector, concerning the mounting position.
2.4. Connection –20pin picture signal cable

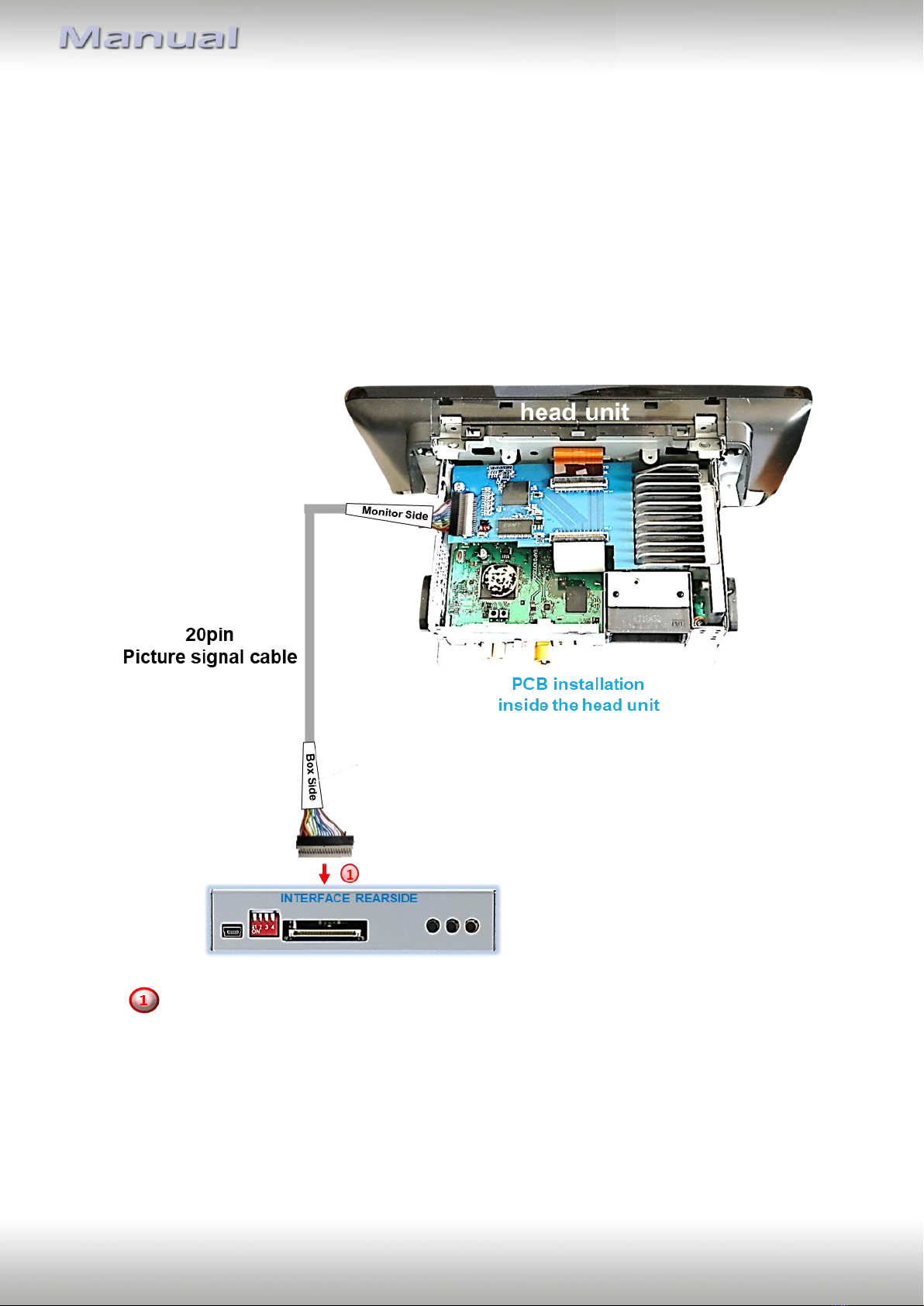

Connect the female 20pin connector of the daughter PCB’s pre-connected 20pin
picture signal cable to the video interface’s male 20pin connector.
Note:
The connectionofthe20pin
picturesignalcableisidenticalforexternalinstallation(headunitwithout DIN housing). After
thedaughterPCB`sinstallationhasbeencompleted, attacheittothe
backpartoftheheadunit,usingtheenclosedVelcrotape.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page16
2.5. Connection –10pin Power / CAN cable
Connect the enclosed 10pin Power / CAN cable’s female10pin connector to the male 10pin
connector of the video interface.
Connect the single grey wire „CAN LOW“of the 4 cables to the vehicle’s CAN low wire and
isolate the connection
Connect the single blue wire „CAN HIGH“of the 4 cables to the vehicle’s CAN high wire and
isolate the connection
Connect the single red wire to stabile +12V terminal 30.
Connect the single black cable to the vehicle’s negative Ground.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page17
2.6. Analog power supply
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), the analogue connection is required.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’spurple coloured wire Manual ACCto +12V Ignition power
or to +12V S-contactterminal 86s +12V(e.g. glove compartment illumination).

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page18
2.7. Power supply output
The red power supply output ACC/front cam out 12V (max 3A) can be used to power an
external source and has a different assignment, depending on the position of dip switch 1
(of8 dips):
Dip
Function
Dip 1 ON
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay
after reverse gear is disengaged and
+12V when manually switched to front camera by keypad (short press)
Dip 1 OFF
+12V permanent (max. 3A) ACC

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page19
2.8. Connection –Video sources
It is possible to connect an after-market rear-view camera, an after-market front camera and
two more video sources to the video-interface.
Before the final installation, we recommend a test-run to detect a incompatibility of
vehicle and interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
Limitation: In theinsertedvideopicture (front andrearviewcamera, video 1 andvideo 2) a
5mm wideblackstripremains on bothsidesthatcannotbefaded out.

Version 15.07.2022 HW CAM(V100) / (V11.3) CI-RL4-MIB3-E
Page20
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
the video-interface.
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female
RCA connector „Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCA connector „Front V3“.
Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA
connector “Left (V1)”and ”Right (V2)”.
