v.link CI-VL2-MBN45 User manual

Version 31.03.2014
v.LiNK Video-inserter
CI-VL2-MBN45
for Mercedes Benz vehicles
generation NTG4.5-204 with
Comand Online, Audio50 APS or Audio 20
with 4pin HSD LVDS connector on the monitor
Video-inserter with 2 video + RGB + rear-view camera input and CAN control
Product features
Video-inserter for factory-infotainment monitors
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activitable parking guide lines for rear-view camera
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible

Version 31.03.2014 CI-L2-MBN45
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Dip-switch settings
1.3.1. Vehicle selection (dip 7-8)
1.3.2. Video signal selection after-market navigation (Dip 4)
1.3.3. Enabling the interface’s video inputs (dip 1-3)
1.3.4. Rear-view camera settings (dip 5)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connecting video-interface and CAN-box
2.4. Connection to the factory monitor
2.5. Connection to the head-unit
2.6. Connecting peripheral devices
2.6.1. Video-sources to IN1 and IN2
2.6.2. Audio-switch and audio-insertion
2.6.2.1. Special case: Audio-insertion at Comand Online NTG4.5 without factory
media-interface
2.6.3. After-market rear-view camera
2.6.4. After-market navigation
2.7. Connecting video-interface and keypad
2.8. Picture settings
2.9. Activation of parking guide lines for rear-view camera
3. Interface operation
3.1. By Comand-buttons
3.2. By keypad
4. Specifications

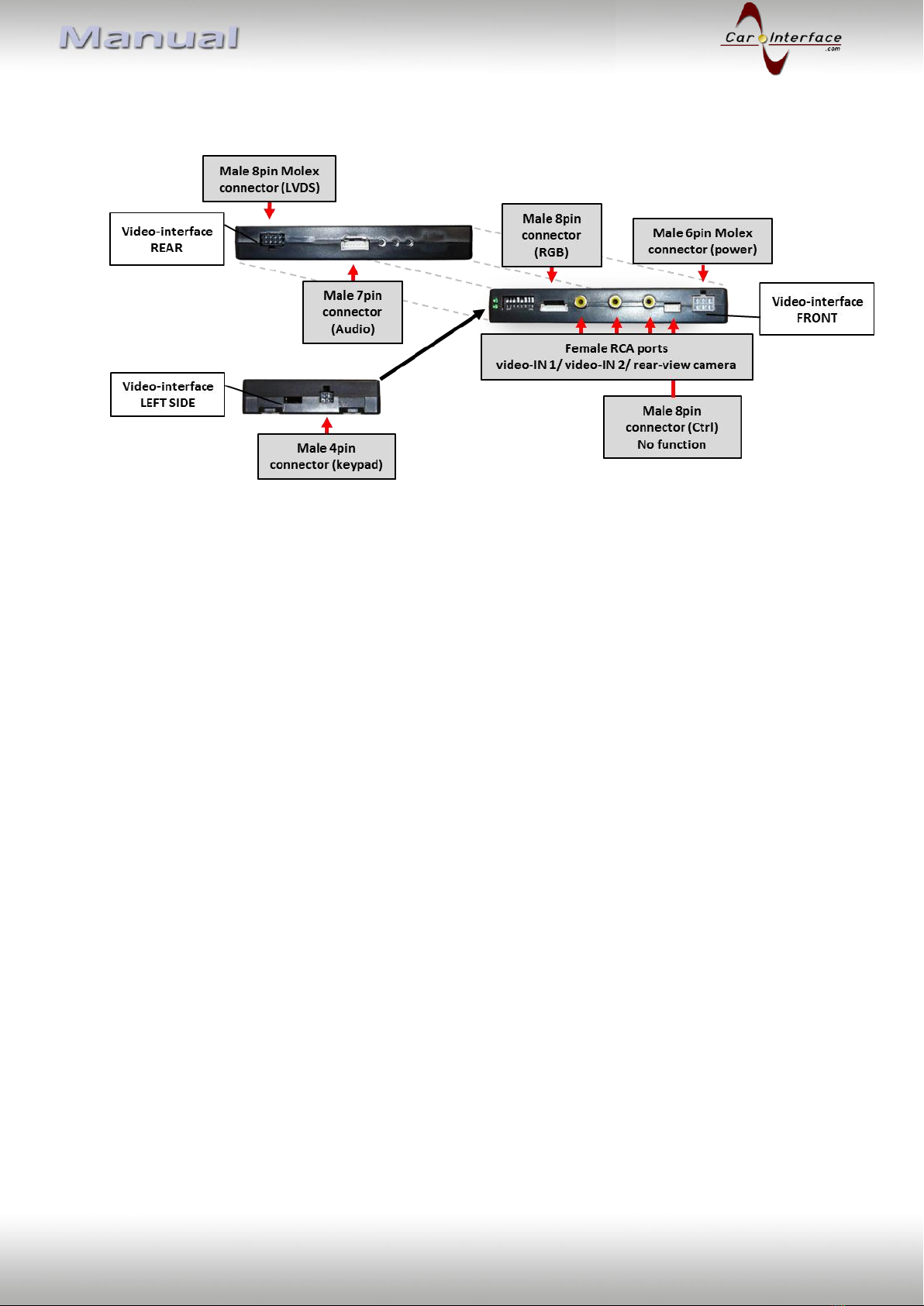

5. Connections (video-interface)

Version 31.03.2014 CI-L2-MBN45
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 31.03.2014 CI-L2-MBN45
Page4
Requirements
Vehicle Vehicles generation NTG4.5
Head-unit/monitor Comand Online NTG4.5, Audio20 NTG4.5
with 4pin HSD LVDS connector on the monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For sound use the possibly existing factory-audio-AUX-input or a
FM-modulator (exception: Comand Online NTG4.5 without
factory media-interface).
1.2. Checking the compatibility of vehicle and accessories
1.3. Dip-switch settings
With the video interface boxes dip-switches it is possible to select vehicle/navigation the
interface is to be installed in (dip 7 and 8), to select the video signal of an optional connected
after-market navigation (Dip 4), to dis- or enable the interfaces inputs
(dip 1 to 3) and to preselect the type of camera which is (to be) installed
(dip 5).
Dip position down is ON and position up is OFF.
1.3.1. Vehicle selection (dip 7-8)
Choose the vehicle/navigation/monitor the interface is to be installed to and set dip 7
through 8 according to the below table.
Vehicle/ Navigation
Dip 7
Dip 8
7“-monitor with resolution 800x480
OFF
OFF
5.8”- monitor with resolution 480x240
OFF
ON
1.3.2. Video signal selection after-market navigation(Dip 4)
To the video interface’s RGB-input it is possible to connect a RGB- or a VGA-video source. Set
dip 4 according to table.
After-Market Navigation
Dip 4
VGA (RGB-Input Pin 4 H-Sync, Pin 8 V-Sync)
ON
RGB NTSC
OFF
Note: VGA-mode is only possible on the 7“-monitor.

Version 31.03.2014 CI-L2-MBN45
Page5
1.3.3. Enabling the interface’s video inputs (dip 1-3)
Only the enabled video inputs can be accessed when switching through the video sources. It
is recommended to enable only the required inputs for the disabled will be skipped when
switching through the video interfaces inputs.
1.3.4. Rear-view camera settings (dip 5)
Depending on whether no camera, after-market camera or
factory camera shall be used, dip 5 must use different settings.
If set to OFF, the interface switches to factory LVDS picture
when the reverse gear is engaged to display factory rear-view
camera or factory PDC picture.
Note: If the Can-bus does not work while connecting an after-market rear-view camera, cut
the green cable of the 6pin to 8pin cable at the black 8pin connector and connect it to the
reverse gear light (+12V). For this use a relay because the reverse gear light of the vehicle is
clocked (relay AC-RW1230 and AC-RS5 optional available).
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place of installation
The interface is installed on the backside of the factory monitor and on the backside of the
head-unit.
Dip
Video-input
ON (down)
OFF (up)
Dip 1
RGB
enabled
disabled
Dip 2
Video IN1
enabled
disabled
Dip 3
Video IN2
enabled
disabled
Rear-view
camera type
Dip 5
None
OFF
Factory
OFF
After-market
ON

Version 31.03.2014 CI-L2-MBN45
Page6

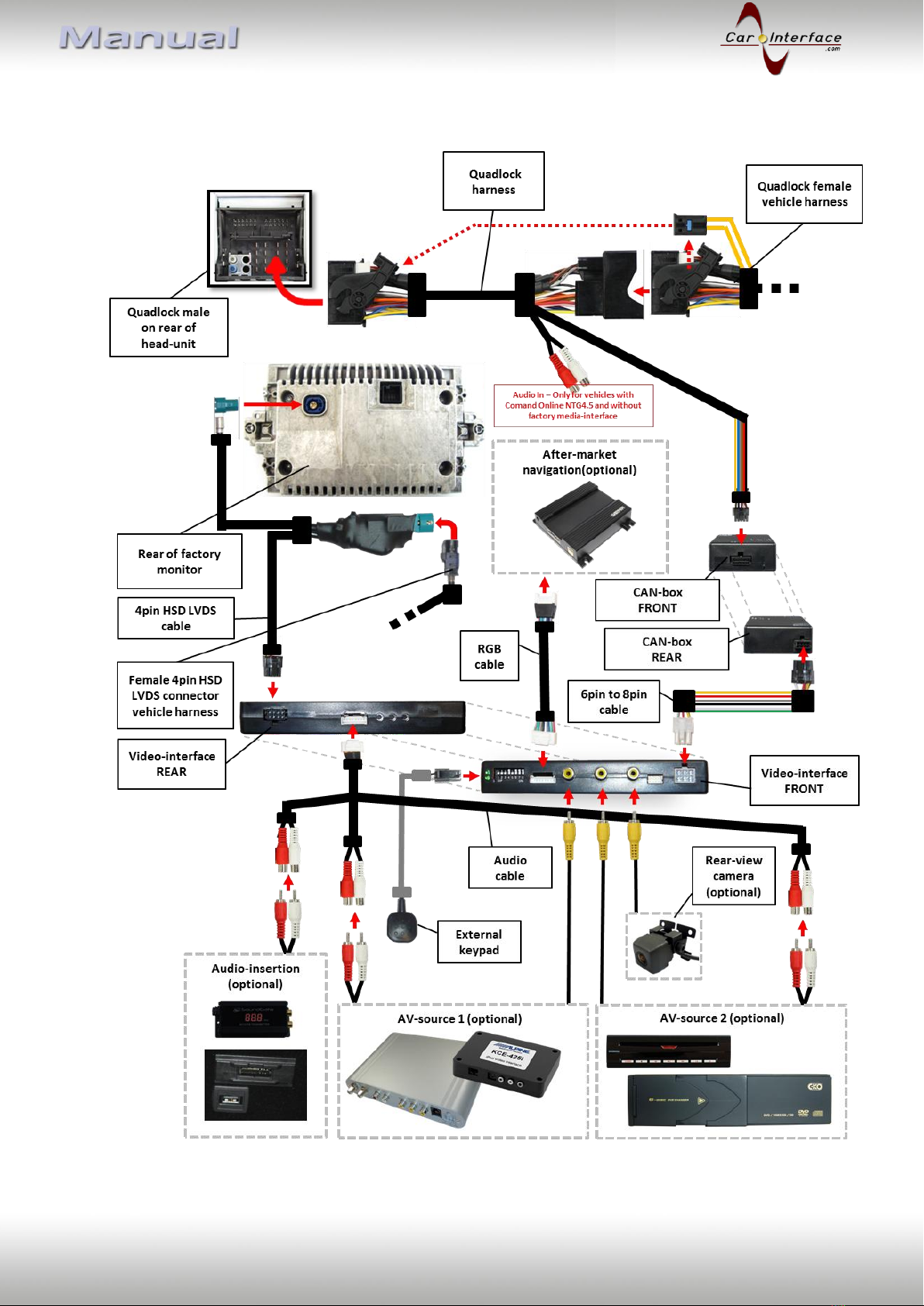

2.2. Connection schema

Version 31.03.2014 CI-L2-MBN45
Page7

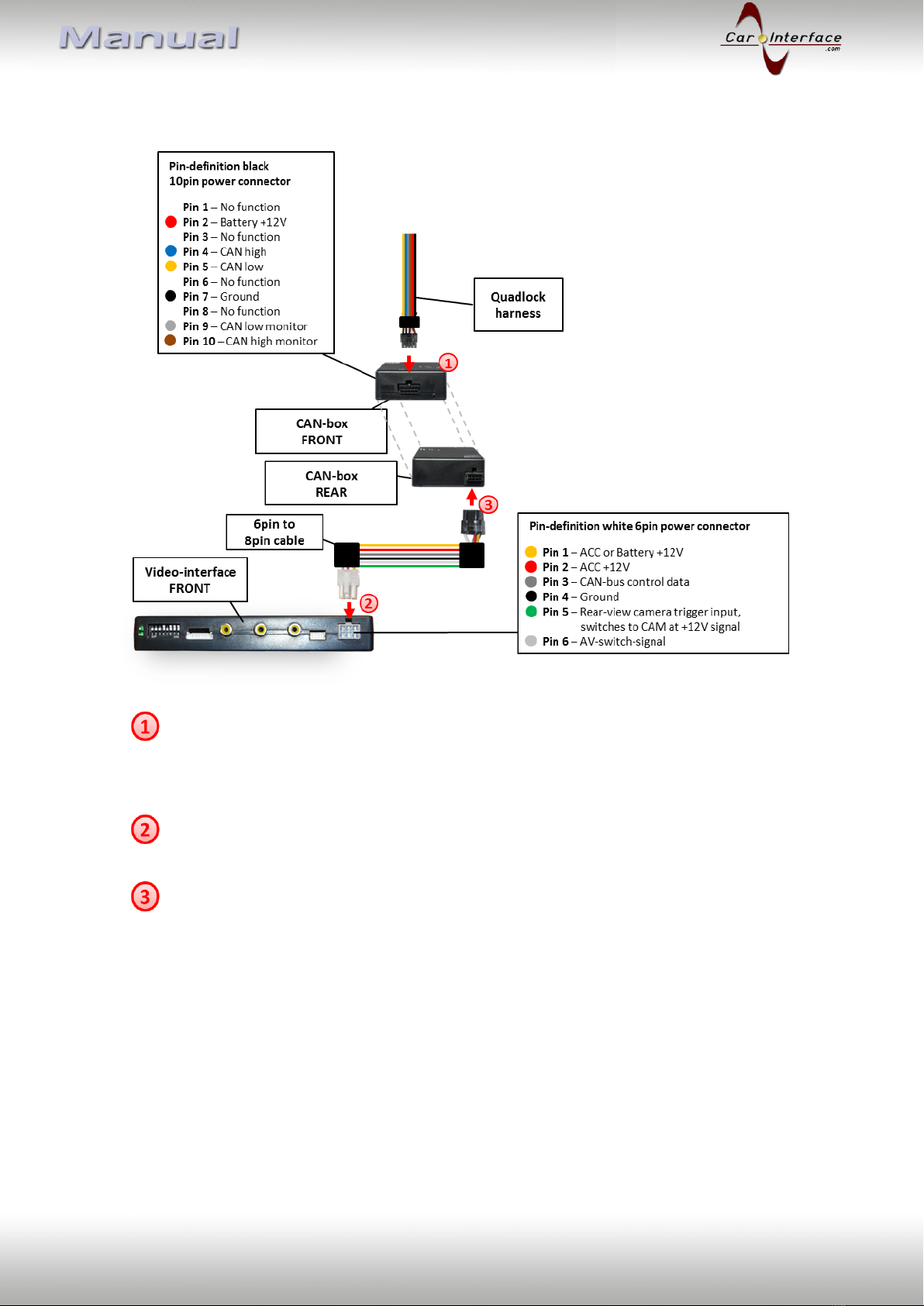

2.3. Connecting video-interface and CAN-box
Connect black female 10pin Micro-Fit connector of the Quadlock harness to the male
10pin Micro-Fit connector of the CAN-box.
Note: Check LEDs on CAN-box after reconnecting the battery, two must be on.
Connect white female 6pin Molex connector of the 6pin to 8pin cable to the male
6pin Molex connector of the video-interface.
Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin
Micro-Fit connector of the CAN-box.
Note: Check LEDs on video-interface after reconnecting the battery, one must be on.
Note: No liability for vehicle wire colours and pin definition!
Possible changes by the vehicle manufacturer. The given information must be verified by
the installer.

Version 31.03.2014 CI-L2-MBN45
Page8
2.4. Connections to the factory monitor
Remove factory monitor.
Connect female 8pin Micro-Fit connector of the 4pin HSD LVDS cable to male 8pin
Micro-Fit connector of the video-interface.
Remove female 4pin HSD LVDS connector from the rear of the factory monitor and
connect it to the male 4pin HSD LVDS connector of the 4pin HSD LVDS cable.
Connect female 4pin connector of the 4pin HSD LVDS cable to the male 4pin HSD
LVDS connector of the factory monitor.

Version 31.03.2014 CI-L2-MBN45
Page9
2.5. Connections to the head-unit
Remove head-unit.
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
Remove optical leads –if existing- from the female Quadlock connector of the vehicle
harness and insert them into the female Quadlock connector of Quadlock harness at
the same position.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of Quadlock harness.
Connect female Quadlock connector of Quadlock harness to the male Quadlock
connector of the head-unit.
2.6. Connecting peripheral devices
It is possible to connect 2 after-market AV-sources, an after-market rear-view camera and an
after-market navigation to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run to detect
incompatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer is always the possibility of incompatibility.

Version 31.03.2014 CI-L2-MBN45
Page10

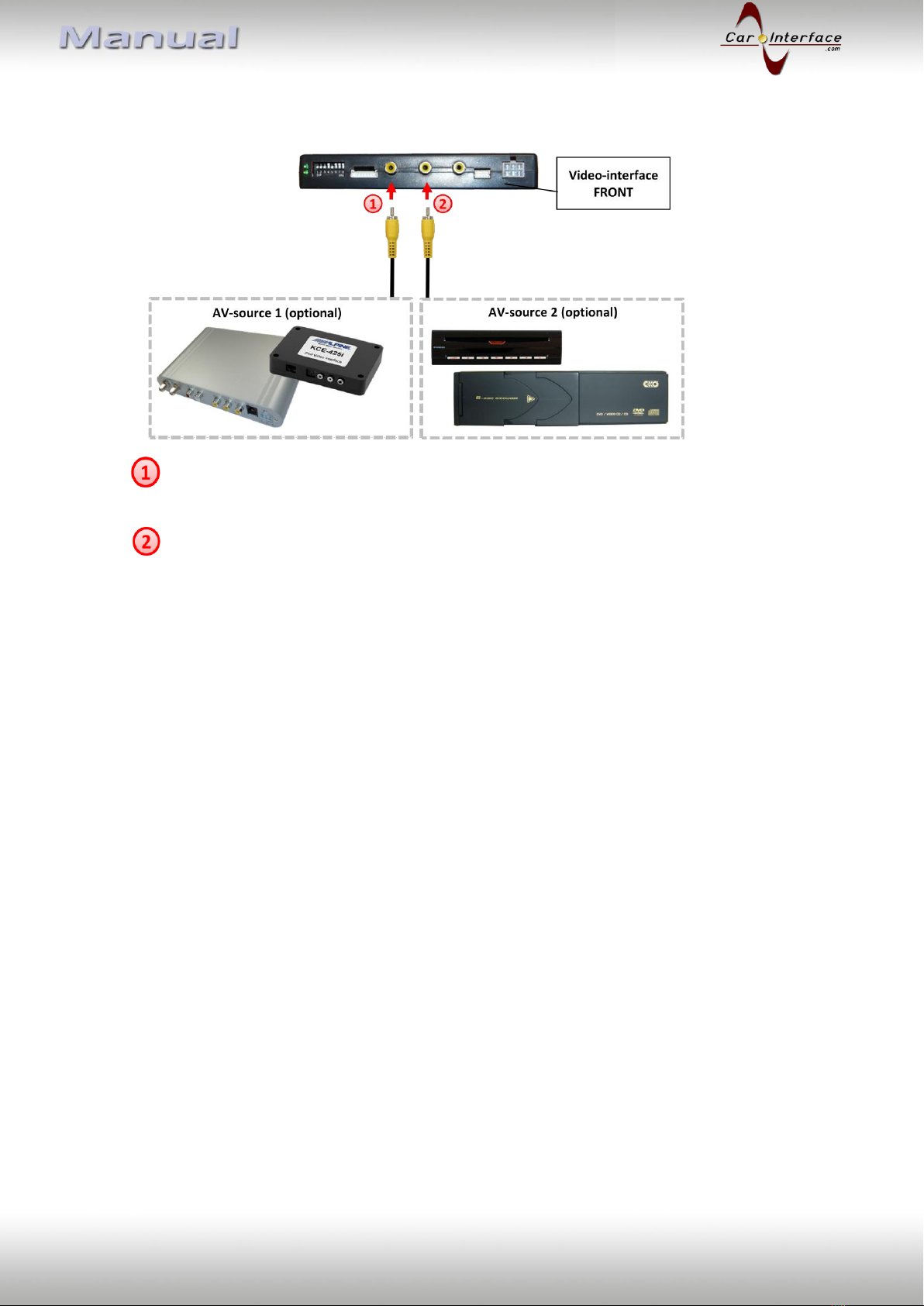

2.6.1. Video-sources to IN1 and IN2
Connect video RCA of the AV-source 1 to the female RCA connector IN1 of the video-
interface.
Connect video RCA of the AV-source 2 to the female RCA connector IN2 of the video-
interface.
2.6.2. Audio-switch and audio insertion
This interface can only insert video signals into the factory infotainment. Audio insertion is
possible by possibly existing factory audio AUX input or FM-modulator. The inserted video-
signal can be activated parallel to each audio-mode of the factory infotainment.
It is possible to switch the audio signals from the to IN1 and IN2 connected AV-sources
parallel to the video-signal of the respective AV-source by video-interface’s built-in audio-
switch.
Exception: Vehicles with Comand Online NTG4.5 navigation system and without factory
media-interface, see chapter “Special case: Audio-insertion on Comand Online NTG4.5
without factory media-interface”.

Version 31.03.2014 CI-L2-MBN45
Page11
Note: If only one AV-source shall be connected, it is possible to connect the video output of
the AV-source to video IN1 of the video-interface and the audio output of the AV-source
direct to the audio-insertion.
Connect female 7pin connector of the audio cable to male 7pin connector of the
video-interface.
Connect the audio-RCA of the possibly existing factory AUX-input or the FM-
modulator to the female RCA port AV-Out of the audio cable.
Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio
cable.
Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio
cable.
Audio pins
Definition
1/2
Audio input signal R/L of source IN2
3/4
Audio input signal R/L of source IN1
5/6
Audio output signal R/L of factory audio AUX
or FM-modulator
7
Ground
Note: When switching the video interface from video-IN1 to video-IN2, the audio will also
automatically be switched.

Version 31.03.2014 CI-L2-MBN45
Page12

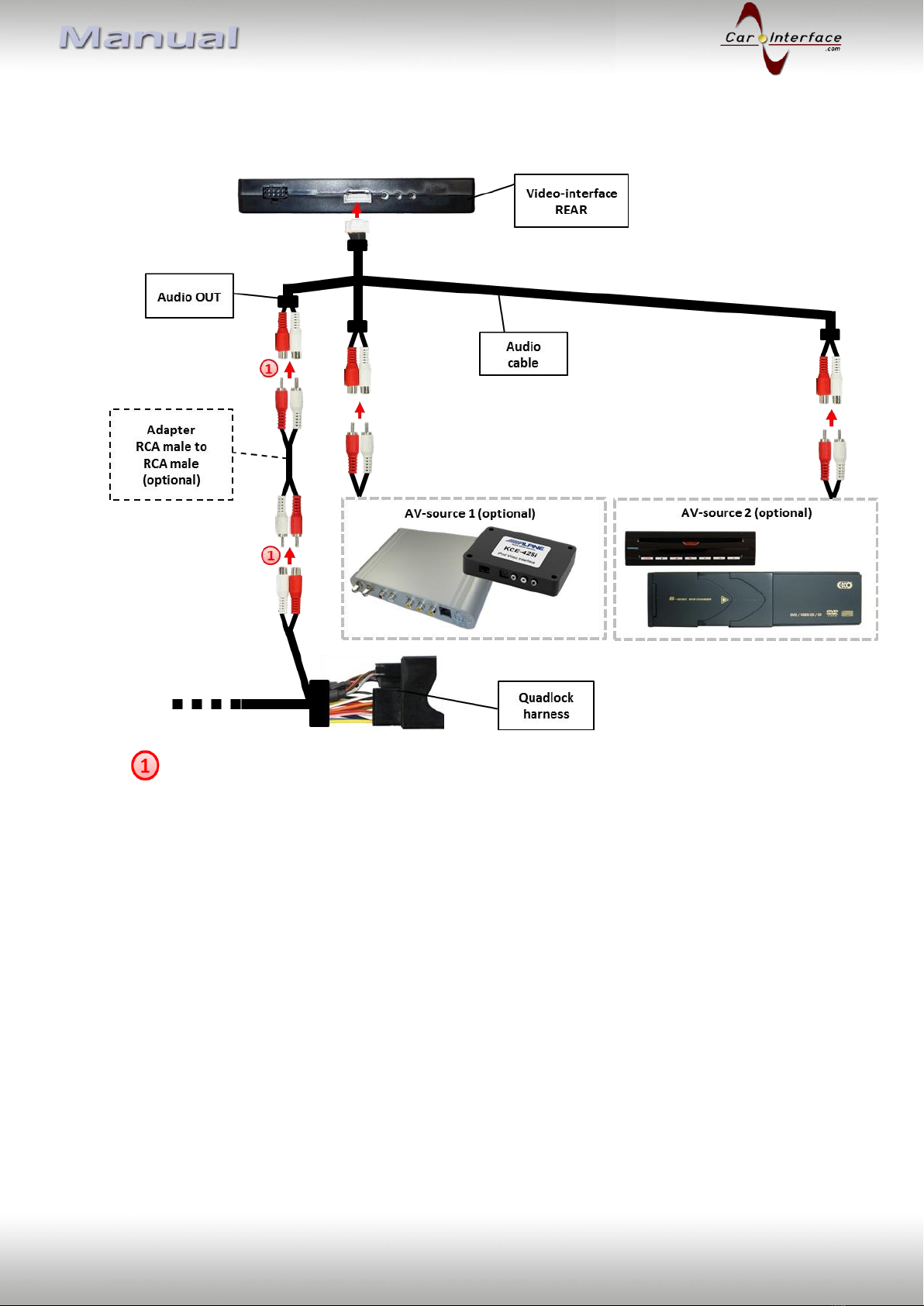

2.6.2.1. Special case: Audio-insertion on Comand Online NTG4.5 without factory
media-interface
Connect the audio-RCA of the Quadlock harness to the female RCA port AV-Out of
the audio cable.
Note: If only one AV-source shall be connected, it is possible to connect the video output of
the AV-source to video IN1 of the video-interface and the audio output of the AV-source
direct to the audio-RCA of Quadlock harness.

Version 31.03.2014 CI-L2-MBN45
Page13

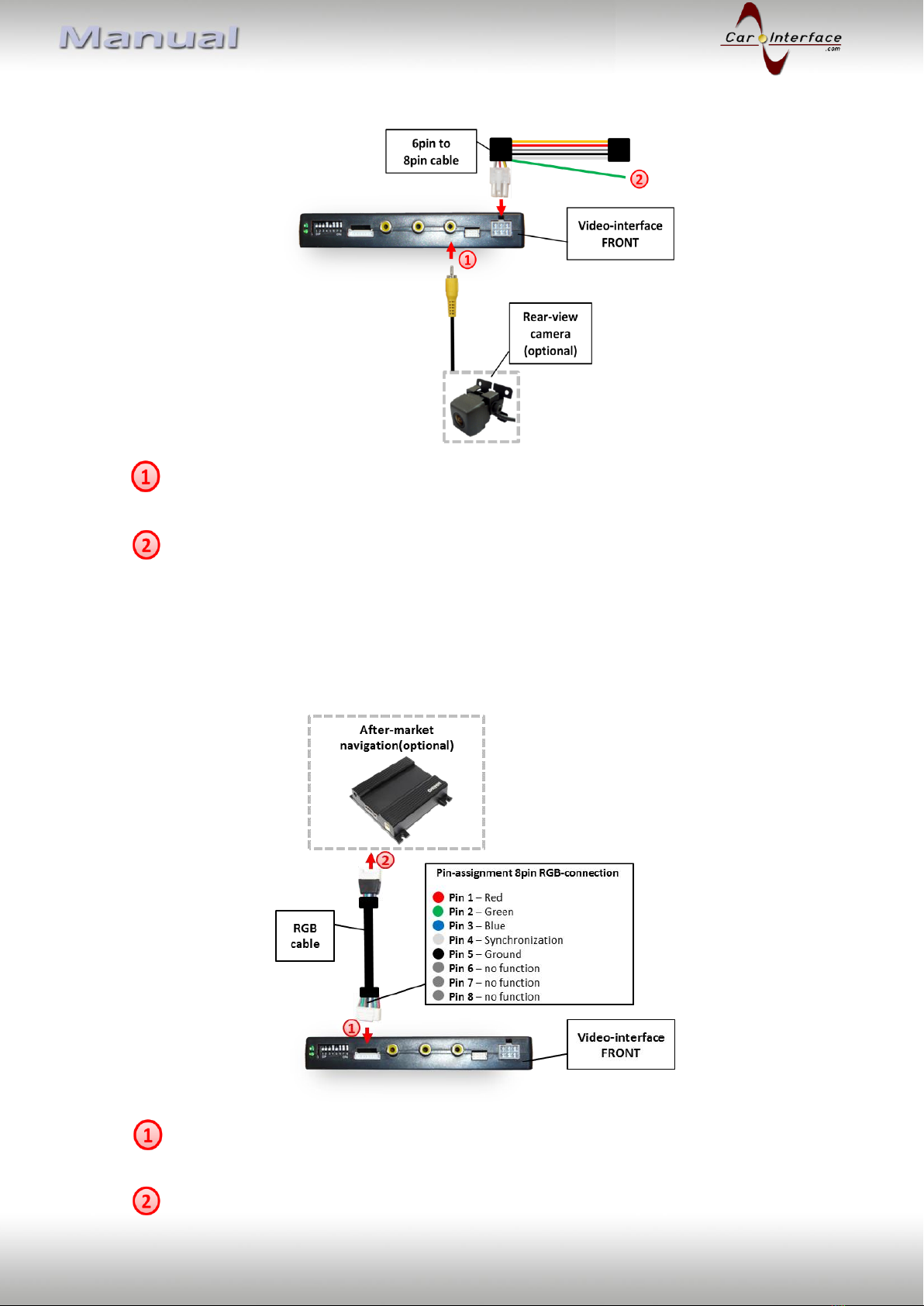

2.6.3. After-market rear-view camera
Connect the video-RCA of the after-market rear-view camera to the female RCA port
of the video-interface.
-f the Can-bus does not work while connecting an after-market rear-view camera, cut
the green cable of the 6pin to 8pin cable at the black 8pin connector and connect it
to the reverse gear light (+12V). For this use a relay because the reverse gear light of
the vehicle is clocked (relay AC-RW1230 and AC-RS5 optional available).
Note: Set Dip 5 to ON.
2.6.4. After-Market navigation
Connect female 8pin connector of the RGB cable to the male 8pin connector of the
video-interface. The loose grey wires have no function and have to be isolated.
Connect male 6pin connector of the RGB cable to the after-Market navigation.

Version 31.03.2014 CI-L2-MBN45
Page14

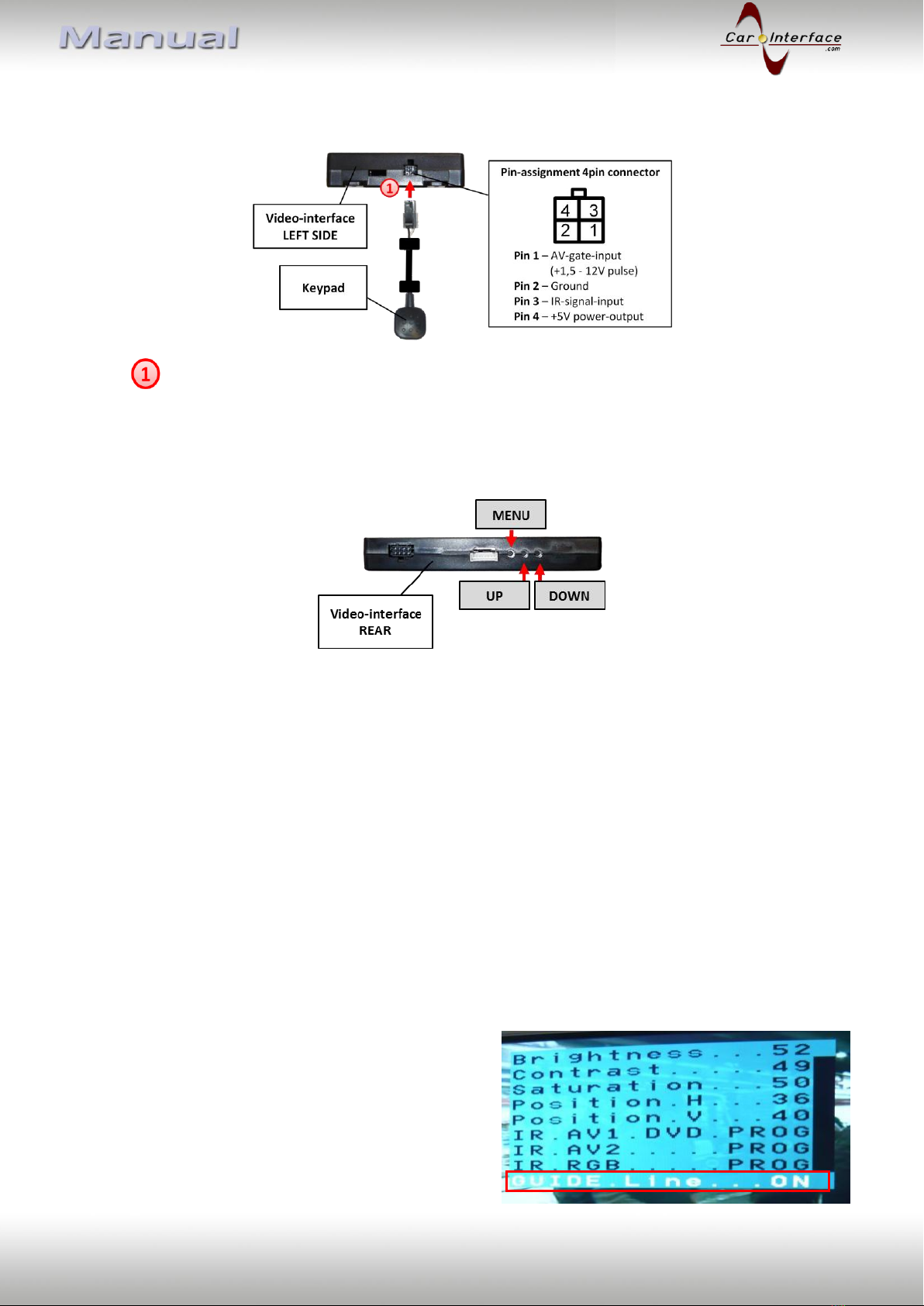

2.7. Connecting video-interface and keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
video-interface.
2.8. Picture settings
After installing the sources the picture settings can be changed using a pen on the buttons of
the video interface. Press the MENU button to open settings menu on the OSD and to switch
to the next setting. UP and DOWN change the corresponding values. The buttons are
embedded in the housing to avoid accidental changes during or after installation.
The following settings are available:
Brightness
Contrast
Saturation
Position H (horizontal)
Position V (vertical)
2.9. Activation of parking guide lines for rear-view camera
The parking guide lines for rear-view camera can
be activated of deactivated via the OSD. Press the
MENU button to open settings menu on the OSD
and to switch to the next setting. Choose menu
item “Guide Line” and activate (ON) or deactivate
(OFF) parking guide lines by UP and DOWN
buttons.

Version 31.03.2014 CI-L2-MBN45
Page15
3. Interface operation
3.1. By Comand-buttons
Some of the Comand-buttons can be used to execute interface functions.
Long press C button (3 sec.) beside knob in centre console to switch the
video source. Each repetition will switch to the next enabled input. If all
inputs are enabled the order is:
Factory video  RGB-in  video IN1  video IN2  factory video  …
Inputs which are not enabled are skipped. If the audio cable is connected, when switching
from video IN1 to video IN2, also the sound will be switched.
3.2. By keypad
Alternatively or additionally to the factory infotainment buttons the interface’s keypad can
be used to switch the enabled inputs.
4. Specifications
BATT/ACC range 7V ~ 25V
Stand-by power drain <5mA
Power 0.3A @12V
Power consumption 2.4W
Video input 0.7V~1V
Video input formats PAL/NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Weight 195g
Dimensions (box only) B x H x T 182 x 24 x 100 mm

Version 31.03.2014 CI-L2-MBN45
Page16
5. Connections (video-interface)
