V-ZUG AiroClearCabinet V400 User manual

Operating instructions
DFSE 5/6 | AiroClearCabinet V400
Range hood

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
The model number corresponds to the first alphanumerics on the identification plate.
These operating instructions apply to:
Model designation Model number Type Norm for built-in ap-
pliances
AiroClearCabinet
V400
61066 AE4H5FE SMS 55
AiroClearCabinet
V400
61067 AE4H6FE EURO 60
Type Product family Size system
DFSE5 61028 55
DFSE6 61029 60
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2019
2

3
Inhaltsverzeichnis
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Before using for the first time.............................. 5
1.4 Correct use ............................................................. 5
1.5 Note on use ............................................................ 5
2 Appliance description 7
2.1 Introduction ............................................................. 7
2.2 Extraction mode..................................................... 7
2.3 Recirculation mode ............................................... 7
2.4 Features................................................................... 7
2.5 Construction ........................................................... 8
2.6 Operating elements............................................... 8
3 Operating the appliance 9
3.1 Using for the first time .......................................... 9
3.2 Switching the appliance on ................................. 9
3.3 Extractor fan ........................................................... 9
3.4 Intensive level .......................................................10
3.5 After-running time ................................................10
3.6 Illumination............................................................10
3.7 Switching the appliance off................................10
3.8 Saturation indicator .............................................11
4 Care and maintenance 11
4.1 Cleaning the housing..........................................11
4.2 Metal grease filters..............................................12
4.3 Long-life activated charcoal filter......................13
4.4 Standard activated charcoal filter.....................15
4.5 Replacing the LED light bulbs...........................15
5 Trouble-shooting 16
5.1 What to do if… ......................................................16
6 Accessories and spare parts 17
7 Technical data 17
7.1 Product fiche ........................................................18
8 Disposal 19
9 Index 20
10 Notes 21
11 Service & Support 23
Quick instructions 24

4
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating In-
structions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.

1 Safety precautions
5
1.3 Before using for the first
time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪Observe the official regulations for the
exhaust-air layout.
▪Dispose of the packaging material in
accordance with local regulations.
1.4 Correct use
▪The appliance is designed for use in
the home for extracting cooking fumes
and smells from above the cooking sur-
face.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings,
as well as affect the functioning of the
appliance. If the appliance is not work-
ing properly or in case a repair is
needed, follow the instructions given in
the 'Service & Support' section. Contact
our Customer Services if necessary.
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
1.5 Note on use
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪Ensure there is adequate ventilation
when the extractor fan is on so as to
avoid creating underpressure in the kit-
chen and to achieve optimal air extrac-
tion.
▪Avoid a cross-current of air, which
could blow the cooking vapours over
the cooking area.
▪If other appliances – fired by gas or
other fuels – are being used at the
same time, ensure that there is a suffi-
cient supply of fresh air. This does not
apply to air recirculation appliances.
▪If other firing systems are being used at
the same time (e.g. wood, gas, oil or
coal fired heating appliances), safe op-
eration is only possible providing a
room negative pressure of 4Pa
(0.04mbar) is not exceeded at the loc-
ation of the appliance. Risk of toxic
fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-clos-
able openings in doors or windows and
in combination with an air-intake/ex-
haust-air wall box or by other technical
means.
▪When cleaning the appliance make
sure no water gets inside it. Use a mod-
erately damp cloth only. Do not spray
the inside or outside of the appliance
with water. Do not use a steam cleaner.
If water gets inside the appliance, it can
cause damage.
▪Accessible parts may become hot when
used with cooking appliances.
Caution: Burns hazard!
▪Do not leave the appliance unattended
when deep-frying on the cooking sur-
face. The cooking oil in the deep-frying
appliance could overheat and catch
fire. Constantly monitor the temperature
of the cooking oil, keeping it below the
temperature at which it can catch fire.
Change the cooking oil regularly – dirty
oil catches fire more easily than clean
oil.
Caution: Risk to life!
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren and animals. Danger of suffoca-
tion! Keep packaging material away
from children and animals.

1 Safety precautions
6
▪When carrying out maintenance work
on the appliance, including replacing
light bulbs, cut off the electricity supply
to the appliance: remove the screw fuse
from the holder or switch the circuit
breaker off, or disconnect from the
mains supply.
How to avoid damaging the appliance
▪Observe the cleaning intervals. Failure
to do so can increase the fire hazard
due to the build-up of grease in the
metal grease filters.

2 Appliance description
2.1 Introduction
The appliance is designed for use in the home for extracting cooking odours from above
a cooking area and can be used in the extraction or recirculation mode.
2.2 Extraction mode
A fan extracts cooking fumes and smells from above the cooking surface. The metal
grease filters clean the extracted air, which is then passed through a connecting pipe fit-
ted with an integrated non-return valve and through the air duct to the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the air that is
being extracted.
2.3 Recirculation mode
After being filtered through the metal grease filters, the cooking fumes and smells above
the cooking area are passed through an activated charcoal filter. The filtered air is then
circulated back into the room through the side openings.
If activated charcoal filters are not supplied with the appliance, these should be
ordered and installed before using the appliance for the first time.
2.4 Features
▪Flat pull-out deflector plate
▪2 metal grease filters
▪Illumination
▪1 activated charcoal filter (only for recirculation mode, not included in the scope of de-
livery)
▪1 extractor fan with 4 power levels
– Level 1 = low, 2 = medium, 3 = high extraction rate
– Power level 4 (intensive) is used for short bursts of intensive extraction of cooking
smells and fumes, e.g. when searing meat. Afterwards, switch back to power level
1, 2 or 3.
7

2 Appliance description
2.5 Construction
1
5
3
4
2
1Flat pull-out deflector plate
2Grip
3LED illumination
4Metal grease filters
5Operating elements
2.6 Operating elements
Switching the extractor fan off/reducing the power
level
Switching the extractor fan on/increasing the power
level
Power level display
Intensive level display
Switch illumination on/off
Reset after-running time/saturation indicator
Depending on the model and features, the specification of your appliance may dif-
fer in individual details from the standard specification described.
8

3 Operating the appliance
3 Operating the appliance
3.1 Using for the first time
Appliance configuration
The model can be used to extract or recirculate air. The appliance is set up ex-factory for
use in the extraction mode.
If the appliance is to be operated as an extraction model, the saturation indicator
for the activated charcoal filter must be deactivated.
Activating the saturation indicator for the activated charcoal filter
▸ Switch the appliance off.
▸ Hold the and buttons depressed for 3 seconds.
–Power levels 1 and 2 flash alternately in the display.
▸ The appliance is now configured for the recirculation mode.
Deactivating the saturation indicator for the activated charcoal filter
▸ Switch the appliance off.
▸ Hold the and buttons depressed for 3 seconds.
–Power level 1 flashes in the display.
▸ The appliance is now configured for the extraction mode.
3.2 Switching the appliance on
To switch the extractor fan on, the de-
flector plate must be pulled out.
▸ Pull the deflector plate out.
The appliance is most effective when the deflector plate is fully pulled out.
3.3 Extractor fan
▸ Touching the button switches the extractor fan on at level 1.
▸ To select the next highest level touch the button again.
▸ Touch the button to select the next lowest level or to switch the extractor fan off.
We recommend switching the appliance on at level 1 some 5minutes before start-
ing to cook. Leave the appliance running for about 15minutes after cooking to ex-
tract all the cooking smells.
9

3 Operating the appliance
3.4 Intensive level
▸ Touch the button repeatedly until (intensive level 3) flashes in the display.
▸ The appliance switches back to level 2 after 5minutes.
▸ Touch the button to stop the intensive level before the 5 minutes has elapsed.
3.5 After-running time
▸ Switch the appliance on.
▸ Select the desired power level.
▸ Touching the button activates the after-running time.
–While the after-running time is activated, the display flashes according to the
table below and then switches off automatically.
Level After-running time
1 20 minutes
2 15 minutes
3 10 minutes
Intensive 5 minutes
3.6 Illumination
▸ Press the button to switch the illumination on.
▸ Press the button repeatedly to switch the illumination off.
The illumination does not switch off automatically when the deflector plate is
pushed in.
3.7 Switching the appliance off
▸ Push the deflector plate completely
in.
–The extractor fan is switched off.
–The settings are saved.
If the deflector plate is pulled slightly out again, the extractor fan comes on at the
level previously set.
10

4 Care and maintenance
3.8 Saturation indicator
Metal grease filters
The (power level) and (intensive level) indicators flash alternatively after 40 operat-
ing hours. The saturation level has been reached and the metal grease filters must be
cleaned.
Long-life and standard activated charcoal filters
The (power level) and (intensive level) indicators flash simultaneously after 160 op-
erating hours. The saturation level has been reached. The long-life activated charcoal fil-
ter has to be cleaned and reactivated. The standard activated charcoal filter cannot be
reused and must be replaced.
Only activate this function if the appliance is being used in the recirculation mode.
4 Care and maintenance
4.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If water gets into
the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they
can damage the surface. Disconnect the appliance from the mains and unscrew
the fuse or switch off the automatic circuit breaker.
Cleaning the outside/inside
▸ Clean the outside of the appliance with a warm, damp cloth and a little detergent and
then wipe dry.
–Grease and condensate water can build up on the inside around the metal grease
filters.
▸ Clean with a warm, damp cloth and a little detergent – you can also use a brush if ne-
cessary – and then wipe dry with a kitchen towel.
11

4 Care and maintenance
4.2 Metal grease filters
The metal grease filters must be cleaned at least once a month with normal use. If prop-
erly cared for, the grease filters should provide years of service.
Removing
Using both hands, carefully remove the metal grease filters, making sure not to
drop or damage them.
▸ Pull the deflector plate 1 completely
out.
▸ Push the grip 2 on the grease filter in.
–This releases the grease filter 3.
▸ Carefully pull the grease filter 3 down
and out of the fixture.
▸ Clean the grease filter 3.
2
3
1
Cleaning
▸ Clean the grease filters 3 in the dishwasher.
▸ Select an «intensive» or «heavy» wash programme with a warm prewash.
Cleaning may cause the metal grease filters to become slightly discoloured. How-
ever, this will not affect the functioning of the filters in any way.
If no dishwasher is available:
▸ Clean the grease filters 3 in the sink with hot water and detergent.
▸ Then soak the grease filters 3 in hot water in the sink for about 2 hours and finally
clean with a washing-up brush. Rinse well with clean cold water.
Installing
▸ Reassemble in the reverse order.
3
1
2
Ensure all centring pins 1 are positioned properly in the receiving slots 2.
12

4 Care and maintenance
Resetting the saturation indicator
With the appliance switched on, hold the button depressed for 3seconds to reset the
saturation indicator.
▸ The (power level) and (intensive level) displays illuminate for 2 seconds if reset
correctly.
If both the and displays are flashing after the reset, the reason for this is: the
metal grease or activated charcoal filters are also dirty and must be cleaned or re-
placed.
4.3 Long-life activated charcoal filter
The long-life activated charcoal filter must be cleaned and reactivated bimonthly with nor-
mal use or whenever the saturation indicator flashes. If properly cared for, the service life
of the long-life activated charcoal filter is 3 years.
Disconnect the appliance from the mains and unscrew the fuse for the appliance
or switch off the circuit breaker.
Removing
▸ Pull the deflector plate completely out
and remove both grease filters.
▸ Push bar 1 and move the activated
charcoal filter unit 2 down and out of
the bracket.
▸ Remove the activated charcoal filter
mat 3 from its frame 4.
1
2
4
3
Cleaning and reactivating
▸ Clean the activated charcoal filter mat 3 in the dishwasher.
▸ Select an «intensive» or «heavy» dishwasher programme with a warm prewash. Wash
separately so that no food debris can become stuck to the activated charcoal filter
mat filter 3.
13

4 Care and maintenance
If no dishwasher is available:
▸ Clean the activated charcoal filter mat 3 with hot water and detergent and then soak in
hot water in the sink for an hour. Rinse well afterwards.
▸ To reactivate the activated charcoal, the activated charcoal filter mat 3 without the
frame 4 must be dried in the oven.
▸ Select top/bottom heat or hot air and set the temperature to 100 °C. Place the activ-
ated charcoal filter mat 3 on the wire shelf and allow to dry for an hour.
The spent long-life activated charcoal filter can be disposed of in the household
waste or at a suitable recycling point.
Installing
▸ Insert the activated charcoal filter mat
3 into the frame 4.
▸ Insert the activated charcoal filter unit
2 into the bracket and press down
firmly.
▸ Insert both grease filters again and
close the deflector plate.
▸ Switch the fuse on.
2
4
3
Resetting the saturation indicator
With the appliance switched on, hold the button depressed for 3seconds to reset the
saturation indicator.
▸ The (power level) and (intensive level) displays illuminate for 2 seconds if reset
correctly.
If both the and displays are flashing after the reset, the reason for this is: the
metal grease or activated charcoal filters are also dirty and must be cleaned or re-
placed.
14

4 Care and maintenance
4.4 Standard activated charcoal filter
The standard activated charcoal filter is to be replaced after an operating time of 3 to 6
months. Standard activated charcoal filters cannot be washed or regenerated.
Disconnect the appliance from the mains and unscrew the fuse for the appliance
or switch off the circuit breaker.

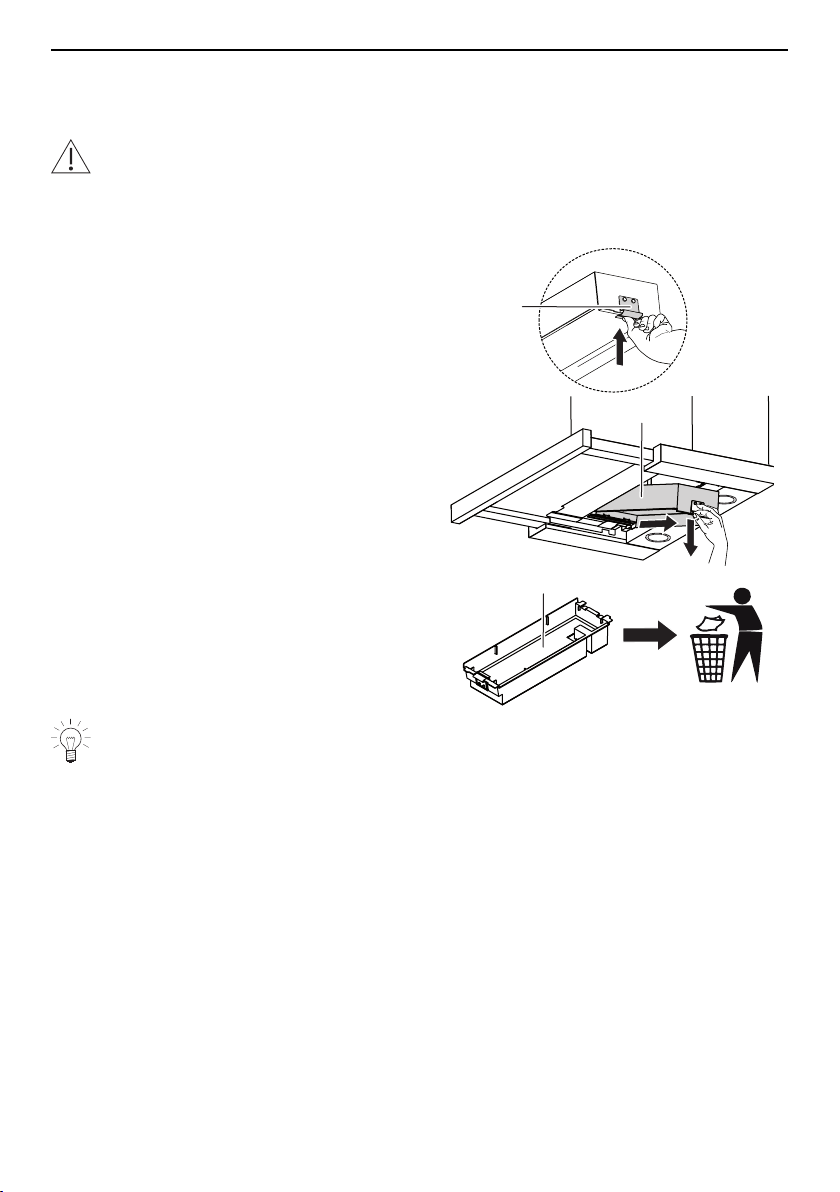

Removing/Installing
▸ Pull the deflector plate completely out
and remove both grease filters.
▸ Push bar 1 and move the activated
charcoal filter unit 2 down and out of
the bracket.
▸ Replace and dispose of the spent ac-
tivated charcoal filter unit 3.
▸ Reassemble in the reverse order.
3
2
1
The spent standard activated charcoal filter can be disposed of in the household
waste or at a suitable recycling point.
4.5 Replacing the LED light bulbs
For safety reasons, the LED light bulbs must be replaced by our Customer Services.
15

5 Trouble-shooting
5 Trouble-shooting
5.1 What to do if…
... the illumination is not working
Possible cause Solution
▪Fuse or automatic circuit
breaker for electrical installa-
tions in the home is defect-
ive.
▸ Replace the fuse.
▸ Reset the automatic circuit breaker.
▪An interruption in the power
supply.
▸ Check the power supply.
▪LED light bulb is defective. ▸ Contact Customer Services.
... the appliance is not extracting enough air
Possible cause Solution
▪The metal grease filters are
dirty.
▸ Clean the metal grease filters.
▪Only for recirculation mode:
The activated charcoal filters
are saturated.
▸ Clean and reactivate or replace the activated
charcoal filters.
▪Only for extraction mode:
The fresh air intake is insuffi-
cient.
▸ Ensure the fresh air intake is sufficient.
16

6 Accessories and spare parts
6 Accessories and spare parts
Please give model number of the appliance and exact designation of the accessory or
spare part when ordering parts.
Metal grease filters
Long-life activated charcoal filter
Standard activated charcoal filter
7 Technical data
Electrical connection
▸ See identification plate.
▸ Remove the metal grease filters.
–The identification plate is located on the inside of the appliance.
17

7 Technical data
7.1 Product fiche
In accordance with EU Regulation No. 65/2014 and No. 66/2014.
Description Abbreviations Unit Value
Brand S - V-ZUG Ltd
Model identifier M - 61028+61029 /
61066+61067
Annual Energy Consumption AEChood kWh/a 43,4 / 98,0
Energy Efficiency Index EEIhood % 51,3 / 96,4
Energy Efficiency Class EEC - A / D
Fluid Dynamic Efficiency FDEhood % 31,9 / 9,0
Fluid Dynamic Efficiency Class FDEC - A / E
Lighting Efficiency LEhood lux/W 29,0 / 76,1
Lighting Efficiency Class LEC - A / A
Grease Filtering Efficiency GFEhood % 76,0 / 65,1
Grease Filtering
Efficiency Class
GFEC - C / D
Air flow at minimum
speed
Qmin m3/h 240,0 / 205,0
Air flow at maximum
speed (intensive or boost excluded)
Qmax m3/h 515,0 / 310,0
Air flow at intensive
or boost setting
Qboost m3/h 625,0 / 410,0
Airborne acoustical A-weighted
Sound Power Emissions at minimum
speed
SPEmin dBA 47,0 / 48,0
Airborne acoustical A-weighted
Sound Power Emissions at maximum
speed
SPEmax dBA 63,0 / 55,0
Airborne acoustical A-weighted
Sound Power Emissions at intensive
or boost setting
SPEboost dBA 67,0 / 61,0
Measured power consumption of off
mode
P0W - / -
Measured power consumption of
standby mode
PsW 0,49 / 0,49
Time increase factor f - 0,9 / 1,7
Measured air flow rate at the best ef-
ficiency point
QBEP m3/h 336,0 / 235,0
Measured air pressure at the best ef-
ficiency point
PBEP PA 414,0 / 210,0
18

8 Disposal
Measured value of the electric power
input at the best efficiency point
WBEP W 121,0 / 152,0
Nominal power of the lighting system WLW 5,0 / 5,0
Average illumination of the lighting
system on the cooking surface
Emiddle lux 145,0 / 381,0
Sound power level Lwa dBA 63,0 / 55,0
8 Disposal
8.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
8.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
8.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the en-
vironment.
▪For more information, please contact the local authorities.
19

9 Index
A
Accessories ...................................................... 17
Appliance configuration..................................... 9
Appliance description ........................................ 7
Appliance disposal .......................................... 19
C
Care and maintenance ................................... 11
Cleaning
Activated charcoal filter .............................. 13
Housing ......................................................... 11
Metal grease filters...................................... 12
Construction......................................................... 8
D
Disposal............................................................. 19
E
Electrical connection ....................................... 17
Extraction mode .................................................. 7
F
Features................................................................ 7
I
Identification plate............................................ 17
Illumination ........................................................ 10
Initial set-up .......................................................... 5
Intensive level ................................................... 10
M
Model designation .............................................. 2
Model number ..................................................... 2
N
Notes.................................................................. 21
O
Operating elements ..................................... 8, 24
Operating the appliance.................................... 9
P
Product fiche..................................................... 19
Q
Queries .............................................................. 23
R
Recirculation mode ............................................ 7
S
Safety precautions
Before using for the first time.......................5
Correct use ......................................................5
General .............................................................4
Note on use .....................................................5
Saturation indicator.......................................... 11
Service & Support............................................ 23
Service agreement........................................... 23
Switching off ..................................................... 10
Switching on ........................................................ 9
Symbols ................................................................ 4
T
Technical data .................................................. 17
Type....................................................................... 2
V
Validity................................................................... 2
W
What to do if
the appliance is not extracting enough air
........................................................................ 16
the illumination is not working................... 16
20
