V-ZUG DFL5 User manual

Operating instructions
DFL5 | DFL6
Range hood

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarise yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliance is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on the identi-
fication plate. These operating instructions apply to:
Type Product family Size system
DFL5 61034 55
DFL6 61035 60
Variations depending on the model are noted in the text.
© V-ZUG AG, CH-6302 Zug, 2018
2

3
Contents
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Appliance-specific safety precautions ............... 5
1.4 Appliance installation............................................ 5
1.5 Instructions for use................................................ 6
2 Appliance description 8
2.1 Introduction ............................................................. 8
2.2 Extraction mode..................................................... 8
2.3 Recirculation mode with activated charcoal filter
8
2.4 Equipment ............................................................... 8
2.5 Construction ........................................................... 8

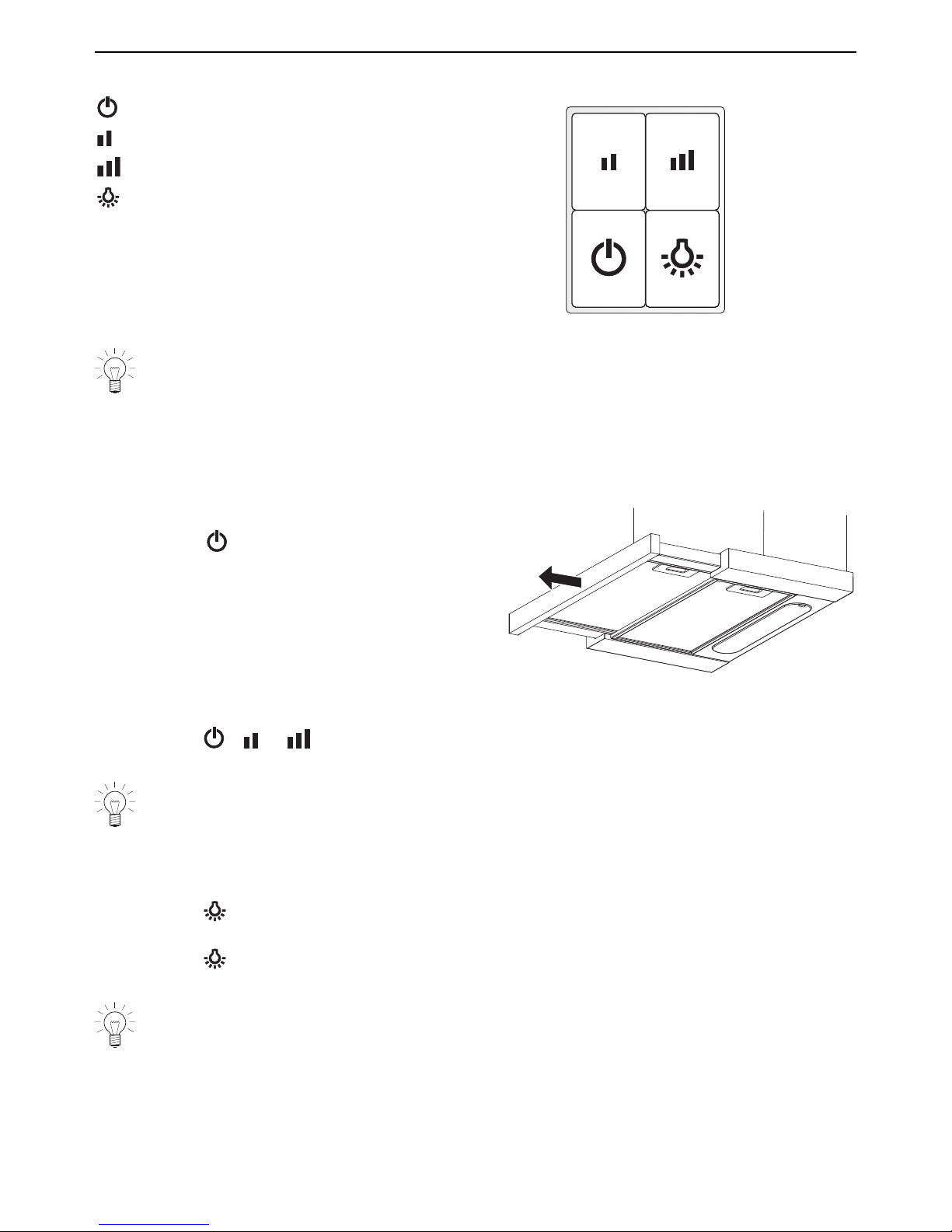

2.6 Operating elements............................................... 9
3 Operation 9
3.1 Switching the appliance on ................................. 9
3.2 Setting power level ................................................ 9
3.3 Switching the illumination on/off......................... 9

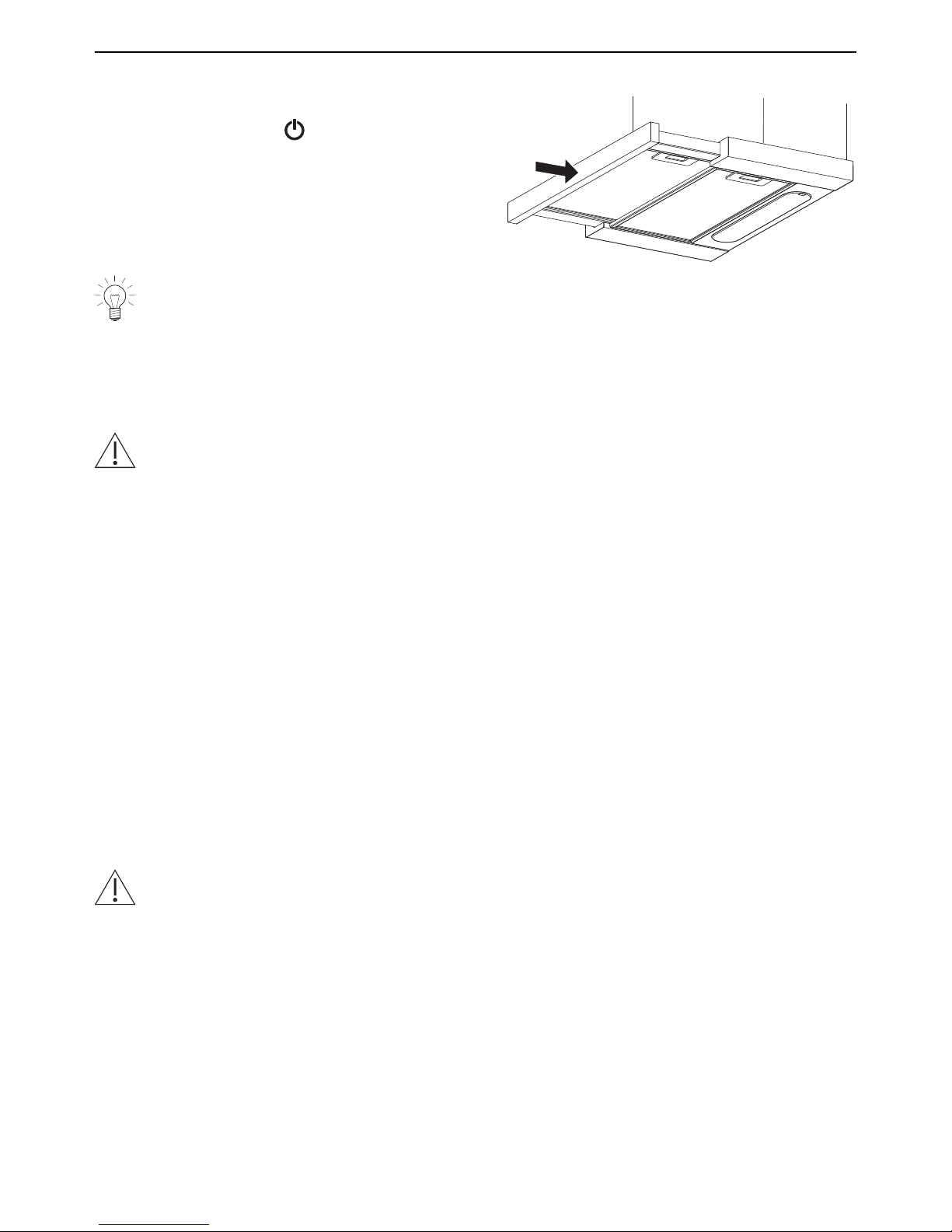

3.4 Switching appliance off ......................................10
4 Care and maintenance 10
4.1 Cleaning the housing..........................................10

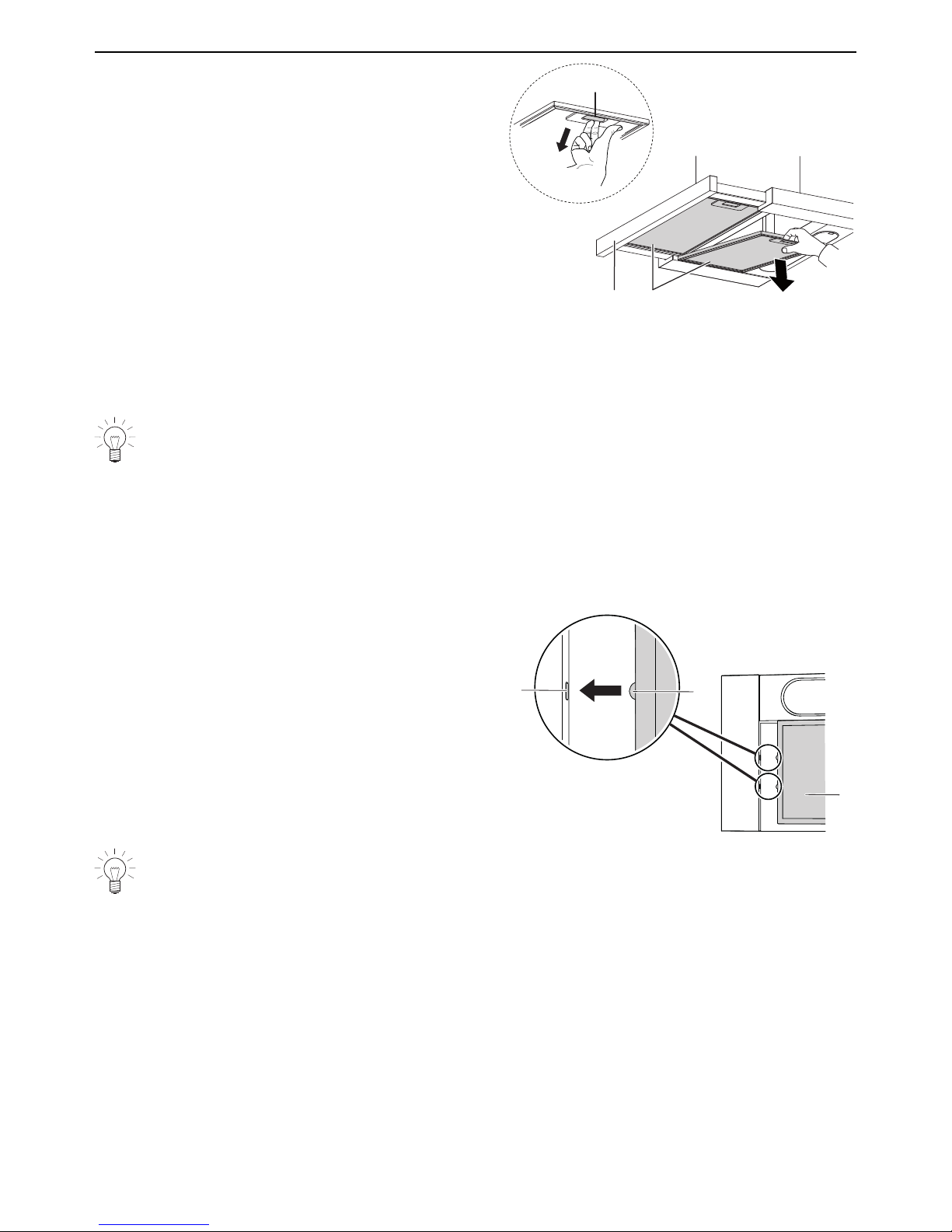

4.2 Metal grease filters..............................................10

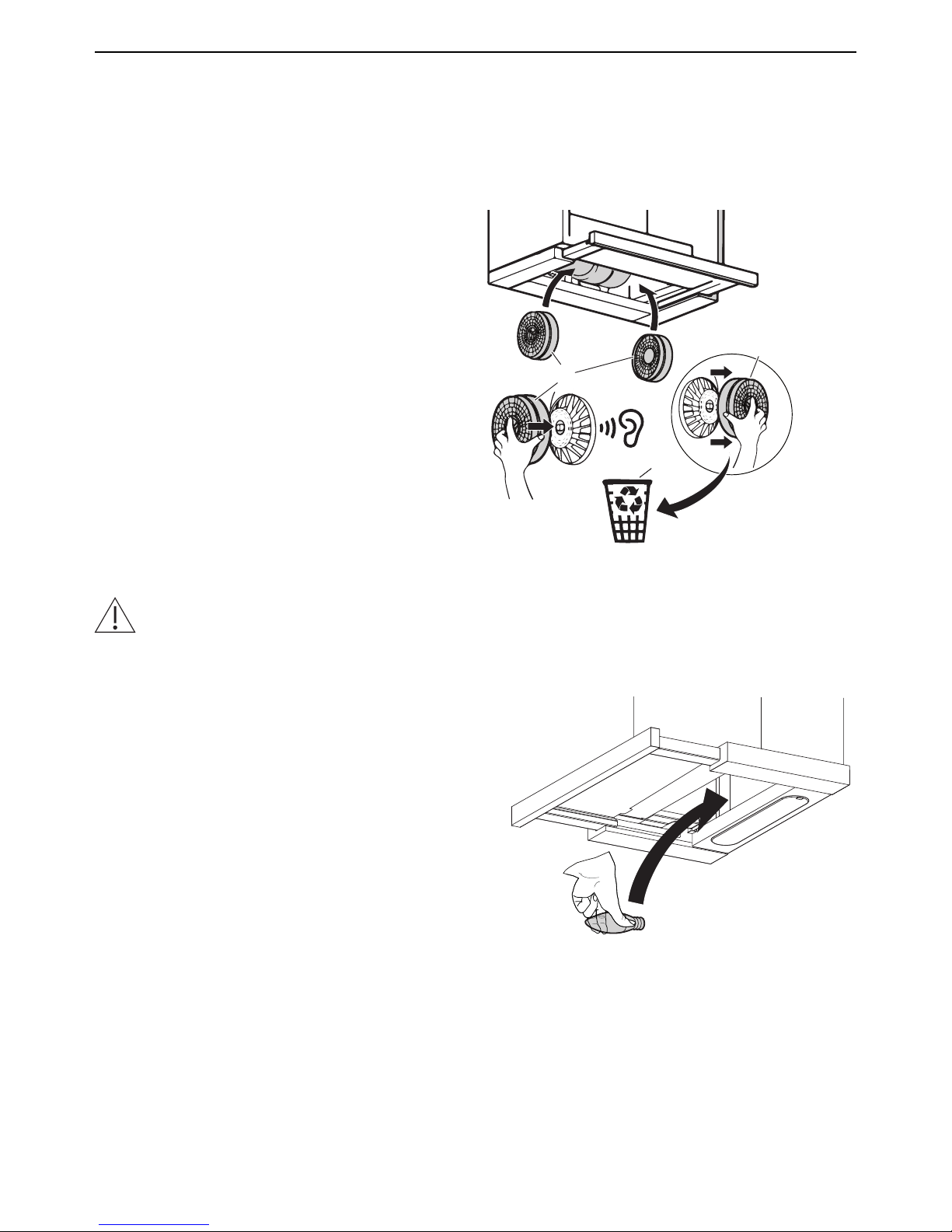

4.3 Standard activated charcoal filter.....................12
4.4 Replacing the LED light bulbs...........................12
5 Trouble-shooting 13

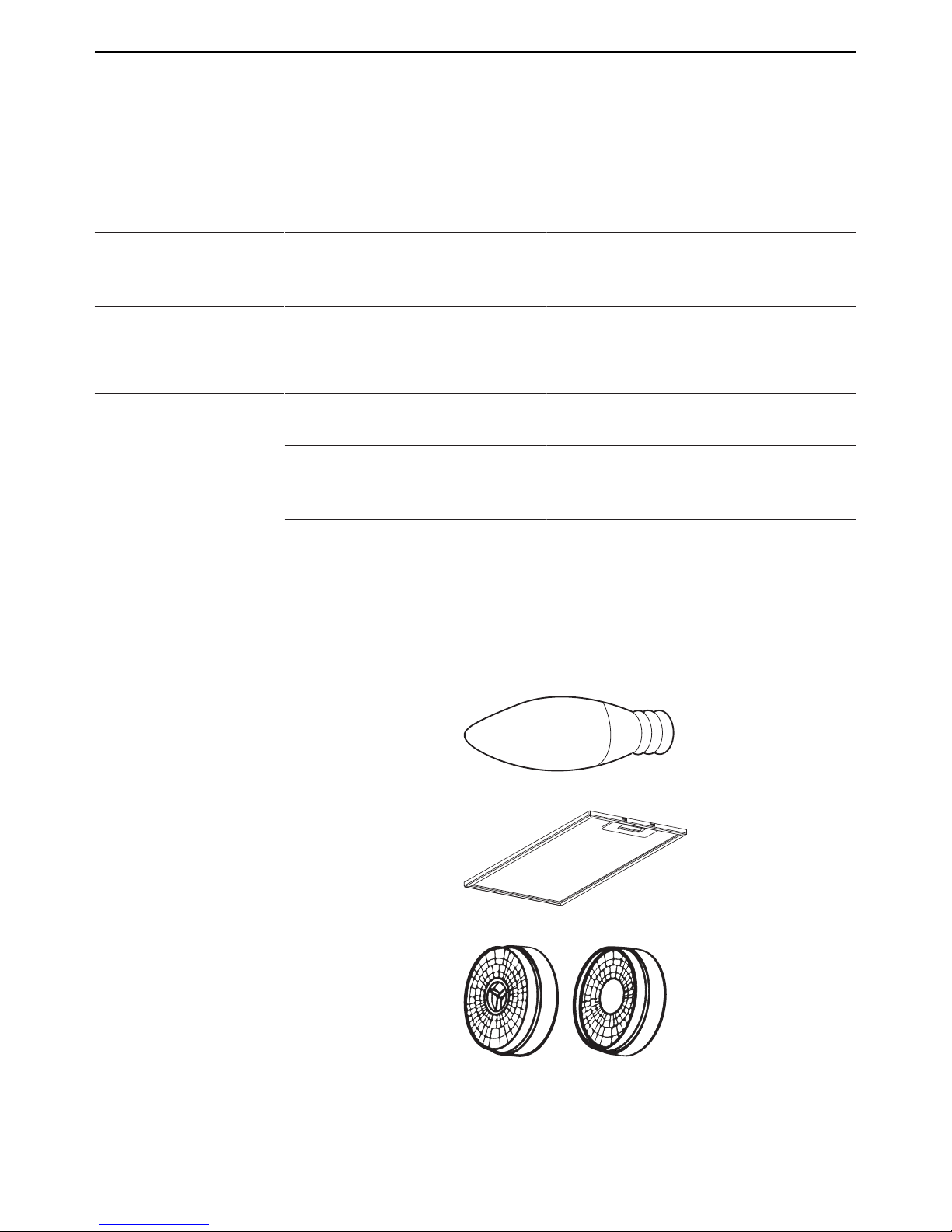

6 Accessories and spare parts 13
7 Technical data 14
7.1 Product fiche ........................................................14
8 Disposal 16
9 Index 17
10 Service & Support 19
Quick instructions 20

4
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the operating in-
structions
Remove plug from mains socket /
disconnect power supply
Insert plug into mains socket / con-
nect power supply
Do not cut off or modify mains plug
Wear protective gloves
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.

1 Safety precautions
5
1.3 Appliance-specific safety
precautions
▪The room must be adequately
ventilated when operating the
range hood at the same time
as other appliances that burn
gas or other fuels.
▪Observe the official regula-
tions for the exhaust-air lay-
out.
▪The extracted air must not be
fed into a chimney which is
used for exhausting fumes
from appliances burning gas
or other fuels.
▪The minimum distance
between the supporting sur-
face for the cooking equip-
ment on the hob and the low-
est part of the range hood
must be observed. If the
range hood is installed above
a gas appliance, this distance
must not be less than 65 cm.
If the installation instructions
for the gas hob stipulate a lar-
ger distance, this must be ob-
served.
▪WARNING: Before replacing
the light bulb, ensure the ap-
pliance is switched off and
disconnected from the mains
power supply to avoid pos-
sible electric shock.
▪When replacing a light bulb,
the maximum wattage rating
of replaceable light bulbs
must be visible.
▪This appliance is intended for
use in the home and similar
settings such as: in staff kit-
chens in shops, offices and
other commercial establish-
ments; in agricultural estab-
lishments; by guests in hotels,
motels and other accommod-
ation establishments; in bed
and breakfast establishments.
▪Do not operate the appliance
using an external time switch
or a separate remote control
system.
▪Failure to follow the cleaning
instructions may cause a fire
hazard.
▪Do not flambé food under-
neath the range hood.
1.4 Appliance installation
▪The appliance must be installed by
qualified personnel only.
▪Each step must be carried out and
checked in full in the order specified.
▪When installing the appliance in a fitted
unit, qualified personnel must check
that the screws included in the scope of
delivery are suitable given the materials
and characteristics of the kitchen cab-
inet.

1 Safety precautions
6
▪Electrical connections must be carried
out by qualified personnel in accord-
ance with the guidelines and standards
for low-voltage installations and the spe-
cifications of the local electricity supply
companies.
▪A plug-in appliance may only be con-
nected to a socket outlet with earthing
contact, installed according to specifica-
tions. An all-pole mains isolating device
with 3mm contact opening should be
provided in the house wiring system.
Switches, plug and socket devices, cir-
cuit breakers and fusible cut-outs which
are accessible after installation and
which have all-poles switching are per-
missible as isolating devices. Effective
earthing and separately installed neutral
and earth conductors ensure safe and
fault-free operation. After installation,
live parts and cables with basic insula-
tion must not be accessible. Check old
installations.
▪Refer to the identification plate for in-
formation on the required mains
voltage, current type and fuse protec-
tion.
▪All plastering, plasterboarding, wall pa-
pering or painting work is to be carried
out prior to installing the appliance.
▪Efficient repairs can only be guaranteed
if it is possible to de-install the complete
appliance at any time without causing
any damage.
1.5 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪Observe the official regulations for the
exhaust-air layout.
▪Dispose of the packaging material in
accordance with local regulations.
Correct use
▪The appliance is designed for use in
the home for extracting cooking fumes
and smells from above the cooking sur-
face.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings,
as well as affect the functioning of the
appliance. If the appliance is not work-
ing properly or in case a repair is
needed, follow the instructions given in
the 'Service & Support' section. Contact
our Customer Services if necessary.
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
Note on use
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪Ensure there is adequate ventilation
when the extractor fan is on so as to
avoid creating underpressure in the kit-
chen and to achieve optimal air extrac-
tion.
▪Avoid a cross-current of air, which
could blow the cooking vapours over
the cooking area.
▪If other appliances – fired by gas or
other fuels – are being used at the
same time, ensure that there is a suffi-
cient supply of fresh air. This does not
apply to air recirculation appliances.
▪If other firing systems are being used at
the same time (e.g. wood, gas, oil or
coal fired heating appliances), safe op-
eration is only possible providing a
room negative pressure of 4Pa
(0.04mbar) is not exceeded at the loc-
ation of the appliance. Risk of toxic

1 Safety precautions
7
fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-clos-
able openings in doors or windows and
in combination with an air-intake/ex-
haust-air wall box or by other technical
means.
▪When cleaning the appliance make
sure no water gets inside it. Use a mod-
erately damp cloth only. Do not spray
the inside or outside of the appliance
with water. Do not use a steam cleaner.
If water gets inside the appliance, it can
cause damage.
▪Accessible parts may become hot when
used with cooking appliances.
Caution: Burns hazard!
▪Do not leave the appliance unattended
when deep-frying on the cooking sur-
face. The cooking oil in the deep-frying
appliance could overheat and catch
fire. Constantly monitor the temperature
of the cooking oil, keeping it below the
temperature at which it can catch fire.
Change the cooking oil regularly – dirty
oil catches fire more easily than clean
oil.
Caution: Risk to life!
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren and animals. Danger of suffoca-
tion! Keep packaging material away
from children and animals.
▪When carrying out maintenance work
on the appliance, including replacing
light bulbs, cut off the electricity supply
to the appliance: remove the screw fuse
from the holder or switch the circuit
breaker off, or disconnect from the
mains supply.
How to avoid damaging the appliance
▪Observe the cleaning intervals. Failure
to do so can increase the fire hazard
due to the build-up of grease in the
metal grease filters.

2 Appliance description
2.1 Introduction
The appliance is designed for use in the home for extracting cooking odours from above
a cooking area and can be used in the extraction or recirculation mode.
2.2 Extraction mode
A fan extracts cooking fumes and smells from above the cooking surface. The metal
grease filters clean the extracted air, which is then passed through a connecting pipe fit-
ted with an integrated non-return valve and through the air duct to the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the air that is
being extracted.
2.3 Recirculation mode with activated charcoal filter
A fan extracts cooking fumes and smells from above the cooking surface. The air is
passed through the metal grease filter and activated charcoal filter, grease particles and
odours are largely removed from the air and it is then circulated back into the room.
If activated charcoal filters are not supplied with the appliance, these should be
ordered and installed before using the appliance for the first time.
2.4 Equipment
▪Flat pull-out deflector plate
▪Extractor fan with 3 power levels
▪Operating elements
▪LED lighting
▪Metal grease filters
▪Activated charcoal filter for recirculation mode (not included in the scope of delivery,
available as an accessory)
2.5 Construction
1Flat pull-out deflector plate
1
5
3
4
2
2Grip
3Illumination with cover
4Metal grease filters
5Operating elements
8

3 Operation
2.6 Operating elements
Switch extractor fan on/off
Power level 2
Power level 3
Switch illumination on/off
Depending on the model and features, the specification of your appliance may dif-
fer in individual details from the standard specification described.
3 Operation
3.1 Switching the appliance on
▸ Pull the deflector plate completely out.
▸ Press the button.
–The appliance switches on at power
level1.
3.2 Setting power level
▸ Press the / or button.
–The corresponding power level switches on.
We recommend switching the appliance on at level 2 some 5minutes before start-
ing to cook. Leave the appliance running for a few minutes after cooking so as to
extract all the cooking smells.
3.3 Switching the illumination on/off
▸ Press the button.
–The illumination comes on.
▸ Press the button again.
–The illumination switches off.
The illumination does not switch off automatically when the deflector plate is
pushed in.
9

4 Care and maintenance
3.4 Switching appliance off
▸ With the appliance running, re-
peatedly press the button or push
the deflector plate completely in.
–The appliance switches off.
If the deflector plate is pulled completely out again, the extractor fan comes on at
the level previously set.
4 Care and maintenance
4.1 Cleaning the housing
Make sure no water gets inside the appliance. If water gets into the appliance, it
can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they
can damage the surface. Before cleaning the appliance, disconnect the power
supply and switch off the fuse or circuit breaker.
Exterior
▸ Clean using a clean, damp cloth and a mild cleaning agent, then wipe dry.
Interior
Grease and condensate water can build up on the inside around the metal grease filters.
▸ Clean using a clean, damp cloth and a mild cleaning agent, or a soft brush as
needed, then dry well using kitchen towel.
4.2 Metal grease filters
The metal grease filters must be cleaned at least once a month with normal use. If prop-
erly cared for, the grease filters should provide years of service.
Removing
Using both hands, carefully remove the metal grease filters, making sure not to
drop or damage them.
10

4 Care and maintenance
▸ Pull the deflector plate 1 completely
out.
▸ Push the grip 2 on the grease filter in.
–This releases the grease filter 3.
▸ Carefully pull the grease filter 3 down
and out of the fixture.
▸ Clean the grease filter 3.
2
31
Cleaning
▸ Clean the grease filters 3 in the dishwasher.
▸ Select an «intensive» or «heavy» wash programme with a warm prewash.
Cleaning may cause the metal grease filters to become slightly discoloured. How-
ever, this will not affect the functioning of the filters in any way.
If no dishwasher is available:
▸ Clean the grease filters 3 in the sink with hot water and detergent.
▸ Then soak the grease filters 3 in hot water in the sink for about 2 hours and finally
clean with a washing-up brush. Rinse well with clean cold water.
Installing
▸ Reassemble in the reverse order.
3
1
2
Ensure all centring pins 1 are positioned properly in the receiving slots 2.
11

4 Care and maintenance
4.3 Standard activated charcoal filter
The standard activated charcoal filter needs replacing after an operating period of 3 to 6
months. Standard activated charcoal filters cannot be washed or regenerated.
Removing/Installing
▸ Pull the deflector plate completely
out and switch the appliance off.
▸ Remove the metal grease filters.
▸ Remove the activated charcoal filter
1. Observe the guide/locking device
on the outside of the activated char-
coal filter.
▸ Dispose of spent activated charcoal
filter 1 at a suitable recycling point 2.
▸ Insert new activated charcoal filter 3
of the same type, ensuring that the
locking device is positioned cor-
rectly.
2
1
3
4.4 Replacing the LED light bulbs
Disconnect the appliance from the mains and disengage the fuse or automatic cir-
cuit breaker.
Removing/Installing
▸ Remove both grease filters.
–The light cover can be accessed
from the back.
▸ Replace the light bulb with a new
light bulb of the same type (see des-
ignation on the light bulb housing or
on the identification plate).
▸ Insert the grease filters and engage
the fuse or automatic circuit breaker.
12

5 Trouble-shooting
5 Trouble-shooting
This section lists faults that can be solved simply by following the instructions given. If
the fault cannot be remedied, please call Customer Services.
Before calling Customer Services: Please note down the serial number (for FN, see iden-
tification plate under «Technical data») and what led to the fault.
Malfunction Possible cause Solution
Appliance is not
working.
▪An interruption in the
power supply.
▸ Check the power supply.
▸ Change fuse.
▸ Reset automatic circuit breaker.
Illumination is not
working.
▪LED light bulb is defective. ▸ Replace the LED light bulb.
Malfunction Possible cause Solution
Appliance is not ex-
tracting enough air.
▪Metal grease filters are
dirty.
▸ Clean metal grease filters.
▪Recirculation mode only:
Activated charcoal filters
are saturated.
▸ Clean and reactivate or replace
activated charcoal filters.
▪Extraction mode only: In-
sufficient fresh air intake.
▸ Ensure fresh air intake is suffi-
cient.
6 Accessories and spare parts
Please give product family of the appliance and exact designation of the accessory or
spare part when ordering parts.
LED light bulb (E14)
Metal grease filters
Standard activated charcoal filter
(set of two filters)
13

7 Technical data
7 Technical data
Electrical connection
Accessing the identification plate:
▸ Remove the metal grease filters.
▪The identification plate is located on the inside of the appliance.
▪A second identification plate is included in the scope of delivery and should be
retained for the purpose of appliance identification.
7.1 Product fiche
In accordance with EU Regulation No. 65/2014 and No. 66/2014
Description Abbreviations Unit Value
Brand S - V-ZUG LTD
Model identifier M - 61034 / 61035
Annual Energy Consumption AEChood kWh/a 49.9 / 55.3
Energy Efficiency Index EEIhood % 73.8 / 79.2
Energy Efficiency Class EEC - C / C
Fluid Dynamic Efficiency FDEhood % 15.9 / 15.2
Fluid Dynamic Efficiency Class FDEC - D / D
Lighting Efficiency LEhood lux/W 13.0 / 13.0
Lighting Efficiency Class LEC - D / D
Grease Filtering Efficiency GFEhood % 76 / 76
Grease Filtering
Efficiency Class
GFEC - C / C
Air flow at minimum
speed
Qmin m3/h 272 / 272
Air flow at maximum
speed (intensive or boost excluded)
Qmax m3/h 384 / 400
Air flow at intensive
or boost setting
Qboost m3/h - / -
Airborne acoustical A-weighted
Sound Power Emissions at minimum
speed
SPEmin dBA 61 / 60
Airborne acoustical A-weighted
Sound Power Emissions at maximum
speed
SPEmax dBA 69 / 70
Airborne acoustical A-weighted
Sound Power Emissions at intensive
or boost setting
SPEboost dBA - / -
Measured power consumption of off
mode
P0W - / -
14

7 Technical data
Measured power consumption of
standby mode
PsW - / -
Time increase factor f - 1.4 / 1.5
Measured air flow rate at the best ef-
ficiency point
QBEP m3/h 224.0 / 256.0
Measured air pressure at the best ef-
ficiency point
PBEP PA 227.0 / 199.0
Measured value of the electric power
input at the best efficiency point
WBEP W 89.0 / 93.0
Nominal power of the lighting system WLW 6.0 / 6.0
Average illumination of the lighting
system on the cooking surface
Emiddle lux 78 / 78
Sound power level Lwa dBA - / -
15

8 Disposal
8 Disposal
8.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
8.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
8.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the en-
vironment.
▪For more information, please contact the local authorities.
16

9 Index
A
Accessories ...................................................... 13
Appliance description ........................................ 8
Appliance disposal .......................................... 16
Appliance installation ......................................... 5
C
Care and maintenance ................................... 10
Cleaning
Housing ......................................................... 10
Metal grease filters...................................... 10
Standard activated charcoal filters
........................................................................ 12
Construction......................................................... 8
D
Disposal............................................................. 16
E
Electrical connection ....................................... 14
Equipment ............................................................ 8
Extraction mode .................................................. 8
I
Identification plate............................................ 14
Illumination ........................................................... 9
Initial set-up .......................................................... 6
M
Model number ..................................................... 2
N
Notes.................................................................. 18
O
Operating elements ..................................... 9, 20
P
Product family...................................................... 2
Product fiche..................................................... 15
Q
Queries .............................................................. 19
R
Recirculation mode ............................................ 8
Replacing light bulb ........................................ 12
S
Safety precautions
Appliance installation.....................................5
Appliance-specific ..........................................5
Before using for the first time.......................6
Correct use ......................................................6
General .............................................................4
Instructions for use.........................................6
Note on use .....................................................6
Service & Support................................... 19
Service agreement........................................... 19
Setting power level ............................................. 9
Spare parts ....................................................... 13
Switching appliance off................................... 10
Switching appliance on...................................... 9
Symbols ................................................................ 4
T
Technical data .................................................. 14
Trouble-shooting .............................................. 13
Type....................................................................... 2
V
Validity................................................................... 2
17

18
Notes

10 Service & Support
The «Trouble-shooting» section gives you valuable tips on how to deal with minor
malfunctions yourself, saving you the time and trouble of calling out a service tech-
nician and any cost that goes along with it.
Information on the V-ZUG warranty can be found at www.vzug.com →Service
→Warranty information. Please read this information carefully.
Please register your V-ZUG appliance immediately:
▪online at www.vzug.com →Service →Online warranty registration or
▪using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault
in the appliance during the guarantee period. You will require the serial number (FN) and
appliance designation to register your appliance. You will find them on the identification
plate of your appliance.
My appliance information:
FN: ___________________ Appliance: _____________________
Please have this appliance information to hand when contacting V-ZUG. Thank you.
▸ Remove the metal grease filters.
–The identification plate is located on the inside of the appliance.
–A second identification plate is included in the scope of delivery and should be re-
tained for the purpose of appliance identification.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our pro-
gressive service agreements. You can contact us by calling tel. [phone] or by
going to our website at www.vzug.com.
19

Quick instructions
Switch extractor fan on/off
Power level 2
Power level 3
Switch illumination on/off
V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug
Tel. [phone], Fax [phone]
[email protected], www.vzug.com
Service Centre: Tel. [phone]
1039476-R02
